600 series

AVANT 645i

Demo drive

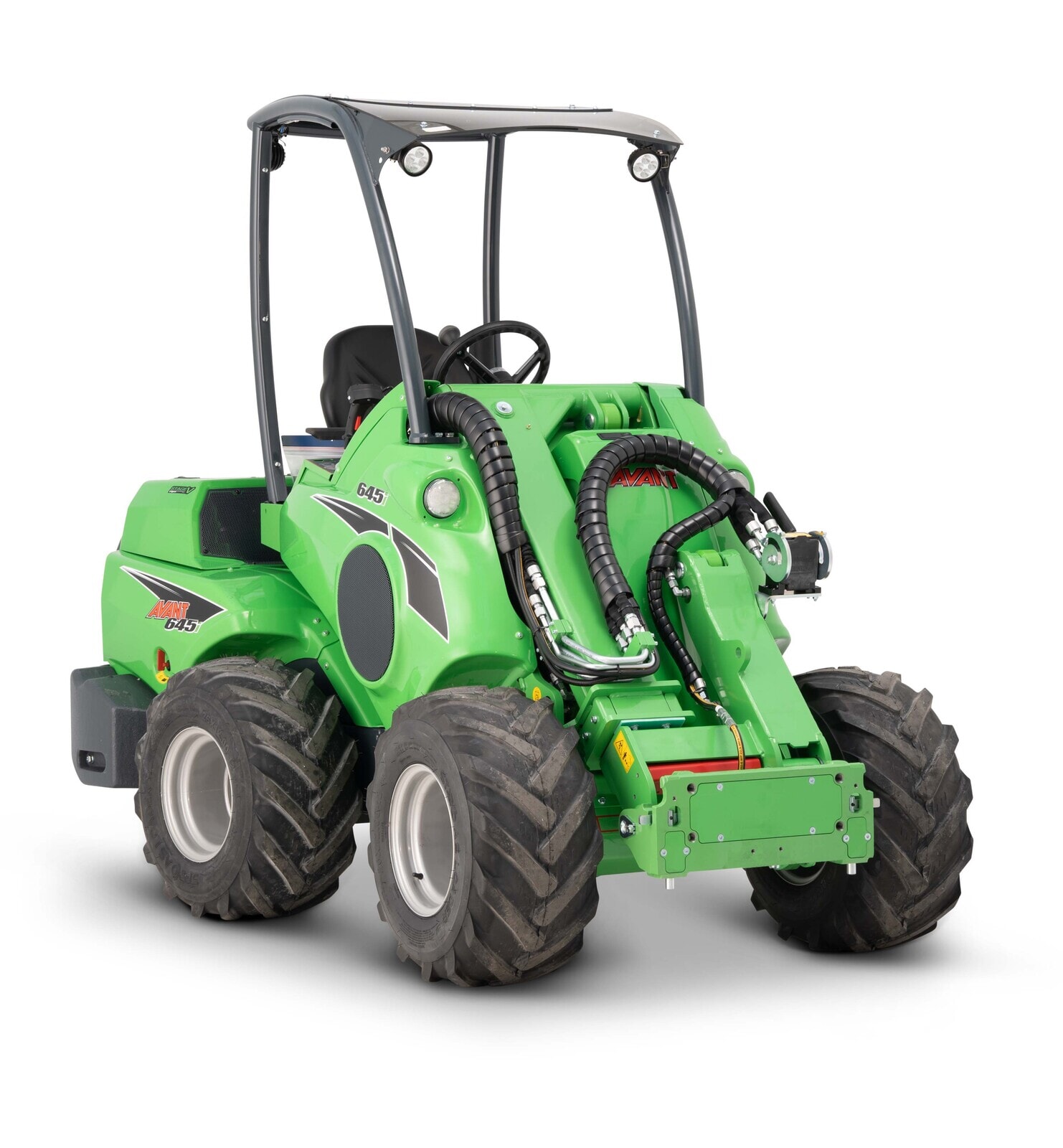

AVANT 645i

The Perfect Combination of Power and Agility

Lift capacity

1190 kg

Lift height

2835 mm

Engine power

33 kW (44 hp)

Speed

12 km/h

The Avant 600 series loaders are true all-round multi-purpose machines. They embody a very compact size, high lifting capacity, pulling force, driving speed, and output of auxiliary hydraulics. The lifting capacity of almost 1200 kg is enough for many situations, and the powerful auxiliary hydraulics enable the use of most Avant attachments. These compact and light loaders with their attachments can easily be transported on a trailer or a larger van.

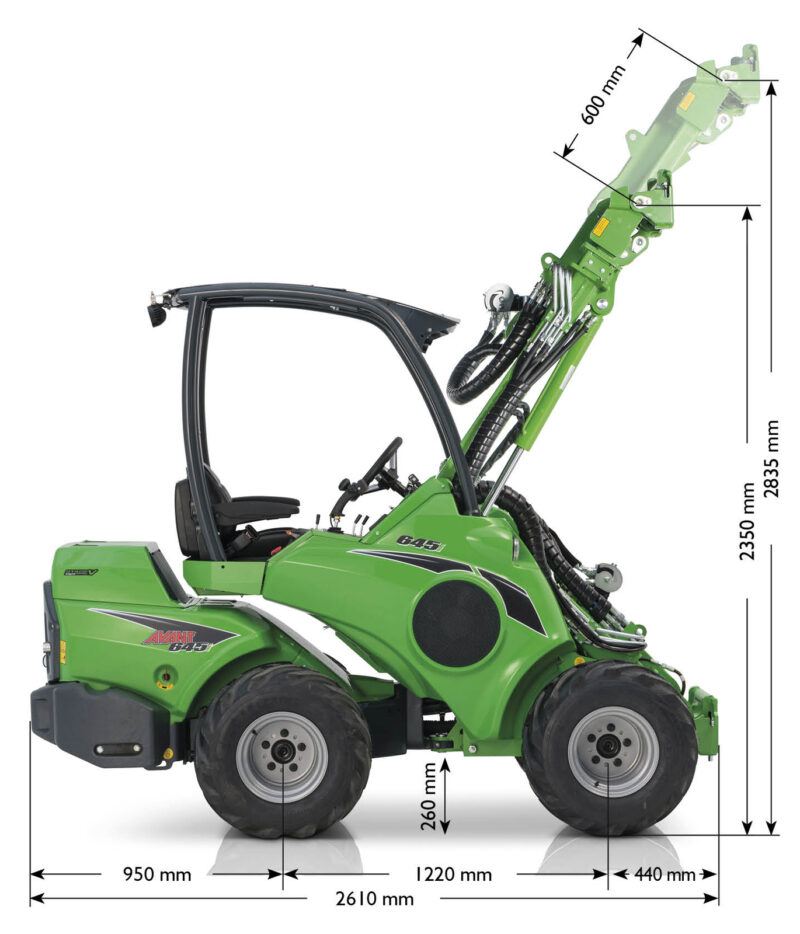

Technical specifications

Download the manual

Standard wheels: 26x12.00-12 TR/GR
Tyre tread: Tractor/Grass
Transmission: Hydrostatic, Avant Optidrive®
Wheel size: 26 x 12.00-12
Width: 1290 mm
Length: 2610 mm
Height: 2060 mm
Telescope length: 600 mm
Weight ROPS / GT: 1620 kg / 1770 kg
Weight: 1620 kg
Turning radius inside/outside: 940 mm / 2250 mm
Pulling force max.: 1400 kp
Drive speed: 12 km/h
Lift Height: 2835 mm
Lift Capacity: 1190 kg
Auxiliary hydraulics, oil flow / pressure: 75 l/min / 200 bar
Engine make and type: Kubota V1505-CR-TE5, Stage V
Engine power standard: ECE R120
Fuel: Diesel
Engine power: 33 kW (44 hp)
Maximum torque: 117 Nm @ 2000 rpm

Options

Choose the right options for your Avant

Loading ramps Discover

Transport cover Discover

Weather cover Discover

Tie down bracket on wheel hub Discover

Tie down bracket in the rear/on the sides Discover

Lifting kit, for machines with ROPS frame Discover

Exhaust purifier Discover

Engine heater Discover

Full suspension seat Discover

Fire extinguisher Discover

Mudguards rear Discover

HD cover plates Discover

GT Cab Discover

Rear wall Discover

L Cab Discover

Beacon Discover

Road traffic light kit Discover

Trailer socket, 7-pin Discover

Work light kit, on ROPS frame Discover

Rear guard Discover

Snow chains Discover

Trailer coupling Discover

Attachment mounting plate in the rear Discover

Rear side weights 180 kg Discover

Rear side weights 80 kg Discover

Back weight Discover

Reverse beeper Discover

Anti-slip valve Discover

Second auxiliary hydraulics outlet in the front Discover

Control switch pack for rear mounted attachments Discover

Auxiliary hydraulics outlet in the rear, double acting Discover

Joystick 8 functions Discover

Opticontrol® Discover

Hydraulic attachment coupling plate Discover

Smooth drive Discover

Boom floating, machine with self levelling Discover

Boom floating, machine without self levelling Discover

Boom self levelling Discover
