OptiTemp® Cube 47

Electrify your off-grid worksite

Mobile energy & charging

Battery capacity

47 kWh

Three-phase power output

11 kW

Charging time

4 h

Operating temperature

-30…+50°C

Avant’s battery expertise and immersion cooling technology have been adapted into a completely new format, and we are introducing a new solution, OptiTemp® Cube 47, to the European market and some of Asian and African markets. Our new mobile power units offer Avant loader users a completely new level of freedom to work even on remote job sites without access to the electrical grid.

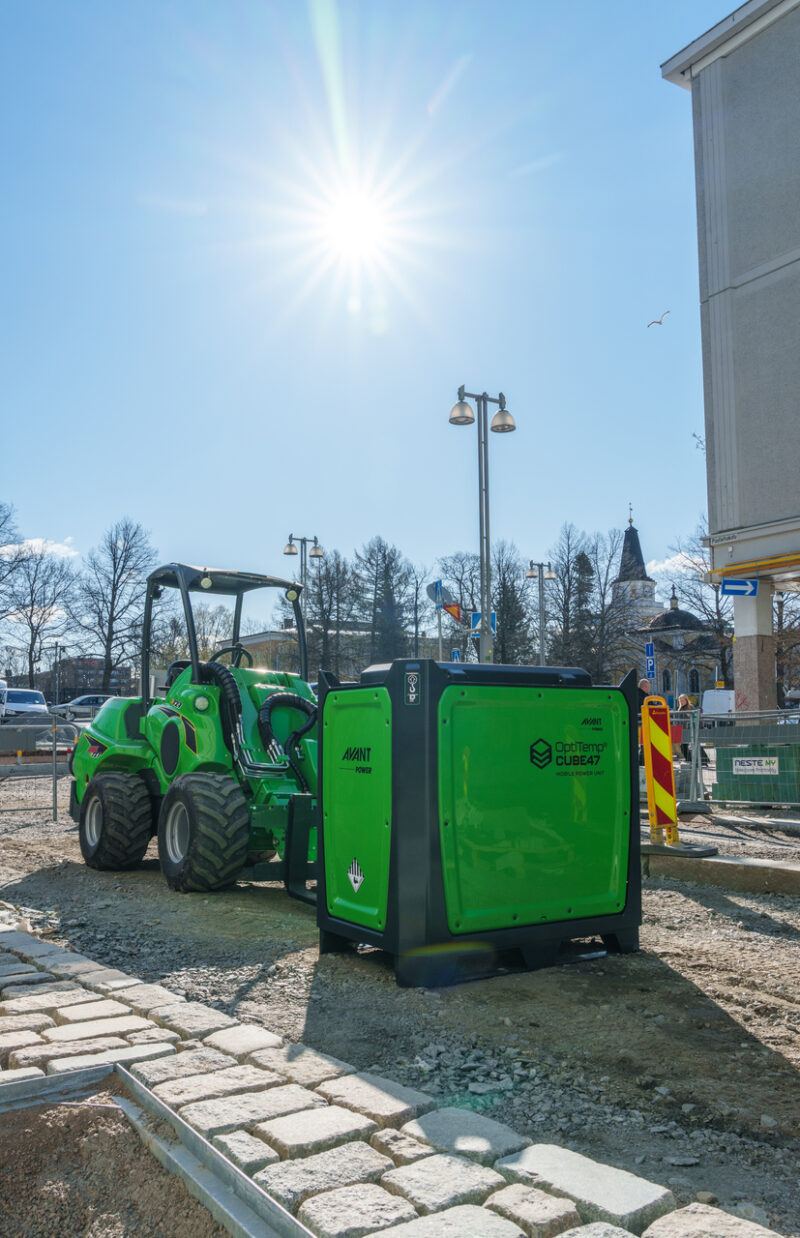

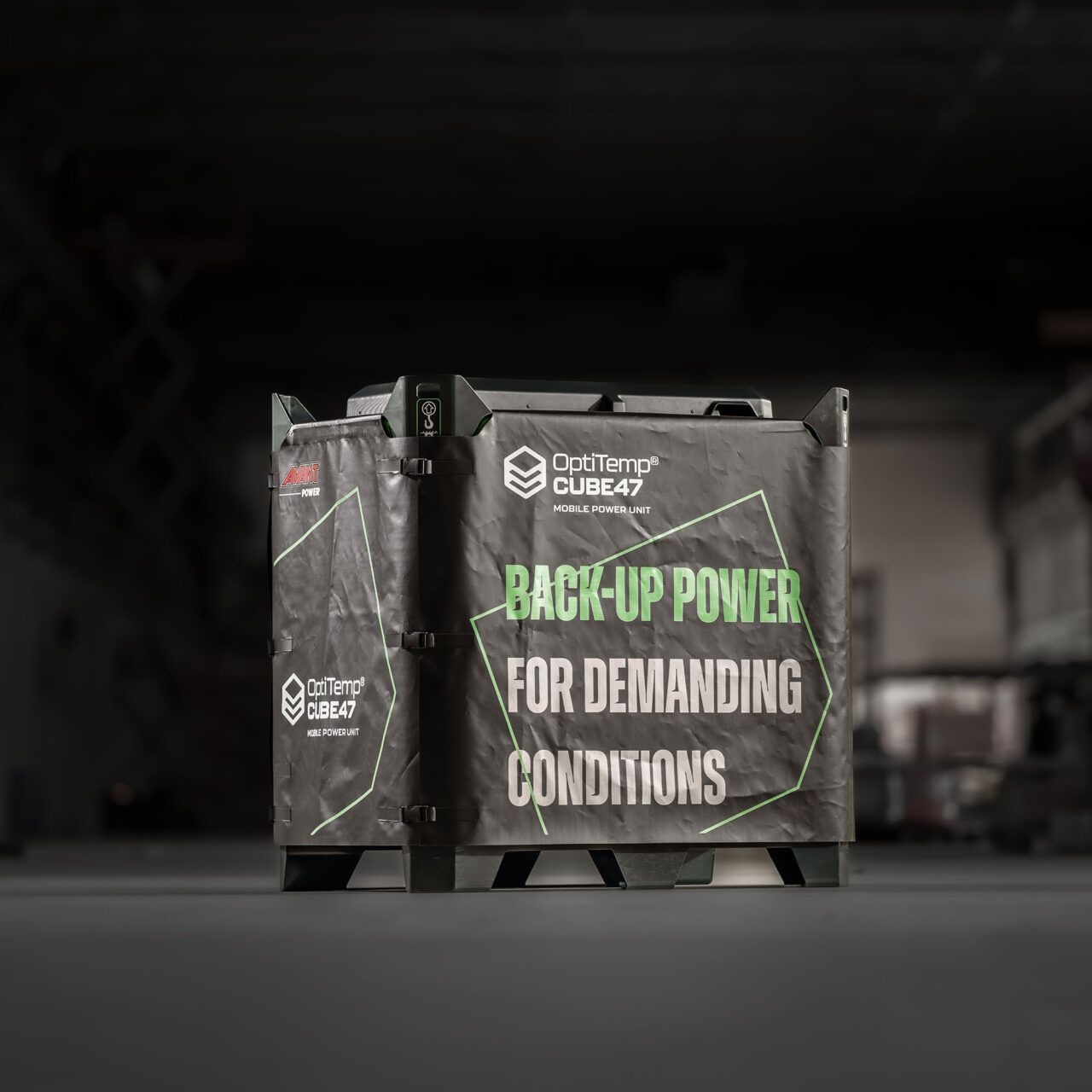

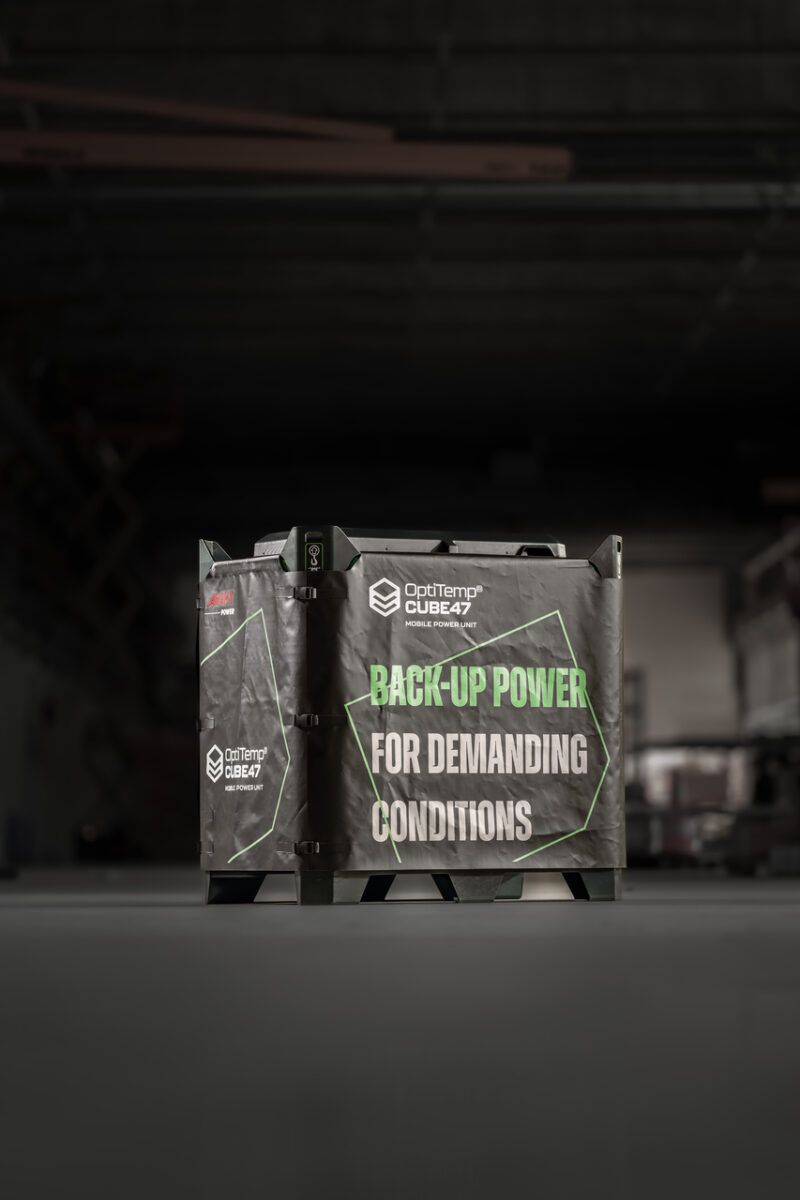

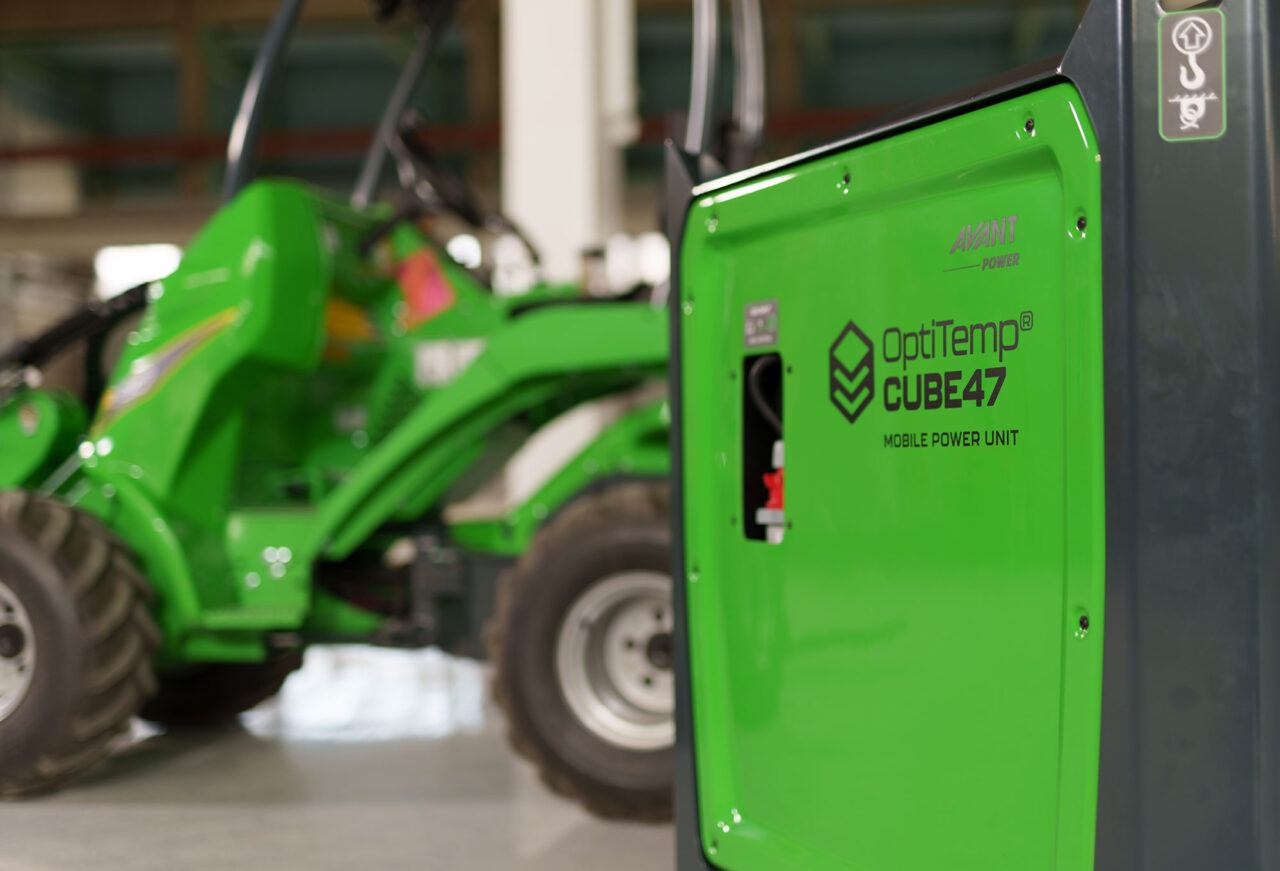

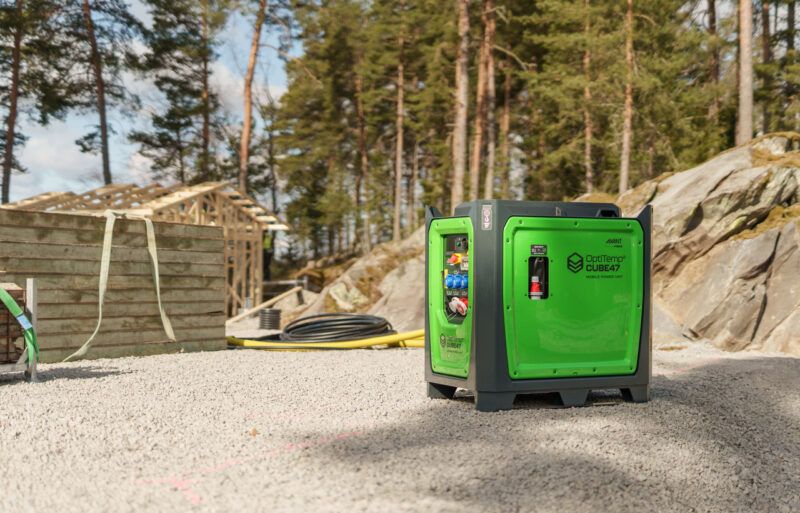

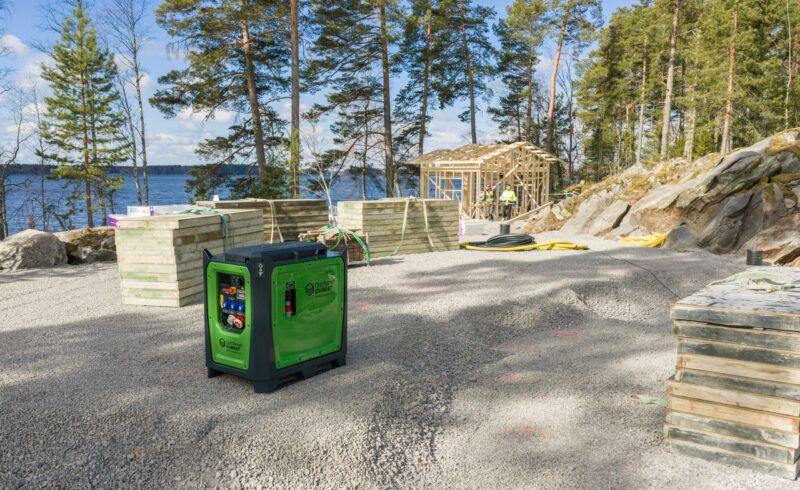

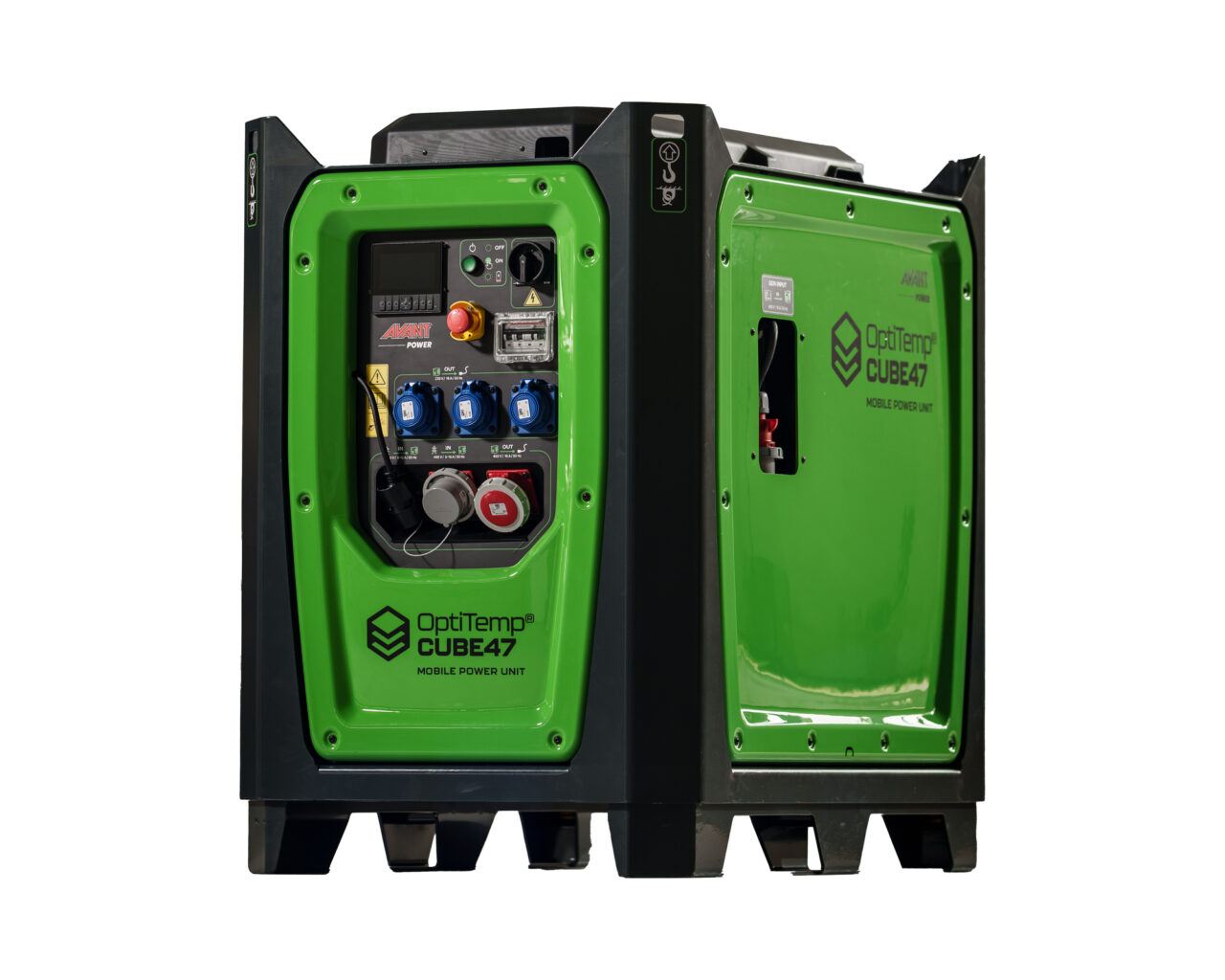

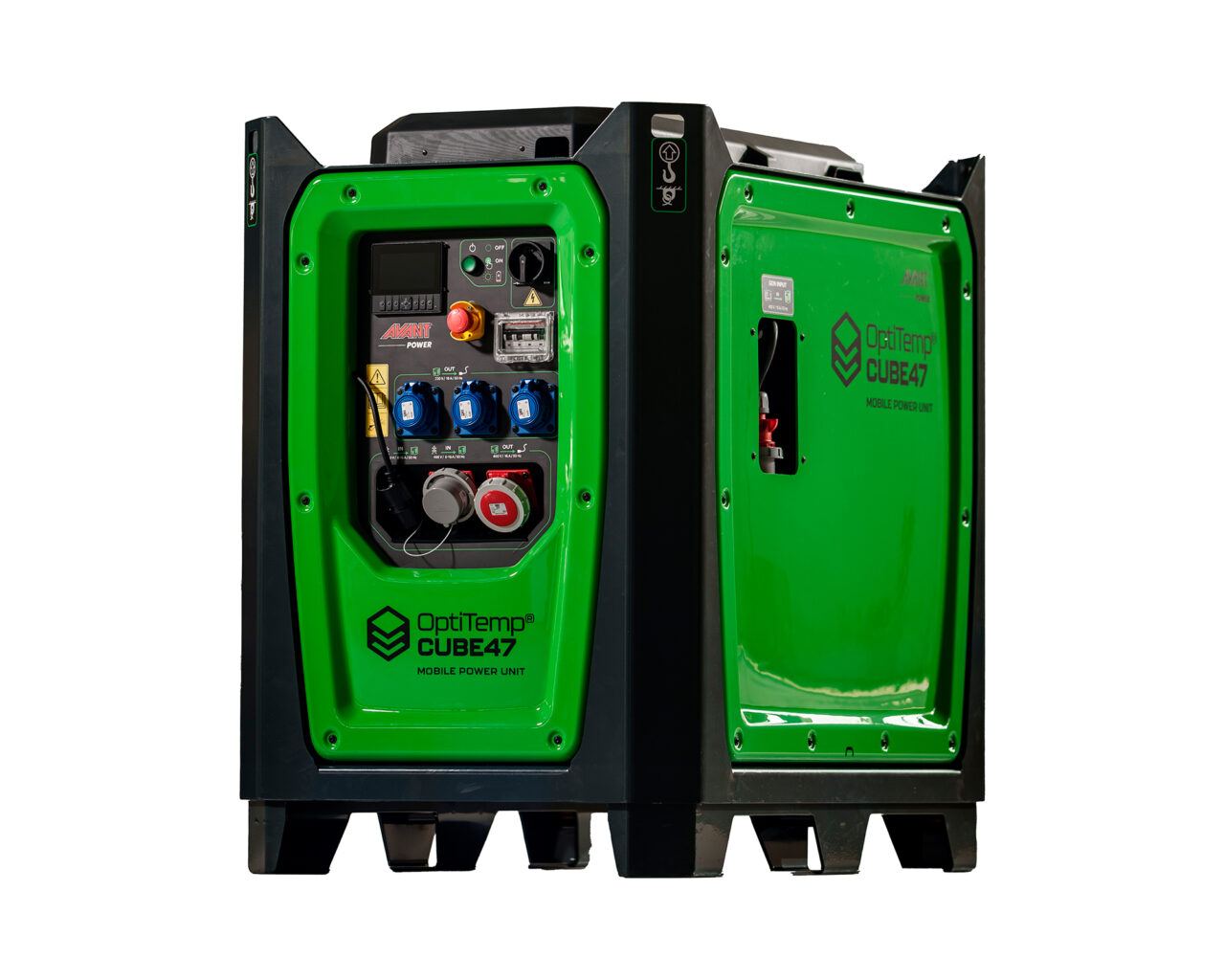

OptiTemp® Cube 47 is a portable, durable and compact mobile power unit that electrifies off-grid worksites anywhere. With 47 kWh battery capacity, it powers electric Avant loaders, other machinery, and tools e.g. in demolition, construction, farming, mining, and events. The unit can be charged overnight and easily transported where power is needed.

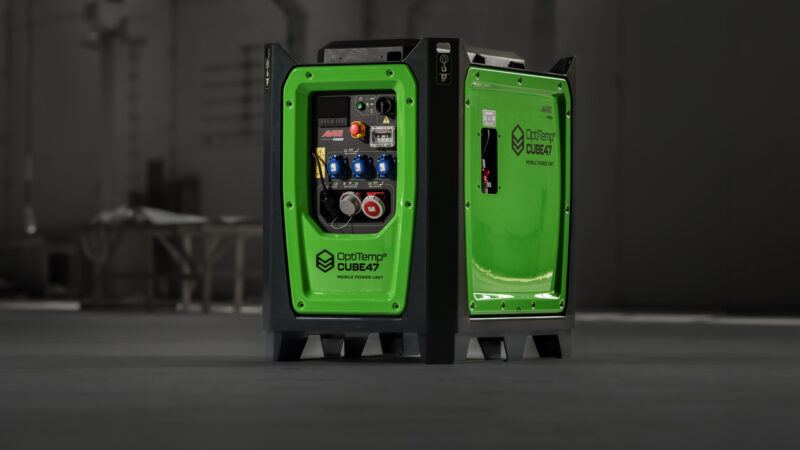

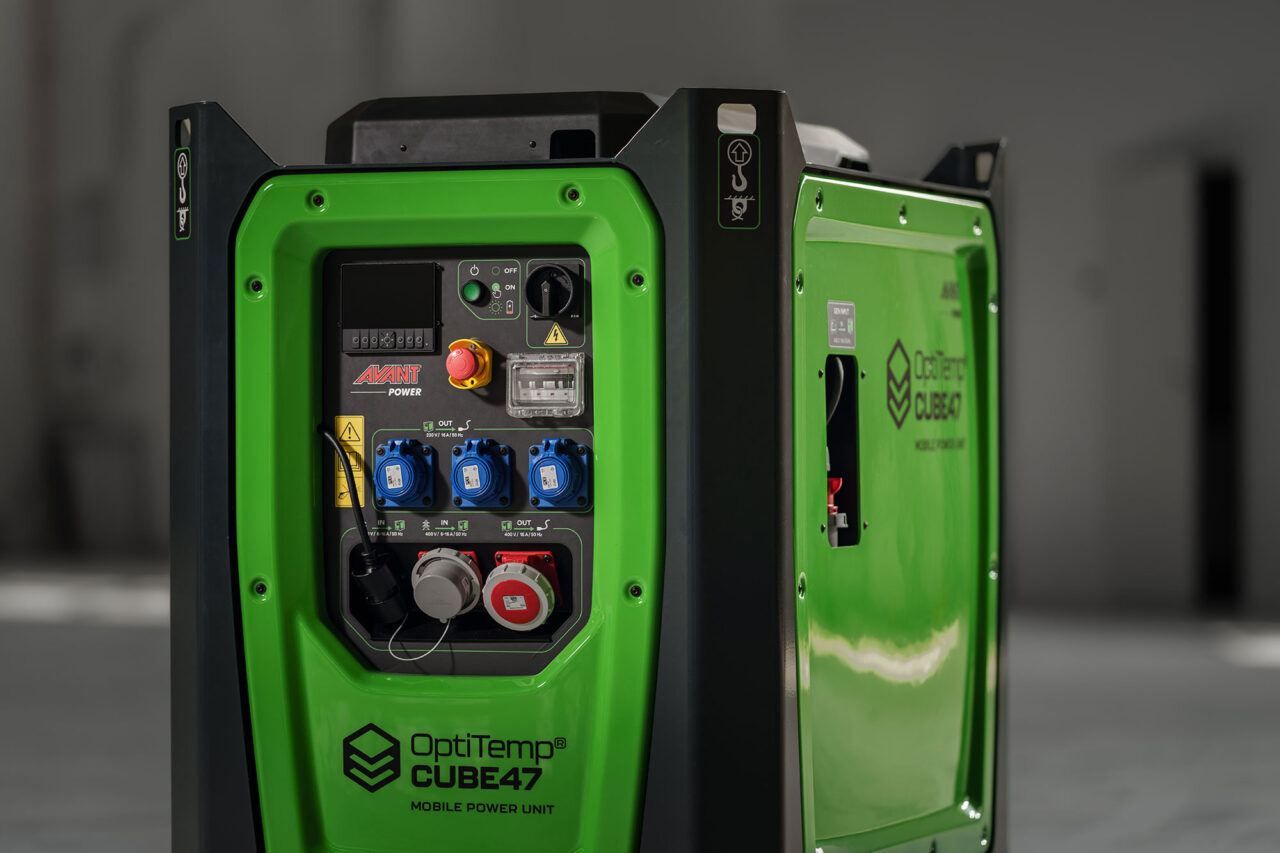

The OptiTemp® Cube 47 is simple to use: charge it, plug in, and start working. Standard features include one high-power 3-phase inlet, one high-power 3-phase outlet, three 1-phase outlets, simultaneous charging and discharging, smart display, IoT connectivity with Over-the-Air updates, and reinforced side panels.

Also used in Avant e-series loaders, Avant Power’s OptiTemp® immersion cooling technology optimizes battery temperature, extends service life, and ensures high fire safety plus compliance with UN and EU standards.

Versatile use – power electric loaders, machines, and tools anywhere

Plug & play – easy to charge, transport, handle, and use

Comfortable operation – quiet and locally emission-free

Safe in demanding conditions – suitable for hot/cold climates and underground worksites

Optimized battery temperature and long service life – immersion cooling technology

OPTITEMP® CUBE 47

Technical information

Battery capacity	47 kWh
Electric input voltage / current / type	1 x 400 VAC / 16 A / CEE
Electric output voltage / current / type	1 x 400 VAC / 16 A / CEE 3 x 230 VAC / 16 A / Type F, E, G, J, K or L
Max inlet/outlet power	11 kW (3-phase)
Frequency	50 Hz
Inverter protection	Overload, overheat, short circuit, low battery
Operating ambient temperature	-30…+50°C
Typical charging time (SOC 10–80%)	4 h
Length	1200 mm
Width	800 mm
Height	1160 mm
Weight	730 kg
IP class	IP 54
Product number	A478560

When ordering the OptiTemp Cube, please select the correct standard outlets and optional inlet used in your country.

Features

Reliable off-grid power anywhere

Globally unique battery technology

OptiTemp® Lithium-Ion Power

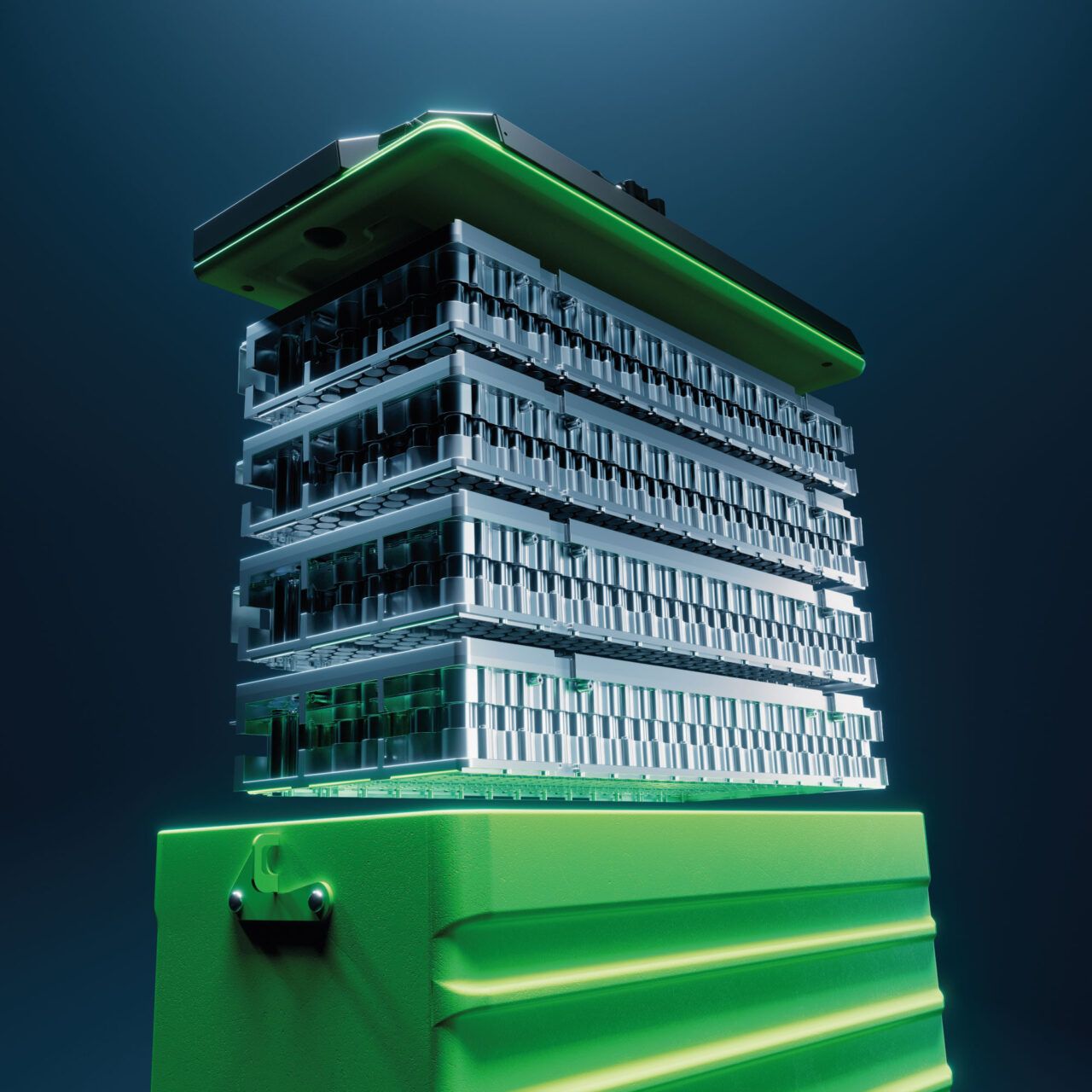

At the core of the OptiTemp® Cube is the unique Avant OptiTemp® battery technology that is also used in Avant’s e series loaders. It is designed and manufactured by Avant Tecno’s subsidiary, Avant Power, in Ylöjärvi, Finland. OptiTemp® batteries ensure safe and reliable performance in all weather conditions and under continuous load.

Unlike conventional battery solutions, Avant OptiTemp® battery packs feature advanced thermal management that keeps cell temperatures at an optimal level – even in extremely cold or hot working conditions. The immersion cooling technology and multi-level protection maximize battery lifespan and safety. Avant is the only loader manufacturer in the world with its own battery production.

With the mobile OptiTemp® Cube, you can keep your work running smoothly even on off-grid worksites.

Globally unique battery technology

Zero emissions

Clean and quiet operation

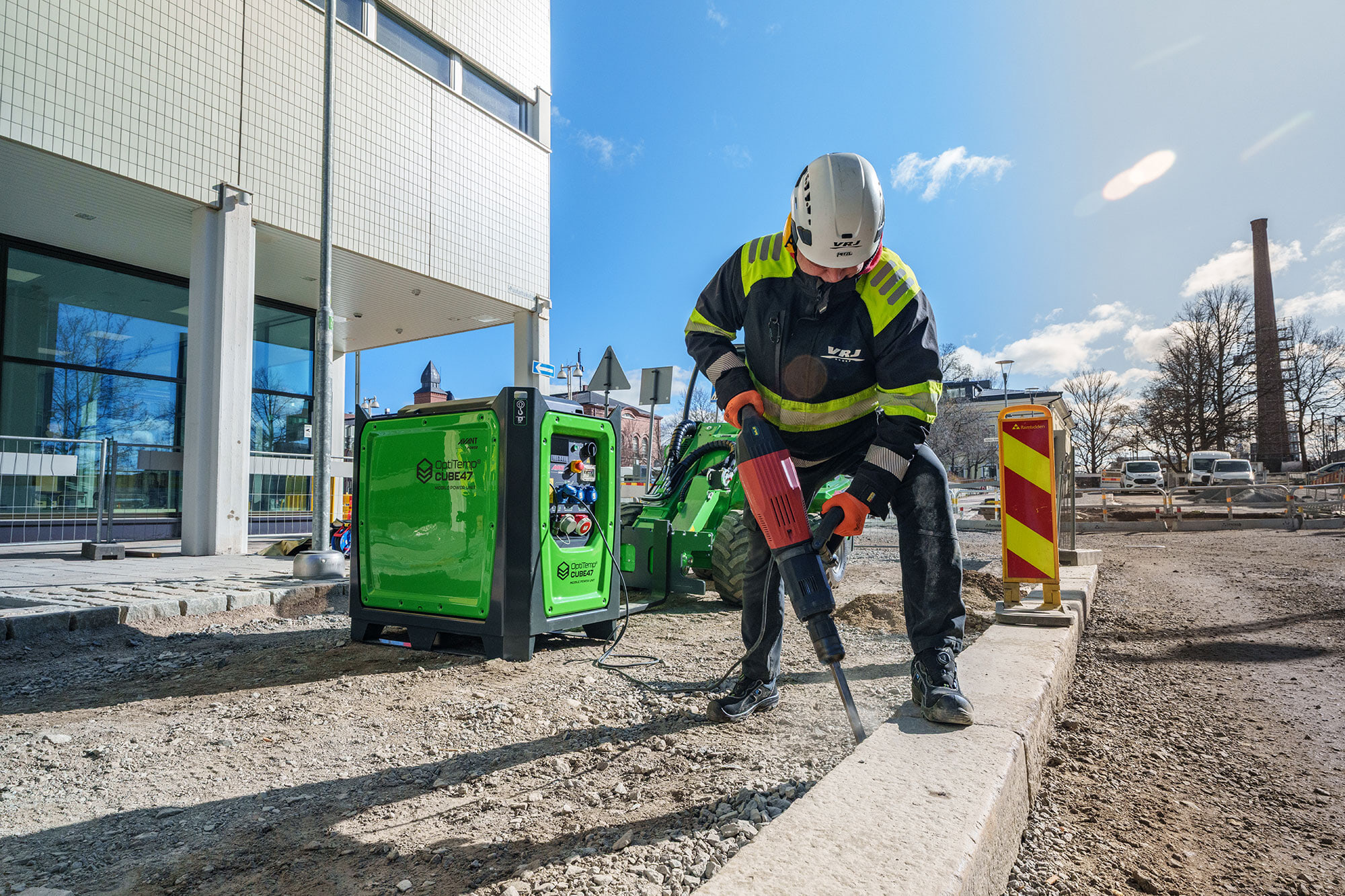

The OptiTemp® Cube delivers clean, quiet and locally emission-free power for worksites where noise, air quality and sustainability matter. It is ideal for remote worksites, events, underground operations and other environments where diesel engines are restricted or prohibited. By eliminating exhaust emissions and reducing noise levels, it improves working conditions while helping operators meet strict environmental and safety requirements.

Zero emissions

Outlets

Country-specific 1-phase outlets

The OptiTemp® Cube can be configured with six different 1-phase outlet types (16A / 3,6kW), depending on the market:

1-phase outlet, Type E – A497583 (France, Belgium, Poland, Slovakia, Czechia)

1-phase outlet, Type F – A497584 (EU)

1-phase outlet, Type G – A497585 (UK, Ireland)

1-phase outlet, Type J – A497586 (Switzerland)

1-phase outlet, Type K – A497587 (Denmark)

1-phase outlet, Type L – A497588 (Italy)

Outlets

Charging

Smart, Efficient Charging Options

The OptiTemp® Cube can be tailored to different charging environments with a range of optional charging solutions.

For locations without a three-phase power supply, the Cube can be equipped with an optional 1-phase charging inlet. Six plug types are available (Type E, F, G, J, K and L) to match local electrical standards and provide convenient charging wherever the unit is used.

A dedicated solar power inlet is available for charging the Cube with renewable energy, helping to reduce operating costs and environmental impact.

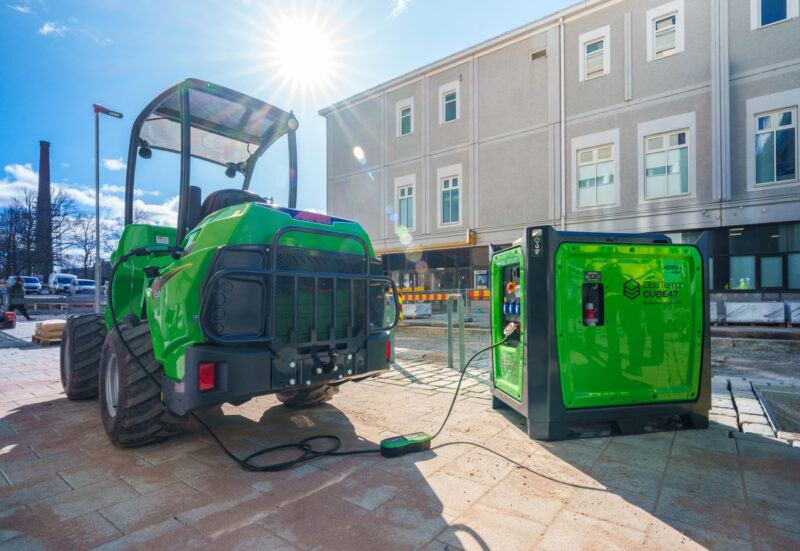

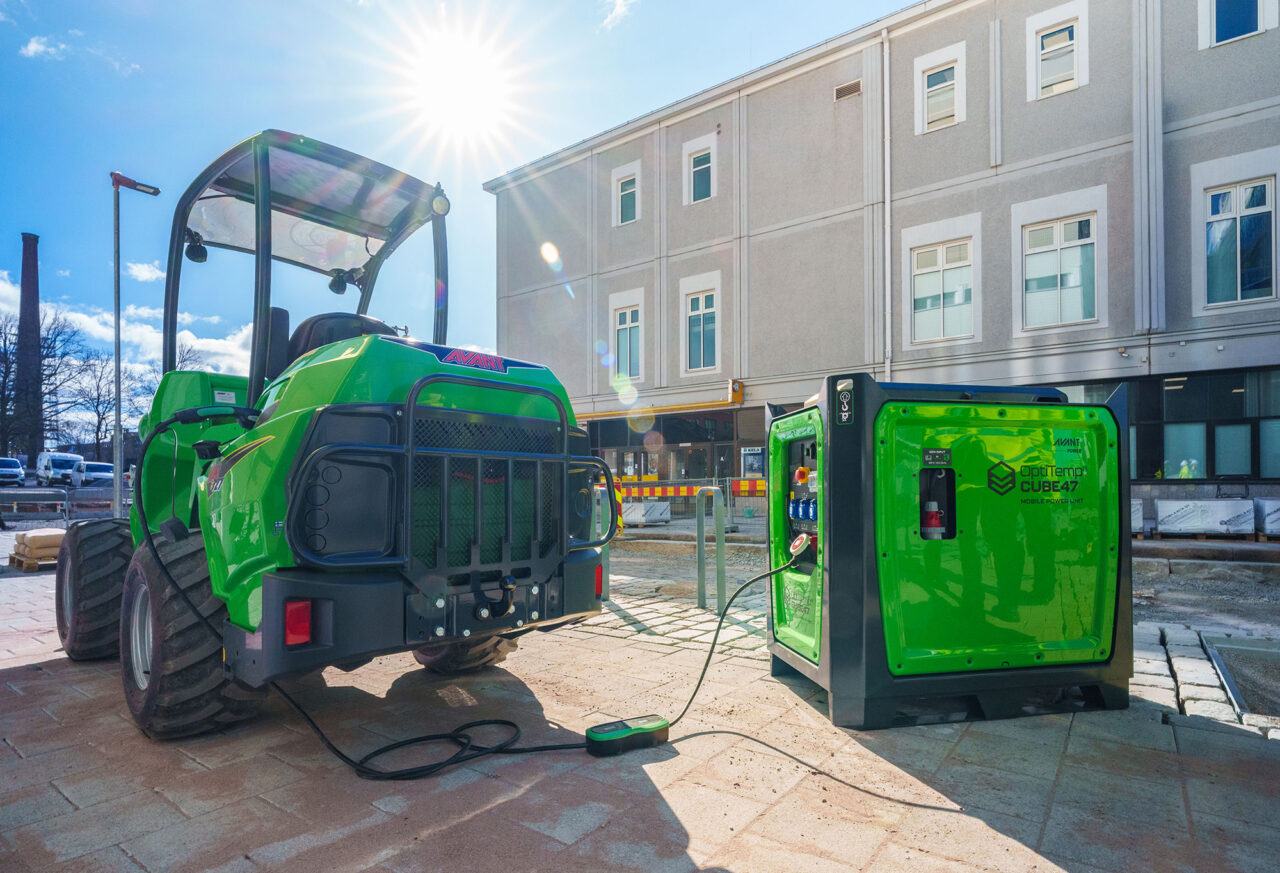

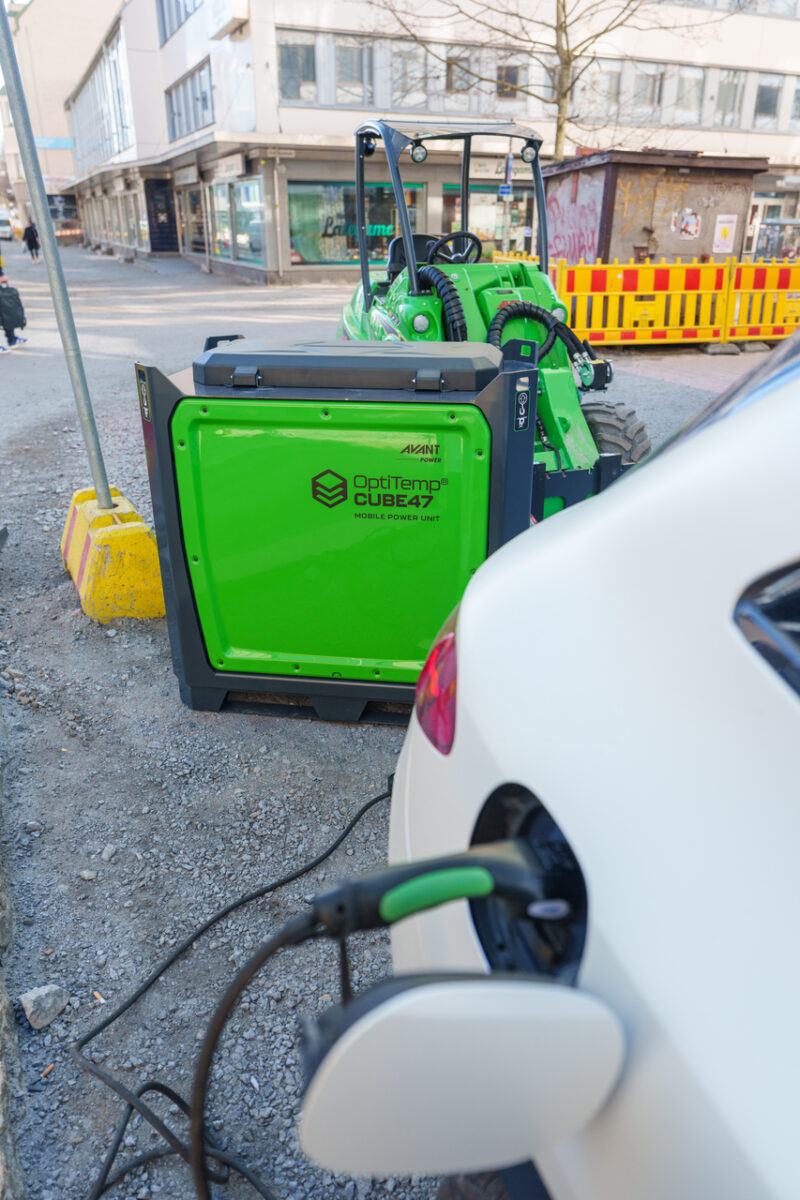

The optional CEE to Type 2 charging cable allows the OptiTemp® Cube to charge electric Avant loaders as well as other electric machines and vehicles equipped with a Type 2 charging connector.

For long-term off-grid applications, an optional generator inlet enables the Cube to be recharged from an external generator when grid power is unavailable. This provides additional flexibility on remote worksites and helps ensure uninterrupted operation over extended periods.
