600 series

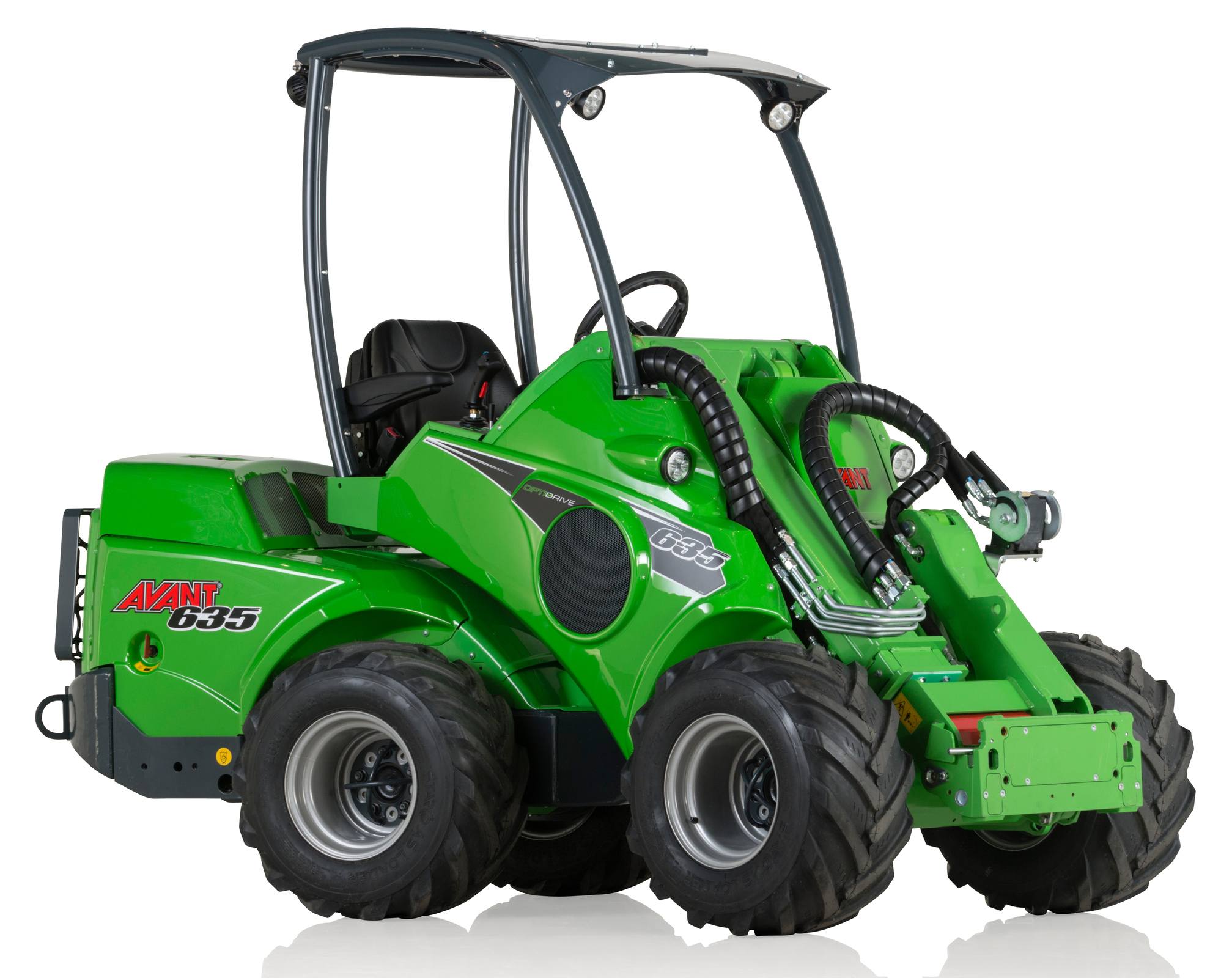

AVANT 635

AVANT 635

Perfect combination of power and maneuverability

Lift capacity

1100 kg

Lift height

2835 mm

Engine power

28 kW (37.5 hp)

Speed

14 km/h

Avant 600 series is the real all-rounder in the range. It combines power, lift capacity and professional hydraulics which are in a very compact package. This makes 600 series a very popular machine for many professionals in landscaping, groundcare, construction, farming, horse stables, and many other customers. The max. 1,1-tonne lift capacity is just perfect for a multitude of jobs and the powerful auxiliary hydraulics runs almost all Avant attachments. The customers also like the easy transporting of 600 series. Thanks to the compact dimensions it is possible to fit both the loader and the attachments on the trailer, and inside the van if necessary.

600 series customers also benefit from Avant’s telescopic boom, which is a standard feature. Lift height and outreach are excellent for a machine of this size and they can be steplessly adjusted with the teleboom. This guarantees very fast and ergonomic load handling.

The great Avant stability is present in 600 series as well, and the excellent visibility to the attachment and work area is valued by all operators. Avant’s 4x4 hydrostatic drive system gives the best possible traction in all situations.

The comprehensive range of options are available for 600 series also, including all cab options. From over 200 attachments specially designed for Avant loaders the customers can choose the best package for any use.

Technical specifications

Download the manual
Standard wheels
26x12.00-12 TR/GR
Transmission
Hydrostatic, Avant Optidrive®
Width
1290 mm
Length
2610 mm
Height
2060 mm
Telescope length
600 mm
Weight ROPS / GT
1530 kg / 1680 kg
Weight
1530 kg
Turning radius inside/outside
900 mm / 2190 mm
Pulling force max.
1200 kp
Drive speed
14 km/h
Auxiliary hydraulics, oil flow max. / Auxiliary hydraulics, pressure max.
66 / 200
Lift Height
2835 mm
Lift Capacity
1100 kg
Auxiliary hydraulics, oil flow / pressure
66 l/min / 200 bar
Engine make and type
Kubota V1505
Engine power standard
ECE R120
Fuel
Diesel
Engine power
28 kW (37.5 hp)
Maximum torque
97 Nm @ 2200 rpm

Options

Choose the right options for your Avant

Tie down bracket on wheel hub Discover Tie down bracket on wheel hub
Tie down bracket in the rear/on the sides Discover Tie down bracket in the rear/on the sides
Lifting kit, for machines with ROPS frame Discover Lifting kit, for machines with ROPS frame
Vehicle identification Discover Vehicle identification
Full suspension seat Discover Full suspension seat
Road traffic light kit Discover Road traffic light kit
Trailer socket, 7-pin Discover Trailer socket, 7-pin
Work light kit, on ROPS frame Discover Work light kit, on ROPS frame
Attachment mounting plate in the rear Discover Attachment mounting plate in the rear
Rear side weights 180 kg Discover Rear side weights 180 kg
Rear side weights 80 kg Discover Rear side weights 80 kg
Drive release valve Discover Drive release valve
Second auxiliary hydraulics outlet in the front Discover Second auxiliary hydraulics outlet in the front
Control switch pack for rear mounted attachments Discover Control switch pack for rear mounted attachments
Auxiliary hydraulics outlet in the rear, double acting Discover Auxiliary hydraulics outlet in the rear, double acting
Adapter cable for attachment control switch pack Discover Adapter cable for attachment control switch pack
Joystick 8 functions Discover Joystick 8 functions
Hydraulic attachment coupling plate Discover Hydraulic attachment coupling plate
Boom floating, machine with self levelling Discover Boom floating, machine with self levelling
Boom floating, machine without self levelling Discover Boom floating, machine without self levelling
Boom self levelling Discover Boom self levelling

Over 200 attachments

Choose the right tools from our versatile selection of attachments

Loads of options

Add efficiency and comfort to your work with options

Contact us

Interested in AVANT 635

Loader options

Customize your Avant loader to match your work and comfort needs with a variety of factory-installed options. From enclosed cabs with heating or AC to road traffic kits, extra hydraulics, and safety features like anti-slip valves and tie-down brackets—Avant options let you build the perfect machine for any job or season.

AVANT manuals

Avant manuals are your go-to resource for safe, efficient, and proper operation of both loaders and attachments. Each manual includes detailed instructions, maintenance guidelines, and technical specs to help operators and technicians get the most out of their machine—whether it's daily use, troubleshooting, or long-term care.

Attachments

With over 200 purpose-built attachments, Avant transforms a single loader into a true multi-tasking machine. Whether you're lifting, digging, sweeping, mowing, or clearing snow, there's an attachment designed to boost productivity and versatility across every season and industry.
