600 series

AVANT 640i

Demo drive

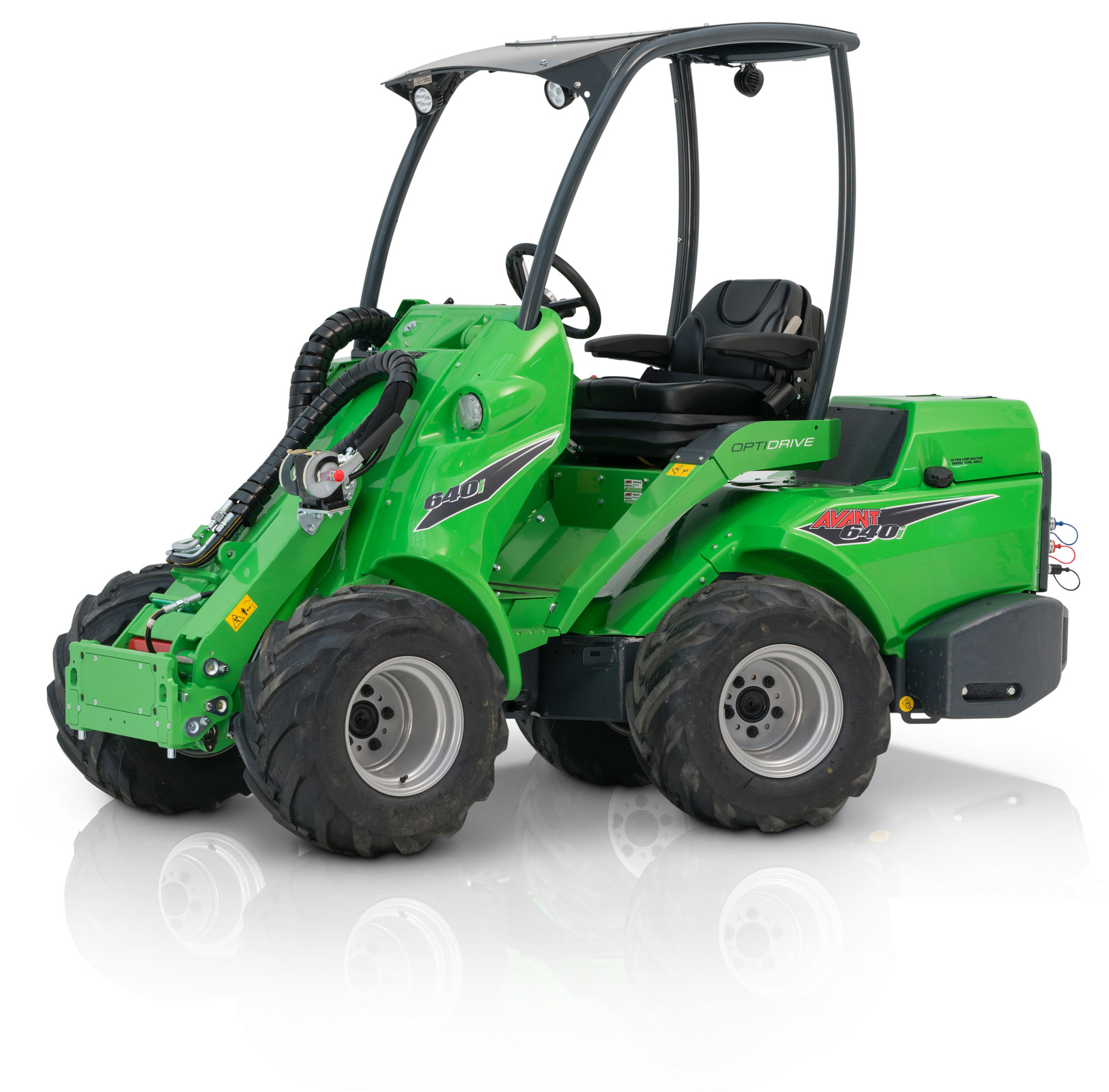

AVANT 640i

The Perfect Combination of Power and Agility

Lift capacity

1190 kg

Lift height

2835 mm

Engine power

19 kW (26 hp)

Speed

23 km/h

The Avant 600 series loaders are true all-round multi-purpose machines. They embody a very compact size, high lifting capacity, pulling force, driving speed, and output of auxiliary hydraulics. The lifting capacity of almost 1200 kg is enough for many situations, and the powerful auxiliary hydraulics enable the use of most Avant attachments. These compact and light loaders with their attachments can easily be transported on a trailer or a larger van.

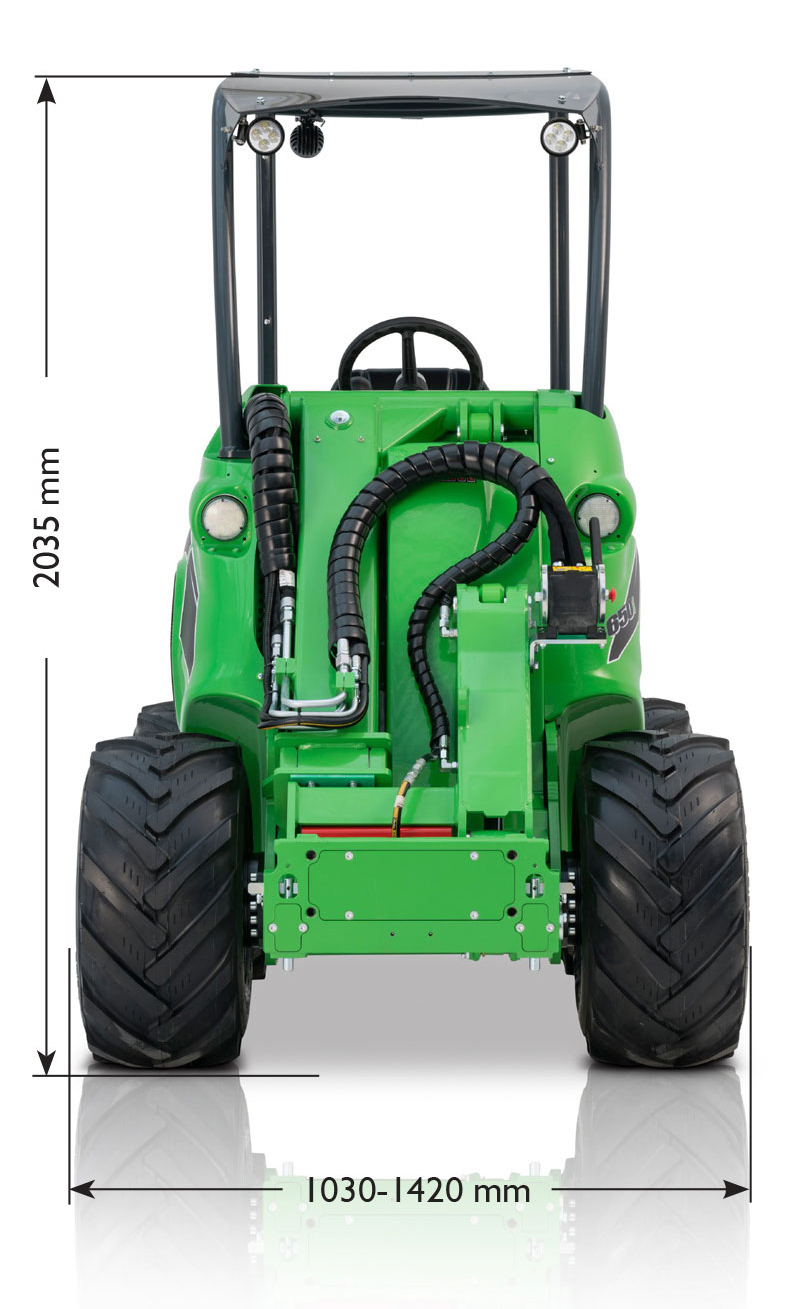

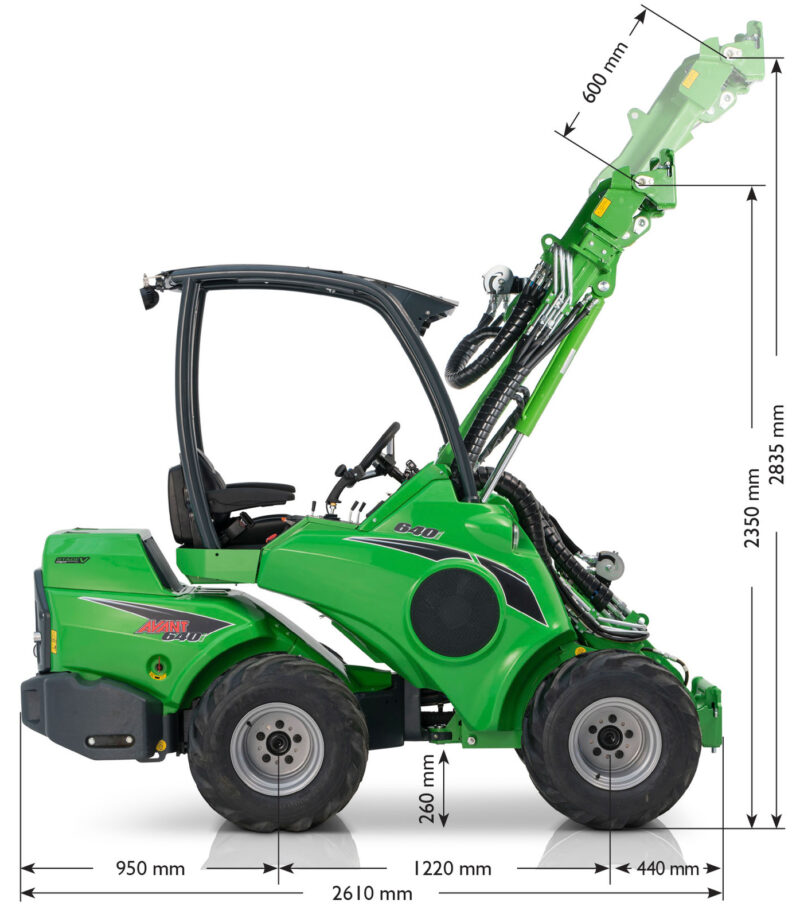

Technical specifications

Download the manual

Staðalhjól: 26x12.00-12 TR/GR
Dekkjaáferð: Tractor/Gras
Drif: Hydrostatic Avant Optidrive®
Hjólastærð: 26 x 12.00-12
Breidd: 1290 mm
Lengd: 2610 mm
Hæð: 2060 mm
Sjónaukalengd: 600 mm
Þyngd ROPS / GT: 1580 kg / 1730 kg
Þyngd: 1620 kg
Snúningsradíus innan/utan: 940 mm / 2250 mm
Hámarks togkraftur: 1000 kp
Aksturshraði: 23 km/h
Lyfthæð: 2835 mm
Lyftgeta: 1190 kg
Aukahydraulik, olíuflæði / þrýstingur: 66 l/min / 200 bar
Gerð og tegund vélar: Rehlko KSD 1403NA, Stage V
Eldsneyti: Dísel
Afl vélar: 19 kW (26 hp)
Hámarksvægur: 90 Nm @ 1800 rpm
