600 series

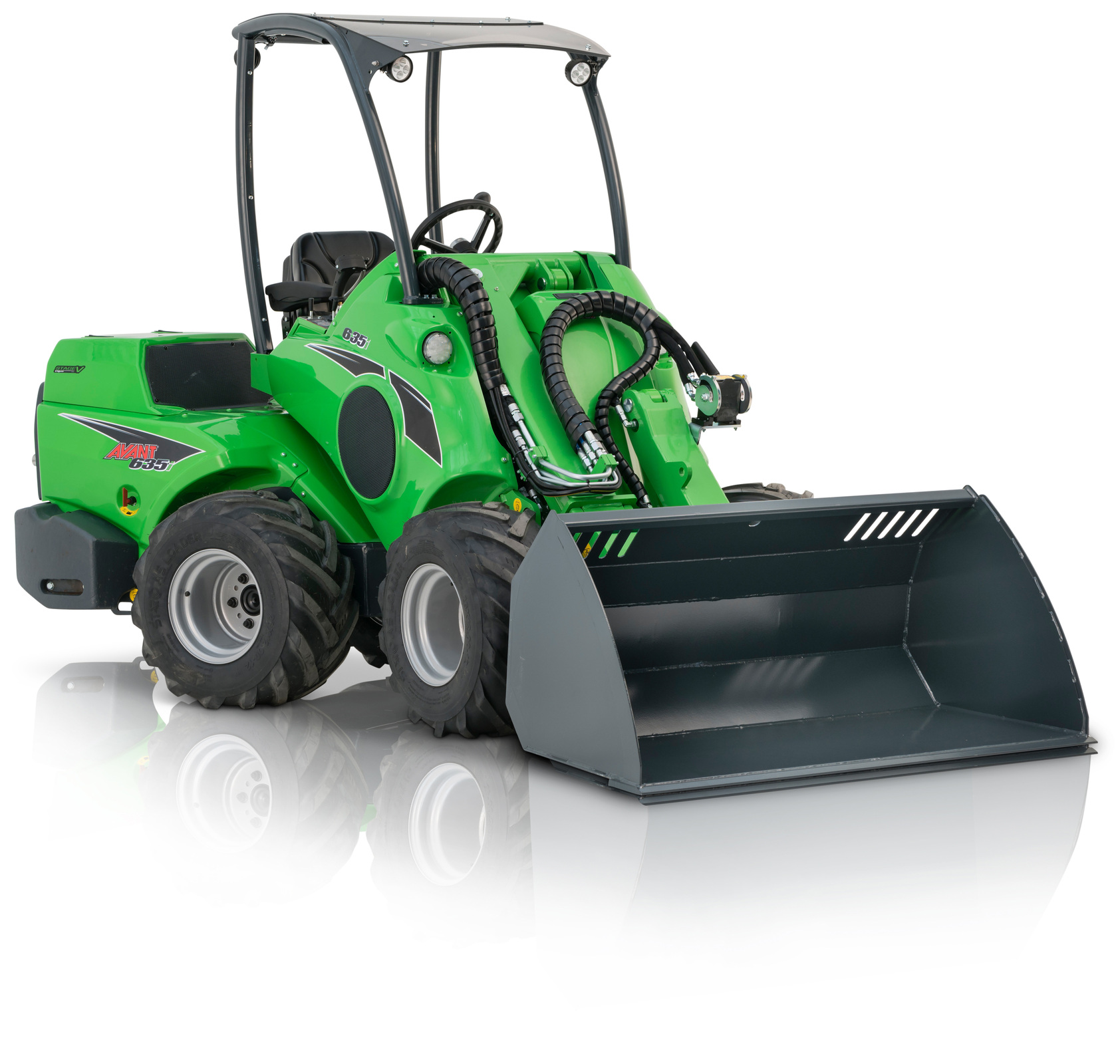

AVANT 635i

Demo drive

AVANT 635i

The Perfect Combination of Power and Agility

Lift capacity

1190 kg

Lift height

2835 mm

Engine power

19 kW (26 hp)

Speed

12 km/h

The Avant 600 series loaders are true all-round multi-purpose machines. They embody a very compact size, high lifting capacity, pulling force, driving speed, and output of auxiliary hydraulics. The lifting capacity of almost 1200 kg is enough for many situations, and the powerful auxiliary hydraulics enable the use of most Avant attachments. These compact and light loaders with their attachments can easily be transported on a trailer or a larger van.

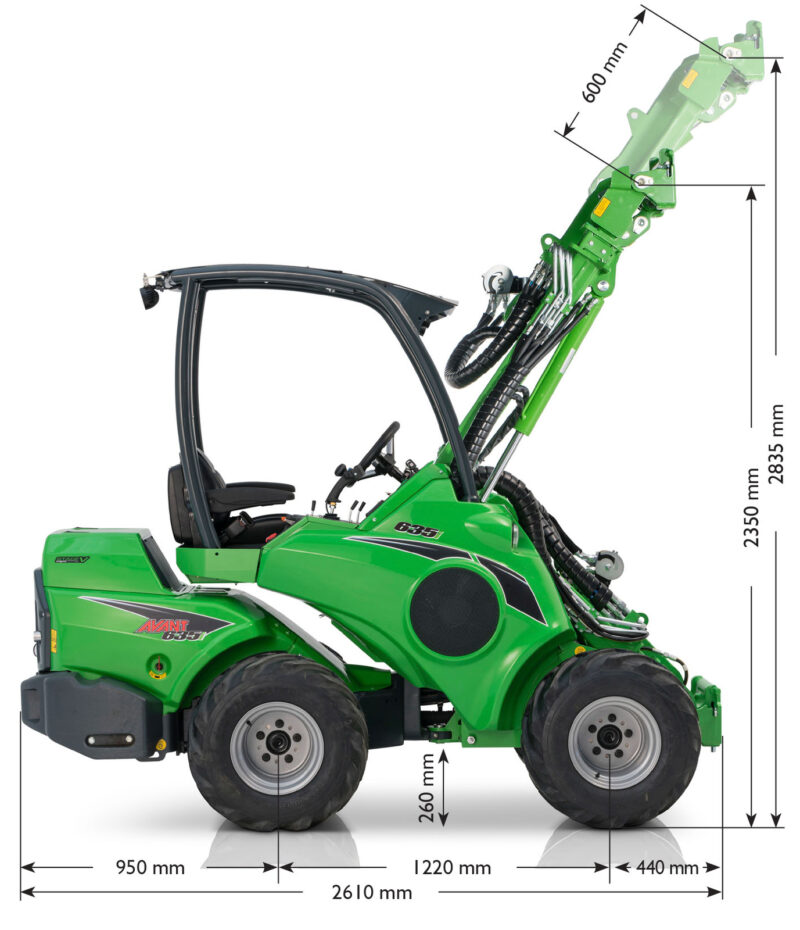

Technical specifications

Download the manual

Staðalhjól: 26x12.00-12 TR/GR
Dekkjaáferð: Tractor/Gras
Drif: Hydrostatic Avant Optidrive®
Hjólastærð: 26 x 12.00-12
Breidd: 1290 mm
Lengd: 2610 mm
Hæð: 2060 mm
Sjónaukalengd: 600 mm
Þyngd ROPS / GT: 1570 kg / 1720 kg
Þyngd: 1610 kg
Snúningsradíus innan/utan: 940 mm / 2250 mm
Hámarks togkraftur: 1000 kp
Aksturshraði: 12 km/h
Lyfthæð: 2835 mm
Lyftgeta: 1190 kg
Aukahydraulik, olíuflæði / þrýstingur: 66 l/min / 200 bar
Gerð og tegund vélar: Rehlko KSD 1403NA, Stage V
Eldsneyti: Dísel
Afl vélar: 19 kW (26 hp)
Hámarksvægur: 90 Nm @ 1800 rpm

Options

Choose the right options for your Avant

Loading ramps Discover

Transport cover Discover

Weather cover Discover

Tie down bracket on wheel hub Discover

Tie down bracket in the rear/on the sides Discover

Lifting kit, for machines with ROPS frame Discover

Exhaust purifier Discover

Engine heater Discover

Full suspension seat Discover

Fire extinguisher Discover

Mudguards rear Discover

HD cover plates Discover

GT-stýrishús Discover

Rear wall Discover

L-stýrishús Discover

Beacon Discover

Road traffic light kit Discover

Trailer socket, 7-pin Discover

Work light kit, on ROPS frame Discover

Rear guard Discover

Snow chains Discover

Trailer coupling Discover

Attachment mounting plate in the rear Discover

Rear side weights 180 kg Discover

Rear side weights 80 kg Discover

Back weight Discover

Reverse beeper Discover

Rennisvarnarventill Discover

Second auxiliary hydraulics outlet in the front Discover

Control switch pack for rear mounted attachments Discover

Auxiliary hydraulics outlet in the rear, double acting Discover

Joystick 8 functions Discover

Opticontrol® Discover

Hydraulic attachment coupling plate Discover

Smooth drive Discover

Boom floating, machine with self levelling Discover

Boom floating, machine without self levelling Discover

Boom self levelling Discover

Over 200 attachments

Choose the right tools from our versatile selection of attachments

Explore attachments

Loads of options

Add efficiency and comfort to your work with options

Explore options

Gallery

View gallery

Contact us

Interested in AVANT 635i

Demo drive

Loader options

Customize your Avant loader to match your work and comfort needs with a variety of factory-installed options. From enclosed cabs with heating or AC to road traffic kits, extra hydraulics, and safety features like anti-slip valves and tie-down brackets—Avant options let you build the perfect machine for any job or season.

AVANT manuals

Avant manuals are your go-to resource for safe, efficient, and proper operation of both loaders and attachments. Each manual includes detailed instructions, maintenance guidelines, and technical specs to help operators and technicians get the most out of their machine—whether it's daily use, troubleshooting, or long-term care.

Attachments

With over 200 purpose-built attachments, Avant transforms a single loader into a true multi-tasking machine. Whether you're lifting, digging, sweeping, mowing, or clearing snow, there's an attachment designed to boost productivity and versatility across every season and industry.
