400 series

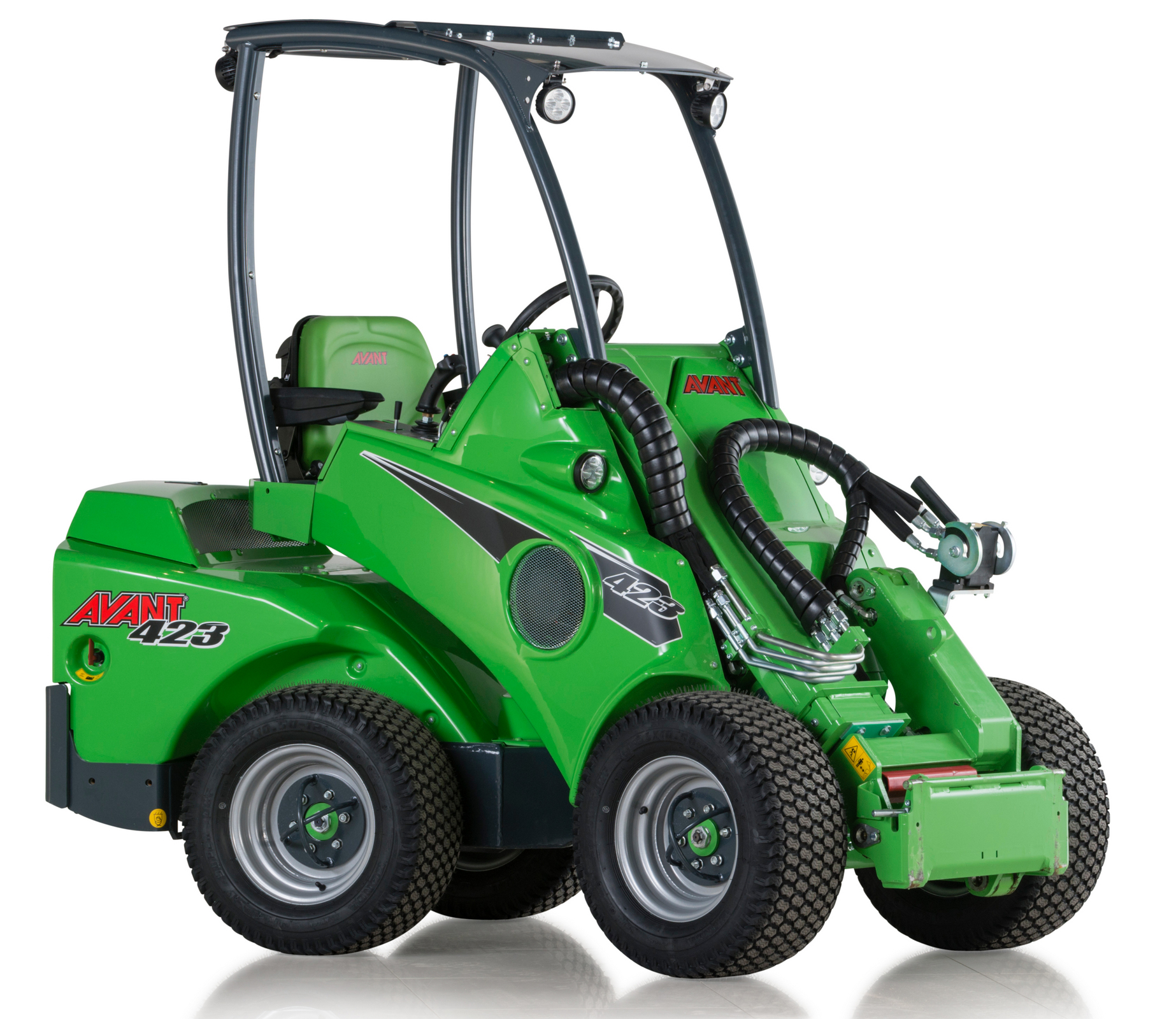

AVANT 423

AVANT 423

Low operating weight, uncomplicated and economical

Lift capacity

550 kg

Lift height

2750 mm

Engine power

16 kW (22 hv)

Speed

12 km/h

Avant 400 series loaders are real narrow access specialists and the smallest diesel model in the range. In spite of the small size and low weight of the 400 series, the lifting capacity of the loader is noteworthy with over 500 kg handled with ease. The loader's turning radius is less than two meters which means the loader turns almost on the spot. Total machine width can be as narrow as 930 mm. Avant 400 series is equipped with telescopic boom and with it, the lifting height is as high as 2,75 meters.

Avant 400 series’ compact dimensions and easy maneuverability make it extremely versatile for many different purposes, be it groundcare, agriculture, landscaping, earthmoving, lifting and handling, etc. The machine has enough kick which guarantees the most efficient year-round work. 400 series power is sufficient for most Avant attachments.

Technical specifications

Download the manual
Staðalhjól
23x8.50-12 TR/GR
Dekkjaáferð
Tractor/Gras
Drif
Hydrostatic
Hjólastærð
23 x 8.50-12

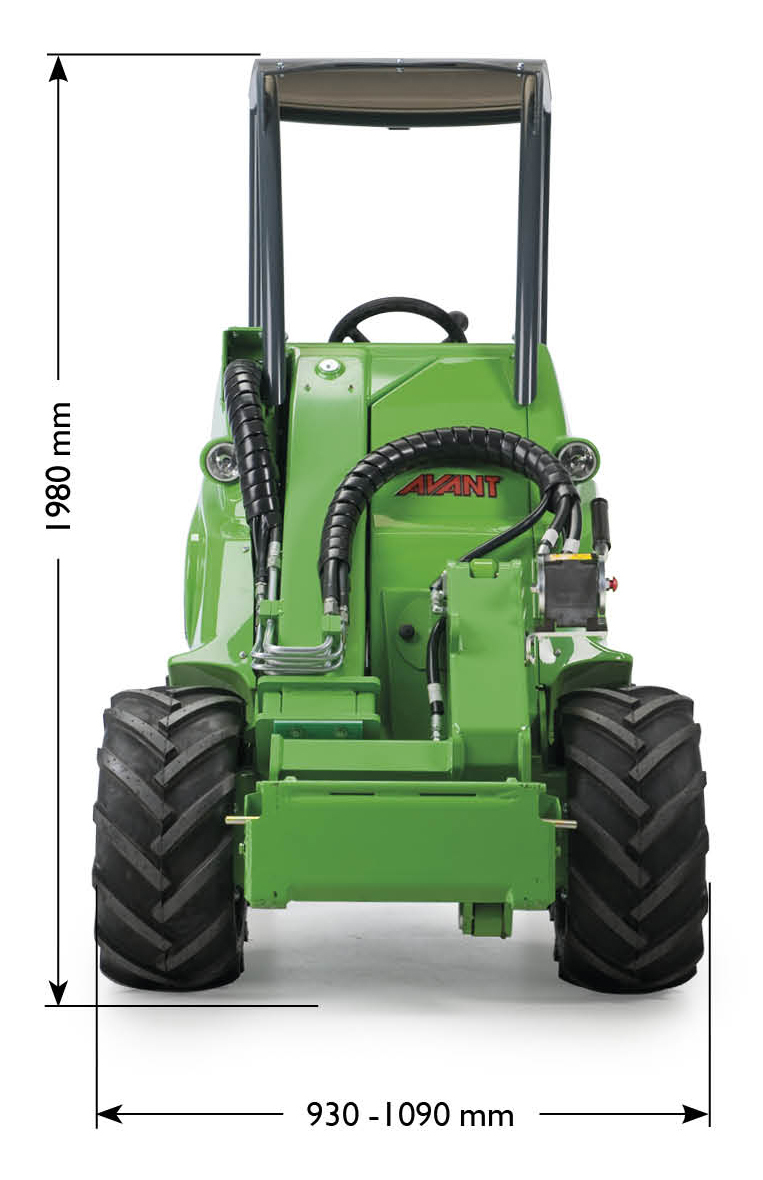

Breidd
1050 mm

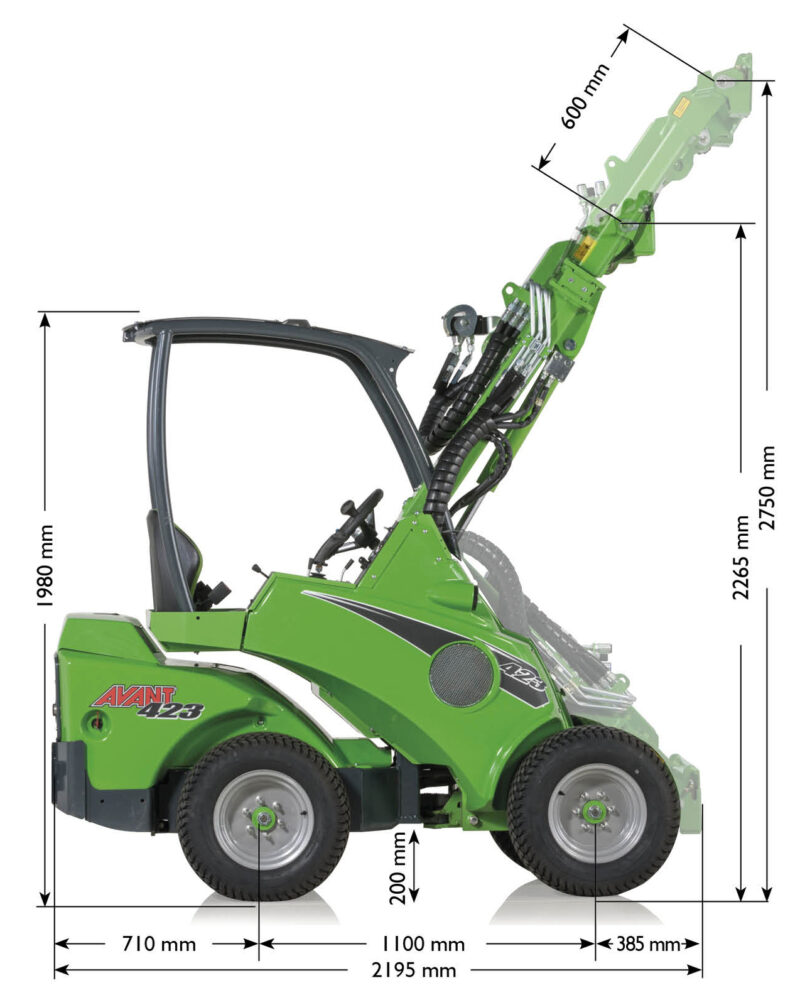

Lengd
2195 mm
Hæð
1980 mm
Þyngd ROPS / GT
1080 kg / -
Þyngd
1080 kg
Snúningsradíus innan/utan
880 mm / 1970 mm
Hámarks togkraftur
700 kp
Aksturshraði
12 km/h
Lyfthæð
2750 mm
Lyftgeta
550 kg
Aukahydraulik, olíuflæði / þrýstingur
34 l/min / 185 bar
Gerð og tegund vélar
Kubota D902 Stage V
Staðall fyrir aflmæling vélar
ECE R120
Eldsneyti
Dísel
Kæling á vökvakerfisolia
Standard
Afl vélar
16 kW (22 hv)
Hámarksvægur
56 Nm @ 2600 rpm

Options

Choose the right options for your Avant

Tie down bracket on wheel hub Discover Tie down bracket on wheel hub
Tie down bracket in the rear/on the sides Discover Tie down bracket in the rear/on the sides
Lifting kit, for machines with ROPS frame Discover Lifting kit, for machines with ROPS frame
Vehicle identification Discover Vehicle identification
Road traffic light kit Discover Road traffic light kit
Trailer socket, 7-pin Discover Trailer socket, 7-pin
Work light kit, on ROPS frame Discover Work light kit, on ROPS frame
Rear side weights 80 kg Discover Rear side weights 80 kg
Drive release valve Discover Drive release valve
Second auxiliary hydraulics outlet in the front Discover Second auxiliary hydraulics outlet in the front
Auxiliary hydraulics outlet in the rear, double acting Discover Auxiliary hydraulics outlet in the rear, double acting
Adapter cable for attachment control switch pack Discover Adapter cable for attachment control switch pack
Joystick 6 functions Discover Joystick 6 functions
Boom floating, machine without self levelling Discover Boom floating, machine without self levelling

Over 200 attachments

Choose the right tools from our versatile selection of attachments

Loads of options

Add efficiency and comfort to your work with options

Gallery

Contact us

Interested in AVANT 423

Loader options

Customize your Avant loader to match your work and comfort needs with a variety of factory-installed options. From enclosed cabs with heating or AC to road traffic kits, extra hydraulics, and safety features like anti-slip valves and tie-down brackets—Avant options let you build the perfect machine for any job or season.

AVANT manuals

Avant manuals are your go-to resource for safe, efficient, and proper operation of both loaders and attachments. Each manual includes detailed instructions, maintenance guidelines, and technical specs to help operators and technicians get the most out of their machine—whether it's daily use, troubleshooting, or long-term care.

Attachments

With over 200 purpose-built attachments, Avant transforms a single loader into a true multi-tasking machine. Whether you're lifting, digging, sweeping, mowing, or clearing snow, there's an attachment designed to boost productivity and versatility across every season and industry.
