e series

AVANT e513

AVANT e513

The full-electric battery-powered Avant

Lift capacity

1984 lb

Lift height

109.8 in

Speed

6.2 mph

Battery capacity

13 kWh / 44 V

The renewed Avant e500-series starts a new era for electric loaders. These third-generation electric loaders are equipped with Avant OptiTemp® lithium-ion batteries, designed and produced specifically for Avant loaders. The batteries are manufactured by Avant Power in Ylöjärvi, Finland.

The Avant e500-series sets a new standard in compact loader innovation with its 100% electric powertrain, delivering zero emissions and near-silent operation. Built for indoor use and environmentally sensitive sites, the e513 and e527 offer full functionality without compromising on performance. They match their diesel counterparts in hydraulic power, lifting capacity, and compact maneuverability—making them a viable replacement in agriculture, landscaping, construction, and municipal work.

What makes the e500-series stand out isn’t just its clean energy footprint—it’s the smart design behind it. Features like Avant’s signature multi-connector system, and intuitive joystick controls enhance ease of use and operator comfort. It’s the go-to solution for stables, greenhouses, warehouses, and urban spaces where emissions, noise, and safety are top concerns.

On top of that, the e500-series reduces long-term ownership costs with fewer moving parts, lower maintenance needs, and eligibility for green equipment grants in many regions. For operations aiming to future-proof their equipment while upholding environmental responsibility, the Avant e-series delivers unmatched versatility, innovation, and value.

Technical specifications

Download the manual
Standard wheels
23x10.50-12” TR
Tyre tread
Tractor/Grass
drive
Hydrostatic, Avant Optidrive®
Wheel size
23 x 10.50-12
Telescopic boom
Standard

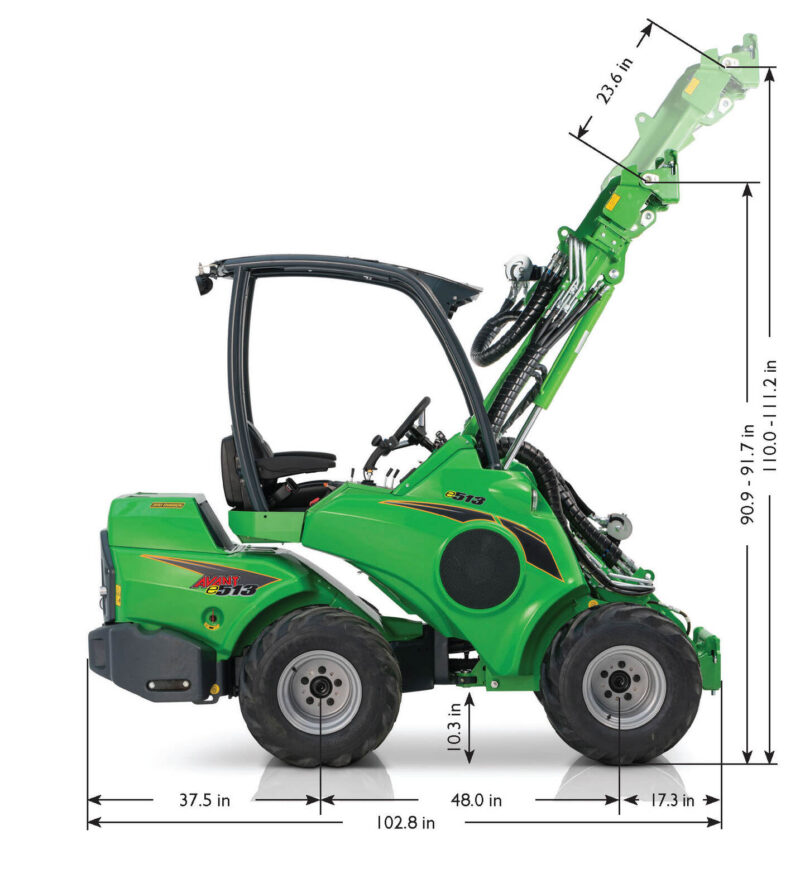

Width
44.5 in
Length
102.8 in
Height
78.1 in
Telescope length
23.6 in
Operating mass
3130.5 lb
Drive speed
6.2 mph
Max. breakout force
2425 lb
Lift Height
109.8 in
Lift Capacity
1984 lb
Fuel
Electric (battery)
Battery type
Avant OptiTemp® immersion cooling (Li-ion)
Hydraulic oil cooler
Standard
Auxiliary hydraulics, oil flow / pressure
7.9 gpm / 2680 PSI
Turning radius inside/outside
39.2 in / 80.7 in
Charging time** / Onboard charger 3 kW, standard
2 h 50 min
Weight ROPS / GT
3131 lb / -
Battery capacity / voltage
13 kWh / 44 V

Measured with 180 kg rear side weights

**) Charging time (10–80 % SOC) is affected by prevailing conditions and temperature.
