Extra 12V power kit, e series

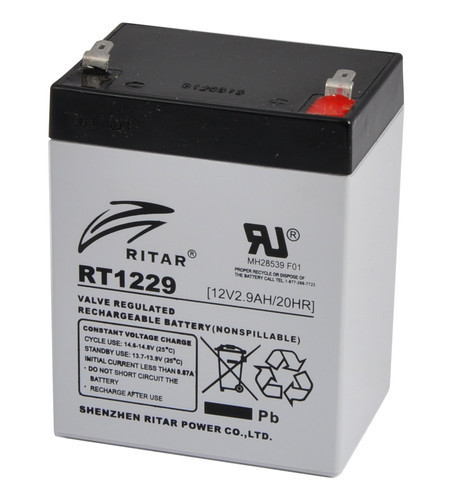

Avant e series is equipped with a 48V electric system; in addition there is a 12V power supply which feeds electricity e.g. to the standard 12V front lights and the optional work light kits and which is operational only when the electric system of the loader is activated with the ignition switch. There are however some options for e series which require constant 12V electric current: for instance the emergency blinkers in the road traffic light kit must function also when the electric system is deactivated. For this there is an extra 12V power kit available as an option for e series. It consists of a 12V/2.9Ah battery and a 12V power supply. The power supply takes care of the normal 12V current needs and the battery is needed to supply power for short peak currents (e.g. when several 12V appliances are activated at the same time) and constant current to the road traffic light kit. The extra power kit is necessary with the A434812 road traffic light kit, and it is recommended also when e series is fitted with attachments which are equipped with a 12V electric device, e.g. an electric actuator.

Contact sales

Compatible models

Model

220 Not available

225 Not available

225LPG Not available

313S Not available

320S Not available

320S+ Not available

420 Not available

423 Not available

520 Not available

523 Not available

525LPG Not available

528 Not available

530 Not available

630 Not available

635 Not available

635i Not available

640 Not available

640i Not available

645i Not available

650i Not available

735 Not available

735i Not available

745 Not available

750 Not available

755i Not available

760i Not available

845 Not available

850 Not available

855i Not available

860i Not available

R20 Not available

R28 Not available

R35 Not available

e513 Option

e527 Option

Available options

Extra 12V power kit for e500 series (Required with Opticontrol and Road traffic light kit) A459419
