AVANT 640i

AVANT 640i

Perfect combination of power and maneuverability

Lift capacity

2623 lb

Lift height

111.6 in

Engine power

19 kW (26 hp)

Speed

14.3 mph

Avant 600 series is the real all-rounder in the range. It combines power, lift capacity and professional hydraulics which are in a very compact package. This makes 600 series a very popular machine for many professionals in landscaping, groundcare, construction, farming, horse stables, and many other customers. The max. 1,1-tonne lift capacity is just perfect for a multitude of jobs and the powerful auxiliary hydraulics runs almost all Avant attachments. The customers also like the easy transporting of 600 series. Thanks to the compact dimensions it is possible to fit both the loader and the attachments on the trailer, and inside the van if necessary.

600 series customers also benefit from Avant’s telescopic boom, which is a standard feature. Lift height and outreach are excellent for a machine of this size and they can be steplessly adjusted with the teleboom. This guarantees very fast and ergonomic load handling.

The great Avant stability is present in 600 series as well, and the excellent visibility to the attachment and work area is valued by all operators. Avant’s 4x4 hydrostatic drive system gives the best possible traction in all situations.

The comprehensive range of options are available for 600 series also, including all cab options. From over 200 attachments specially designed for Avant loaders the customers can choose the best package for any use.

Technical specifications

Download the manual
Standard wheels
26 x 12.00 - 12" TR/GR
Tyre tread
Tractor/Grass
drive
Hydrostatic Avant Optidrive®
Wheel size
26 x 12.00-12

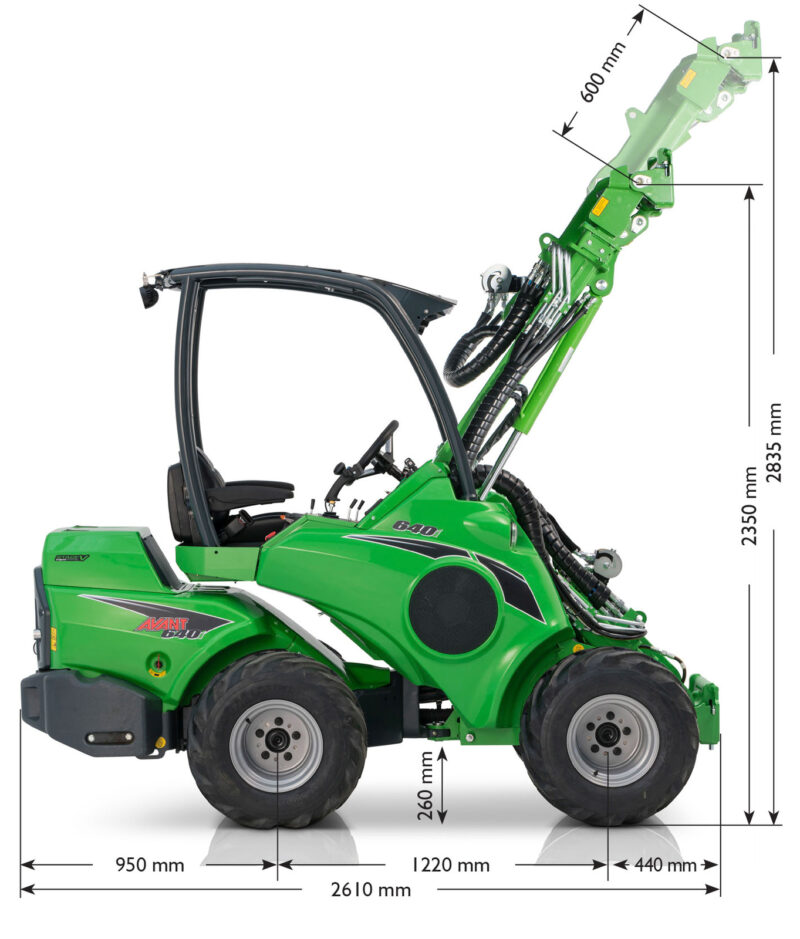

Width
50.8 in
Length
102.8 in
Height
81.1 in
Telescope length
23.6 in
Operating mass
3483.3 lb
Pulling force max.
2205 lbf
Drive speed
14.3 mph
Max. breakout force
2756 lb
Lift Height
111.6 in
Lift Capacity
2623 lb
Engine make and type
Rehlko KSD 1403NA, Stage V
Fuel
Diesel
Engine power
19 kW (26 hp)
Auxiliary hydraulics, oil flow / pressure
17.4 gpm / 2900 PSI
Turning radius inside/outside
35.4 in / 97.2 in
Maximum torque
66 lbf-ft @ 1800 rpm
Weight ROPS / GT
3483 lb / 3814 lb
