400 series

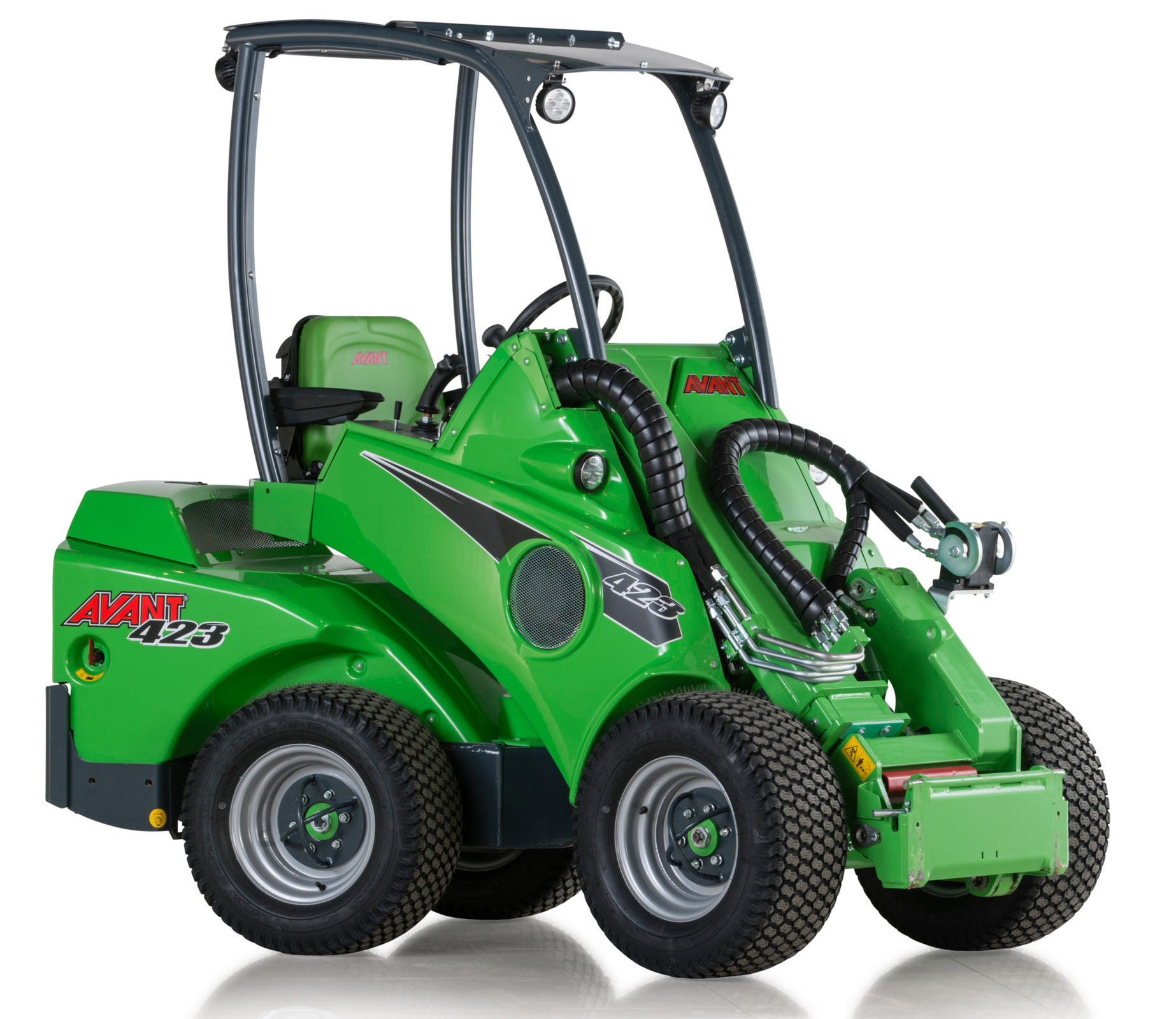

AVANT 423

AVANT 423

Low operating weight, uncomplicated and economical

Lift capacity

1213 lb

Lift height

108.3 in

Engine power

16 kW (22 hp)

Speed

7.5 mph

Avant 400 series loaders are real narrow access specialists and the smallest diesel model in the range. In spite of the small size and low weight of the 400 series, the lifting capacity of the loader is noteworthy with over 500 kg handled with ease. The loader's turning radius is less than two meters which means the loader turns almost on the spot. Total machine width can be as narrow as 930 mm. Avant 400 series is equipped with telescopic boom and with it, the lifting height is as high as 2,75 meters.

Avant 400 series’ compact dimensions and easy maneuverability make it extremely versatile for many different purposes, be it groundcare, agriculture, landscaping, earthmoving, lifting and handling, etc. The machine has enough kick which guarantees the most efficient year-round work. 400 series power is sufficient for most Avant attachments.

Technical specifications

Download the manual
Standard wheels
23 x 8.50 - 12" TR
Tyre tread
Tractor/Grass
drive
Hydrostatic
Wheel size
23 x 8.50-12

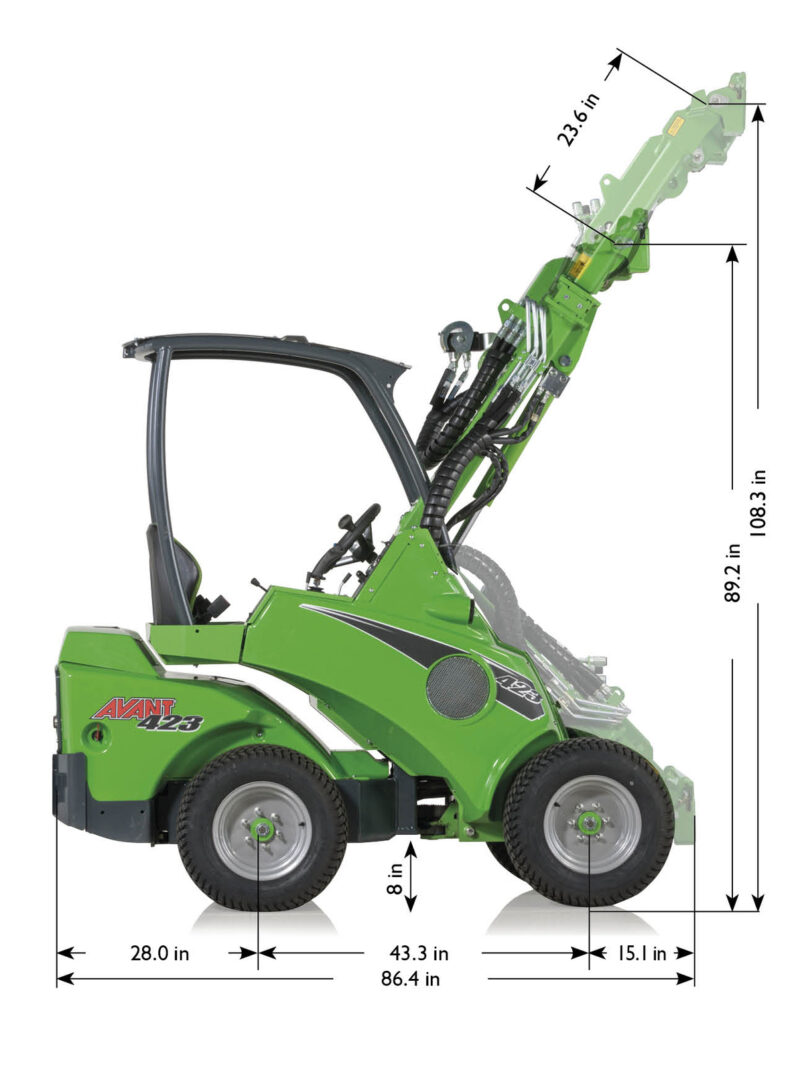

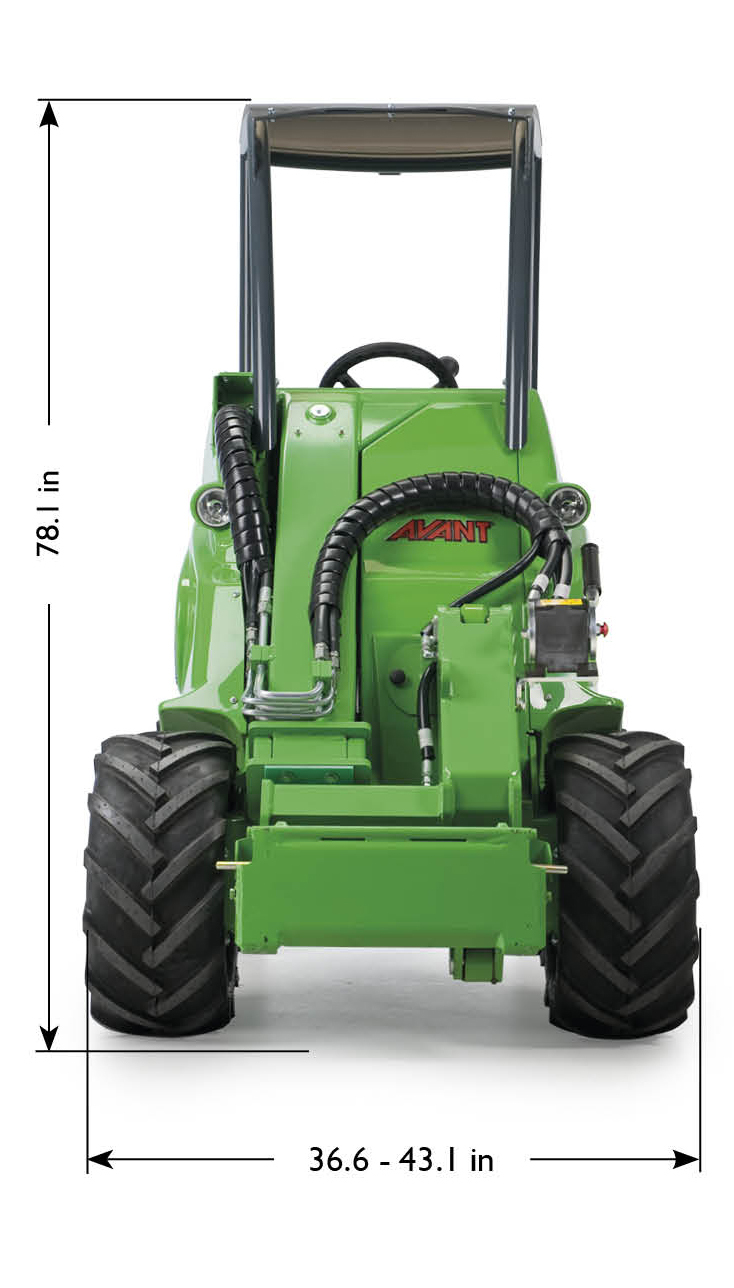

Width
41.3 in
Length
86.4 in
Height
78 in
Operating mass
2381 lb
Pulling force max.
1543 lbf
Drive speed
7.5 mph
Lift Height
108.3 in
Lift Capacity
1213 lb
Engine make and type
Kubota D902, Stage V
Engine power standard
ECE R120
Fuel
Diesel
Hydraulic oil cooler
Standard
Engine power
16 kW (22 hp)
Auxiliary hydraulics, oil flow / pressure
9.0 gpm / 2680 PSI
Turning radius inside/outside
34.6 in / 77.6 in
Maximum torque
41 lbf-ft @ 2200 rpm
Weight ROPS / GT
2381 lb / -

Options

Choose the right options for your Avant

Fire extinguisher ROPS Discover Fire extinguisher ROPS
Fire extinguisher GT Discover Fire extinguisher GT
Tie down bracket on wheel hub Discover Tie down bracket on wheel hub
Tie down bracket in the rear/on the sides Discover Tie down bracket in the rear/on the sides
Lifting kit, for machines with ROPS frame Discover Lifting kit, for machines with ROPS frame
Vehicle identification Discover Vehicle identification
Road traffic light kit Discover Road traffic light kit
Trailer socket, 7-pin Discover Trailer socket, 7-pin
Work light kit, on ROPS frame Discover Work light kit, on ROPS frame
Rear side weights 176 lbs Discover Rear side weights 176 lbs
Drive release valve Discover Drive release valve
Second auxiliary hydraulics outlet in the front Discover Second auxiliary hydraulics outlet in the front
Auxiliary hydraulics outlet in the rear, double acting Discover Auxiliary hydraulics outlet in the rear, double acting
Adapter cable for attachment control switch pack Discover Adapter cable for attachment control switch pack
Joystick 6 functions Discover Joystick 6 functions
Boom floating, machine without self levelling Discover Boom floating, machine without self levelling

Over 200 attachments

Choose the right tools from our versatile selection of attachments

Loads of options

Add efficiency and comfort to your work with options
