400 series

AVANT 423

AVANT 423

Low operating weight, uncomplicated and economical

Lift capacity

550 kg

Lift height

2750 mm

Engine power

16 kW (22 hv)

Speed

12 km/h

Avant 400 series loaders are real narrow access specialists and the smallest diesel model in the range. In spite of the small size and low weight of the 400 series, the lifting capacity of the loader is noteworthy with over 500 kg handled with ease. The loader's turning radius is less than two meters which means the loader turns almost on the spot. Total machine width can be as narrow as 930 mm. Avant 400 series is equipped with telescopic boom and with it, the lifting height is as high as 2,75 meters.

Avant 400 series’ compact dimensions and easy maneuverability make it extremely versatile for many different purposes, be it groundcare, agriculture, landscaping, earthmoving, lifting and handling, etc. The machine has enough kick which guarantees the most efficient year-round work. 400 series power is sufficient for most Avant attachments.

Technical specifications

Download the manual
Standard wheels
23 x 8.50 - 12" TR
Tyre tread
Tractor/Grass
Transmission
Hydrostatic
Wheel size
23 x 8.50-12

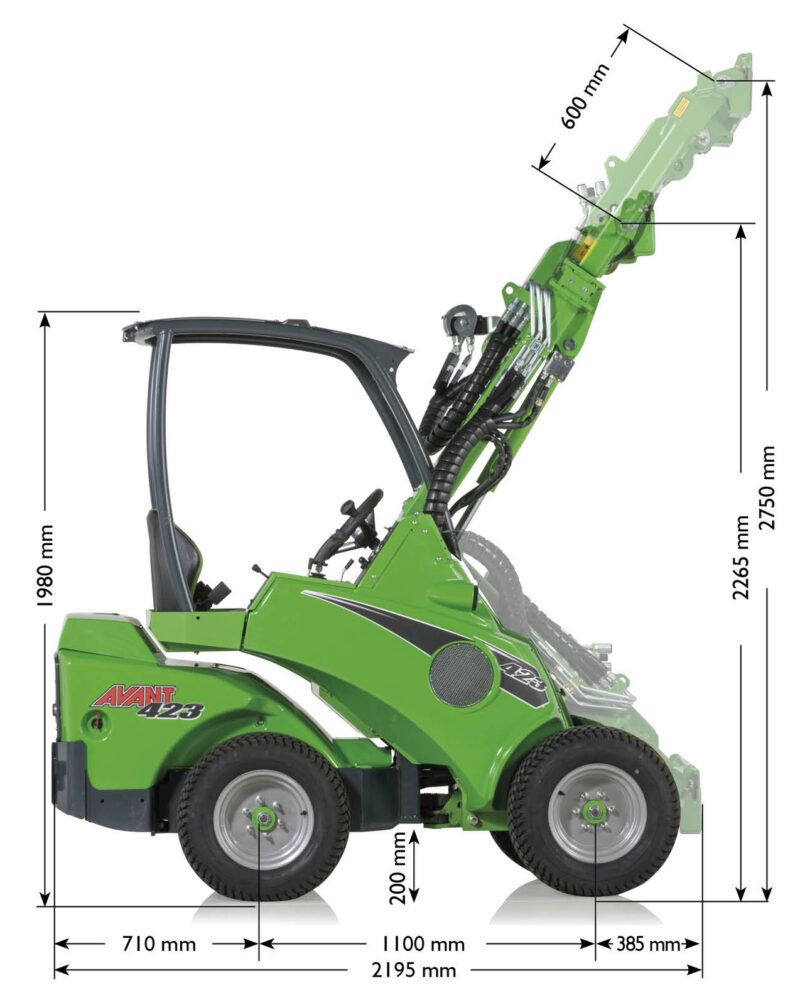

Width
1050 mm
Length
2195 mm
Height
1980 mm
Weight
1080 kg
Pulling force max.
700 kp
Drive speed
12 km/h
Lift Height
2750 mm
Lift Capacity
550 kg
Engine make and type
Kubota D902 Stage V
Engine power standard
ECE R120
Fuel
Diesel
Hydraulic oil cooler
Standard
Engine power
16 kW (22 hv)
Auxiliary hydraulics, oil flow / pressure
34 l/min / 185 bar
Turning radius inside/outside
880 mm / 1970 mm
Maximum torque
56 Nm @ 2600 rpm
Weight ROPS / GT
1080 kg / -

Options

Choose the right options for your Avant

Over 200 attachments

Choose the right tools from our versatile selection of attachments

Loads of options

Add efficiency and comfort to your work with options

Gallery

Contact us

Interested in AVANT 423

Loader options

Customize your Avant loader to match your work and comfort needs with a variety of factory-installed options. From enclosed cabs with heating or AC to road traffic kits, extra hydraulics, and safety features like anti-slip valves and tie-down brackets—Avant options let you build the perfect machine for any job or season.

AVANT manuals

Avant manuals are your go-to resource for safe, efficient, and proper operation of both loaders and attachments. Each manual includes detailed instructions, maintenance guidelines, and technical specs to help operators and technicians get the most out of their machine—whether it's daily use, troubleshooting, or long-term care.

Attachments

With over 200 purpose-built attachments, Avant transforms a single loader into a true multi-tasking machine. Whether you're lifting, digging, sweeping, mowing, or clearing snow, there's an attachment designed to boost productivity and versatility across every season and industry.
