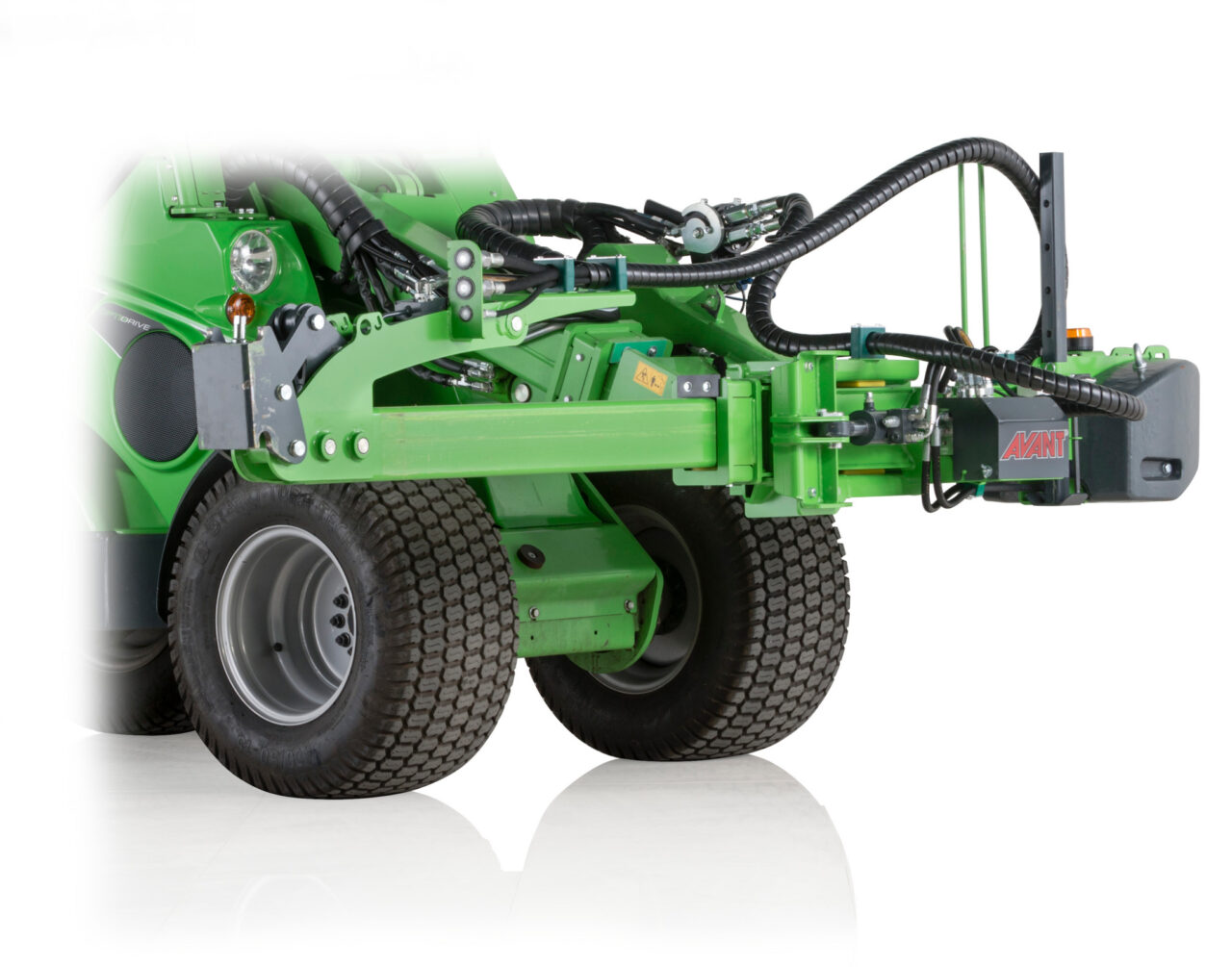

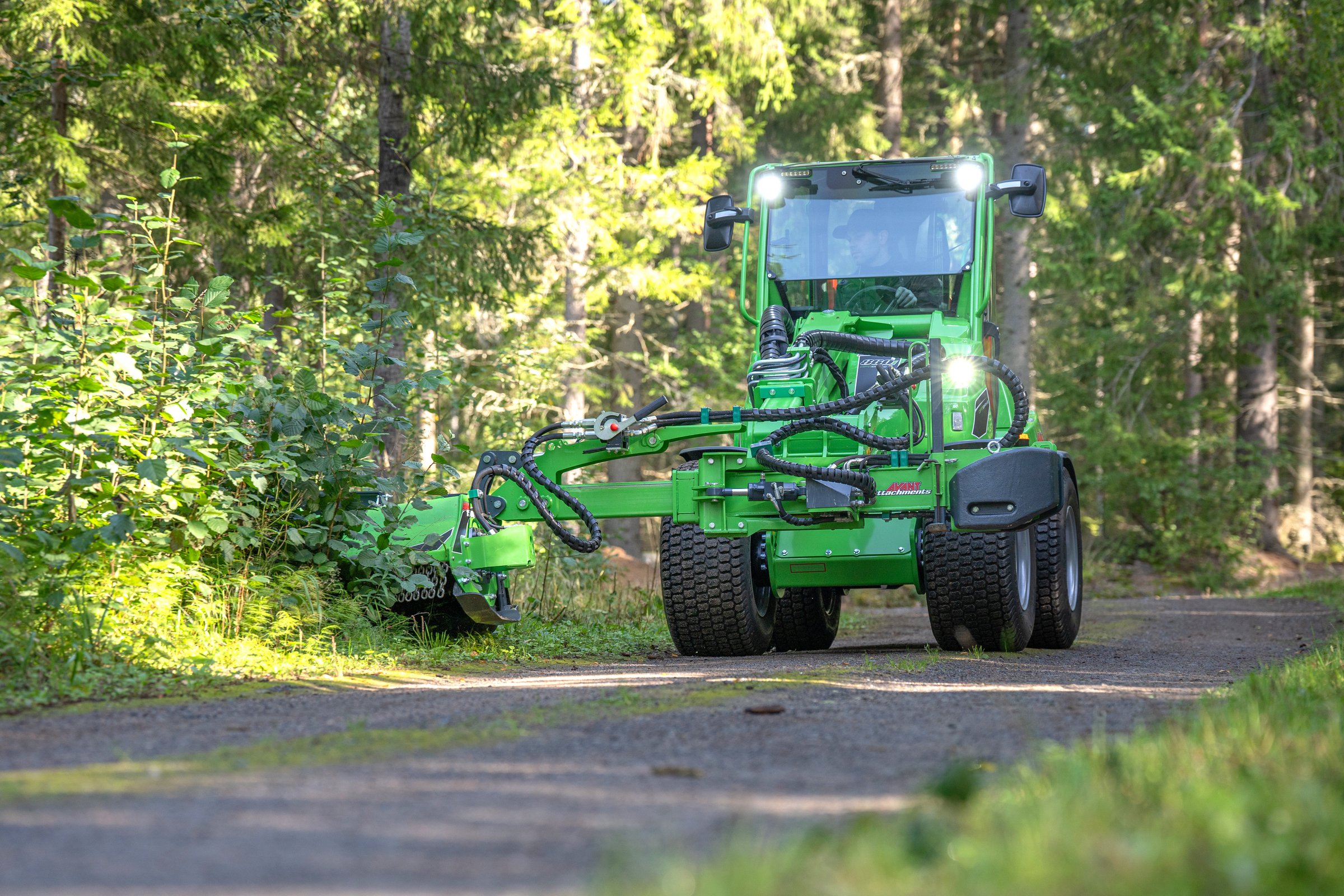

Hydraulic side arm S30

The hydraulic side arm with S30 quick attach system can be equipped with attachments with the corresponding S30 quick attach bracket.

The side arm is equipped with a straight telescopic arm and a tilting jib arm. The telescopic arm extends up to 39.4" hydraulically to the side, and the jib arm movement is max. 45° down and 90° up from horizontal position.

The side arm is equipped with a hydraulic release mechanism, and the hydraulic release pressure can be adjusted and measured. The attachment which is mounted on the side arm will give in backwards when it hits an obstacle. The side arm will come back to normal position as soon as the attachment is tilted downwards.

Avant 400 lb side weight kit A49063 is available as an option. It is necessary with heavier attachments like the A37505 S30 flail mower 47.2".

S30 attachment’s hydraulic hoses are connected to the side arm with Multi connector
Telescope and jib arm movement speeds are adjustable
The jib arm floats hydraulically upwards, in case of encountered obstacles

Hydraulic side arm S30 products

Hydraulic side arm S30 for left-hand traffic A484984 Discover

Hydraulic side arm S30 A448736 Discover
