Tilt adapter

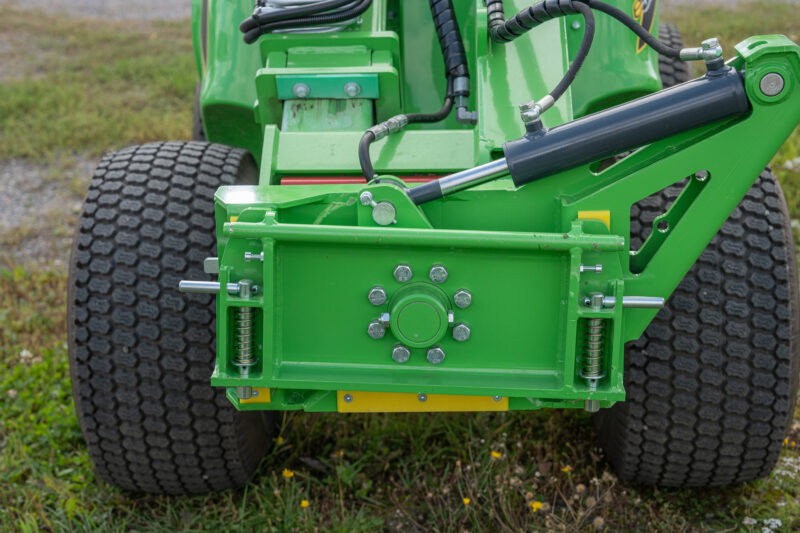

Avant tilt adapter is mounted between the attachment and the loader’s attachment coupling plate. With it the attachment can be tilted sideways, and makes it possible to:
- Make different forms to the ground with a bucket or leveller

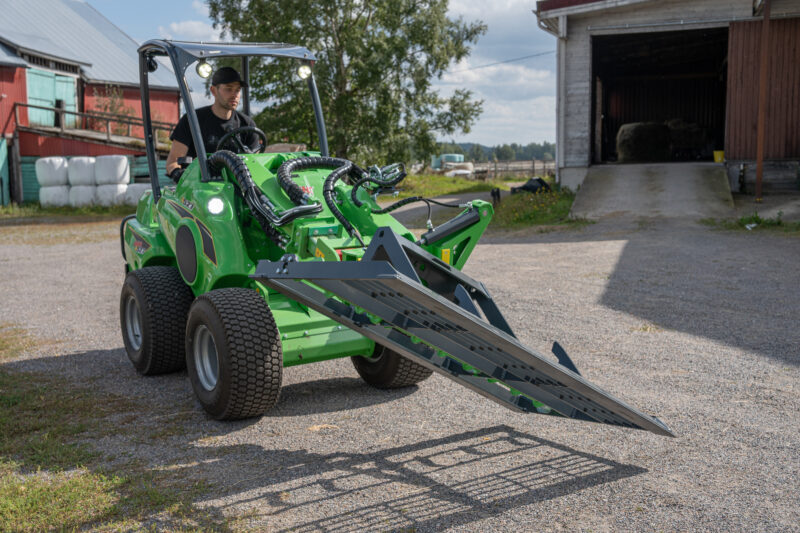

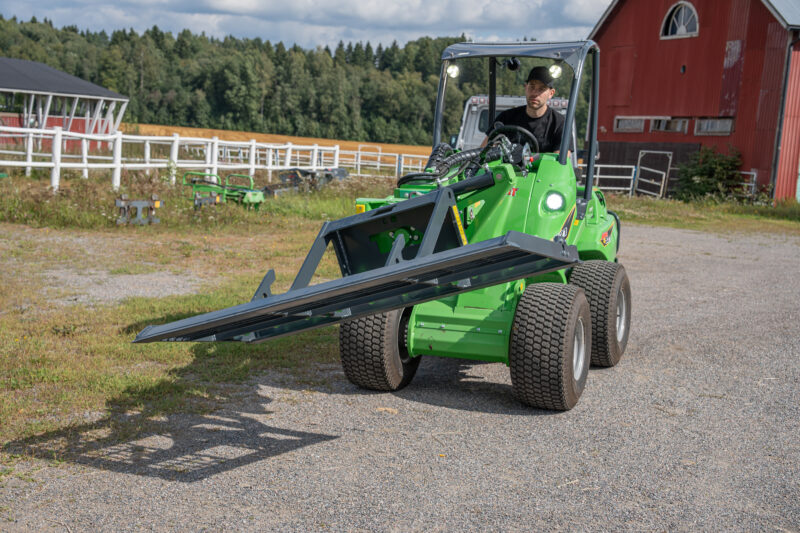

- Keep pallet fork level when you are driving on surfaces with gradient
- Load pallets that are on uneven ground
- Level ground on uneven surfaces
- With the 90 degree tilt adapter rotate the attachment as much as 90°

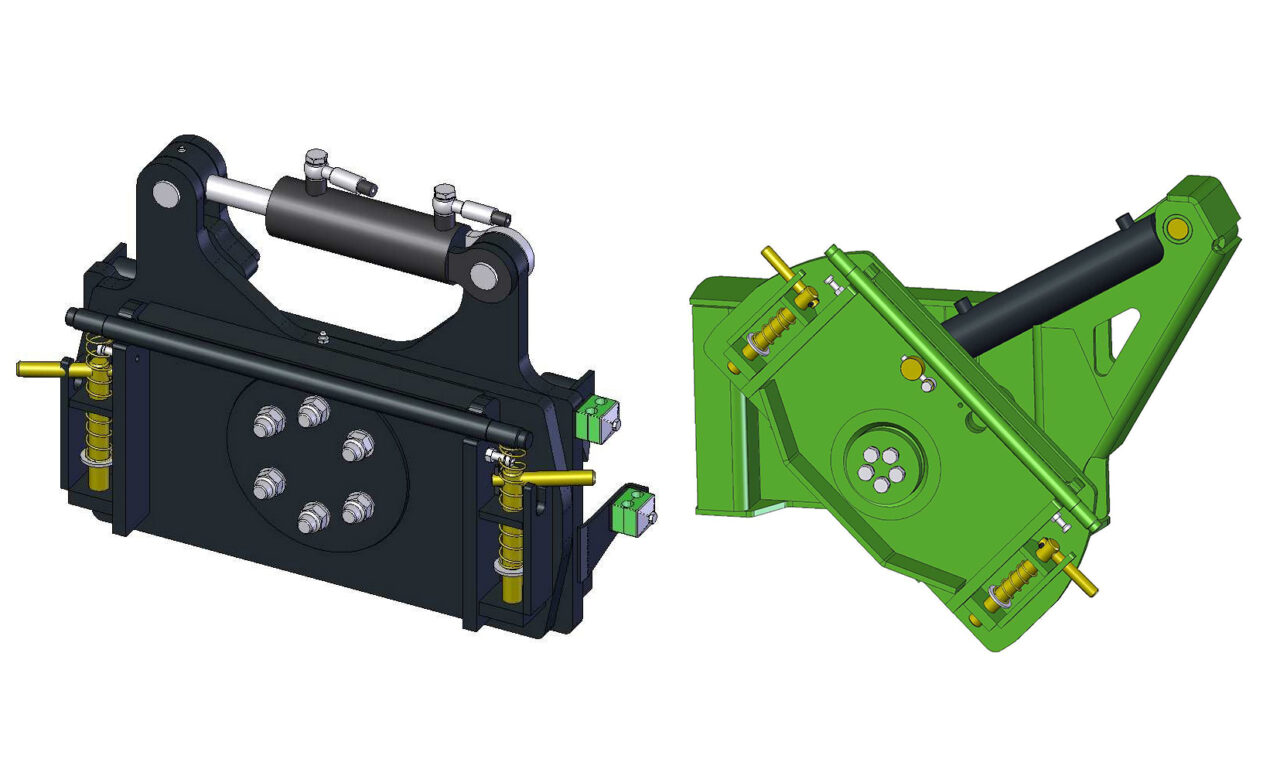

There are two tilt adapters available:

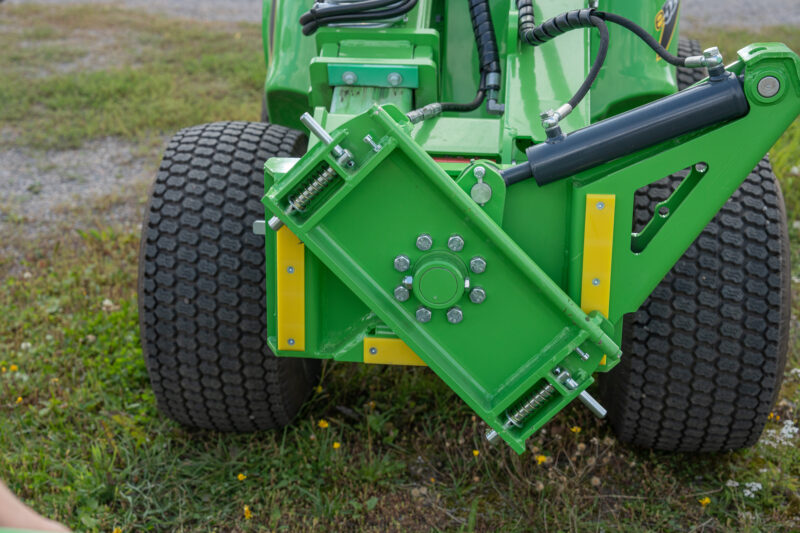

- Tilt adapter with max. 12,5 degree tilting in both directions. It is intended for buckets, leveller and pallet fork – for jobs where tilting is a must but the tilting angle doesn’t have to be big
- Tilt adapter with max. 90 degree rotation, or 45 degree tilting in both directions. It is useful in applications where the attachment needs to be rotated more in order to get the job done: with grabbing tool (rotating of barrels etc.), rock drill, artificial turf attachment (to fit through narrow doors) etc.

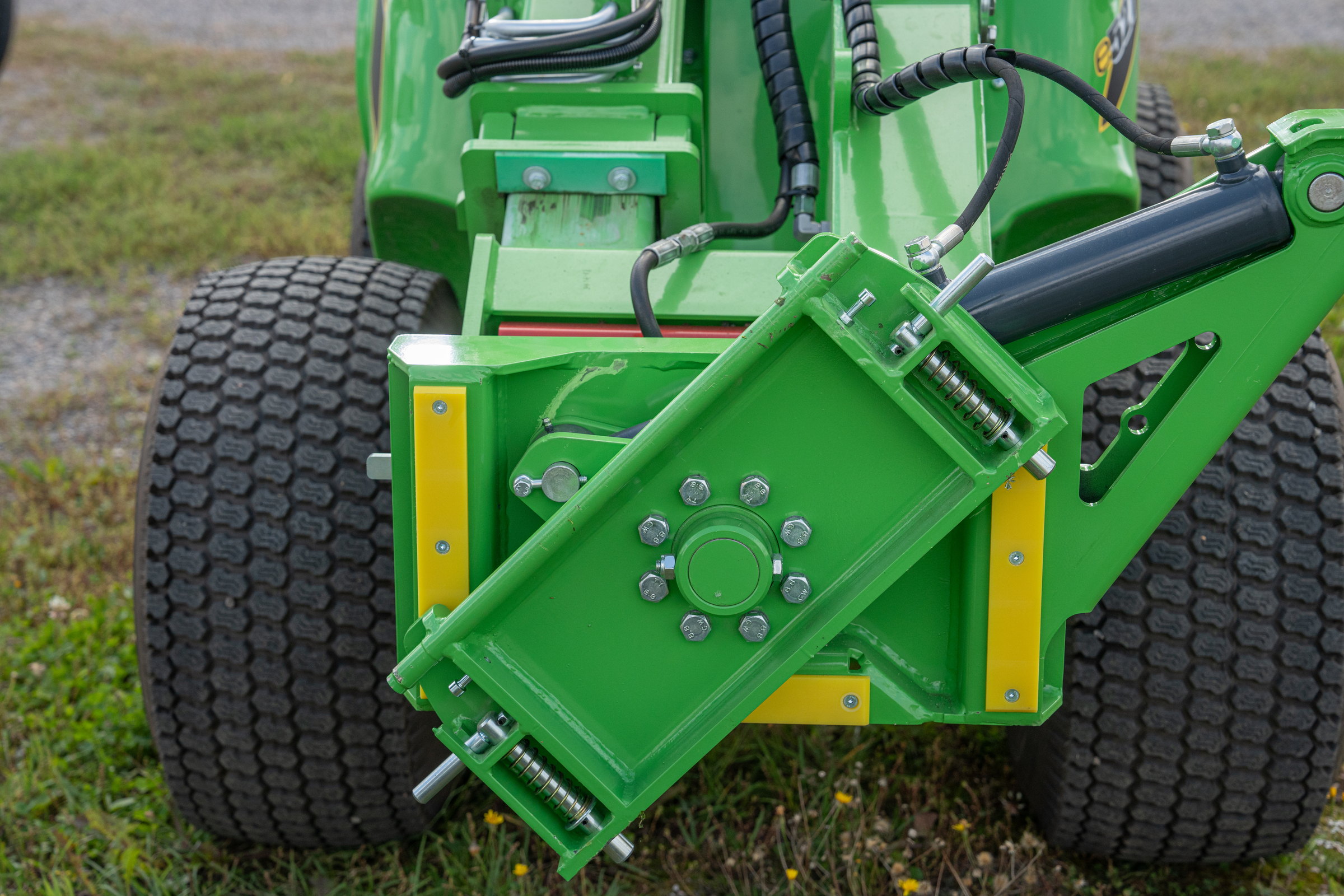

The hydraulic cylinder of the 90 degree tilt adapter can be mounted in two different positions, which gives two tilting angles: either 45° tilting in both directions, or 90° rotation in one direction. The tilt adapter is intended mainly for non-hydraulically
operated attachments, but with the optional second auxiliary hydraulics outlet in the front it is possible to mount also hydraulically driven attachments like a 4 in 1 bucket, pallet fork with hydraulic fork adjustment, grabbing tool, artificial turf attachment and rock drill at the same time.

• Gjør det mulig å tilte og vinkle redskapsfestet i forhold til bakken ved bruk av skuffe eller planeringsramme - og laste paller på ujevnt underlag med pallegaffel
• Monteres mellom redskapet og redskapsfestet på lasteren
• To modeller med maks ± 12,5° tilting eller med maksimalt 90° / ± 45° rotasjon
