800 series

AVANT 850

AVANT 850

Avant’s largest and most powerful model

Capacidade de elevação

1900 kg

Altura de elevação

3500 mm

Potência do motor

36 kW (49 hp)

Velocidade máxima

24 km/h

The flagship of the range, Avant 800 series pushes the limits of a compact loader. It has more lift height and capacity than ever before. It reaches all the way to tall mixer feeder wagons and can load a truck from one side to the far edge – no need to drive around the truck when loading. 800 series can also handle stone pallets with ease thanks to the 1,9-ton capacity. Yet it is compact enough to work in places where bigger machines cannot go and can be transported on a conventional car trailer.

In addition to the standard ROPS/FOPS cab, the optional GT cab is a modern air-conditioned, vibration insulated comfort zone for the driver. A low noise level combined with excellent visibility and ergonomics guarantees a comfortable full day’s work in the cab. The cab can be equipped following the customers' needs – with A/C, Bluetooth radio, air suspension seat, etc. It is the best cab in the market - period.

Especificações técnicas

Baixar o manual
Rodas padrão
380/55-17” TR
Trilho
Tractor
Transmissão
Hydrostatic, Avant Optidrive®
Wheel size
380/55-17

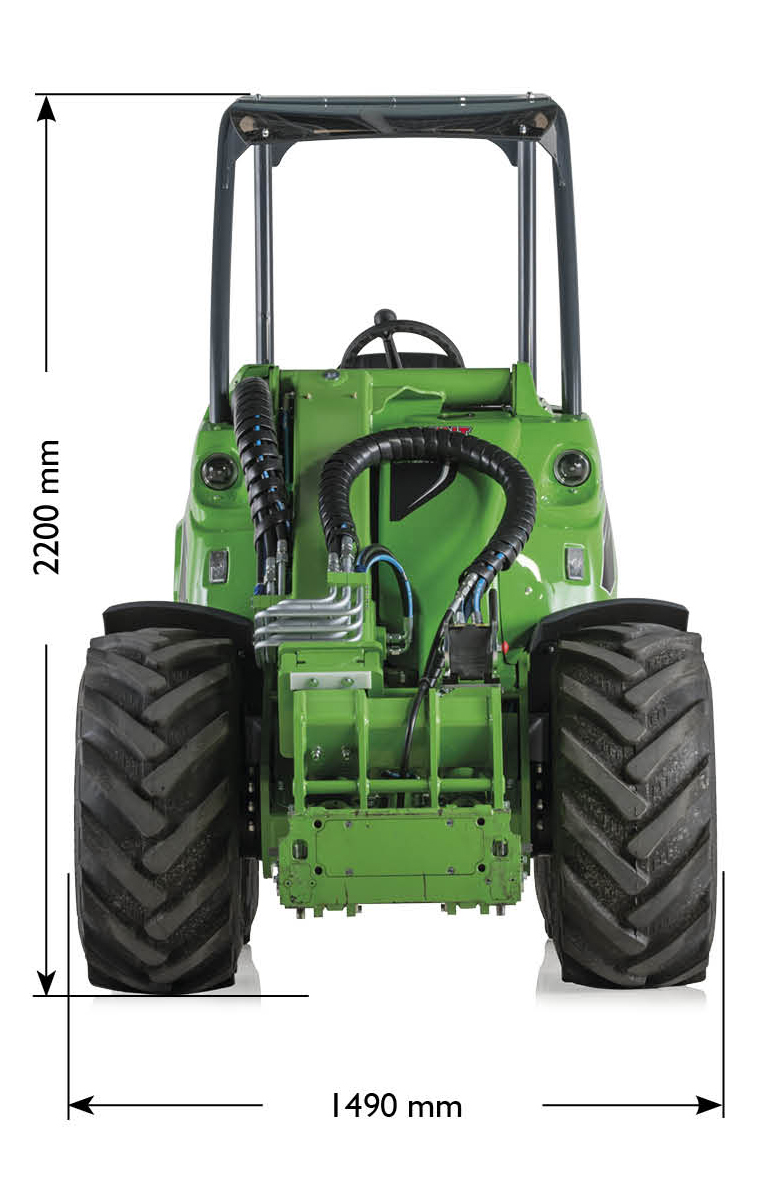

Largura
1490 mm

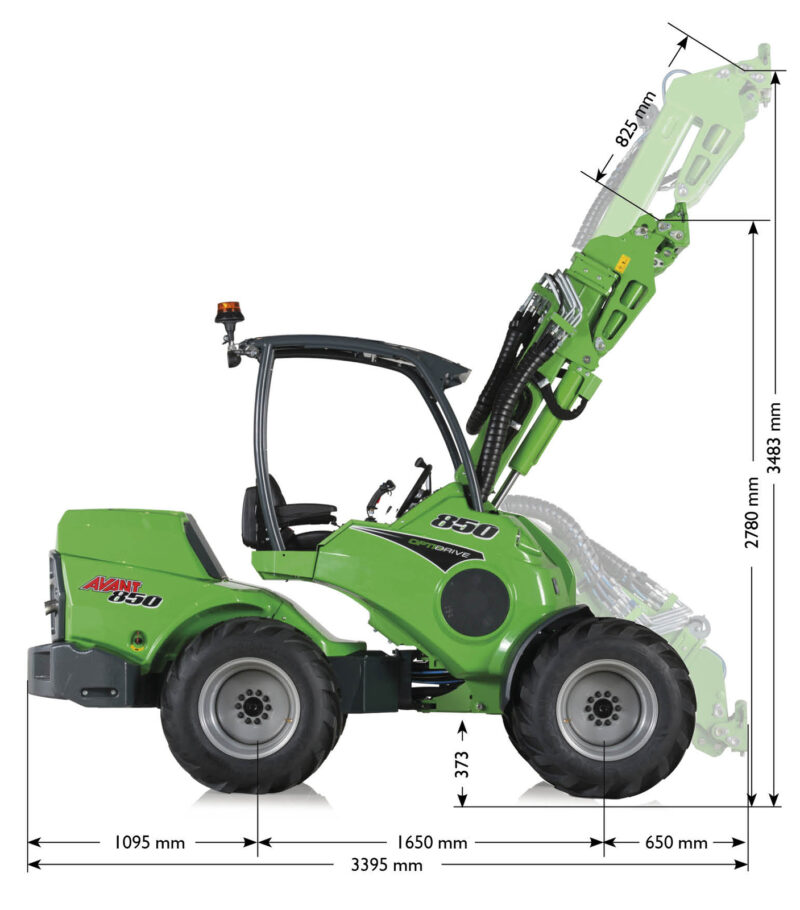

Comprimento
3395 mm
Altura
2200 mm
Peso
2560 kg
Força de tração máx.
1500 kp
Velocidade de condução
24 km/h
Lift Height
3500 mm
Lift Capacity
1900 kg
Motor marca e modelo
Kubota V2403 Stage 3B
Combustivel
Diesel
Potencia do motor
36 kW (49 hp)
Hidráulica auxiliar
70 l/min / 225 bar
Raio de viragem
1370 mm / 2990 mm
Torque máximo
156 Nm @ 1600 rpm
Weight ROPS / GT
2560 kg / 2710 kg

Opcionais

Escolha os opcionais certos para o seu Avant

Fire extinguisher ROPS Conheça Fire extinguisher ROPS
Fire extinguisher GT Conheça Fire extinguisher GT
Tie down bracket on wheel hub Conheça Tie down bracket on wheel hub
Tie down bracket in the rear/on the sides Conheça Tie down bracket in the rear/on the sides
Lifting kit, for machines with ROPS frame Conheça Lifting kit, for machines with ROPS frame
Vehicle identification Conheça Vehicle identification
Full suspension seat Conheça Full suspension seat
Road traffic light kit Conheça Road traffic light kit
Trailer socket, 7-pin Conheça Trailer socket, 7-pin
Work light kit, on ROPS frame Conheça Work light kit, on ROPS frame
Hydraulic rear lift Conheça Hydraulic rear lift
Attachment mounting plate in the rear Conheça Attachment mounting plate in the rear
Rear side weights 180 kg Conheça Rear side weights 180 kg
Rear side weights 80 kg Conheça Rear side weights 80 kg
Drive release valve Conheça Drive release valve
Second auxiliary hydraulics outlet in the front Conheça Second auxiliary hydraulics outlet in the front
Control switch pack for rear mounted attachments Conheça Control switch pack for rear mounted attachments
Auxiliary hydraulics outlet in the rear, double acting Conheça Auxiliary hydraulics outlet in the rear, double acting
Adapter cable for attachment control switch pack Conheça Adapter cable for attachment control switch pack
Joystick 8 functions Conheça Joystick 8 functions
Hydraulic attachment coupling plate Conheça Hydraulic attachment coupling plate
Acionamento suave (suspensão do braço) Conheça Acionamento suave (suspensão do braço)
Braço flutuante, máquina com autonivelamento Conheça Braço flutuante, máquina com autonivelamento
Autonivelamento do braço Conheça Autonivelamento do braço
Braço telescópico Conheça Braço telescópico

Mais de 200 acessórios

Escolha as ferramentas certas a partir de nossa seleção versátil de acessórios

Muitas opções

Adicione eficiência e conforto ao seu trabalho com opções
