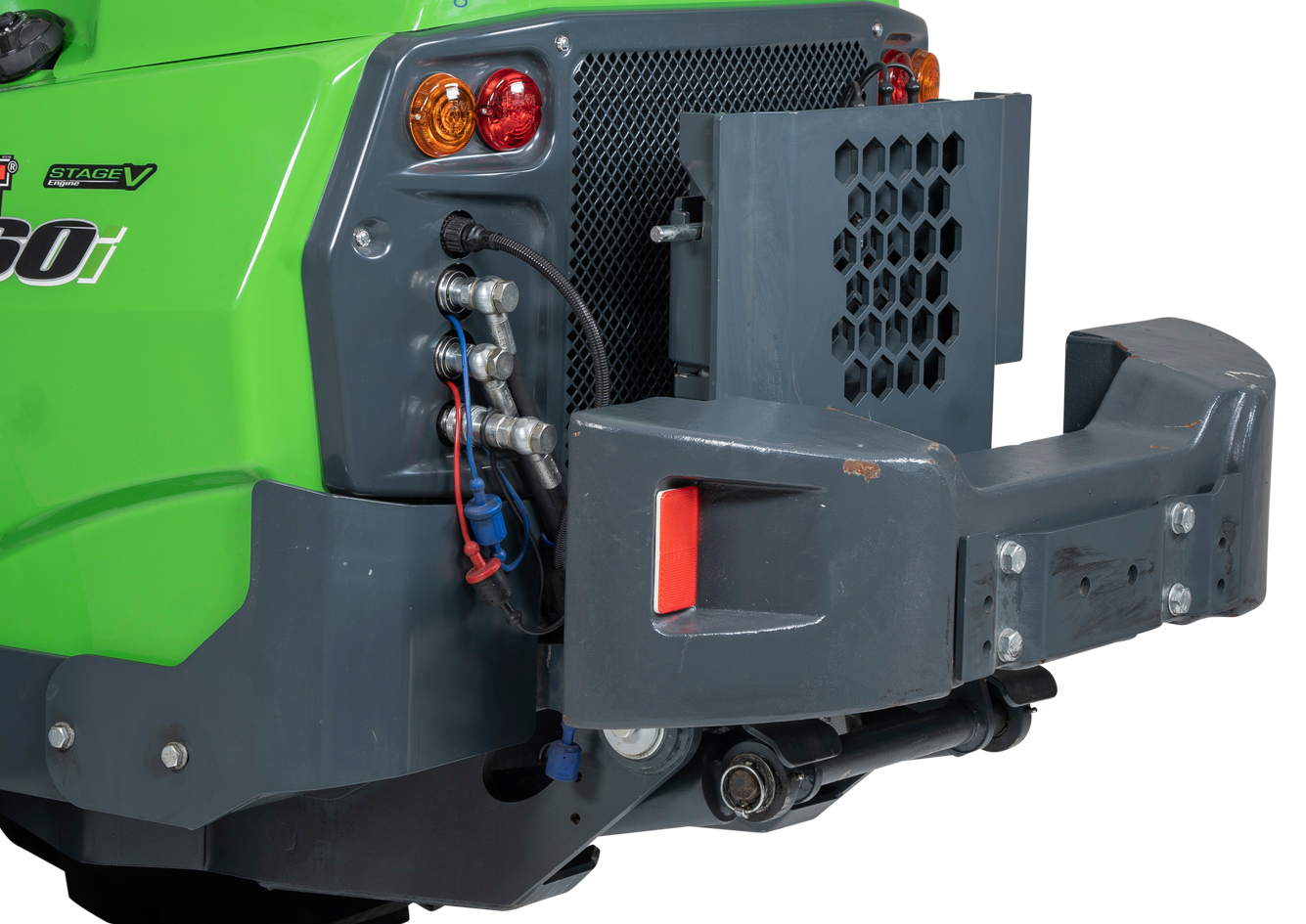

Hydraulic rear lift

This hydraulic rear lift mounts on Avant 700 and 800 series only. It is mainly intended for the sand/salt spreaders A427150 & A424325.

The rear lift can be tilted down max. 95°, which means that the sand spreader can be tilted down to horizontal position and filled directly from the sand pile by reversing with the machine. The rear lift requires the optional double acting rear auxiliary hydraulics outlet and the control switch pack for rear mounted attachments on the loader. Selection between operation of rear lift / attachment is made with the switch pack, and the rear lift/attachment is operated with auxiliary hydraulics control lever (or buttons on the joystick, if fitted). Hydraulic cylinders are equipped with check valves which make sure that the rear lift cannot move inadvertently.

Fale com vendas

Modelos compatíveis

Modelo

220 Incompatível

225 Incompatível

423 Incompatível

523 Incompatível

528 Incompatível

530 Incompatível

630 Incompatível

635 Incompatível

635i Incompatível

640 Incompatível

640i Incompatível

645i Incompatível

650i Incompatível

735 Compatível

735i Compatível

745 Compatível

750 Compatível

755i Compatível

760i Compatível

845 Compatível

850 Compatível

855i Compatível

860i Compatível

e513 Incompatível

e527 Incompatível

e727 Compatível

Opcionais disponíveis

Elevador hidráulico traseiro série 700 A427547

Elevador hidráulico traseiro série 800 A438490
