Série 600

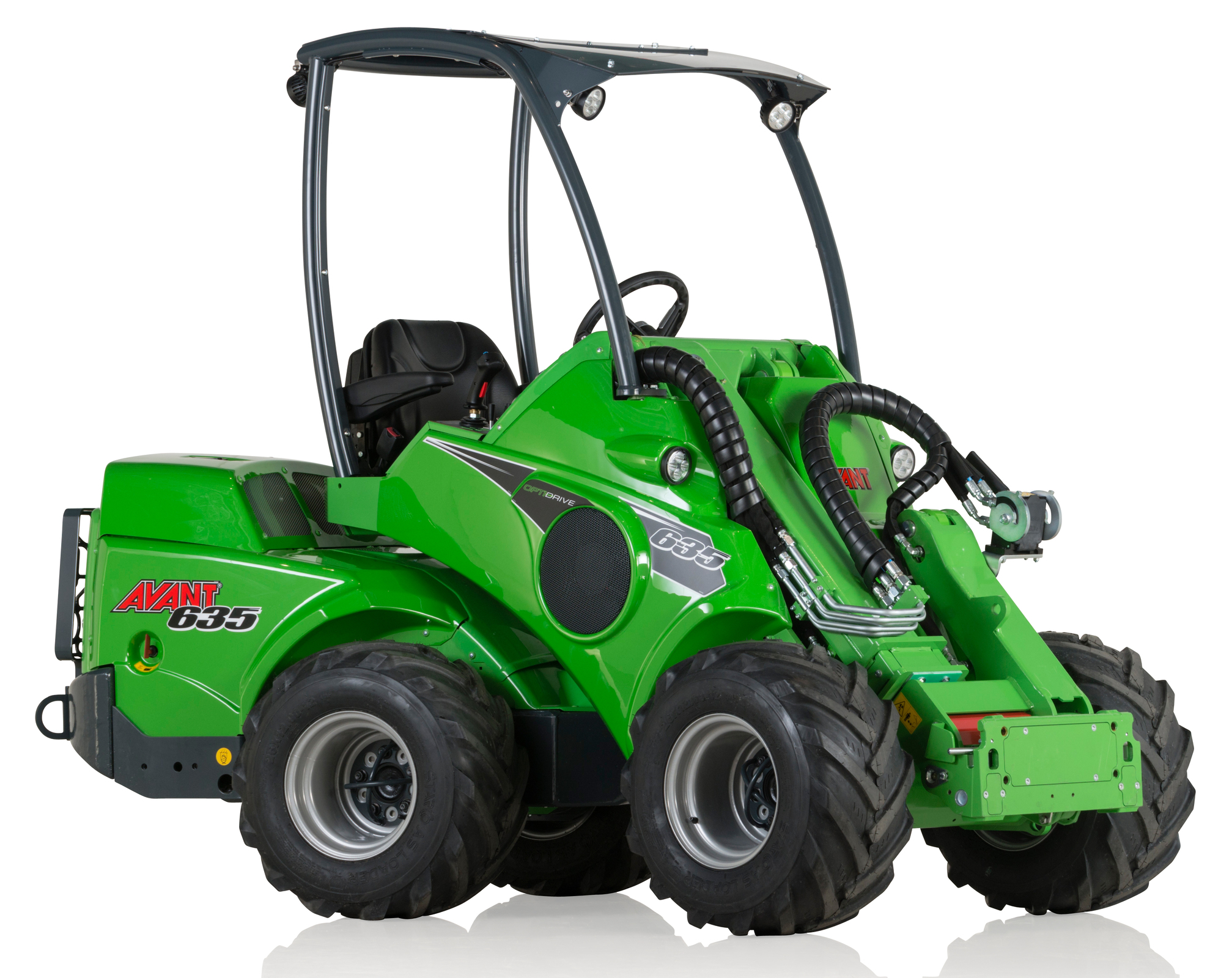

AVANT 635

AVANT 635

Perfect combination of power and maneuverability

Capacidade de elevação

1100 kg

Altura de elevação

2835 mm

Potência do motor

28 kW (37.5 hp)

Velocidade máxima

14 km/h

Avant 600 series is the real all-rounder in the range. It combines power, lift capacity and professional hydraulics which are in a very compact package. This makes 600 series a very popular machine for many professionals in landscaping, groundcare, construction, farming, horse stables, and many other customers. The max. 1,1-tonne lift capacity is just perfect for a multitude of jobs and the powerful auxiliary hydraulics runs almost all Avant attachments. The customers also like the easy transporting of 600 series. Thanks to the compact dimensions it is possible to fit both the loader and the attachments on the trailer, and inside the van if necessary.

600 series customers also benefit from Avant’s telescopic boom, which is a standard feature. Lift height and outreach are excellent for a machine of this size and they can be steplessly adjusted with the teleboom. This guarantees very fast and ergonomic load handling.

The great Avant stability is present in 600 series as well, and the excellent visibility to the attachment and work area is valued by all operators. Avant’s 4x4 hydrostatic drive system gives the best possible traction in all situations.

The comprehensive range of options are available for 600 series also, including all cab options. From over 200 attachments specially designed for Avant loaders the customers can choose the best package for any use.

Especificações técnicas

Baixar o manual
Rodas padrão
26x12.00-12 TR/GR
Transmissão
Hydrostatic, Avant Optidrive®
Largura
1290 mm
Comprimento
2610 mm
Altura
2060 mm
Comprimento do telescópio
600 mm
Peso ROPS / GT
1530 kg / 1680 kg
Peso
1530 kg
Raio de giro interno/externo
900 mm / 2190 mm
Força de tração máx.
1200 kp
Velocidade de deslocamento
14 km/h
Hidráulica auxiliar, vazão máx. de óleo / Hidráulica auxiliar, pressão máx.
66 / 200
Altura de elevação
2835 mm
Capacidade de elevação
1100 kg
Hidráulica auxiliar, vazão / pressão de óleo
66 l/min / 200 bar
Marca e tipo do motor
Kubota V1505
Norma de potência do motor
ECE R120
Combustível
Diesel
Potência do motor
28 kW (37.5 hp)
Torque máximo
97 Nm @ 2200 rpm

Opcionais
