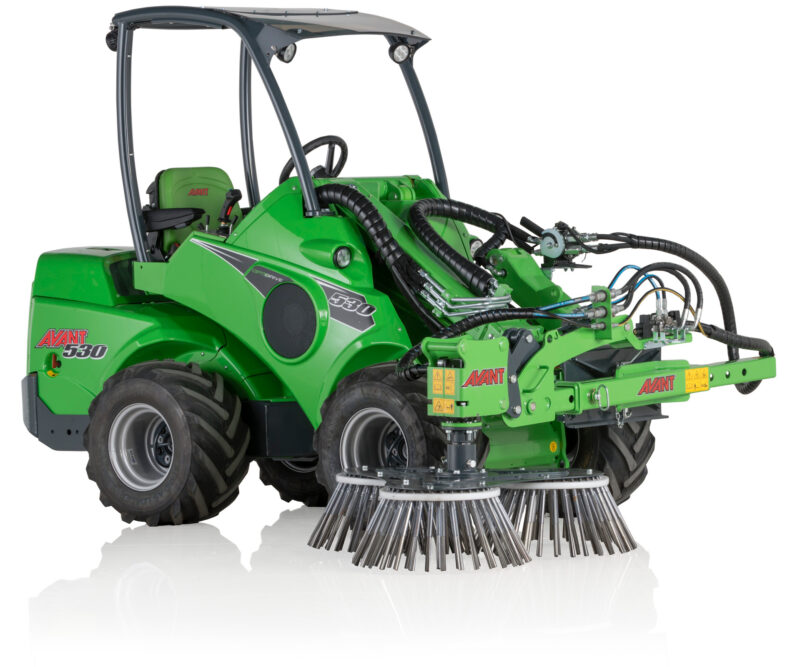

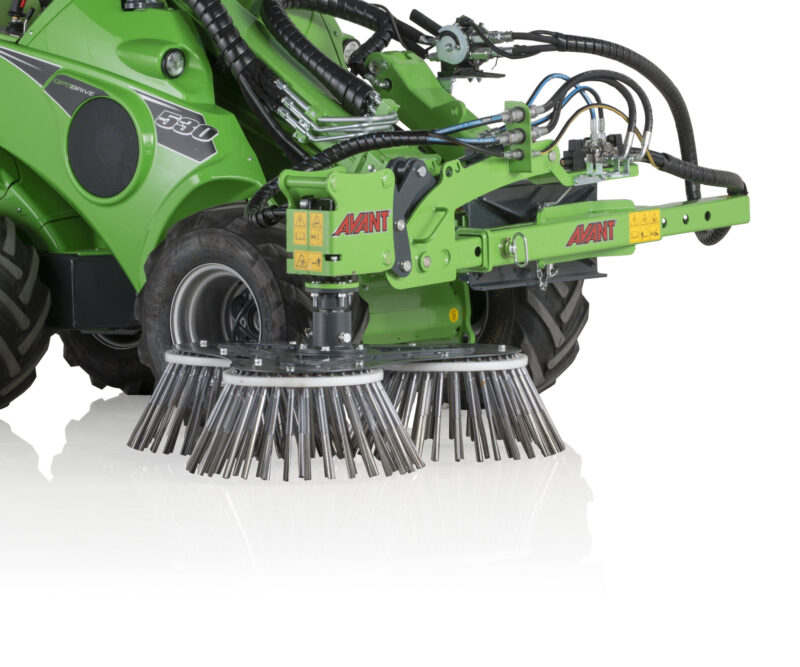

Multi function drive unit S30

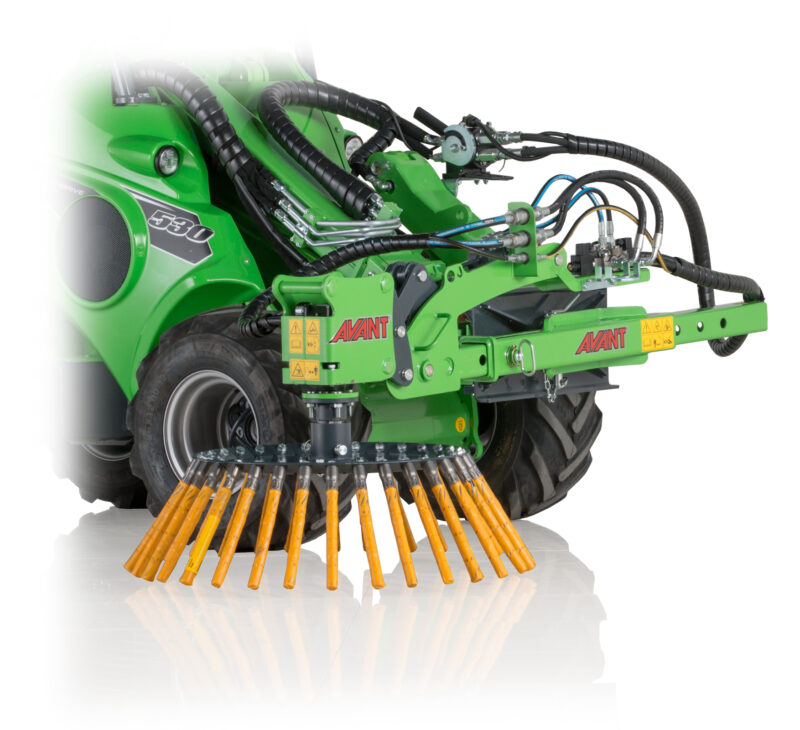

The multi function drive unit equipped with the S30 quick attach bracket is intended mainly for rotating different types of brushes – XL weed brush, XL wire rope brush and carousel broom. It can be mounted in horizontal or vertical position on the side arms with S30 quick attach system (both mechanical and hydraulic arm), but not on the attachment coupling plate of the loader. The S30 drive unit has the same 57 mm square shaft for attachments as the A37190 Multi function drive unit, but is equipped with a lower torque and higher speed hydraulic motor and works therefore better with brushes. On the other hand it doesn’t have enough power to rotate auger drills or screw cone log splitter.

Multi connector on hydraulic hoses available as an option, for mounting on the S30 side arms (side arm must also be equipped with multi connector).

• Drive unit which mounts on S30 side arms
• Possible to mount in horizontal or vertical position
• Equipped with high speed hydraulic motor, intended for rotating different types of brushes
• Same 57 mm square shaft for attachments as on the A37190 Multi function drive unit
