Mechanical side arm S30

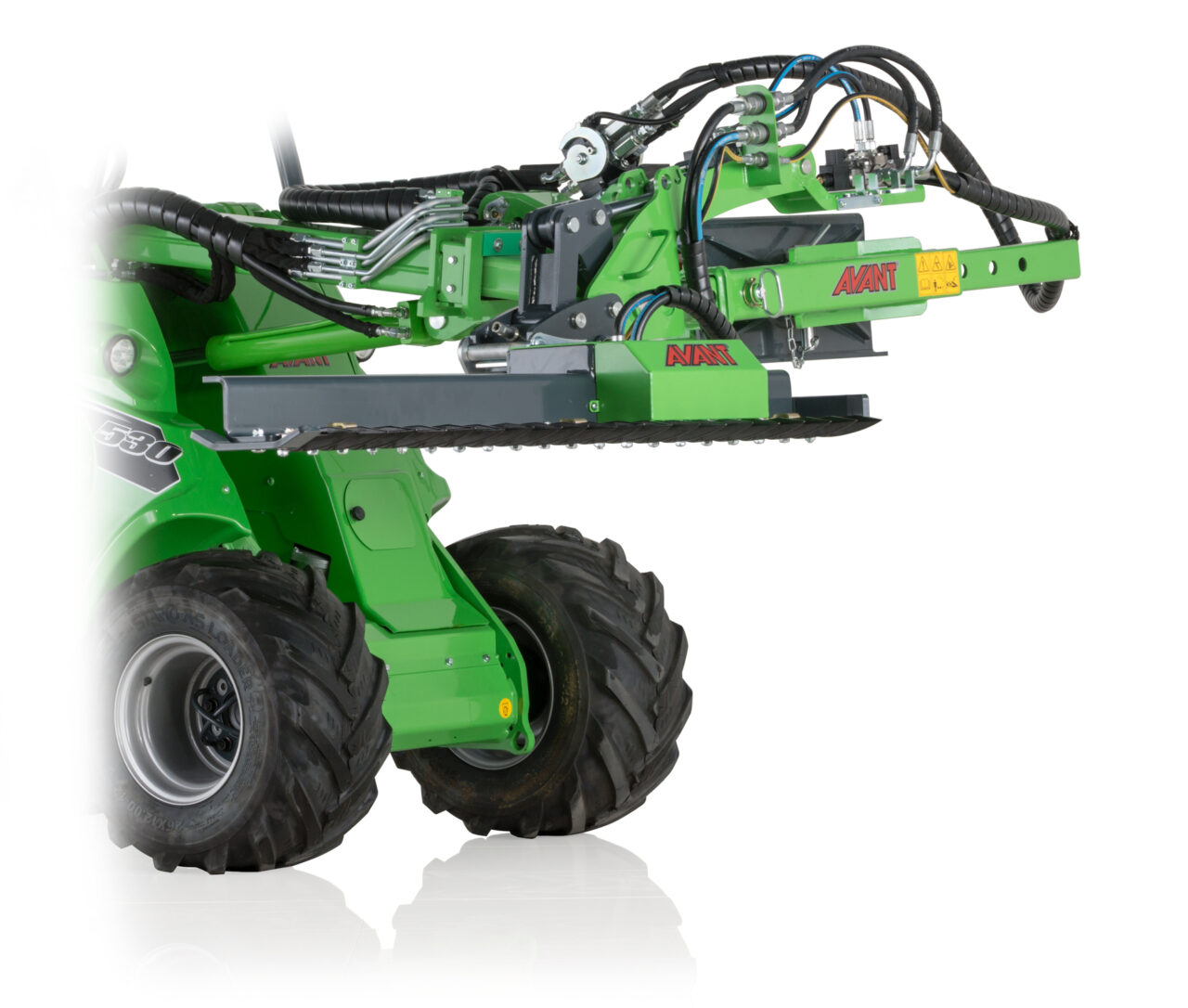

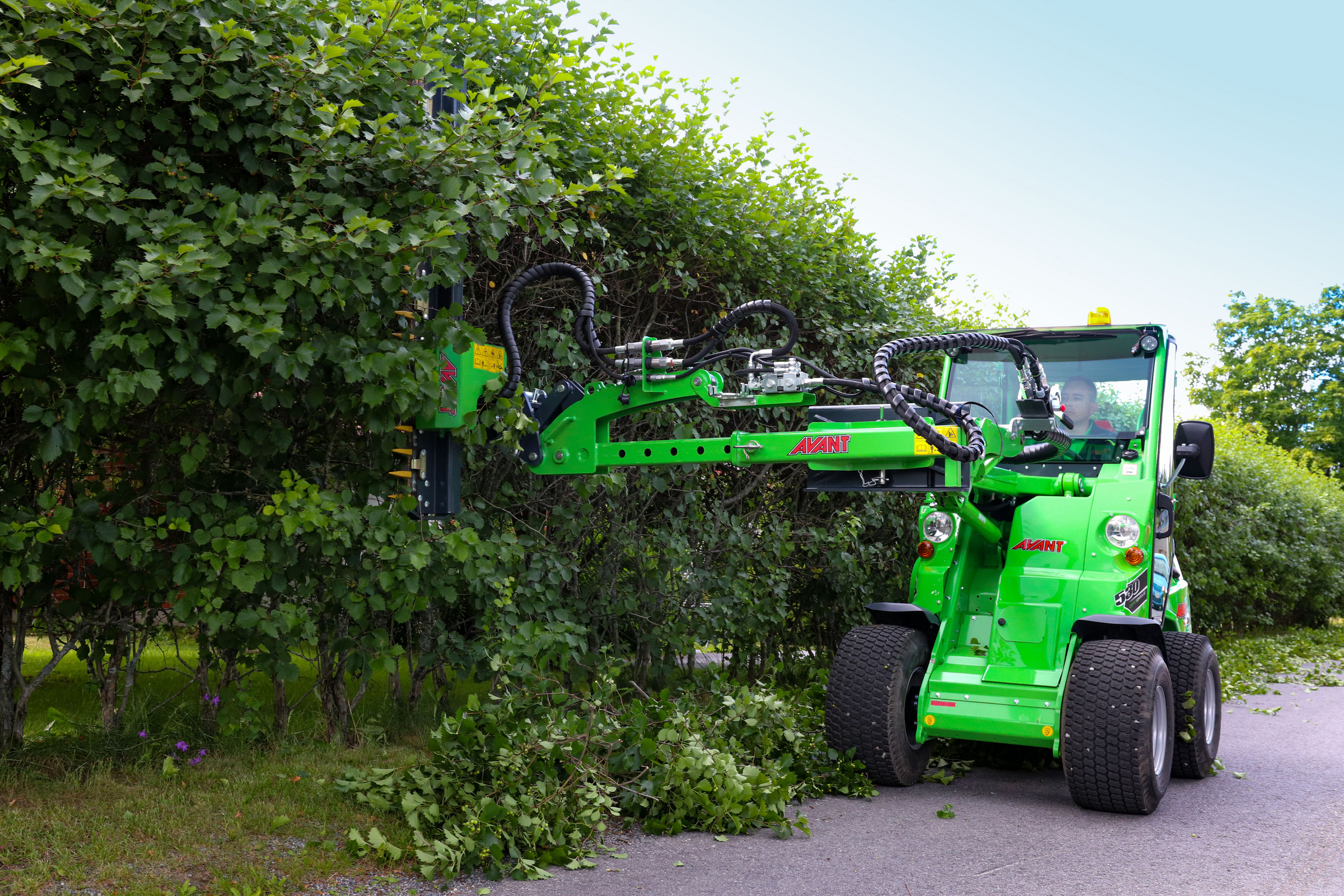

The mechanical side arm with the S30 quick attach system can be fitted with lighter (max. 200 kg) attachments like the A430938 S30 cutting bar and the A429926 S30 multi function drive unit with HD brushes. It is equipped with a mechanical, manually extendable straight telescopic arm and a hydraulic jib arm which tilts the attachment up and down. Telescoping to the side is max. 1000 mm and jib arm movement is max 45° down and 90° up from horizontal position.

The side arm is pivoted in the middle, locked with a pin, and can be turned manually up and down with 45° steps – and even 180° to the other side, which makes it possible to work either on the right or on the left side of the loader. The arm is rigid to all directions, there is no release mechanism in case it hits an obstacle.

• Versatile side arm, can be fitted with hedge cutter bar, weed brushes etc.
• Equipped with a mechanical, manually extendable straight telescopic arm and a hydraulic jib arm
• Telescoping to the side max. 1000 mm, jib boom movement max 45° down and 90° up from horizontal position
• Multi connector for connecting the S30 attachment’s hydraulic hoses available as an option (S30 attachment must also be equipped with the corresponding multi connector)
