500 series

Excellent choice with robust and simple hydraulics

The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.

Avant 500 series is a reliable partner for all-round use. Like all Avants, it can be equipped following customer needs, including all cab options (L, LX, DLX). The comprehensive Avant attachment range guarantees efficient working all year round.

Request a quote
Close
Download brochure
Close
  • Lift capacity 1750-2100 lb
  • Lift height 110 in
  • Engine power 22-25 hp
  • Drive speed 7.5-12 mph
  • Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
  • Simple, effective hydraulics means good power and low operating costs
  • Easy to transport with a car trailer

Technical Specifications



the tool that will become your best friend.



Secure

Avant’s ingenious articulated design where the driver sits in the front chassis and has a perfect view on the attachment and work area means low center of gravity of the machine, which is an important factor in the stability. Also the rigid articulation joint which doesn’t swing sideways increases stability in all situations and at the same time best possible traction can be achieved thanks to the advanced 4x4 system.

All Avant loaders are equipped with an open ROPS/FOPS certified cab as standard, and also the optional enclosed cabs (L, LX, DLX, GT) comply with the ROPS/FOPS standards.

Telescopic boom

While Avant loaders are made as compact as possible, the reach and lift height do not suffer from it.

Avant's telescopic boom makes it possible to have a very compact machine with a great outreach and lift capacity. When the telescopic boom is retracted it is possible to lift heavier loads. With the boom fully extended, the reach and lift height are unparalleled.

In many cases, it is possible to load a trailer from one side thanks to the outreach of the telescopic boom and still have excellent all-round visibility.

Versatile

Avant attachments have been designed to work as an equal partner on Avant loaders. The best machine-attachment combination and work efficiency can only be achieved when a good machine is fitted with attachments that are specifically designed for the machine. The dimensions, auxiliary hydraulics output and other features of Avant are in perfect balance with the attachments.

Avant loaders and attachments have been designed for year-round use which ensures that the machine is never sitting idle. The wide range of options available for the loaders - like four different cabs, extra work lights, the Opticontroltm attachment control system, etc. - together with technical solutions in the loaders make Avant as comfortable to use in the winter cold as it is on a sunny summer afternoon.

Avant's hydraulic multi-connector system for coupling the attachment’s hydraulic hoses guarantees easy and effortless connecting and detaching in any situation with a single hand movement. It can be done with the engine running and/or pressure in the attachment, also in freezing ambient temperatures. The mechanism is leak-free and cannot be connected in the wrong way.

Avant 4x4

All articulated Avant loaders are equipped with a hydrostatic drive system. There is a hydraulic drive motor on each wheel. The drive circuit is equipped with valves with which traction can be controlled in different situations. In order to avoid tyre marks on soft and sensitive surfaces when turning, the system allows the wheels on the left and right sides of the loader to roll at different speeds. This also reduces tyre wear on hard surfaces.

The valves in the drive system work like a hydraulic 4x4 diff lock and equalize the oil flow between the left and right side hydraulic motors, improving traction on slippery and uneven surfaces.

Drive modes explained - YouTube

Options

Snow chains, road traffic light kits and loads of other options.

View all options

TECHNICAL INFORMATION

LIFT CAPACITY

1750 lbs

ENGINE POWER

22 hp diesel

LIFT HEIGHT

110 inches

SPEED

7.5 mph

SPECIFICATIONS

Length 96 in
Width (with standard wheels) 44.5 in
Height (with standard wheels) 78.3 in
Weight 2645 + 375 lbs
Standard wheels 23x10.50-12
Transmission, drive hydrostatic
Pulling force 1984 lbs
Drive speed max. 7.5 mph
Aux. hydraulics oil flow / pressure 8.9 gpm 185 bar
Turning radius inside/outside 39 / 80.7 in
Max. lifting height 110 in
Tipping load *) 1750 lbs
Max. breakout force / 50 cm 2425 lbs
Engine make and type Kubota D902
Engine output (ISO Gross) 16 kW (22 hp)
Fuel Diesel



*) lift capacity with a 90 cm pallet

WIDTH

Wheel size Profile Machine width
27 x 8.50 - 15 *) tractor 40.5 in
23 x 8.50 - 12 tractor or grass 42.5 in
23 x 10.50 - 12 tractor or grass 44.5 in
26 x 12.00 - 12 *) tractor or grass 50.8 in
320/60 - 12 HD *) tractor 50.8 in
26.5 x 14.00 - 12 **) grass 55.9 in



*) Bigger wheels will  increase total machine height by .79-1.37 inches

**) Requires 1.6 inch spacers on wheel hubs



HEIGHT WITH CAB

Wheels L Cab LX Cab DLX Cab
23x8.50-12 and 23x10.50-12 79.5 in 79 in 80 in
26x12.00-12 and 320/60-12 80 in 79.7 in 80.5 in
27x8.50-15 80.6 in 80 in 81 in

DIMENSIONS

ask a question.

Contact us

LIFT CAPACITY

2100 lb

ENGINE POWER

25 hp diesel

LIFT HEIGHT

110 in

SPEED

7.5 mph

SPECIFICATIONS

Length 100.4 in
Width 44.9 in
Height 78.2 in
Weight 3130 lb
Standard wheels 23x10.50-12"grass/TR
Transmission, drive hydrostatic
Pulling force 2100 lbf
Drive speed max. 7.5 mph
Aux. hydraulics oil flow / pressure 9.5 gal/min 2900 psi
Turning radius inside/outside* 39.2 / 80.7 in
Max. lifting height (with telescopic boom) 109.8 in
Tipping load ** 2100 lb
Max. breakout force / 50 cm 2800 lb
Engine make and type Kubota D1105
Engine output (ISO Gross) 25 hp
Fuel Diesel



*Turning radius with 23x10.5-12 wheels.

**Measured 15.75 in from coupling plate, incl attach wt 154 lb.

WIDTH

Wheel size Profile Machine width
27 x 8.50 - 15* TR 40.6 / 44.6 in
23 x 8.50 - 12 TR or Grass 42.9 in
23 x 10.50 - 12 TR or Grass 44.9 in
26 x 12.00 - 12* TR or Grass 50.8 in




* Bigger wheels will increase total machine height 0.8-1.4 inches

HEIGHT WITH CAB

Wheels L Cab LX Cab DLX Cab
23 79.53 in 79.13 in 79.92 in
26 80.19 in 79.72 in 80.51 in
27 80.63 in 80.24 in 81.02 in

DIMENSIONS

Avant 528 loader, one of the most popular alternatives for skid steer, dimensions

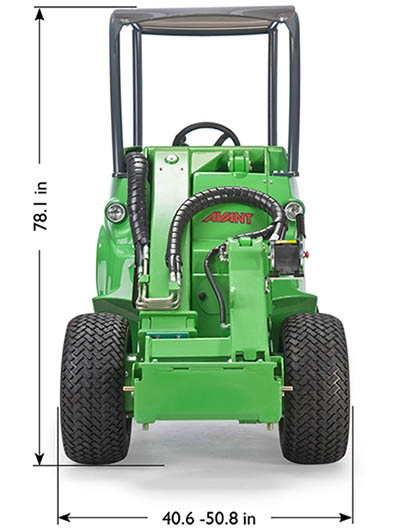

Alternative for skid steer, Avant 528 loader dimensions front

ask a question.

Contact us

LIFT CAPACITY

2100 lbs

ENGINE POWER

25 hp diesel

LIFT HEIGHT

110 in

SPEED

12 mph

SPECIFICATIONS

Length 100.4 in
Width see table
Height (with standard wheels) 78.1 in
Weight 2755 + 374 lbs
Standard wheels 23x10.50-12" TR
Transmission, drive hydrostatic
Pulling force 2314 lbf
Drive speed 5.6/11.8 mph (2 speed)
Aux. hydraulics oil flow / pressure 36 l/min 200 bar
Turning radius inside/outside 39 / 80.7 in
Lifting height 109.8 in
Tipping load * 2094 lbs
Max. breakout force / 50 cm 2755 lbs
Engine make and type Kubota D1105
Engine output (ISO Gross) 19 kW (26 hp)
Fuel Diesel



*) Load is measured at 15.75 in. from the attachment coupling plate, including attachment weight (154 lbs).

WIDTH

Wheel size Profile Machine width
27 x 8.50 - 15 *) tractor 40.5 in
23 x 8.50 - 12 tractor or grass 42.5 in
23 x 10.50 - 12 tractor or grass 44.5 in
26 x 12.00 - 12 *) tractor or grass 50.8 in
320/60-12 HD *) tractor 50.8 in



*) Bigger wheels will increase total machine height by .78-1.4 in.

HEIGHT WITH CAB

Wheels L Cab LX Cab DLX Cab
23 79.5 in 79 in 80 in
26 80.1 in 79.7 in 80.5 in
27 80.6 in 80.2 in 81 in

DIMENSIONS
