Property maintenance

Zoom snow plow

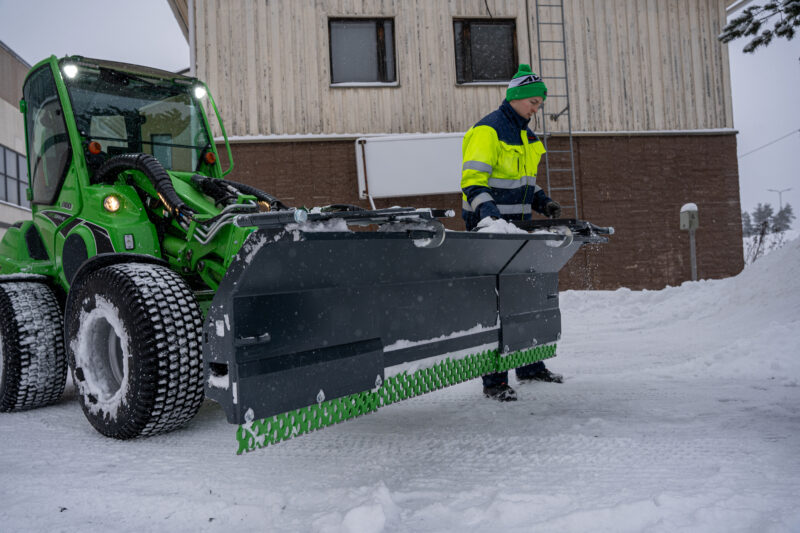

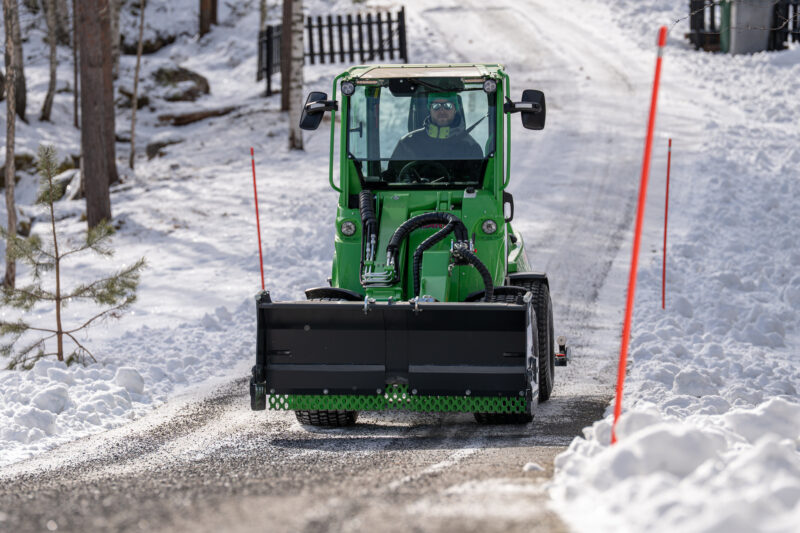

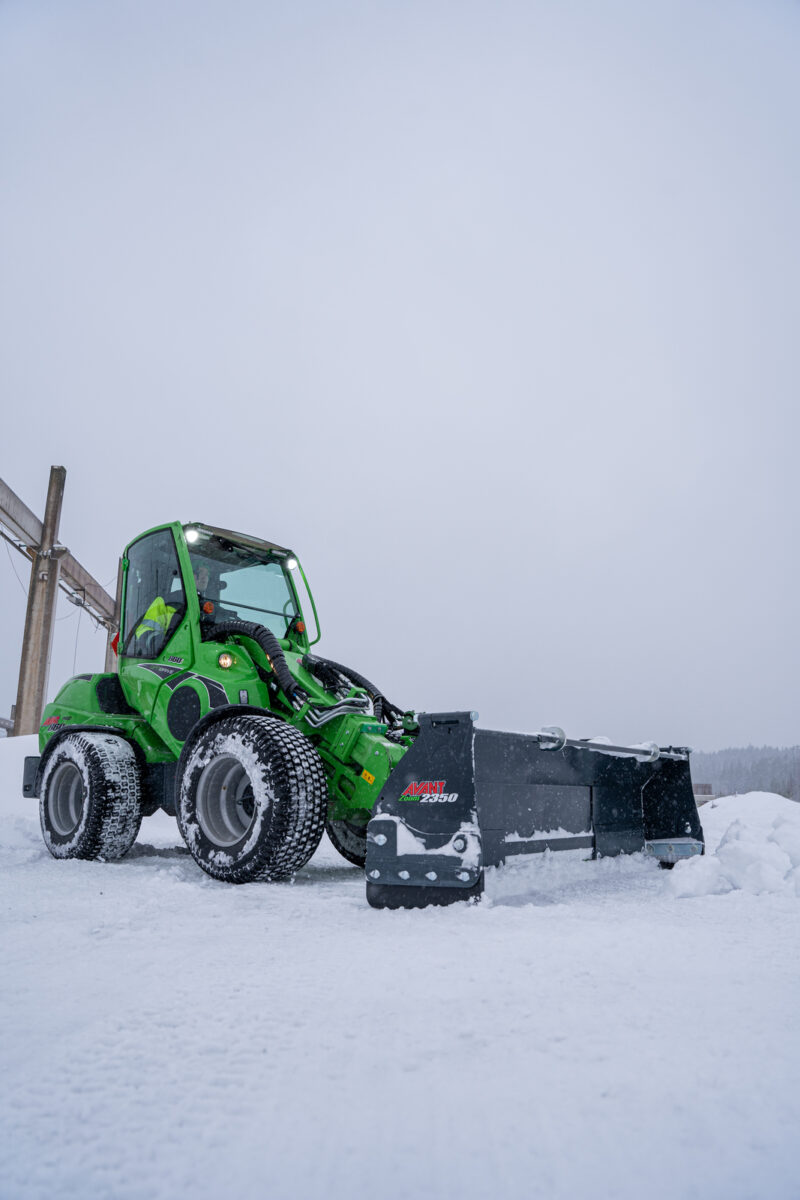

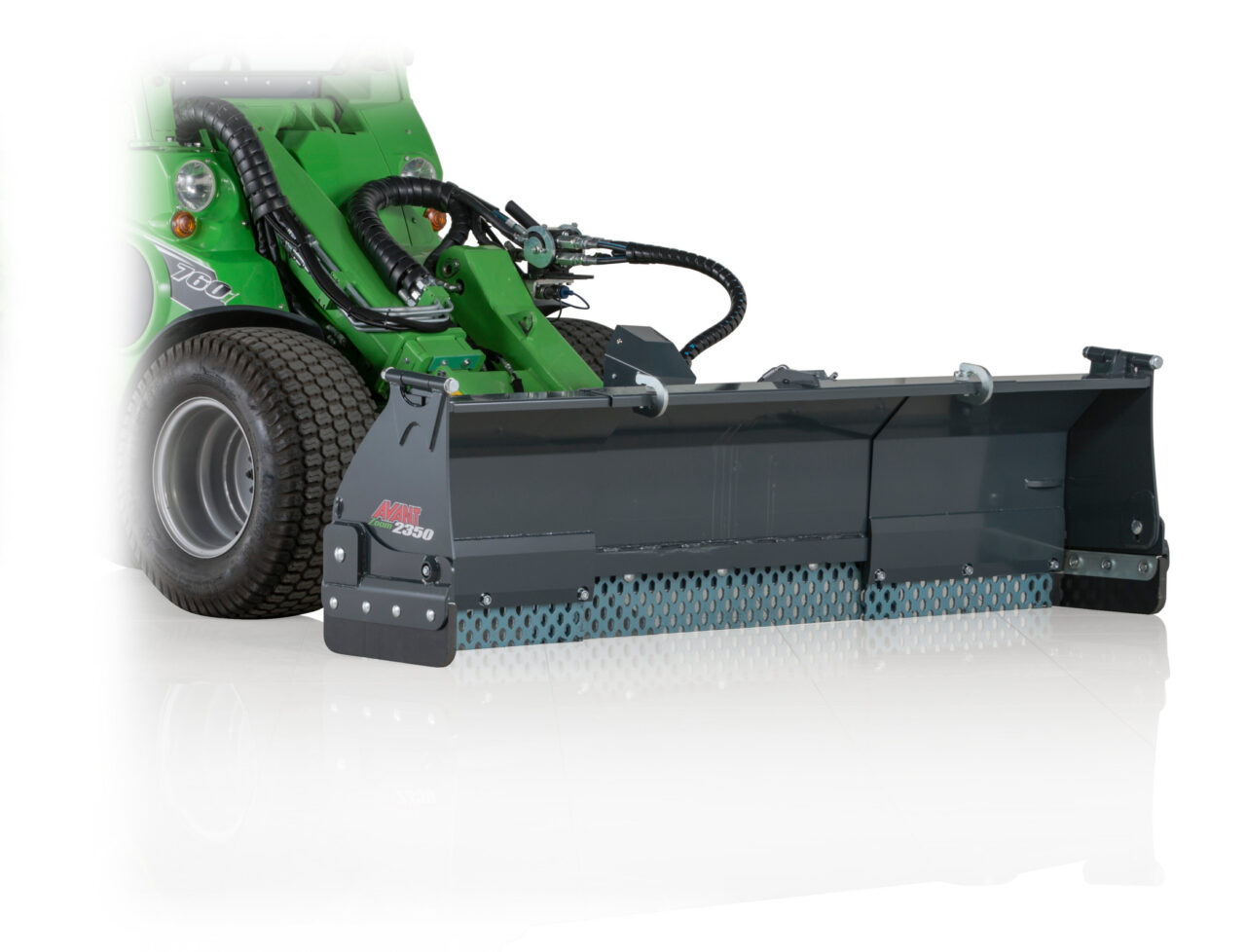

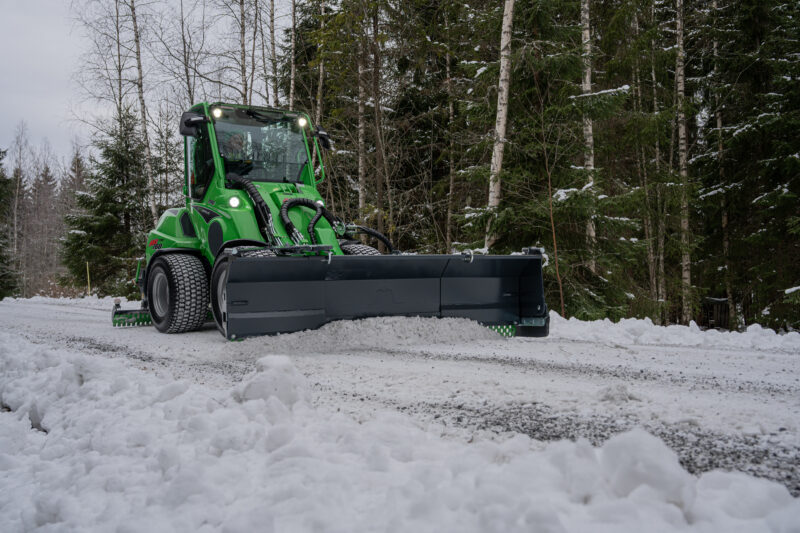

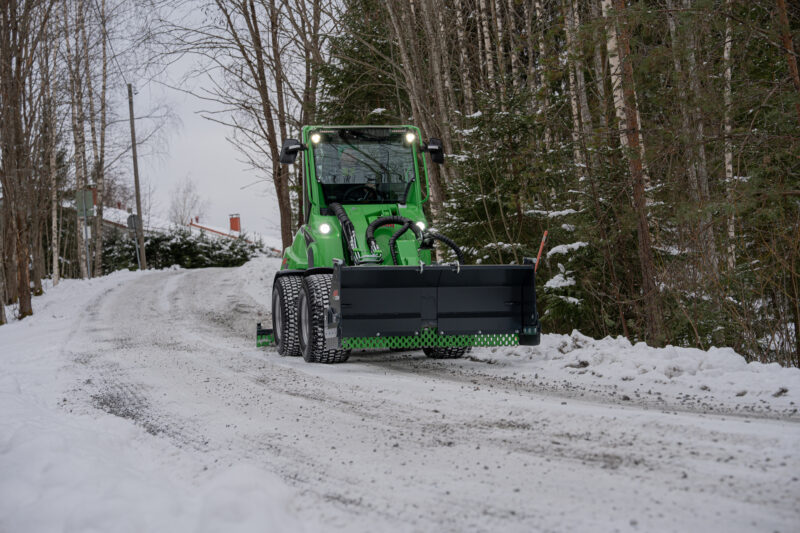

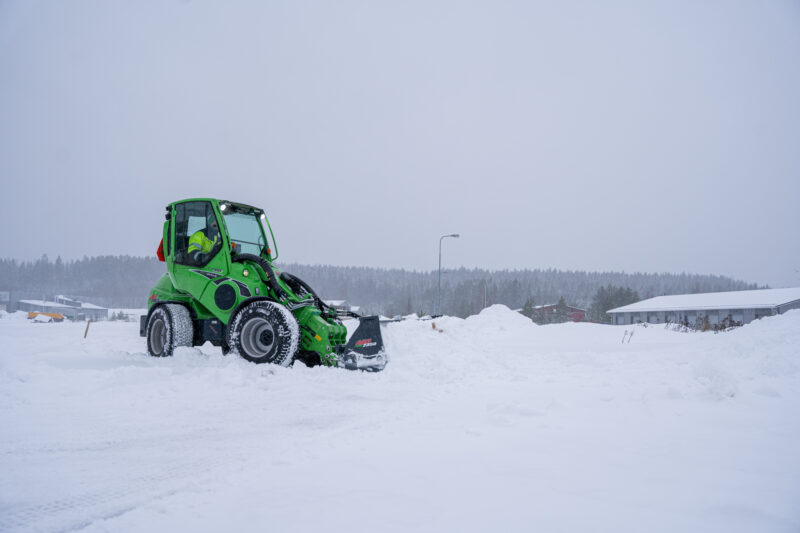

This new type snow plow is equipped with a straight main blade and two wings which can be extended and retracted steplessly, powered by two hydraulic cylinders. This gives several different working widths and makes the snow plow very versatile.

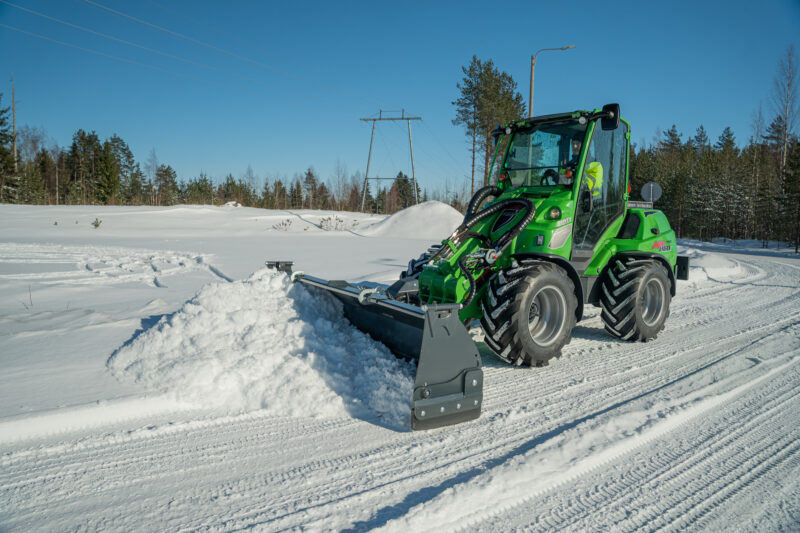

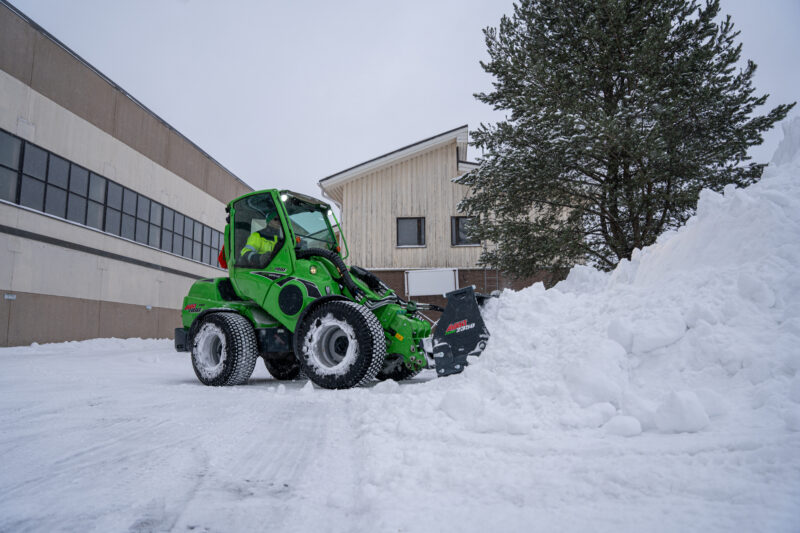

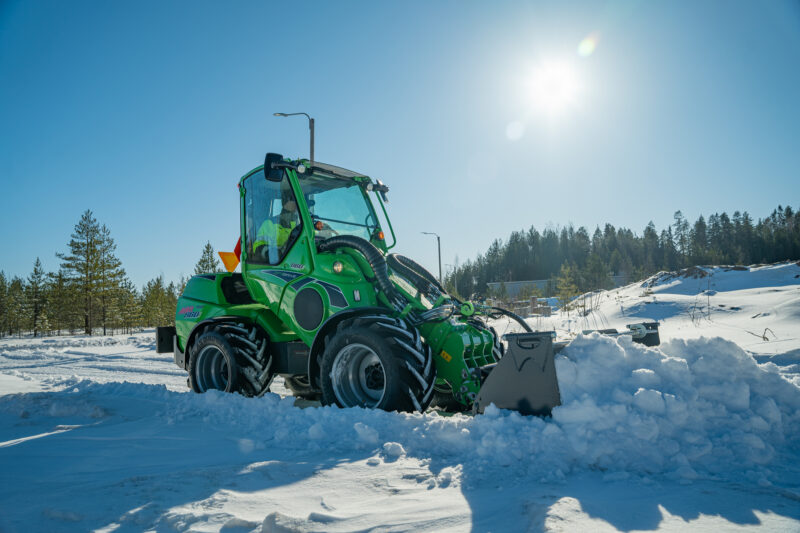

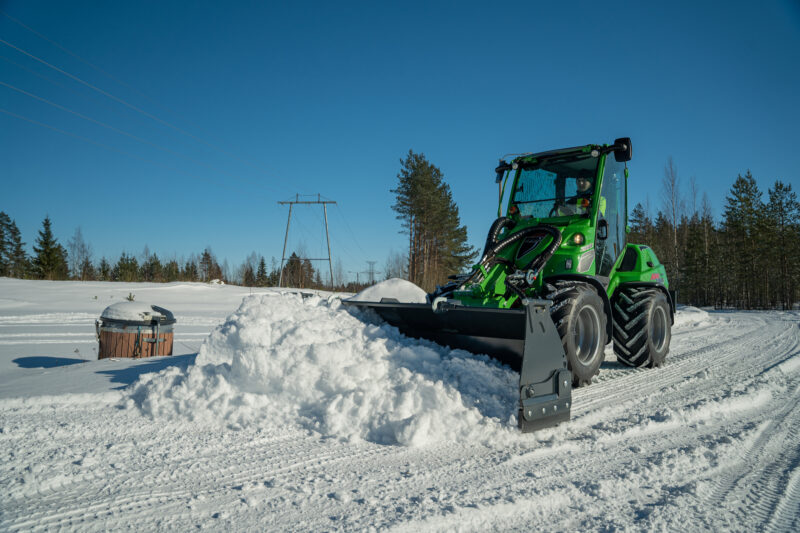

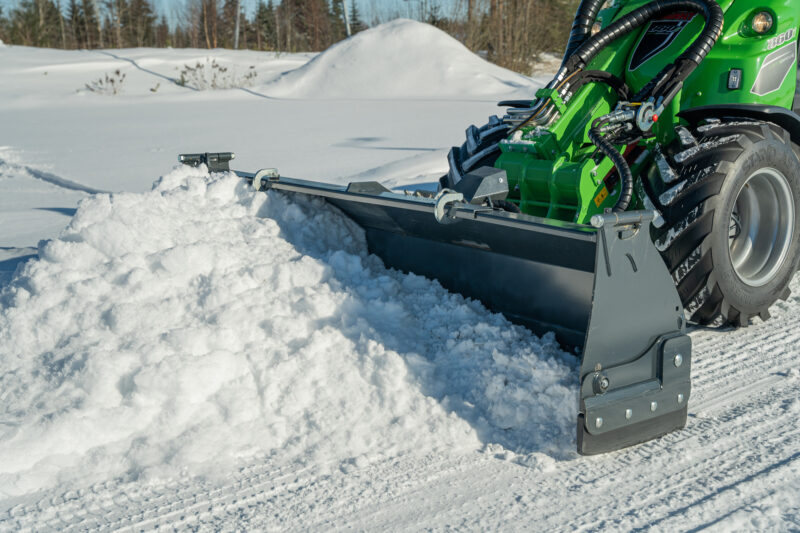

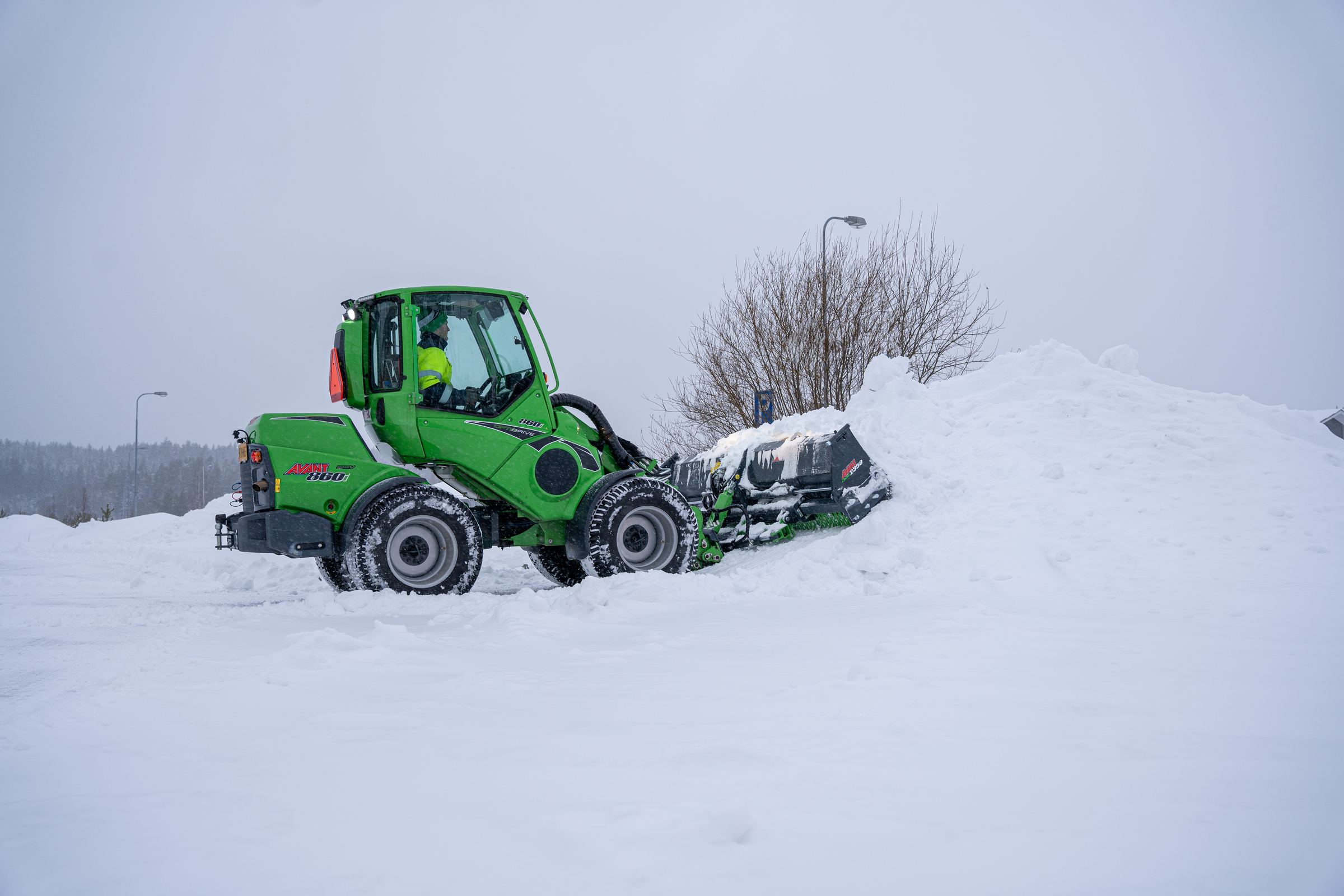

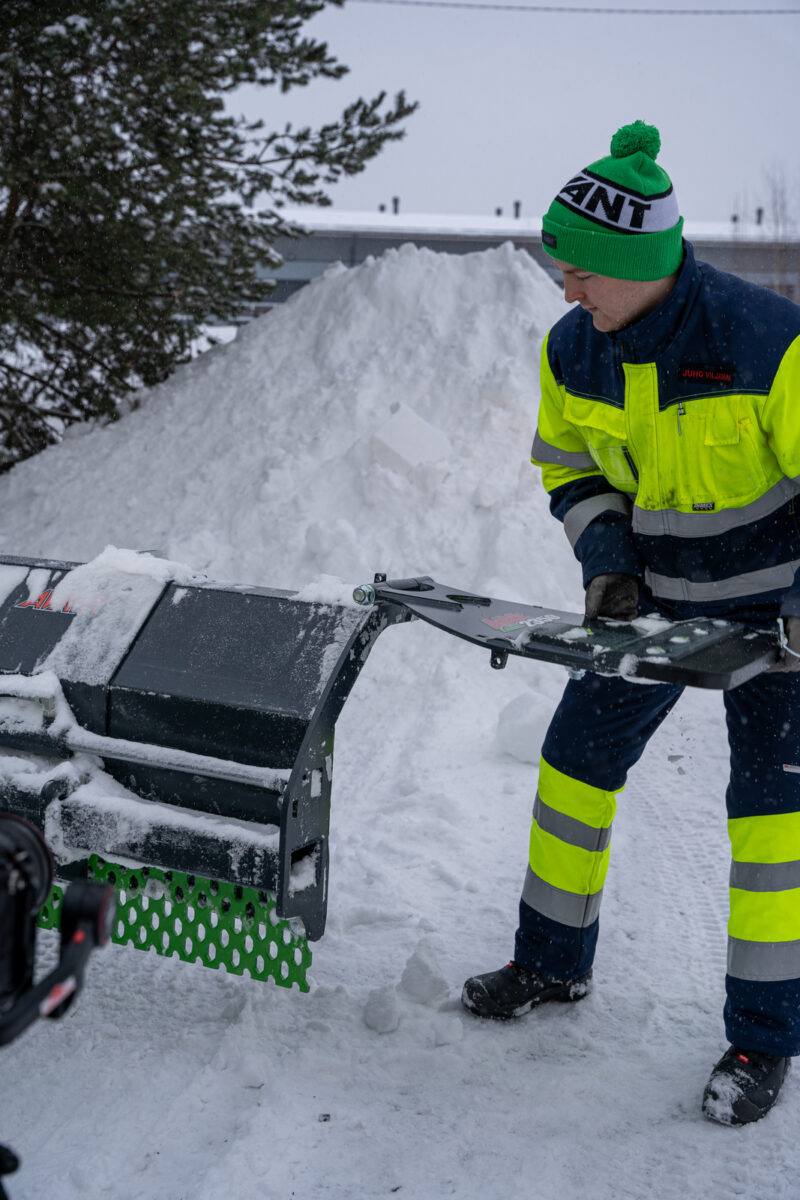

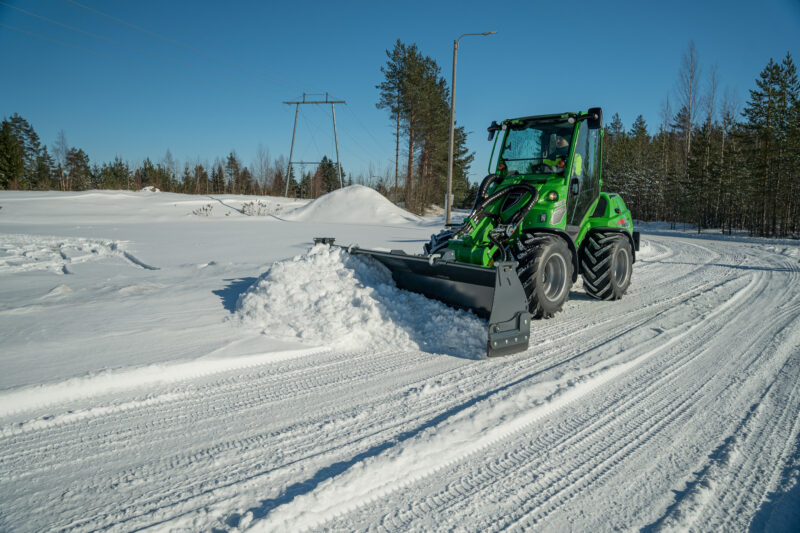

The plow is also equipped with hinged end plates which can be turned down on the ground. This allows fast and efficient snow collecting. When the end plates are turned up over the blade the plow works as conventional dozer blade and moves snow quickly to the side – and is narrower as well. The end plates are spring loaded which means they follow the contours of the ground well.

Zoom snow plow requires the optional Opticontrol on the loader. Extension and retraction of the wings and turning of the blade are operated with the switches of the switch pack. The wings can be extended one at a time or both at the same time. Indicator lights on the plow show which function is in use. Working width is steplessly adjustable between 53.2” – 92.5”. The telescoping tubes of the side wings are equipped with maintenance free wear pads. There is also a safety bolt for blade release at the top link, however as the blade is vertical it doesn’t get stuck easily but rather jumps over obstacles.

The mounting frame of the zoom snow plow is the same as on the 2000 and 2500 dozer blades. It allows a ±10° vertical floating which can be locked if necessary. The plow is also equipped with ±30° hydraulic blade turning. Ice cutting edge is standard equipment.



  • Hydraulically extendable dozer blade allows snow removal also in smaller yards, on parking lots etc.

  • Equipped with two wings which can be extended and retracted independently or both at the same time


  • Steplessly adjustable working width between 53.2” – 92.5”

  • Hinged, foldable end plates for efficient snow collecting and moving
  • Hydraulic blade turning ± 30° and vertical floating ± 10° ​​​​​​​



technical information

Working width 53.2 in – 92.5 in
Max width 57.5 in – 96.9 in
Max length 39.1 in
Blade turning angl ± 30°
Vertical floating angle ± 10°
Weight 1180 lb
Product no. A425180

The optional Opticontrol is recommended on the loader.



OPTION

Ice scraper edges, kit A437890
Straight cutting edge A437891

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
