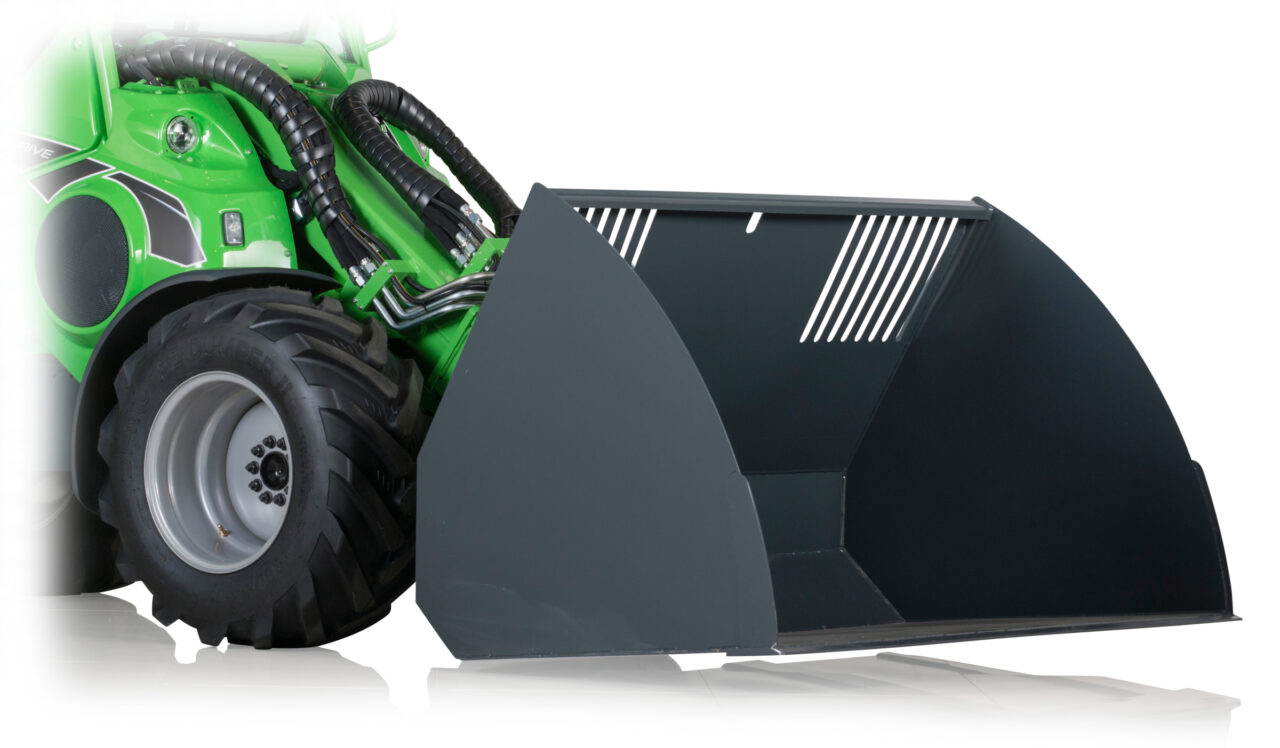

XL LIGHT MATERIAL BUCKET

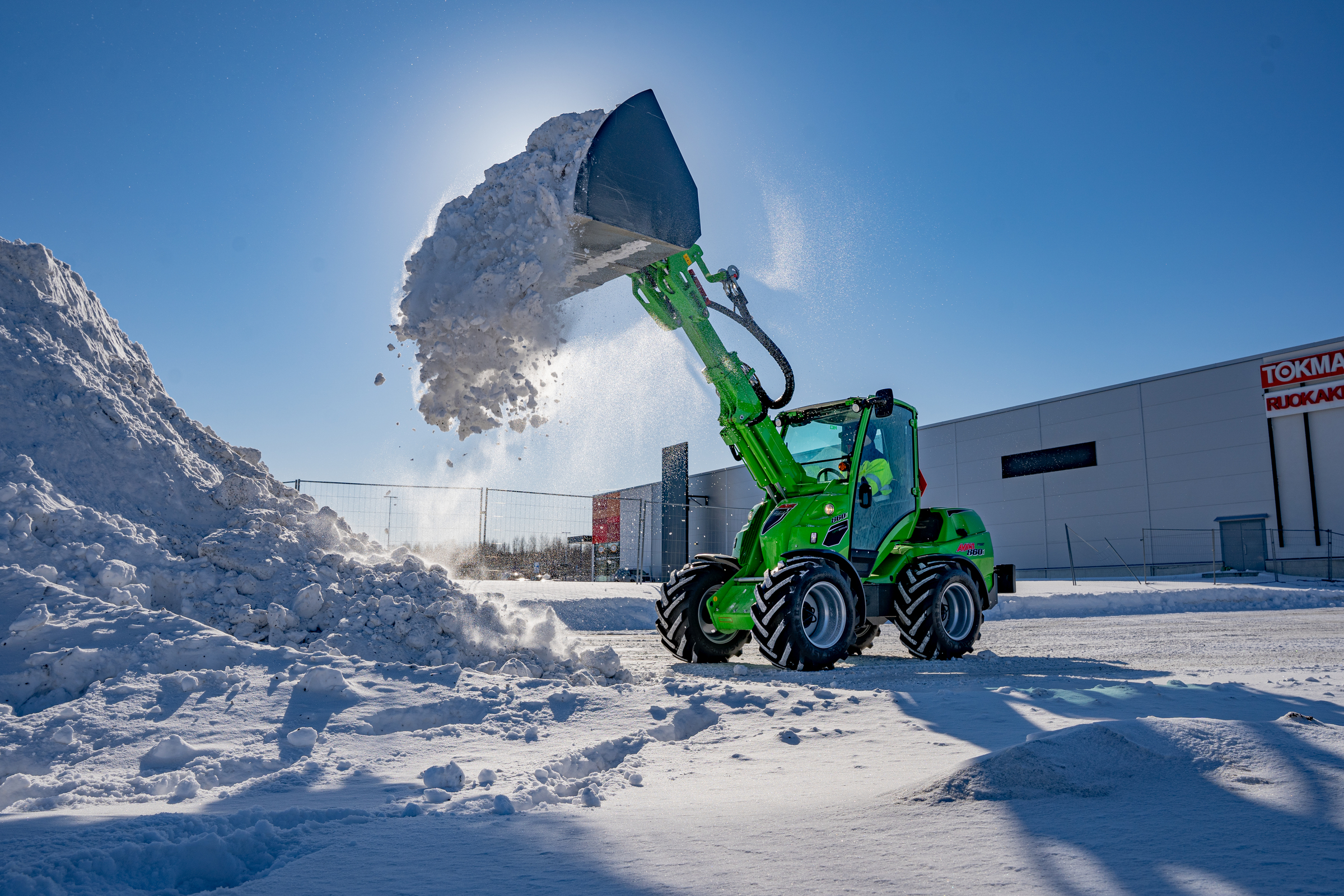

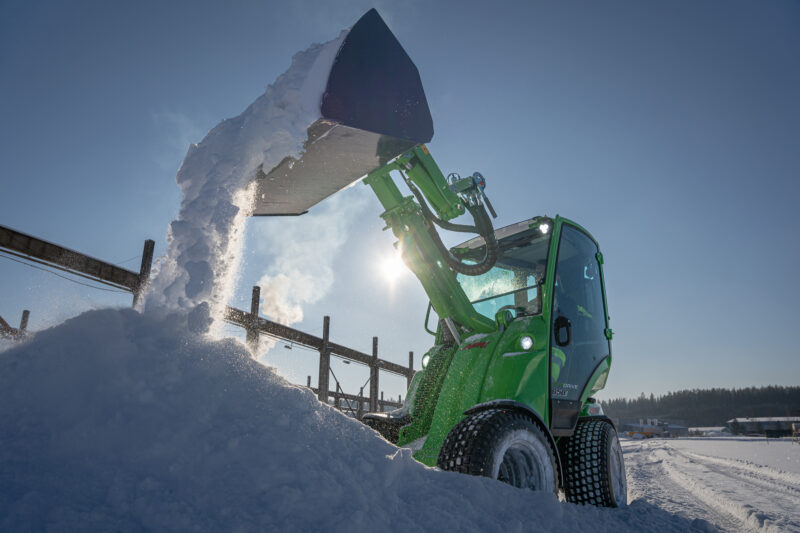

XL light material bucket is a large capacity bucket, best suited to Avant 600, 700 and 800 series. It is intended for loading and transporting of light materials like wood chips, mulch, snow etc.

There are no reinforcement plates inside the bucket which would interfere when loading and emptying, and the sides open forward in a slight angle, which guarantees easy and complete emptying of all kinds of materials and in difficult conditions also.

  • Large volume
  • No reinforcement plates inside the bucket
  • Robust design
  • Intended for bigger Avant loaders
  • XXL bucket available for 800 series

TECHNICAL INFORMATION

Width struck capacity heaped capacity Weight Product no.
57.1 in 19.8 cu ft 25.1 cu ft 342 lb A36703
63.0 in 21.5 cu ft 27.5 cu ft 585 lb A36476
71.0 in 24.7 cu ft 31.8 cu ft 617 lb A36343



XXL light material bucket for 800 series:

width struck capacity heaped capacity weight product no.
71.0 in 37.1 cu ft 45.9 cu ft 562 lb A437601



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
XL
XXL
