WINCH

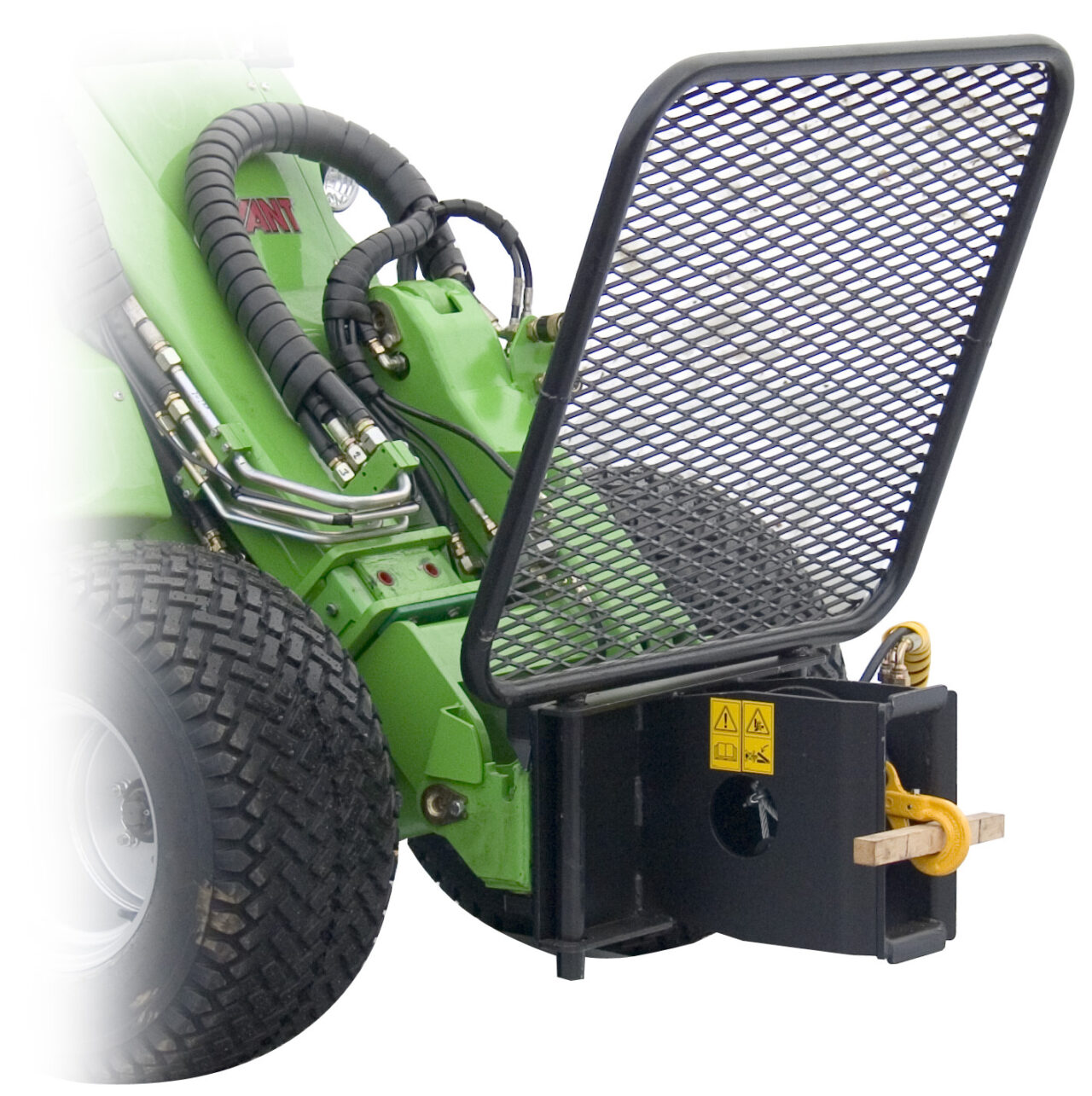

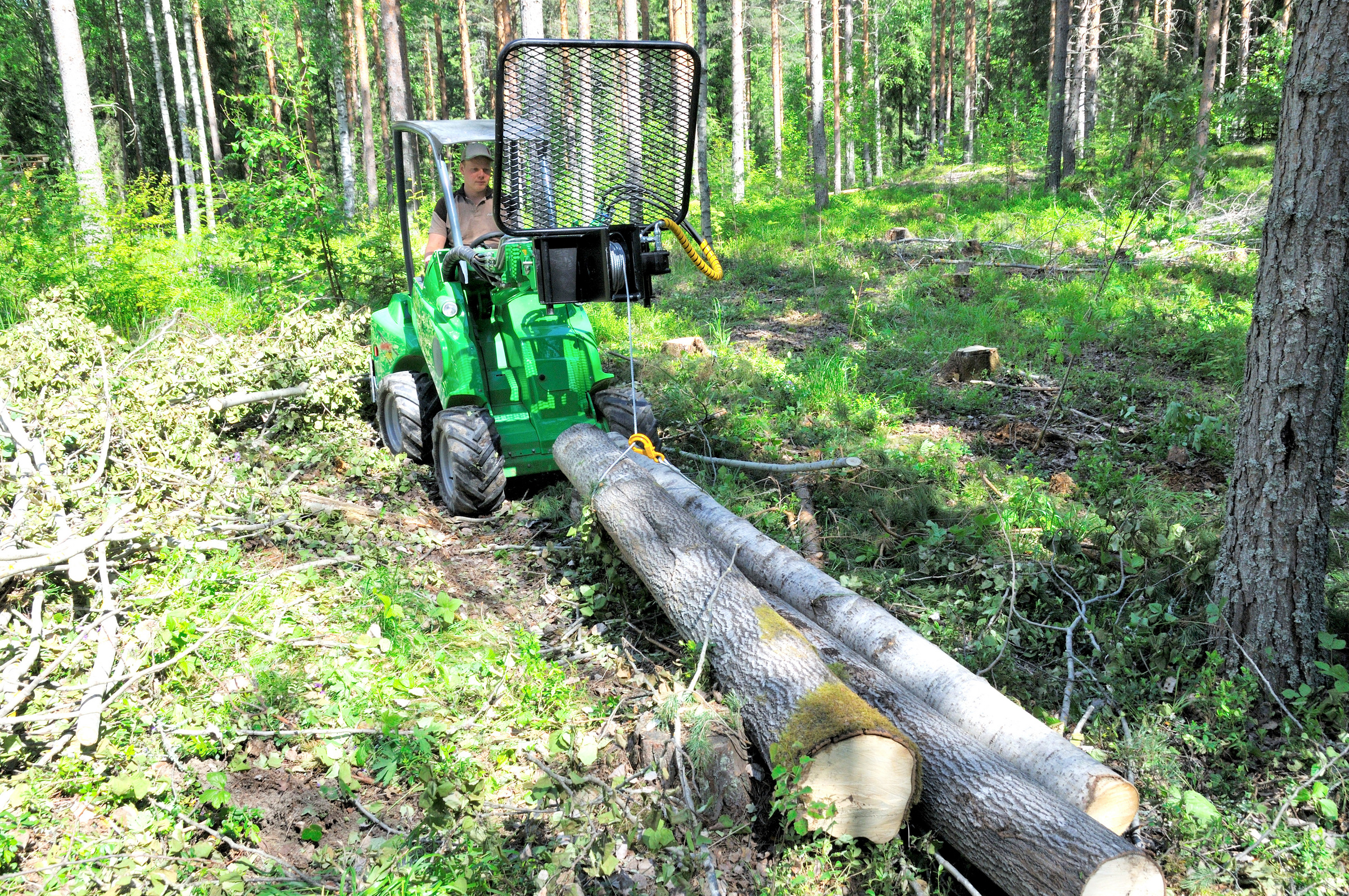

The Avant hydraulic winch enables towing of all kinds of objects (e.g. logs, poles, boats) from places where you cannot drive with the machine.

The winch is equipped with a safety net, 100 feet of cable and a towing hitch. It is powered by a powerful hydraulic motor and mounts on Avant’s quick attach plate. Use of the winch is simple, one person can easily handle it. The auxiliary hydraulics lever is switched to continuous flow from the driver’s seat, which releases the cable drum so that the cable can be pulled out by hand. When the cable is attached to the desired object, operator returns to driver’s seat and turns the auxiliary hydraulics lever into opposite direction and the winch begins to reel in the cable.

  • Powerful and compact hydraulic winch for various tasks
  • The winch is mounted directly on Avant’s quick attach plate, so you are also able to use the boom for lifting materials with the winch.
  • Equipped with wire rope guiding rollers



TECHNICAL INFORMATION

Max. Pulling power 2200 lb
Max. Reeling speed 7.5 ft/sec
Wire length 100 ft
Weight 231 lb
Product no A36960

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
