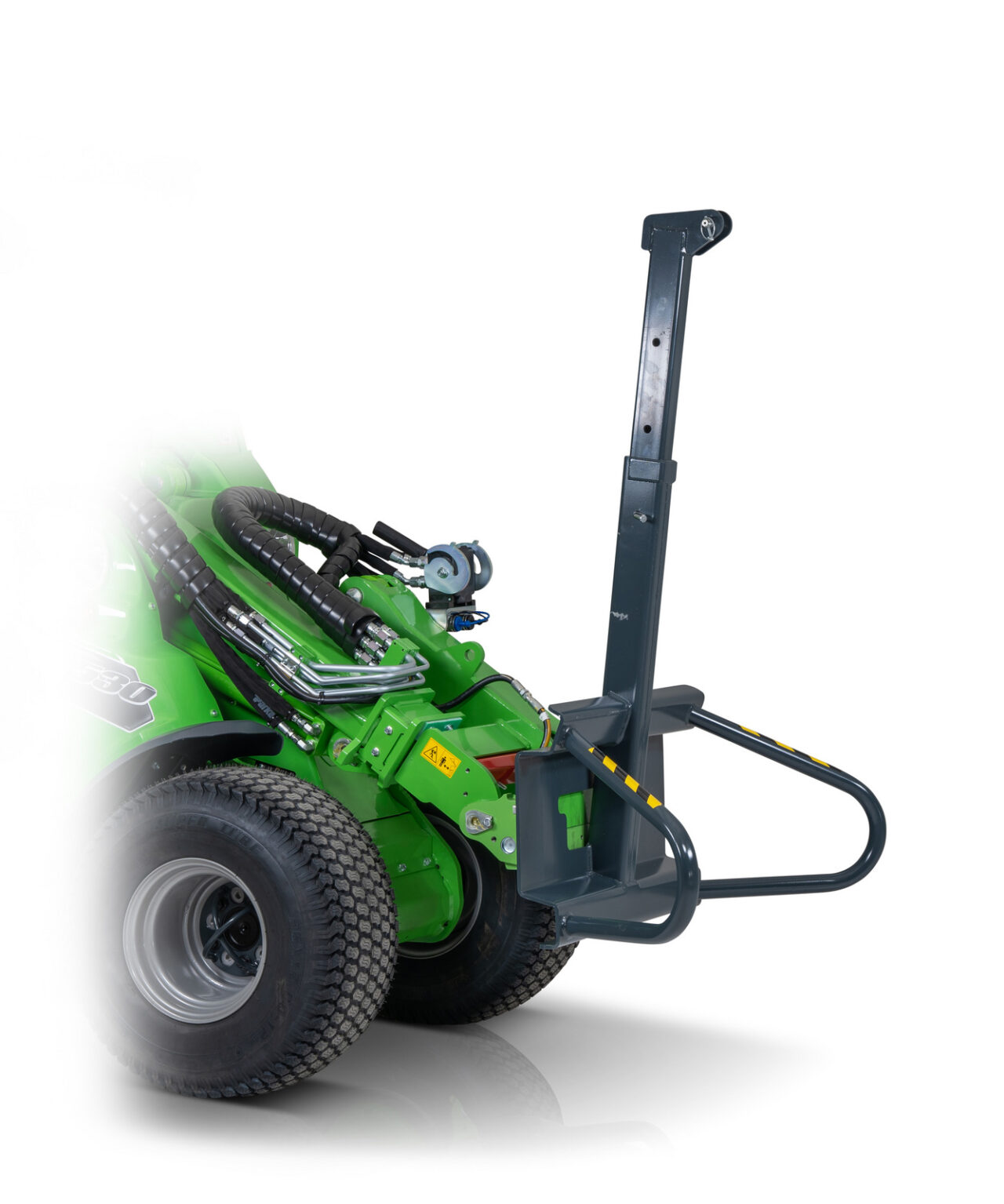

Tree boom is a simple and practical attachment for handling bigger tree trunks, pipes etc. objects which need to be lifted and placed with accuracy. It is otherwise the same attachment as the Avant big bag lifter, but the manually adjustable telescoping boom doesn’t have a hook – instead the boom is straight and equipped with a pin for attaching lifting slings. This allows, for instance, lifting and planting bigger trees without the risk of damaging them. The frame design with side supports prevents the objects from swinging sideways.

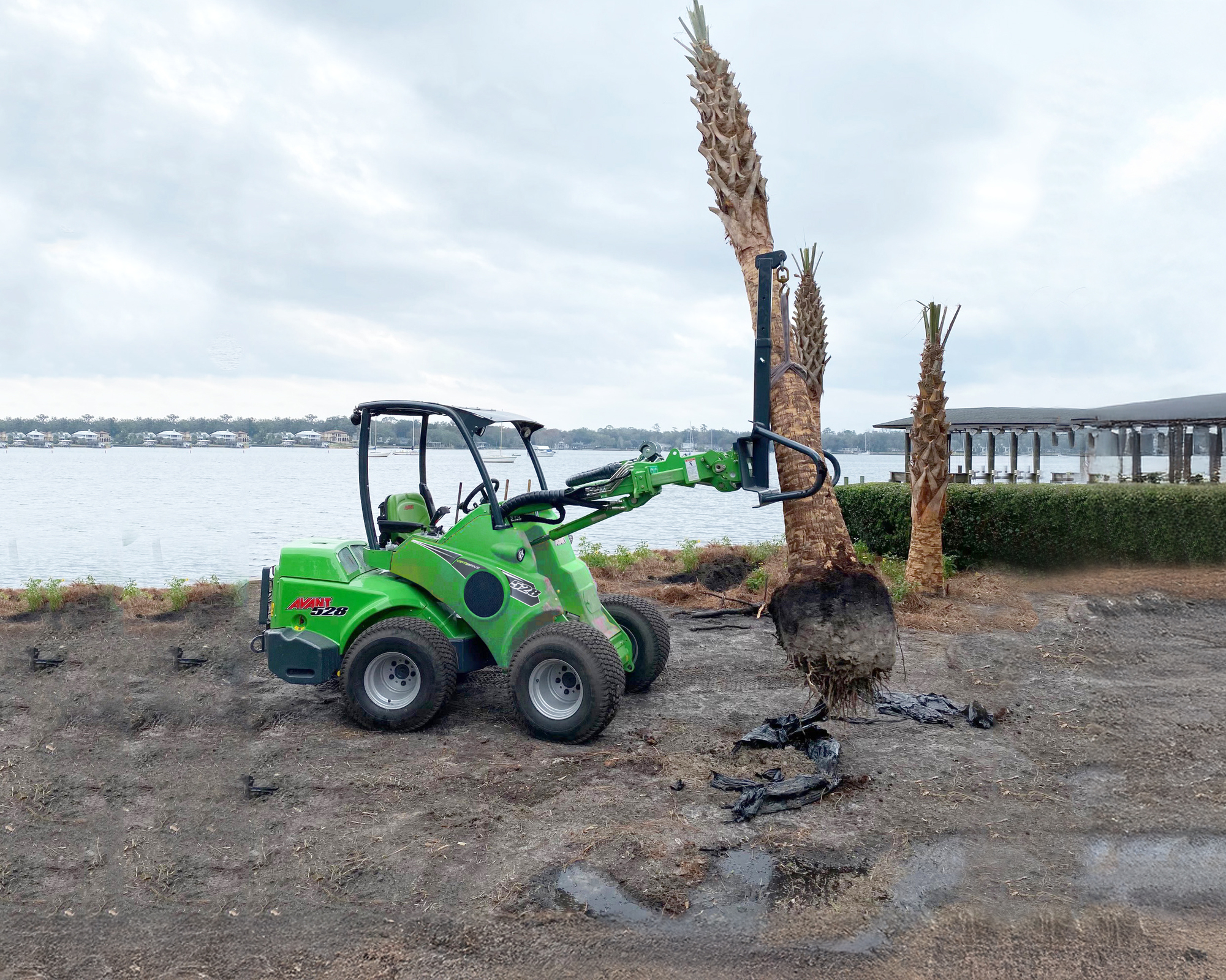

Tree boom is useful in nurseries for planting trees, for arborist jobs like removing bigger trunks from yards and gardens, and also for utility jobs like setting pipes in trenches etc.



  • Easy way of handling tree trunks, planting bigger trees, laying pipes etc. objects

  • Manually adjustable telescoping boom, can be adjusted in four different heights between 44.7 – 66.3 in

  • Side supports prevent sideways swinging of the objects

TECHNICAL INFORMATION

Pin height 44.7 in – 66.3 in
Width 43.3 in
Max. load 1984 lb
Weight 132 lb
Product no A444137



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
