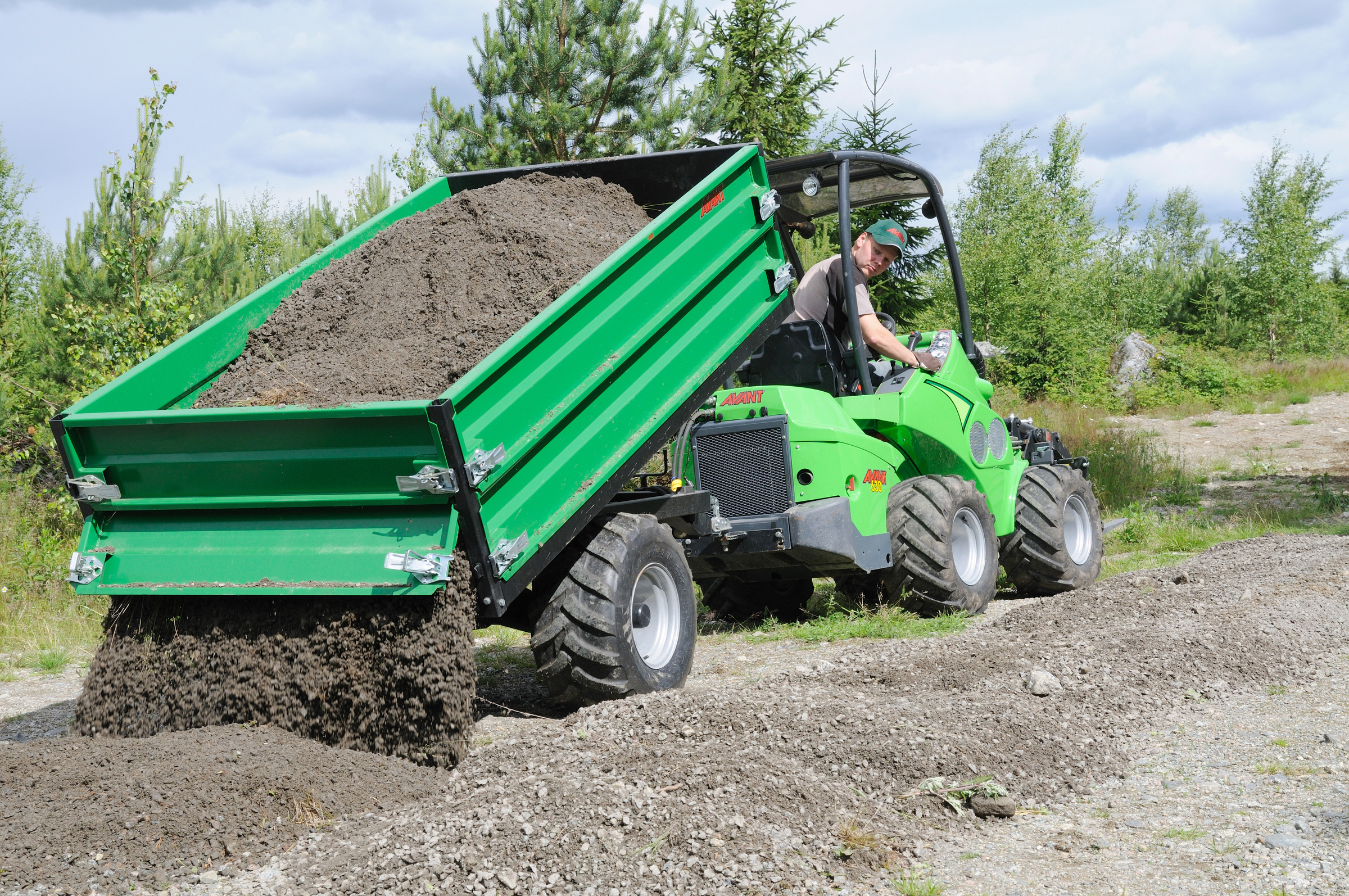

TIPPING TRAILER

Avant tipping trailer is available in two models: with carrying capacity of 1200 kg or 1800 kg. Both are equipped with hydraulic tipping. All sides can be removed if necessary. Extra side set is available as an option for the smaller model, on the bigger model it is standard.

ATTENTION!
The loader must be equipped with the double acting rear auxiliary hydraulics outlet and the 2 inch ball hitch.

  • Robust and versatile tipping trailers, well suited both for earthmoving and for lighter jobs
  • All sides can be removed if necessary – giving a completely flat and even bed
  • Hydraulic tipping on both models

TECHNICAL INFORMATION

Model 1200 1800
Max. Load 2650 lb 4000 lb
Width 44.3 in 53.1 in
Length 67.3 in 88.2 in
Tyre size 23 x 8.5 - 12 26 x 12 - 12
Side height 11.0 in 22.0 in
Product no A2949 A21200

OPTIONS

Extra side set (A45193) for 1200 model

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
1200
1800
