STUMP GRINDER

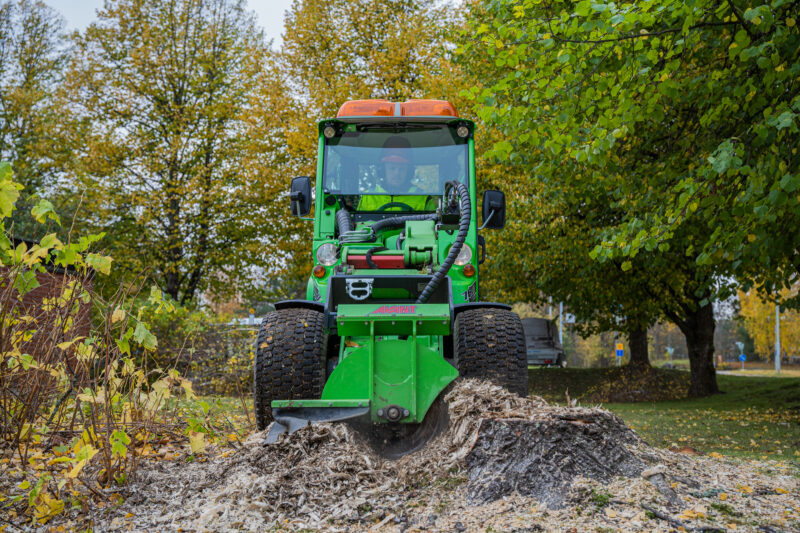

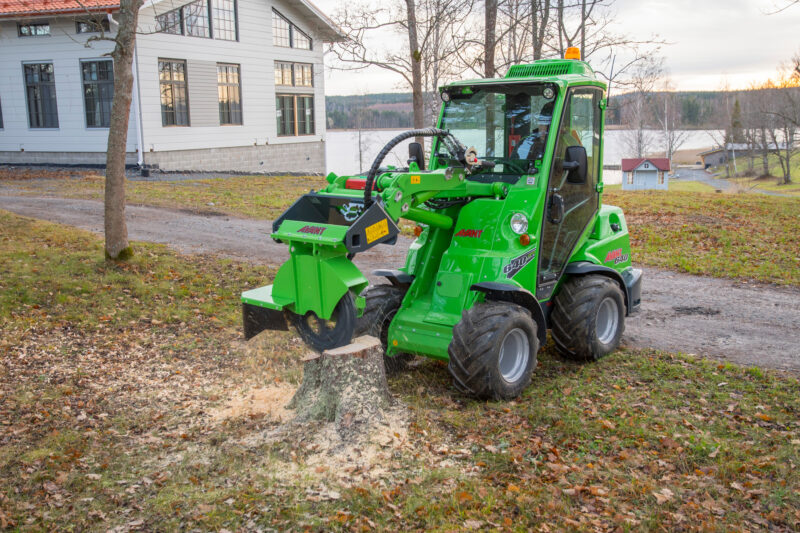

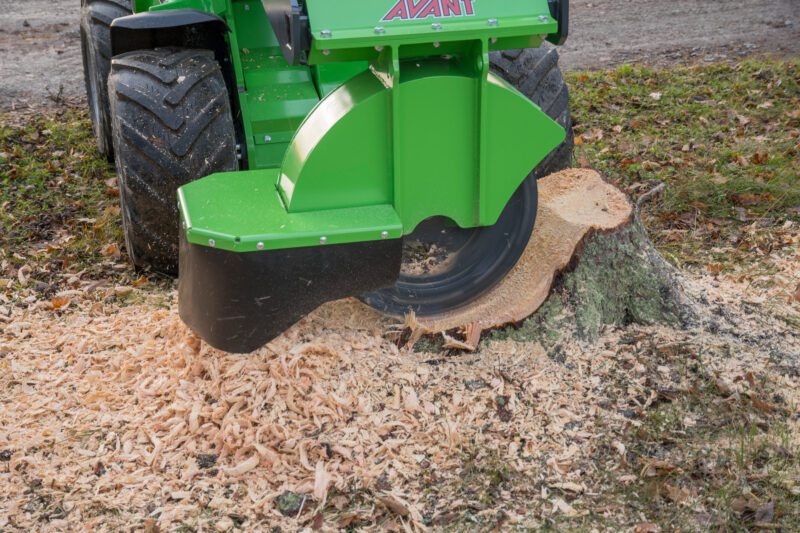

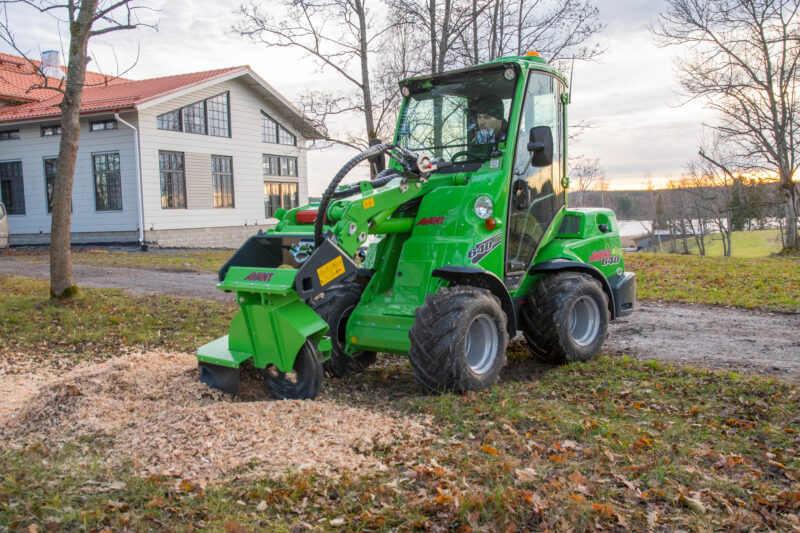

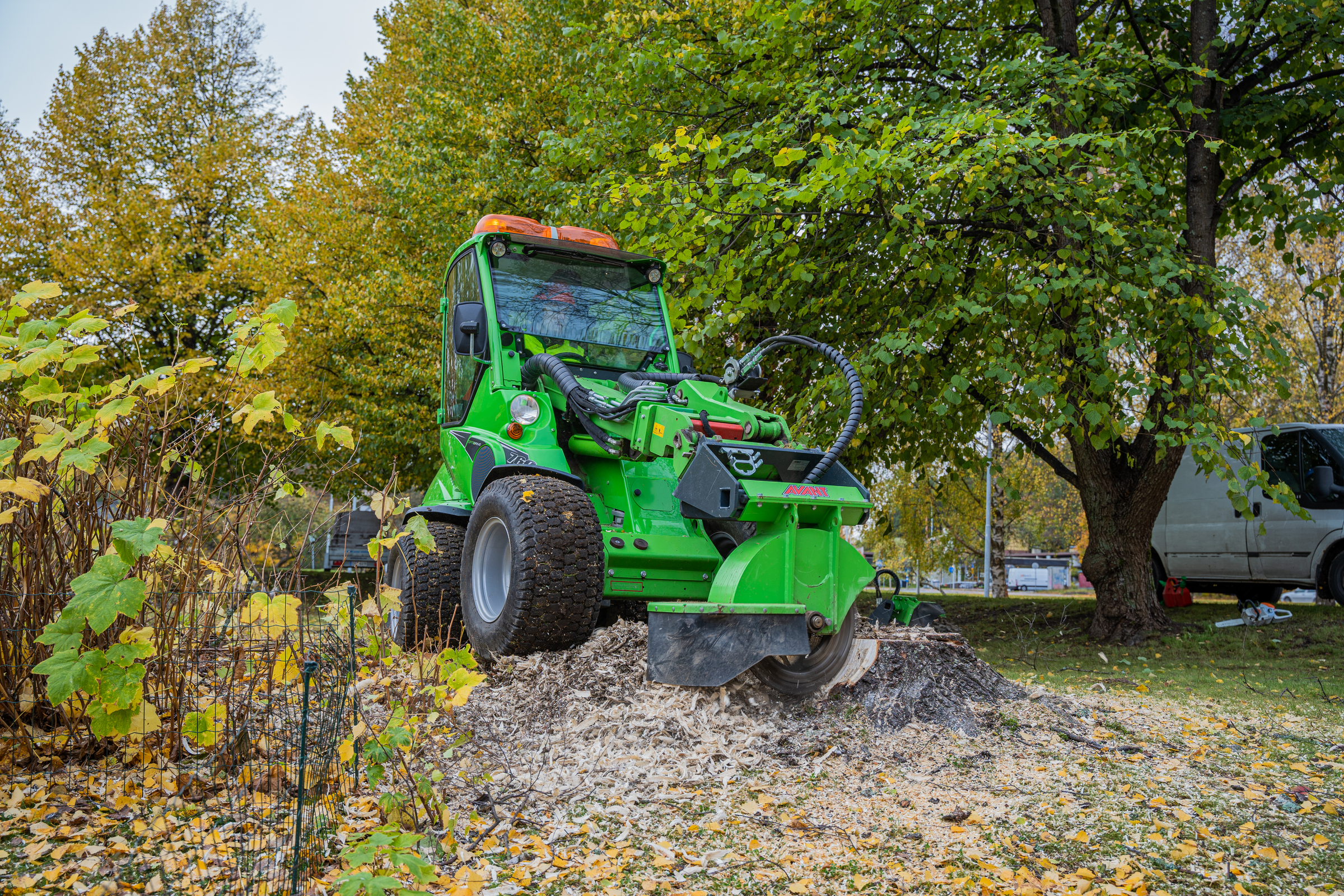

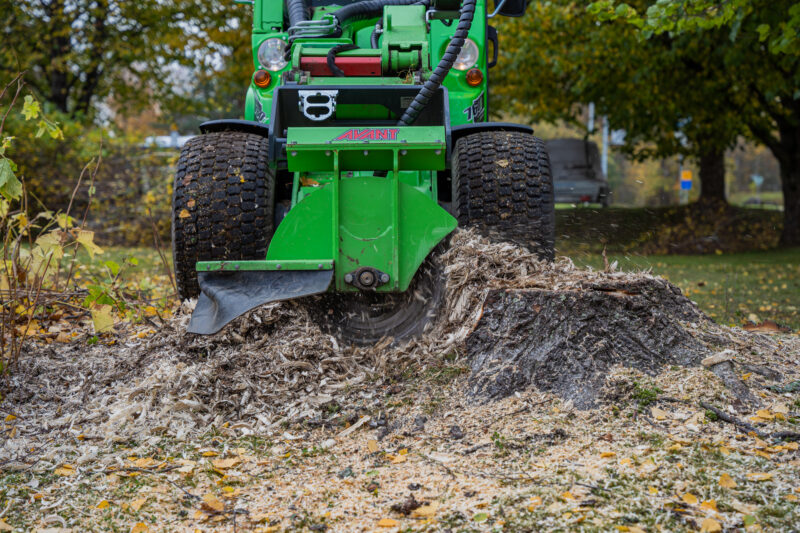

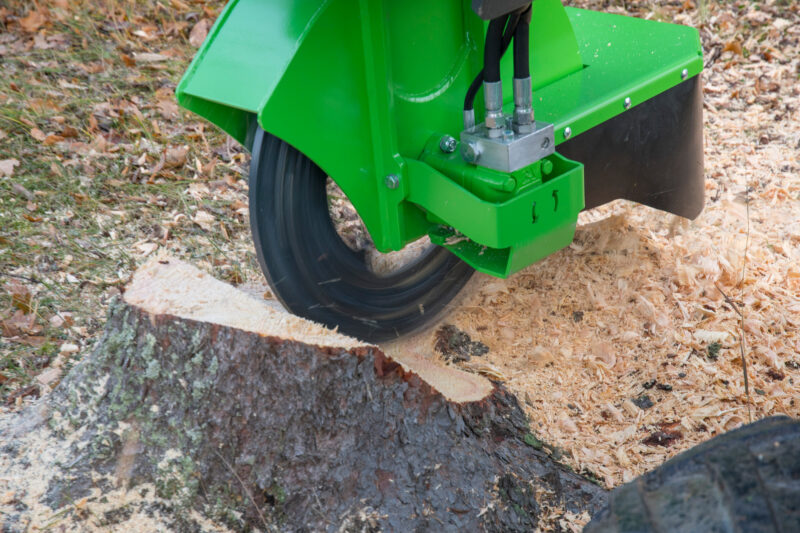

Avant stump grinder is an efficient and easy to operate tree stump remover. The cutting disc is mounted crosswise in relation to the loader, which means it throws the wood waste to the right side – the waste doesn’t fly on the operator or the loader. In addition, the stump grinder is equipped with a protective rubber cover which prevents the wood from flying around.

Grinding happens by moving the grinder forward and backward which means easy control with the drive pedals of the loader – or with the tilt movement of the quick attach plate, and the sideways mounting of the cutting disc guarantees excellent visibility to the working area. Cutting teeth have three cutting edges: once a tooth becomes blunt, its fastening bolt is easy to open and turn the tooth so that a sharp cutting edge comes into use.

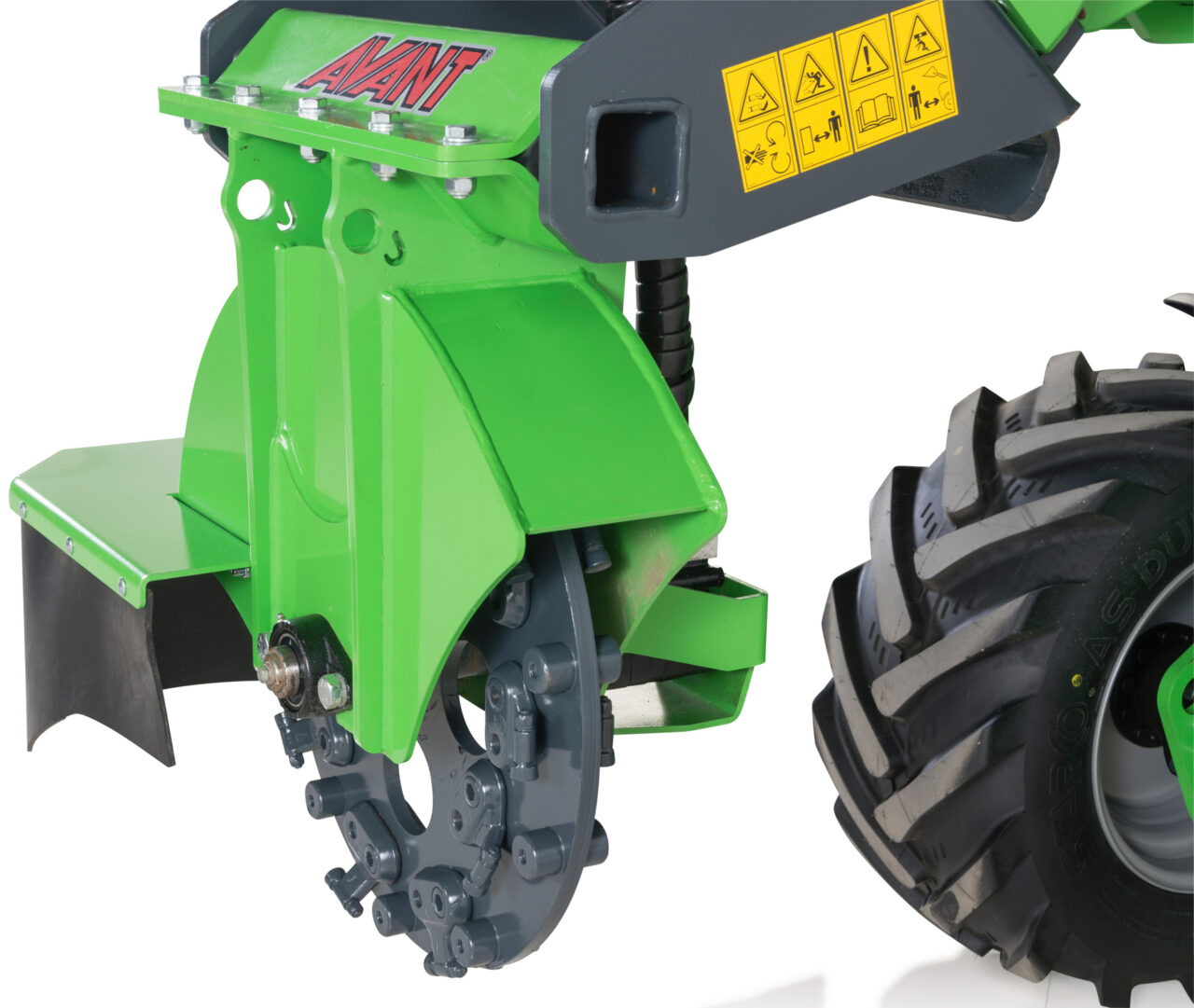

  • Equipped with ø 21.3 in cutting disc with 20 pcs replaceable teeth
  • Teeth have three cutting edges – once a tooth becomes blunt it can be turned to get a new sharp cutting edge
  • Excellent visibility to the work area, easy to operate
  • Rubber damper on the quick attach bracket minimizes vibrations to the loader and makes working smoother
  • Support bearing on cutting disc, reduces torsion forces

OPTION

Heavy duty tooth kit, teeth with tungsten carbide tip A444671

TECHNICAL INFORMATION

Cutting disc diameter 21.3 in
Number of teeth 20 pcs
Width 33.1 in
Height 36.2 in
Length 24.8 in
Weight 385 lb
Product no. A438282

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420
423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
