SNOW PLOW

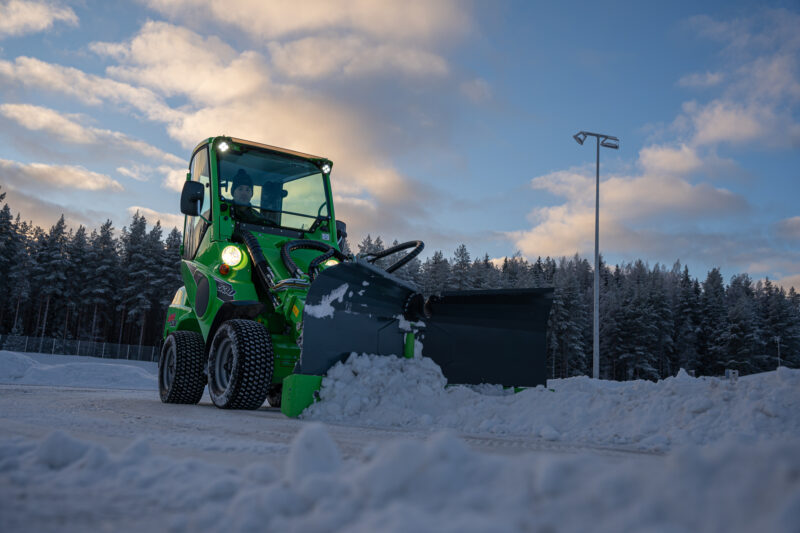

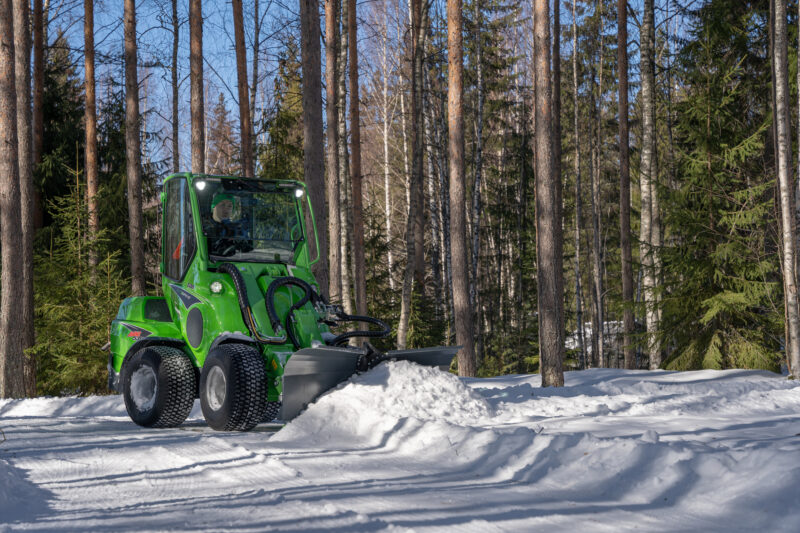

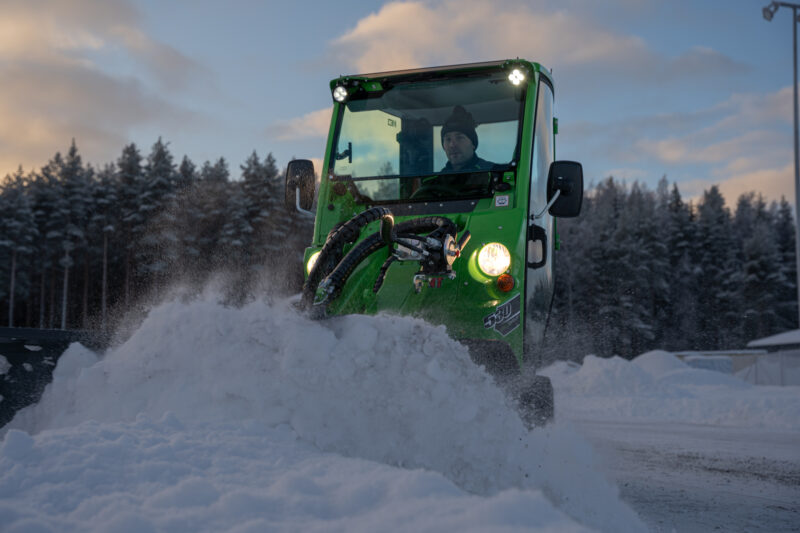

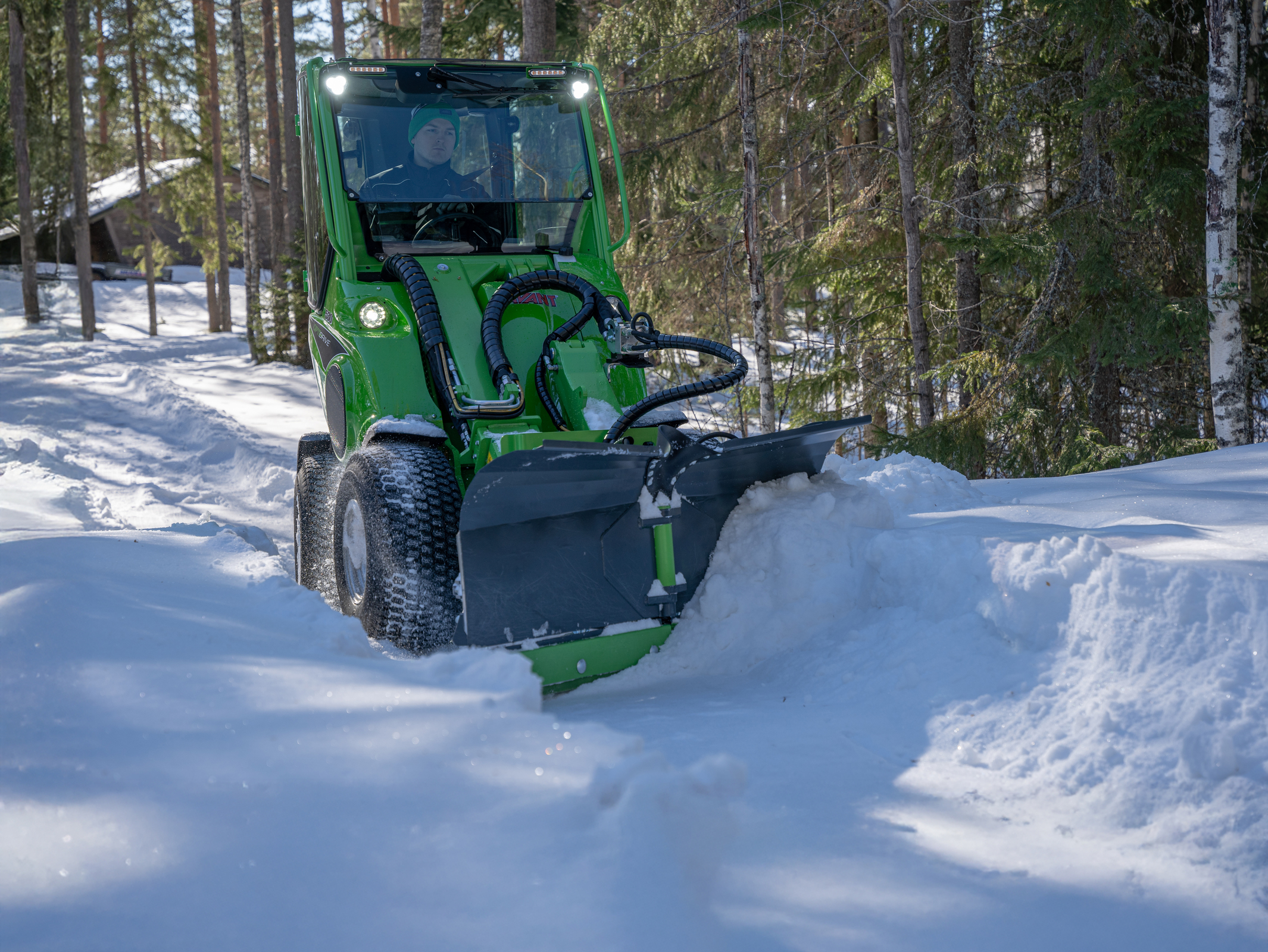

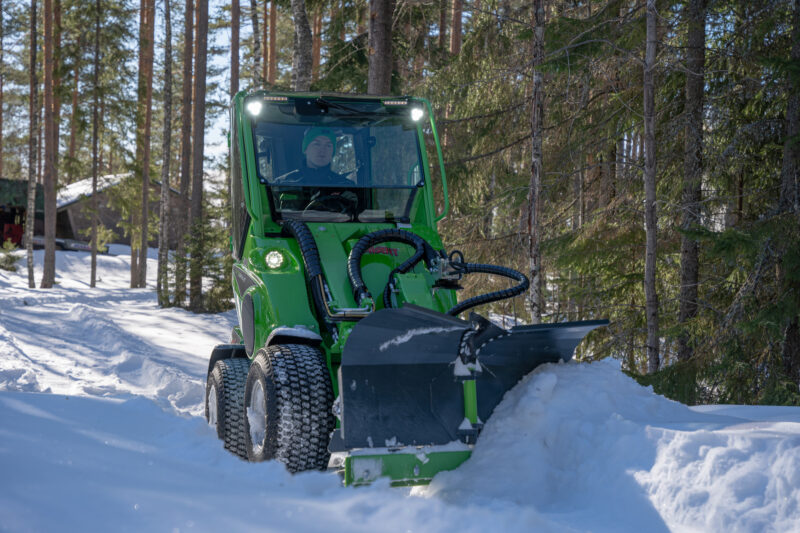

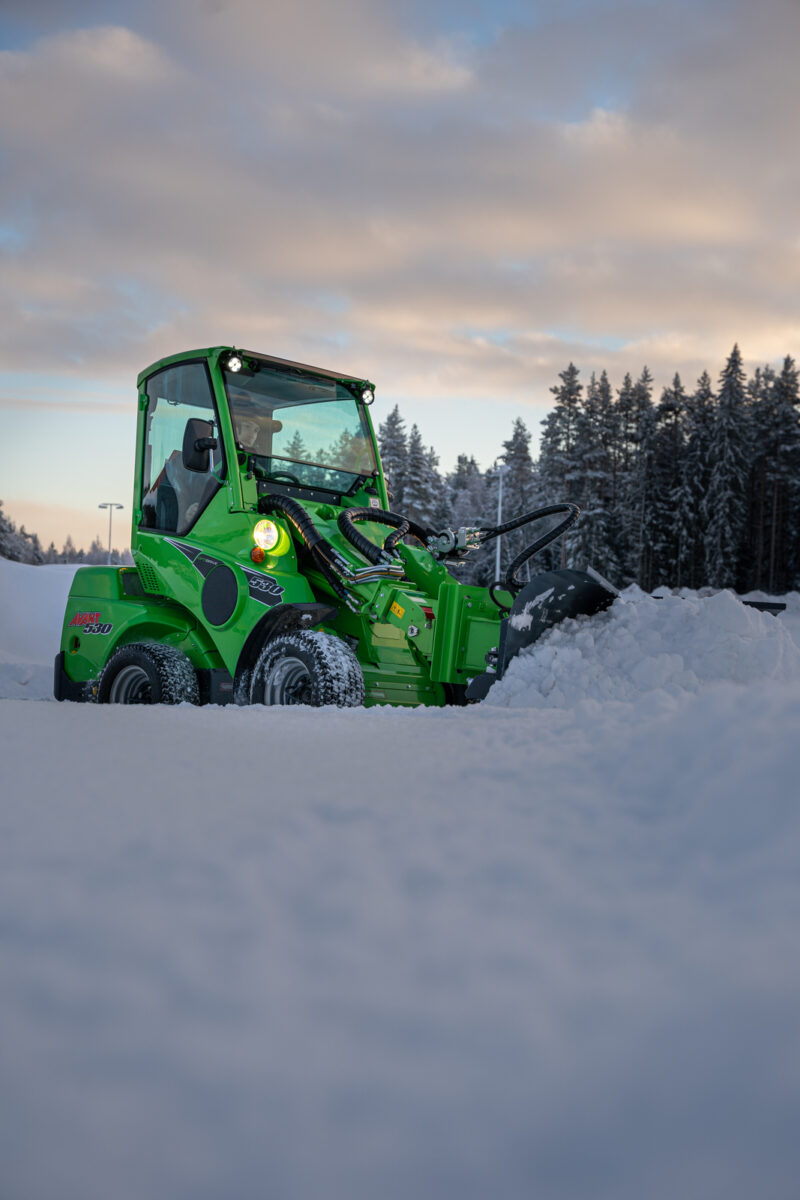

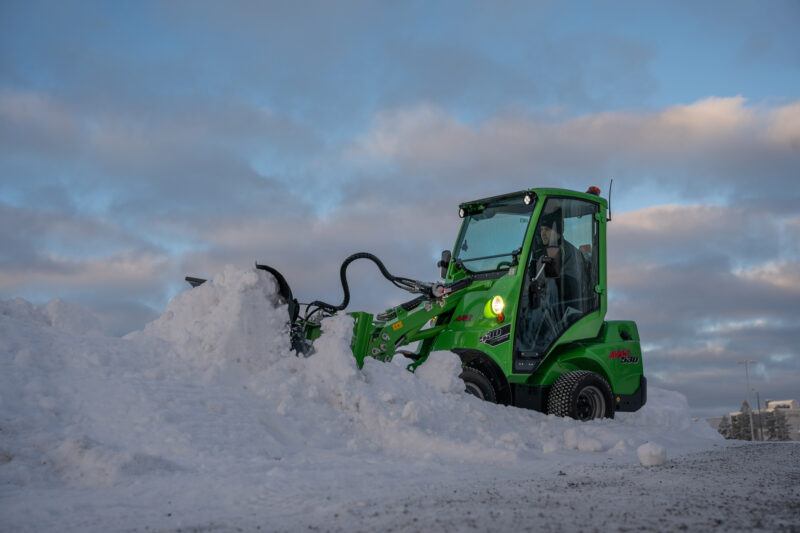

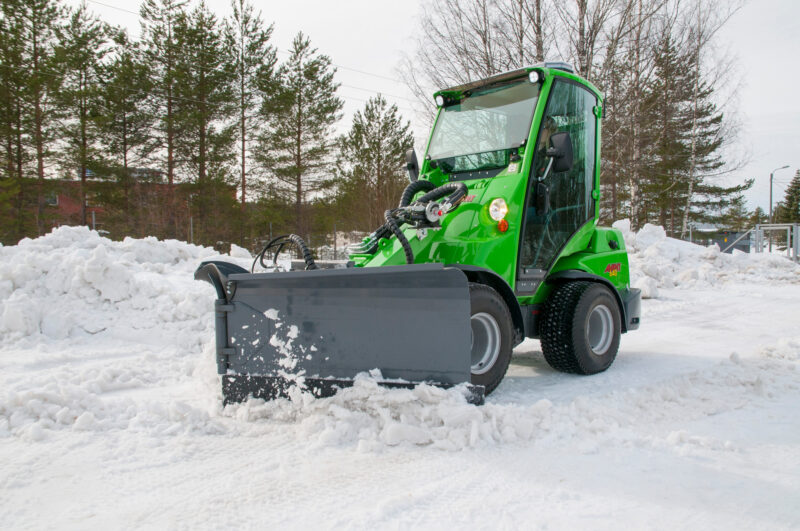

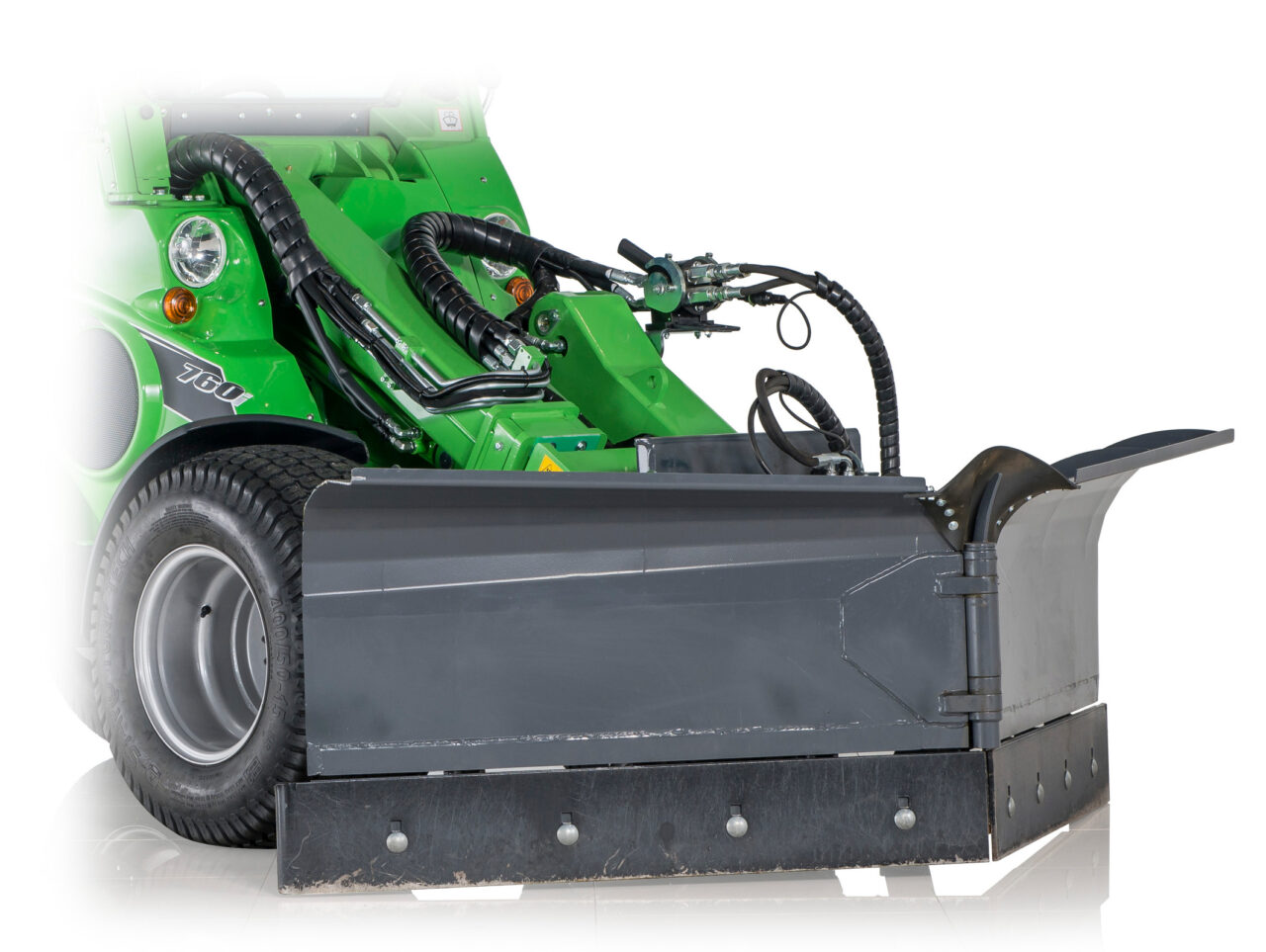

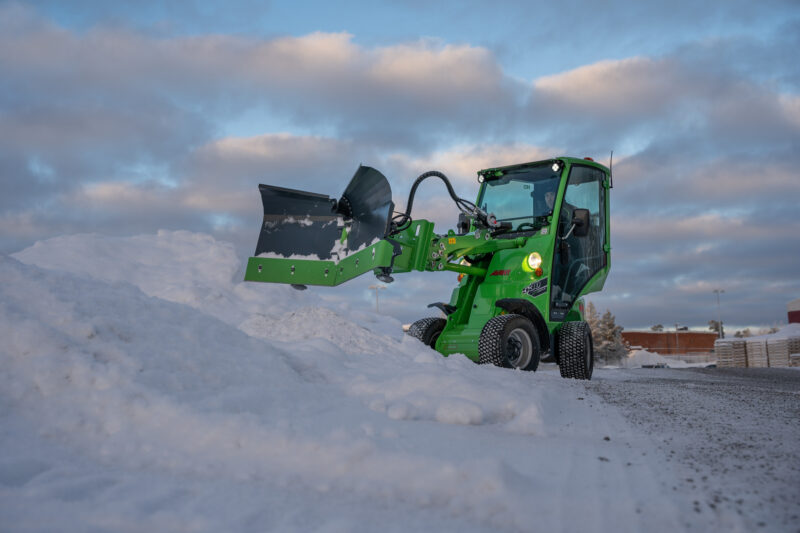

Avant snow plow is a versatile attachment for snow removal. It consists of two independently hydraulically adjustable blades. Angle of the blades is adjusted with a switch from the driver’s seat. Both blades have a spring release mechanism in the lower part of the blade to prevent any sudden stop should the blade hit an obstacle. The floating mechanism on the mounting bracket guarantees that the blade follows ground as well as possible.

The new V1800 and V2400 snow plows feature:

• New vertical floating system (better than old quadangular floating system)

• Significantly more curved blade – moves snow more efficiently to the side

• Support legs with skid shoes as standard

• Curved flat cutting edge with standard 305 mm hole distance; made of high tensile, abrasion resistant wear steel



TECHNICAL INFORMATION

Model V1800 V2400
Blade width 59.4–72.4 in 79.5–96.5 in
Total width (with curved end flat edge/ice scraper blade) 61.8–74.8 in 81.9–98.8 in
Blade turning angle ±35° ±35°
Weight 728 lb 860 lb
Blade height 30.3 in 30.3 in
Product no A36795 A36796



OPTIONS

Ice scraper edges, kit snow plow V1800 A36817
Ice scraper edges, kit snow plow V2400 A36818
Rubber edges snow plow V1800 A37173
Rubber edges snow plow V2400 A37171

Requires Opticontrol on the loader

  • Versatile snow removal tool for professional use

  • Two independently controllable blades: can be adjusted in straight, V or Y position
  • Advanced floating system allows working on uneven surfaces as well

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
1800
2400
