Property maintenance

Snow blower

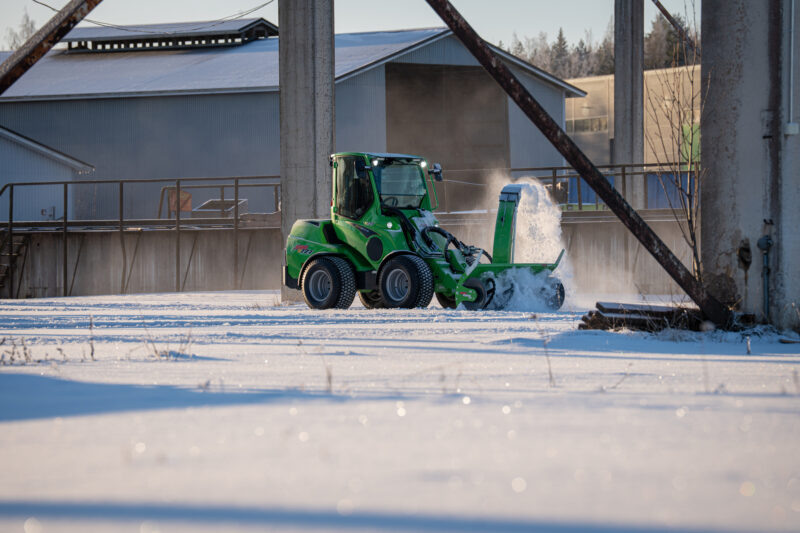

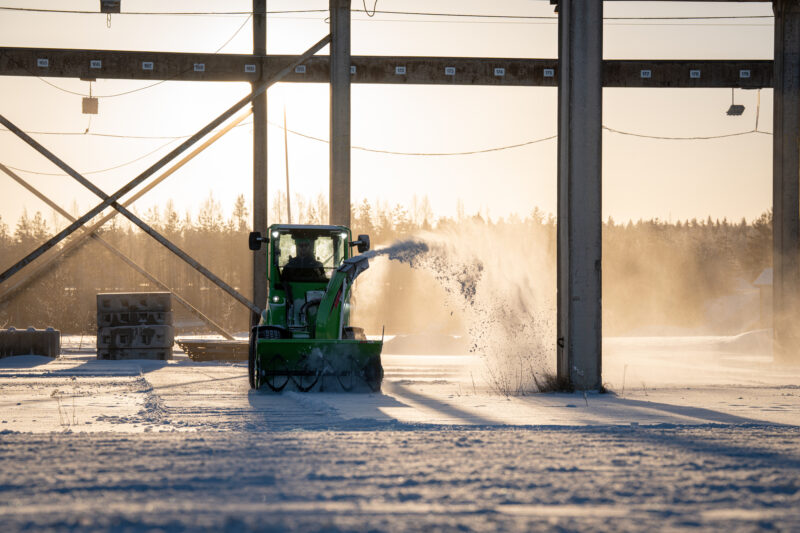

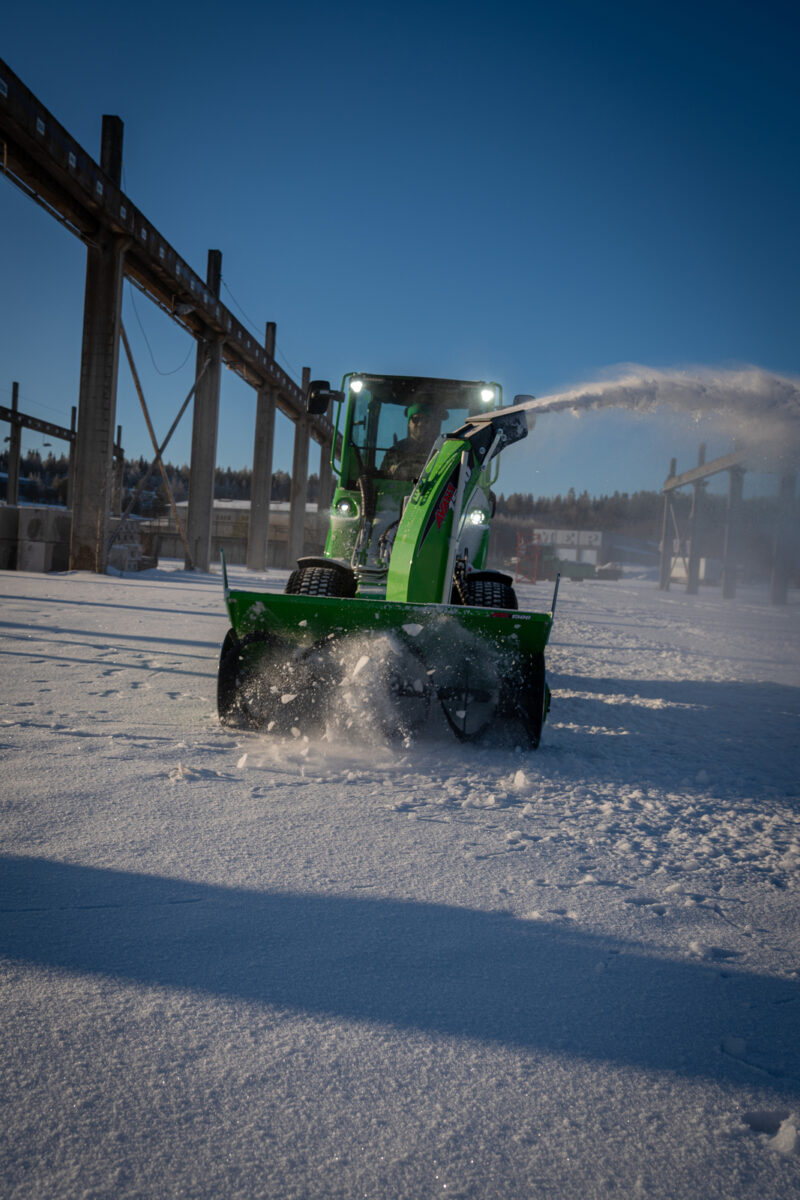

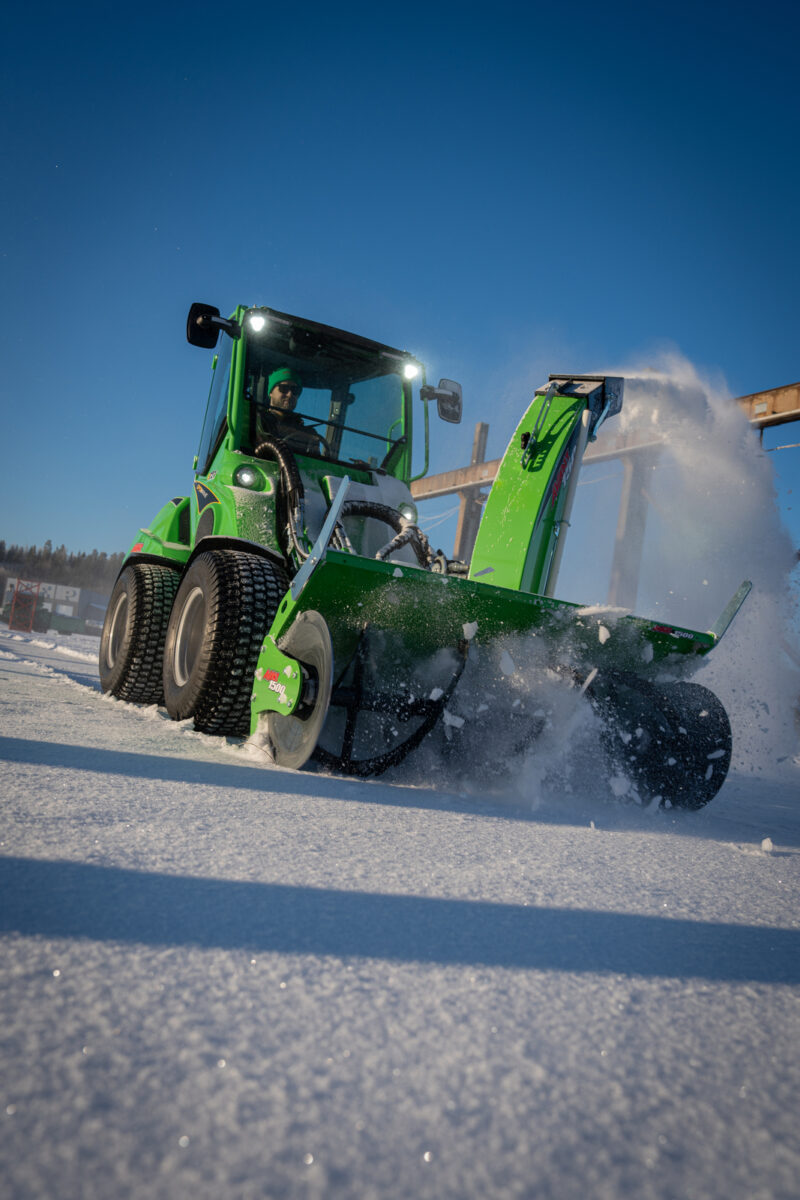

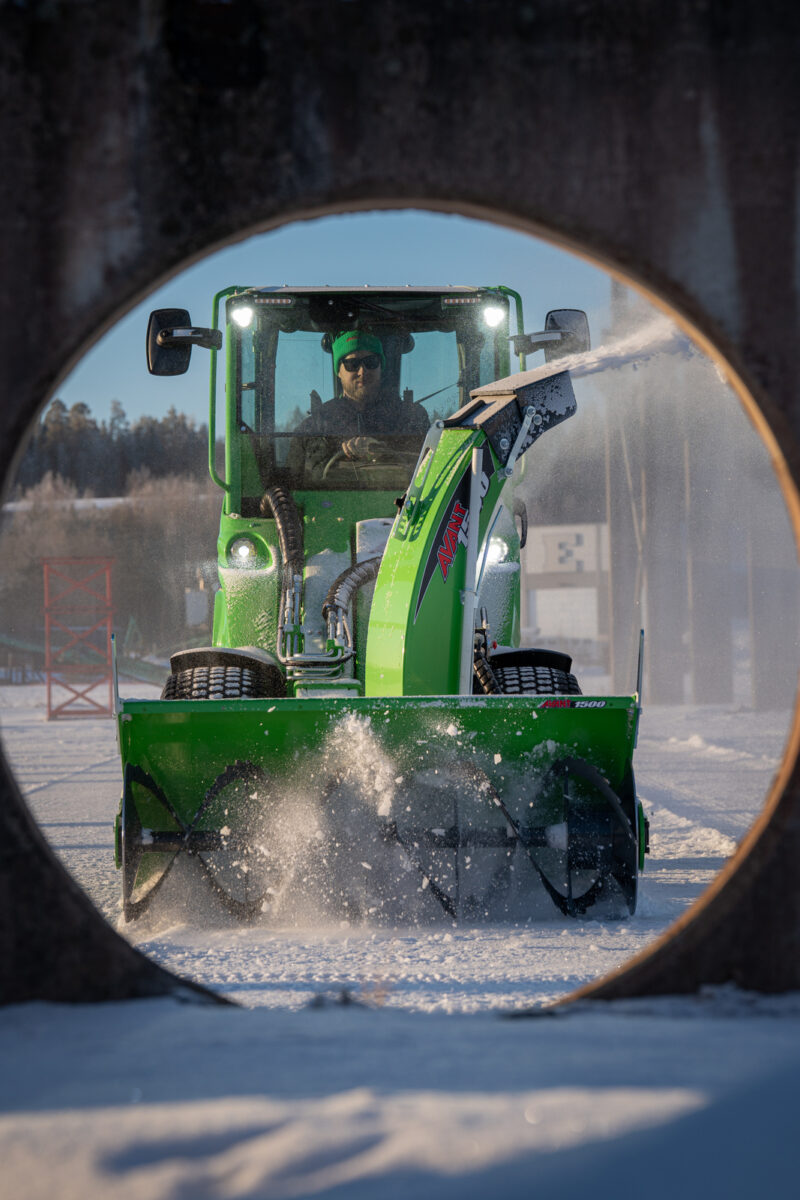

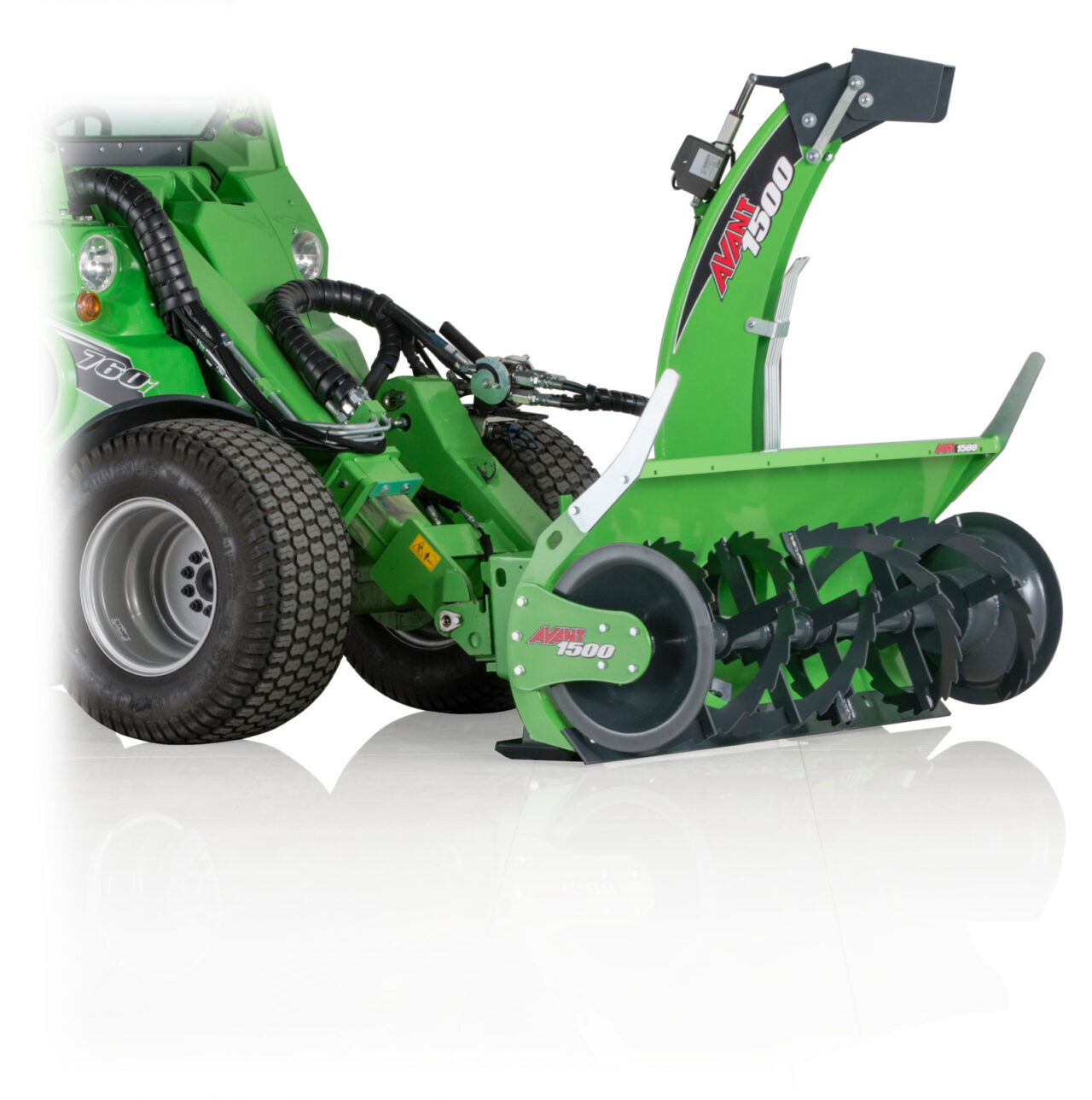

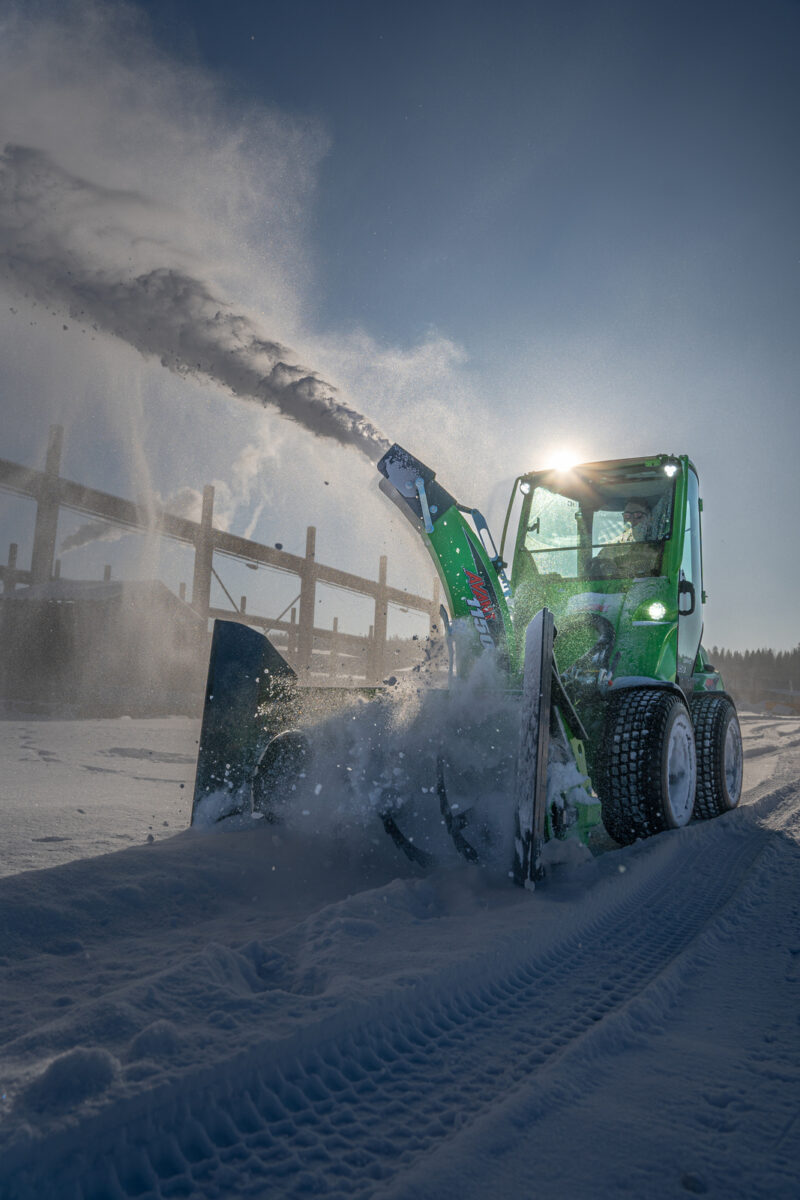

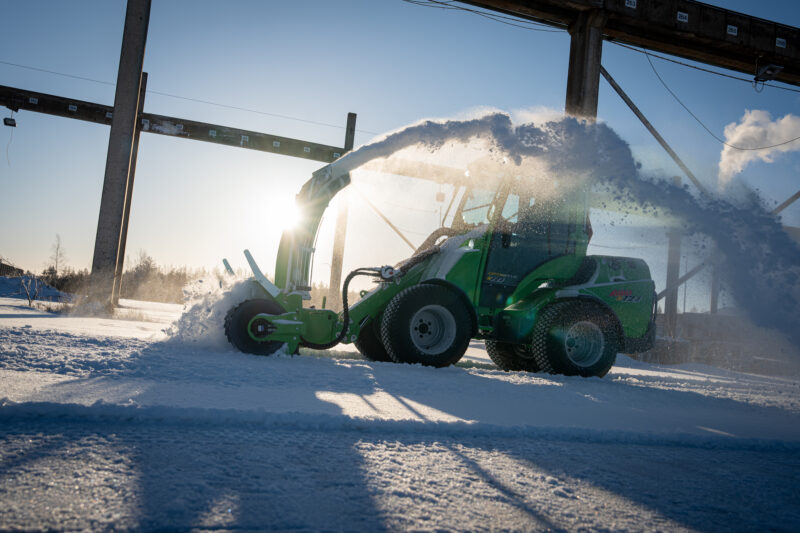

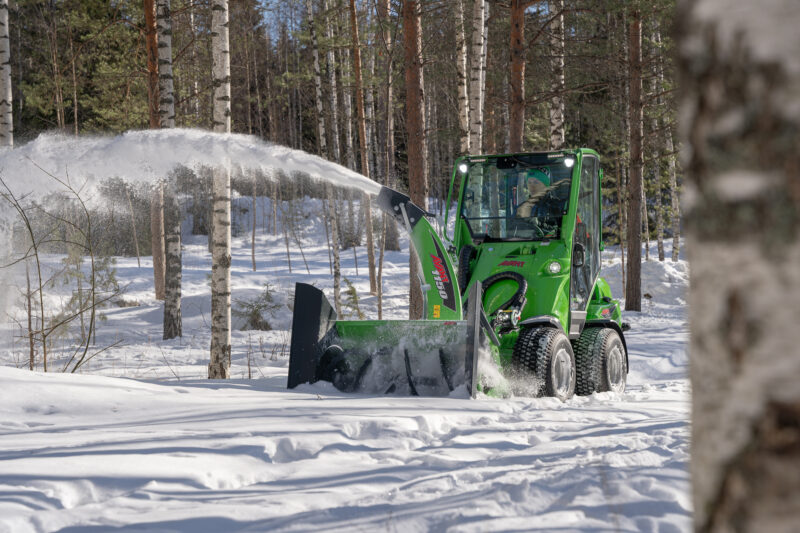

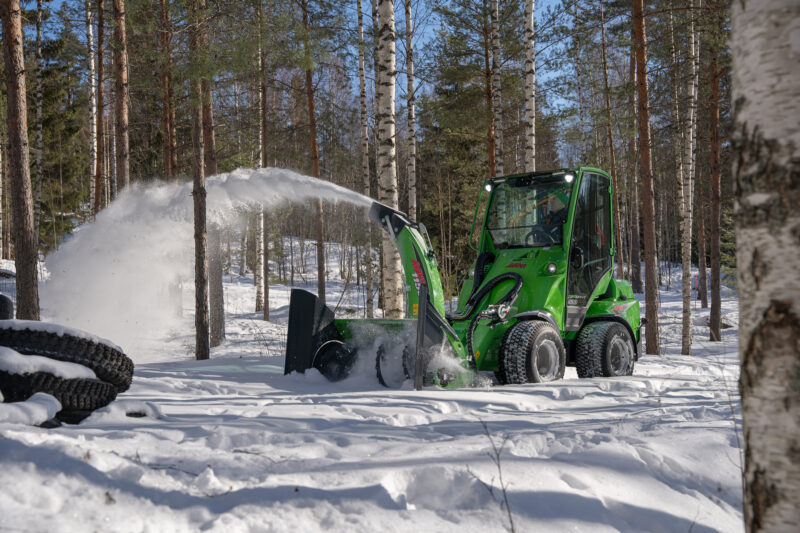

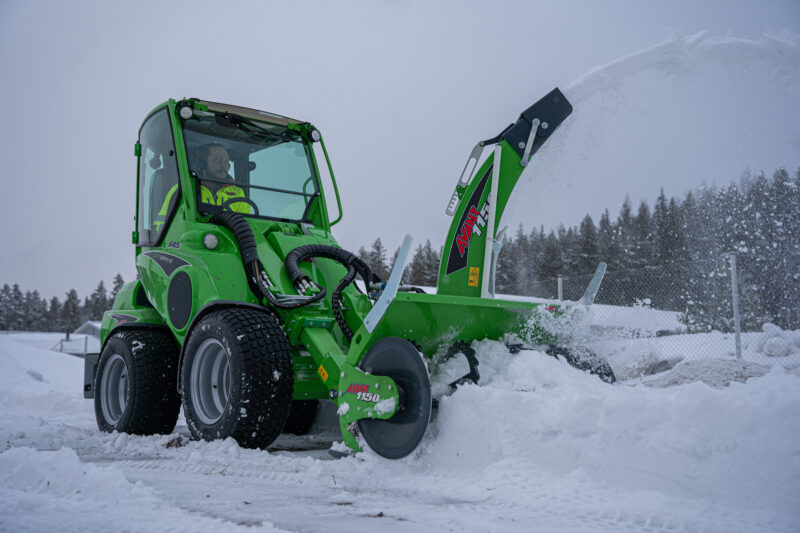

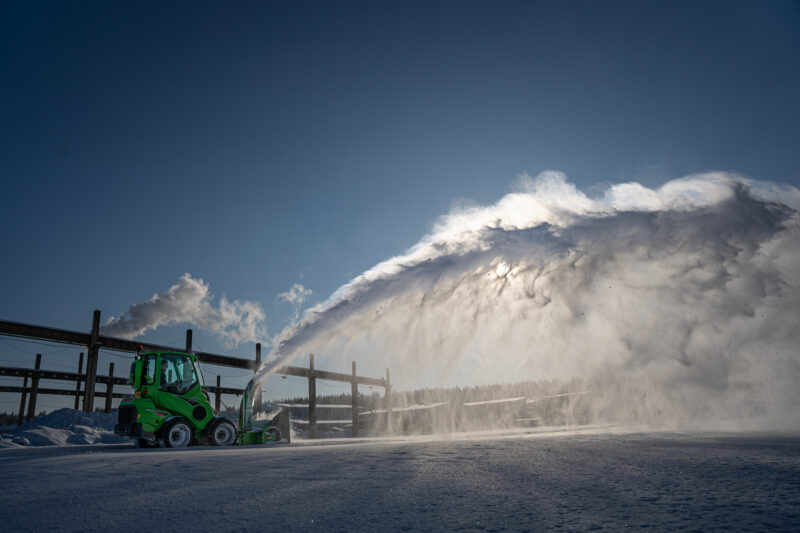

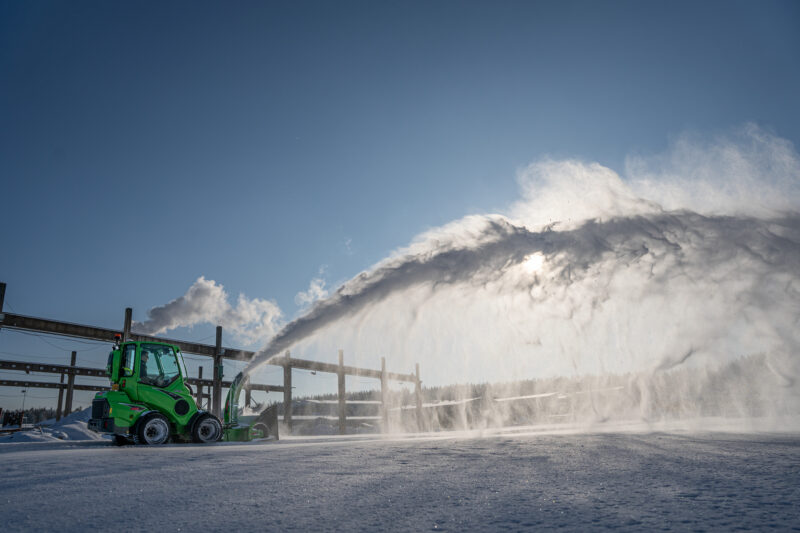

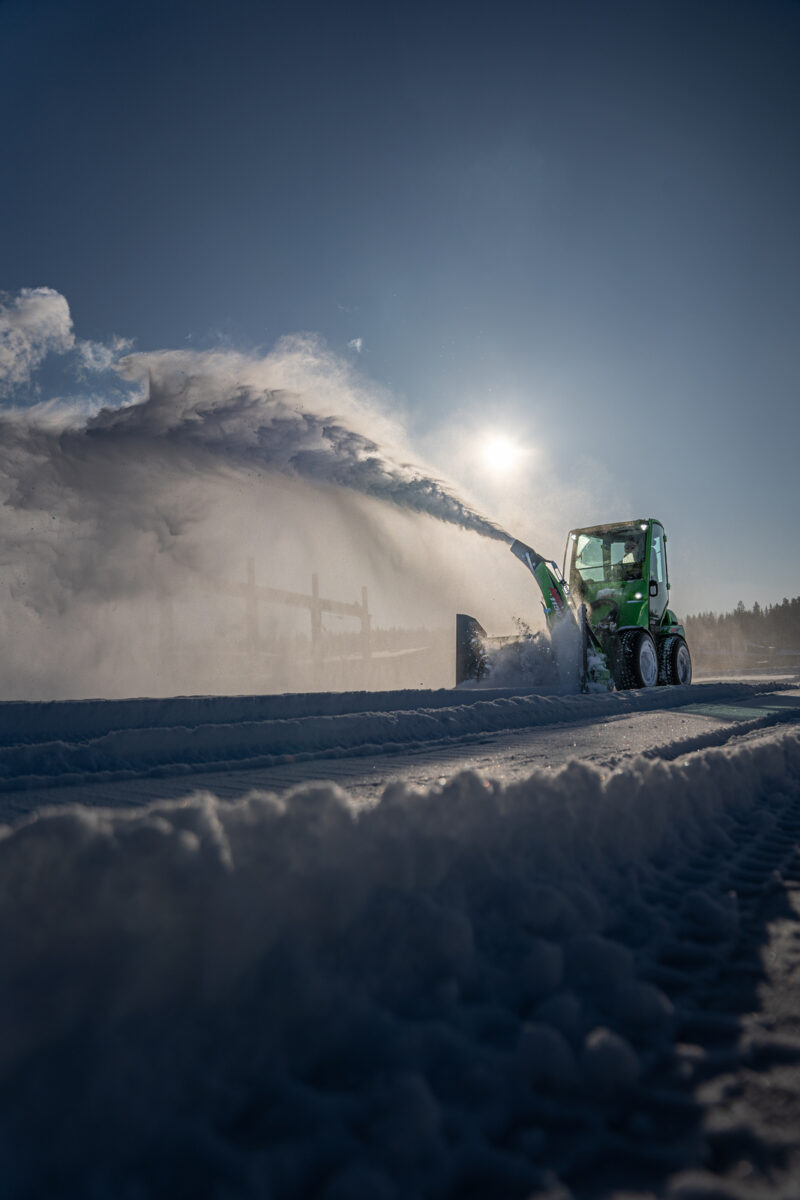

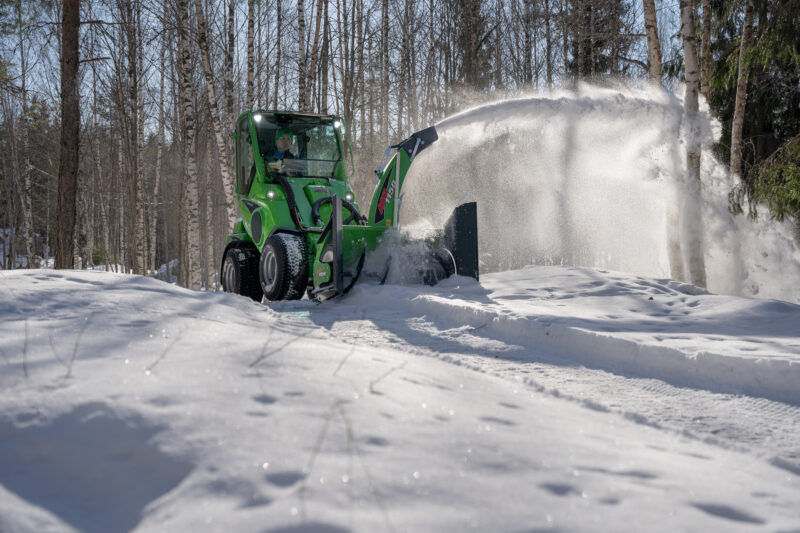

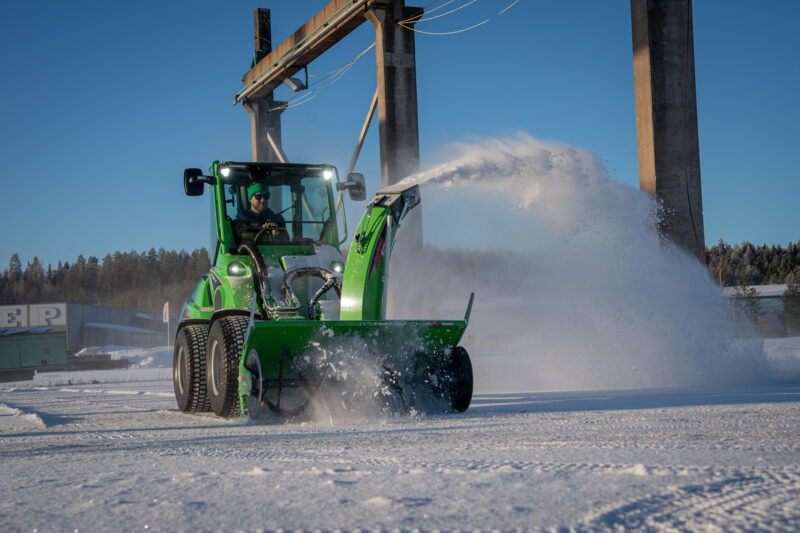

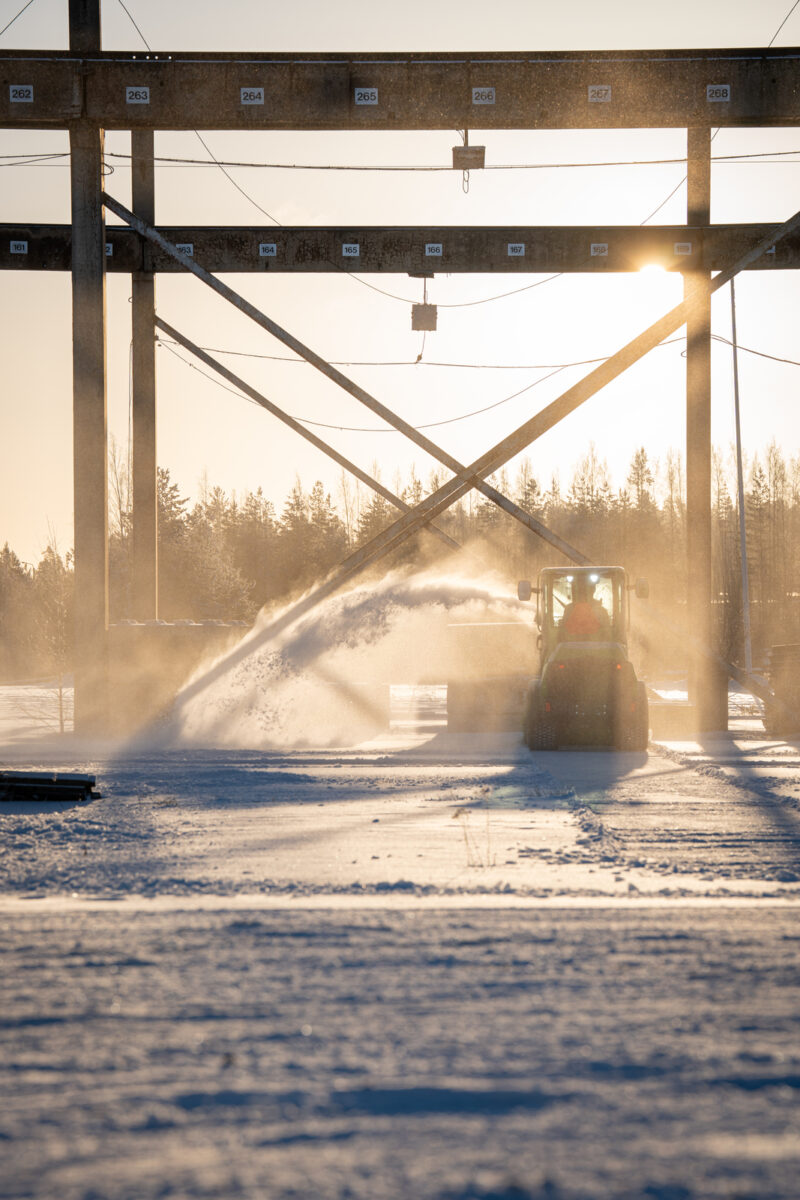

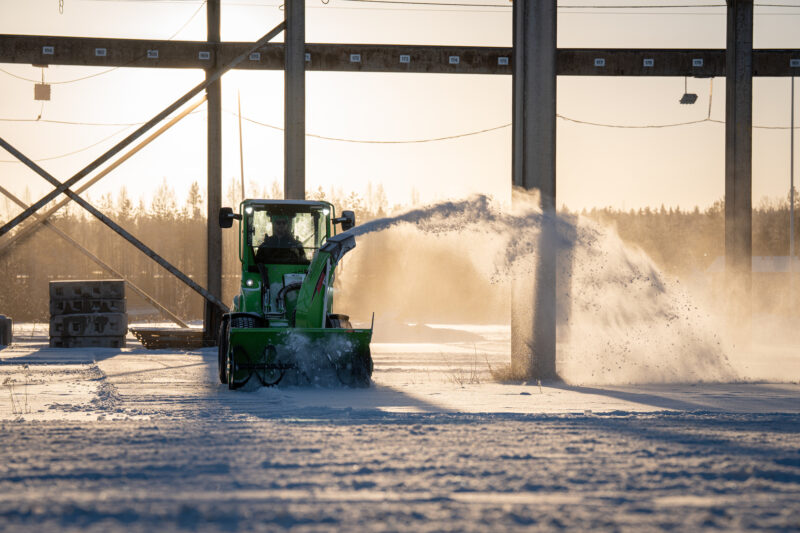

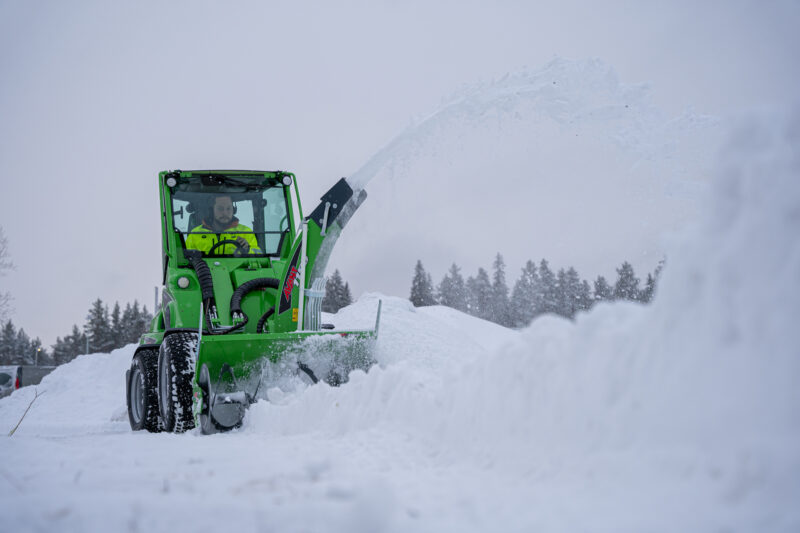

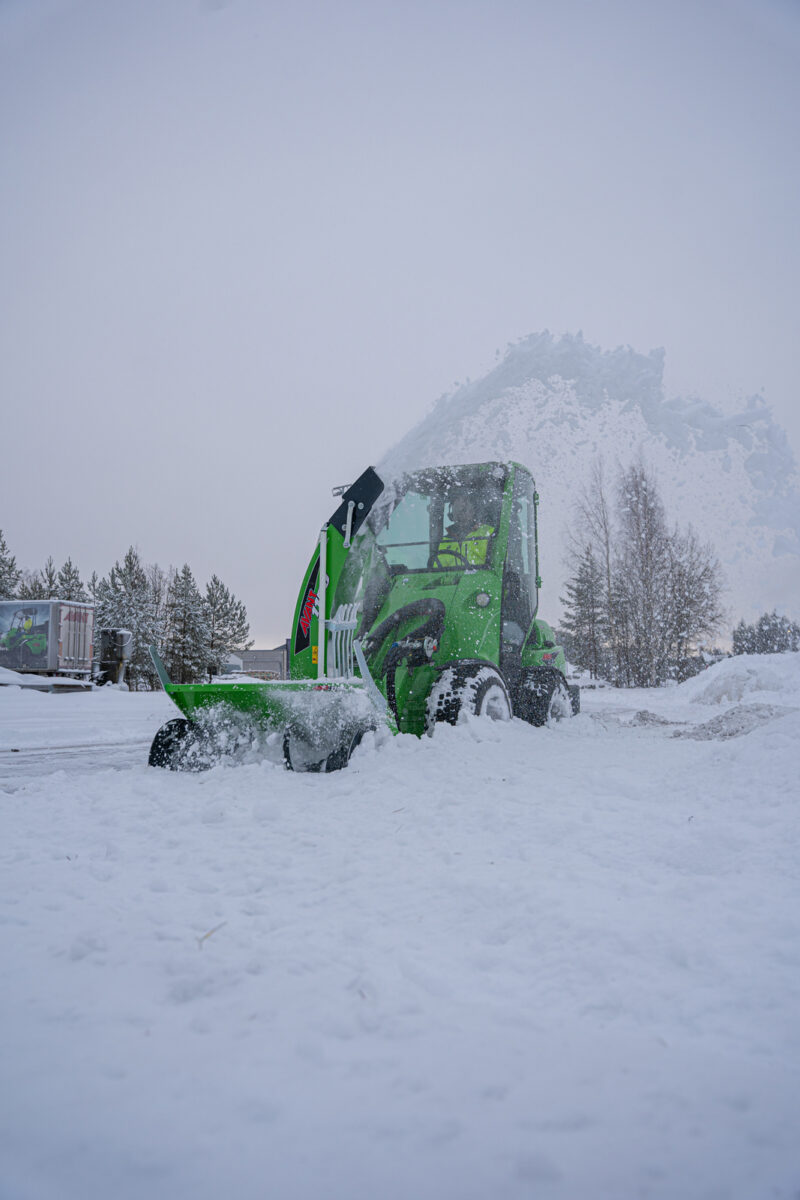

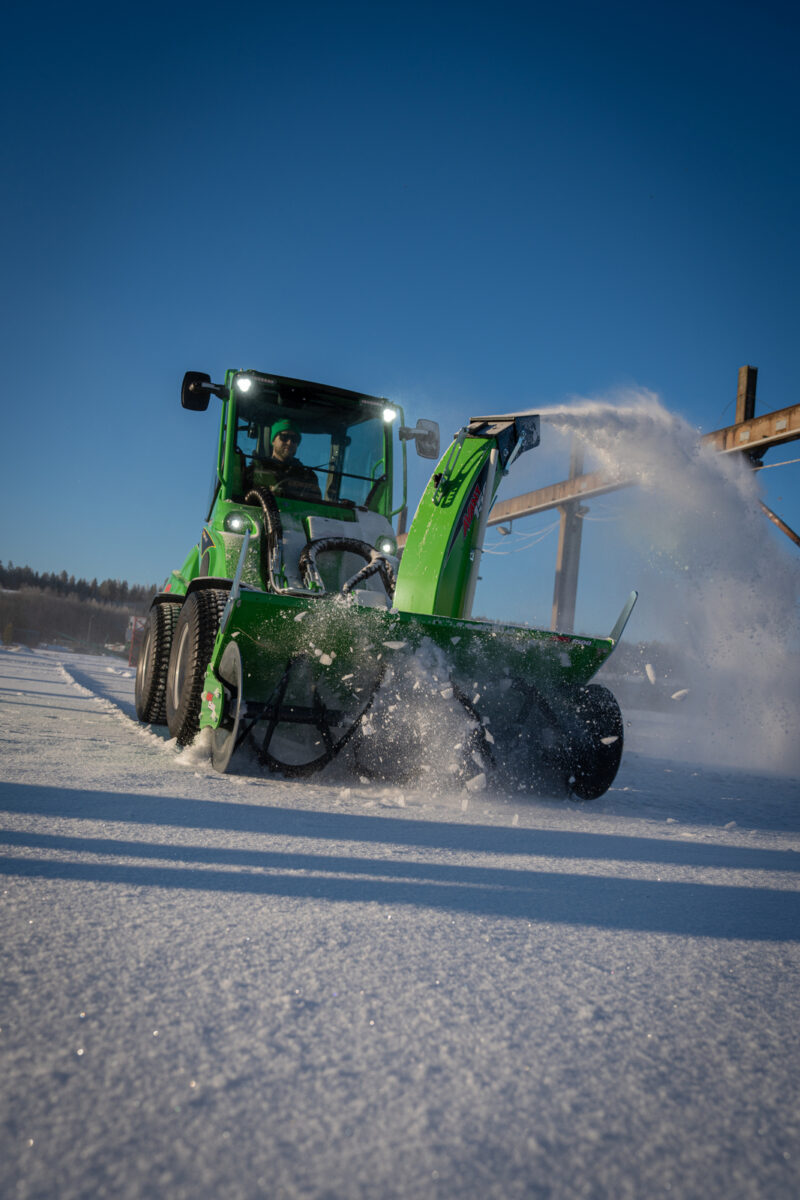

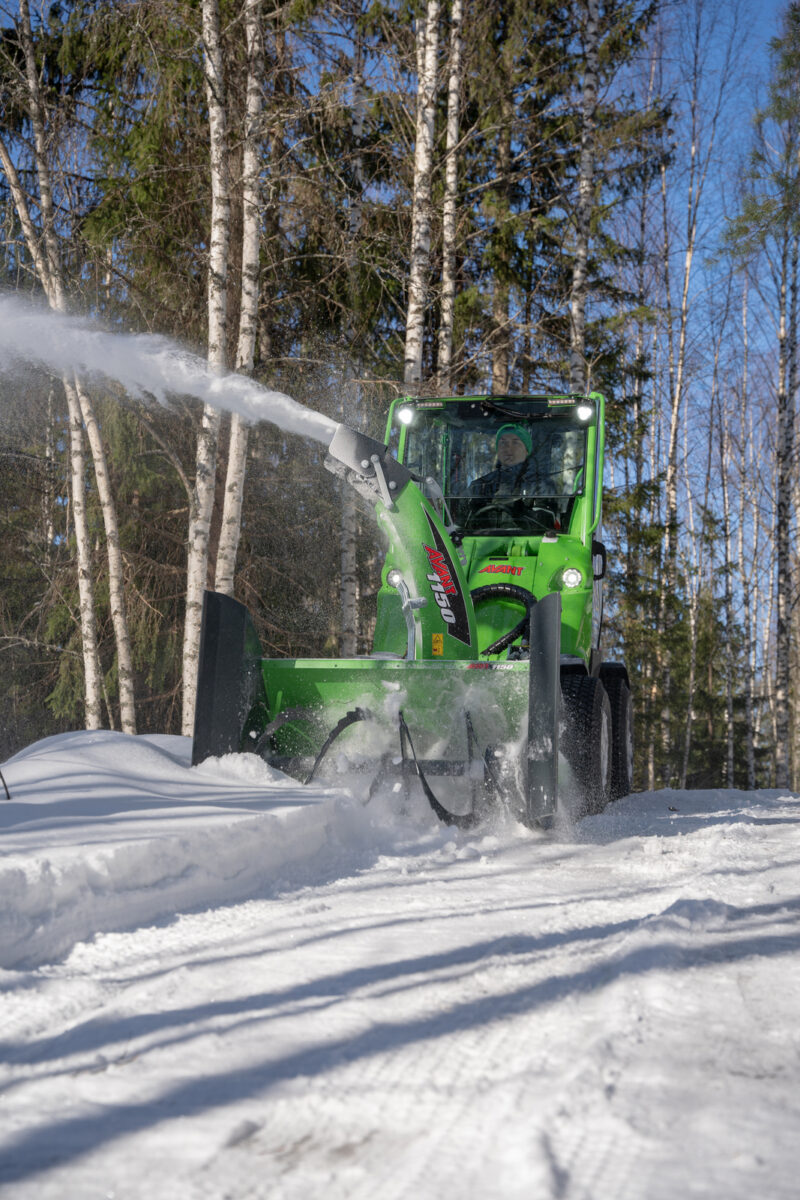

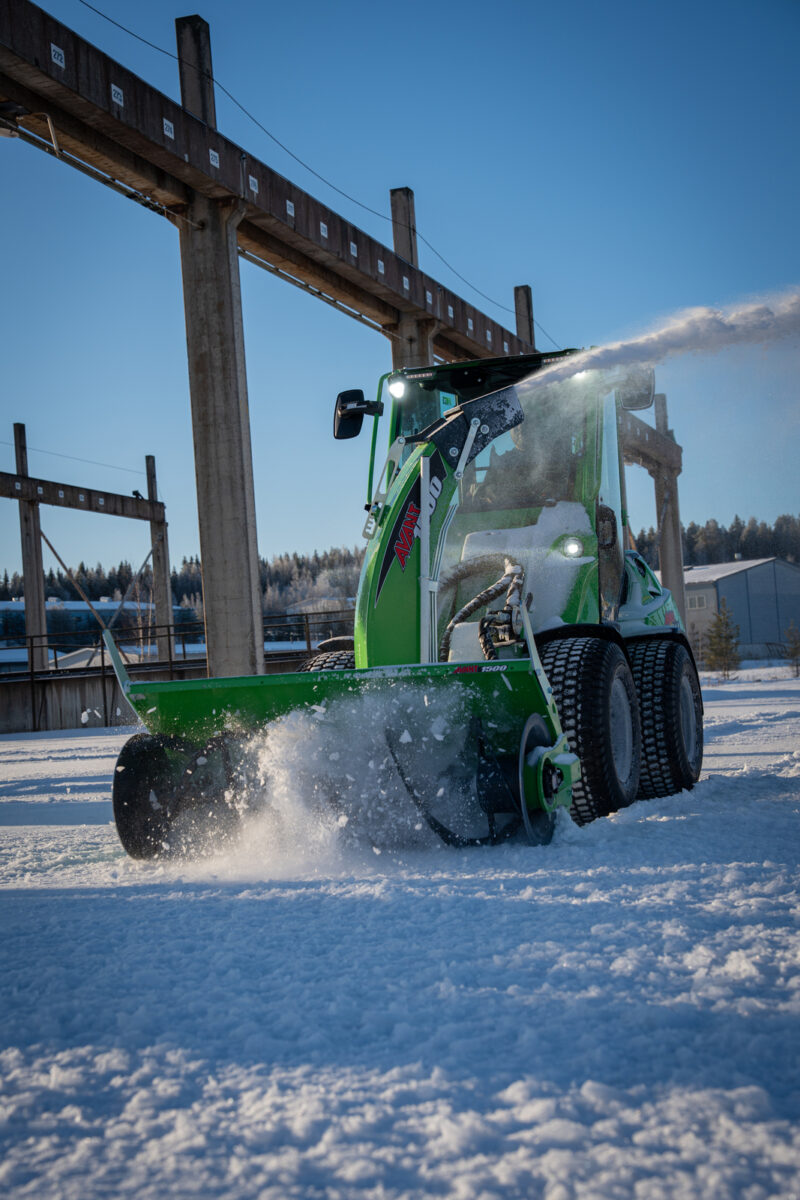

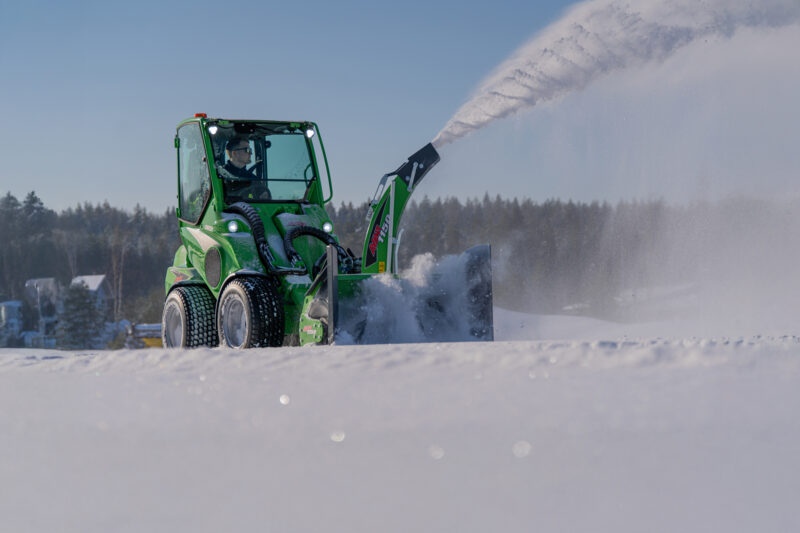

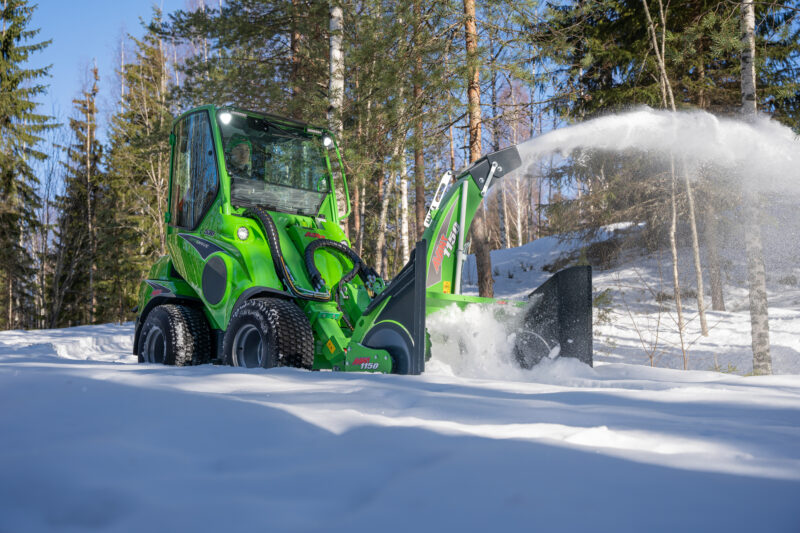

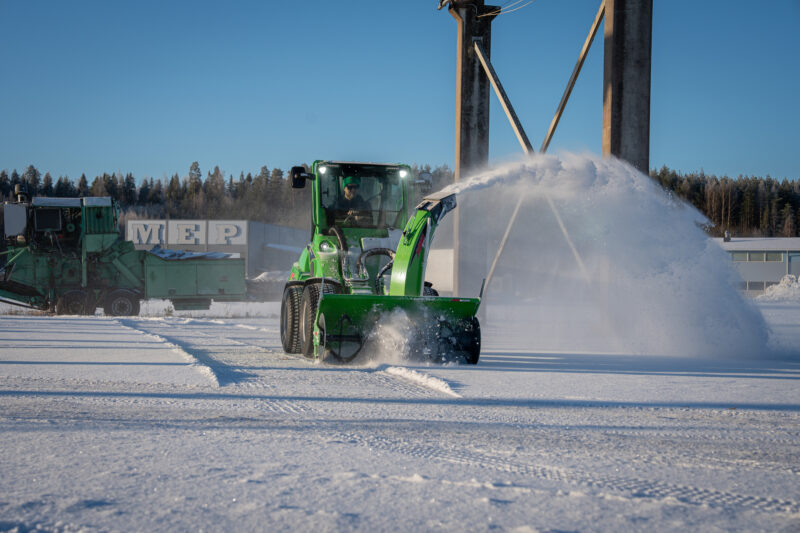

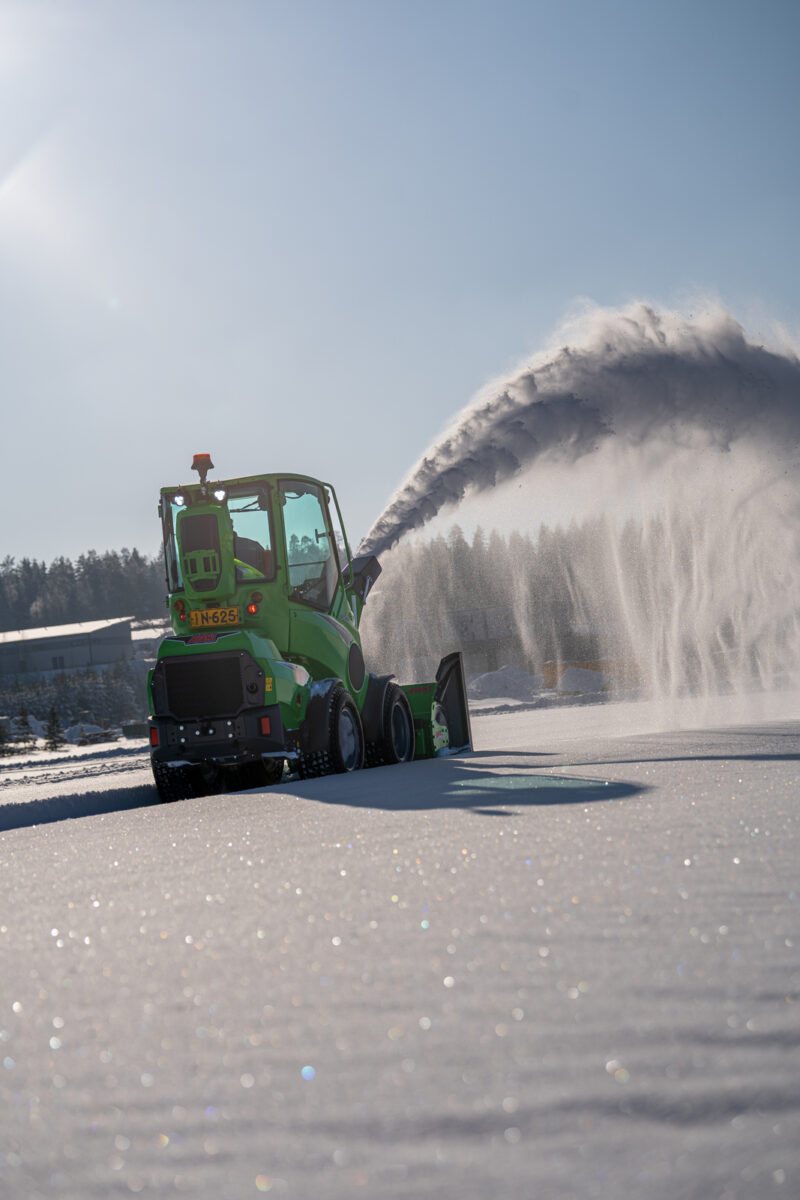

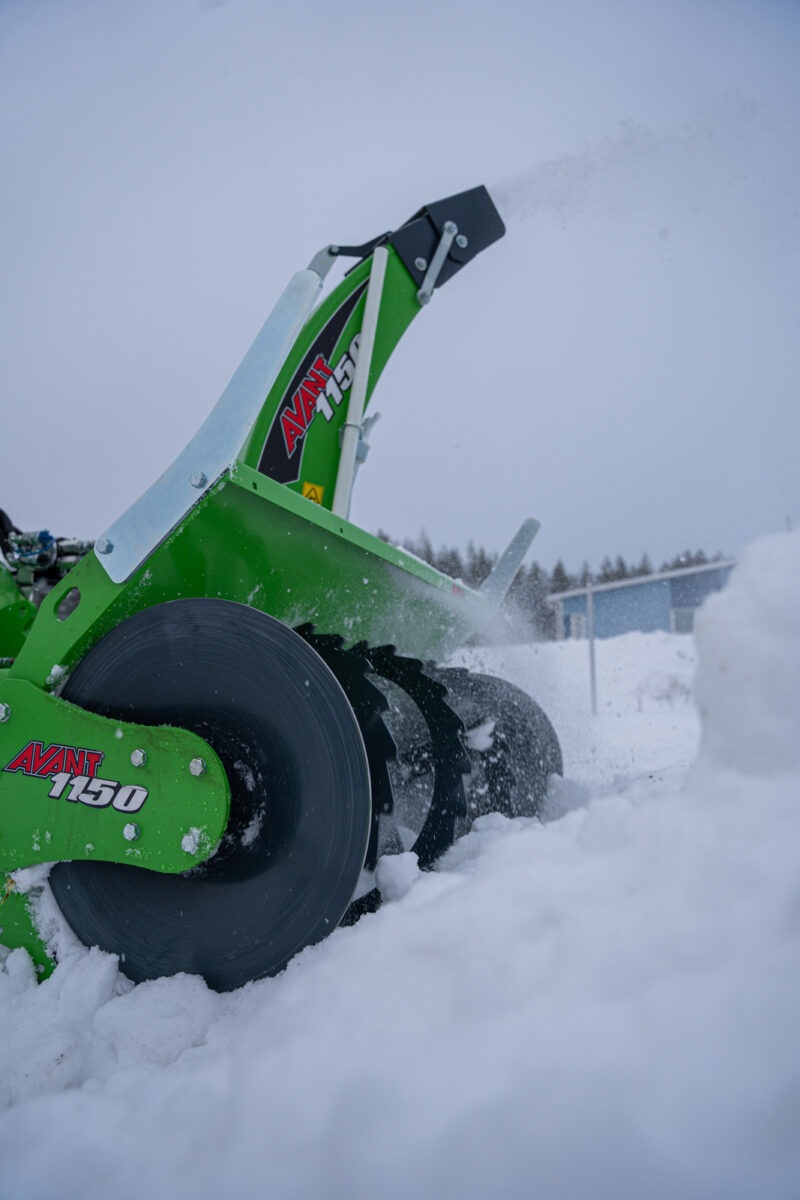

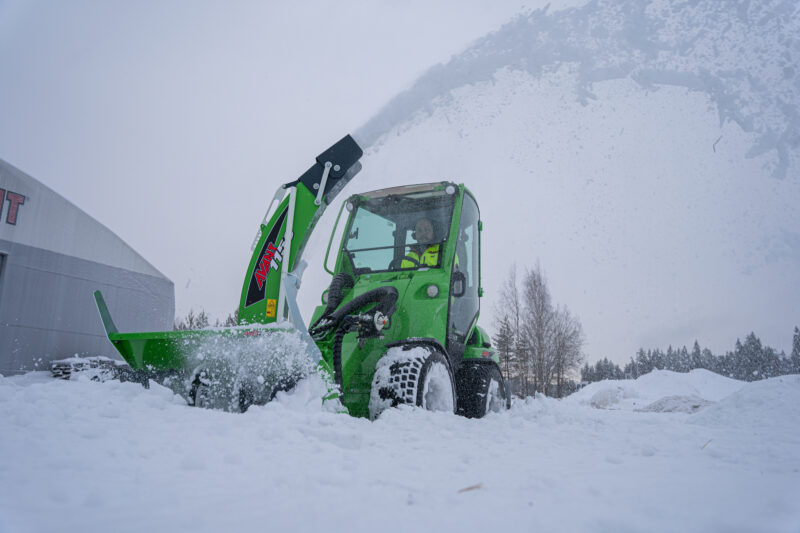

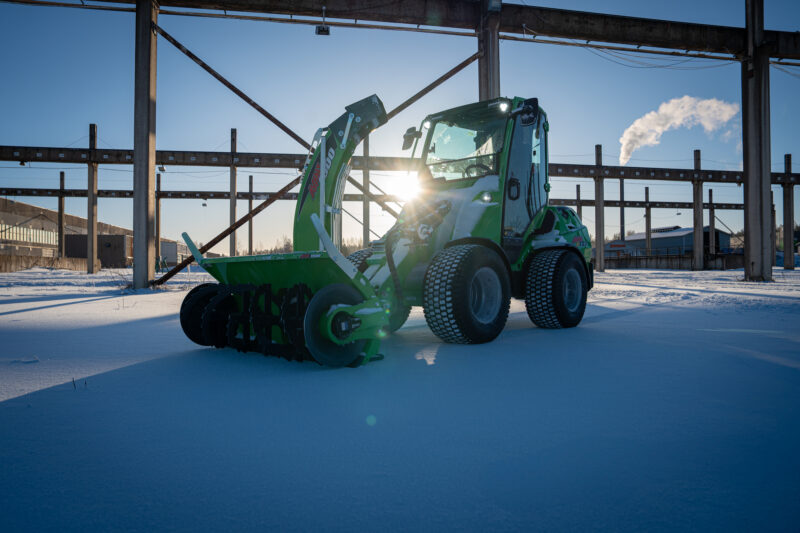

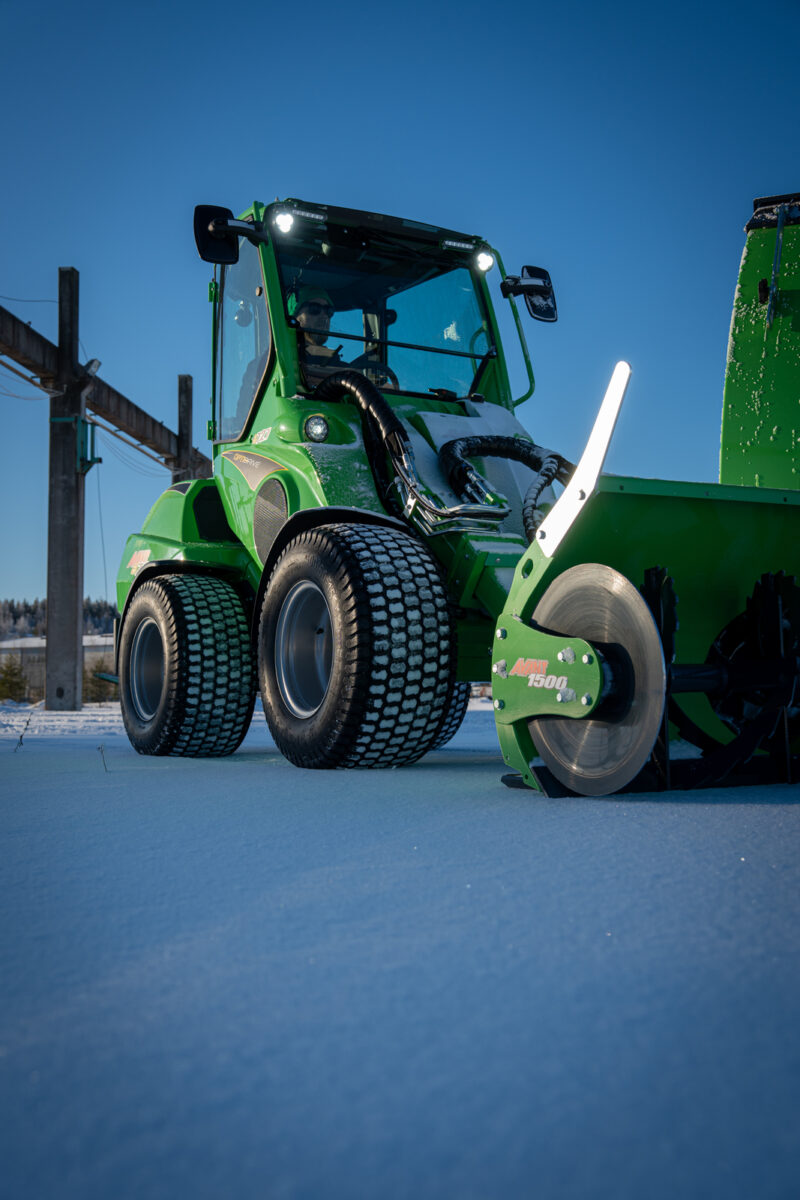

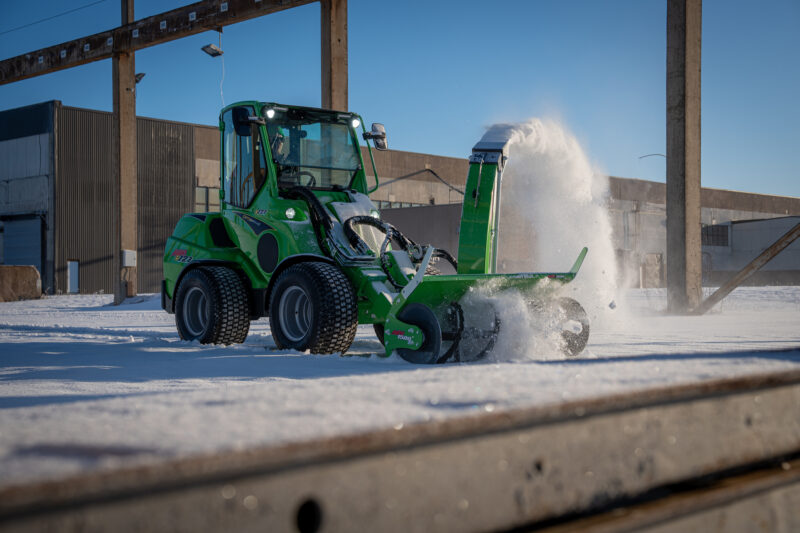

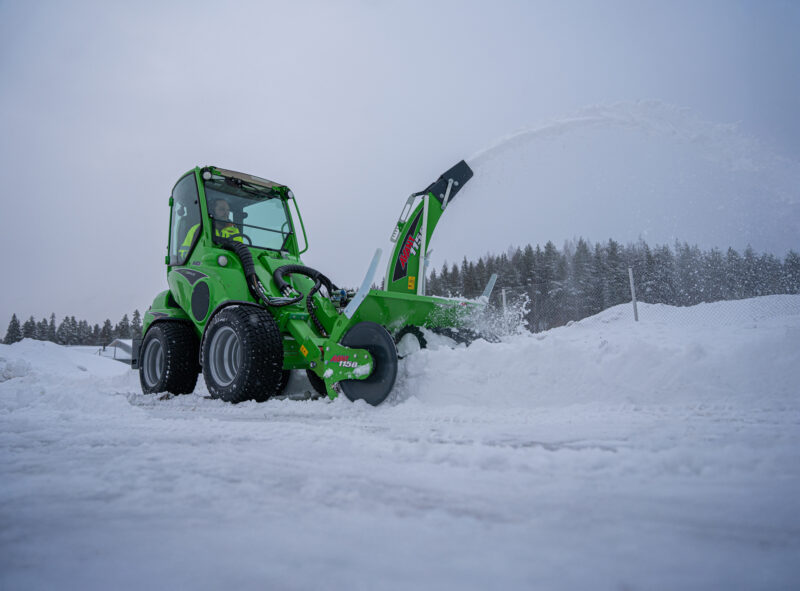

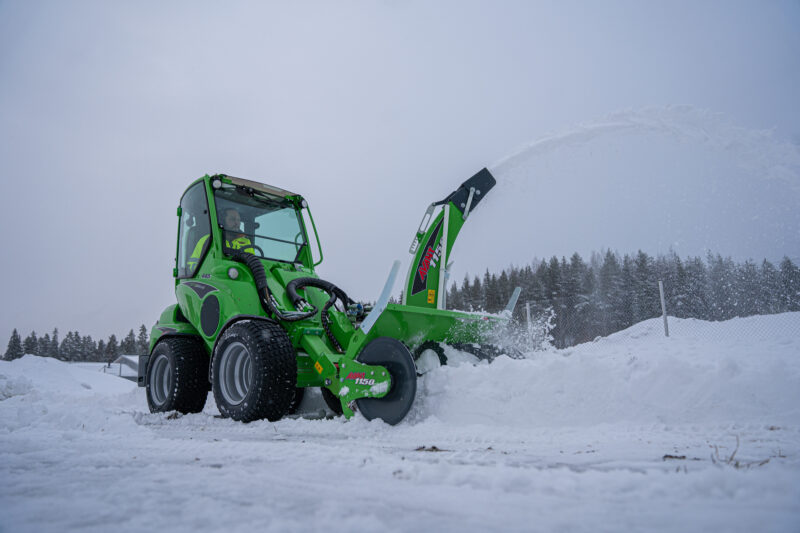

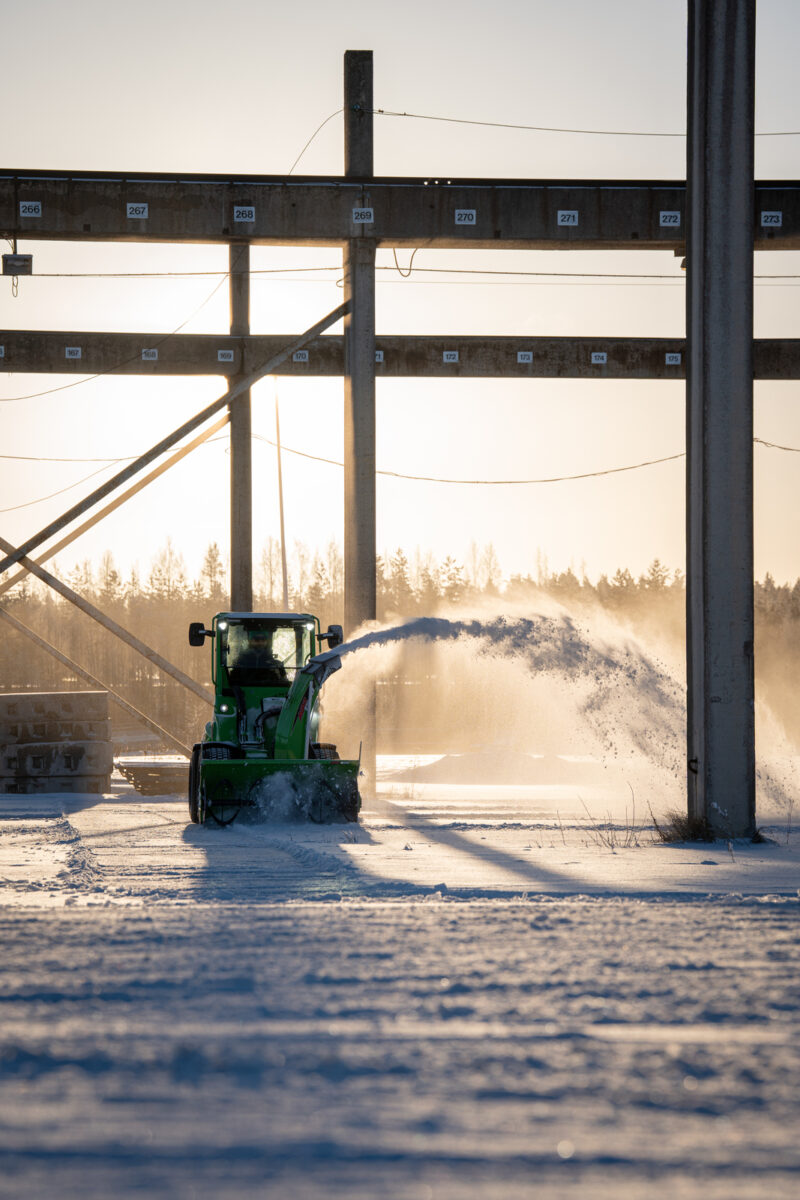

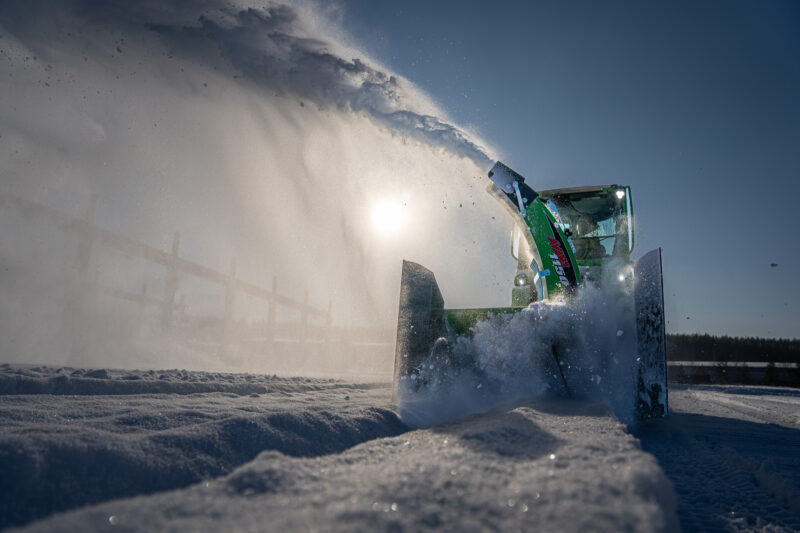

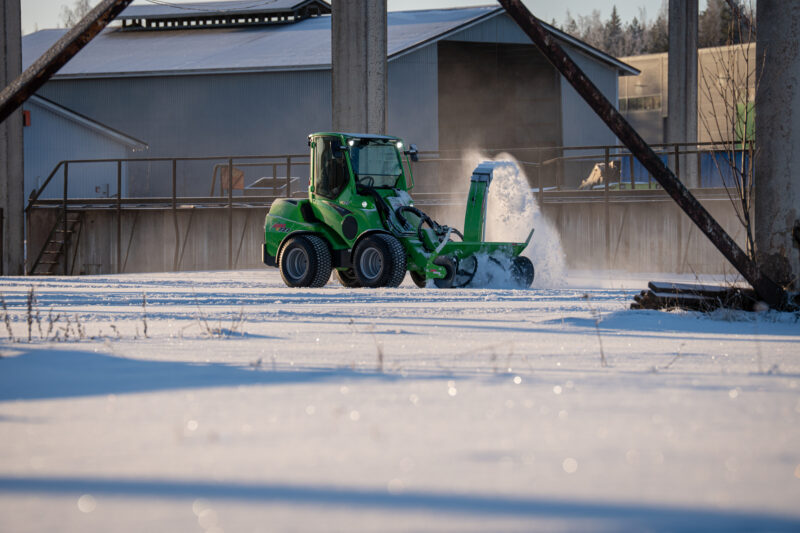

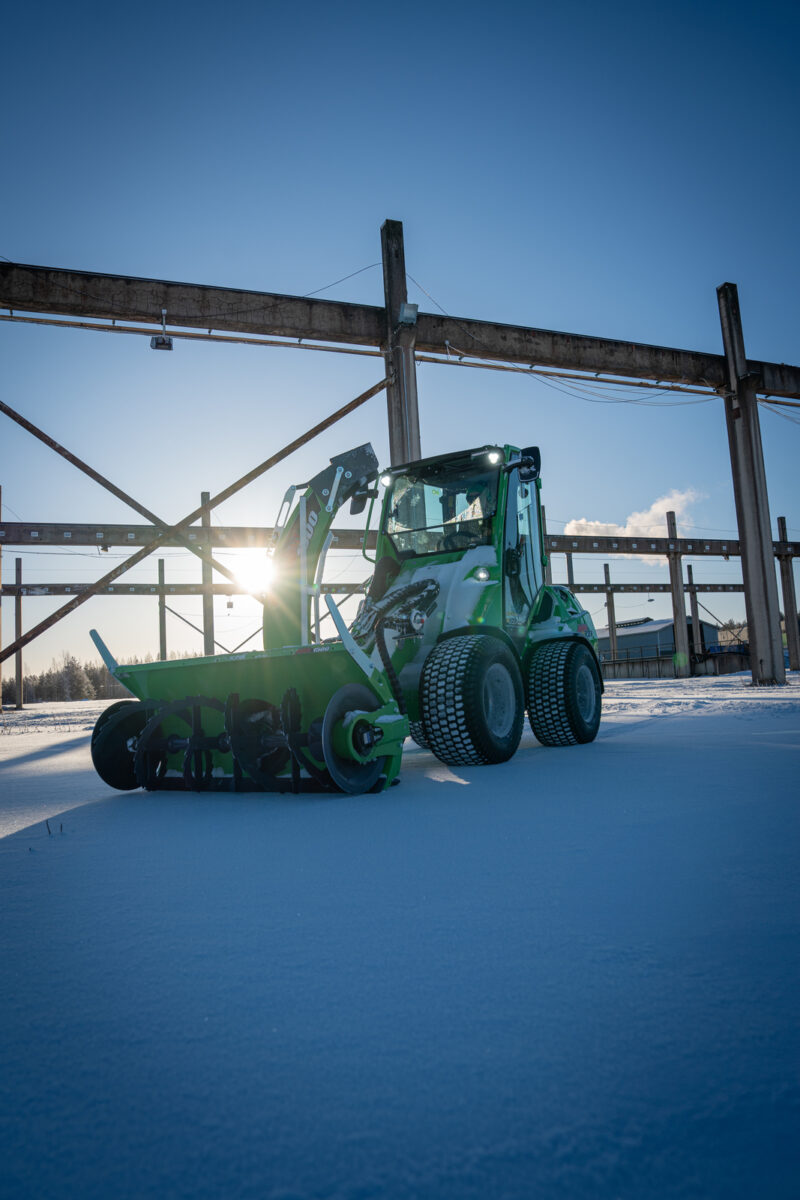

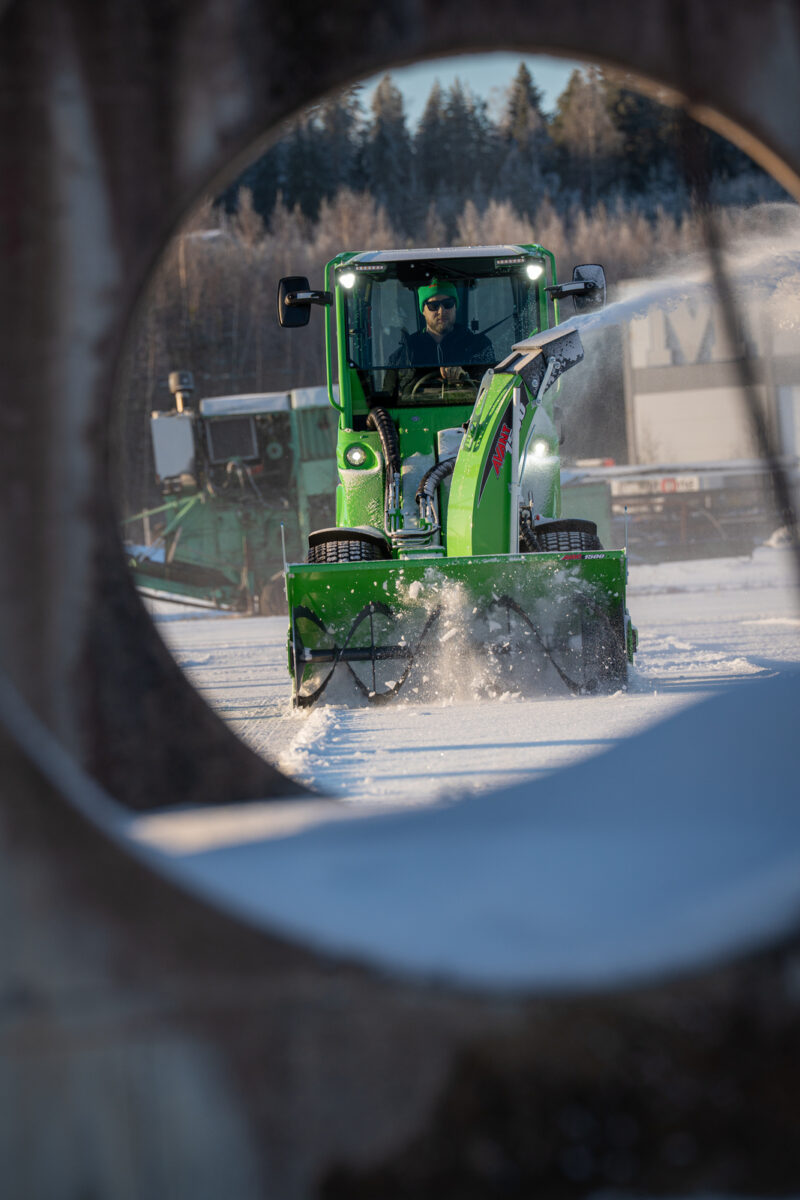

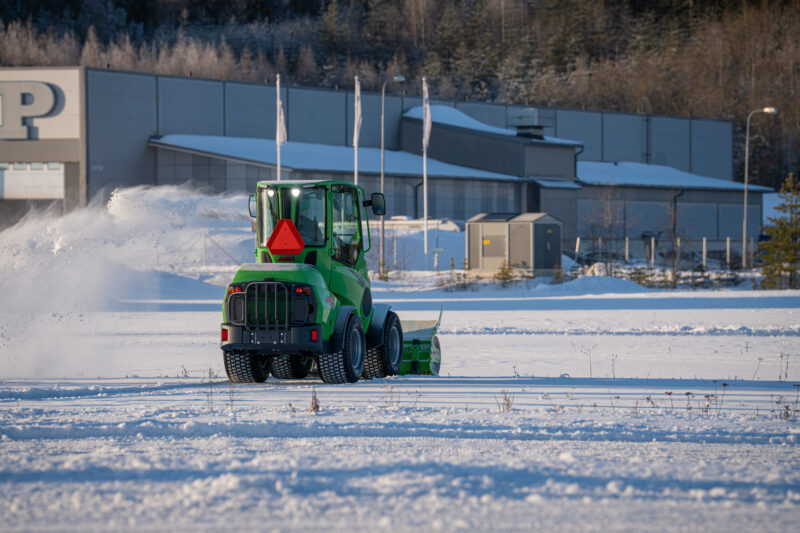

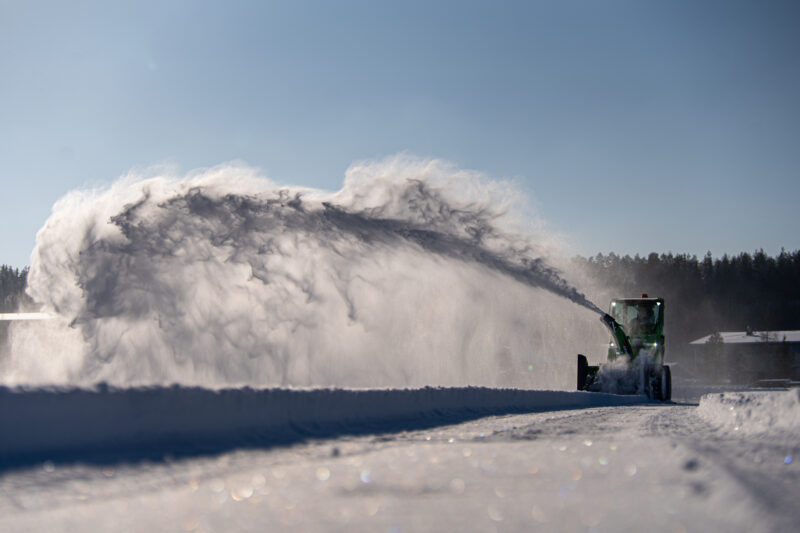

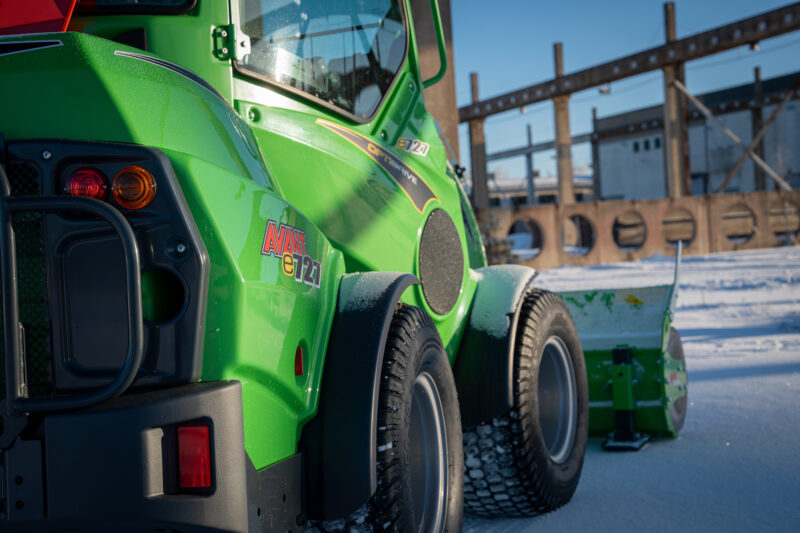

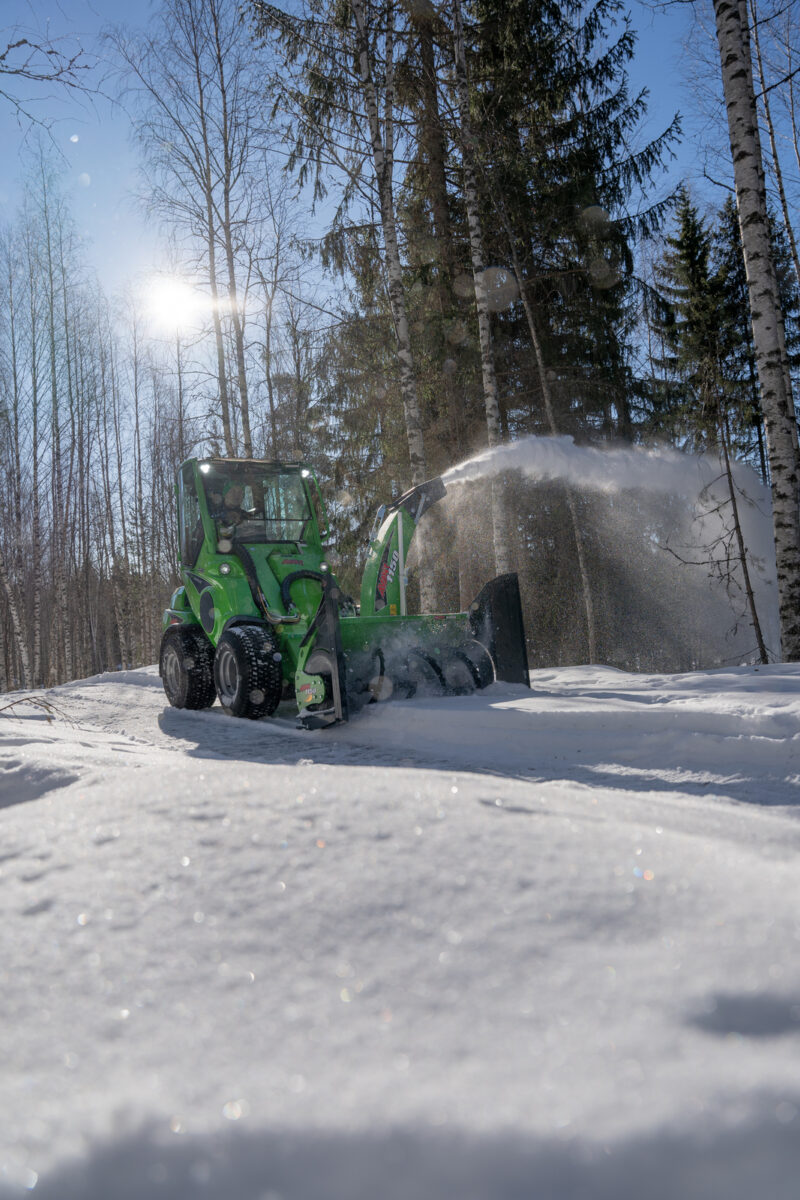

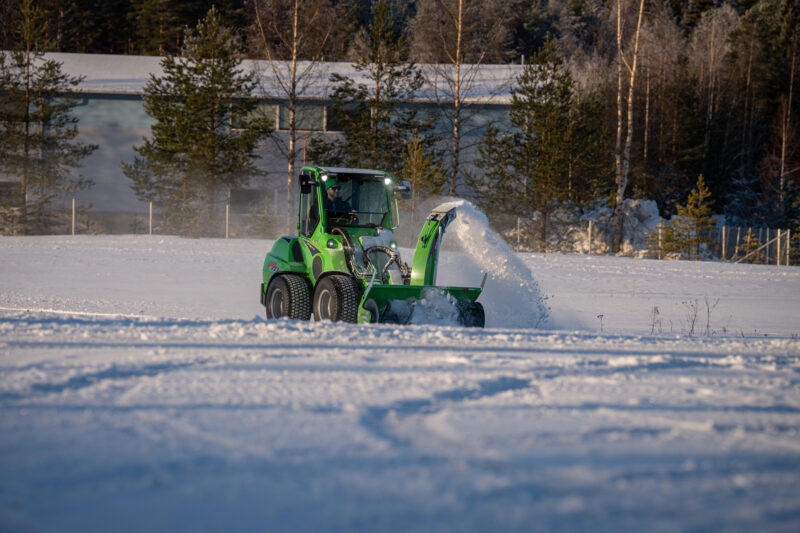

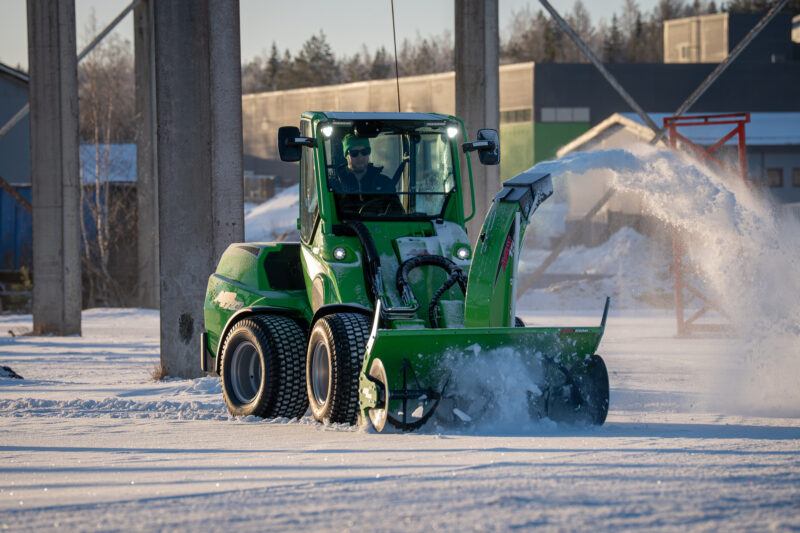

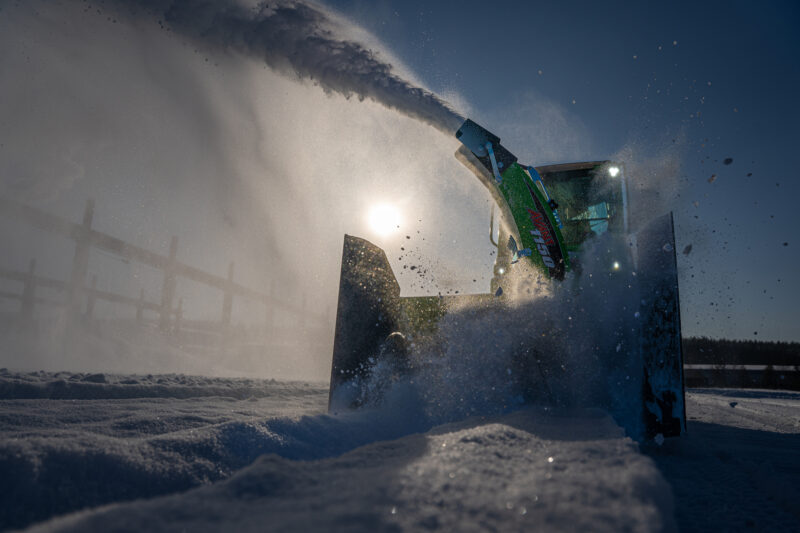

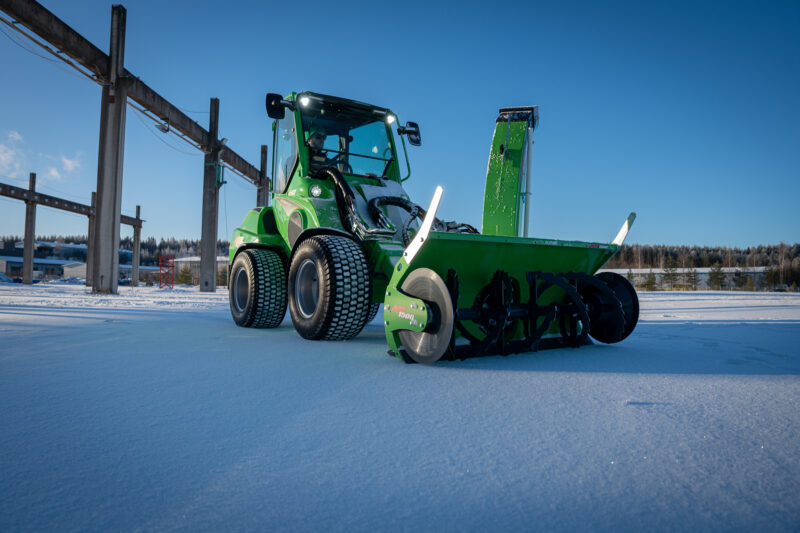

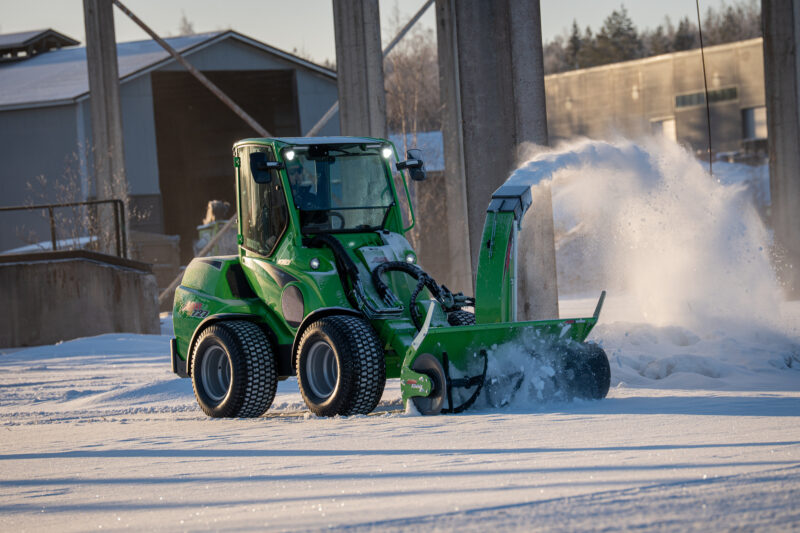

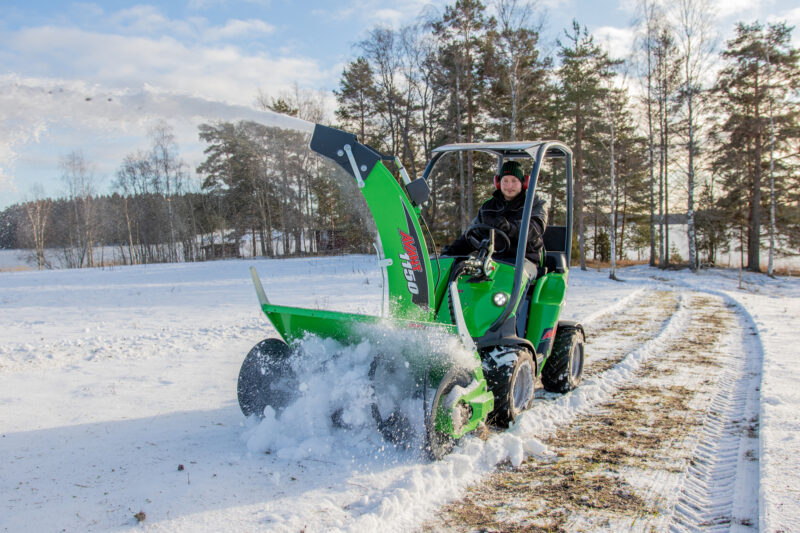

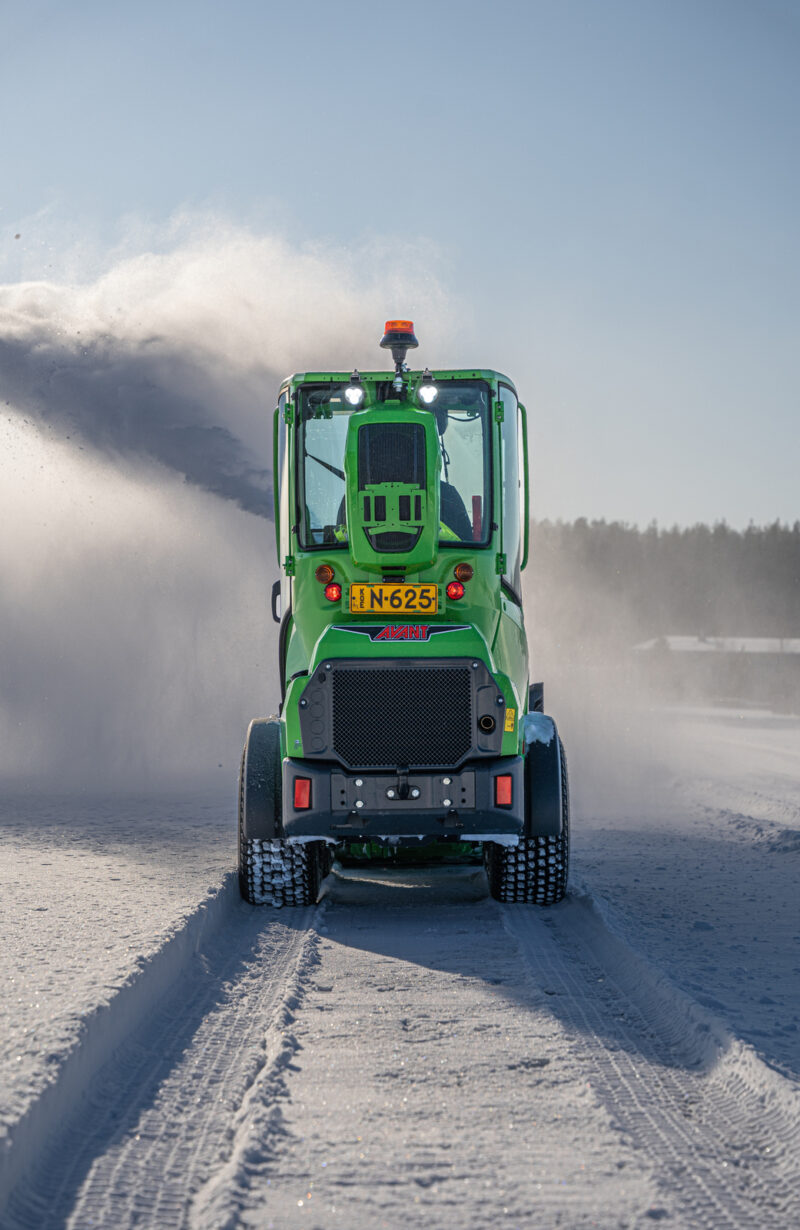

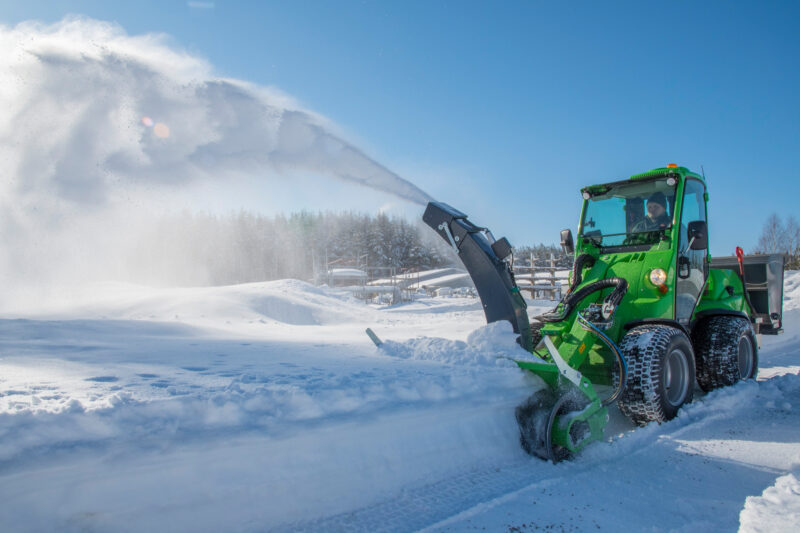

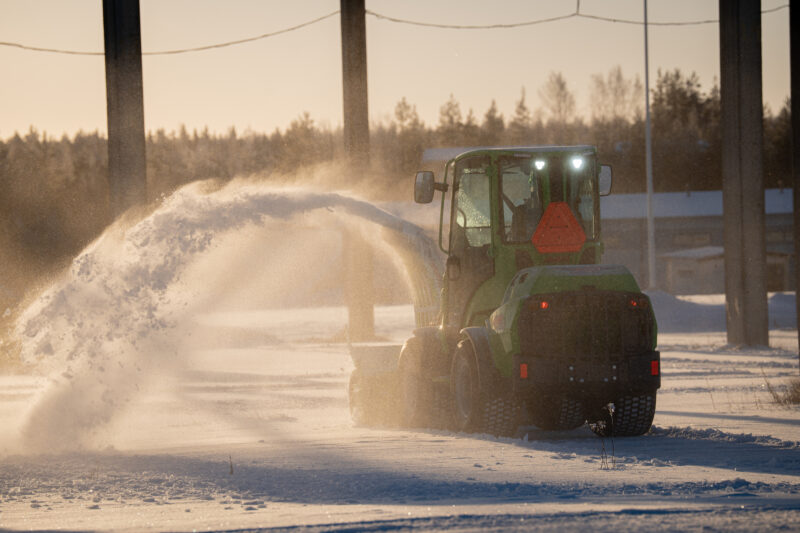

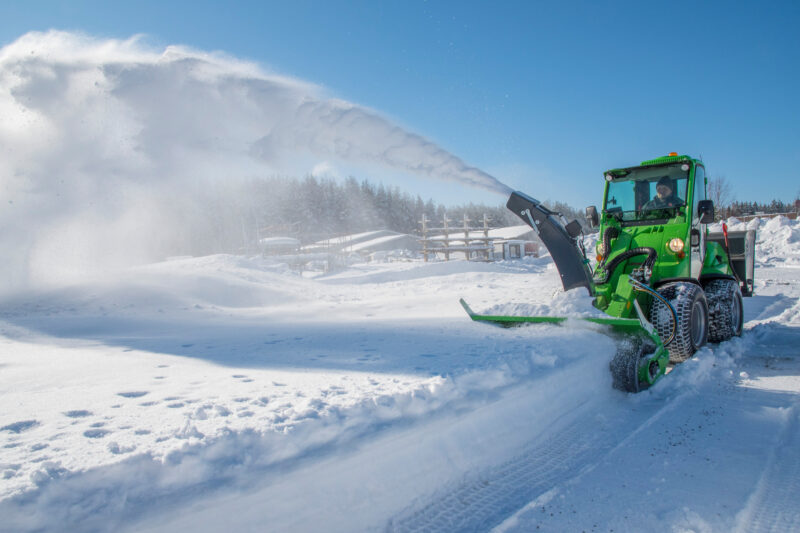

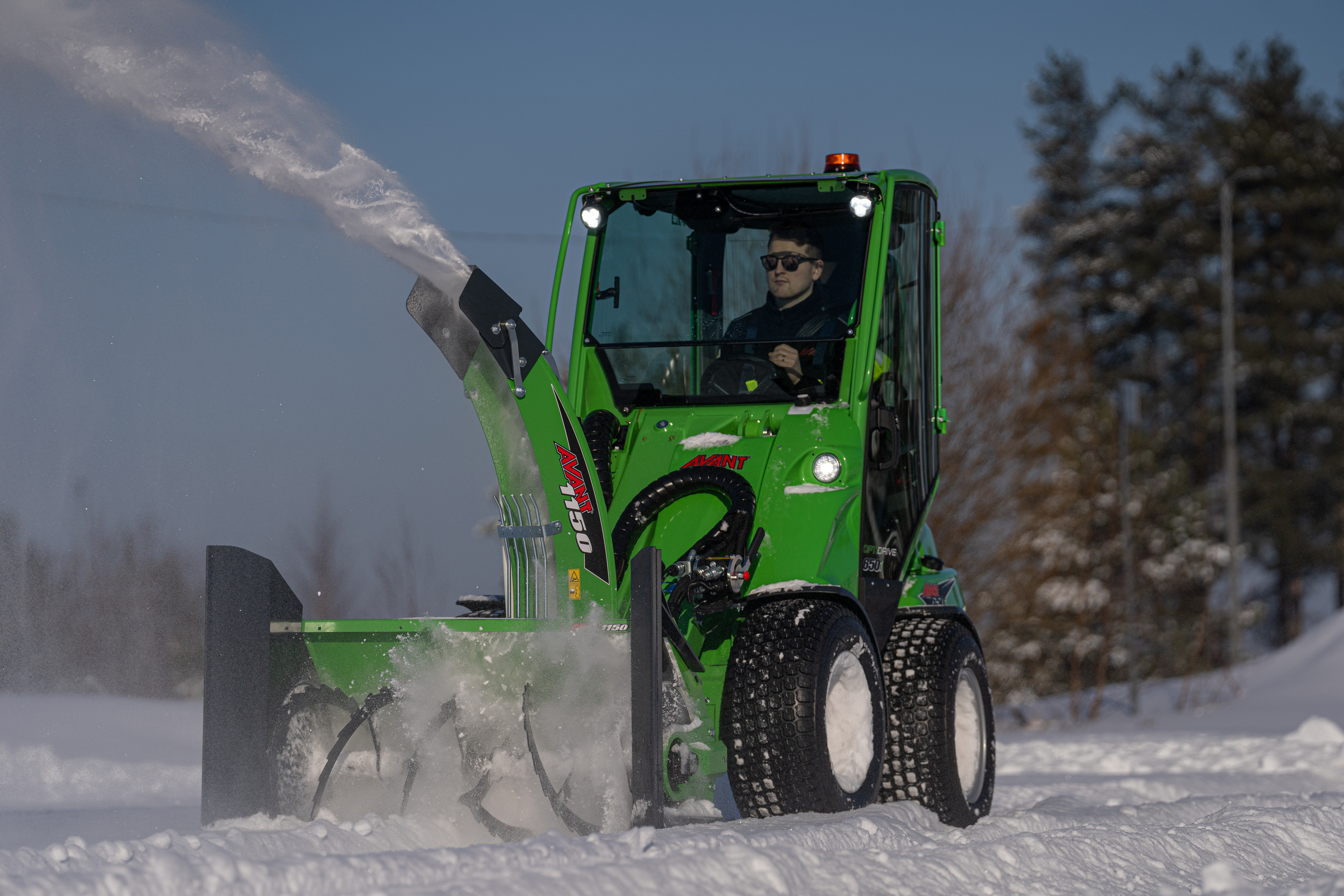

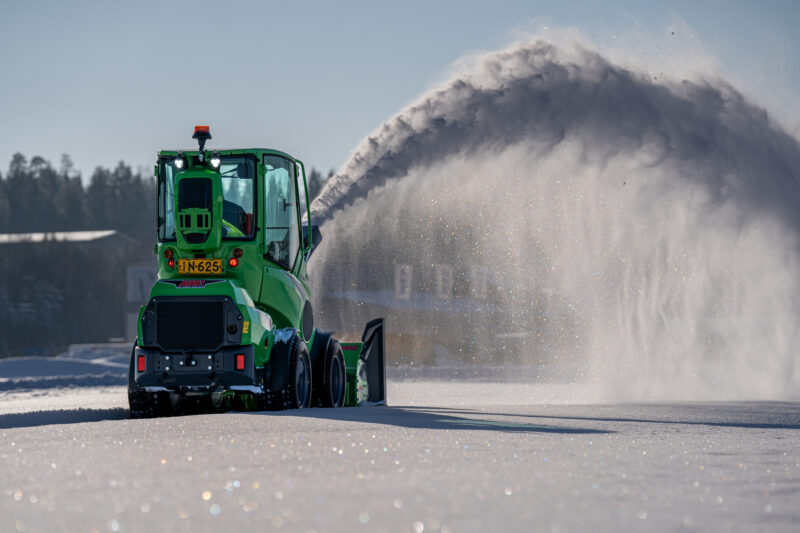

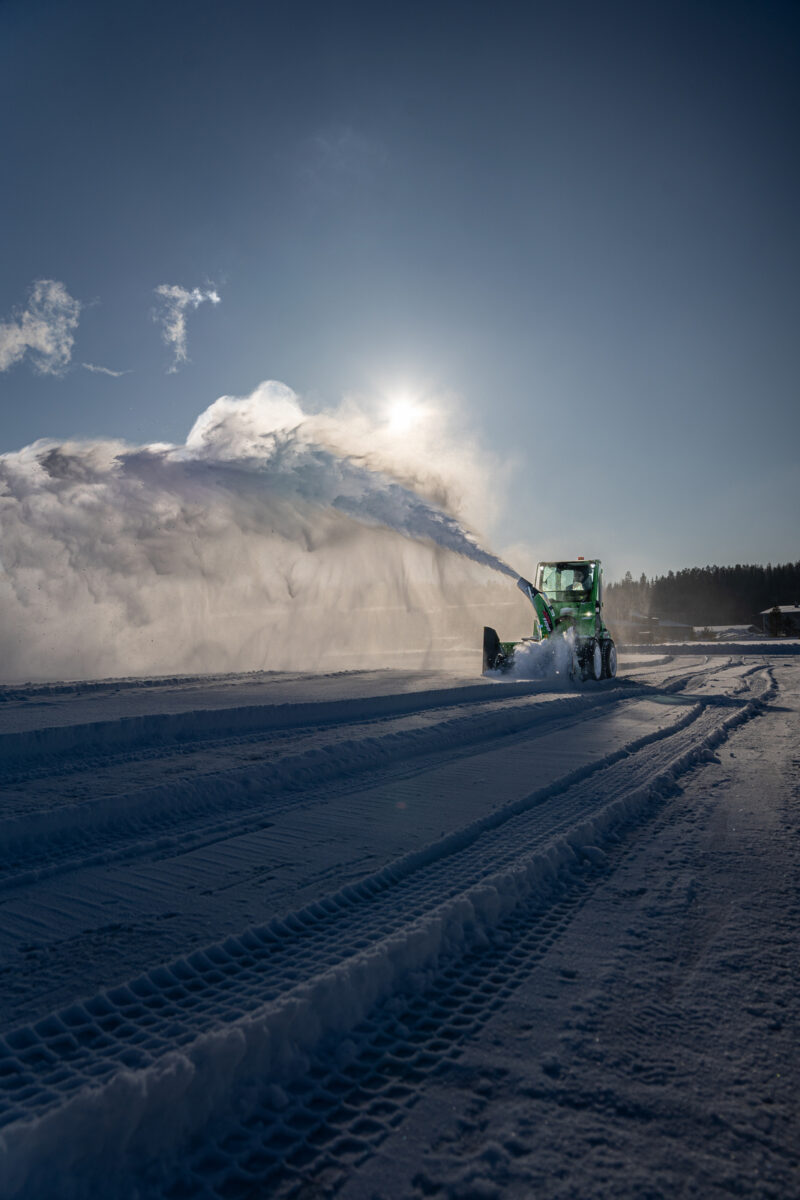

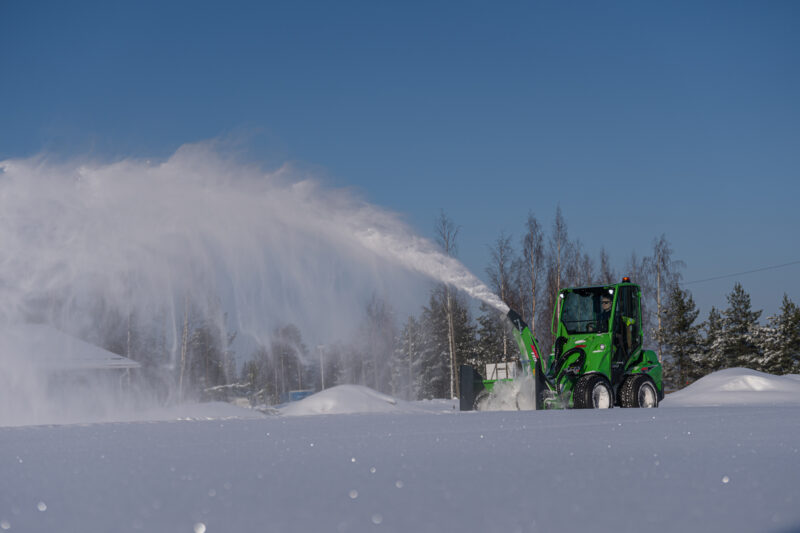

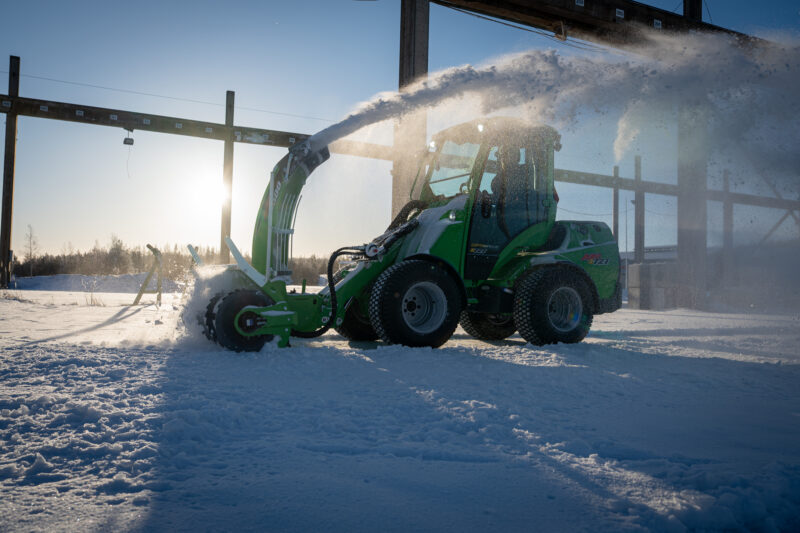

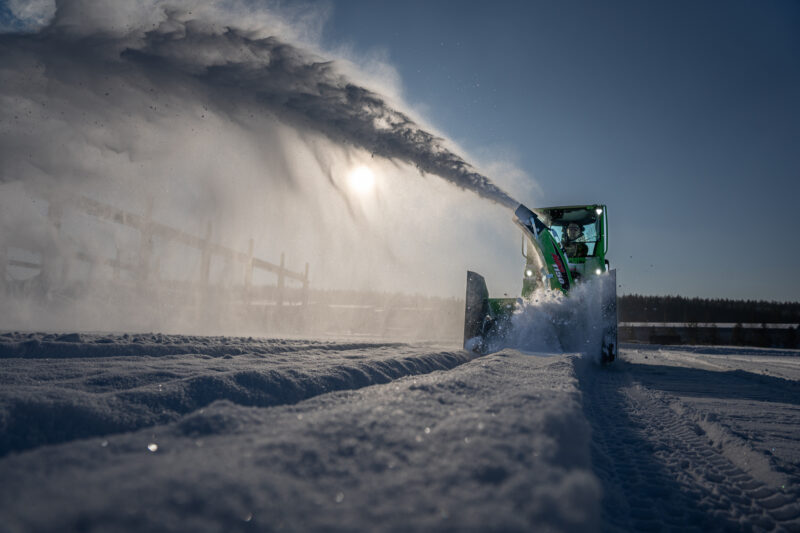

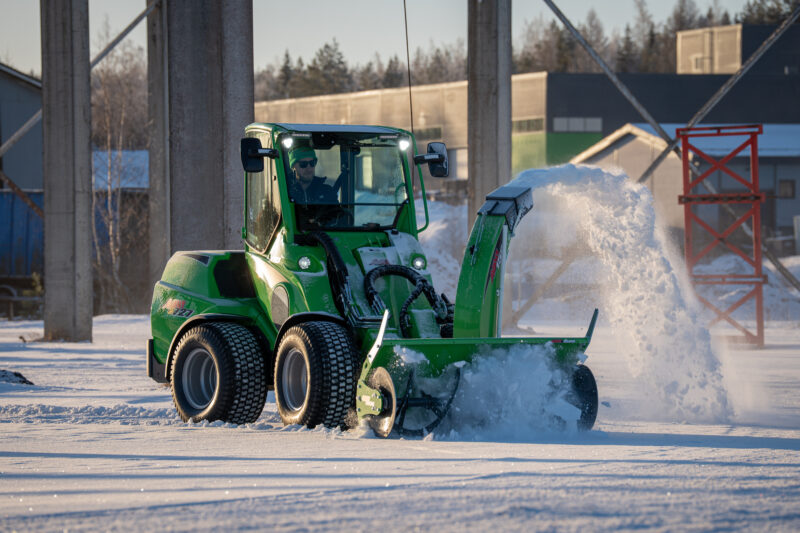

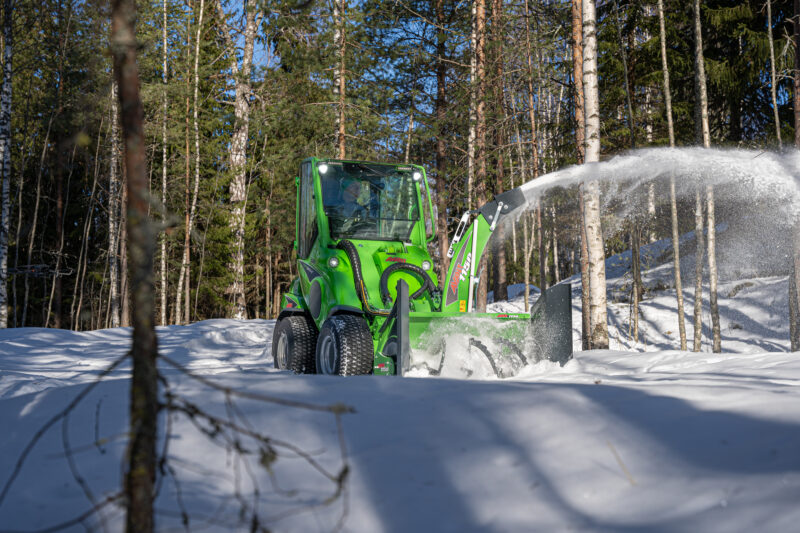

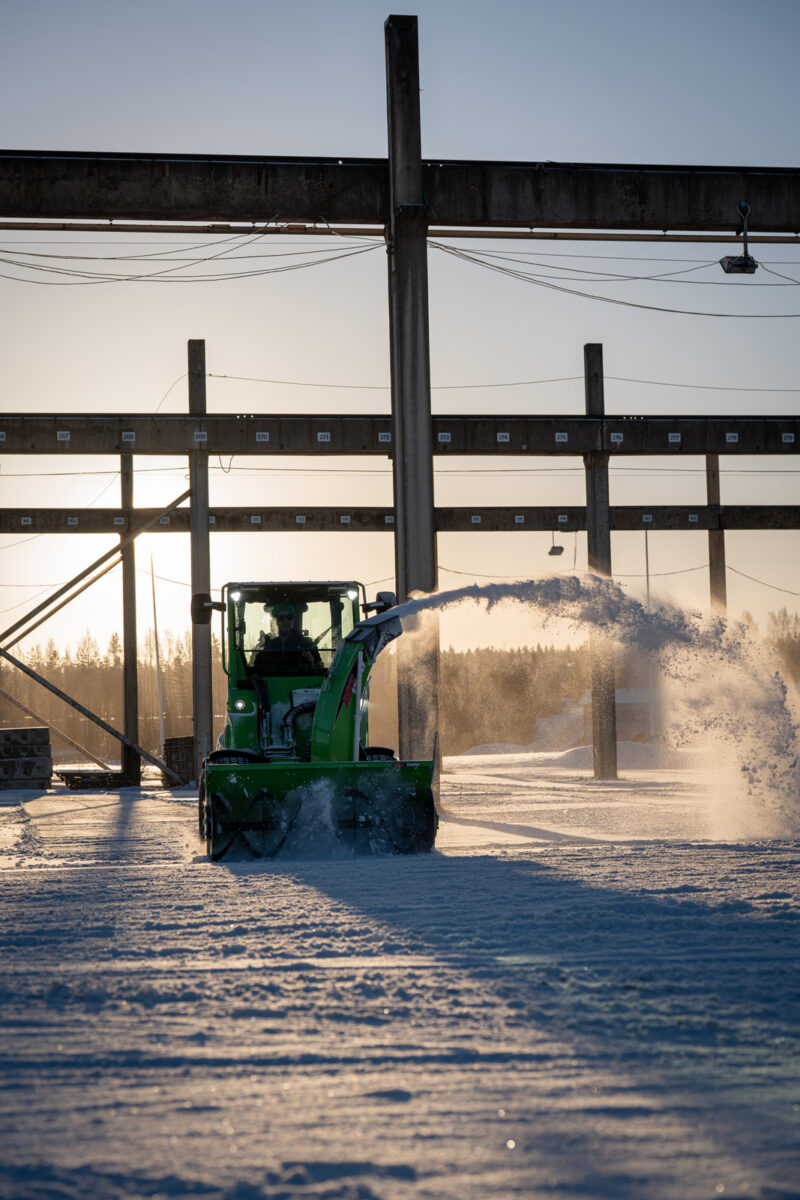

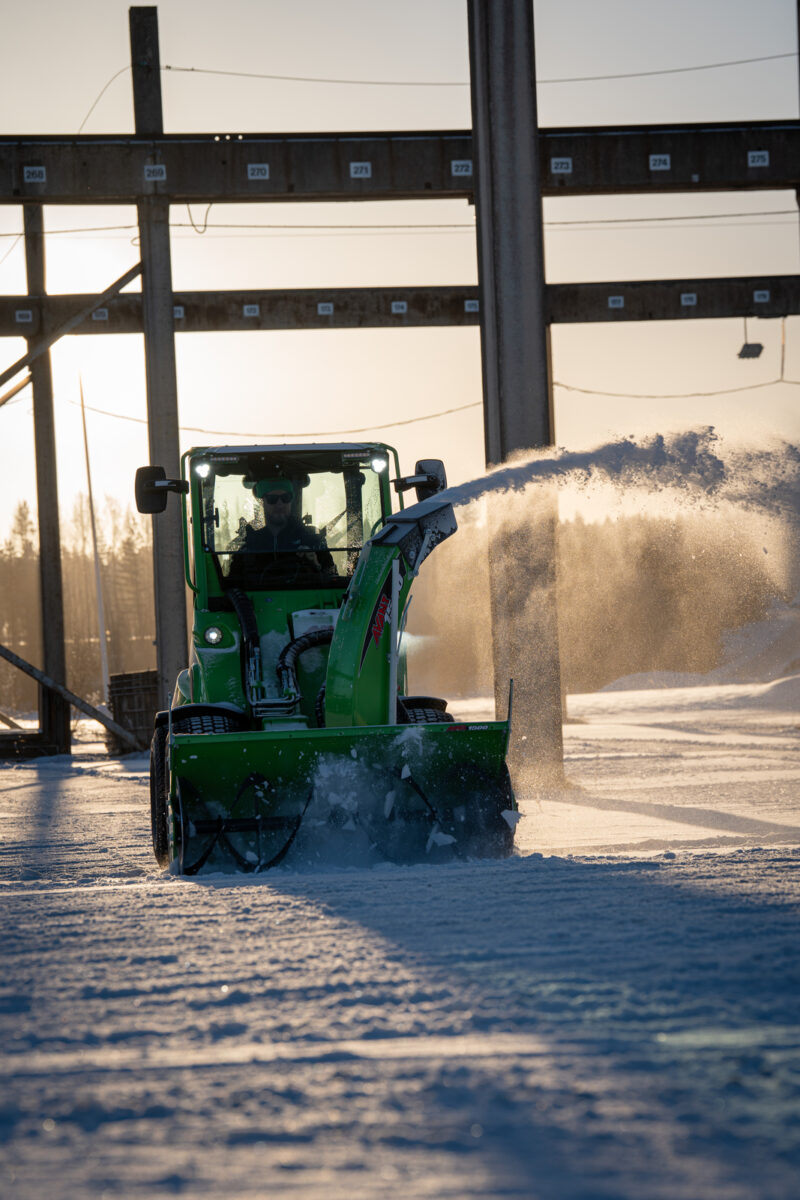

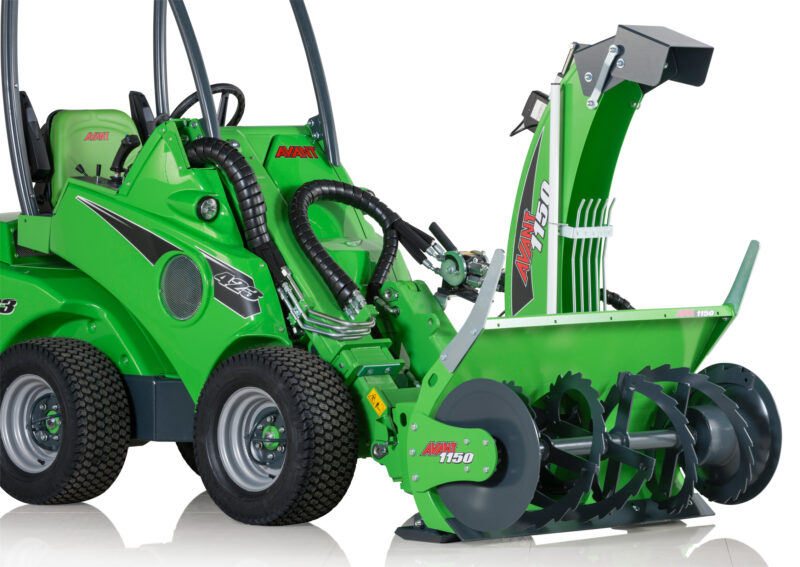

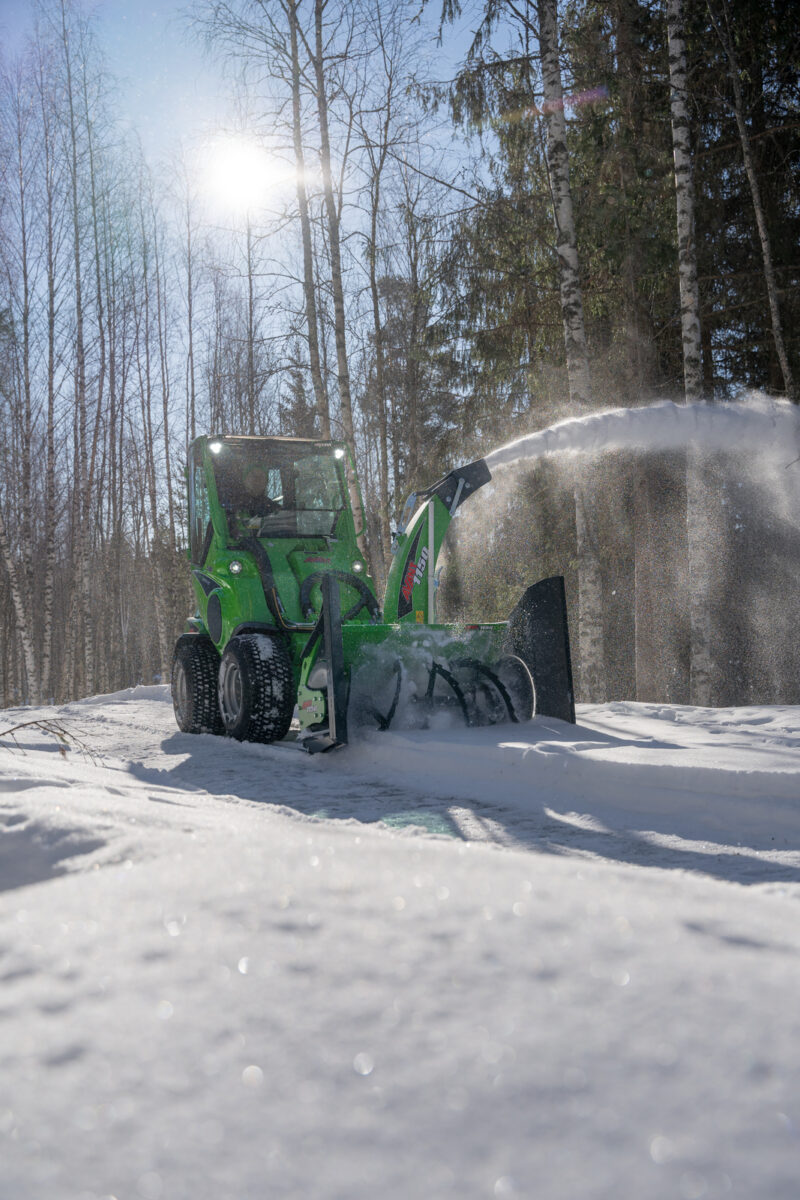

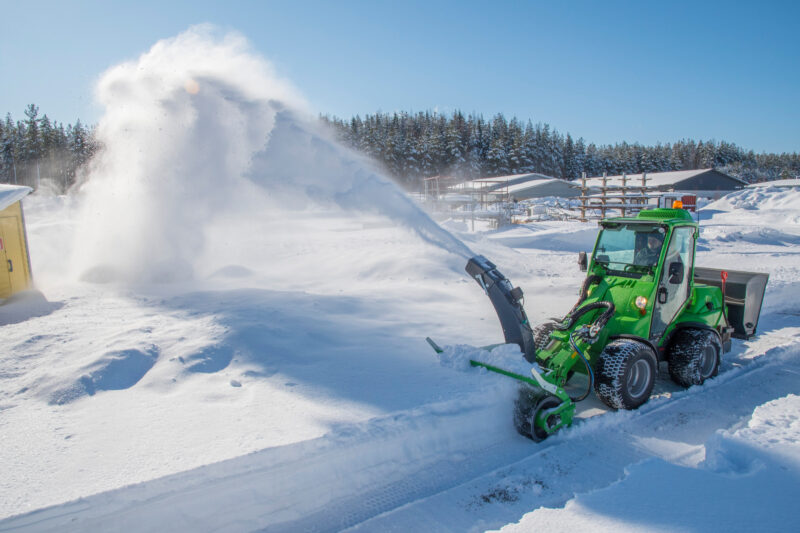

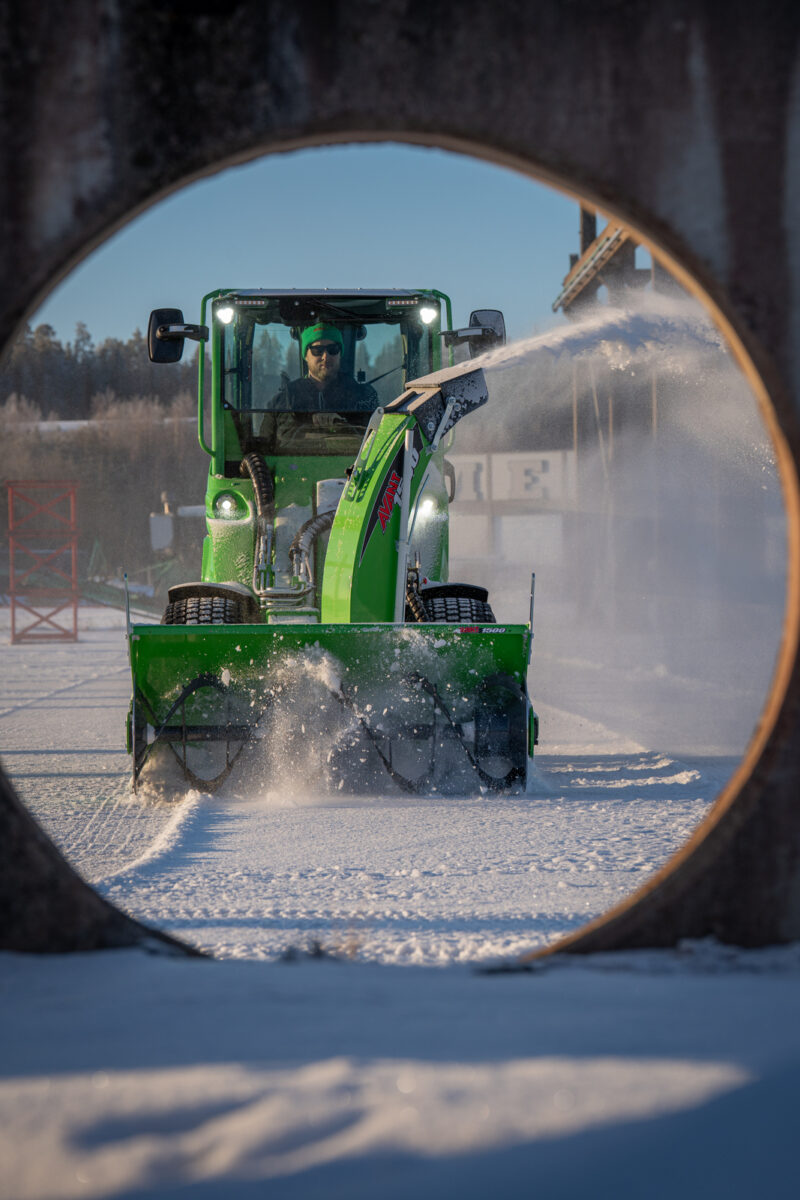

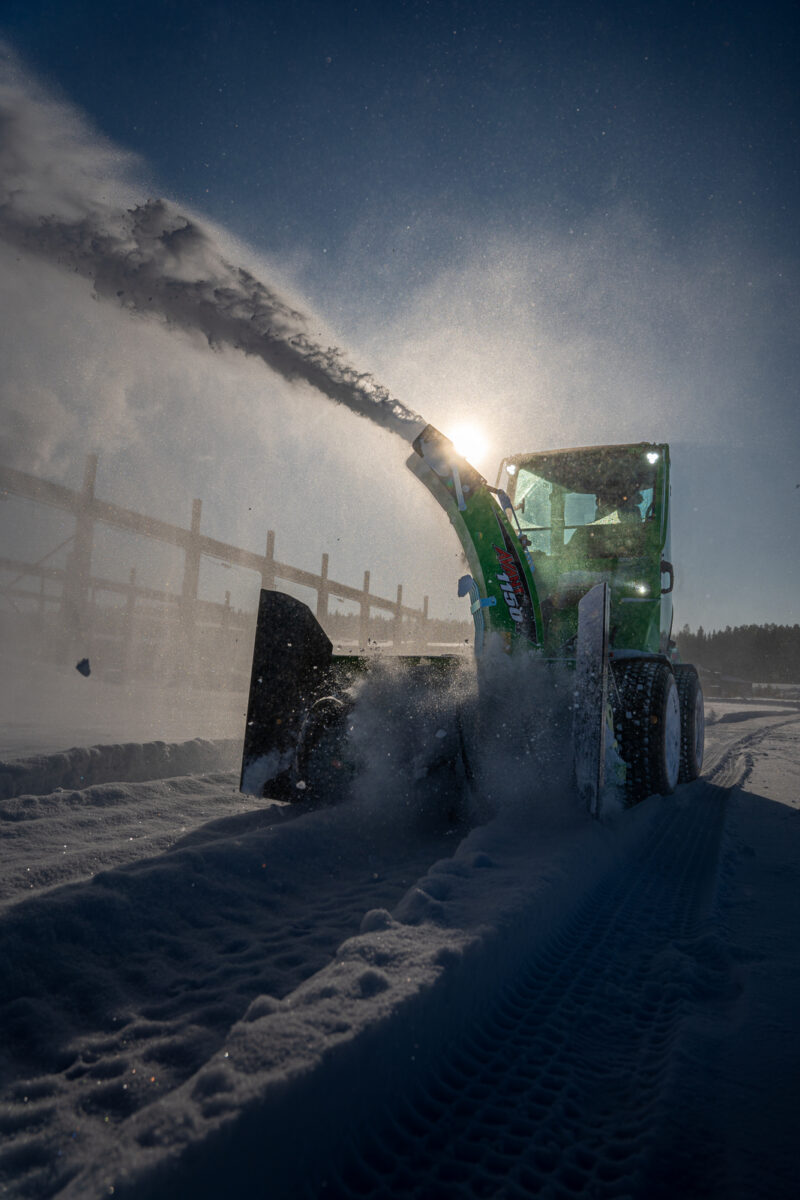

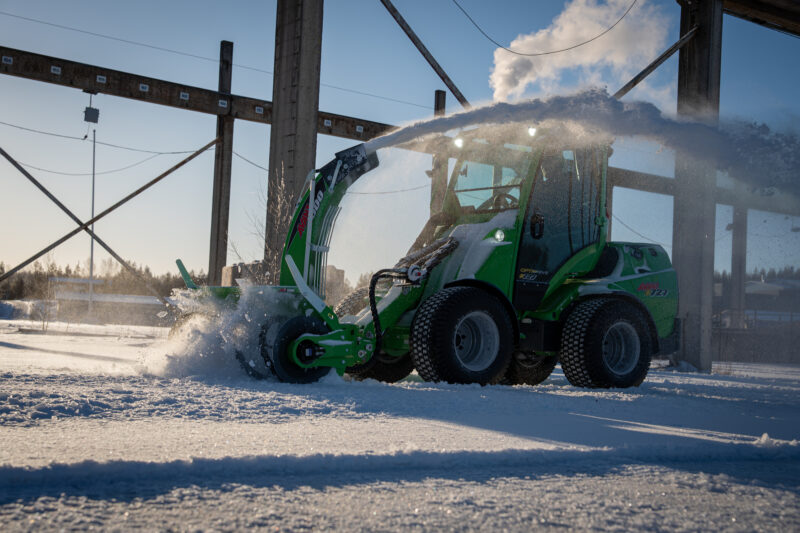

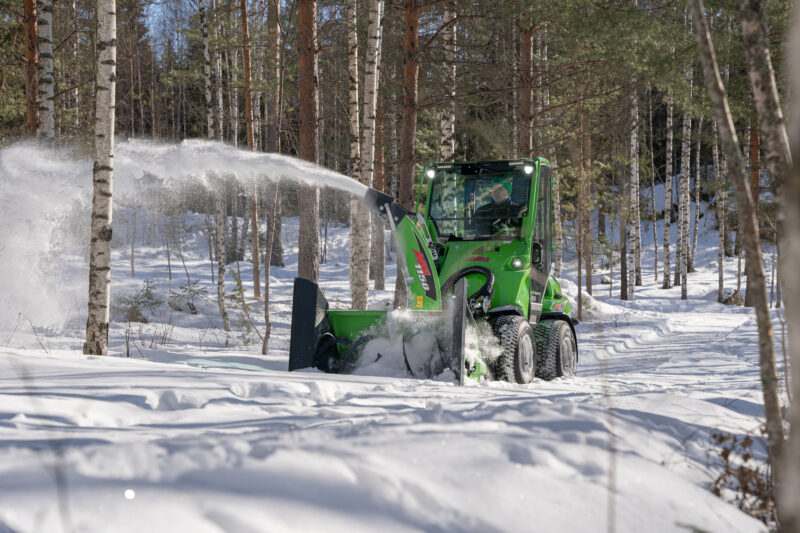

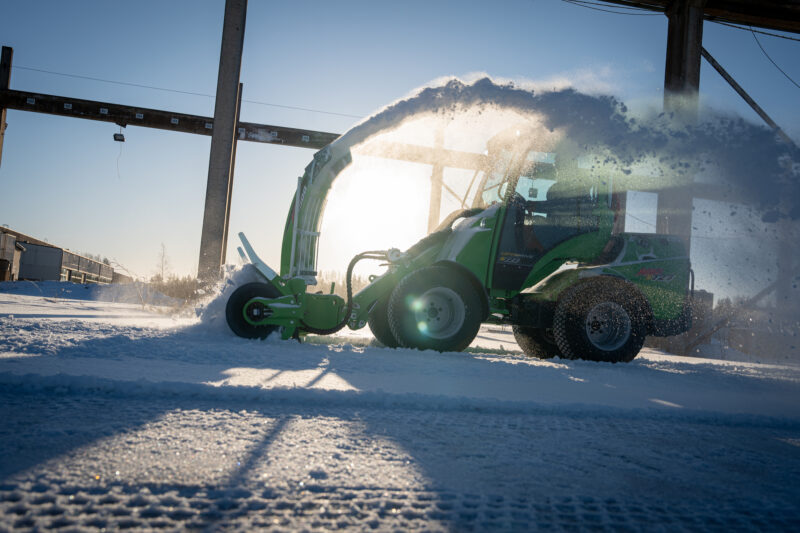

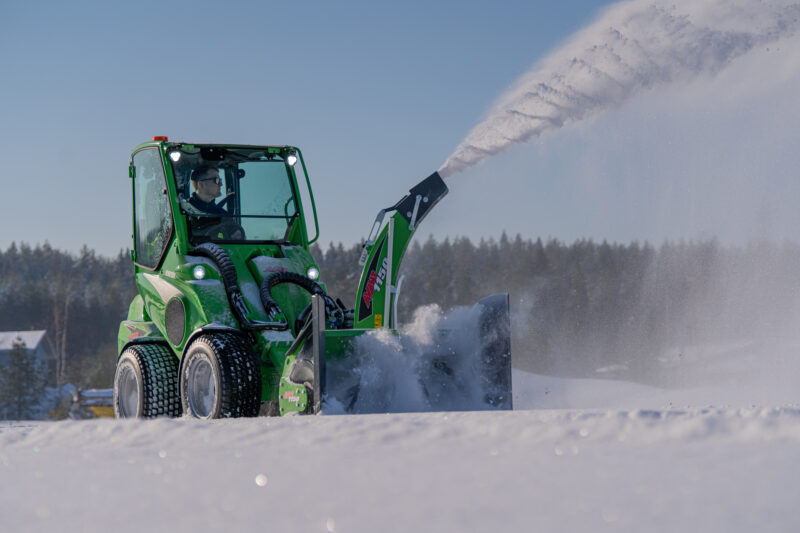

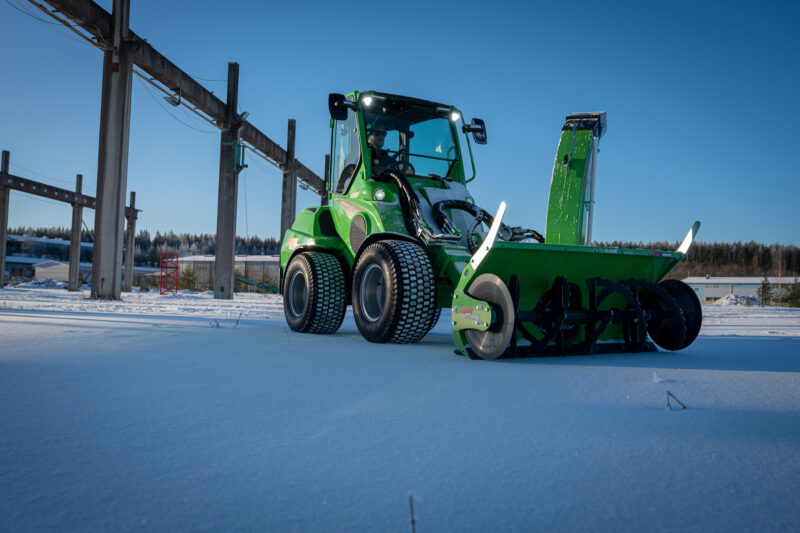

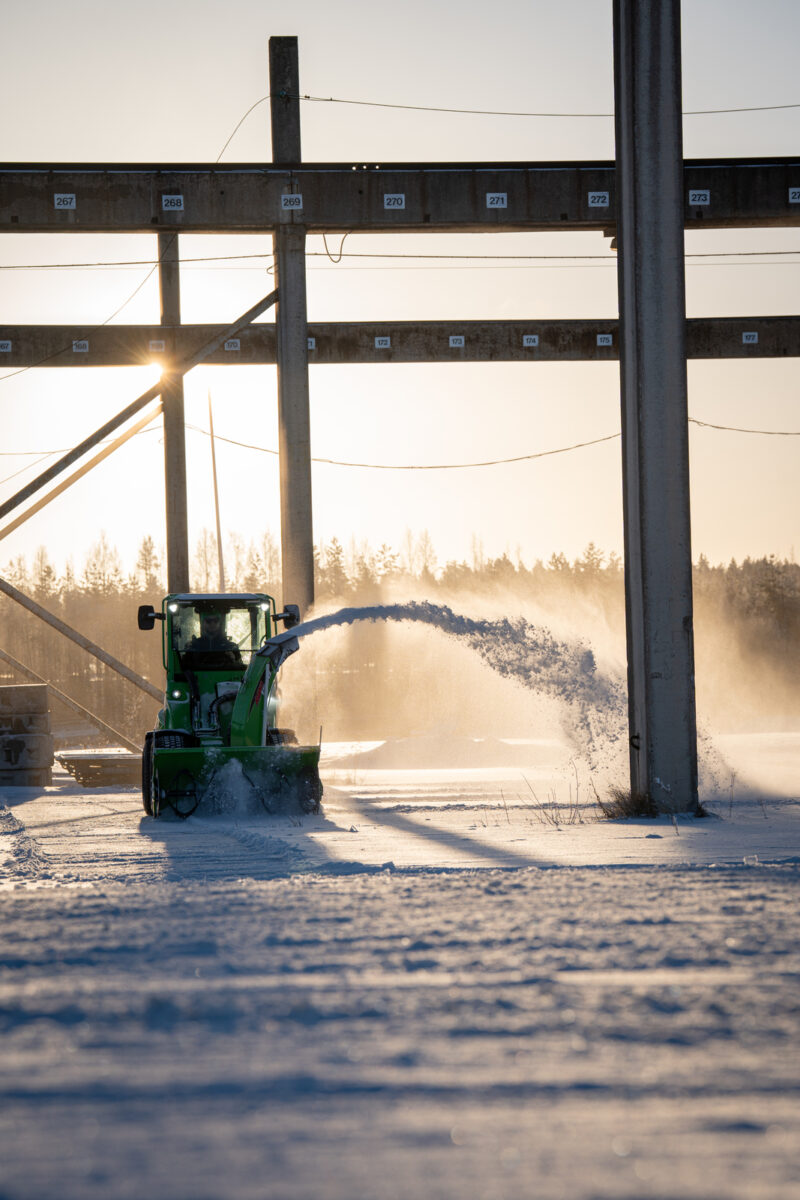

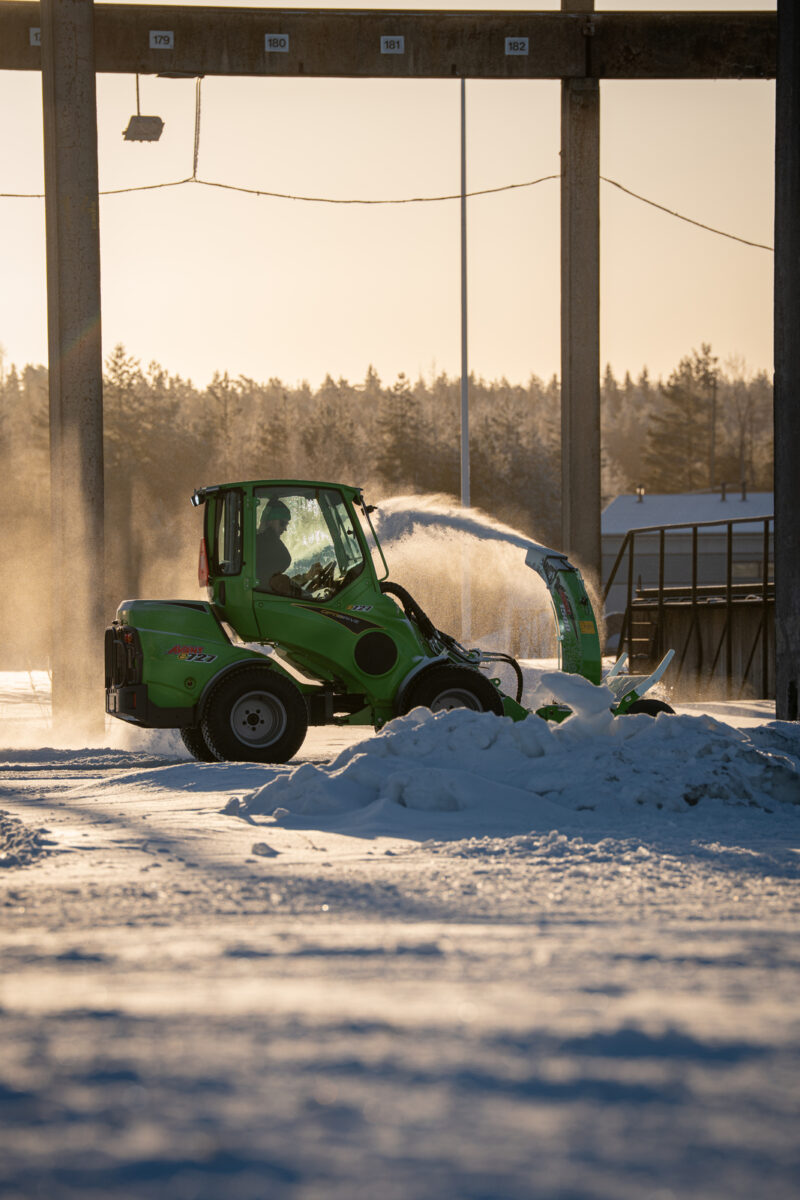

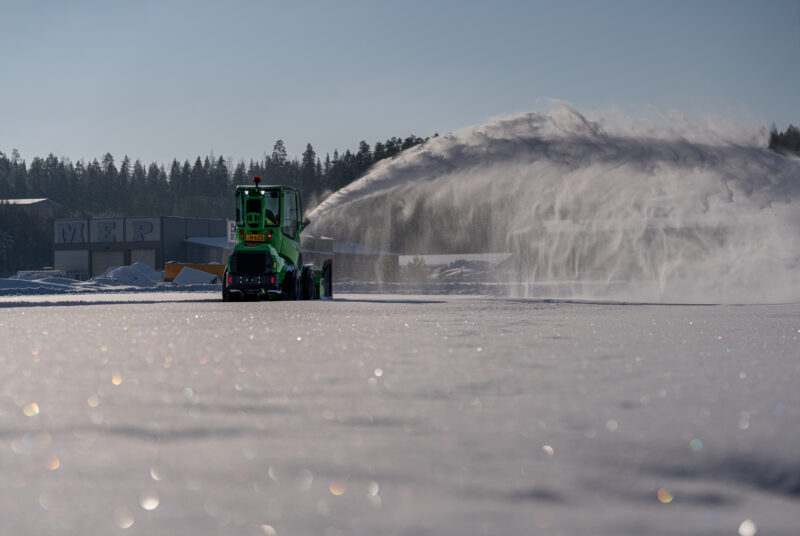

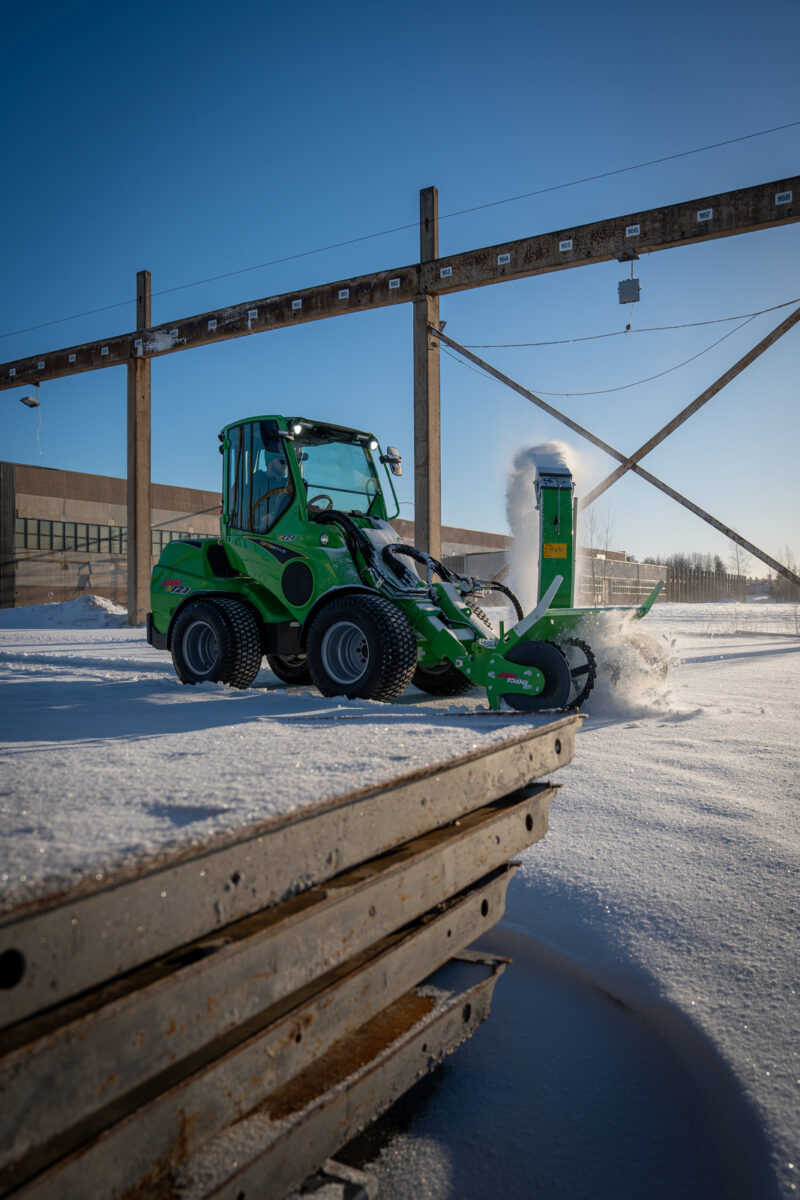

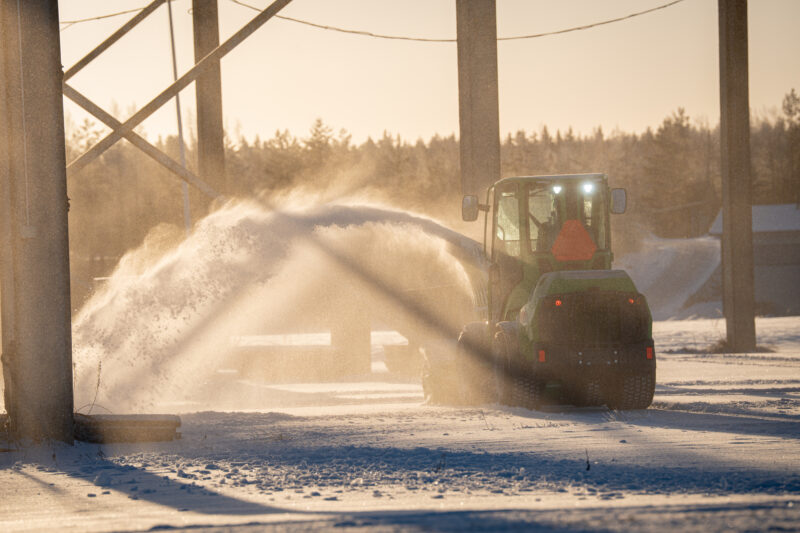

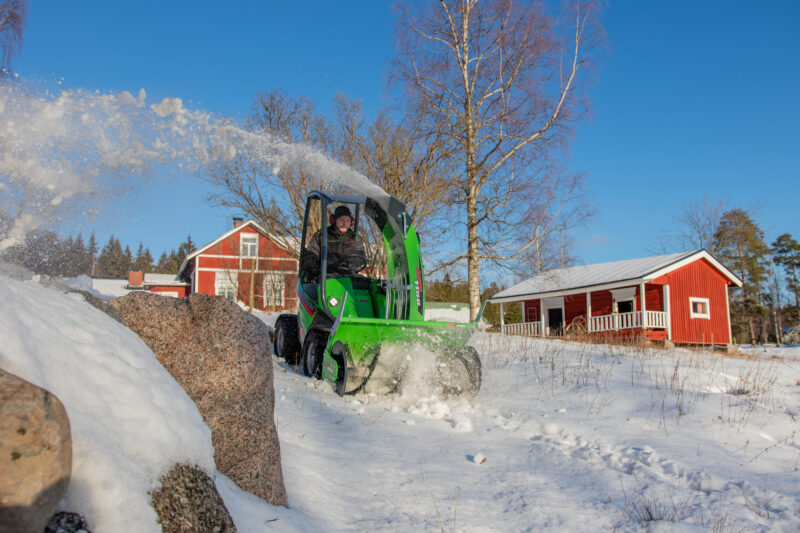

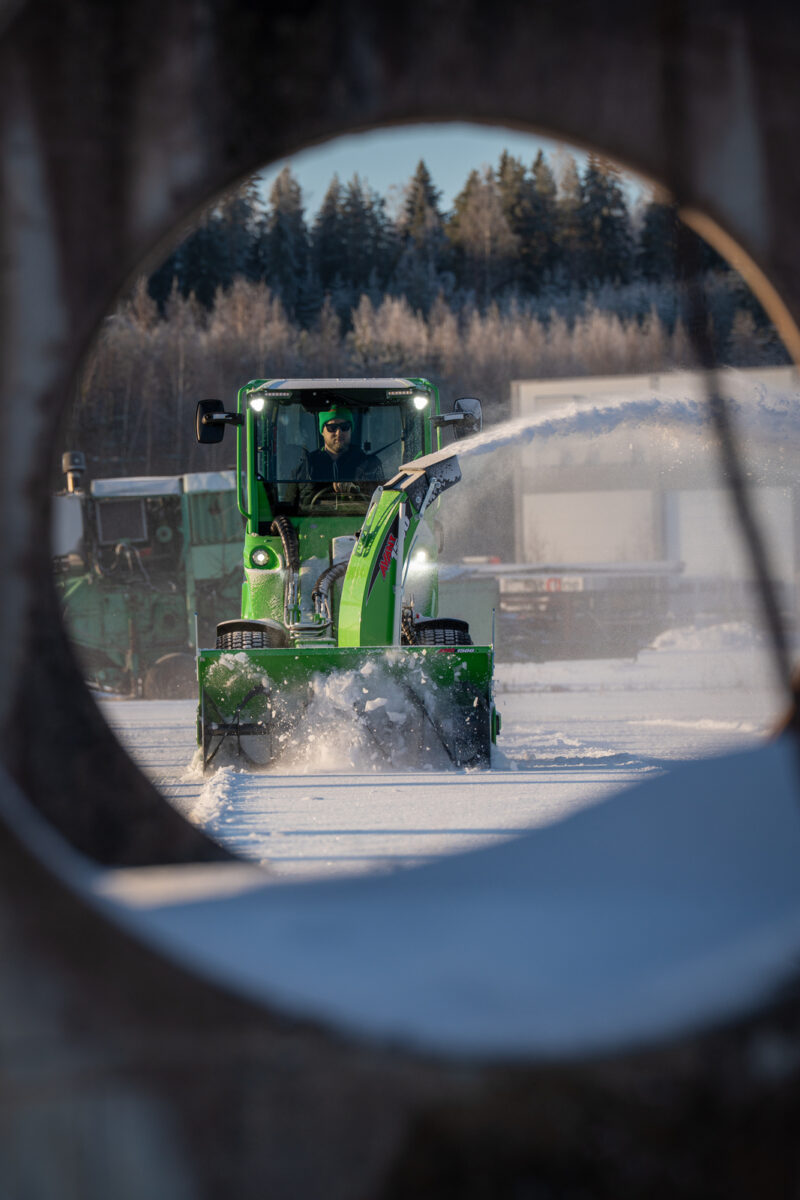

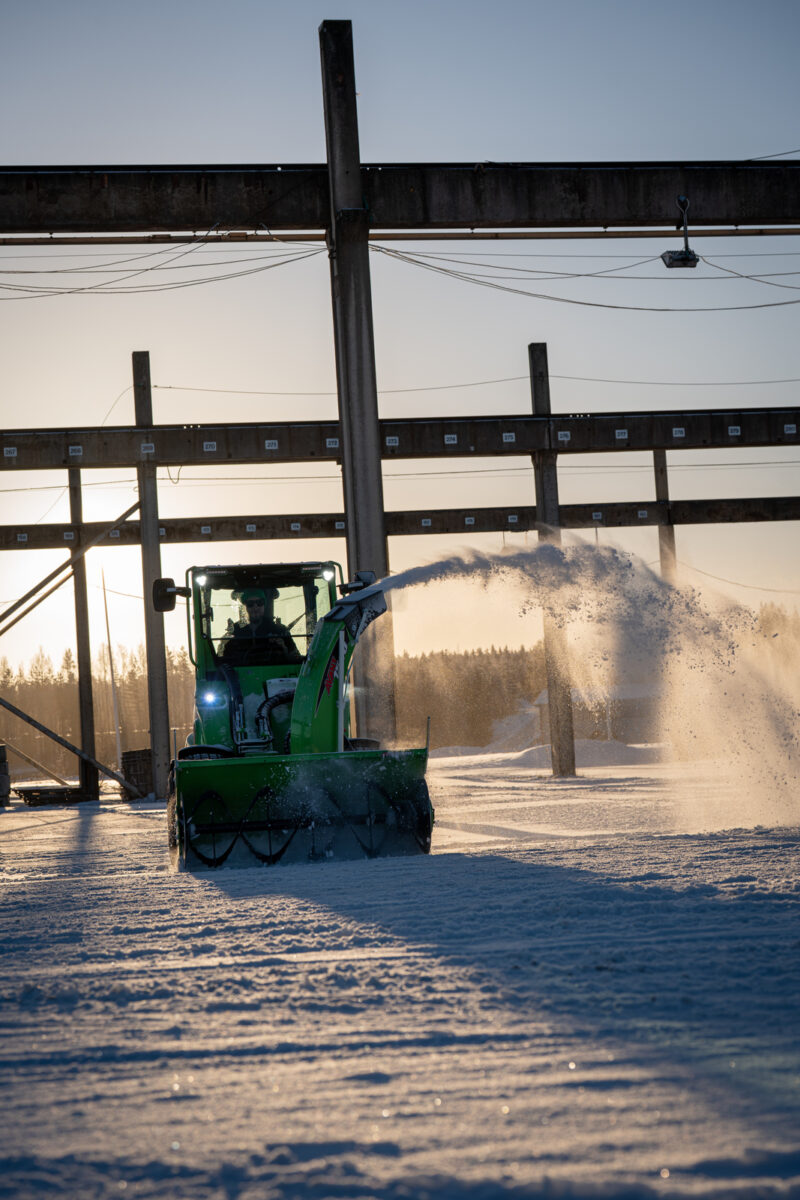

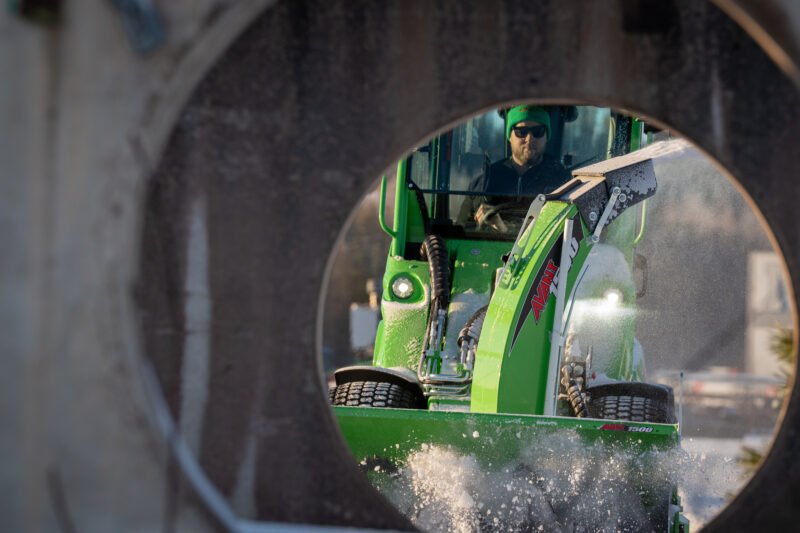

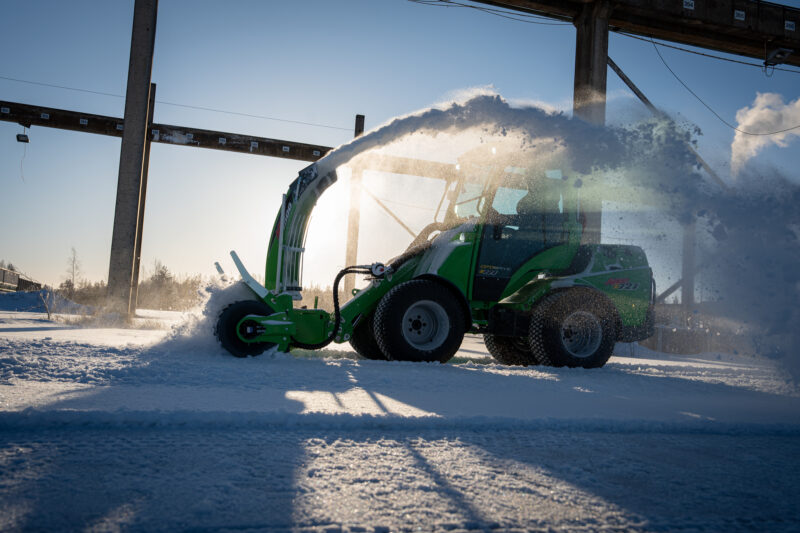

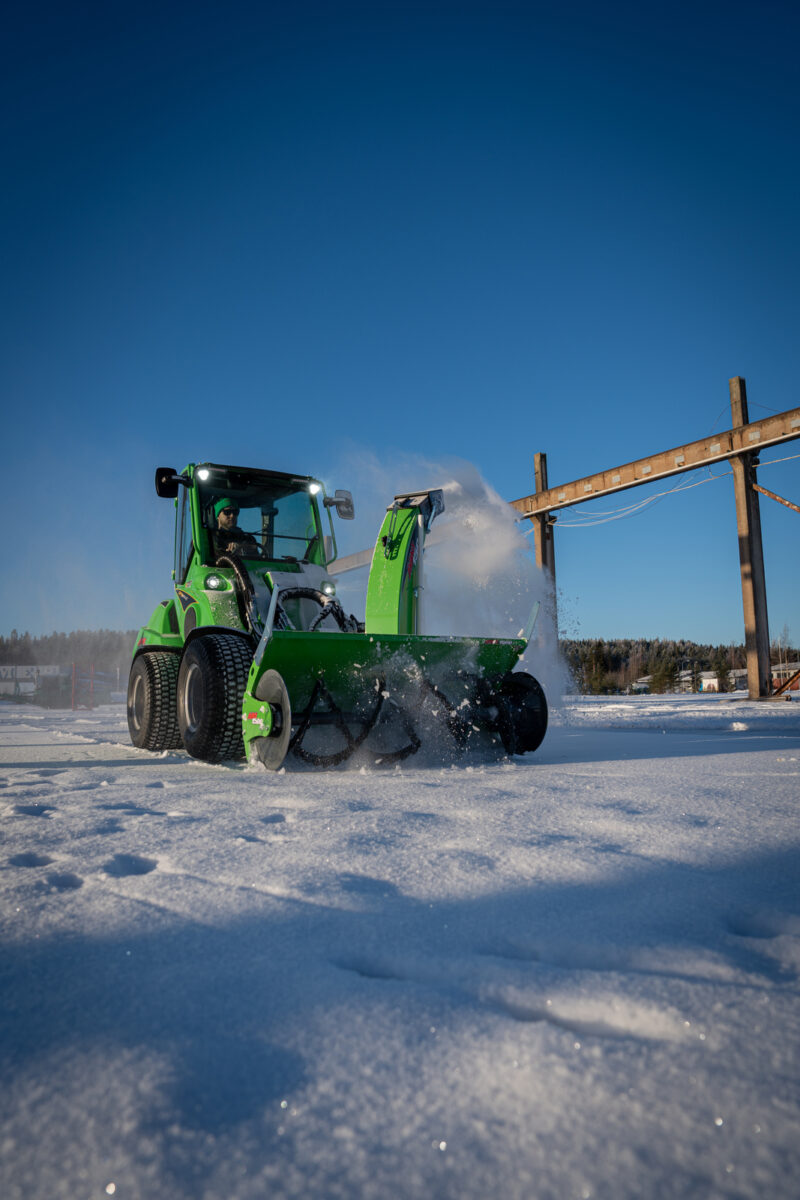

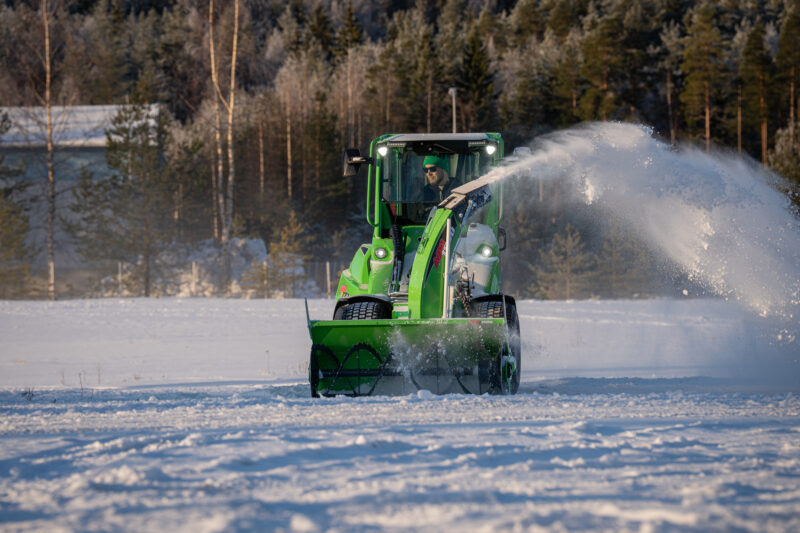

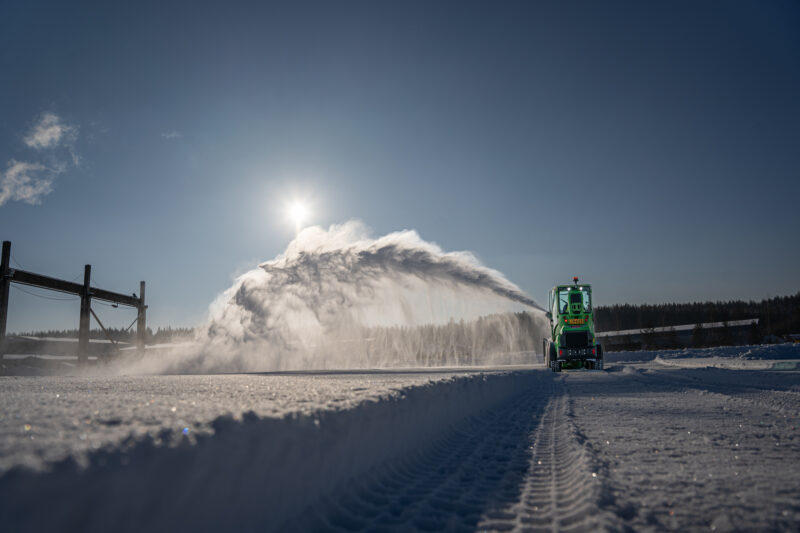

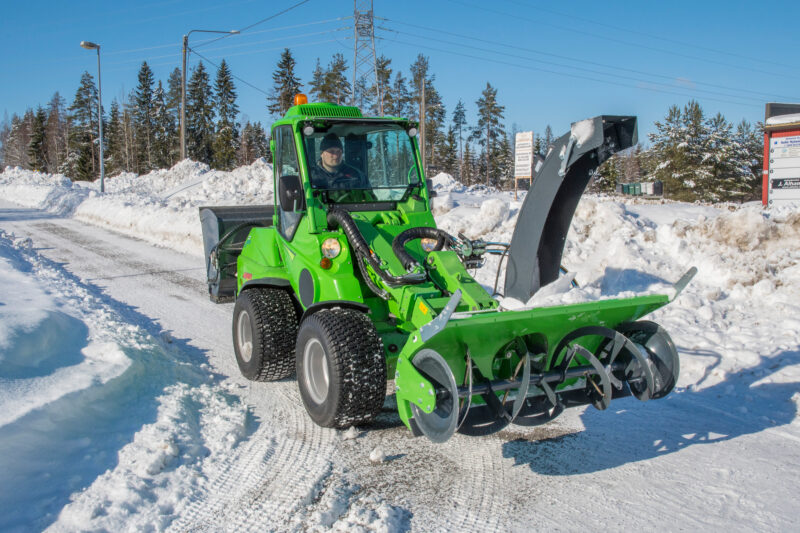

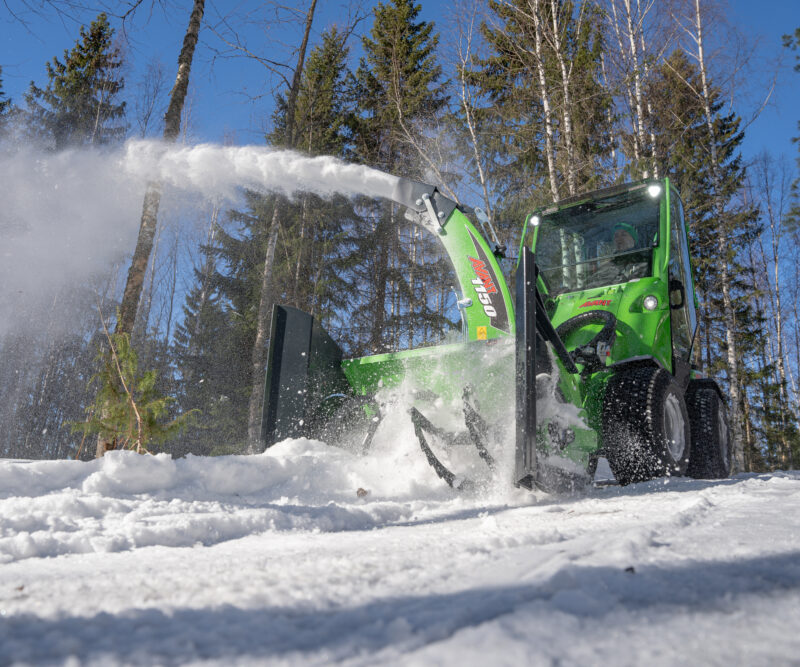

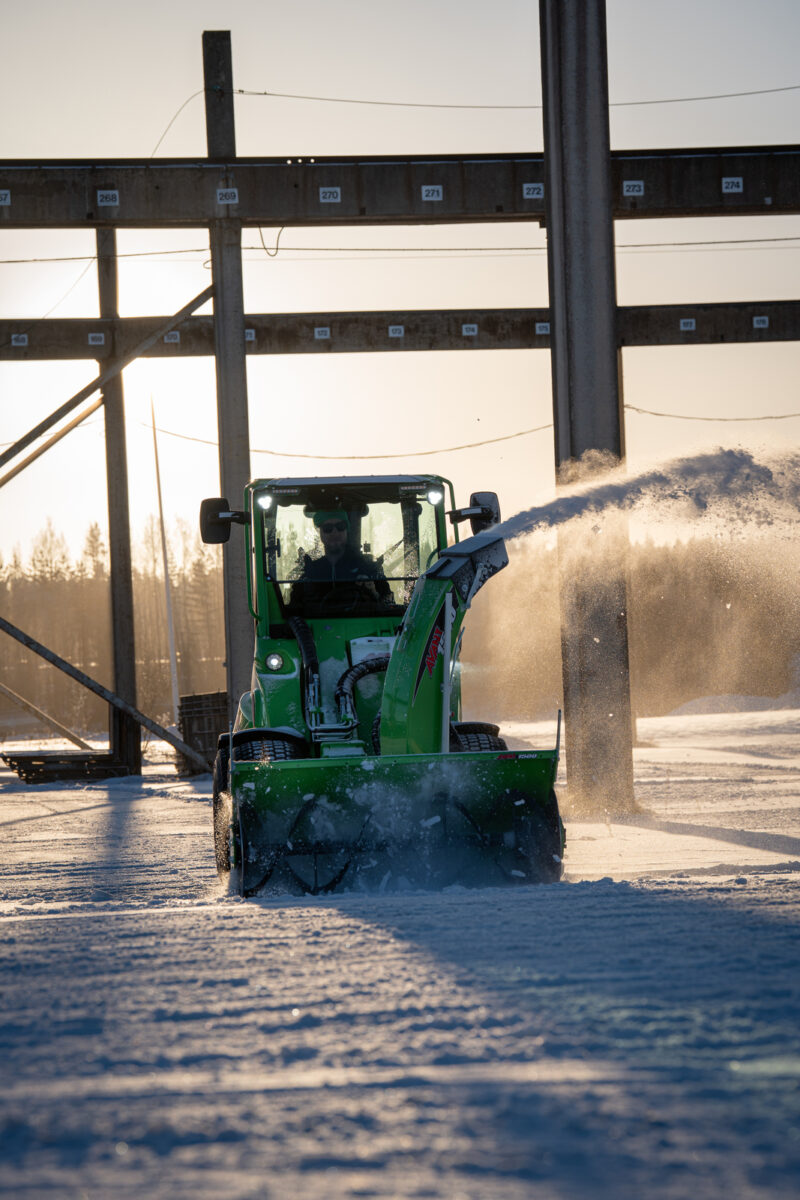

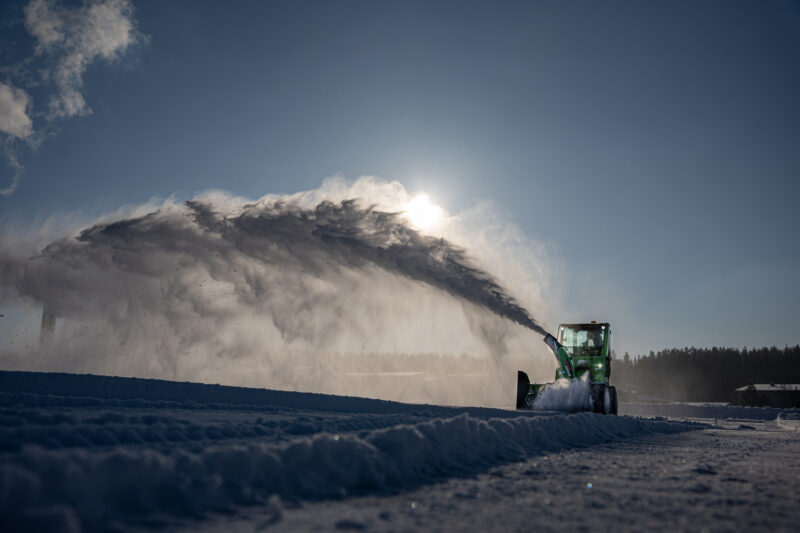

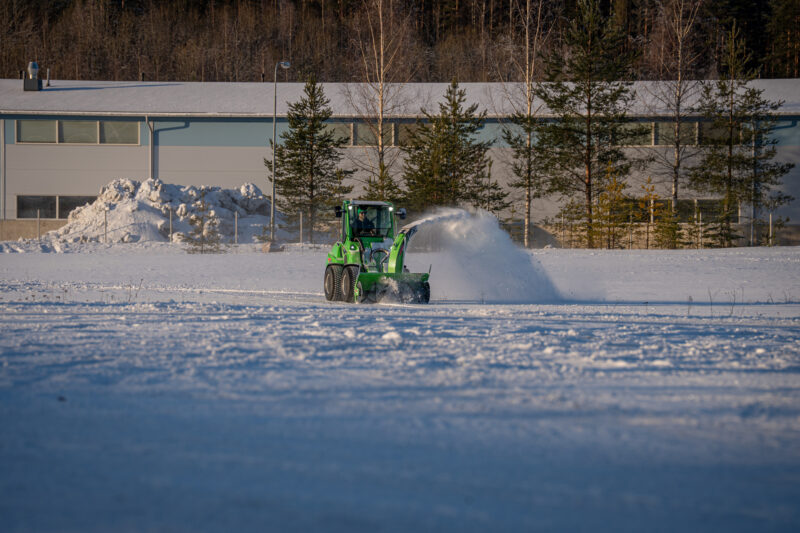

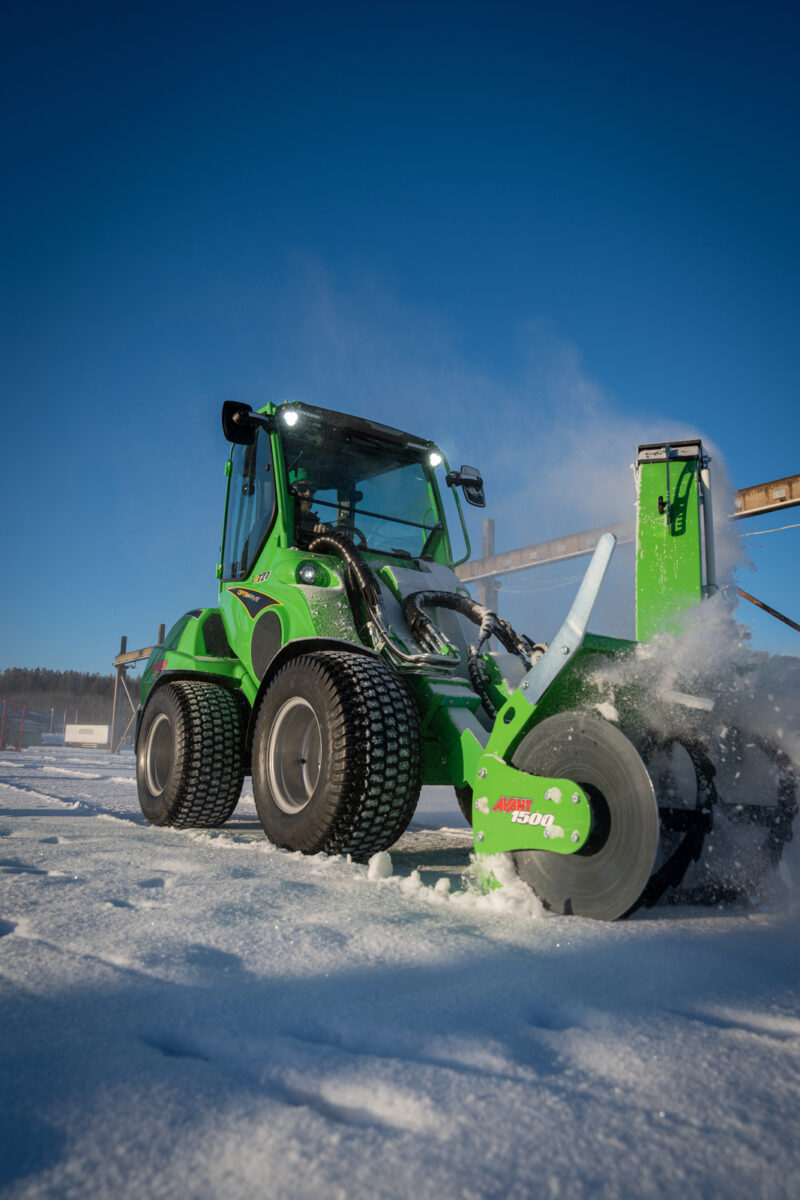

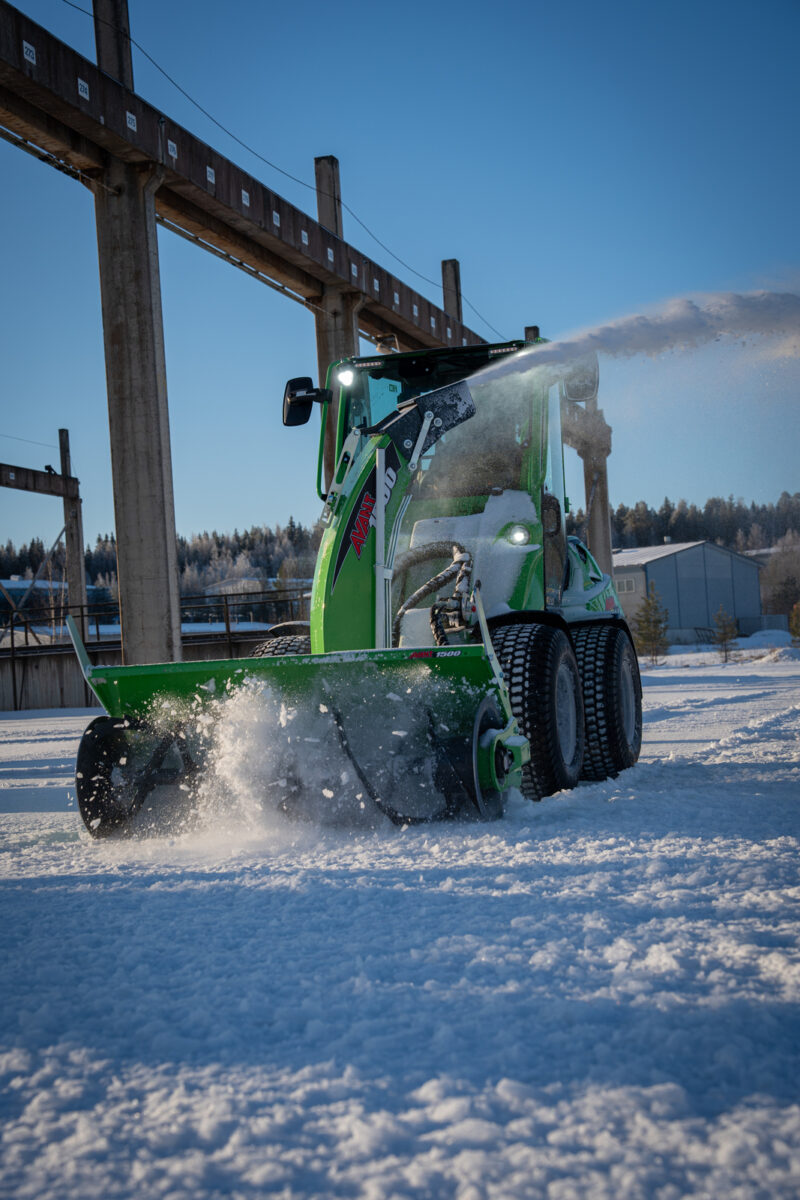

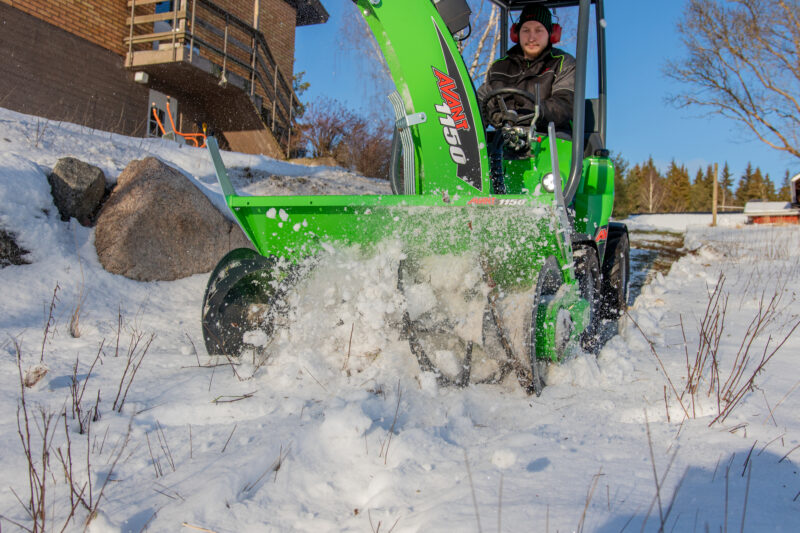

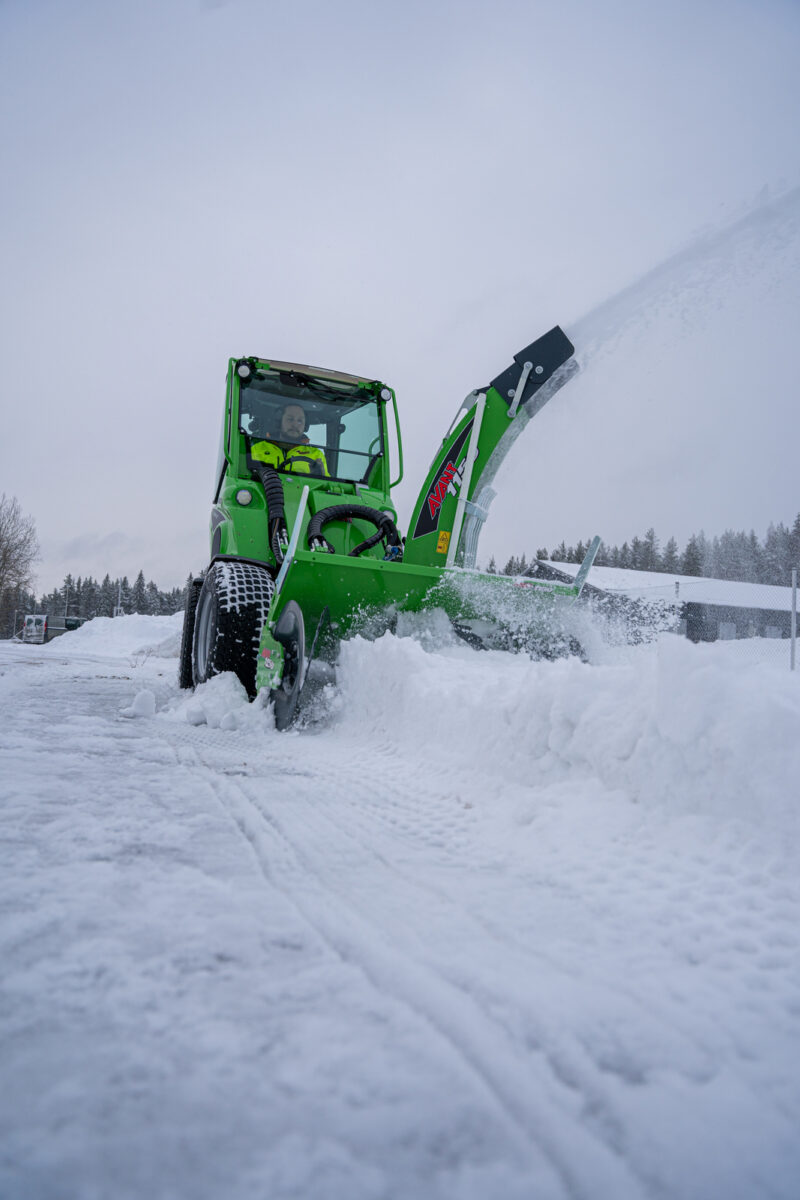

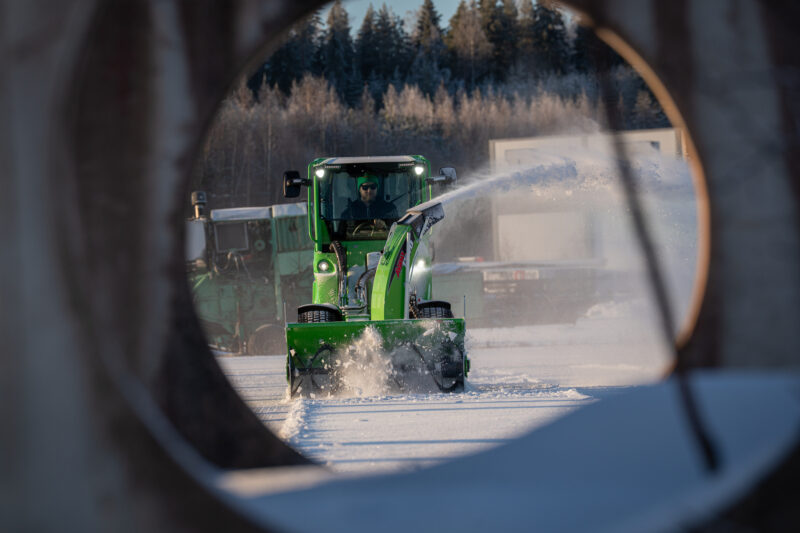

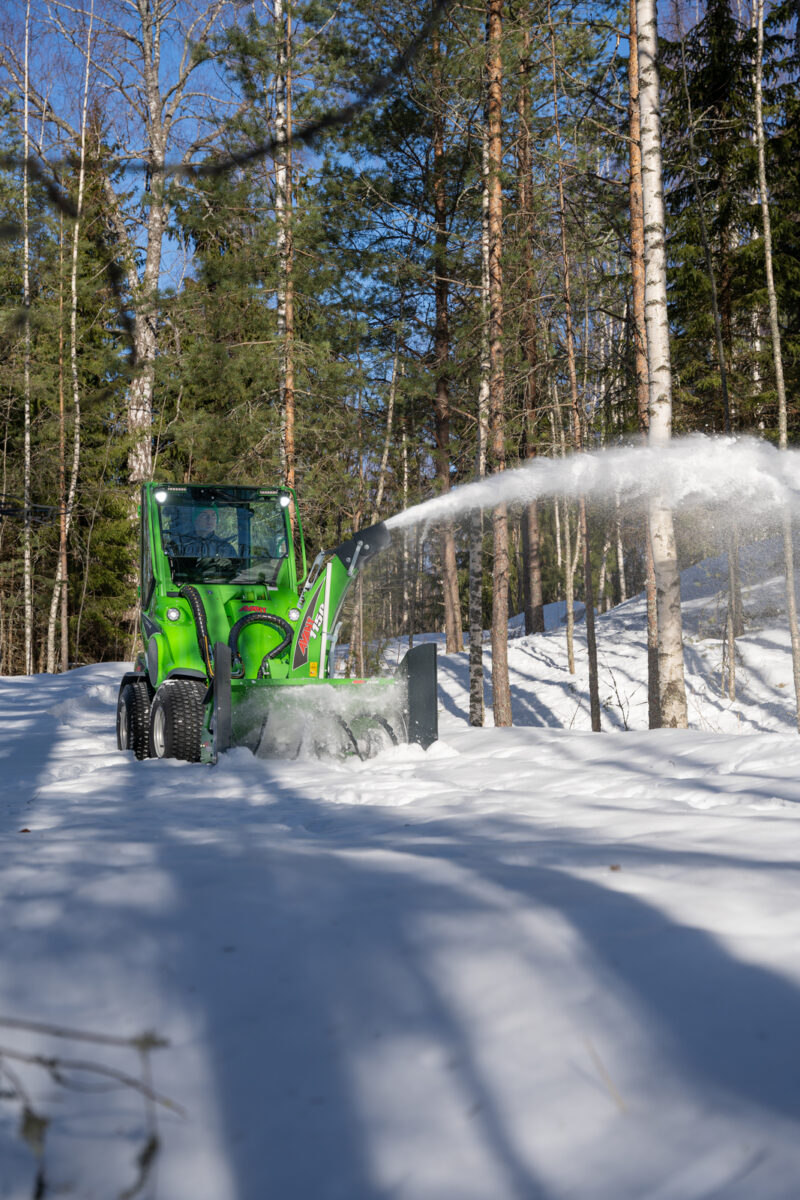

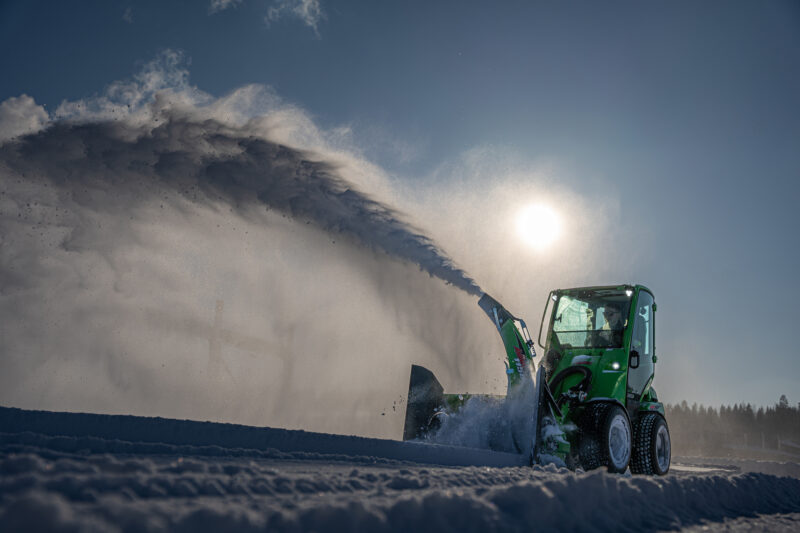

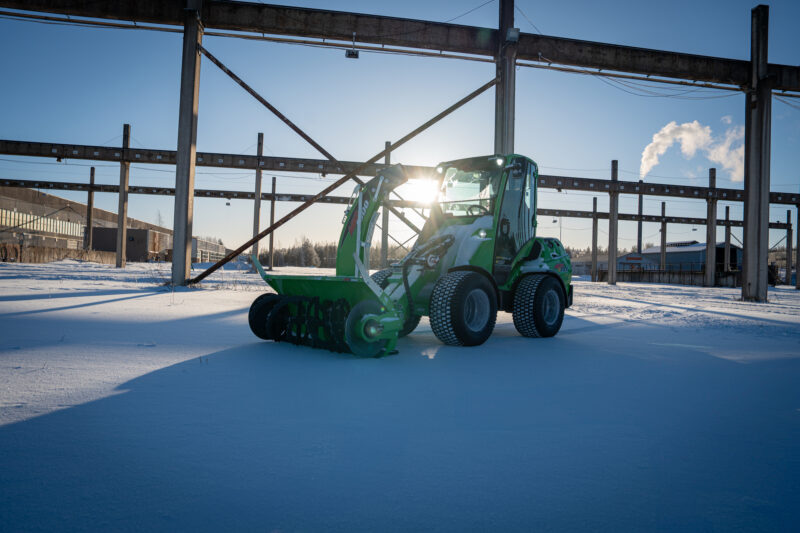

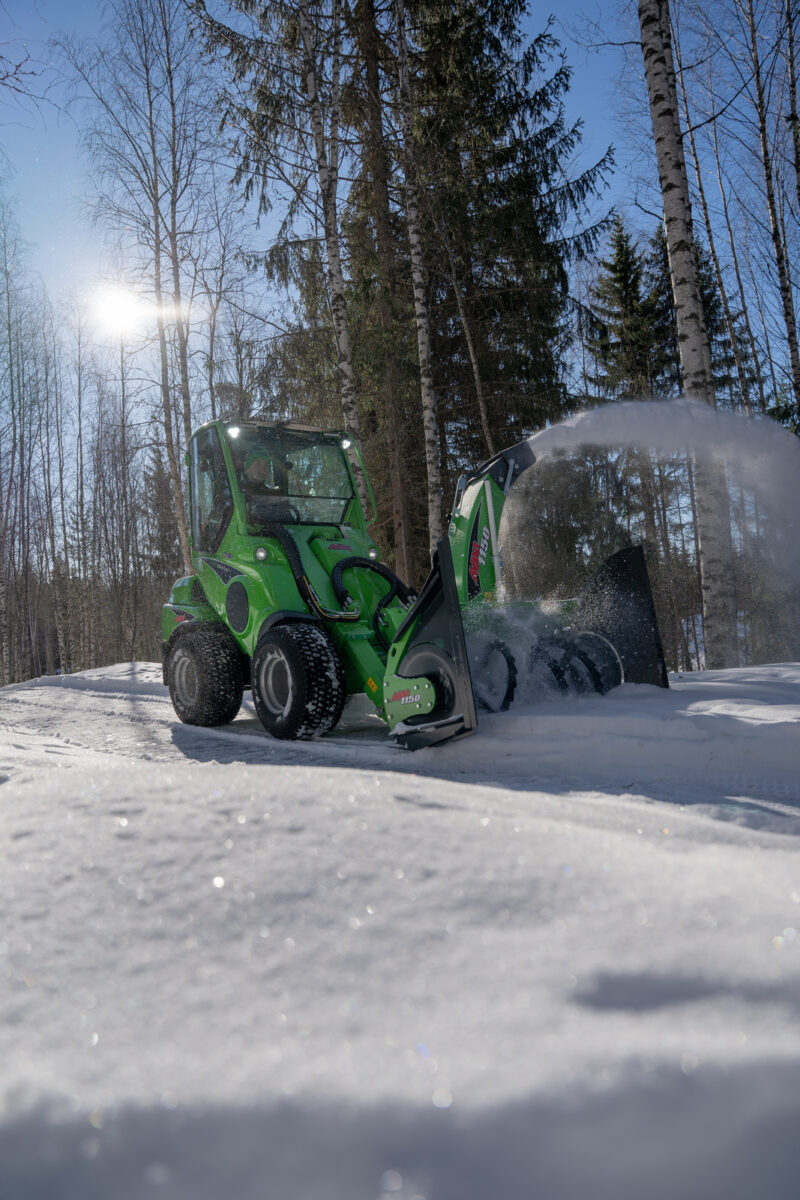

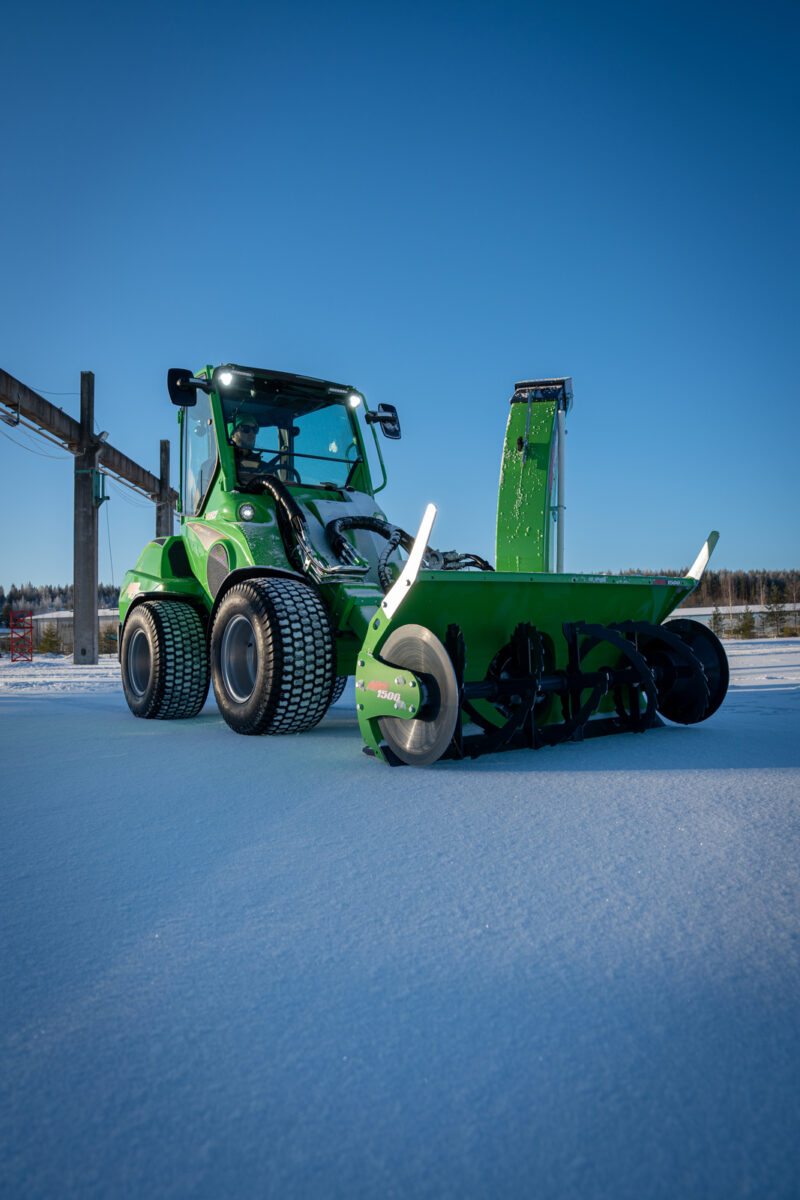

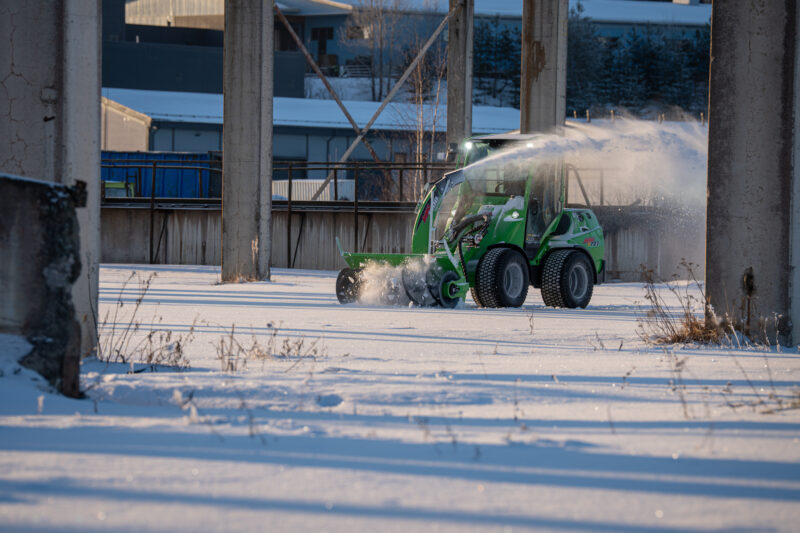

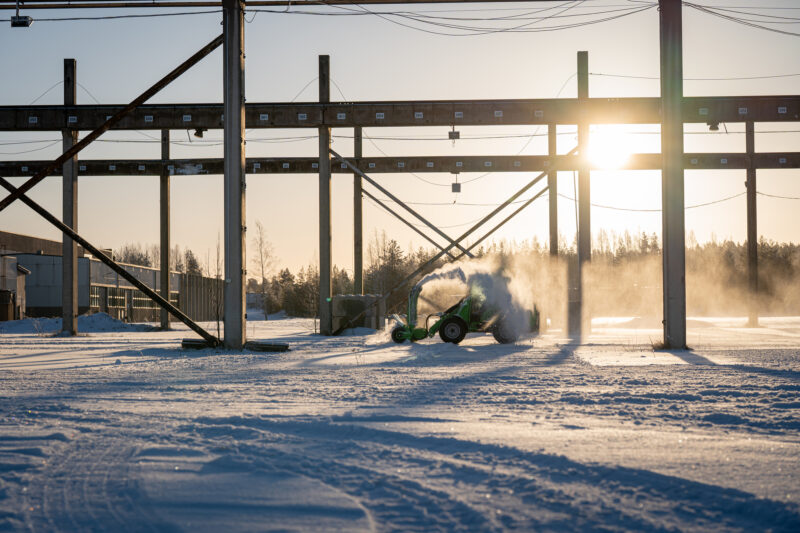

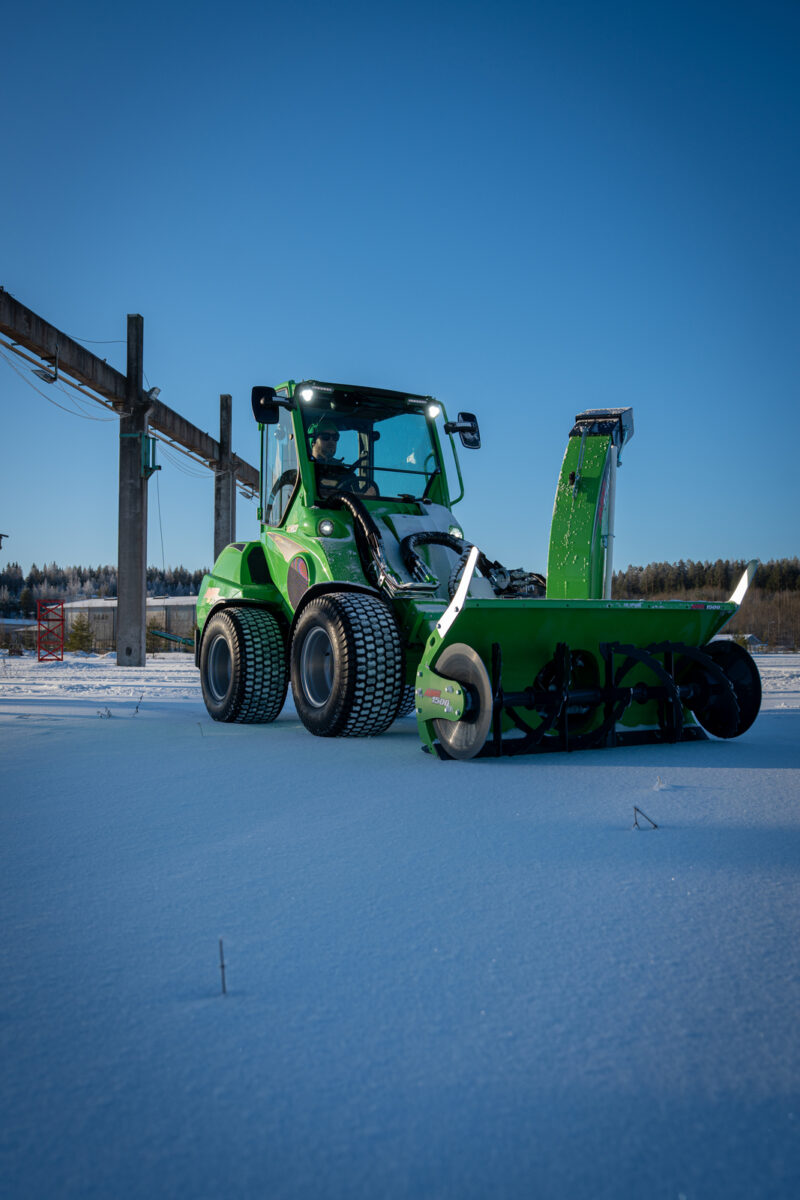

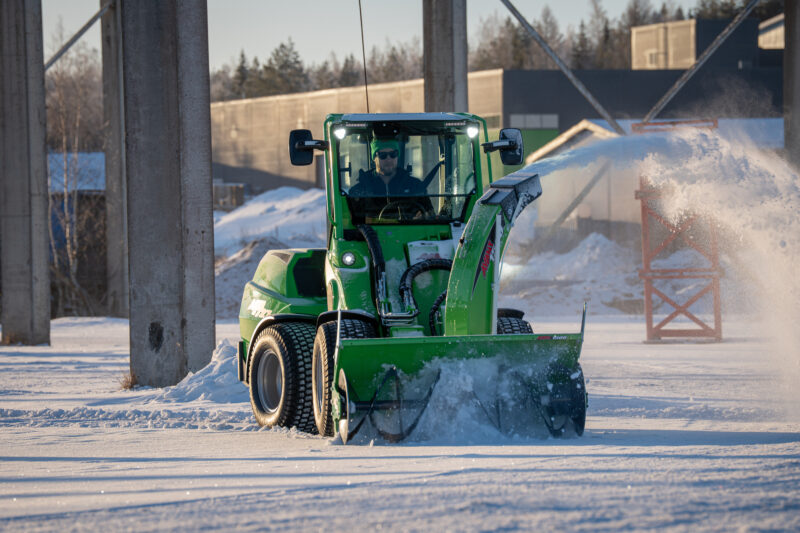

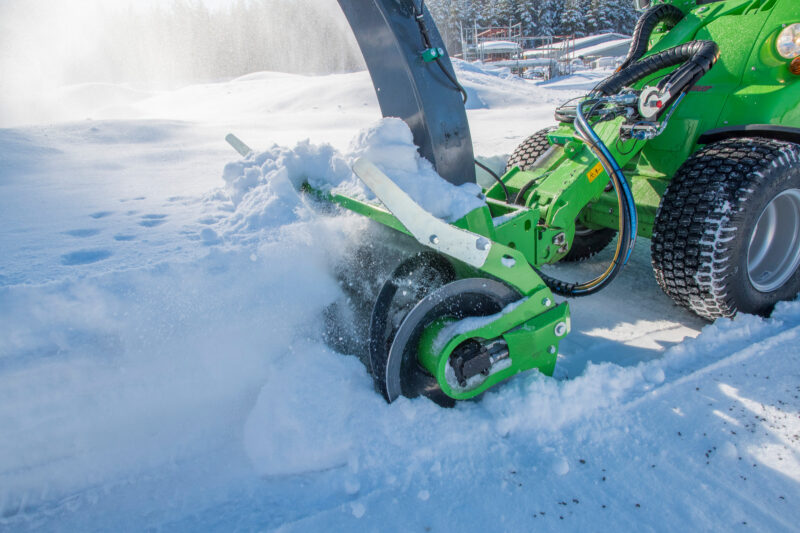

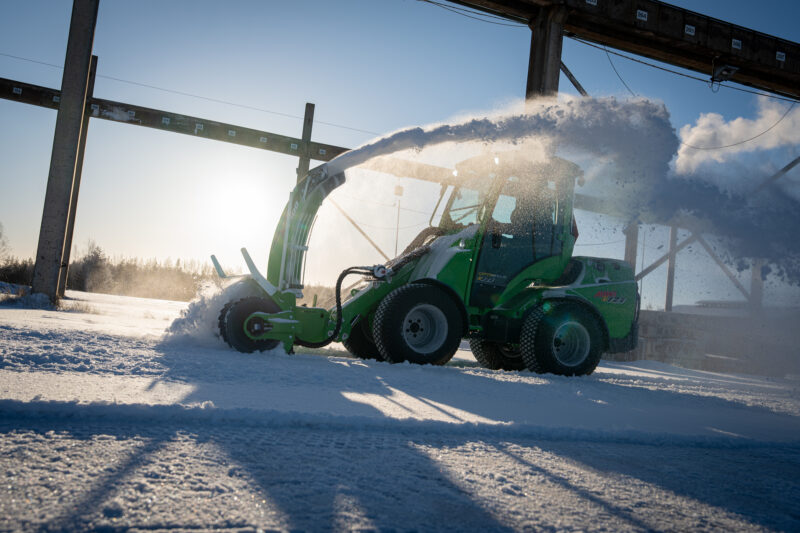

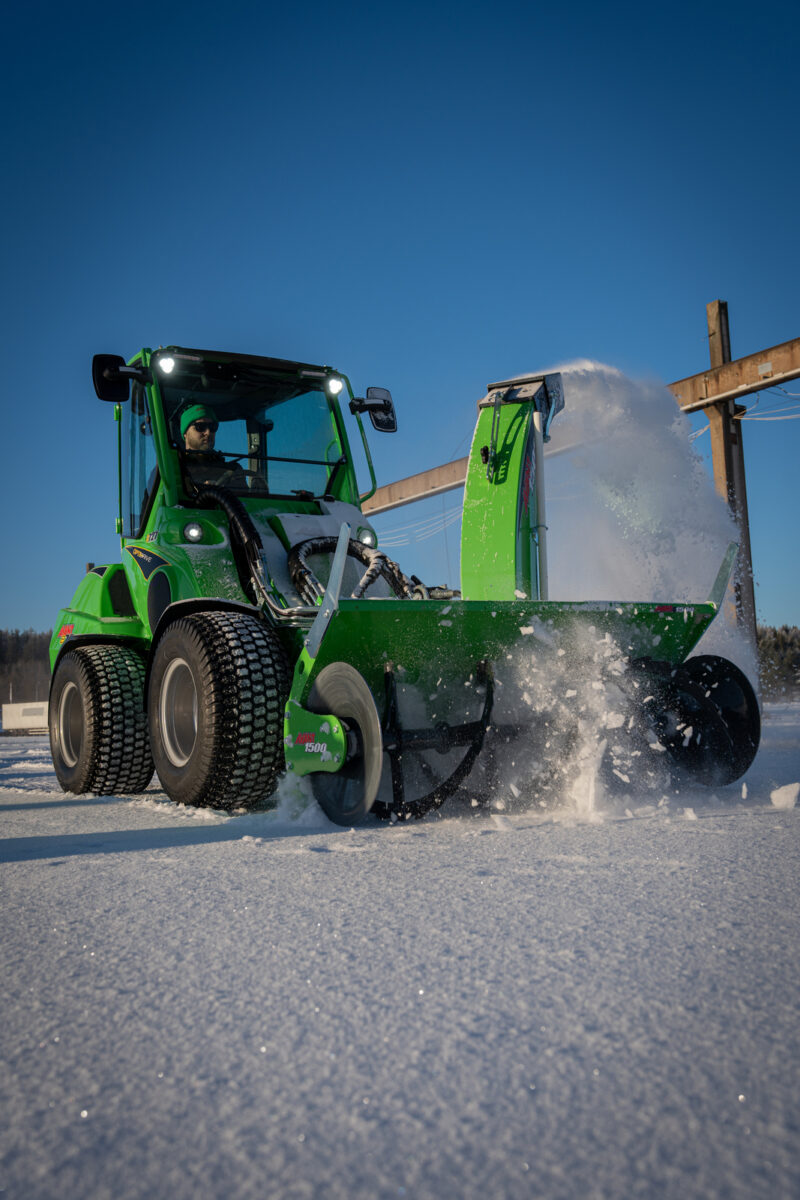

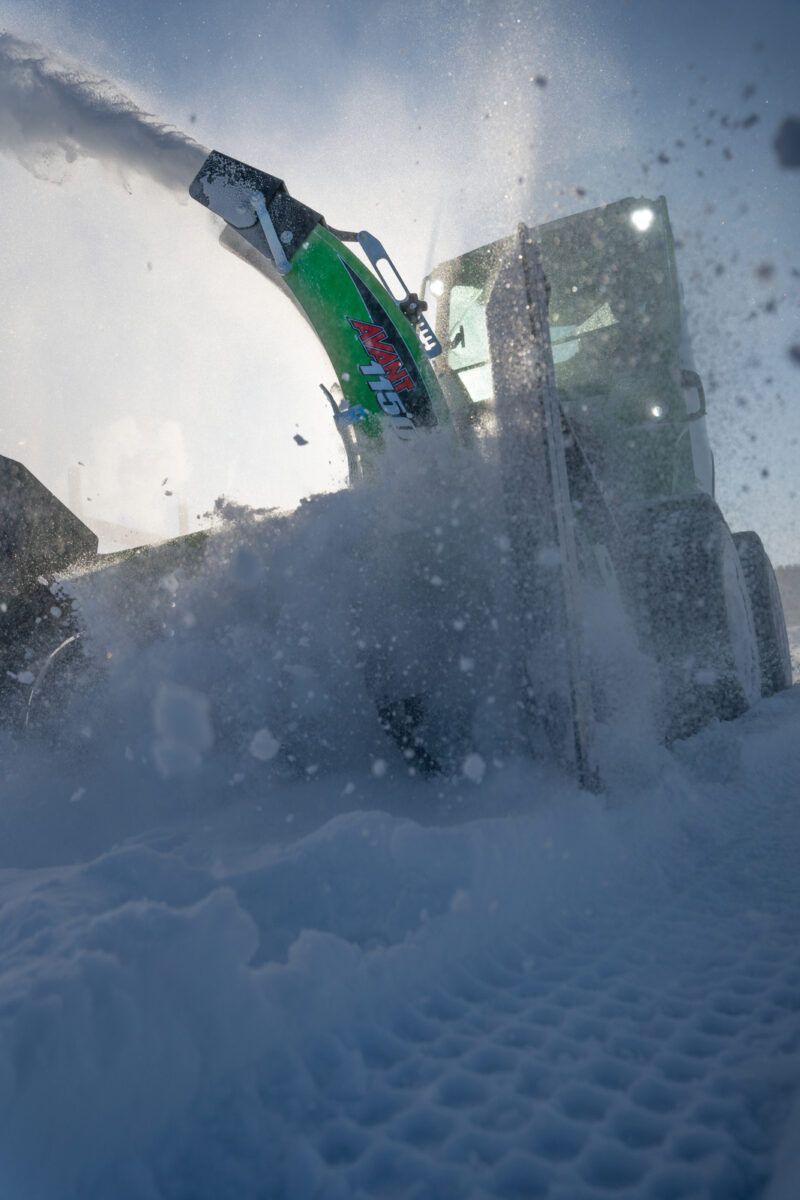

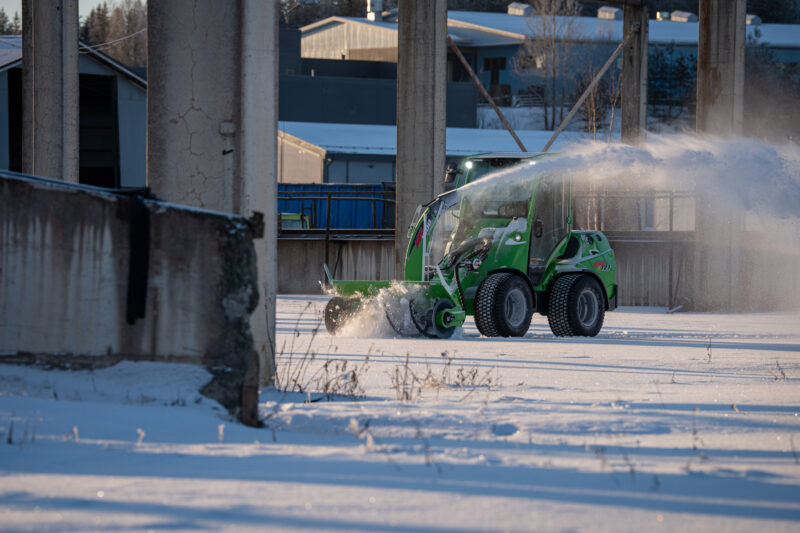

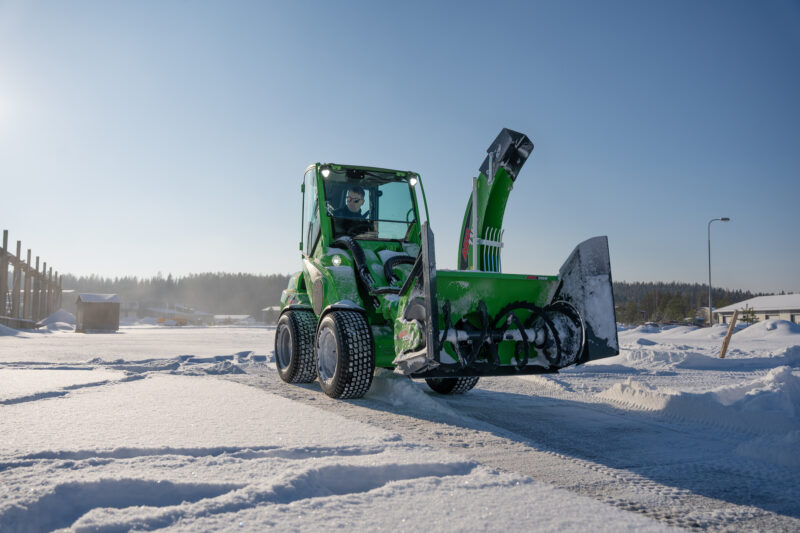

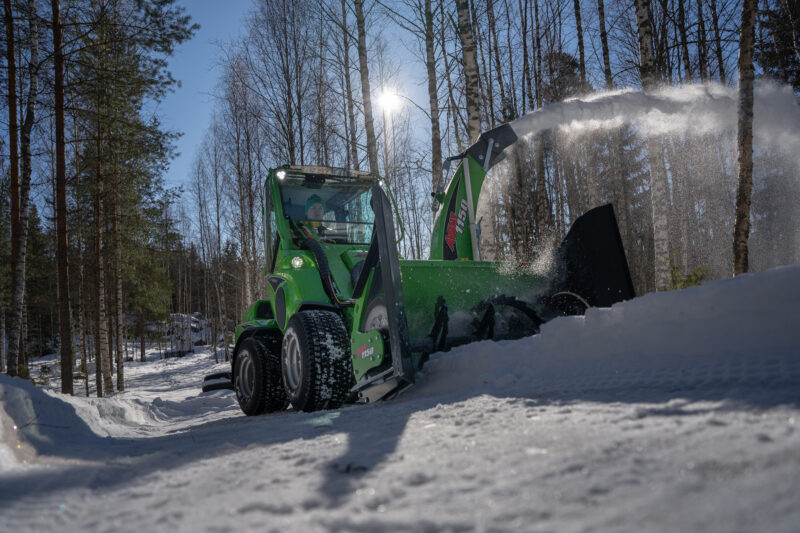

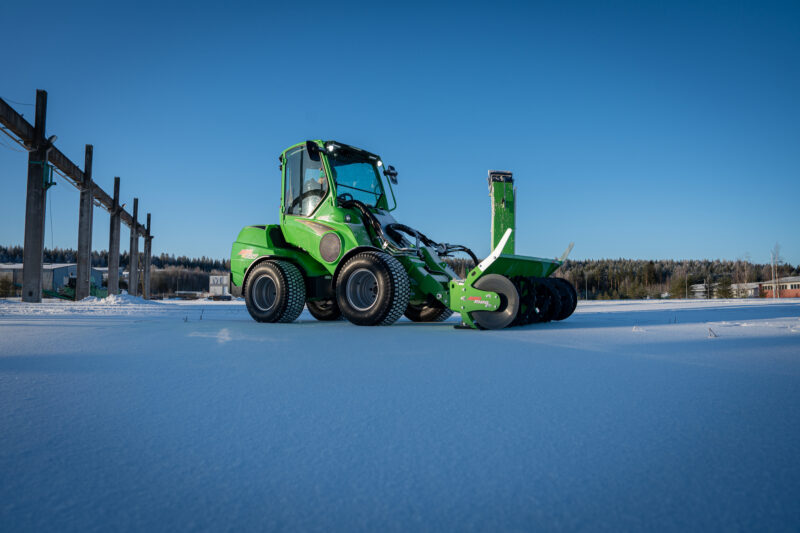

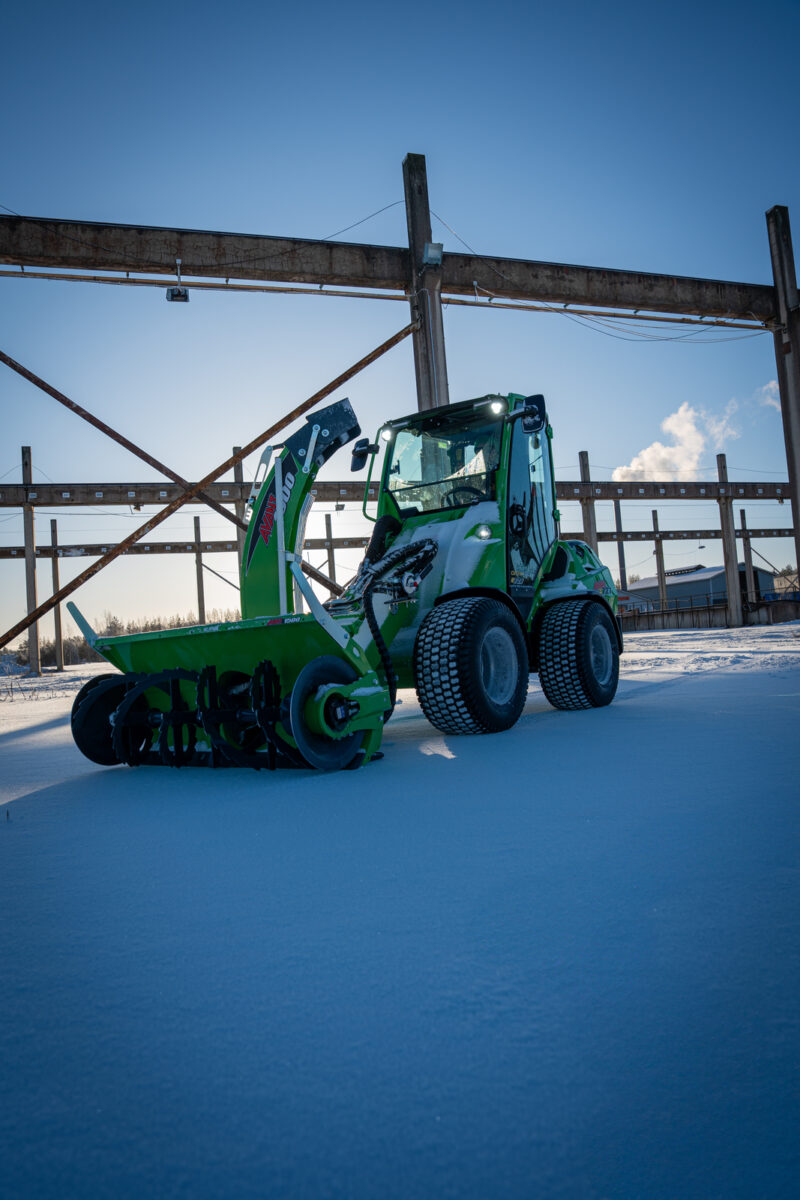

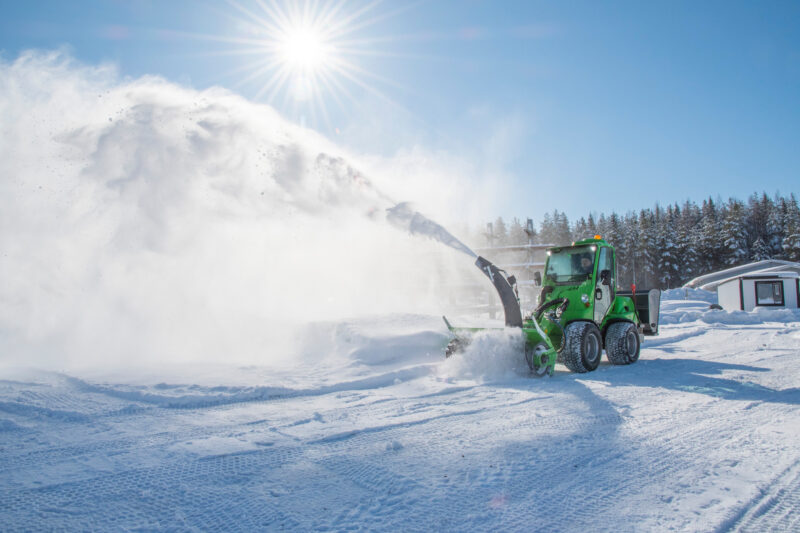

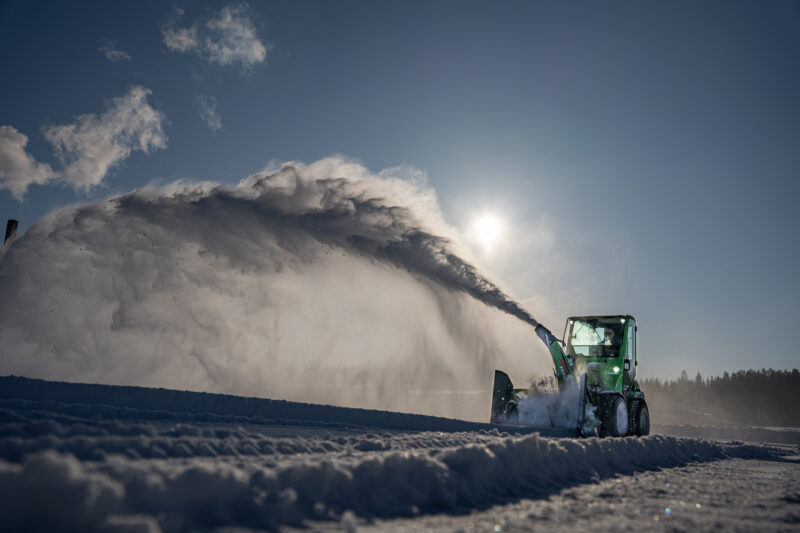

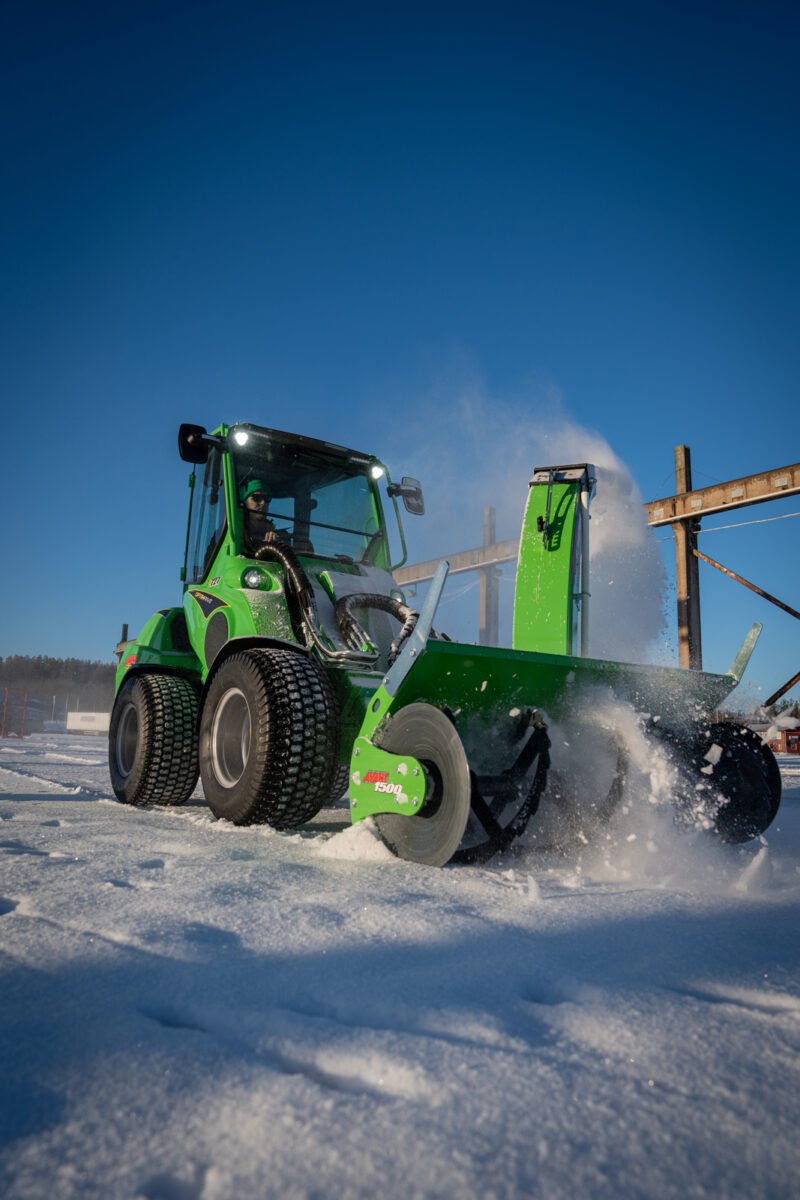

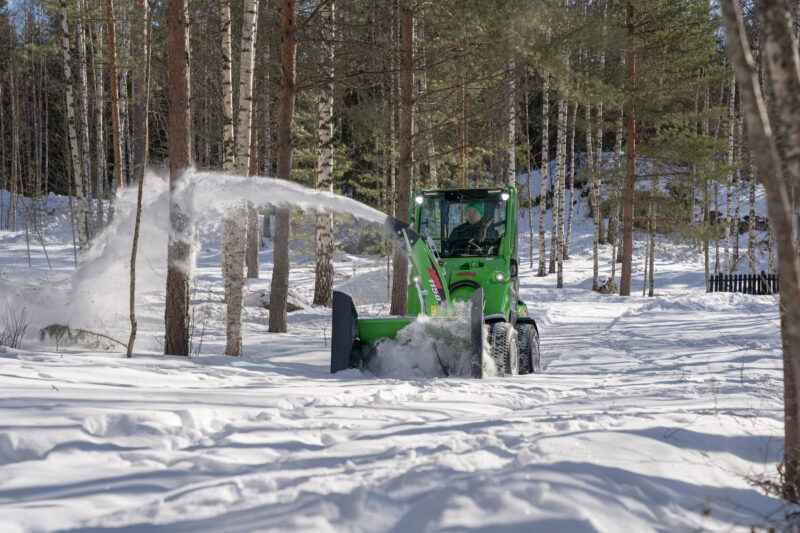

Avant snow blower is an efficient snow removal tool with advanced technology. The frame and discharge chute are designed so that there are as little as possible passive surfaces which would prevent snow movement. This open design means efficient snow blowing – the feeding auger eats the snow quickly and easily and moves it to the impeller which throws the snow out through the discharge chute. Thanks to this design the blower works well both with dry and wet snow and clears compacted snow banks also. The feeding auger is made of wear-resistant Hardox steel.

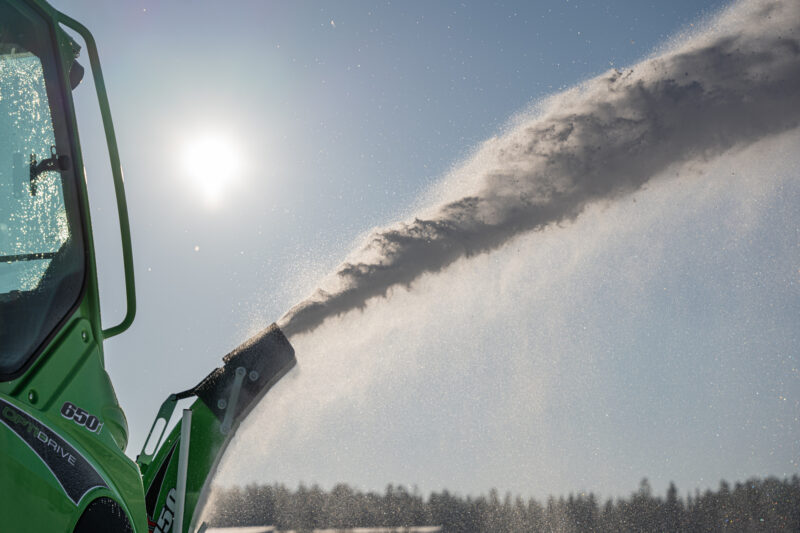

The blower is equipped with two hydraulic motors: one for the auger and one for the discharge impeller. The new type hydraulic motor on the impeller improves the efficiency of the blower considerably. Snow discharge can be directed accurately: the discharge chute can be rotated 270° electrically, operated from the driver’s seat. Throwing height can be adjusted manually, electric throwing height adjustment is available as an option and requires the optional attachment control switch pack on the loader.

Two working widths available: 42.3 in and 59.1 in.

  • Efficient high volume snow blower
  • Works well both with dry and wet snow
  • Equipped with two hydraulic motors: one for the auger and one for the discharge impeller
  • Electric 270° discharge chute rotation as standard
  • Exact snow discharge
  • Manual throwing height adjustment as standard, electric adjustment available as an option

technical information

model 42.3 in 59.1 in
Working width 42.3 in 59.1 in
Total width 48.4 in 62.2 in
Frame height 26.8 in 26.8 in
Auger diameter 18.1 in 18.1 in
Chute rotation 270° 270°
Weight 530 lb 655 lb
Product no. A434731 A428062

Option

Option Product no.
Electric throwing height adjustment A430172



The optional attachment control switch pack is recommended on the loader. If the snow blower is equipped with the electric throwing height adjustment, the switch pack must be mounted.

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
R35 (Stage V)
630
635
635 (Stage V)
640
640 (Stage V)
735
745
750
755i
760i
850
860i
e513
e527
1150
1500
