ROTARY HARROW

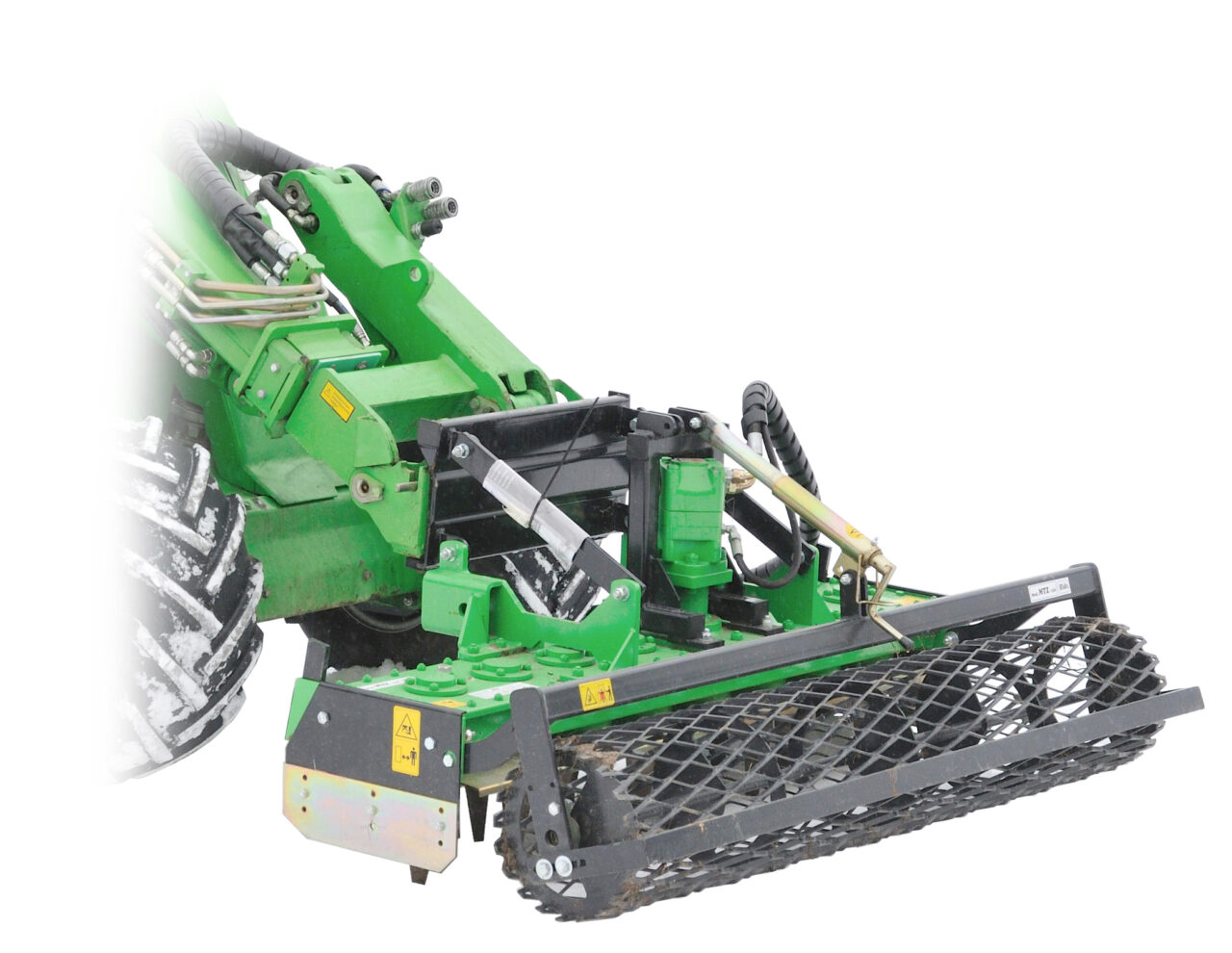

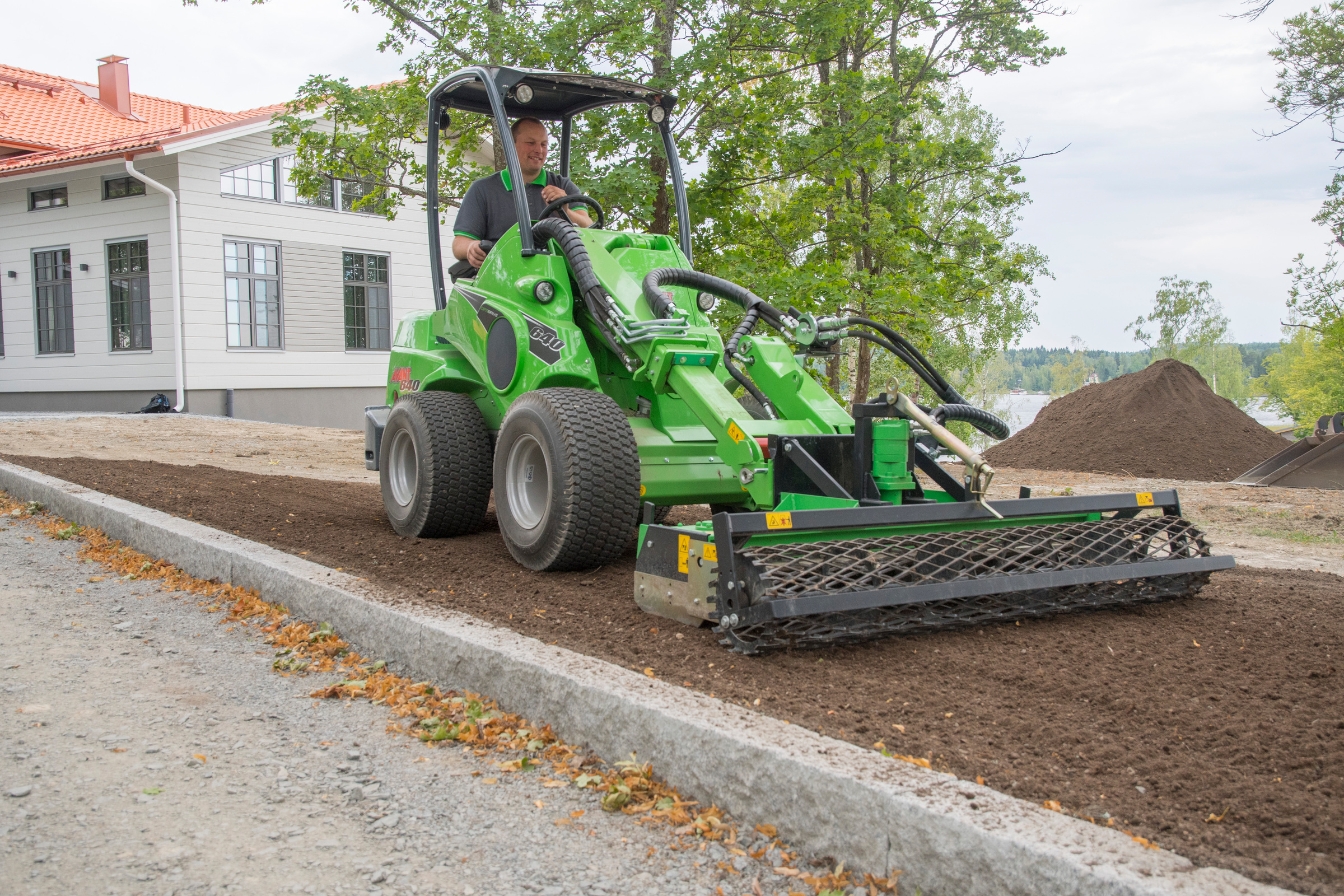

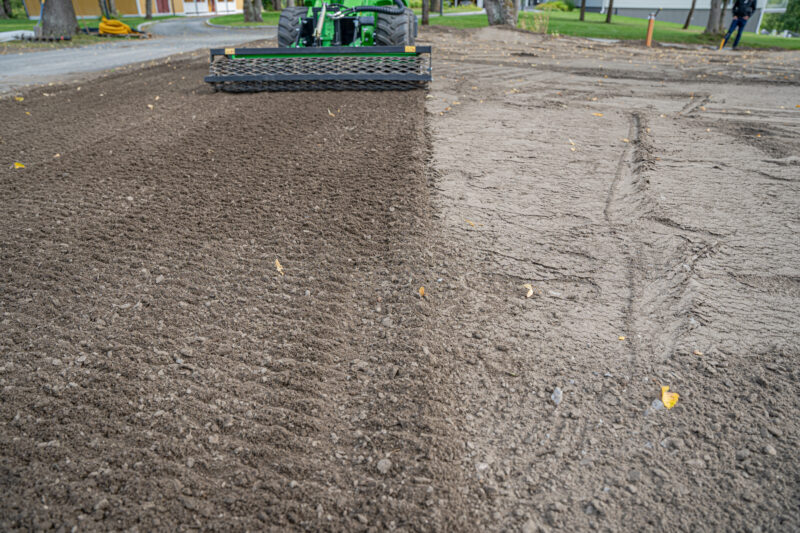

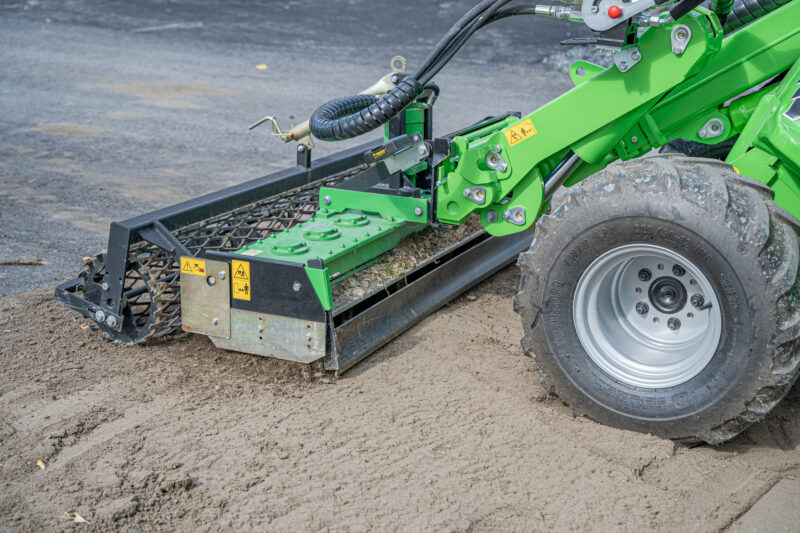

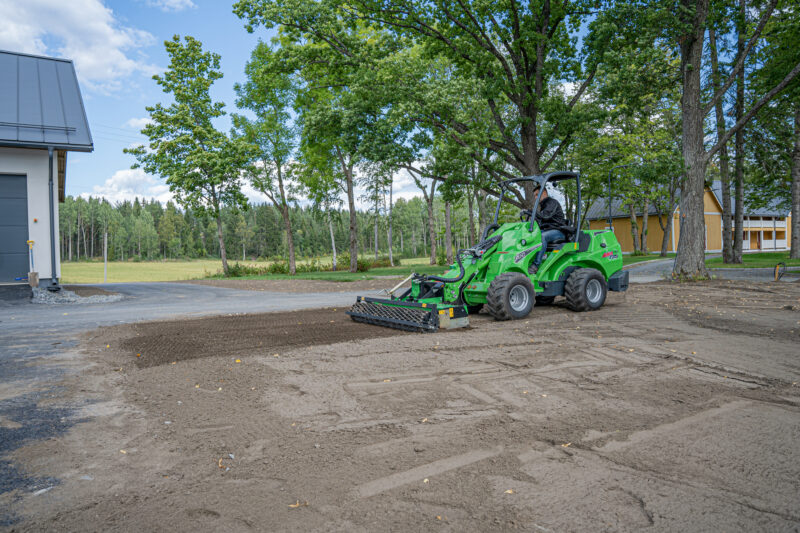

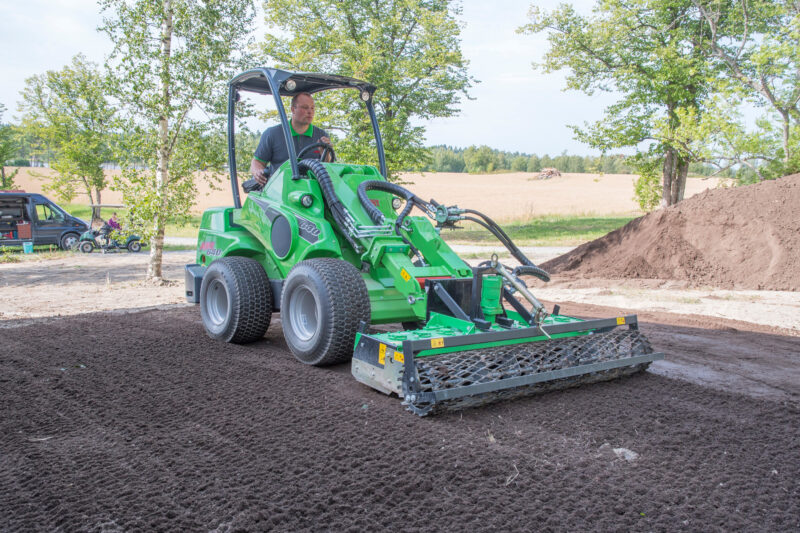

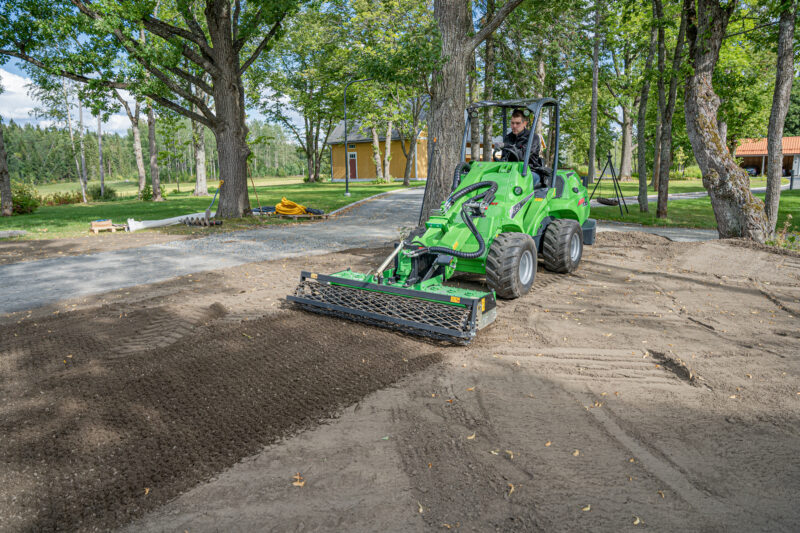

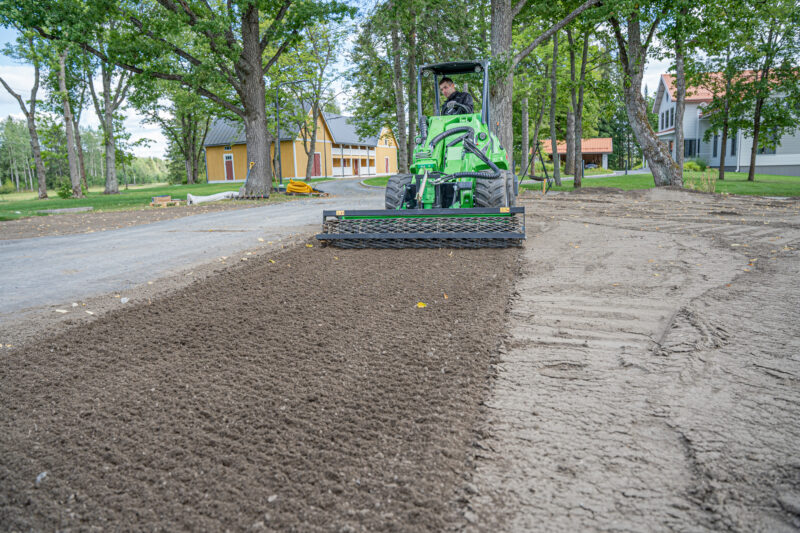

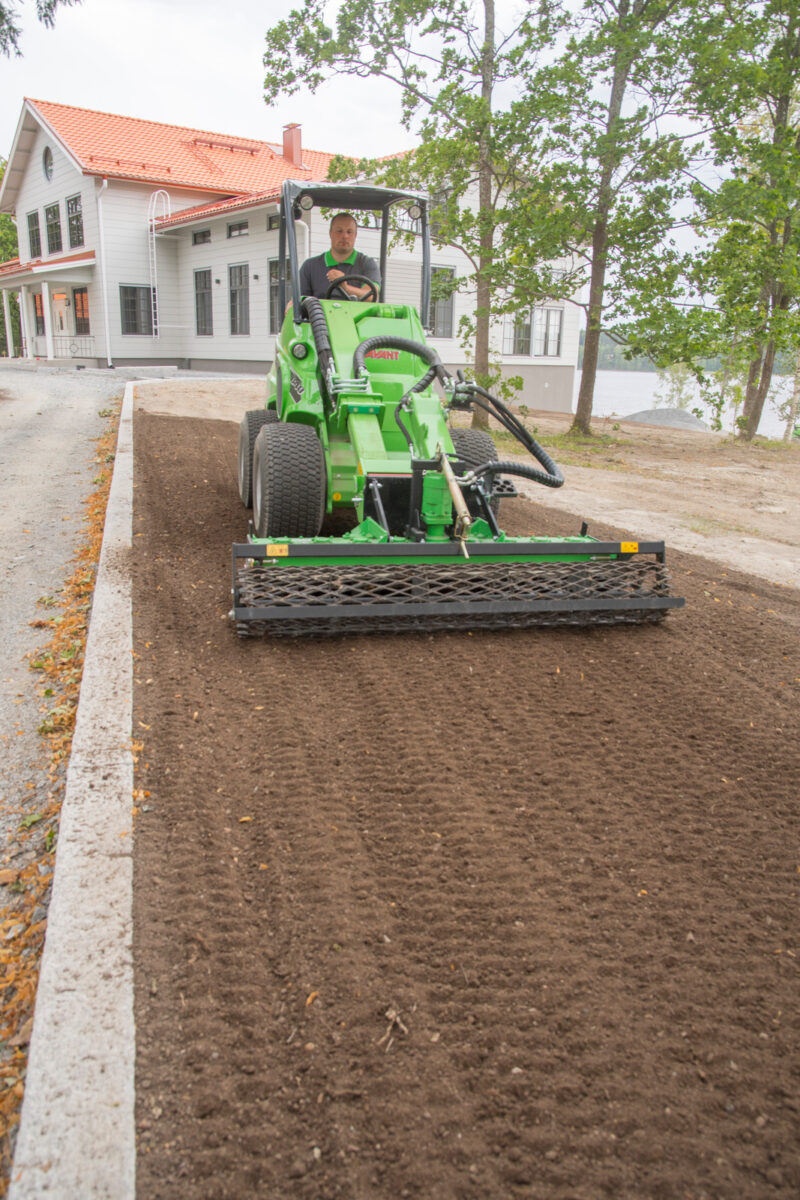

Avant rotary harrow is an excellent leveler for lawn beds, yards, gardens etc. – for places where the ground needs to be perfectly levelled. It harrows only the topsoil and gives a very nice finish for sowing. Required output is lower than that of the rotary hoe which allows also a higher working speed. Working depth is adjusted with the rear field roller which levels the seeding bed during operation. With the optional seeding unit you are able to make a ready lawn surface on one pass.

Rotary harrows are most commonly used for lighter topsoil levelling. The soil is normally not milled as deep or as thoroughly as with a rotary hoe.

  • Professional, efficient rotary harrow for topsoil levelling
  • Top grade finish with just one pass
  • Can be equipped with seeding unit
  • Requires less power than rotary hoe

TECHNICAL INFORMATION

Model 1200 1350 1500 1700
Working width 41.3 in 48.0 in 55.1 in 61.0 in
Roller width 47.2 in 53.1 in 59.1 in 67.0 in
Working depth 0 - 6.3 in 0 - 6.3 in 0 - 6.3 in 0 - 6.3 in
Weight 397 lb 485 lb 550 lb 640 lb
Weight with seeding unit - 575 lb 640 lb 730 lb
Product no A21067 A21077 A21185 A21431



OPTIONS

Product Product no
Seeding unit for 1350 model A21085
Seeding unit for 1500 model A21193
Seeding unit for 1700 model A415800

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520 & 523
525LPG
528
530
R20
R28
R35
R35 (Stage V)
630
635
635 (Stage V)
640
640 (Stage V)
735
745
750
755i
760i
850
860i
e513
e527
1350
1500
1700
