Landscaping

ROLLER COMPACTOR

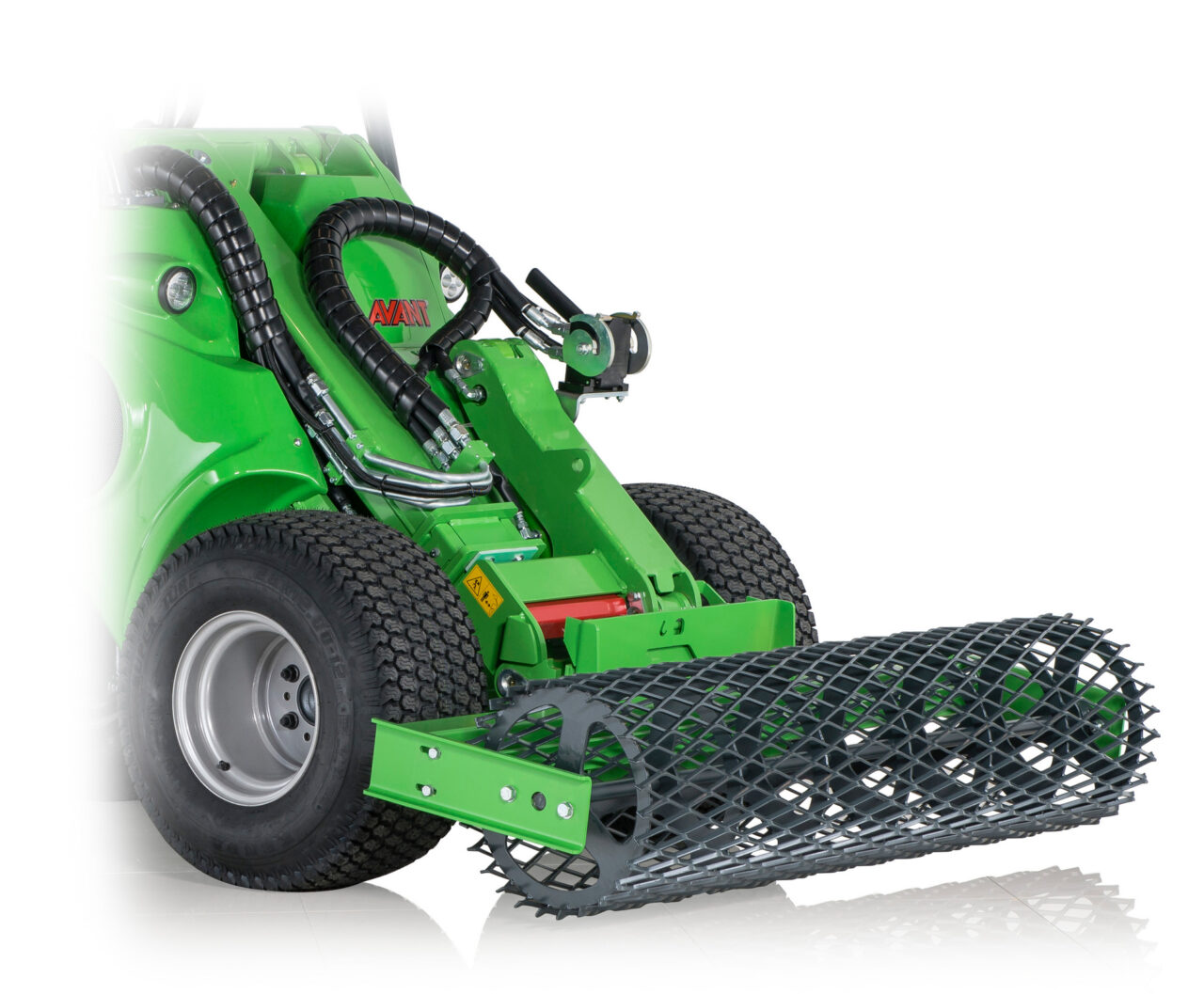

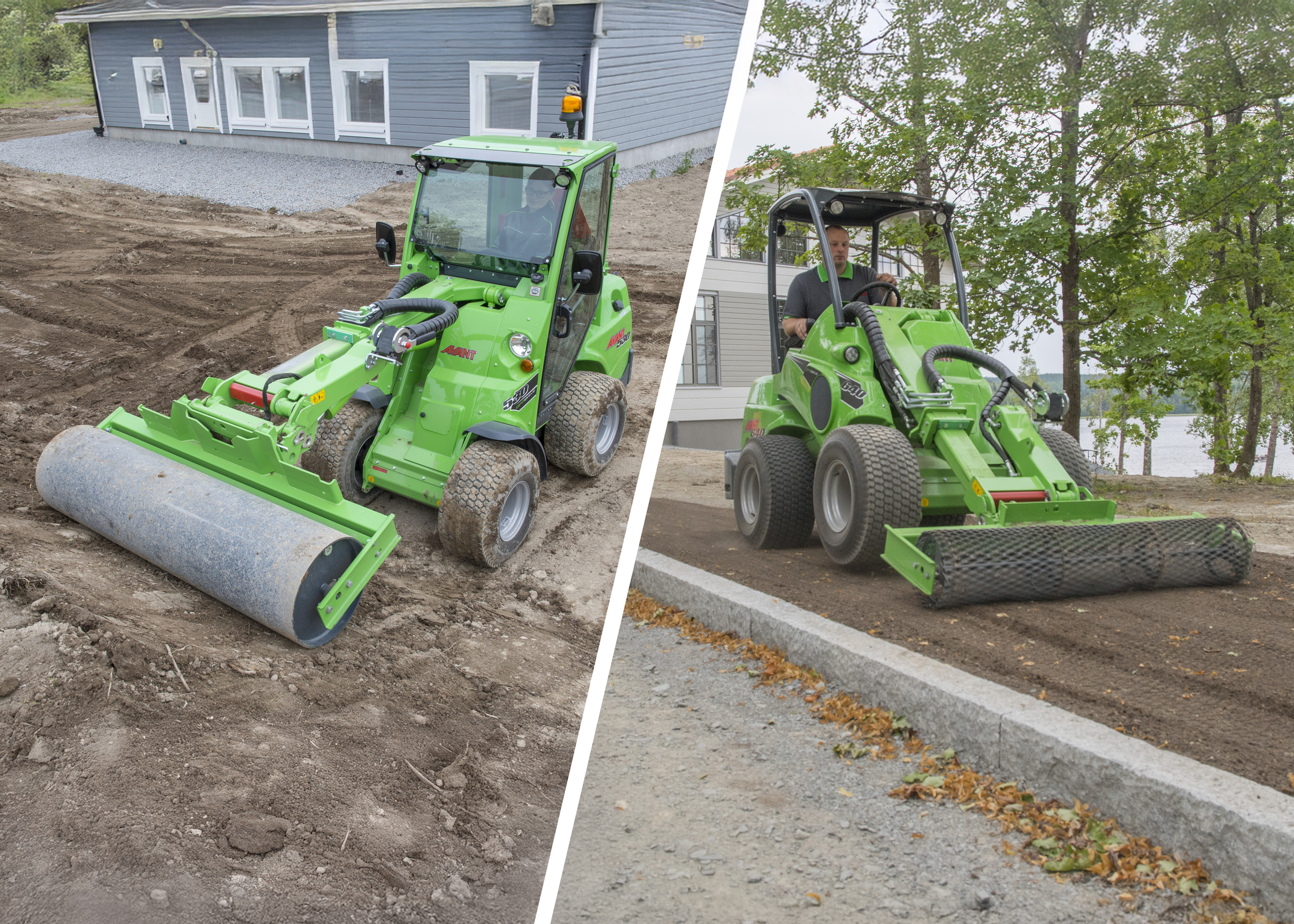

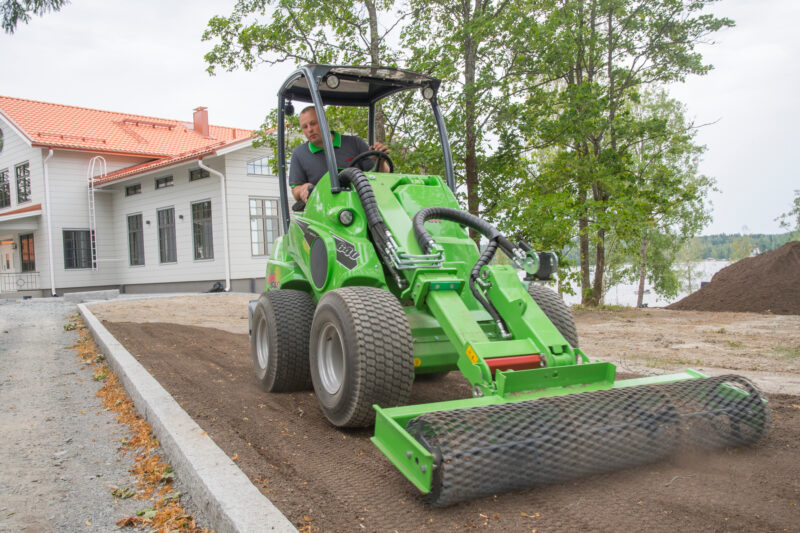

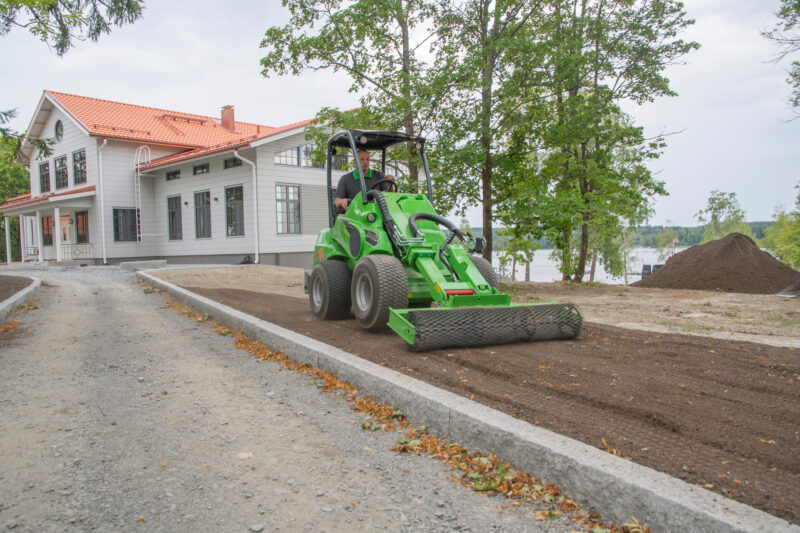

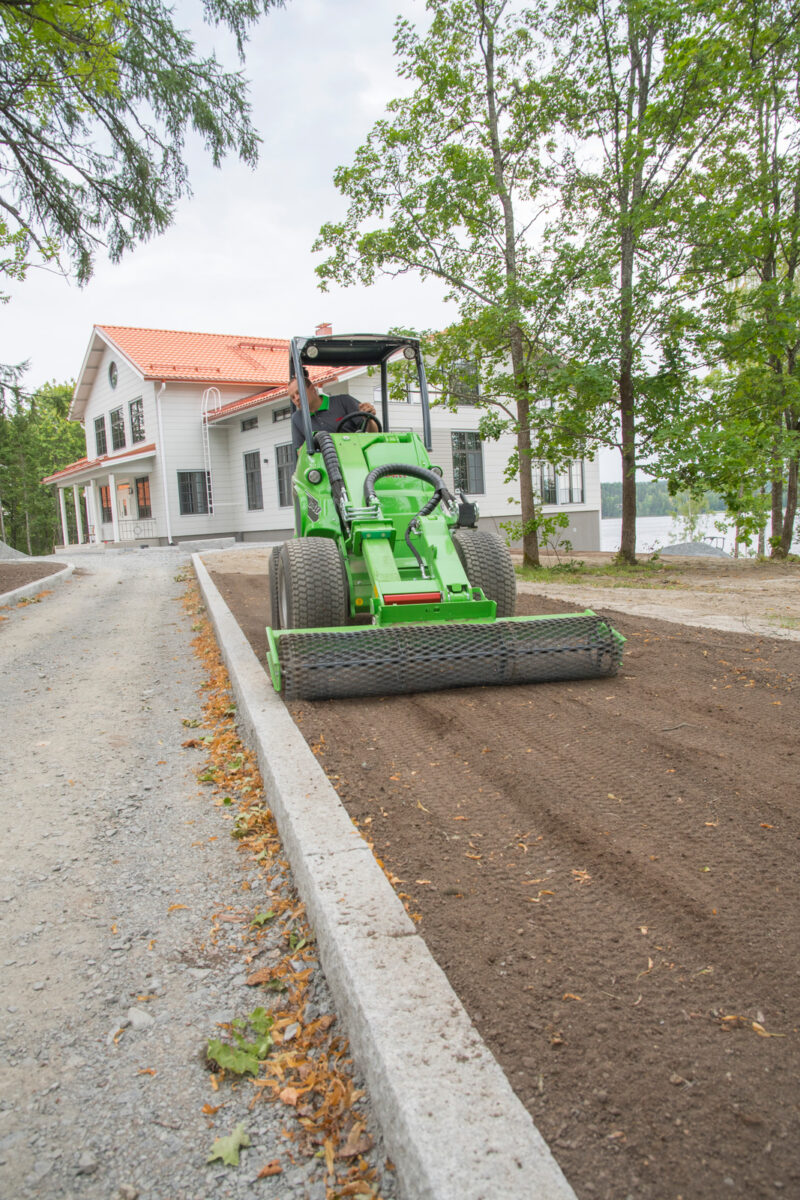

The roller compactor with mesh roller is a practical attachment for compacting soil when preparing for lawn seeding and right after lawn seeding. You are able to compact soil with the full 59.1 inch width of the roller and push down with the whole weight of the loader’s front axle.

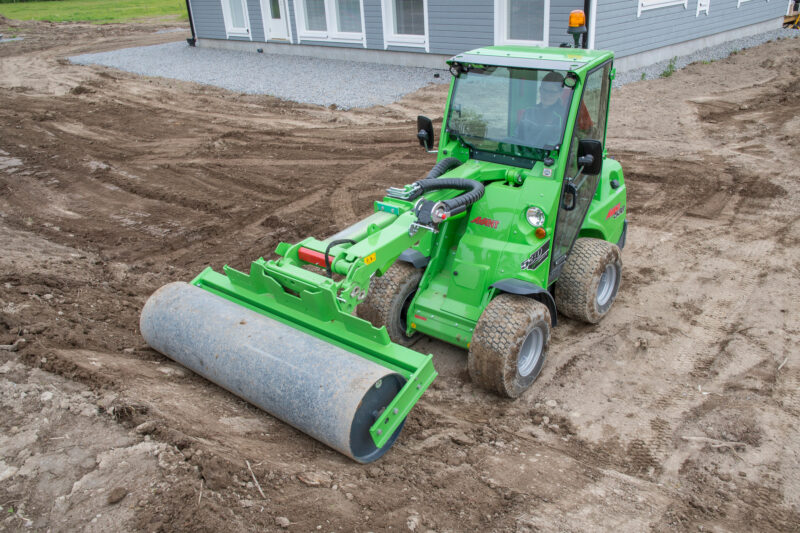

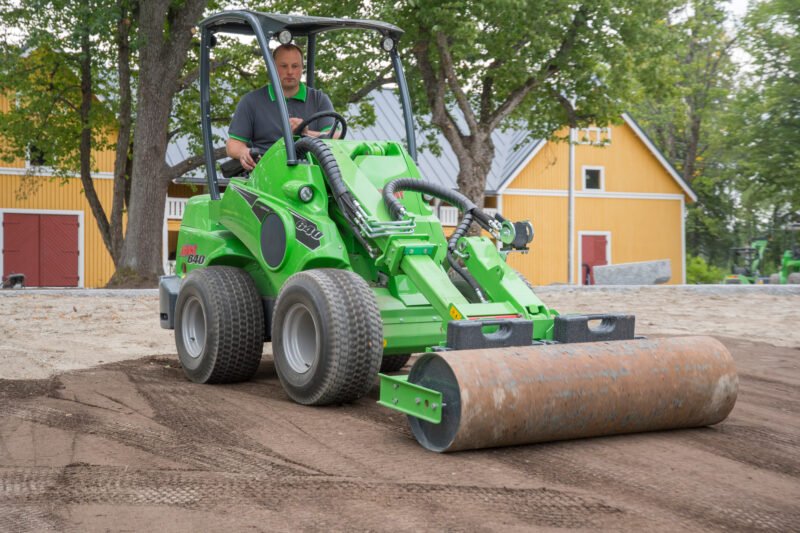

The other roller compactor model is equipped with a plain, hollow roller which can be filled with water (max. 44.1 gal). It is useful for preparing and compacting a newly installed sod and similar surfaces where a plain roller is a must and mesh rollers cannot be used. Both compactors can also be fitted with max. 4 pcs of Avant 64 lbs back weights. The compactors can also be towed, if needed, with the A37481 drawbar mounted on the compactor.

  • Easy and economical compacting of lawns before and after seeding with the mesh roller
  • Plain roller is useful for compacting a newly installed sod and similar surfaces; can be filled with water
  • Both models can also be towed with the A37481 drawbar
  • 4 pcs Avant 64 lbs back weights can be mounted to add weight



TECHNICAL INFORMATION

model mesh roller plain roller
Working width 59.1 in 59.1 in
Total width 63.2 in 63.2 in
Roller diameter 15.7 in 16.0 in
Length 24.0 in 24.0 in
Weight (without extra
weights and water)
220 lb 430 lb
Water volume - 44.1 gal
Product no A37064 A37488



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
