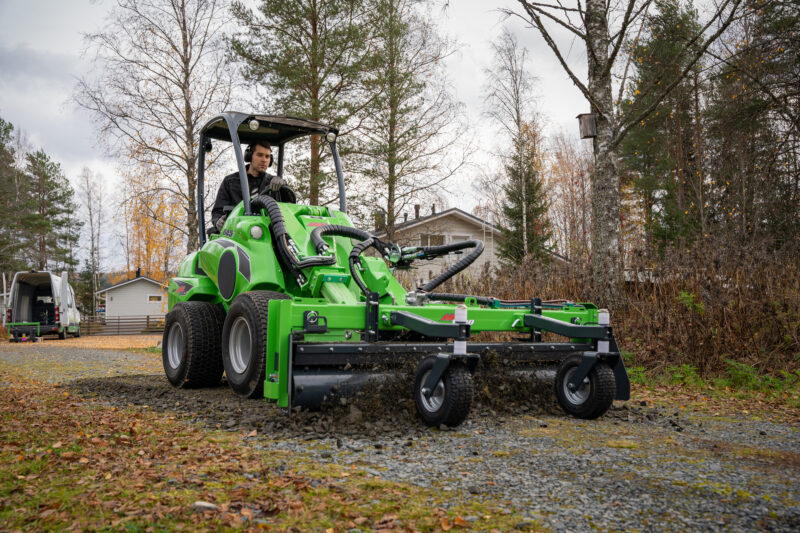

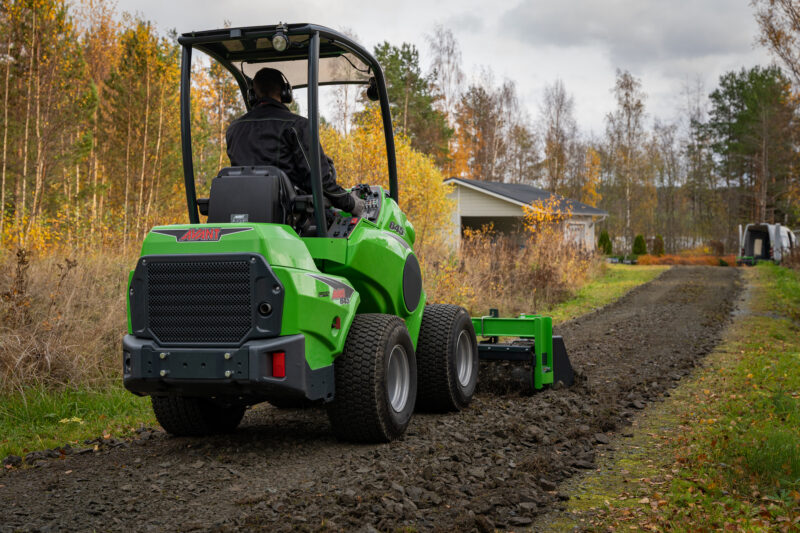

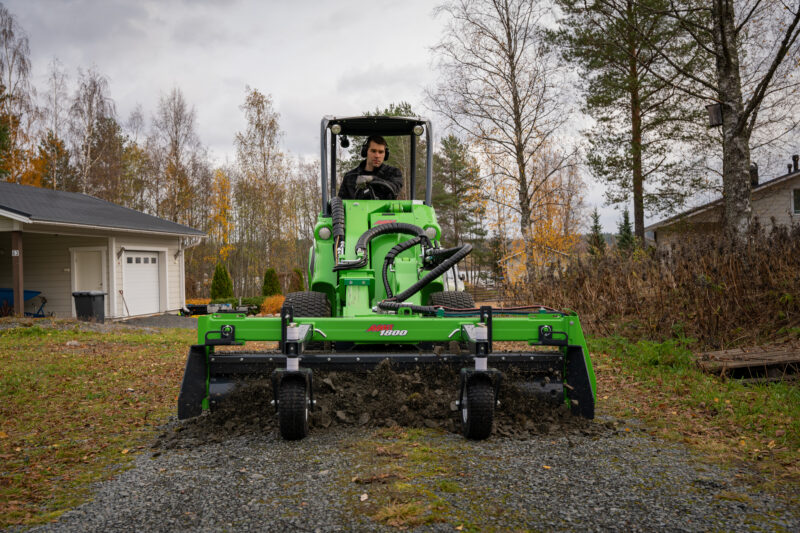

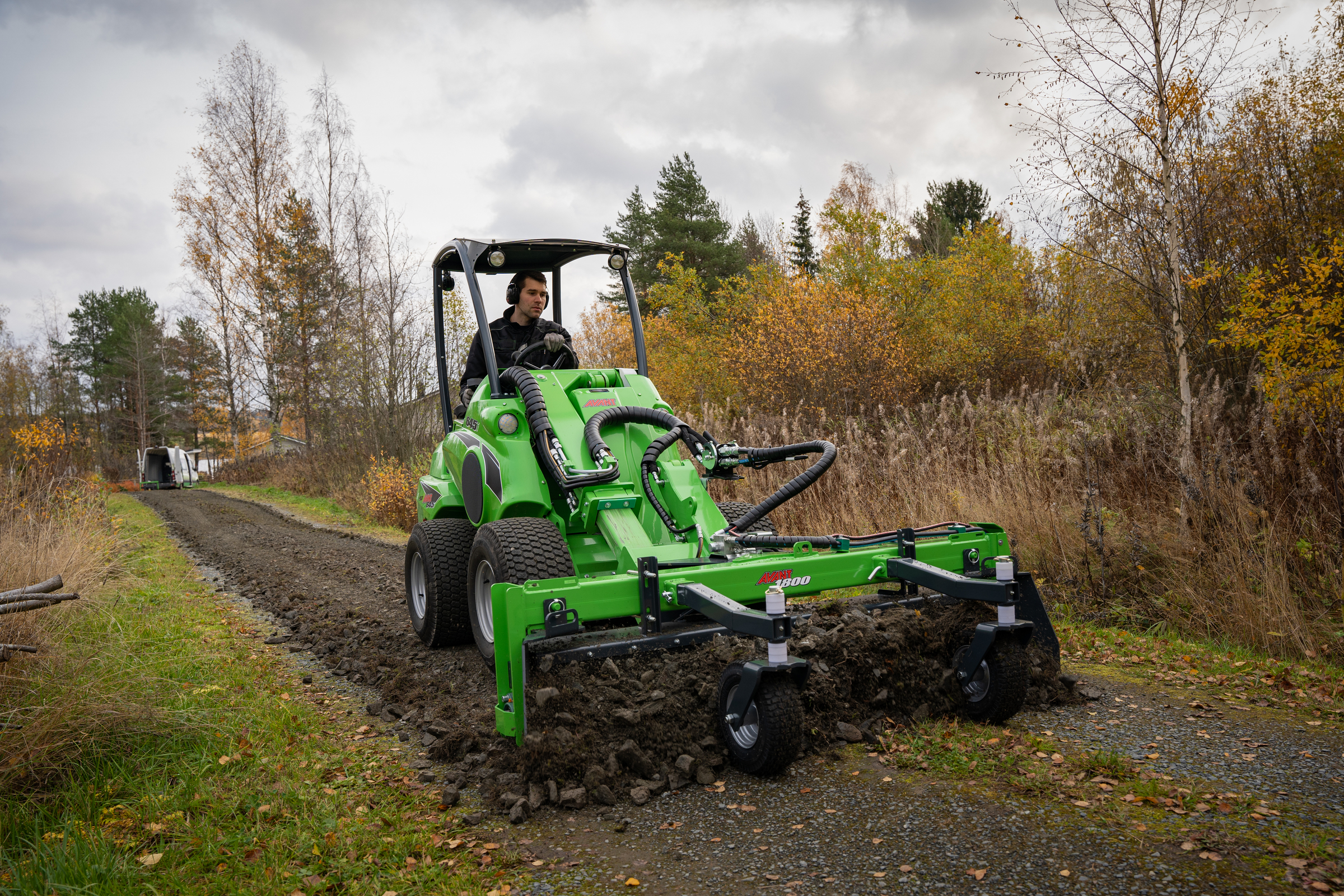

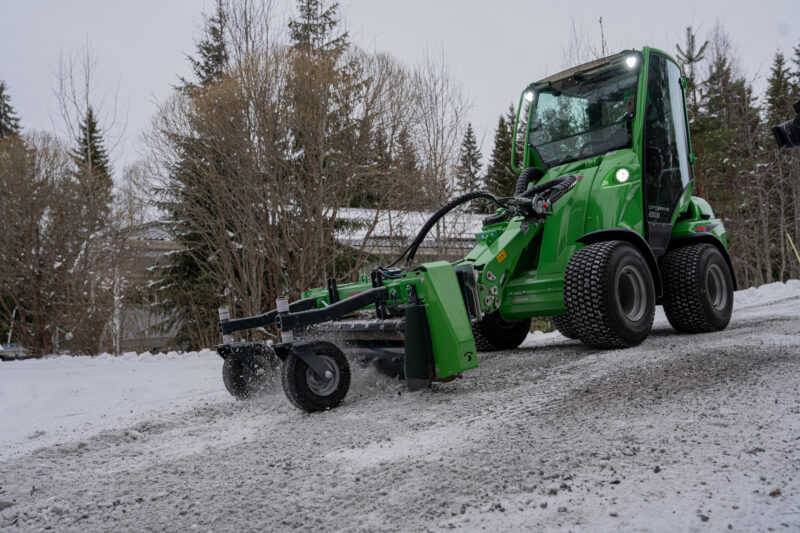

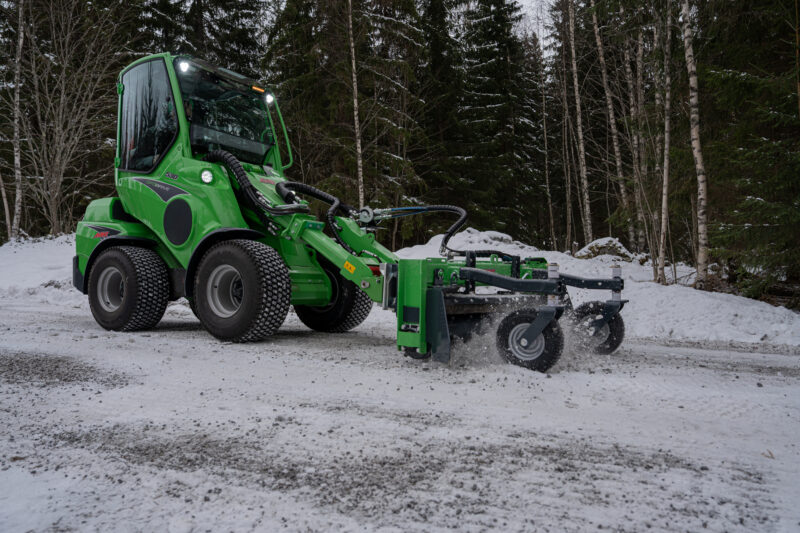

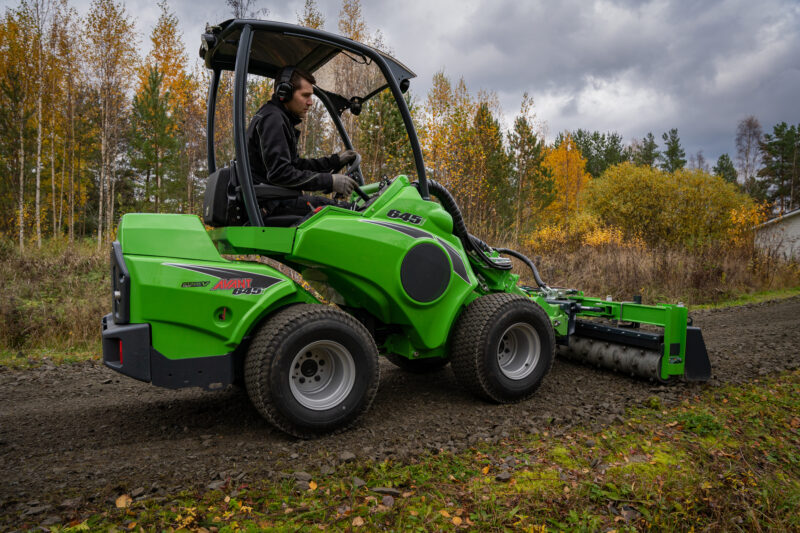

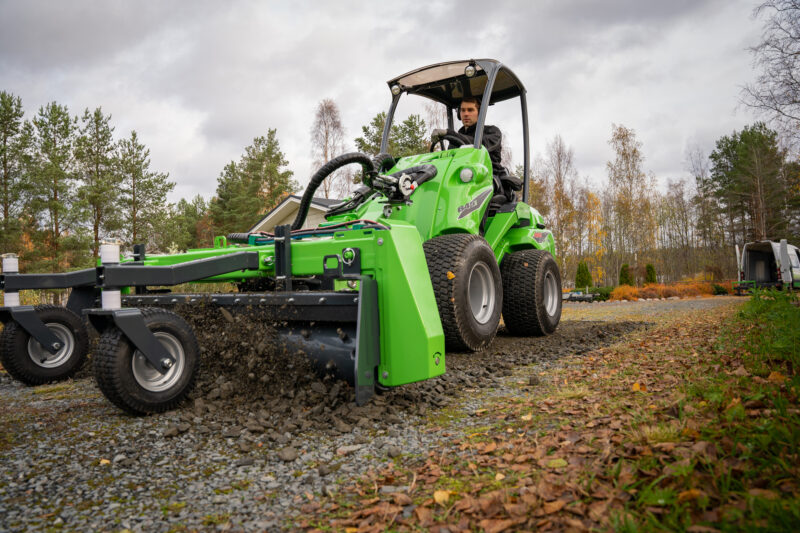

The power rake is a versatile attachment for soil grading, leveling, raking, and removing debris. It can be used, for instance, for preparing seedbeds, cutting grades, grading dirt and gravel roads, and cleaning up and grading different types of sites.

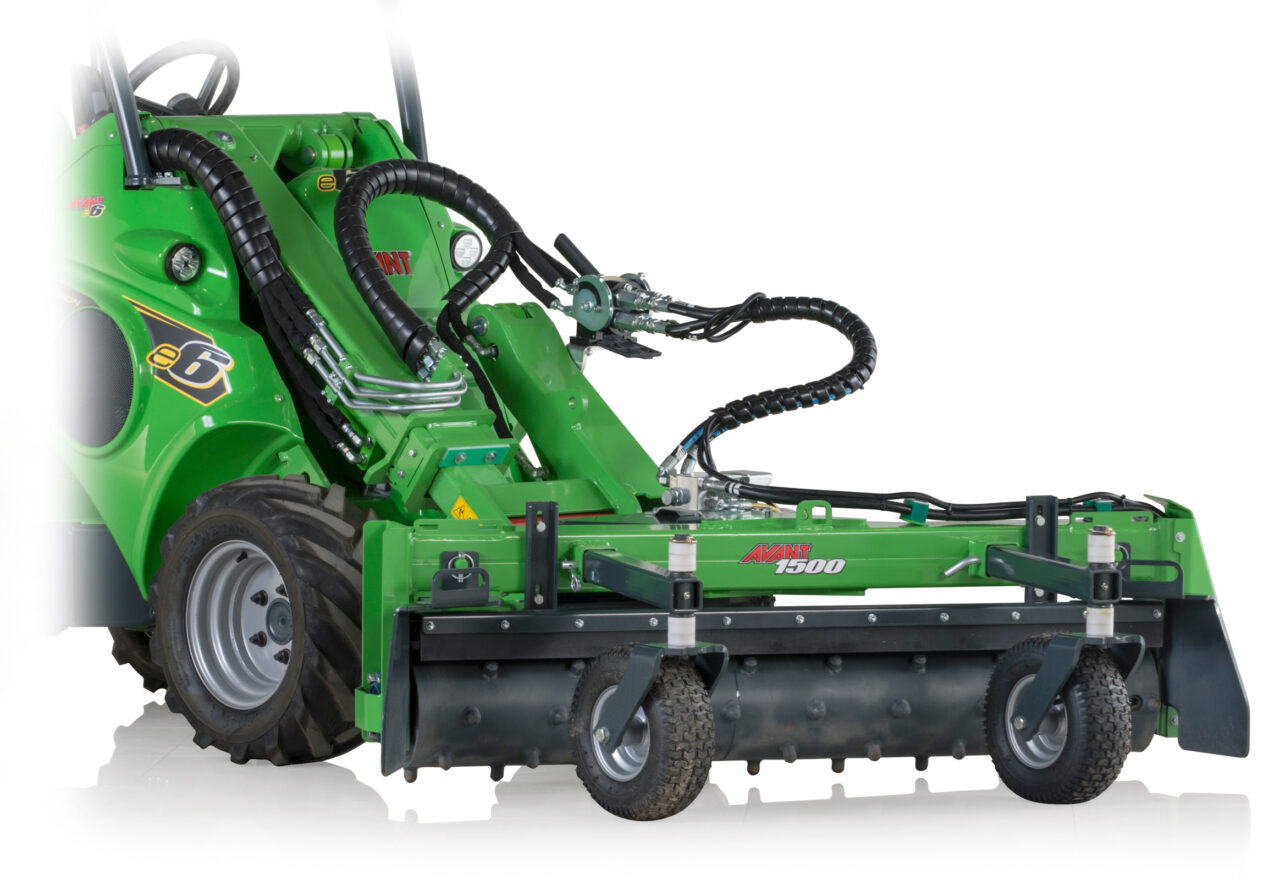

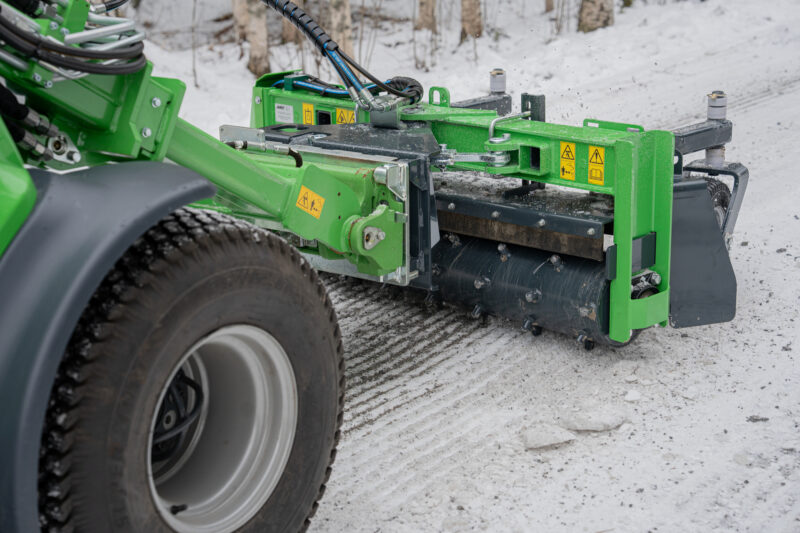

Power rake mills the soil to max. 2.6 in depth. The shaft is equipped with steel teeth. Driving direction is forwards and the shaft rotates against the driving direction. The removable side plates make soil moving and directing it even more efficient. The rake is equipped with two adjustable support wheels and it can be turned to max. +/- 30 degrees angle.

Two models available: with manual or hydraulic turning.

  • Versatile attachment for preparing seedbeds, grading dirt and gravel roads, cleaning up building lots and sites, etc.
  • Easy removal and piling up of rocks and other debris by driving forward
  • Available with manual or hydraulic turning, +/- 30 degrees

TECHNICAL INFORMATION

Working width 58.3 in
Total width 69.8 in
Working depth max. 2.6 in
Turning angle +/- 30°
Length 47.6 in
Height 26.4 in
Weight 695 lb
Product no. manual turning A434016
Product no. hydraulic turning A439234

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
