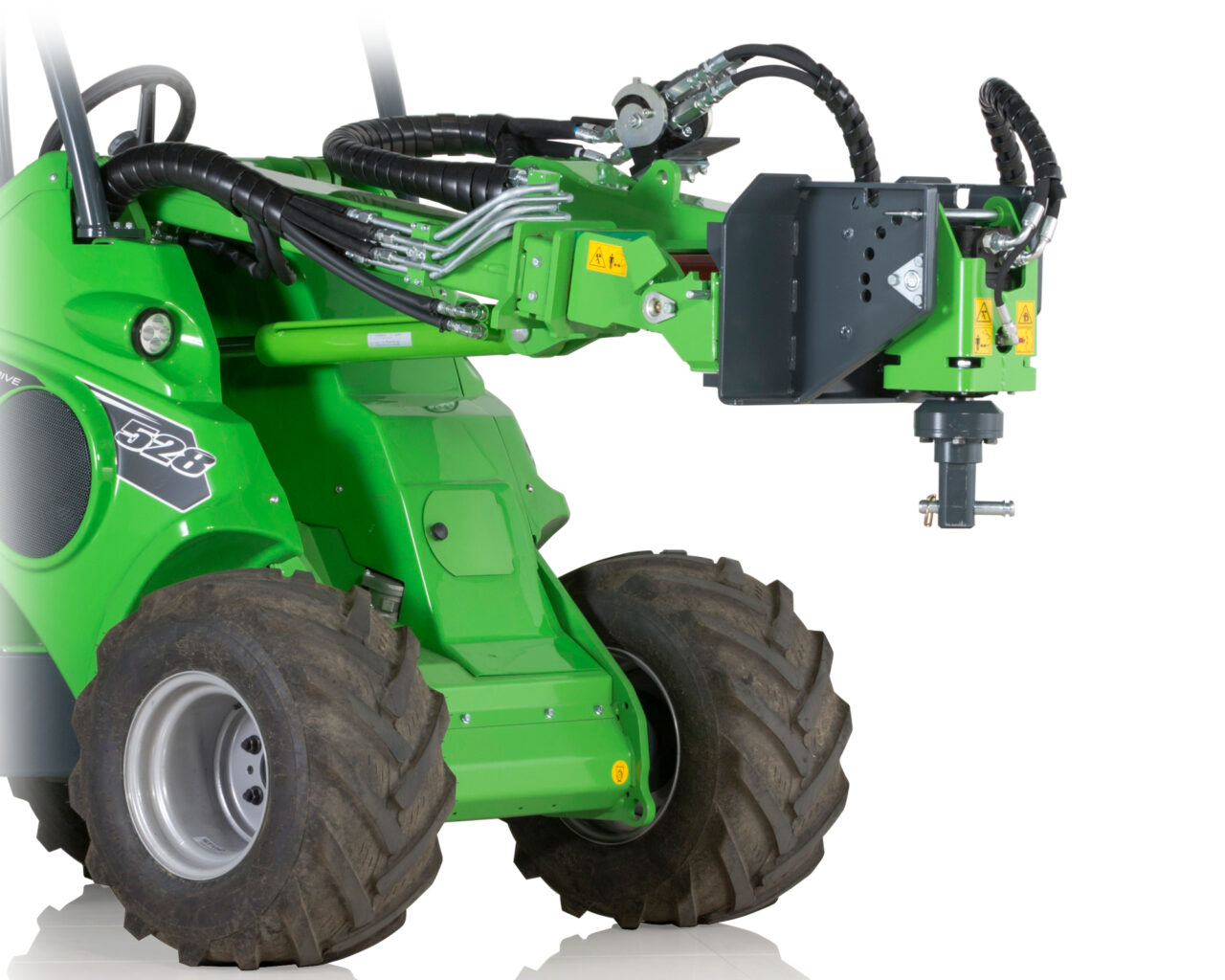

MULTI FUNCTION DRIVE UNIT

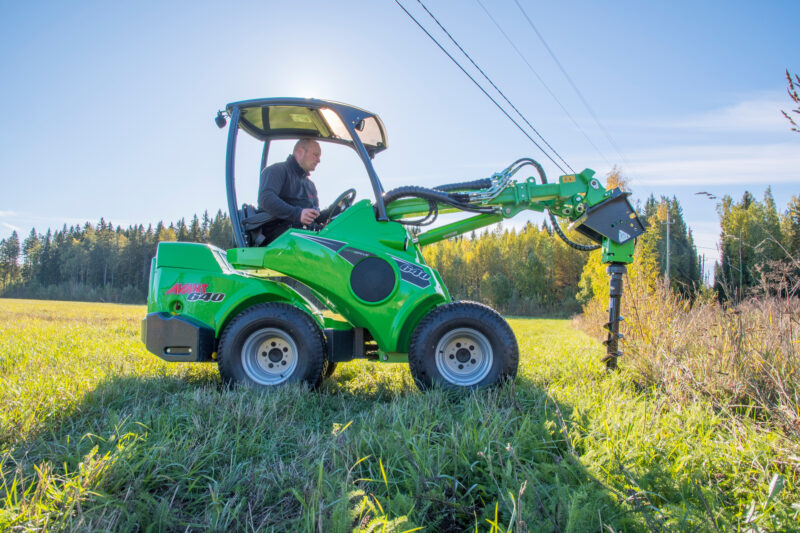

The new multi function drive unit replaces the earlier auger drive unit A37092. Avant auger drills and screw pile adapter are mounted on it as always, but thanks to the new design the multi function drive unit can also be fitted with various new attachments: concrete mixing drum, screw cone log splitter, screening drum, cable/hose reel, carousel broom and rotary hoe.

In addition, there is a 90 degree angle adapter available on which the drive unit can be mounted. It turns the drive unit 90° to the left. This means that for instance the carousel broom sweeps on the left side of the loader, and the cable/hose reel is crosswise to the loader and winds the cable longitudinally (in parallel to the loader).

  • Torque 1000 lb/ft

TECHNICAL INFORMATION

Width 21.7 in
Height 22.0 in
Length 15.9 in
Weight 187 lb
Product no. A37190

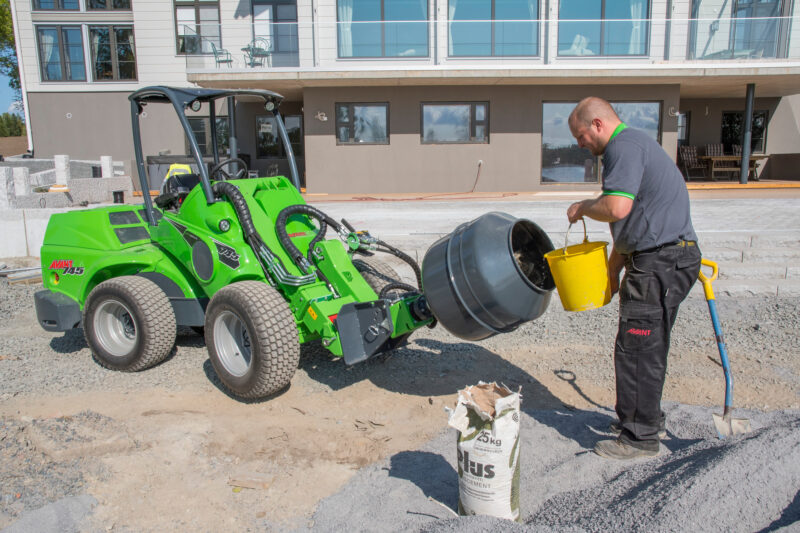

A37395 Concrete mixing drum

Volume 37 gal water,
  24 gal ready concrete
Length 29.9 in
Width 23.6 in
Weight 110 lb

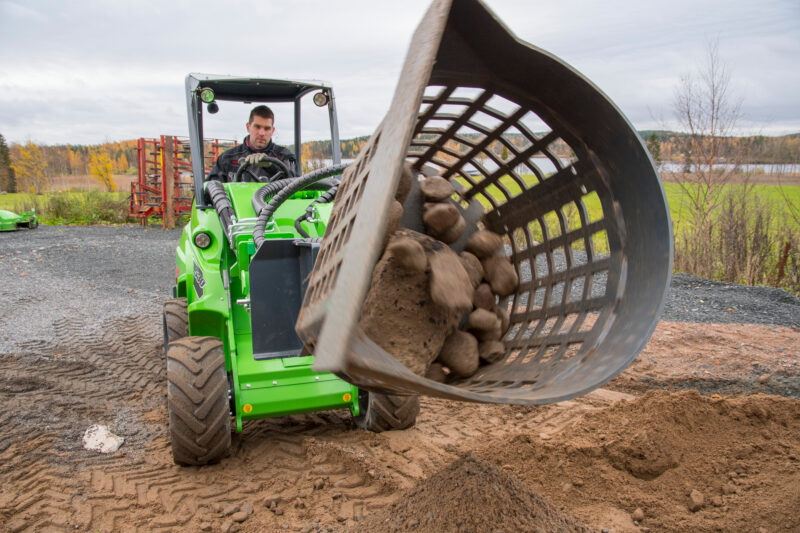

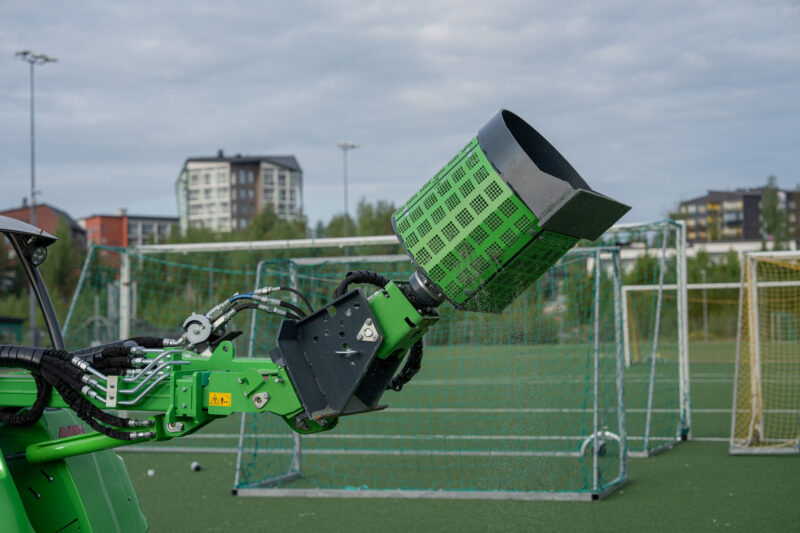

A37207 Screening drum

  • Intended for screening of soil, gravel and sand
  • Volume: 24 gal
  • Screening sieve with 2x2 in holes – included also a separate 0.9x0.9 in sieve, which is bolted on the drum when finer screening is required
Length 23.8 in
Width 19.7 in
Height 18.2 in
Weight 165 lb

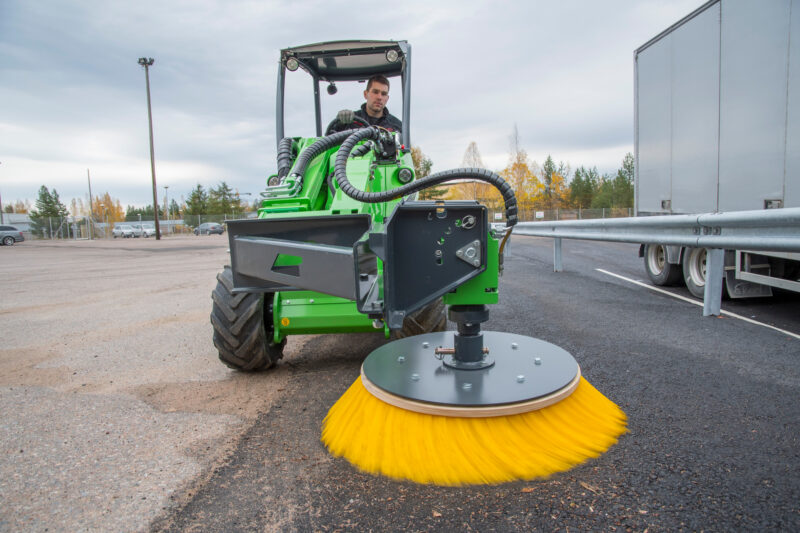

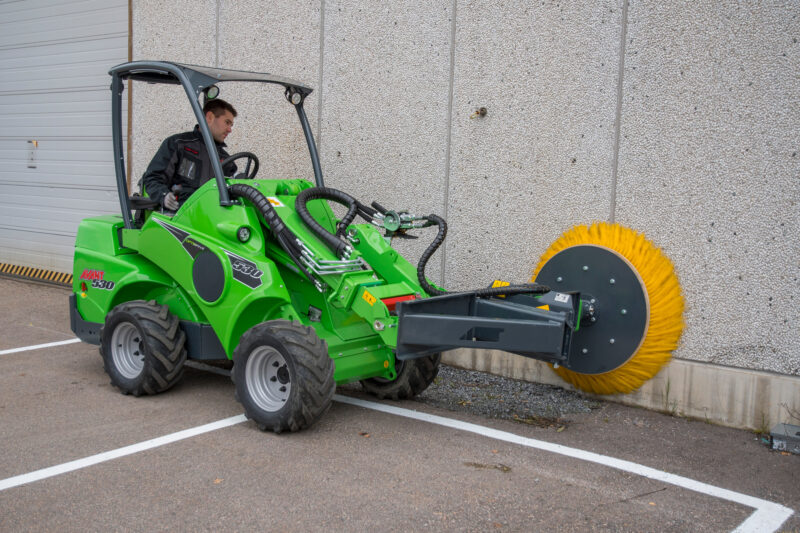

A37317 Carousel broom

  • Same Ø 39.4 in broom as on A2971 Carousel broom
  • Replacebable brush A32698
  • Weight 150 lb
  • Can also be mounted on the A37323 Angle adapter 90° > sweeps on the left side of the loader

A418530 Screw pile adapter

With Avant and multi function drive unit you can install screw piles in the ground quickly and easily. The screw pile adapter mounts on the multi function drive unit and fits on Ø 2.4 in screw piles.

The adapter can be mounted on all Avant auger drives – the correct type of the auger drive depends on torque required: how hard the ground is, and dimensions of the screw pile.

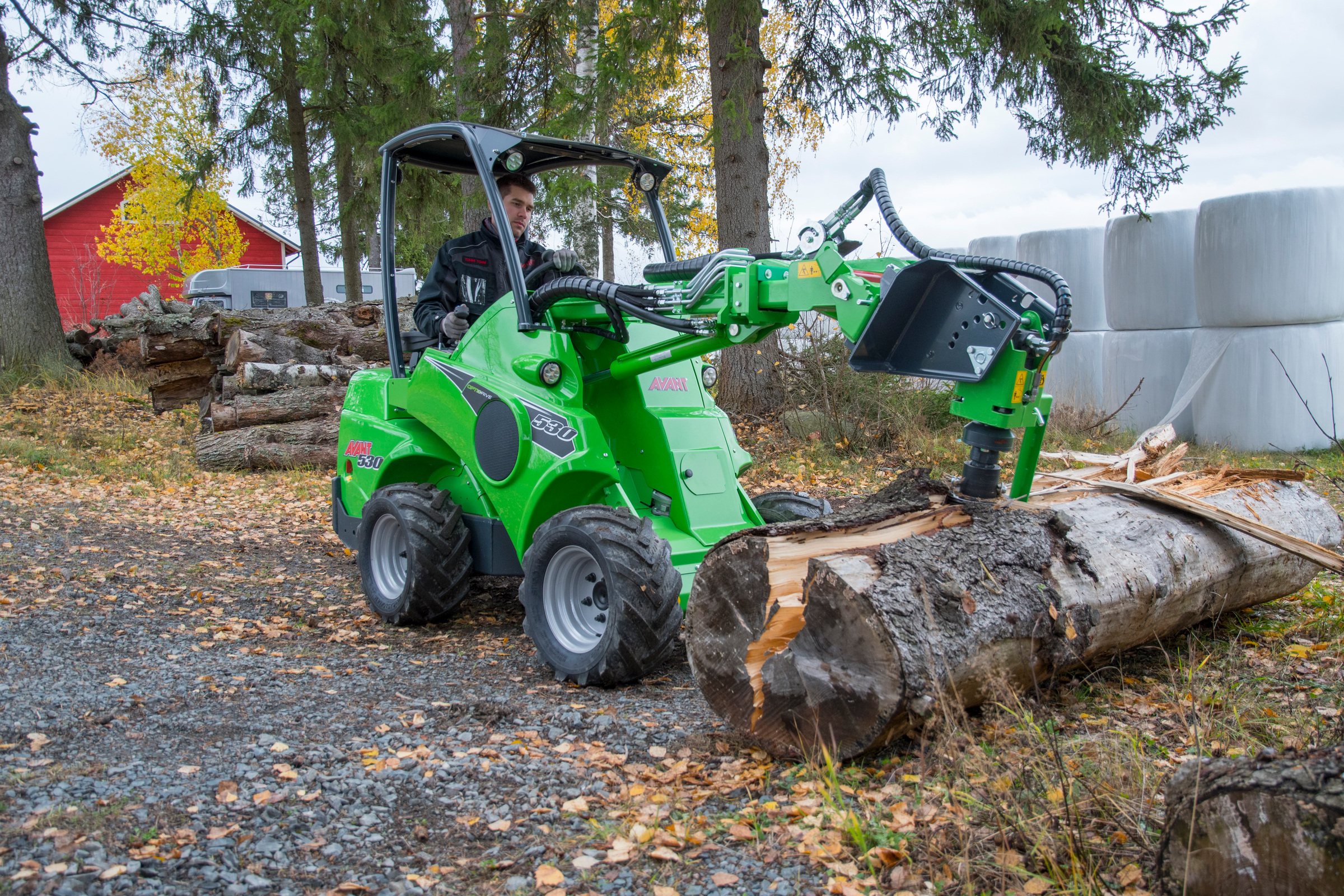

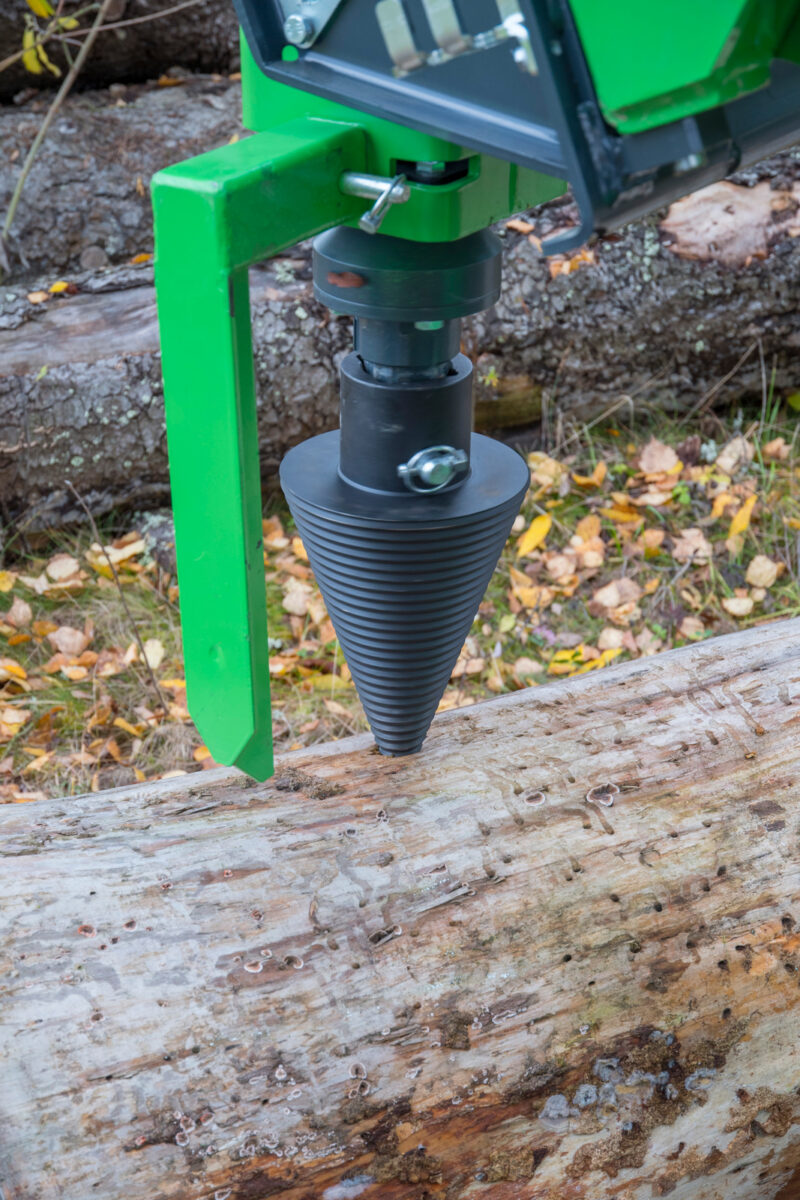

A37500 Screw cone log splitter

  • Log splitter with a conical splitting screw

  • Splitting screw equipped with a replaceable tip

  • Also equipped with a log holder bar which prevents the log from rotating during splitting

  • Weight 66 lb

A37311 Cable/hose reel

Inside width 15.7 in
Total width 22 in
Reel diameter 7.5 in
End plate diameter 19.7 in
Weight 55 lb

Can also be mounted on the A37323 Angle adapter 90° > winds
the cable in parallel to the loader



A37491 Rotary hoe

  • For small scale soil cultivating
  • Equipped with two knife type blades
Cultivating depth max. 6.3 in
Length 20.9 in
Width 6.1 in
Height 11.1 in
Weight 33 lb

A37323 Angle adapter 90°

Turns the multi function drive unit to point to the left

Length 24.8 in
Width 25.6 in
Height 11.8 in
Weight 90 lb

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
