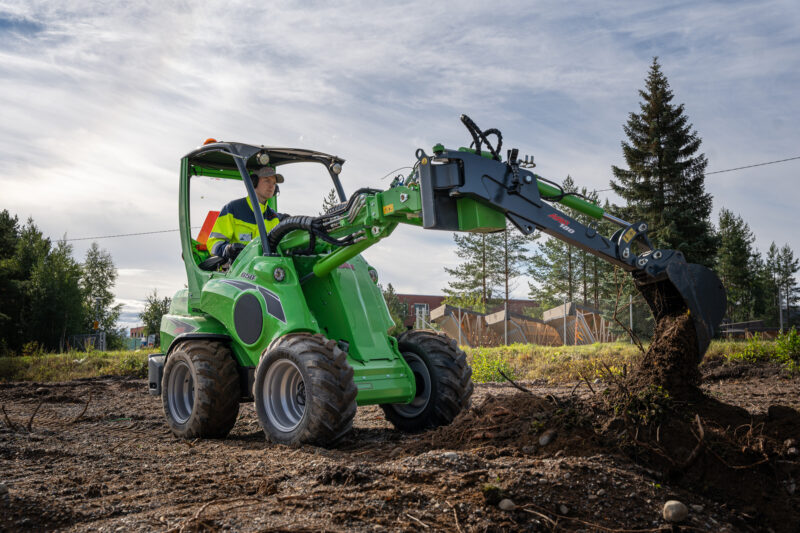

Mini digger 180

Request a quote
Close

More images

plus

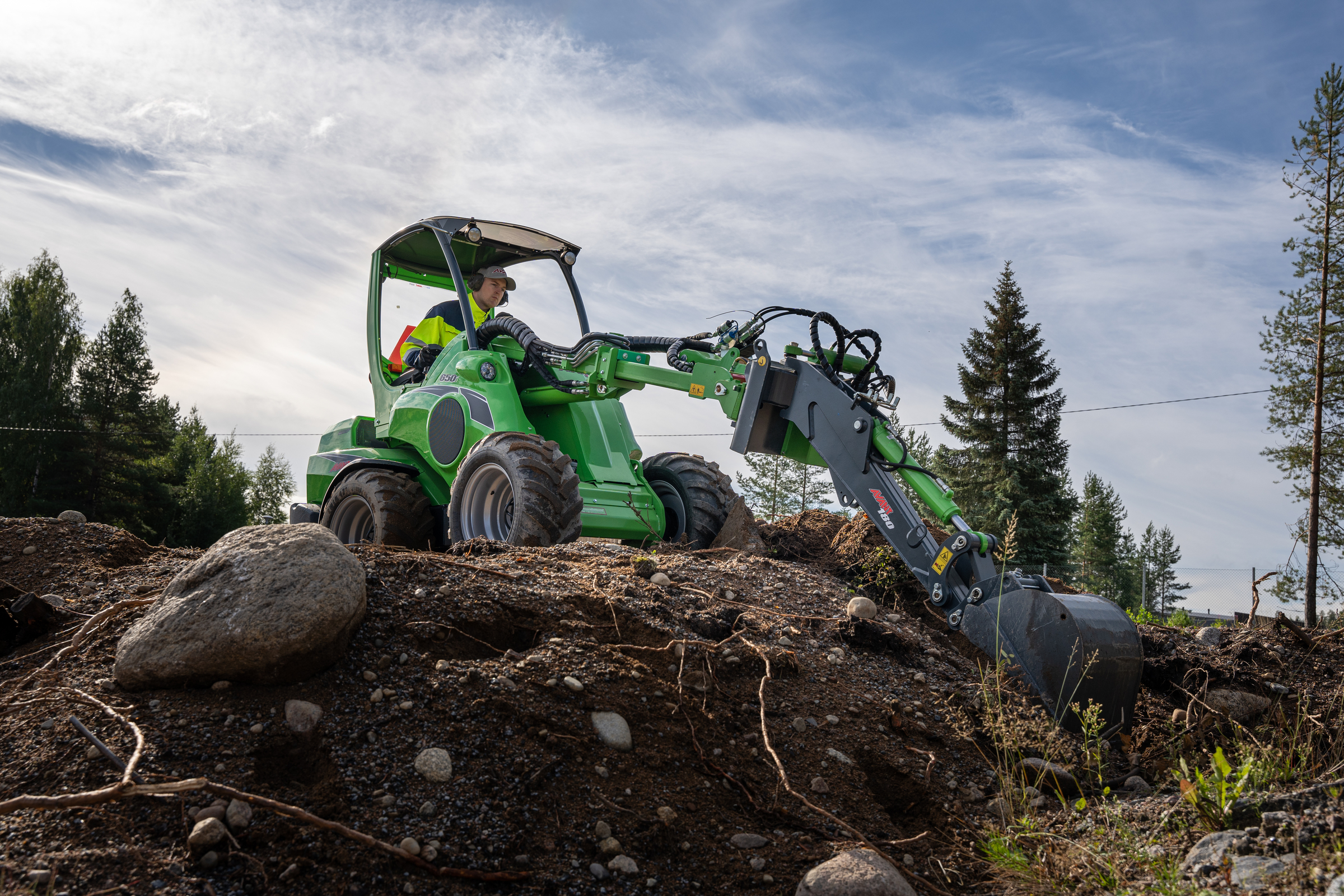

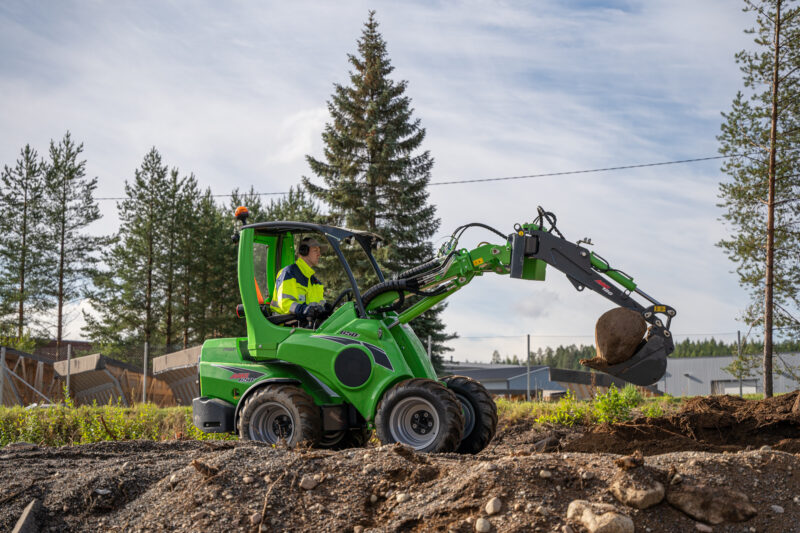

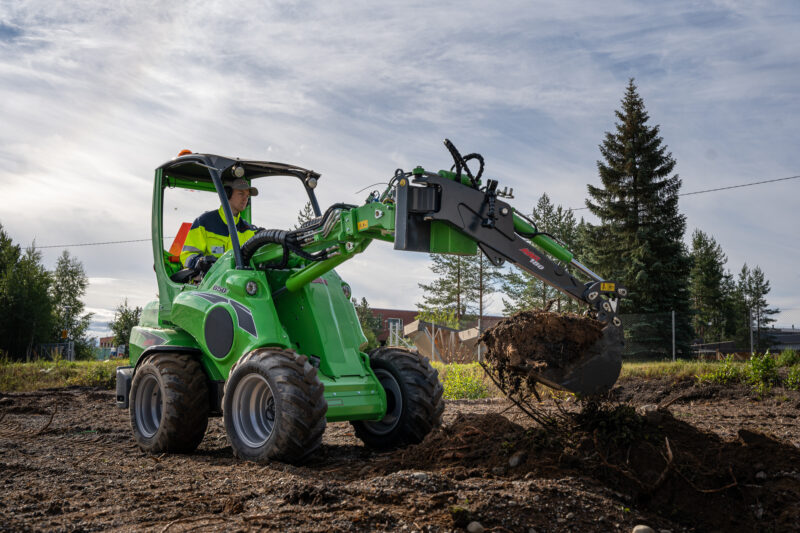

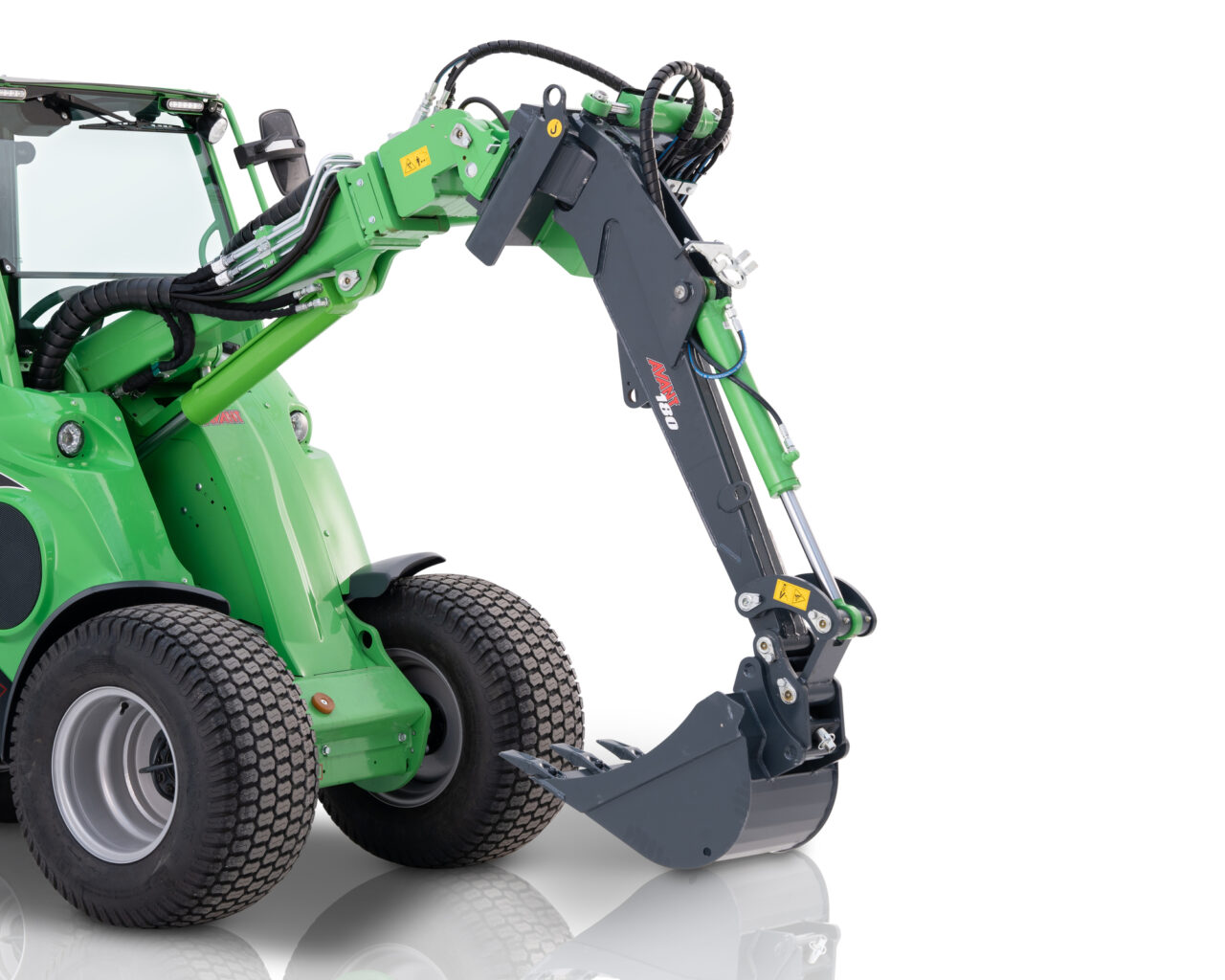

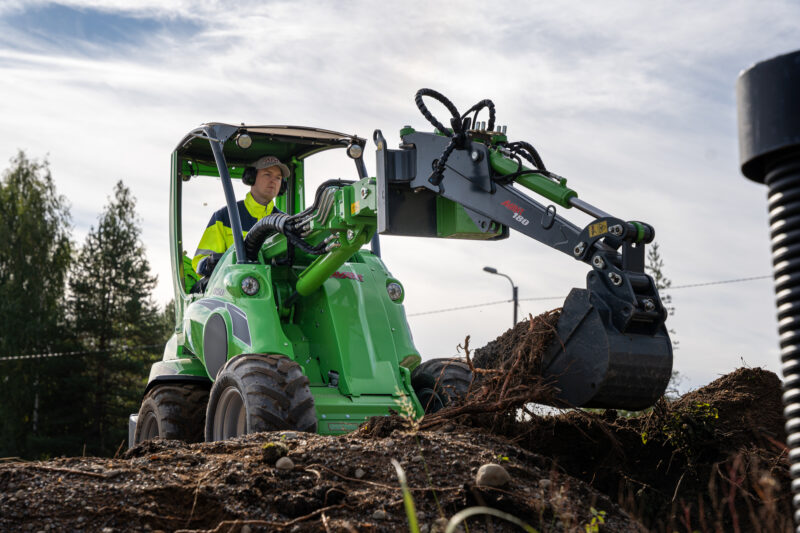

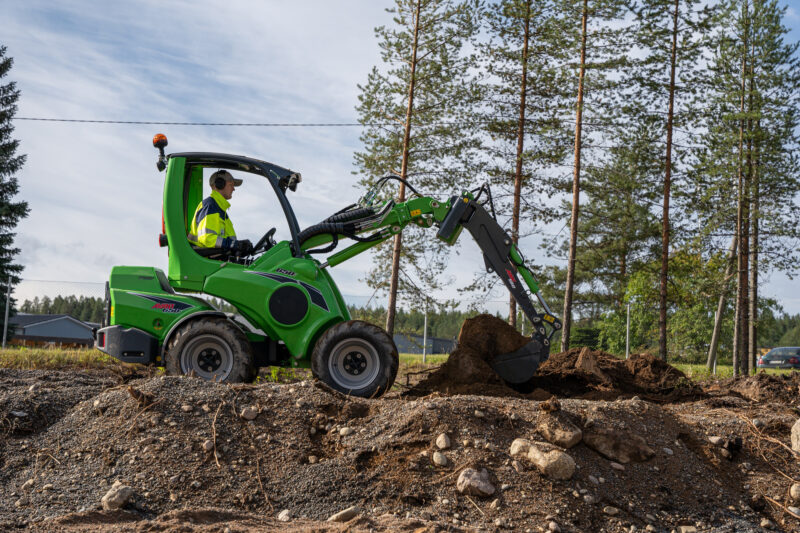

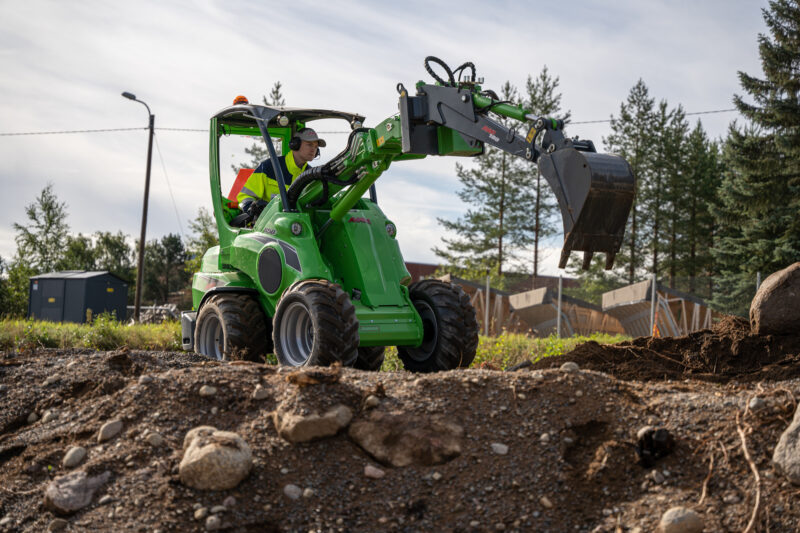

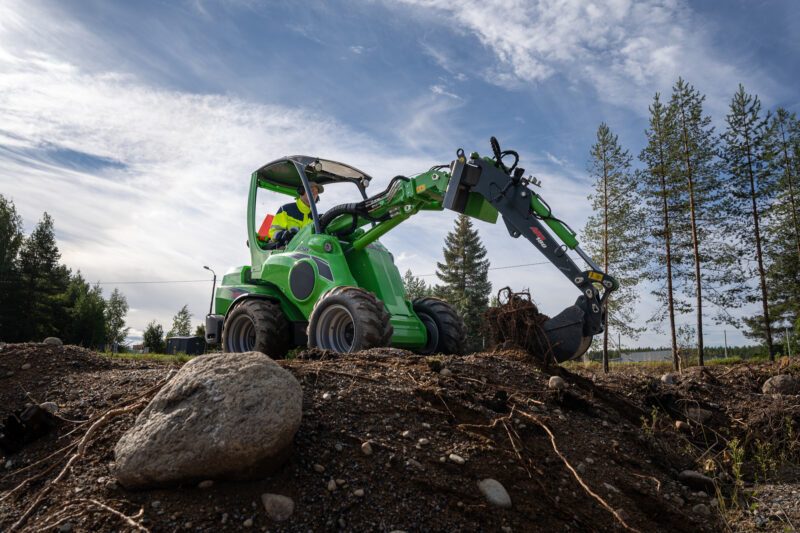

Mini digger 180 features hydraulic boom swing: the boom can be turned 60° to the right or to the left from centerline. This makes the mini digger even more versatile than before:

  • By turning the boom to the side the bucket can be emptied without the need of moving and articulating the loader
  • The optional tilt adapter makes it possible to dig with the bucket in many different angles, and it is also possible to dig alongside the wall with the boom turned to the side and bucket tilted parallel to the wall

Mini digger 180 is equipped with the same S30 bucket quick attach system as mini digger 150 and backhoe 260, which makes changing of bucket fast and easy - and the bucket can also be mounted pointing forward if necessary. Bucket tilt adapter or hydraulic thumb grab are available as an option. Both cannot be mounted on the mini digger simultaneously.

Because there are two hydraulic functions on the mini digger as standard – boom swing and bucket operation – there is also an electric selector valve for selecting the function. Boom swing and bucket cannot be operated at the same time. The selector valve is controlled with the switches on the optional Opticontrol® control switch pack which is necessary on the loader.

  • Efficient and handy digging unit, very fast and easy to mount on the loader
  • Hydraulic boom swing, ± 60° to the side from centerline
  • Max. digging depth 71 in
  • Digging alongside wall possible with the optional bucket tilt adapter

TECHNICAL INFORMATION

Model 180
Max. digging depth 71 in
Boom swing angle ±60°
Weight (without bucket) 375 lb
Product no (without bucket) A445112

BUCKETS AVAILABLE

9.8 in A414301
15.7 in A414304
29.5 in A35230
39.4 in A35383
Trapezoidal bucket 25.6 in A21638
Trapezoidal bucket 35.9 in A36374

OPTIONS

Bucket tilt adapter (not when thumb grab A446167) A446187
Thumb grab (not when bucket tilt adapter A446187) A446167

The optional Opticontrol® is required on the loader.

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
630
635
640
640
640
735
745
750
755i
760i
850
860i
R20
R28
R35
e513
e527
