MINI DIGGER

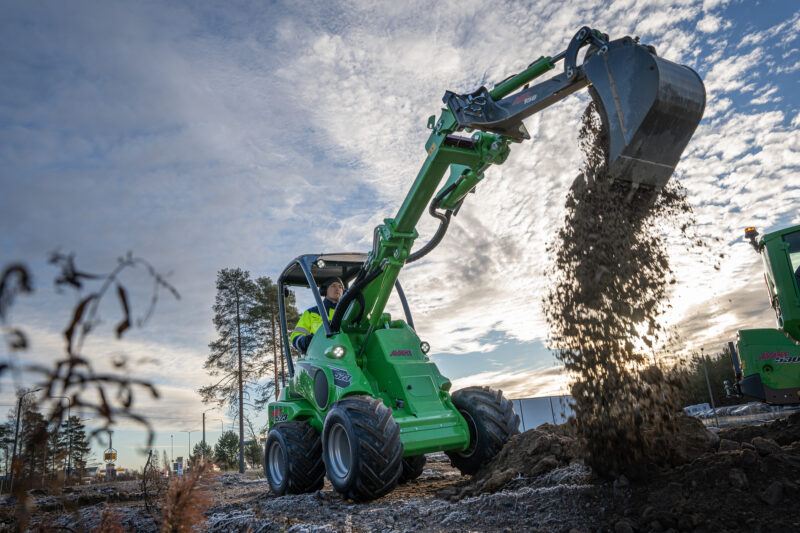

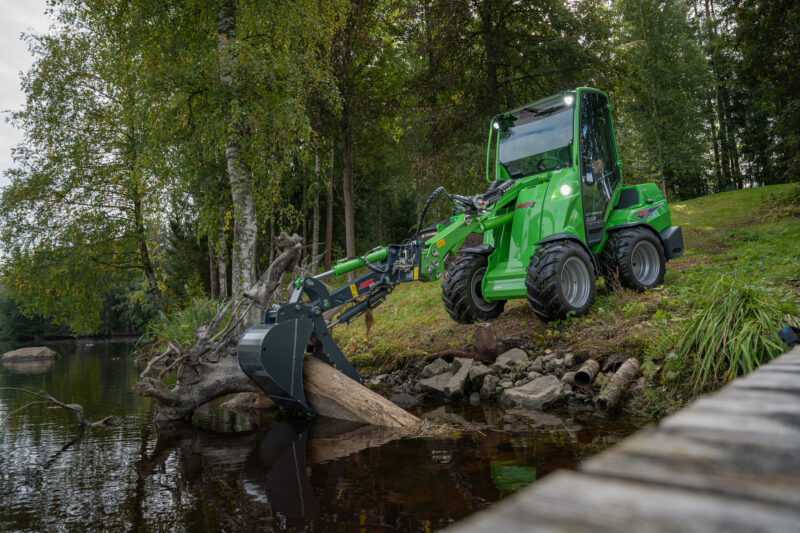

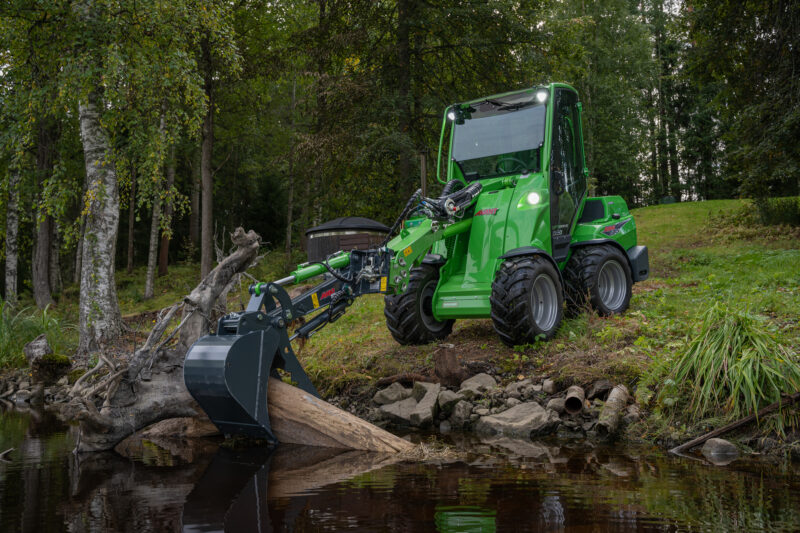

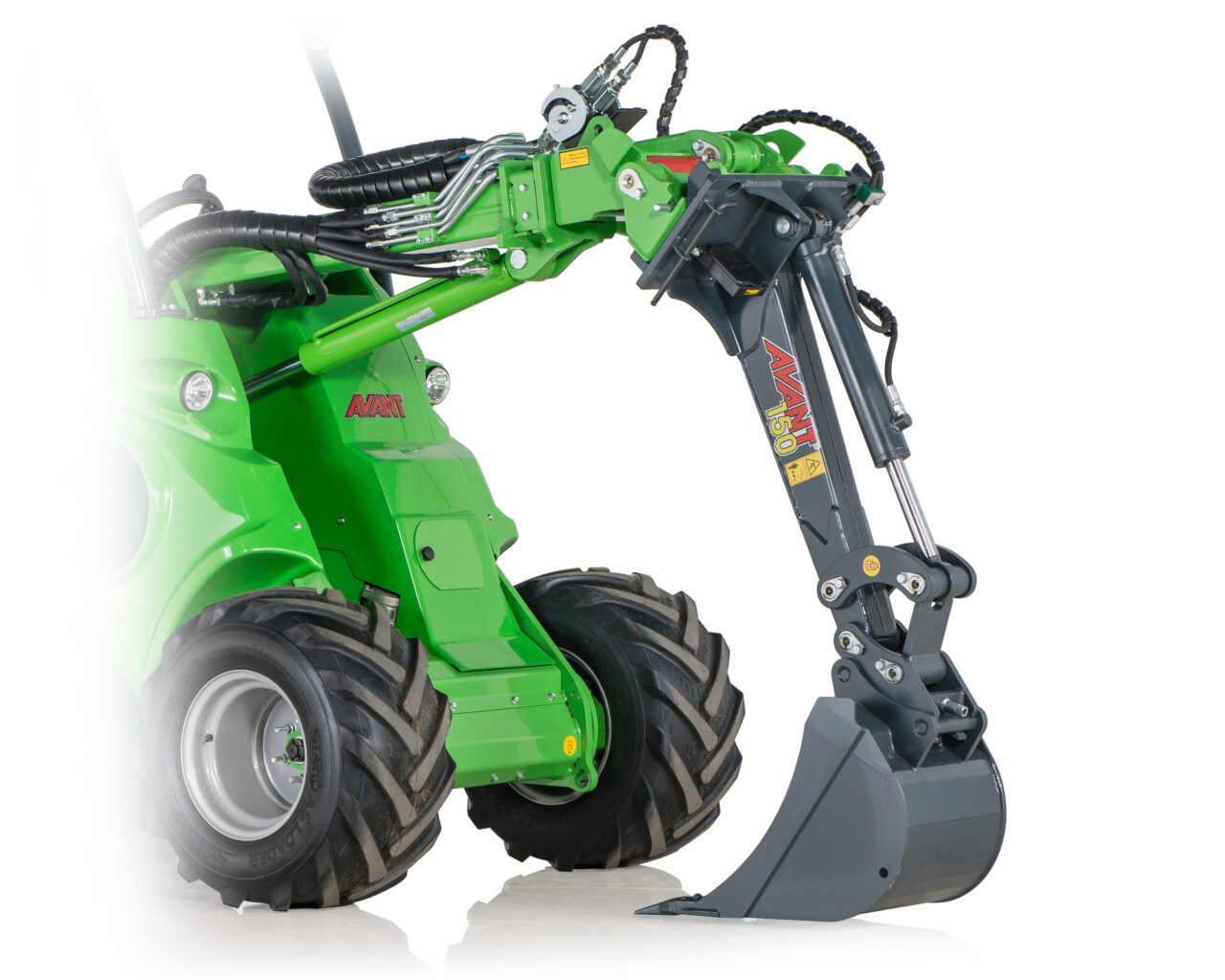

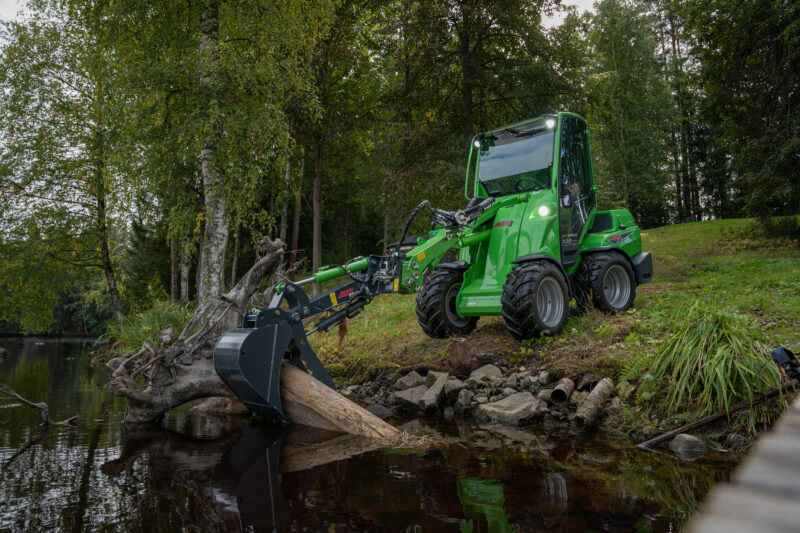

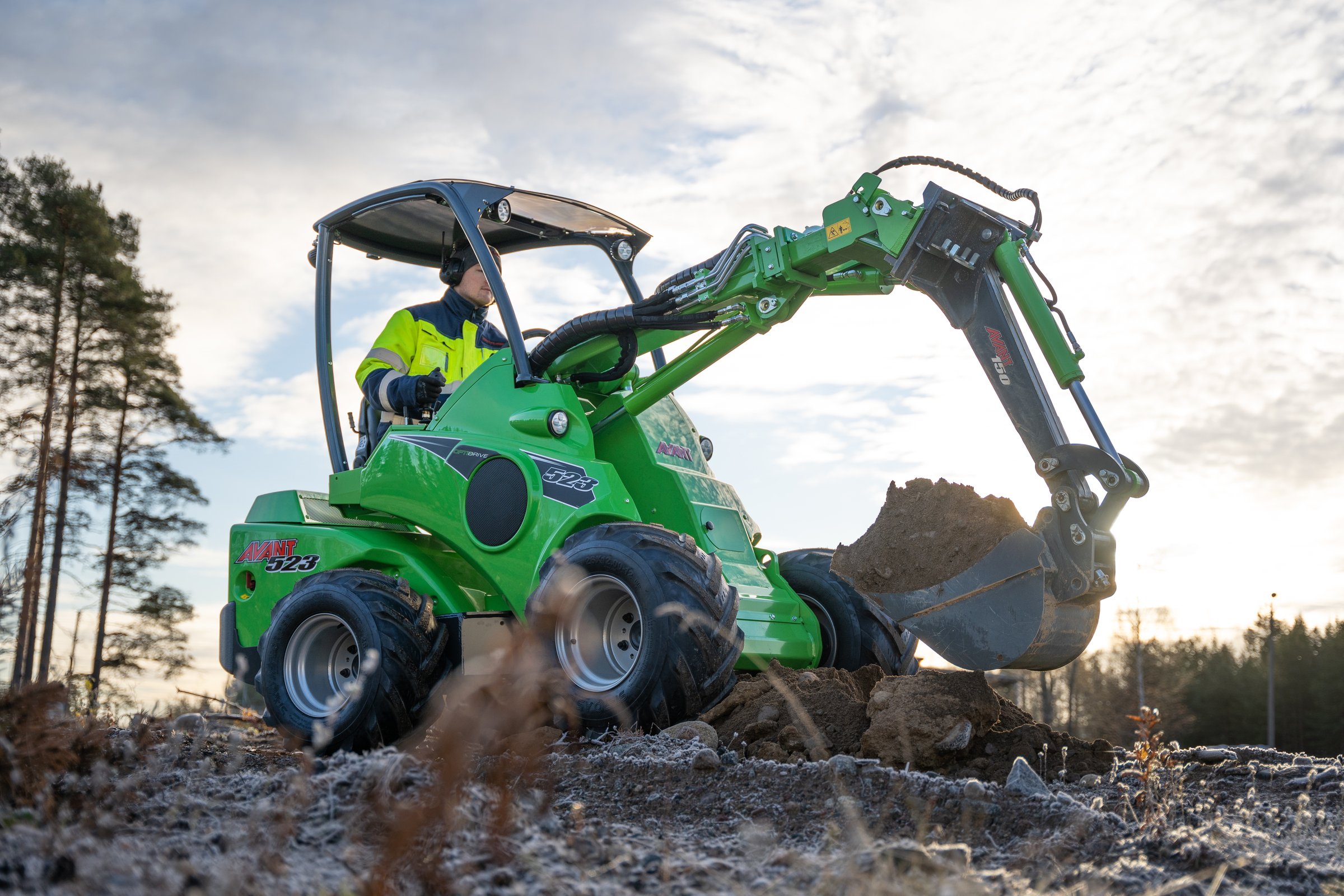

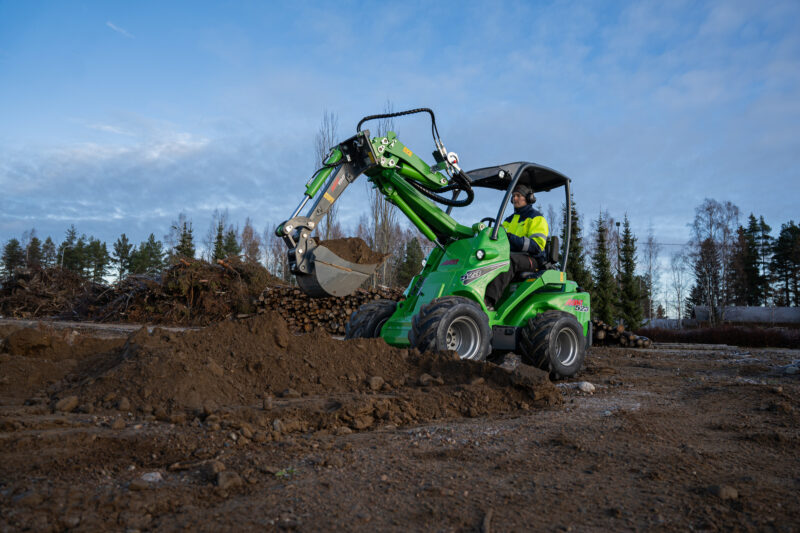

Avant mini digger is an efficient solution for small digging operations where maximum digging depth of 47.2 in or 59.1 in is enough. It mounts directly on the quick attach plate of the loader and is operated with the auxiliary hydraulics control lever. Dumping to the side is happens by turning the steering wheel of the Avant. Mini digger 150 is equipped with the S30 bucket quick attach system (same as on backhoe 260), which makes changing of bucket fast and easy – and the bucket can also be mounted pointing forward if necessary. Bucket tilt adapter for mini digger 150 is available as an option.

Efficient and economical solution for smaller digging jobs
Very fast to mount on Avant
Simple and light to transport from one job site to another
High unloading height
Bucket tilt adapter available as an option for mini digger 150

TECHNICAL INFORMATION

Model	120	150
Max. digging depth	47.2 in	59.1 in
Standard bucket	9.8 in	-
Weight	155 lb	187 lb
Product no	A36822	A36856

OPTIONS

Buckets available	Model 120	Model 150
9.8 in	A415232	A414301
15.7 in	A415230	A414304
29.5 in	A35564	A35230
39.4 in	-	A35383
Trapezoidal bucket 650 mm	-	A35320
Trapezoidal bucket 912 mm	-	A36374

Option

Bucket tilt adapter (Mini digger 150)*	A35320
Thumb grab (Mini digger 150)**	A444174

*) not when thumb grab A444174
**) not when bucket tilt adapter A35320

COMPATIBLE MODELS

Very compatible

Compatible

Incompatible

Model

220

225

225LPG

313S

320S

420 & 423

520

523

525LPG

528

530

R20

R28

R35

630

635

640

735

745

750

755i

760i

850

860i

e513

e527

120

150
