Buckets, material handling

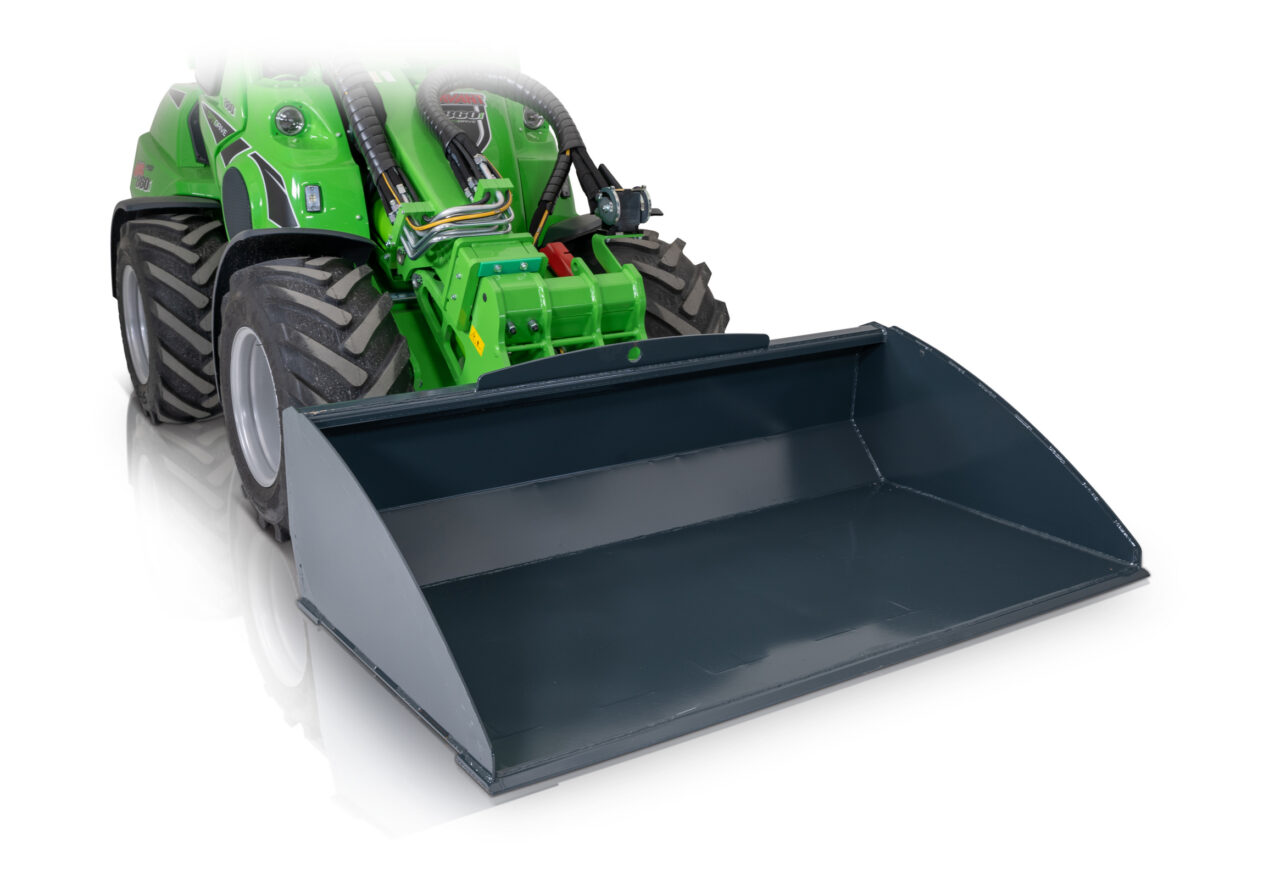

LEVELLING BUCKET

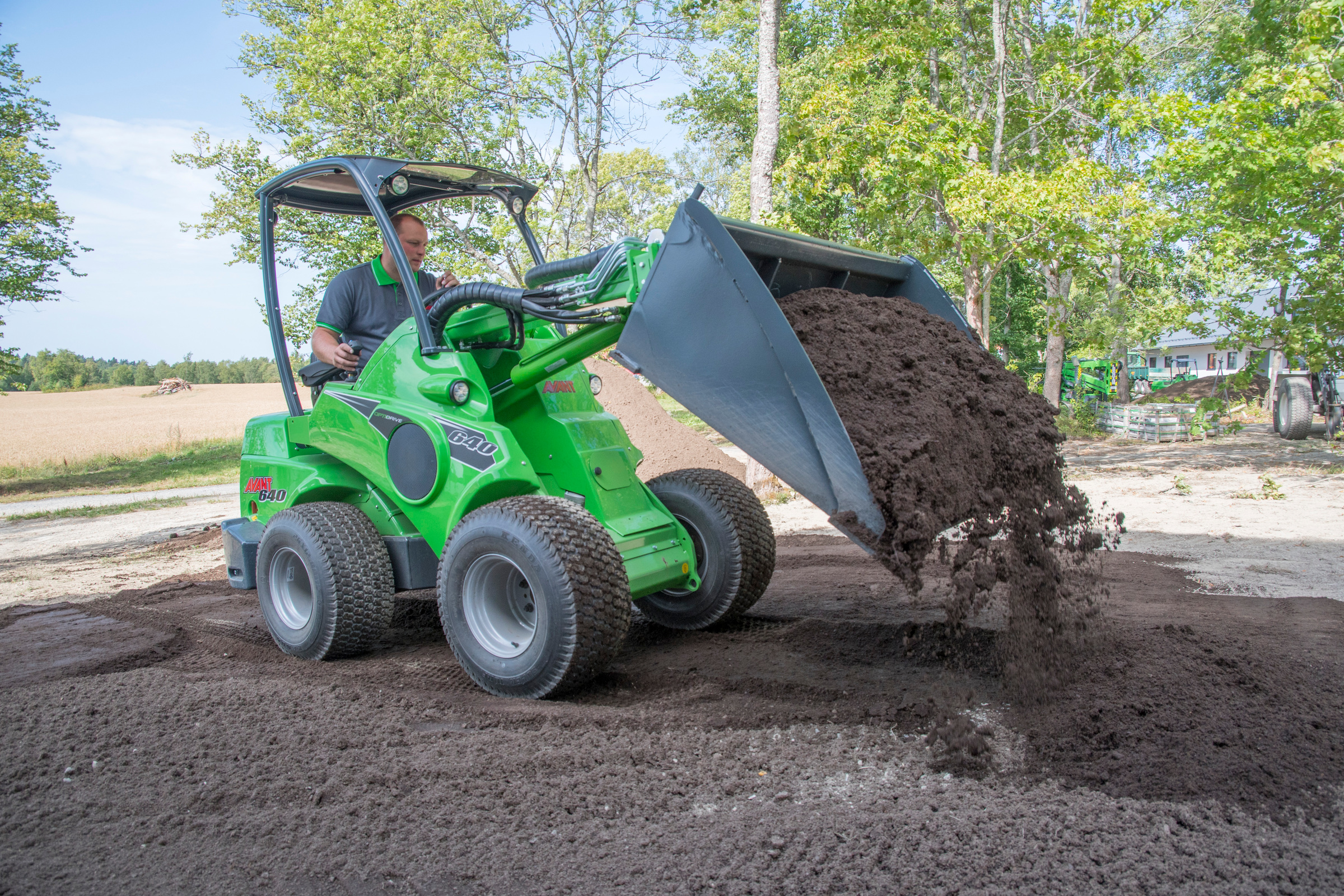

Avant levelling buckets are built with heavy duty construction in mind. Levelling bucket has a sharp back edge which makes levelling easy when driving backward. Other features include a longer bottom, which enables the driver to see the tip of the bucket perfectly. This also makes levelling easier.

The new levelling buckets are stronger and completely plain inside, which makes filling and emptying easier. They are also larger than the earlier models.

  • Excellent visibility to tip of bucket

  • Sharp back edge enables exact levelling when driving backward

  • Heavy duty design

  • Larger 63.0 in and 70.9 in XL buckets intended especially for 700 and 800 series

TECHNICAL INFORMATION

Width struck capacity Heaped Capacity Weight Product no
57.1 in 8.8 cu ft 13.4 cu ft 386 lb A36717
63.0 in 9.9 cu ft 14.8 cu ft 419 lb A36706
63.0 in XL 14.7 cu ft 20.8 cu ft 507 lb A445616
70.9 in XL 16.4 cu ft 23.5 cu ft 551 lb A443761



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
