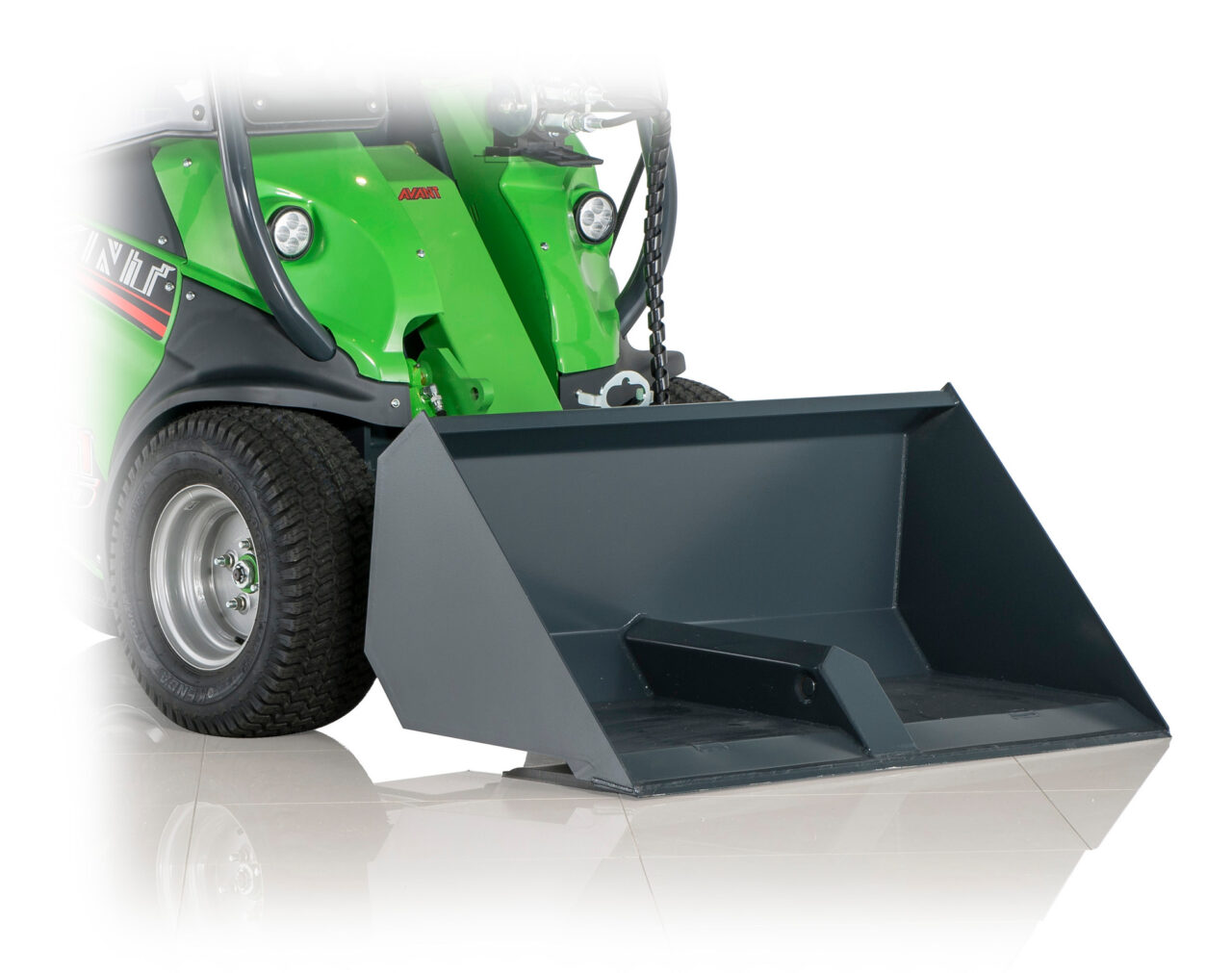

HIGH TIP BUCKET

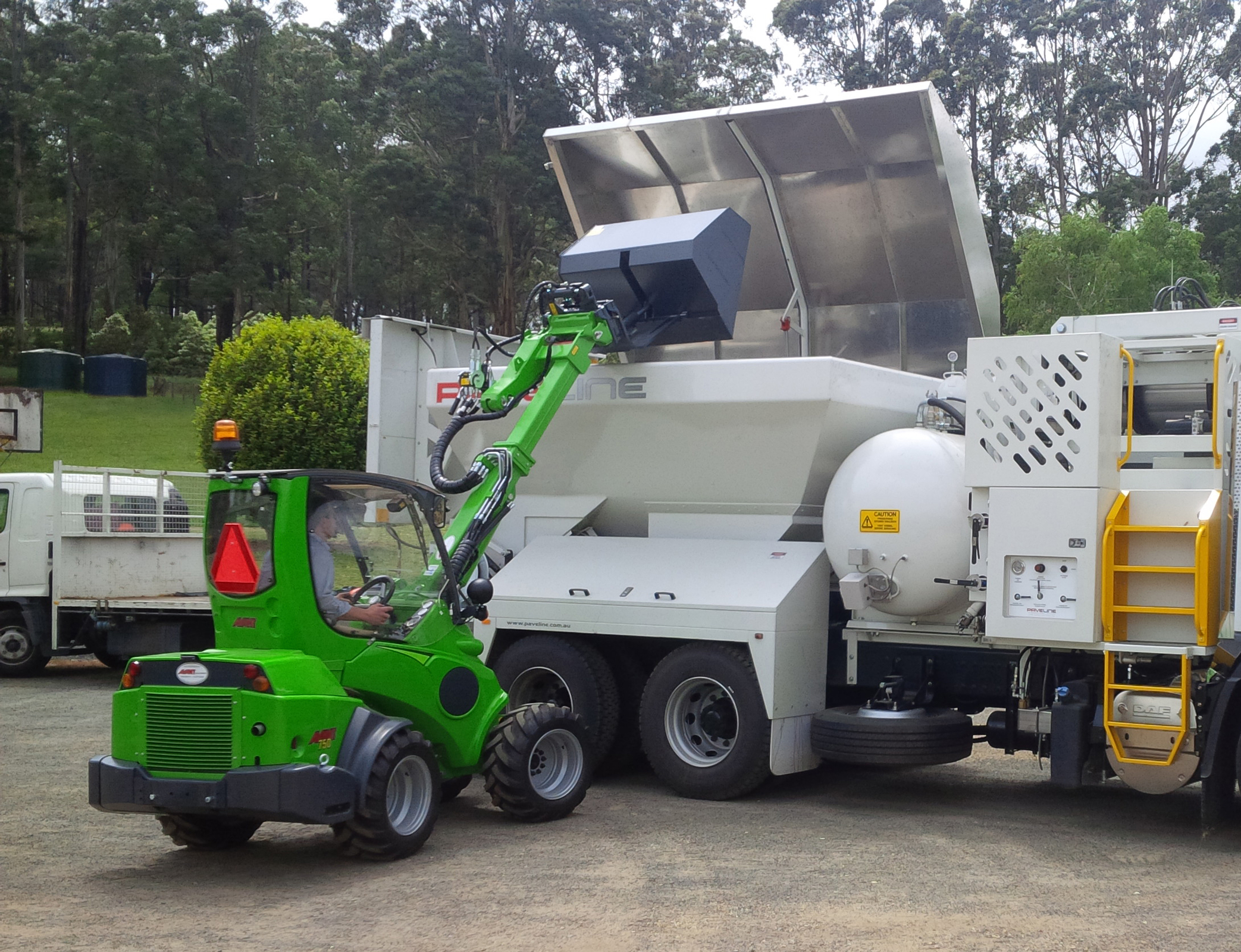

High tip bucket is the right choice when you need to reach higher and longer. The bucket is equipped with a hydraulic cylinder that pushes and tips the bucket over its front edge, which gives considerably more tipping height than with a normal bucket.

Maximum tipping height with telescopic boom on 400, 500 and 600 series 124” and on 700 series 138” and on 800 series as high as 157”.

  • High tipping height

  • Excellent for loose and light material loading

TECHNICAL INFORMATION

Width struck capacity heaped capacity Weight Product no
41.3 in 5.3 cu ft 6.7 cu ft 284 lb A2631
50.4 in 12.4 cu ft 14.8 cu ft 353 lb A2824

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
