Buckets, material handling

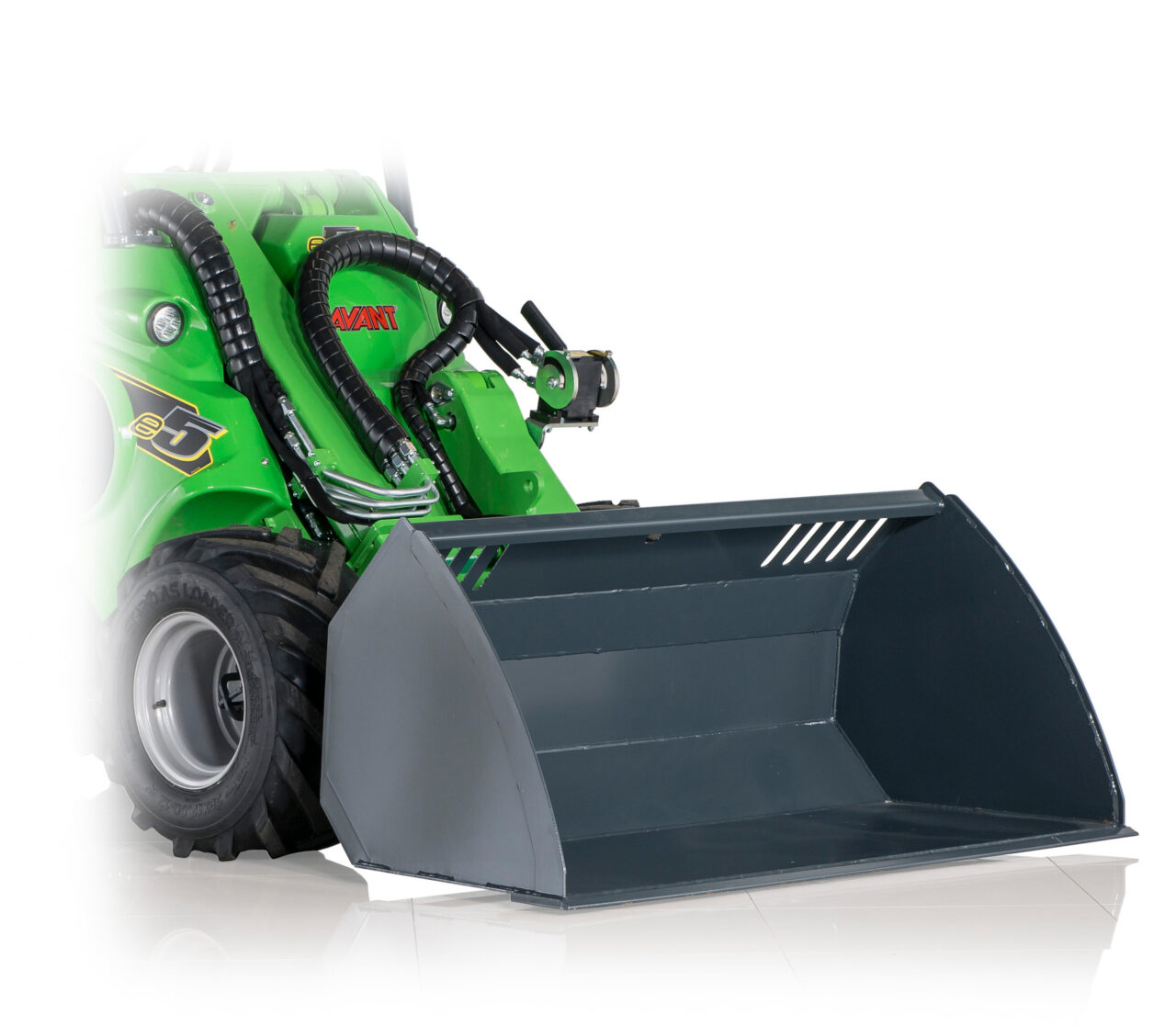

HEAVY DUTY GENERAL BUCKET

Avant heavy duty general buckets are available with widths starting from 51 inches. They are made of stronger materials, they are heavier and have more capacity than standard general buckets. This makes them ideal tools for harder earthmoving and material handling jobs, and the HD buckets are best suited for Avant 600, 700 and 800 series.

Other features are the same as on standard general buckets: good visibility to the edge of the bucket, the inside of the bucket is completely plain and the sides open forward in a slight angle which guarantees easy and complete filling and emptying of all kinds of materials.

  • Heavy duty bucket for more demanding earthmoving and and material handling jobs
  • Excellent visibility to the edge of the bucket
  • No reinforcement plates inside the bucket – easy filling and emptying
  • High breakout force
  • Strong cutting edge made of high tensile, abrasion resistant wear steel

TECHNICAL INFORMATION

Width

struck

capacity

Volume Weight Product no
51.2 in 10.9 cu ft 13.1 cu ft 278 lb A36713
57.1 in 12.4 cu ft 14.8 cu ft 304 lb A36712
63.0 in 13.8 cu ft 16.2 cu ft 331 lb A36535
63.0 in 15.2 cu ft 21.2 cu ft 419 lb A437578



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
