Buckets, material handling

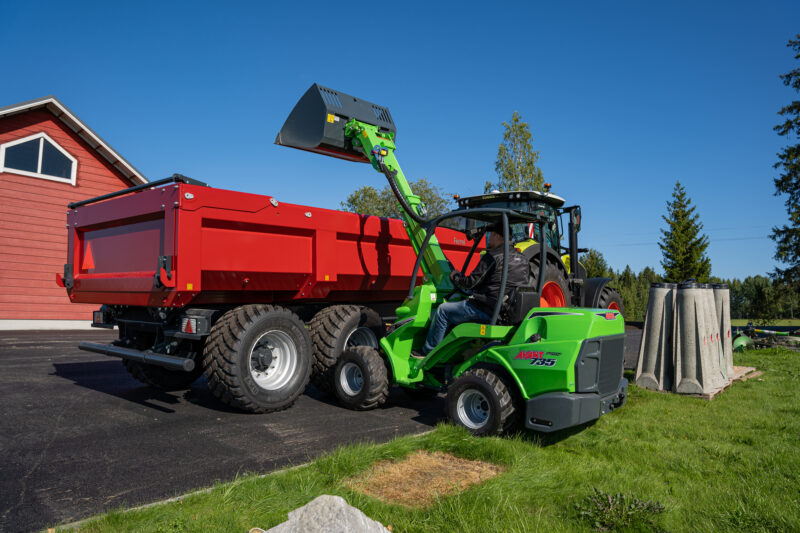

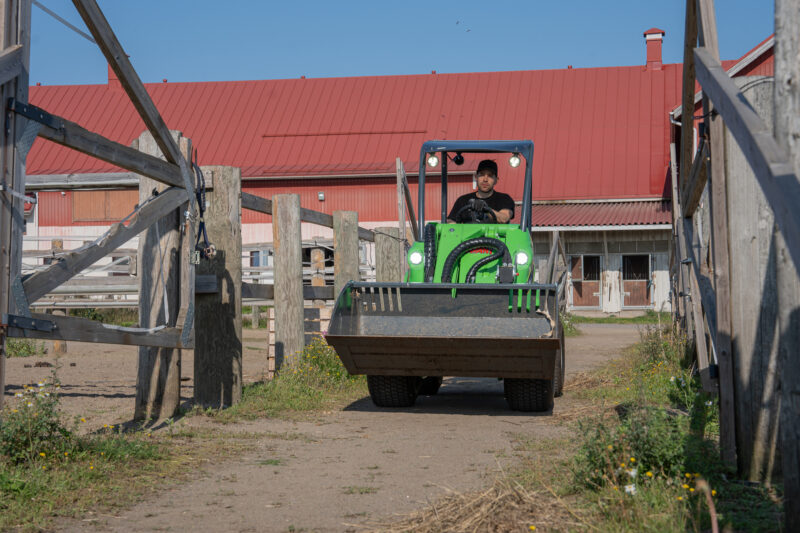

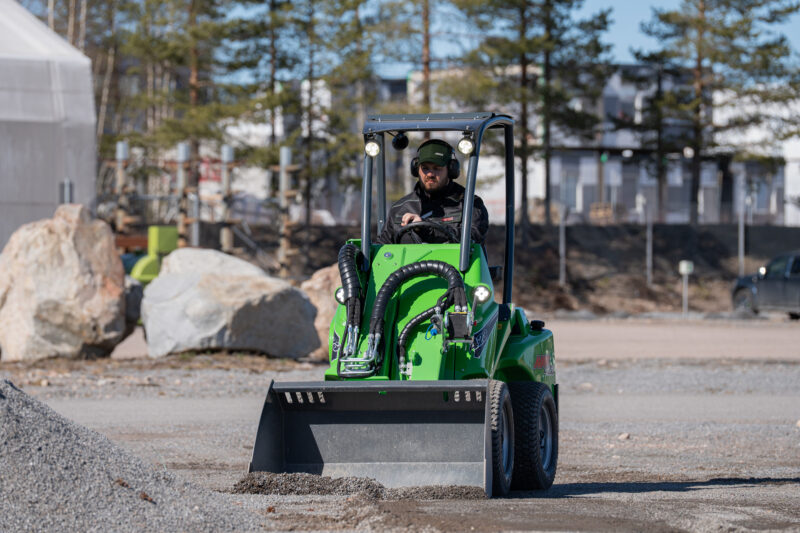

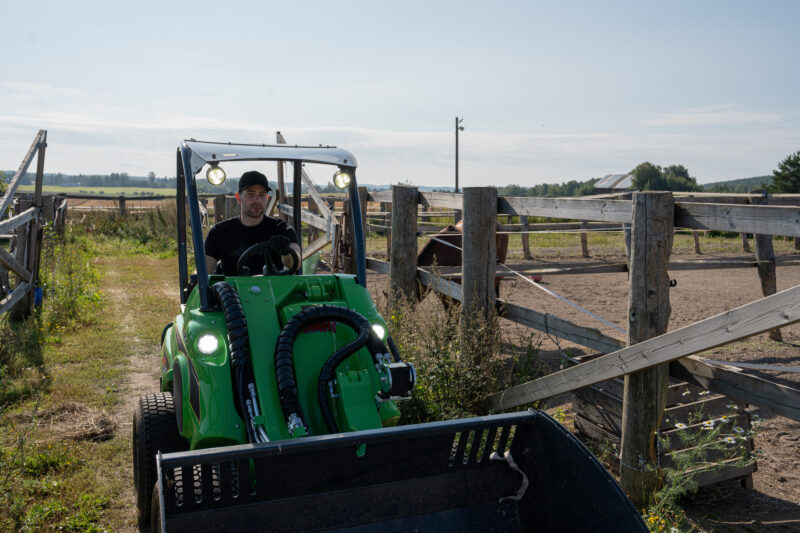

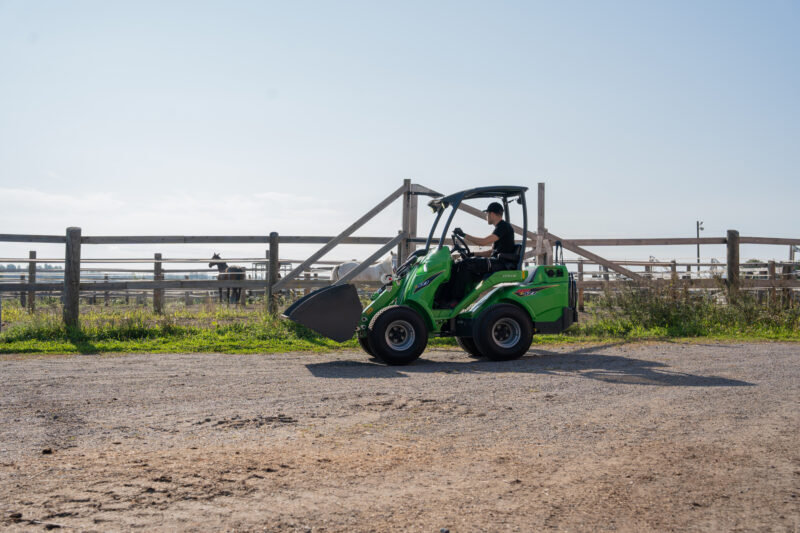

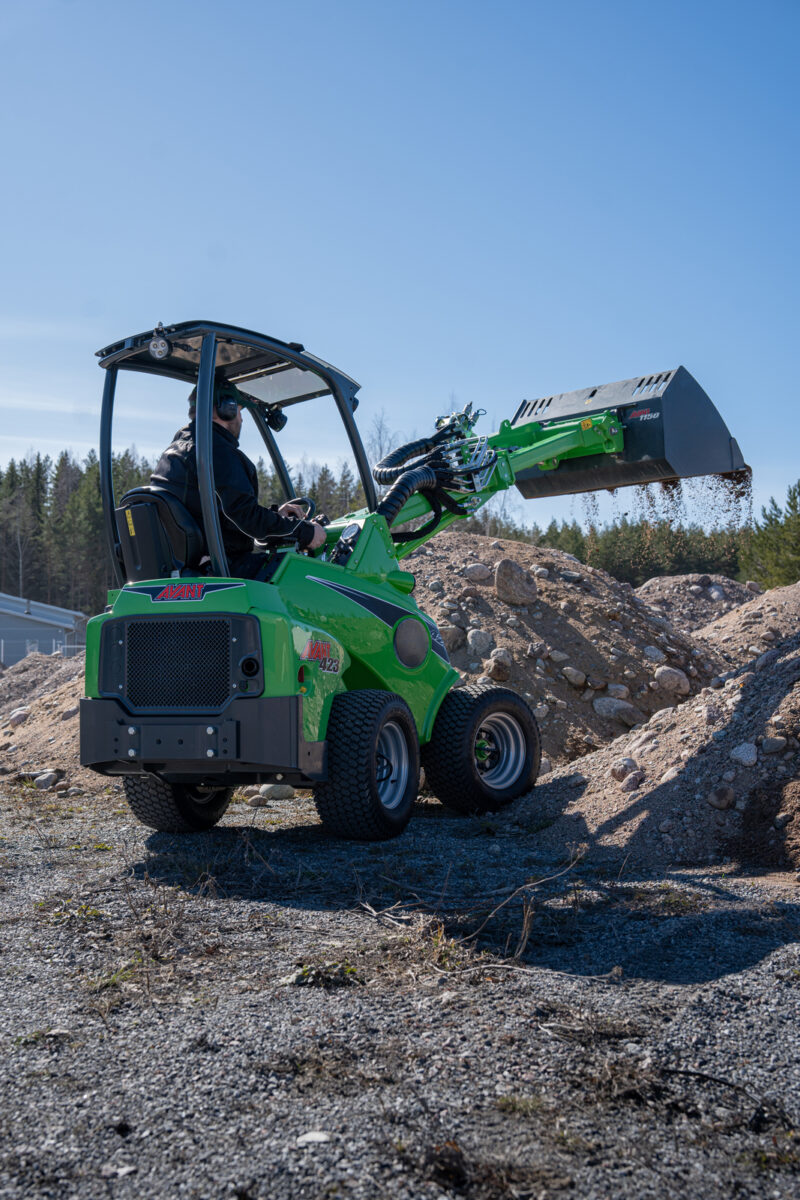

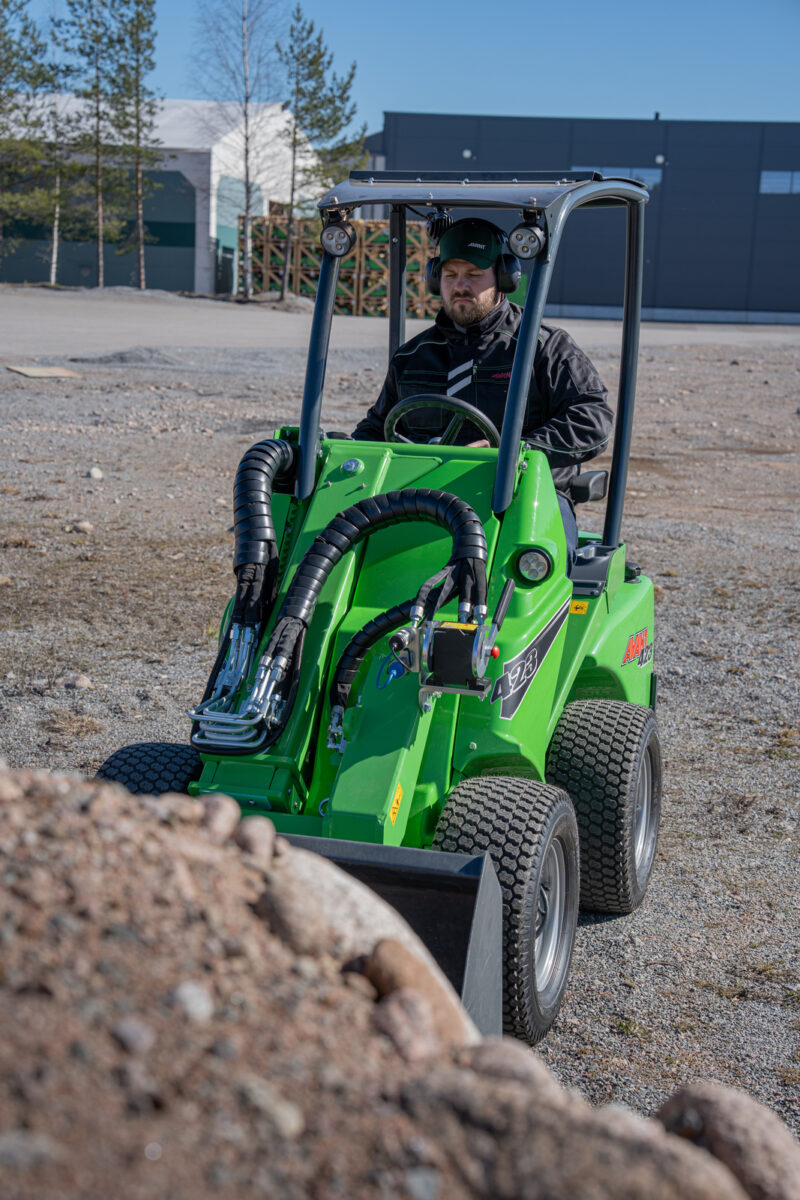

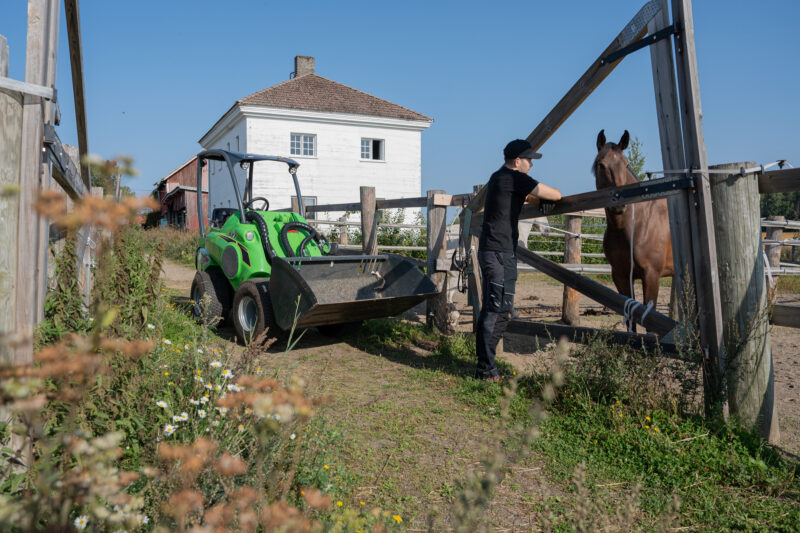

GENERAL BUCKET

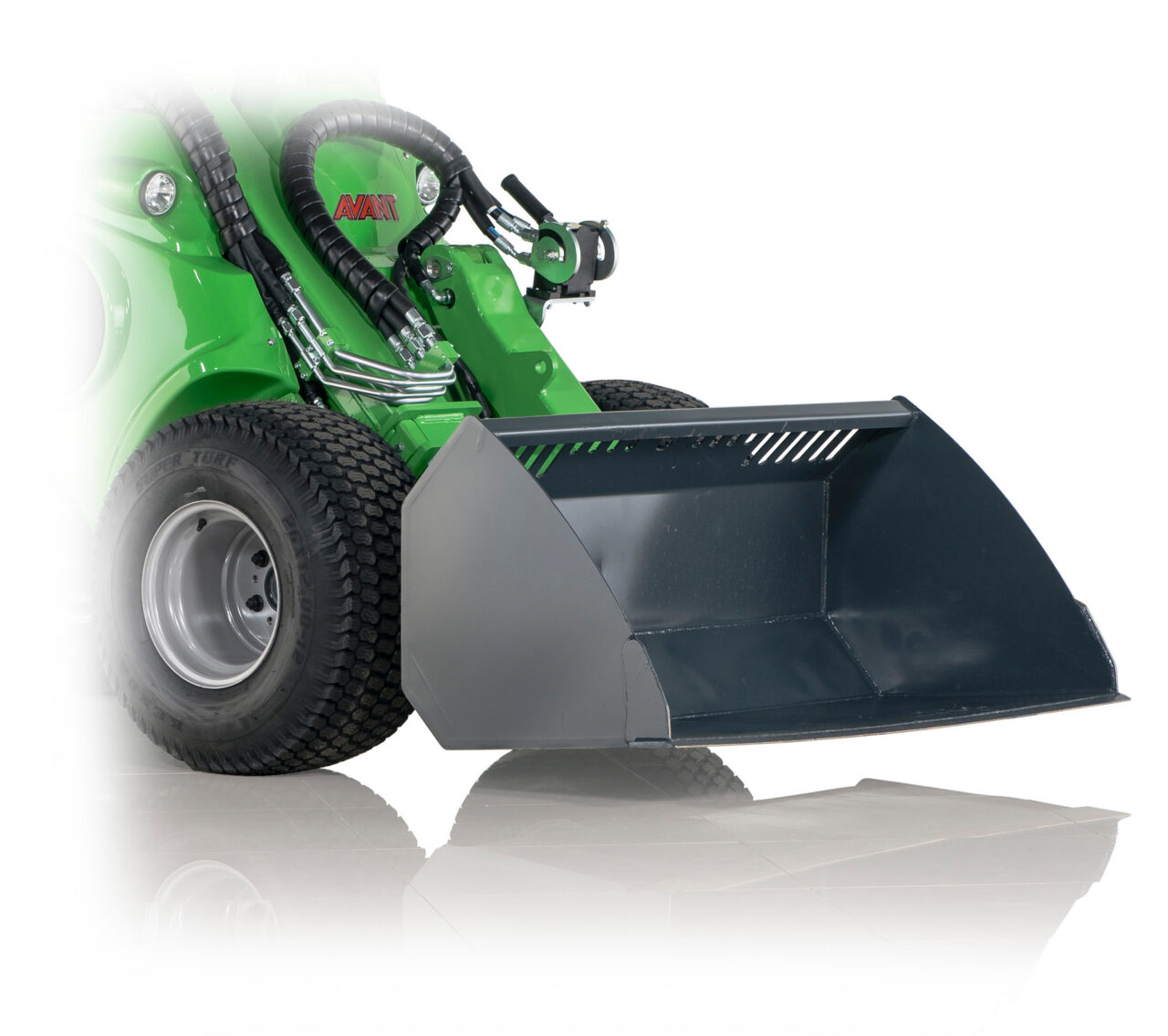

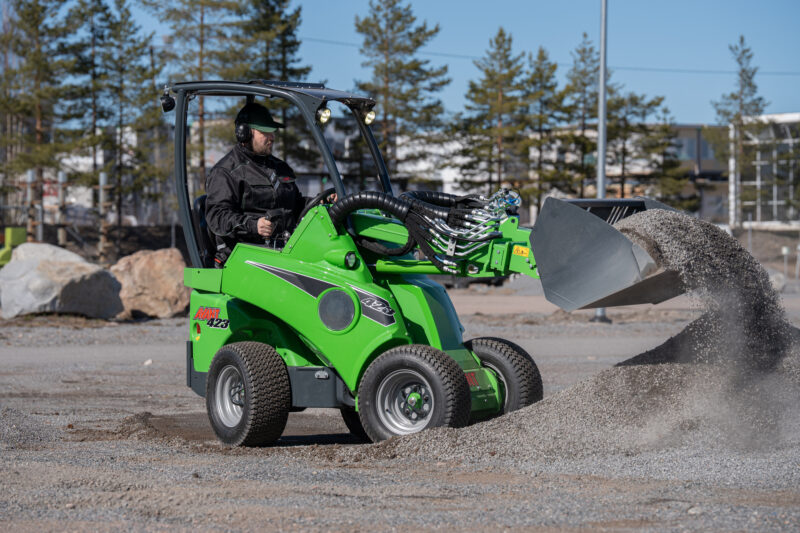

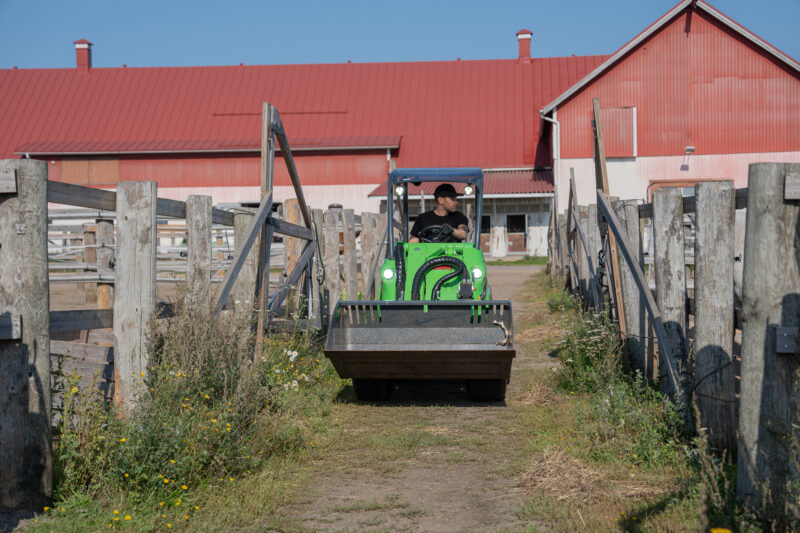

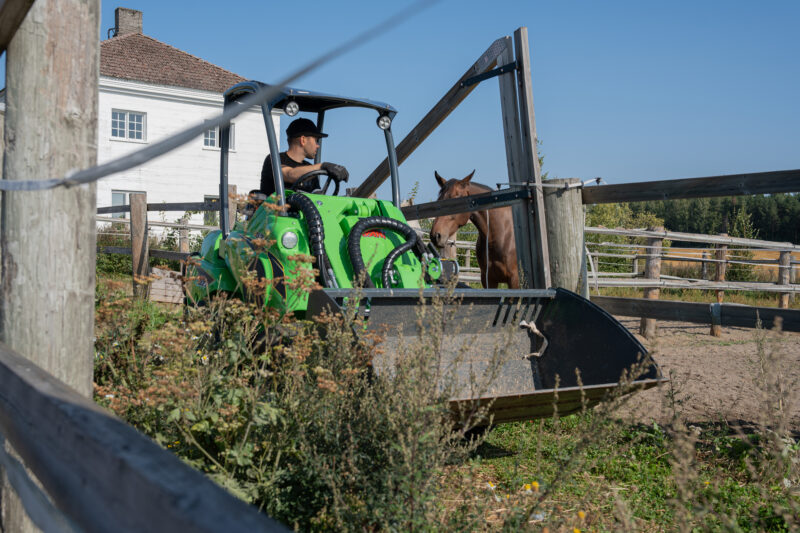

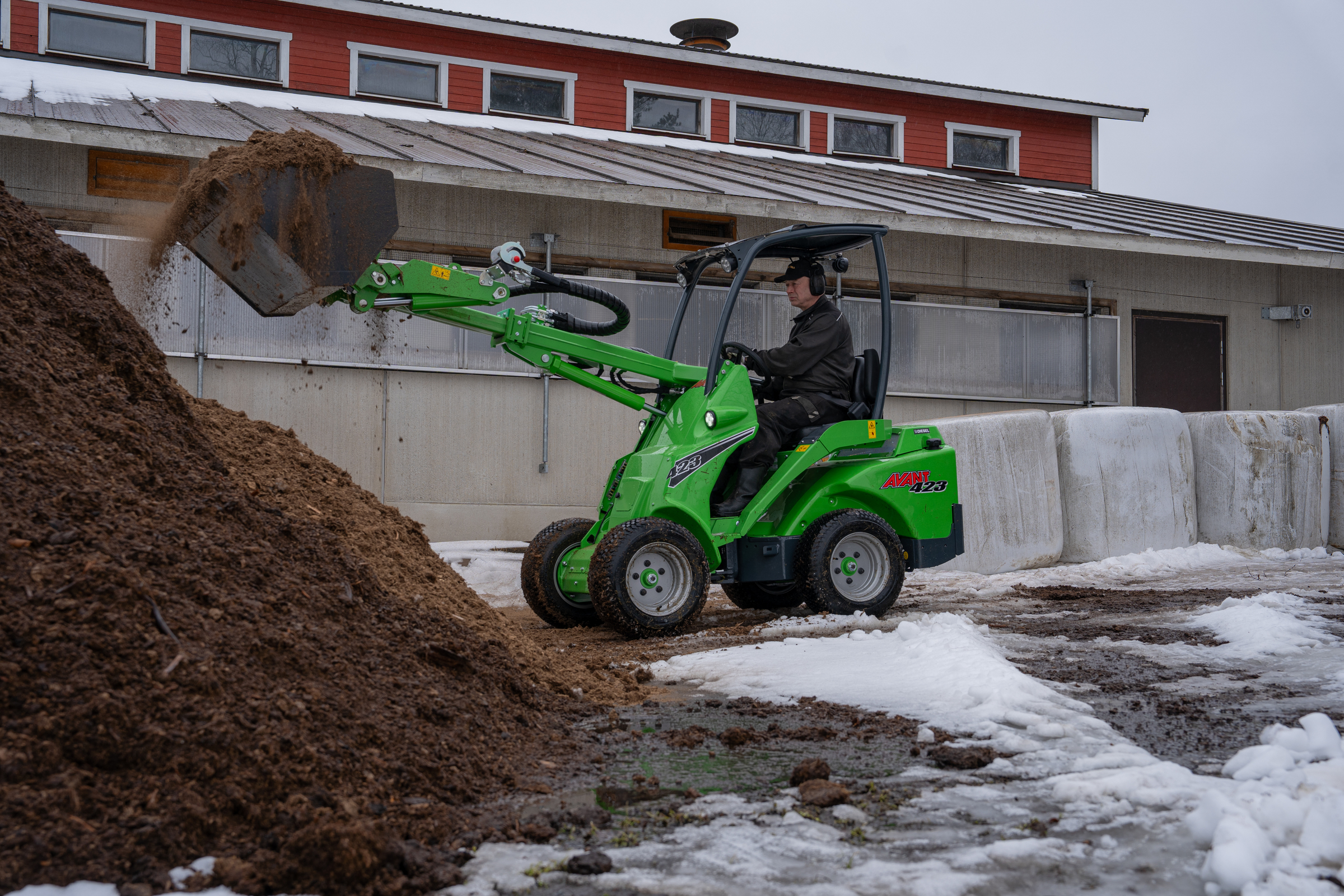

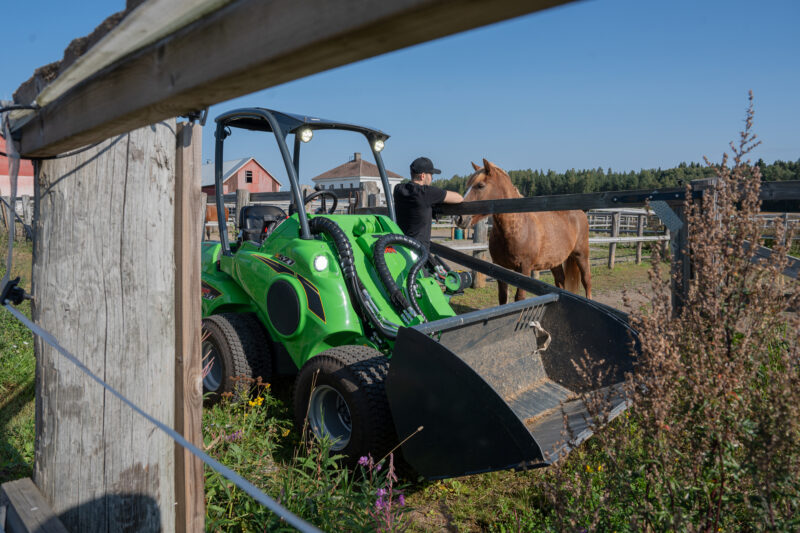

Avant general buckets are designed so that the operator can see the front edge of the bucket from the driver’s seat, which means quick and easy loading and emptying. There are no reinforcement plates inside the bucket which would interfere when loading and emptying, and the sides open forward in a slight angle which guarantees easy and complete emptying of all kinds materials.

Length of the bucket has been optimized in order to give best possible breakout force. Sides open forward in a slight angle which guarantees easy and complete emptying of all kinds materials.

There are narrow holes at the upper end of the bucket which improve visibility and prevent stones from falling towards the operator.

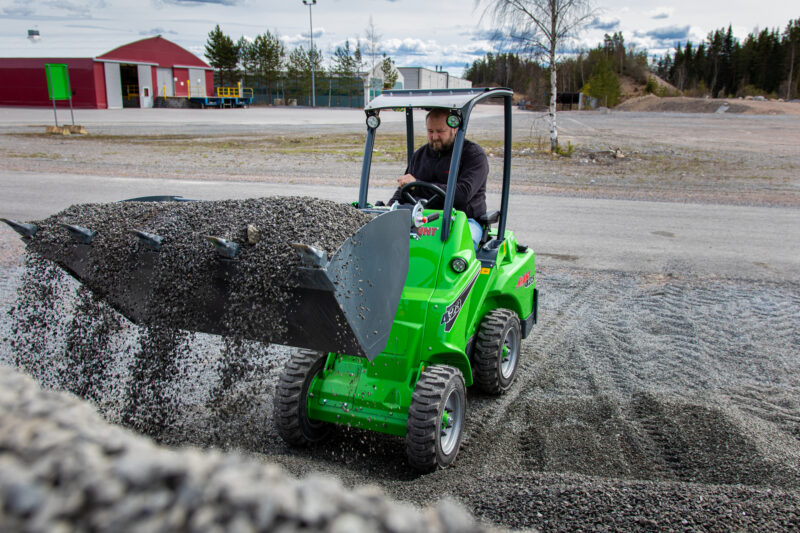

Available with straight edge and with teeth. Teeth protection plate is also available.

  • All round bucket, suitable for almost every shovelling job
  • Excellent visibility to the edge of the bucket
  • No reinforcement plates inside the bucket – easy filling and emptying
  • High breakout force
  • Strong cutting edge made of high tensile, abrasion resistant wear stee

TECHNICAL INFORMATION

Width Edge

STRUCK

Capacity

heaped

capacity

Weight Product no
35.4 in Straight 5.3 cu ft 6.7 cu ft 137 lb A36711
35.4 in Teeth 5.3 cu ft 6.7 cu ft 159 lb A36716
41.3 in Straight 4.2 cu ft 5.3 cu ft 110 lb A36702*
41.3 in Straight 6.7 cu ft 8.5 cu ft 161 lb A36710
41.3 in Teeth 6.7 cu ft 8.5 cu ft 183 lb A36780
45.3 in Straight 7.4 cu ft 9.2 cu ft 172 lb A36709
45.3 in Teeth 7.4 cu ft 9.2 cu ft 201 lb A36779
51.2 in Straight 8.5 cu ft 10.6 cu ft 190 lb A36698
51.2 in Teeth 8.5 cu ft 10.6 cu ft 216 lb A36778
53.1 in Straight 8.5 cu ft 10.9 cu ft 199 lb A36996
53.1 in Teeth 8.5 cu ft 10.9 cu ft 225 lb A36997

*) A36702 is the general bucket for 200 series – the dimensions and weight match the lift capacity of 200 series. Wider general buckets can be used on 200 series as light material bucket.

OPTIONS

  • Teeth protection plate 41.3 in A417347
  • Teeth protection plate 45.3 in A420132
  • Teeth protection plate 51.2 in A417320

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
320S+
420
423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
