Forestry mulcher

Request a quote
Close

More images

plus

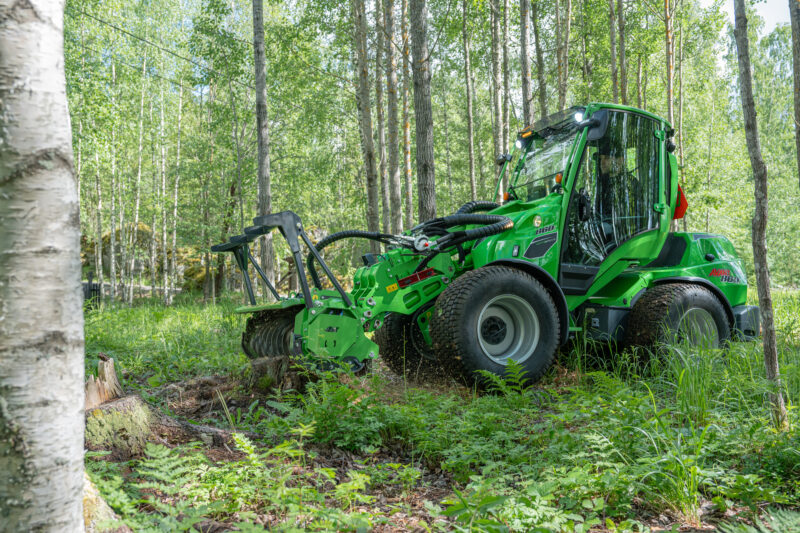

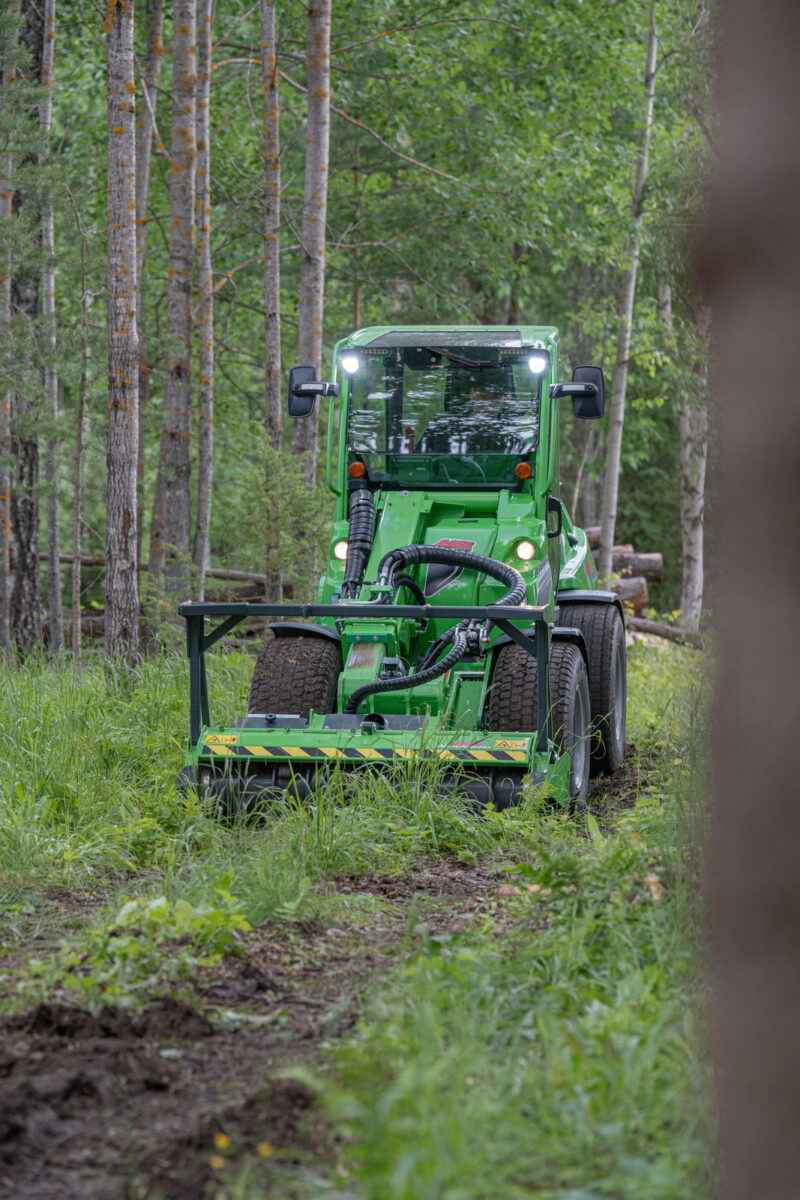

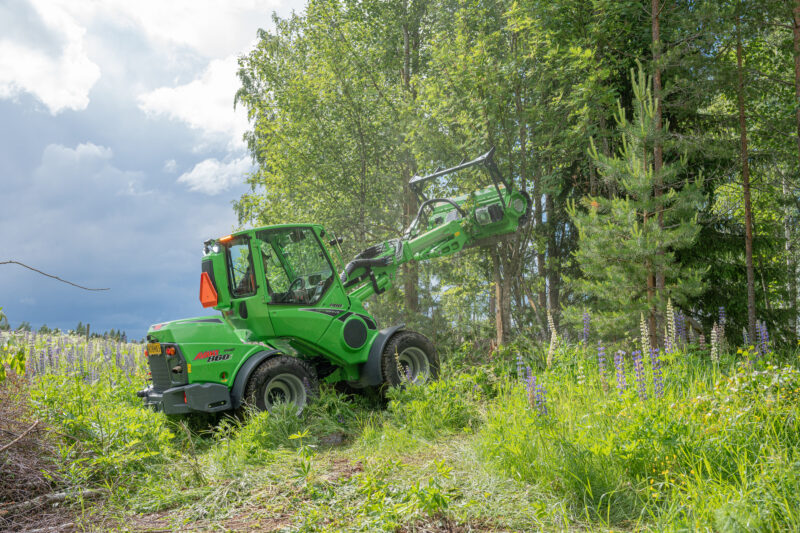

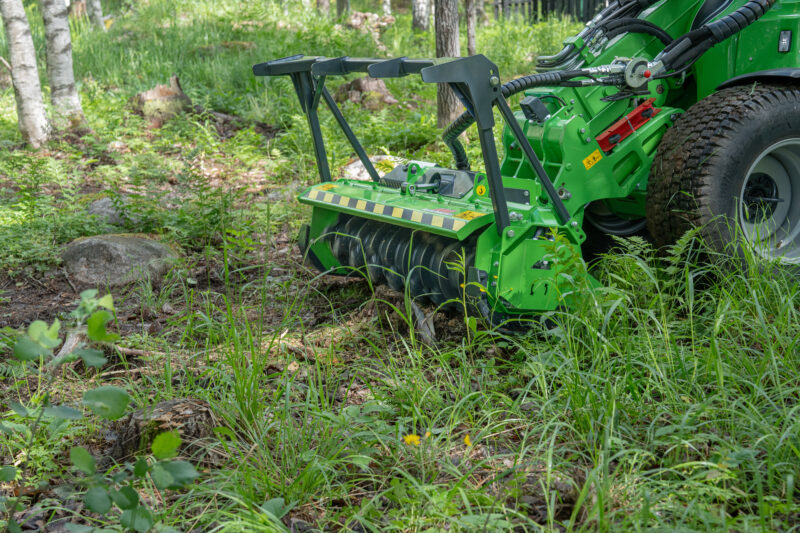

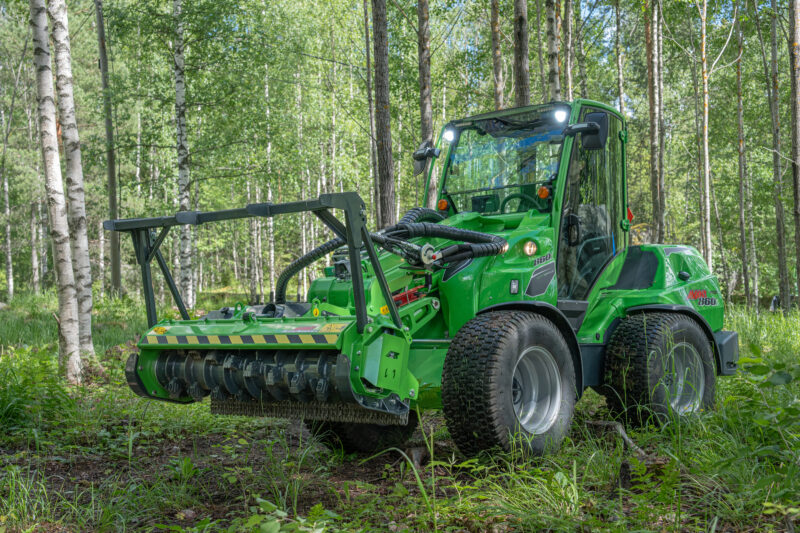

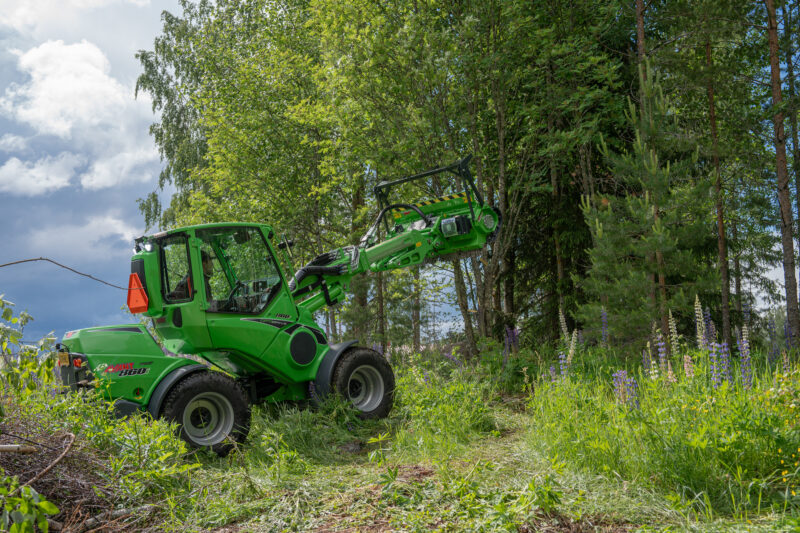

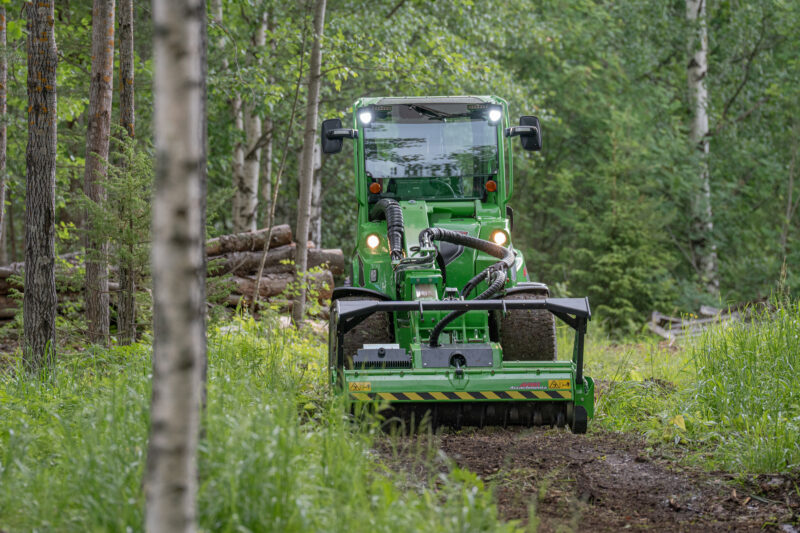

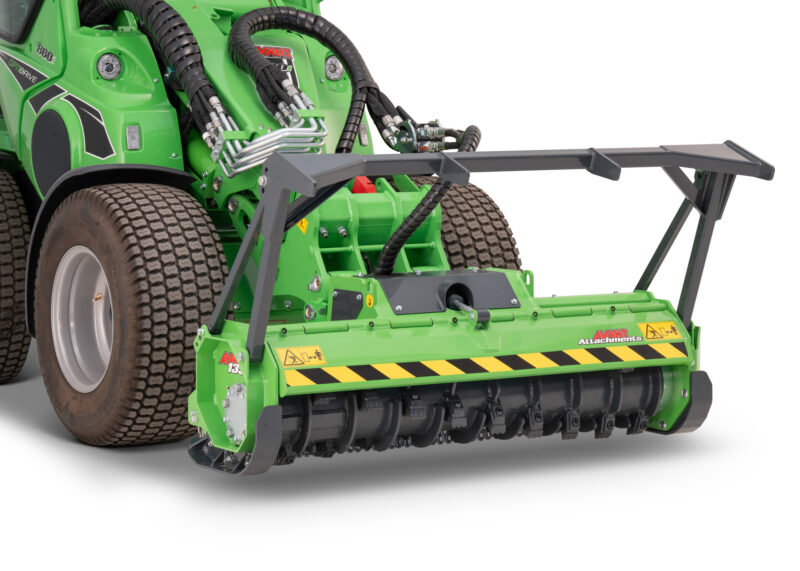

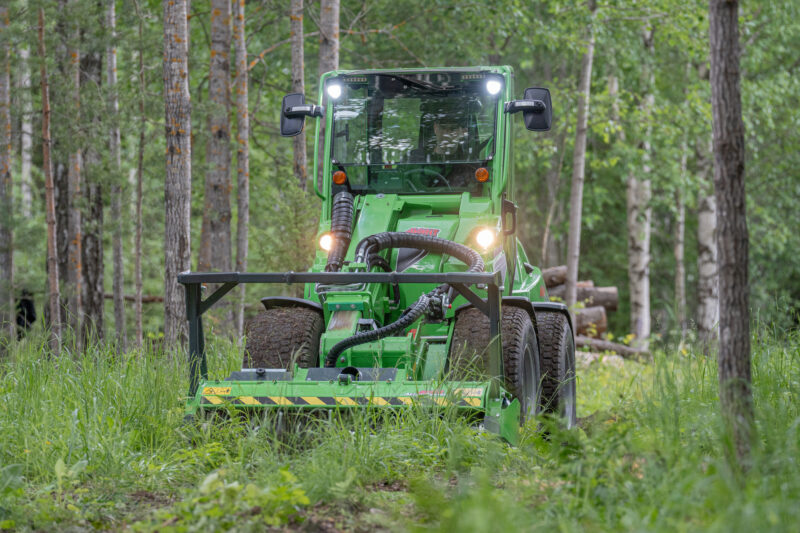

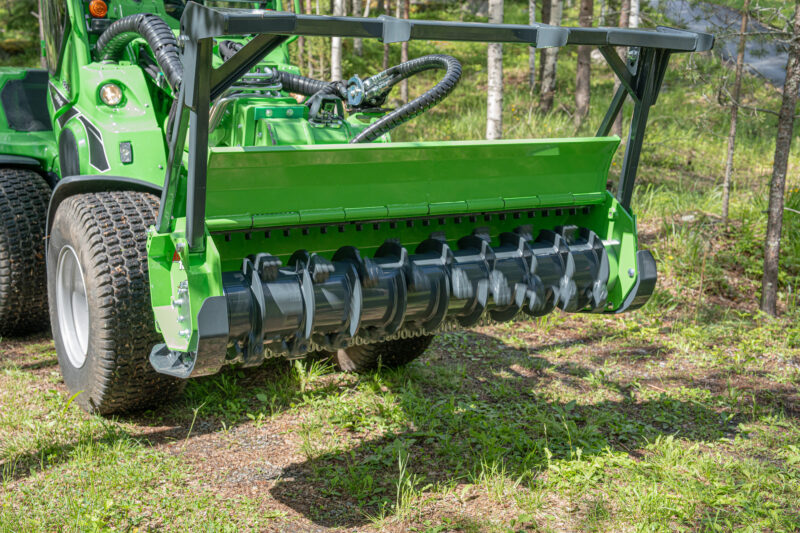

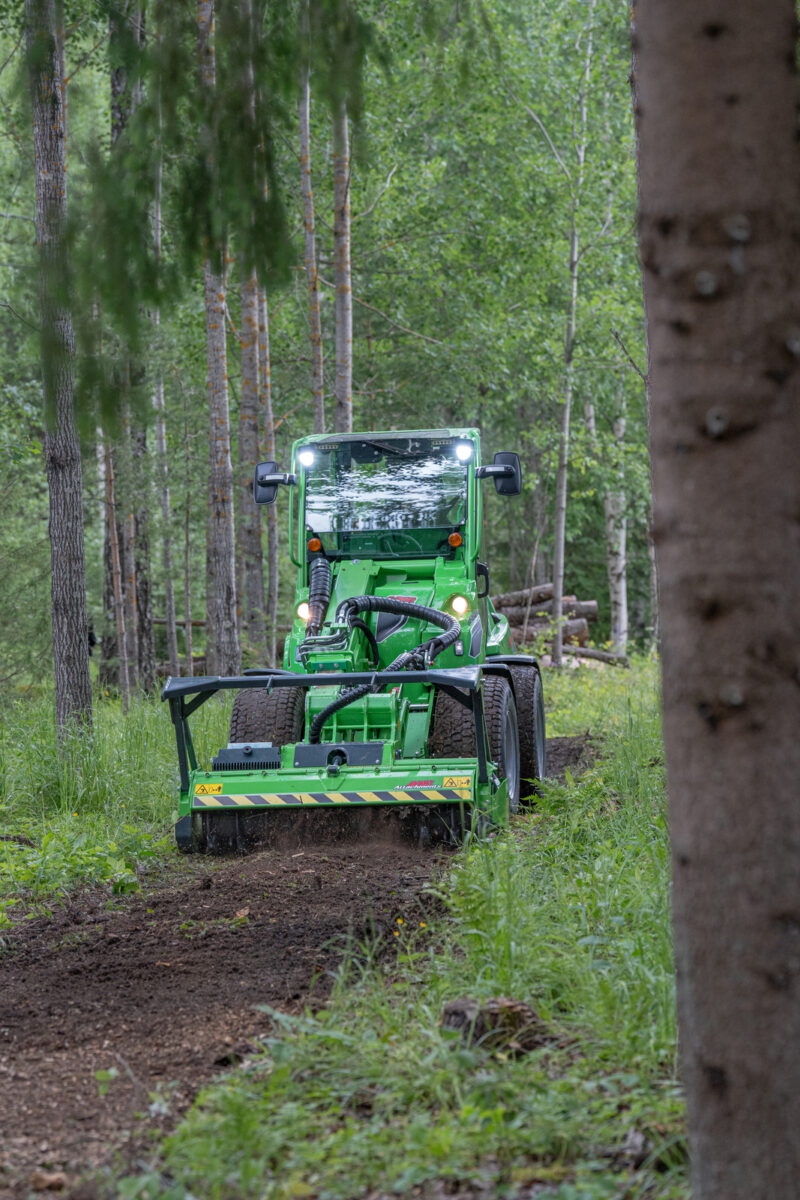

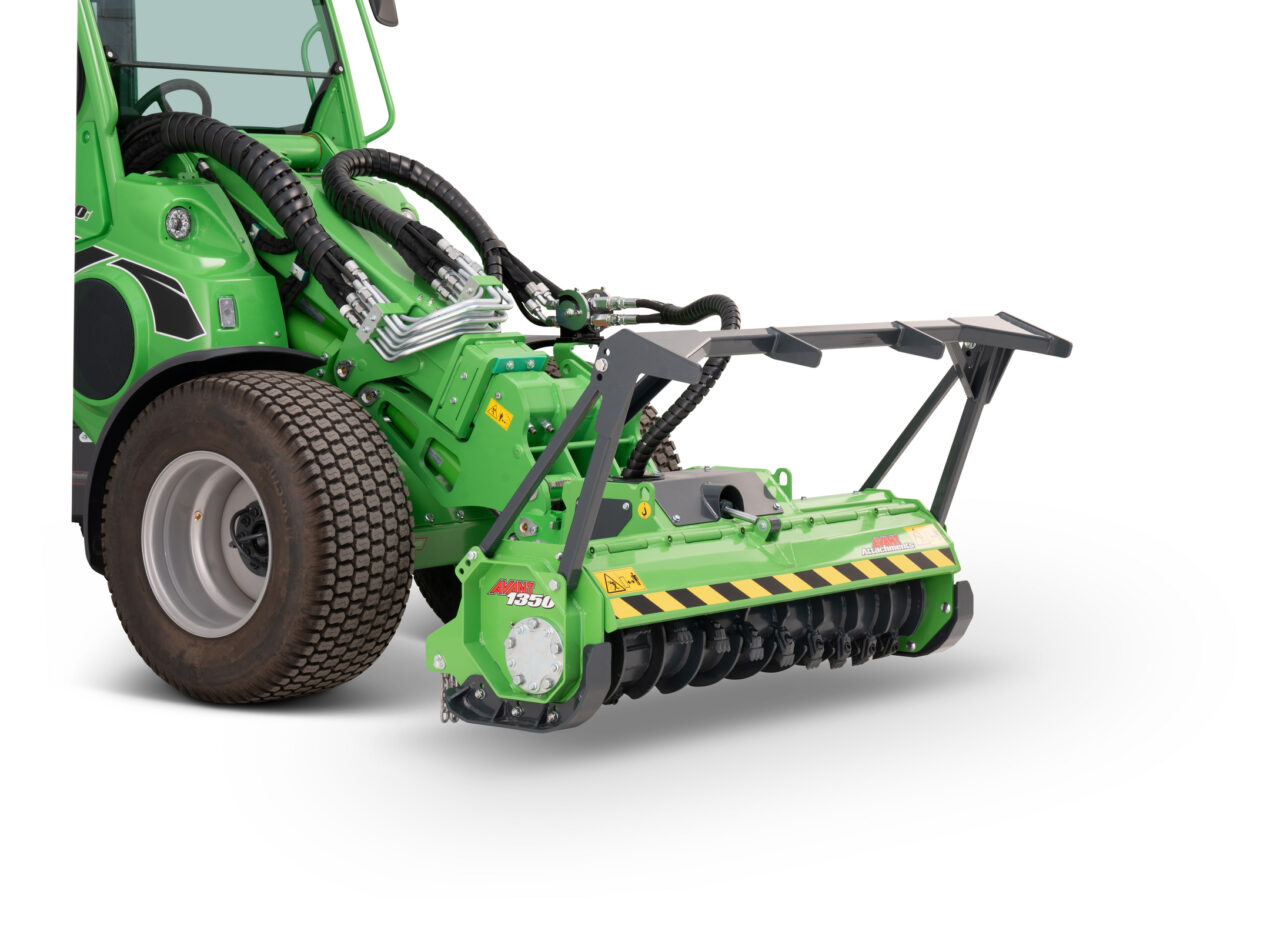

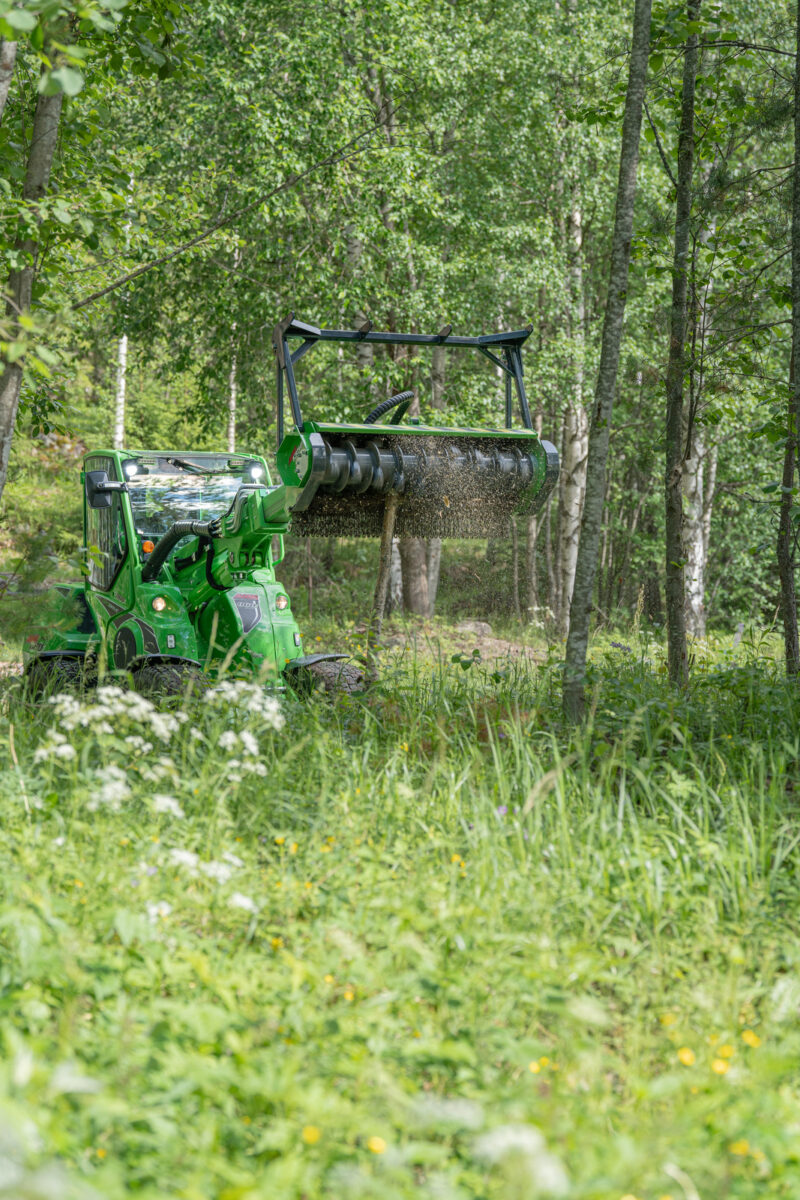

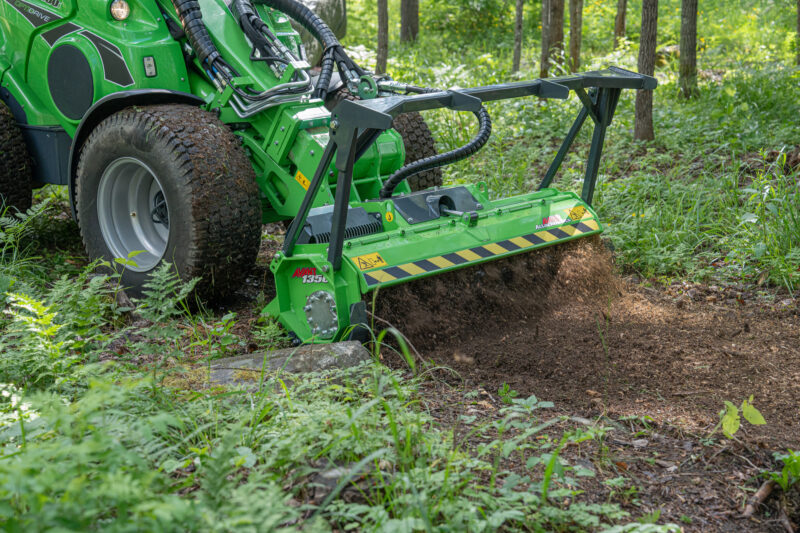

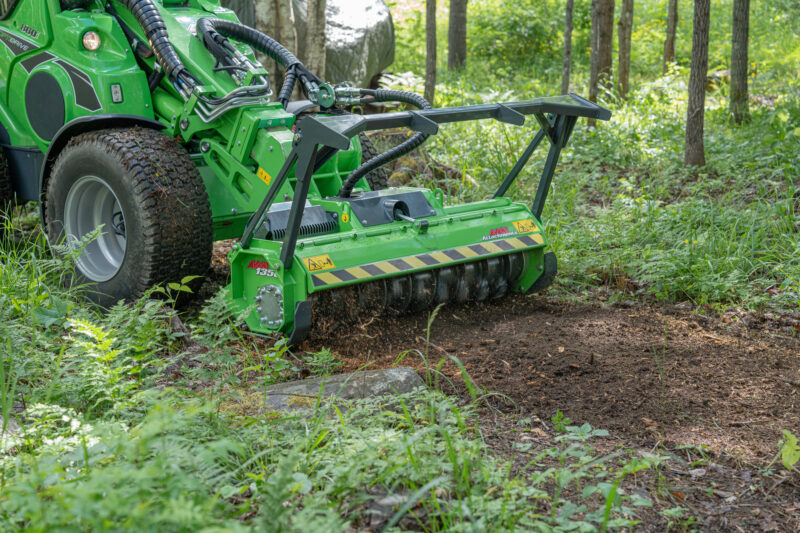

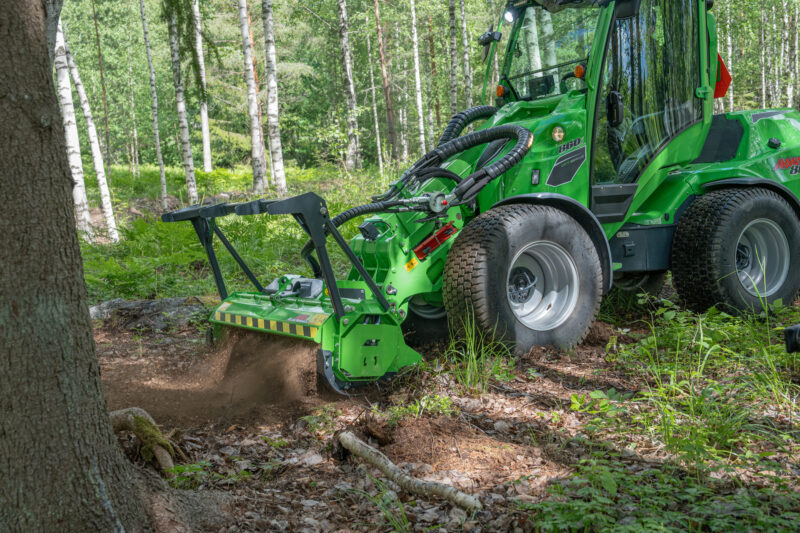

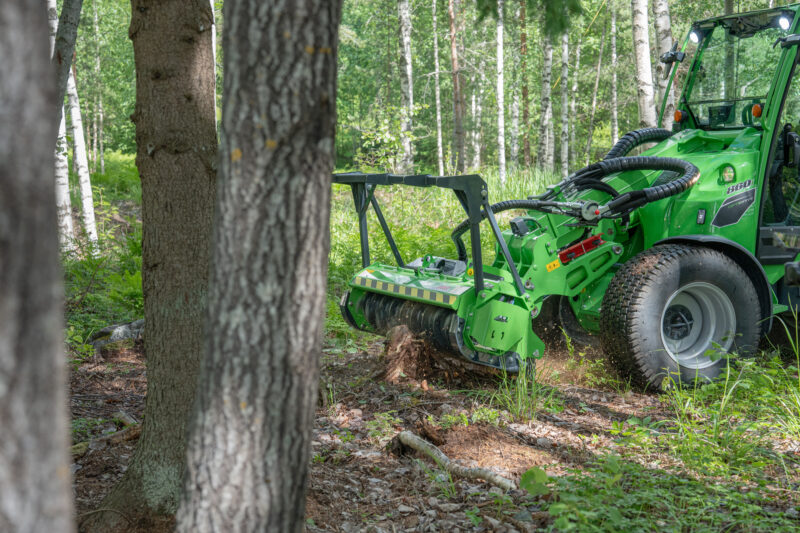

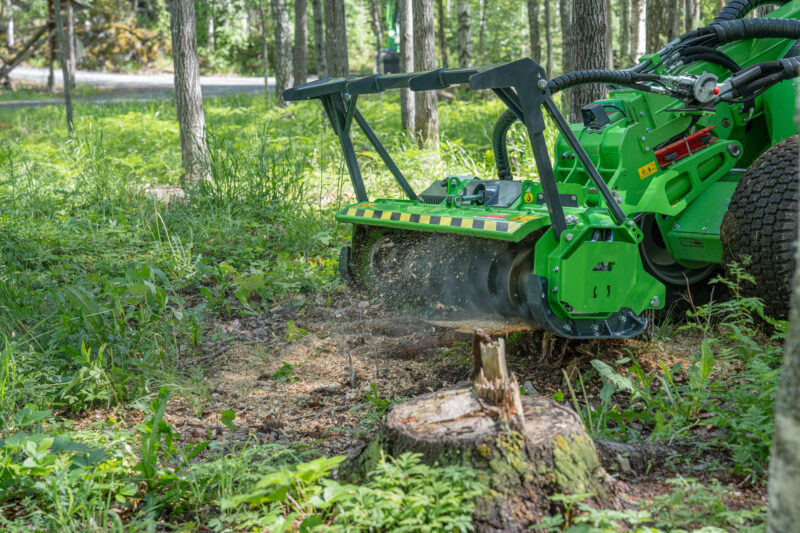

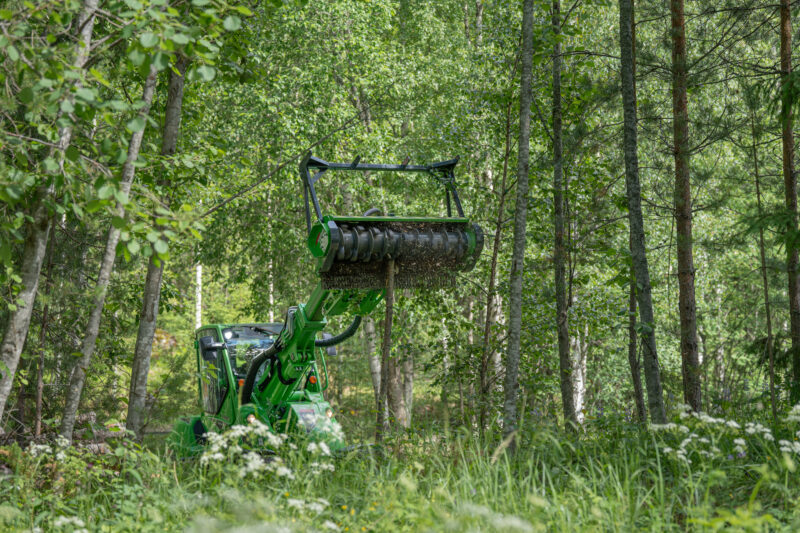

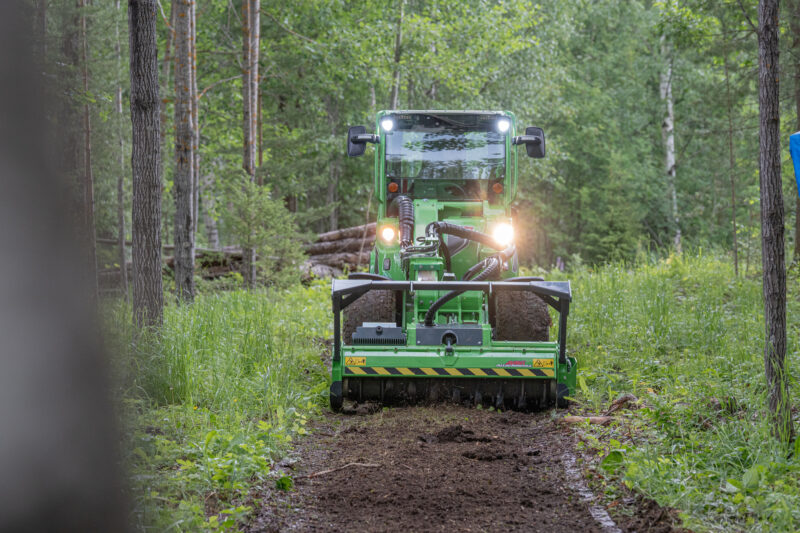

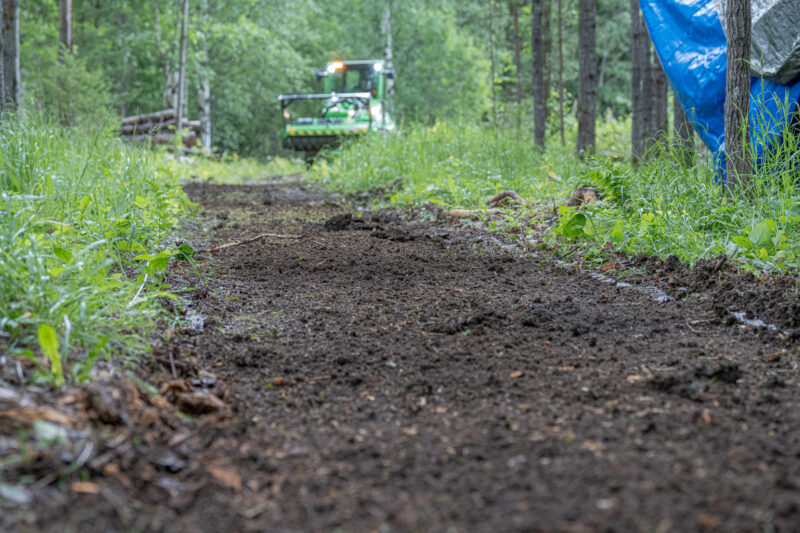

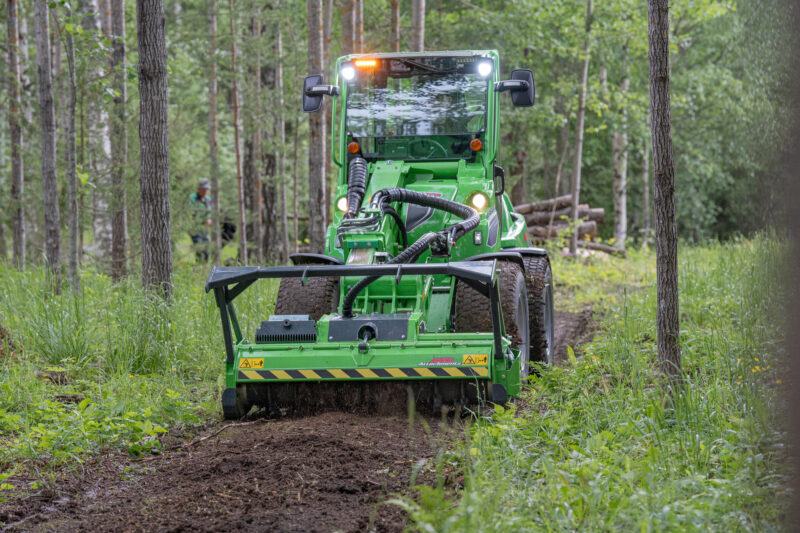

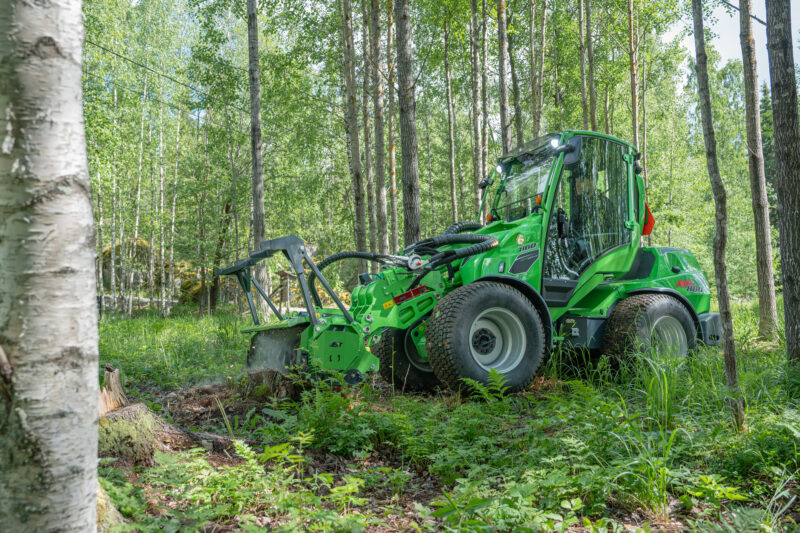

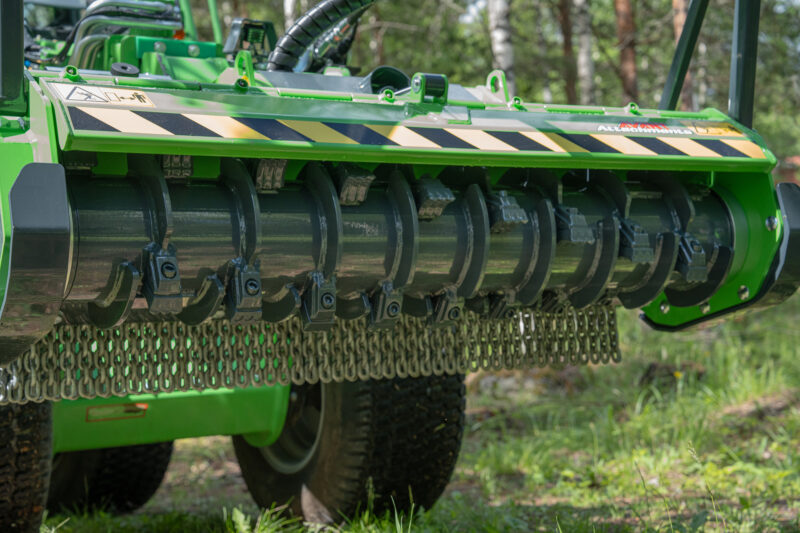

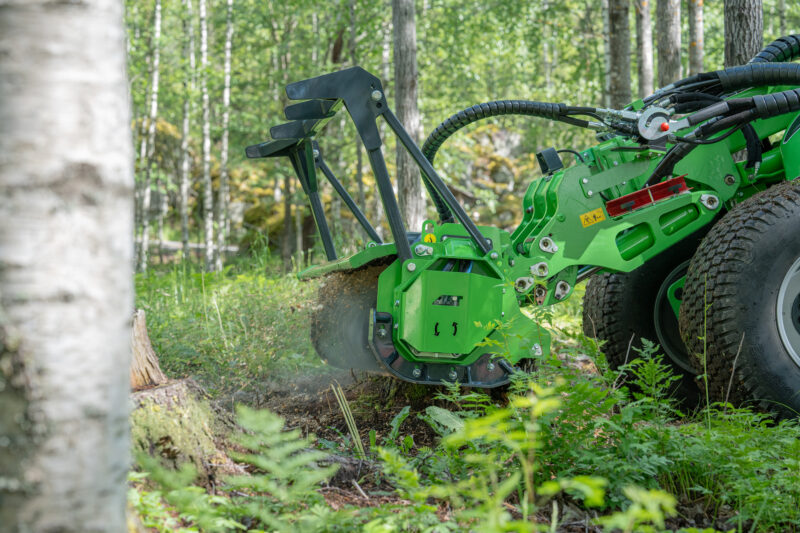

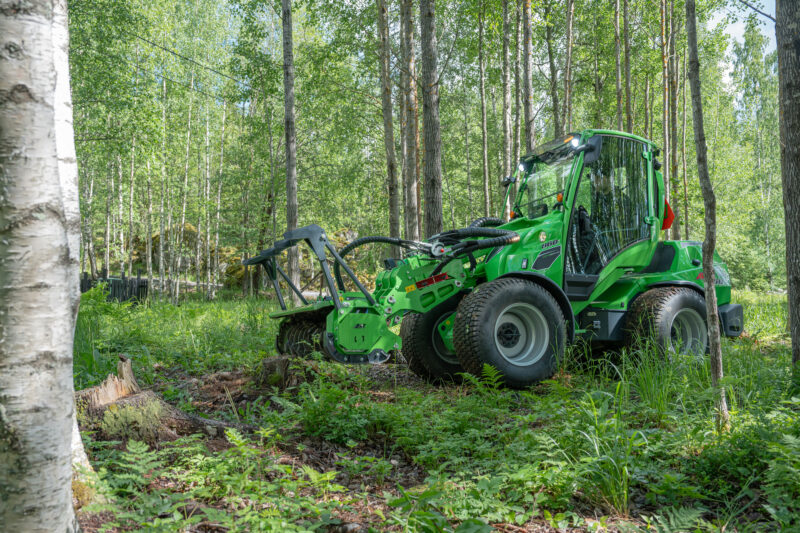

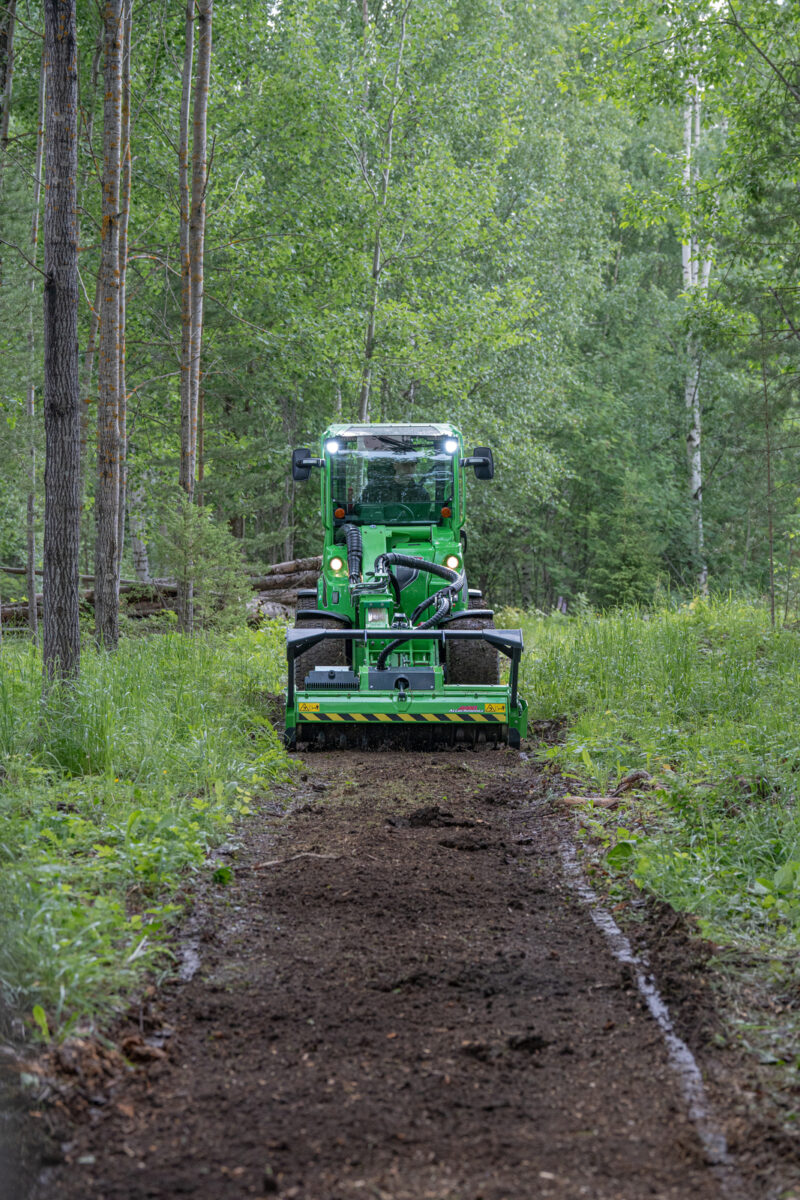

Forestry mulcher is intended for clearing bushes, brushwood and similar vegetation. It can also cut and crush small trees and grind small tree stumps – above ground level. The mulcher features direct hydraulic drive: a hydraulic motor is mounted on the rotor which is equipped with crushing and mulching type carbide teeth.

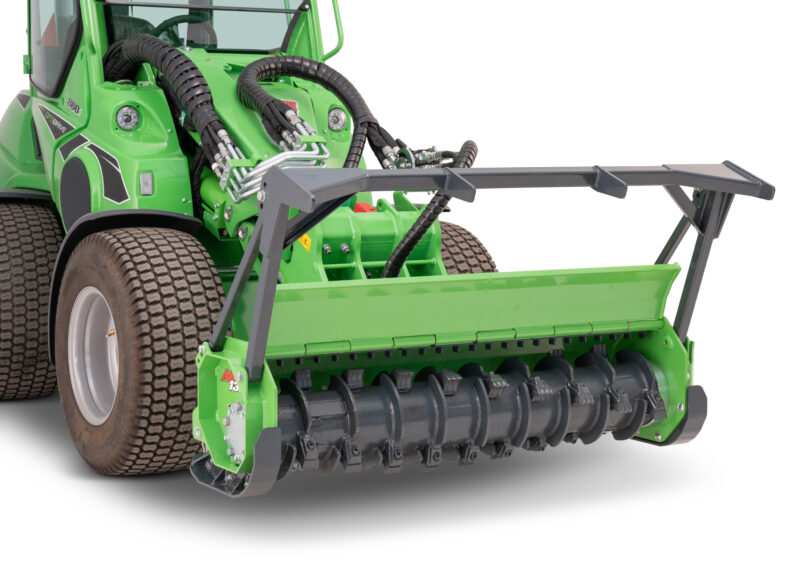

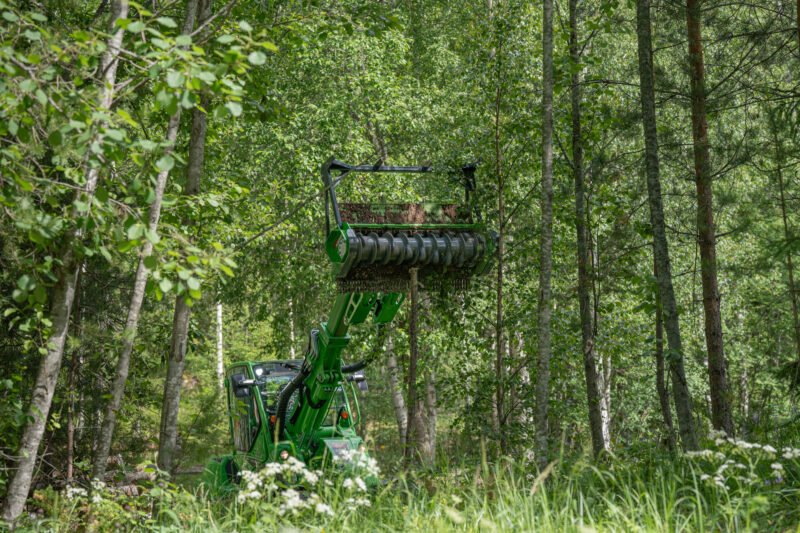

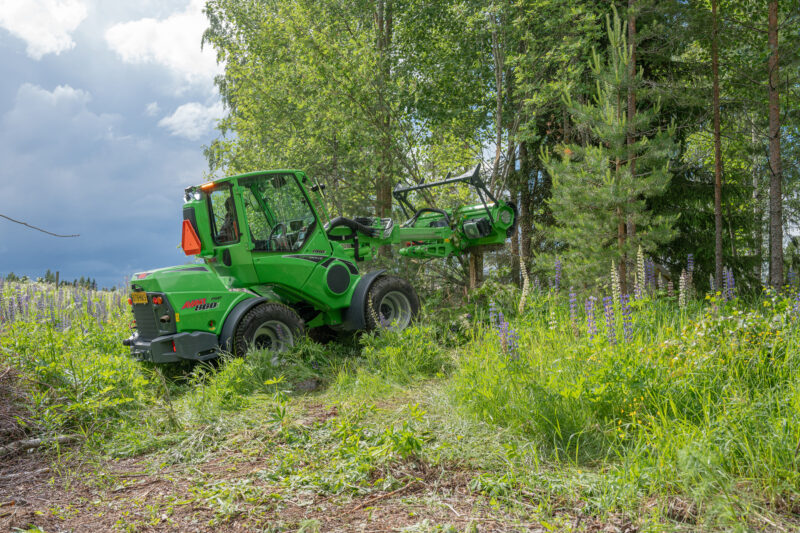

There is a hydraulically operated hood in front of the rotor. With the hood open it is possible to cut down standing trees and brush. This way the wooden material goes better in the rotor and does not bend under the mulcher before it cuts. When the hood is closed it prevents material from ejecting and improves mulching.

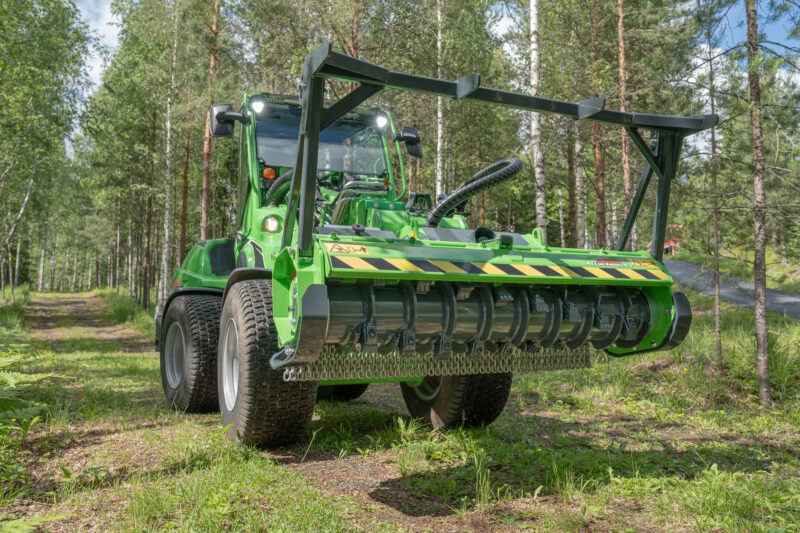

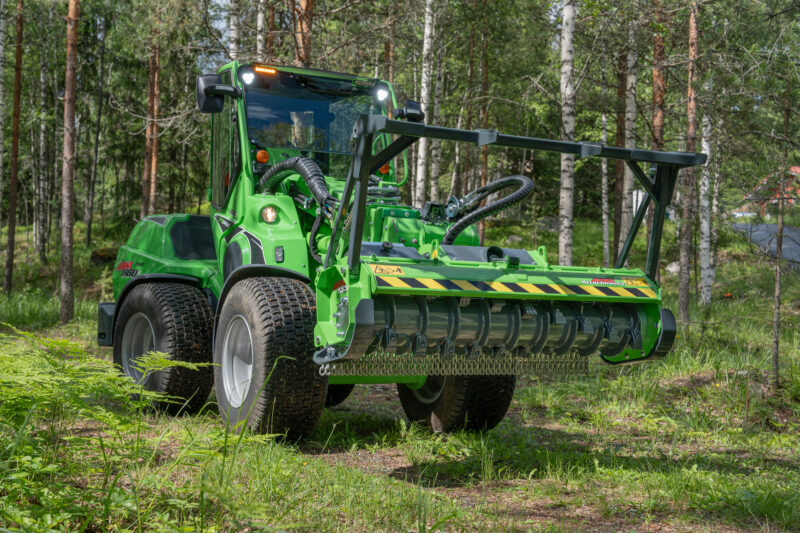

The mulcher is equipped with a horizontal push bar in the front. It guides the material that is being cut, and the push bar can also be used for moving and turning fallen trees and branches if needed.

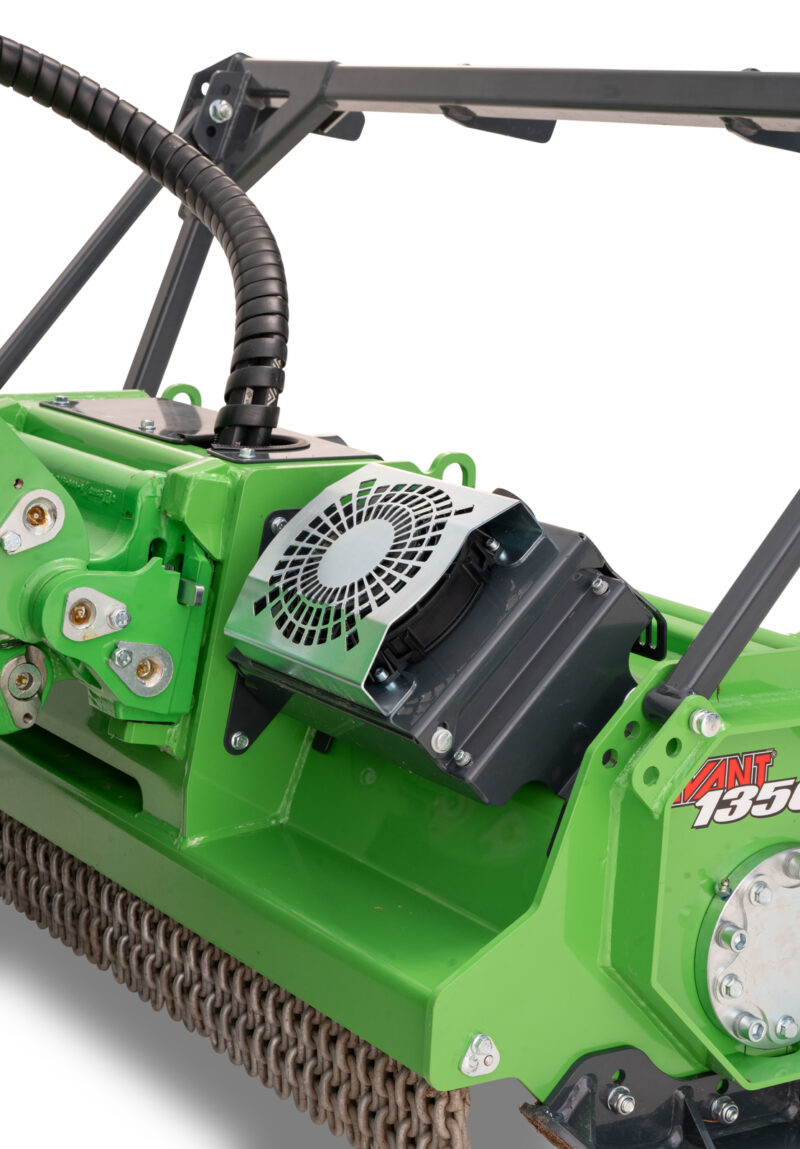

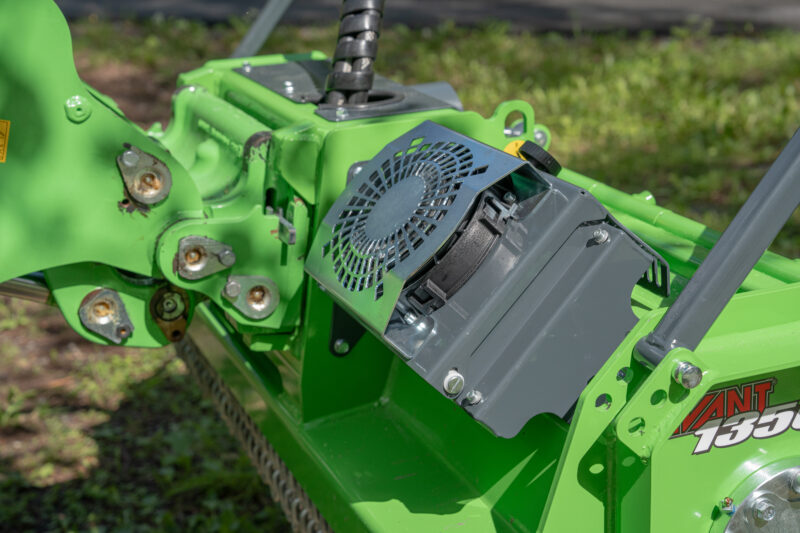

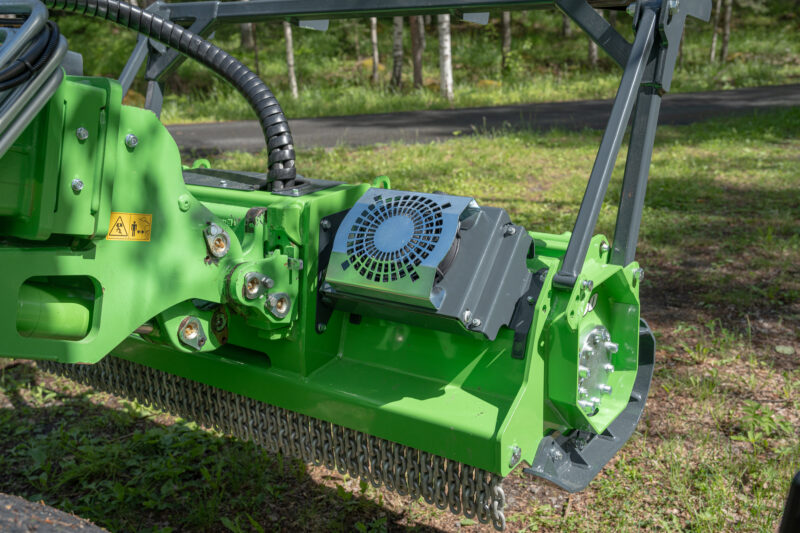

Support skid shoes and adjustable counterblades in the rear and in the front are also  standard equipment. Knife type cutting blades are available as an option, as well as a hydraulic oil cooler for very demanding conditions. Operation of the hydraulic oil cooler requires the optional Opticontrol® on the loader.

An enclosed cab (GT, DLX or LX) is mandatory on the loader when working with the forestry mulcher, due to the risk of material ejecting from the mulcher.



  • Efficient attachment for clearing bush, brushwood, smaller trees etc.
  • Direct hydraulic drive, rotor equipped with durable carbide teeth
  • Hydraulic front hood, horizontal push bar and support skids as standard
  • Knife type cutting blades and hydraulic oil cooler available as an option
  • Requires an enclosed cab on the loader



TECHNICAL INFORMATION

Working width 53.1 in
Total width 65.7 in
Number of blades 27 pcs
Length 32.7 in with push bar, 24.0 in without push bar
Height 37.8 in with push bar, 20.9 in without push bar
Rotor rotating speed 2000 rpm (at 17.2 gal/min oil flow)
Weight 970 lb
Product no

A457772



Requires the optional Opticontrol® on the loader. The loader must be equipped with enclosed cab (GT, DLX, LX) when working with the forestry mulcher.



OPTIONS

Hydraulic oil cooler, A458046
Knife type cutting blade, A450266

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
630
635
640
635i
640i
645i
650i
735
745
750
735i
755i
760i
850
860i
R20
R28
R35
e513
e527
