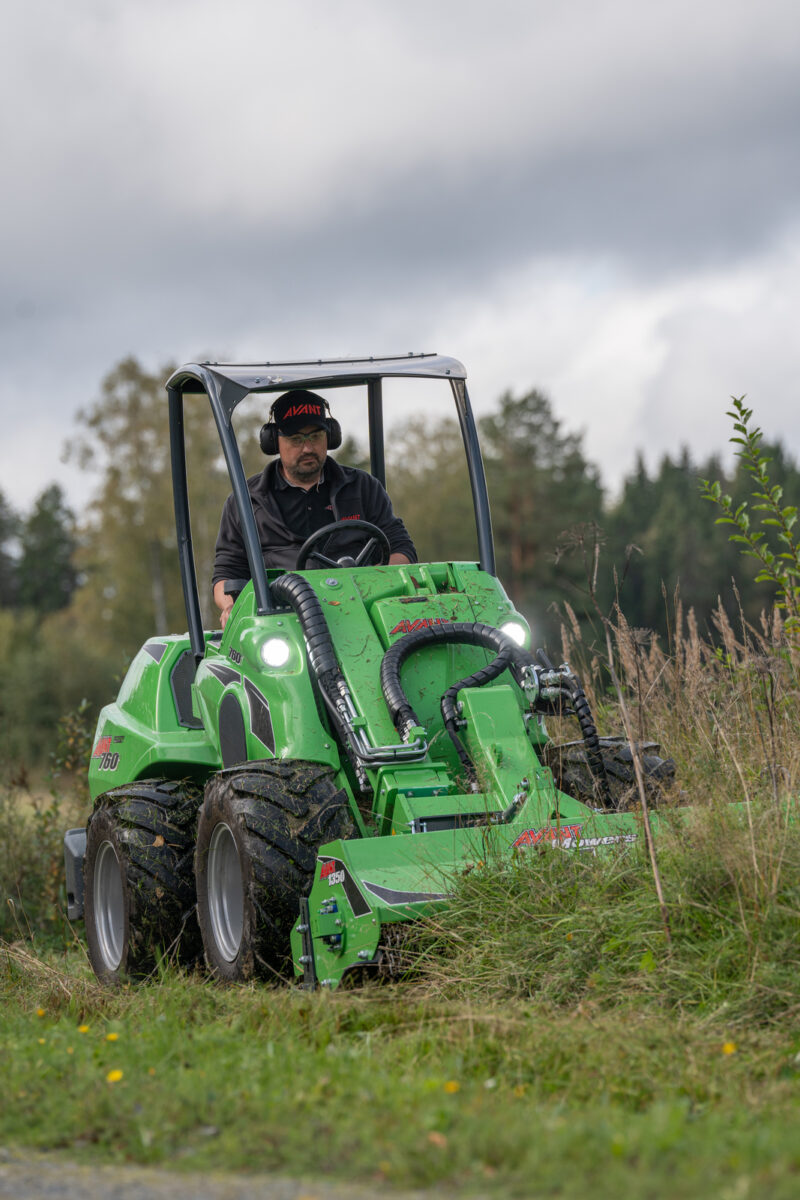

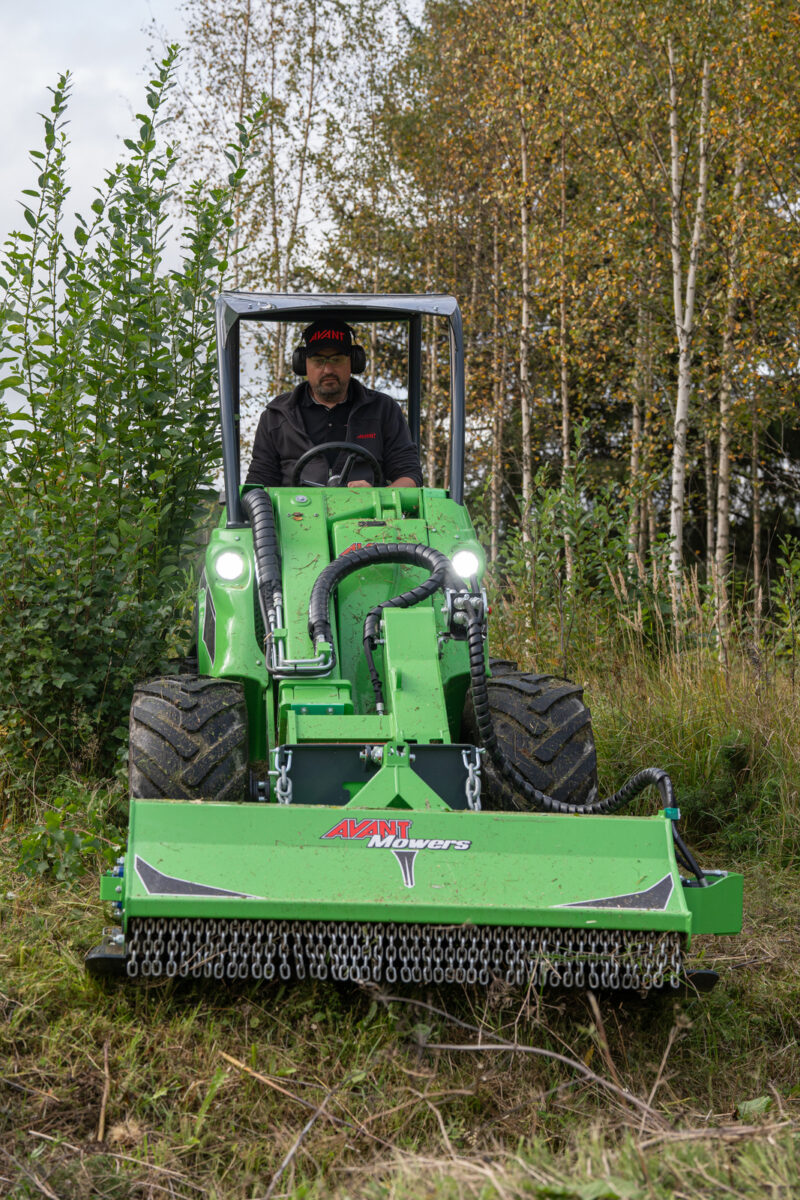

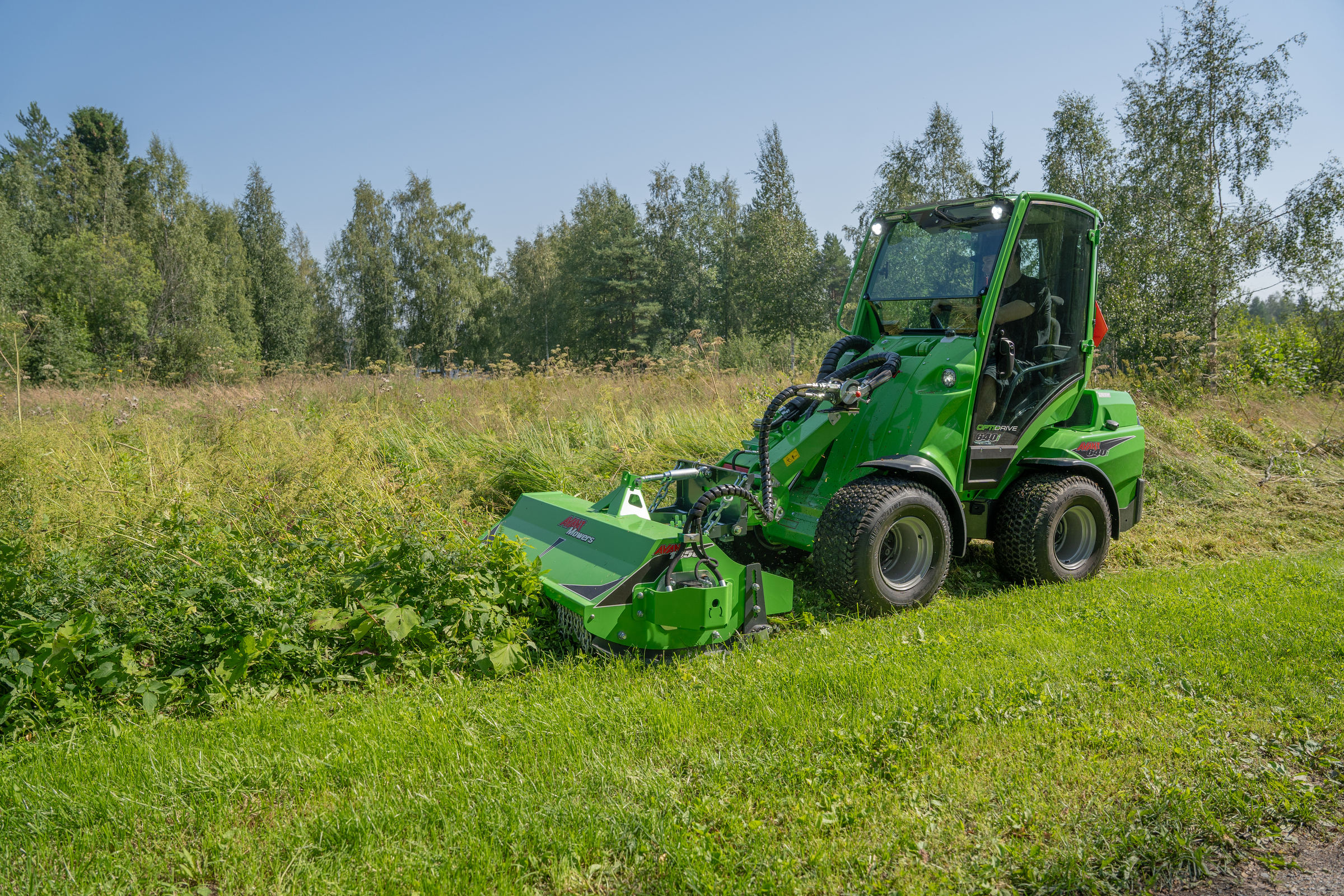

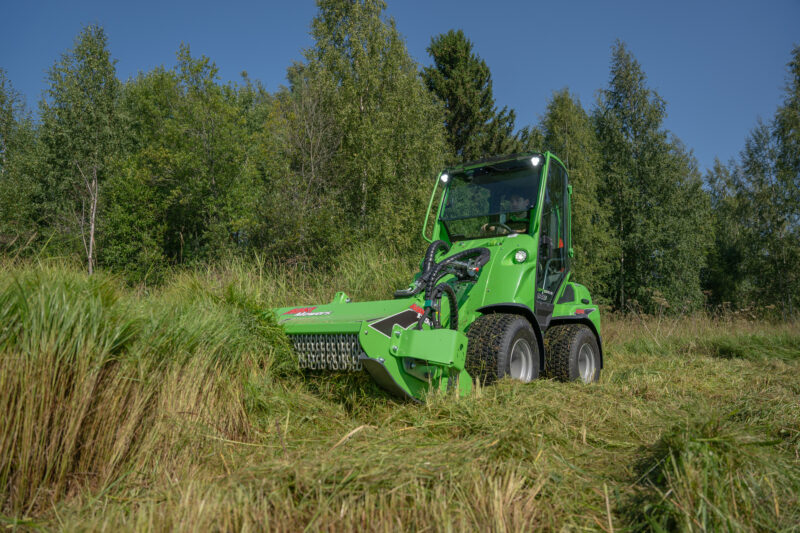

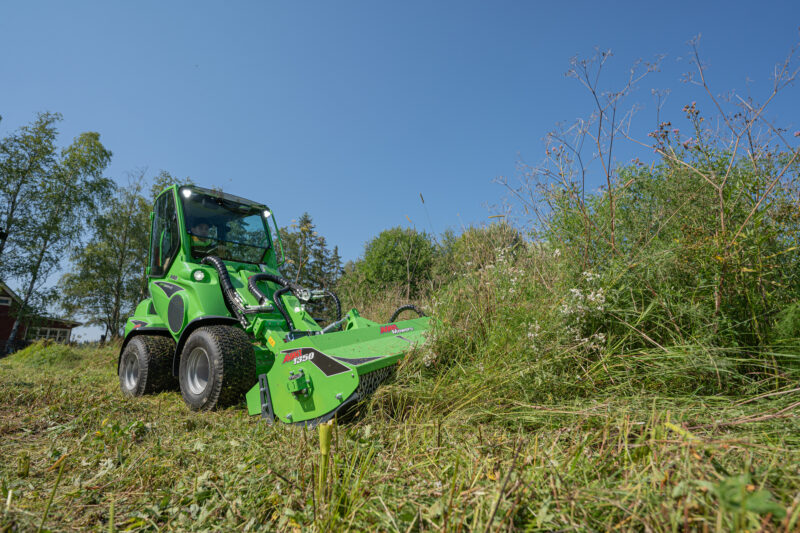

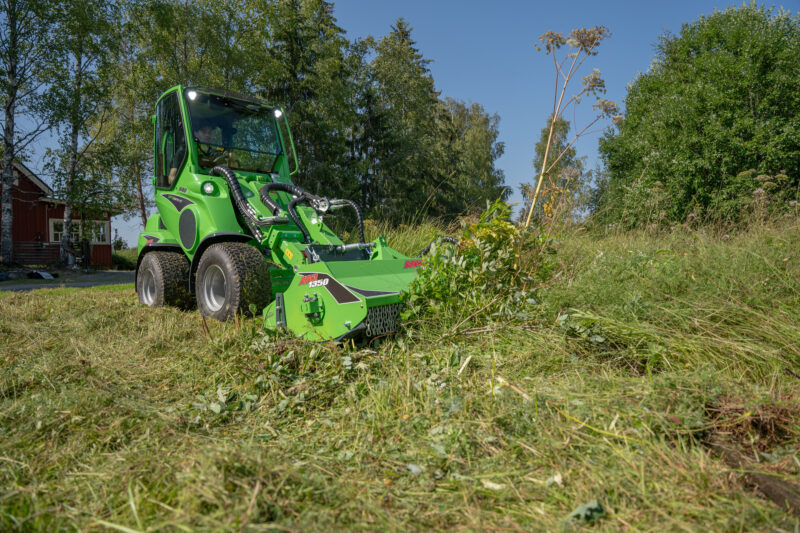

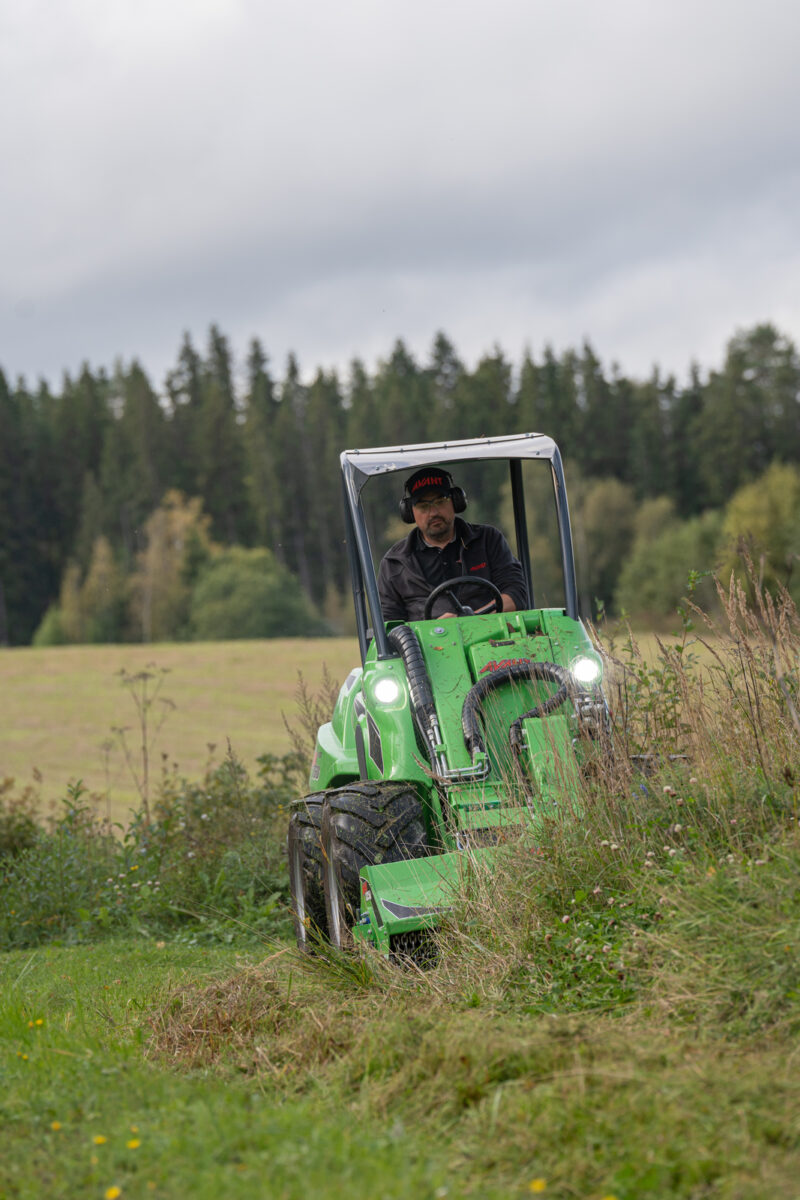

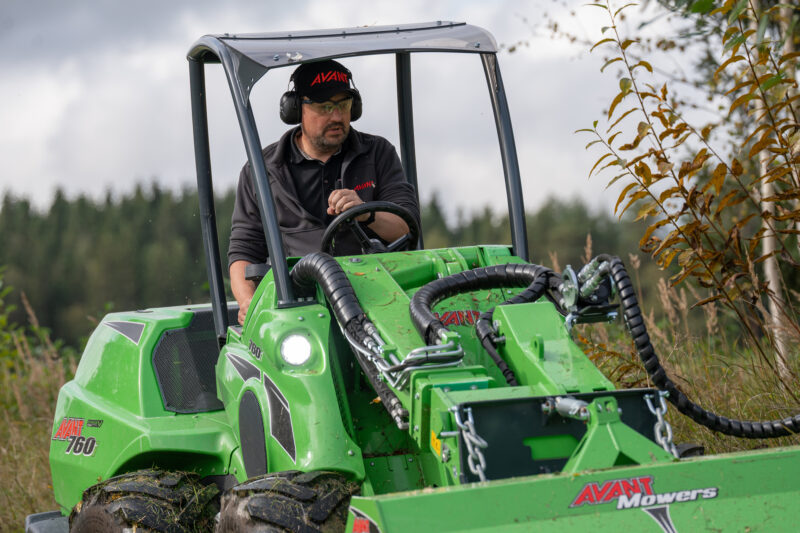

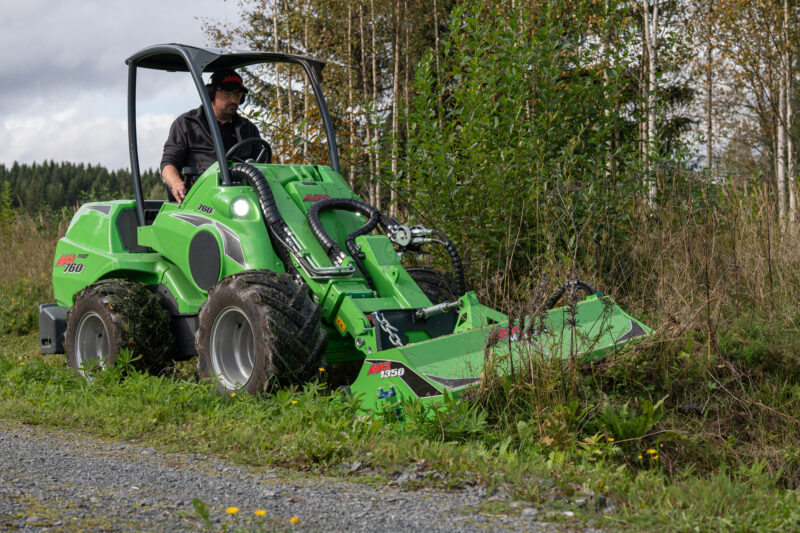

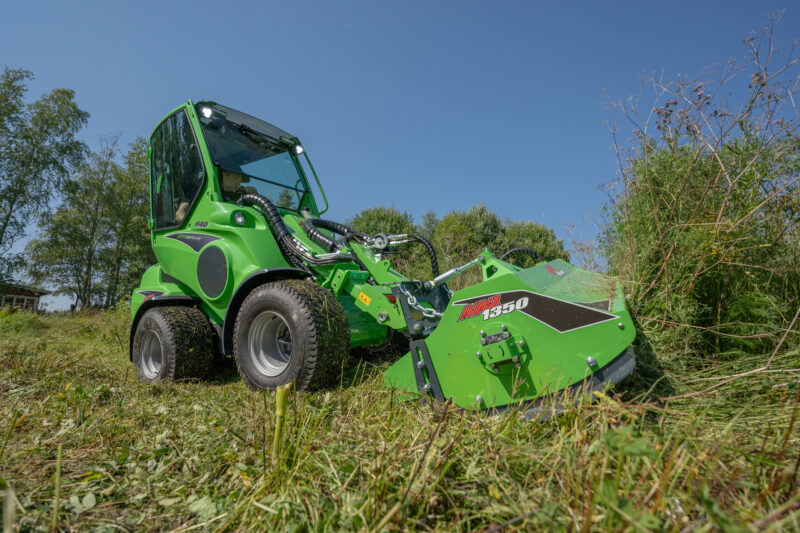

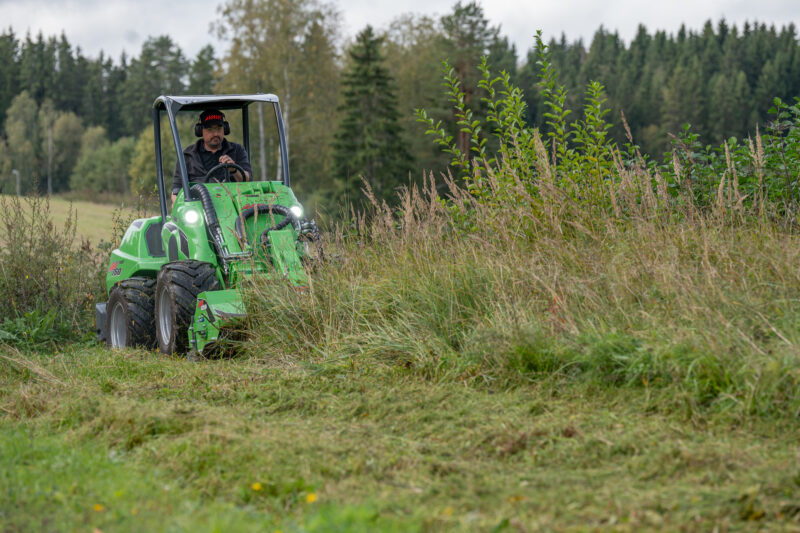

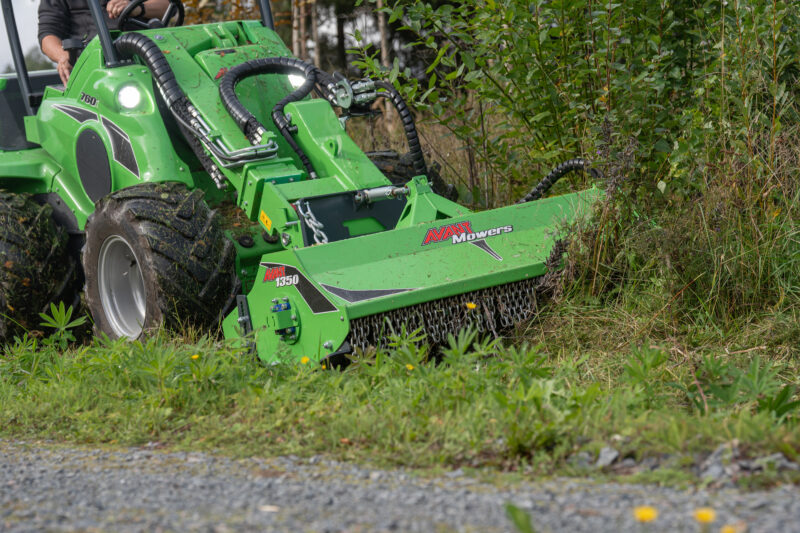

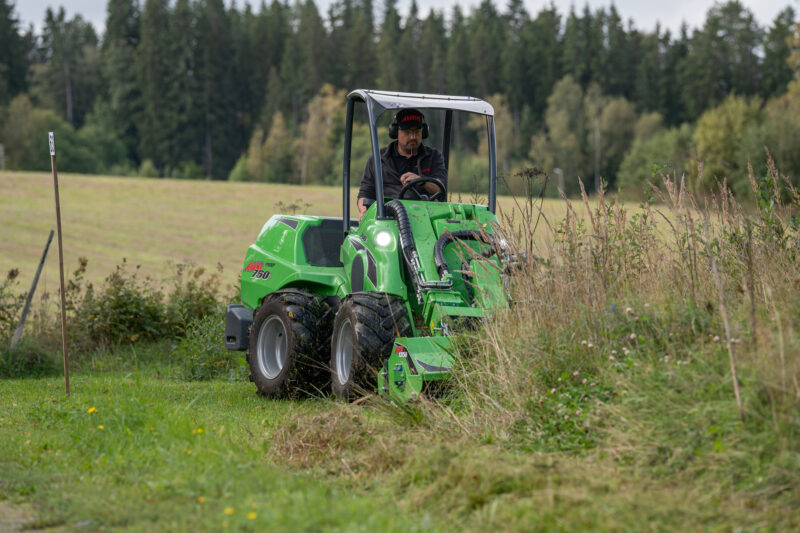

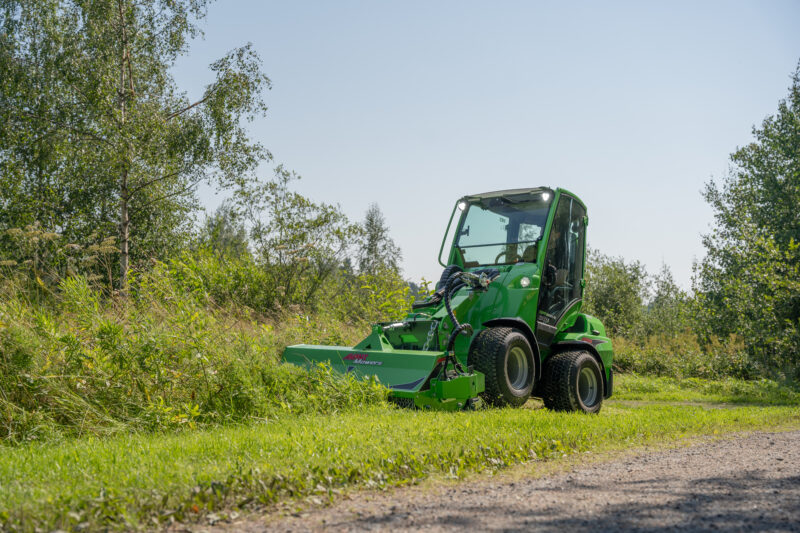

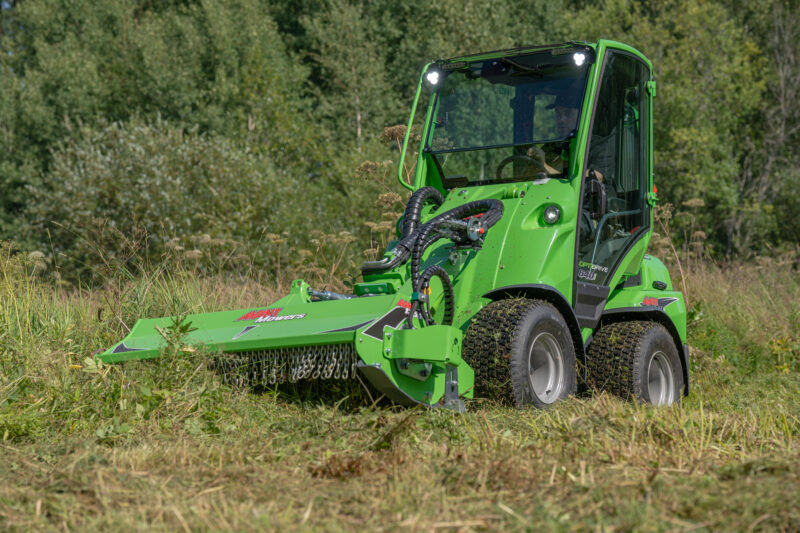

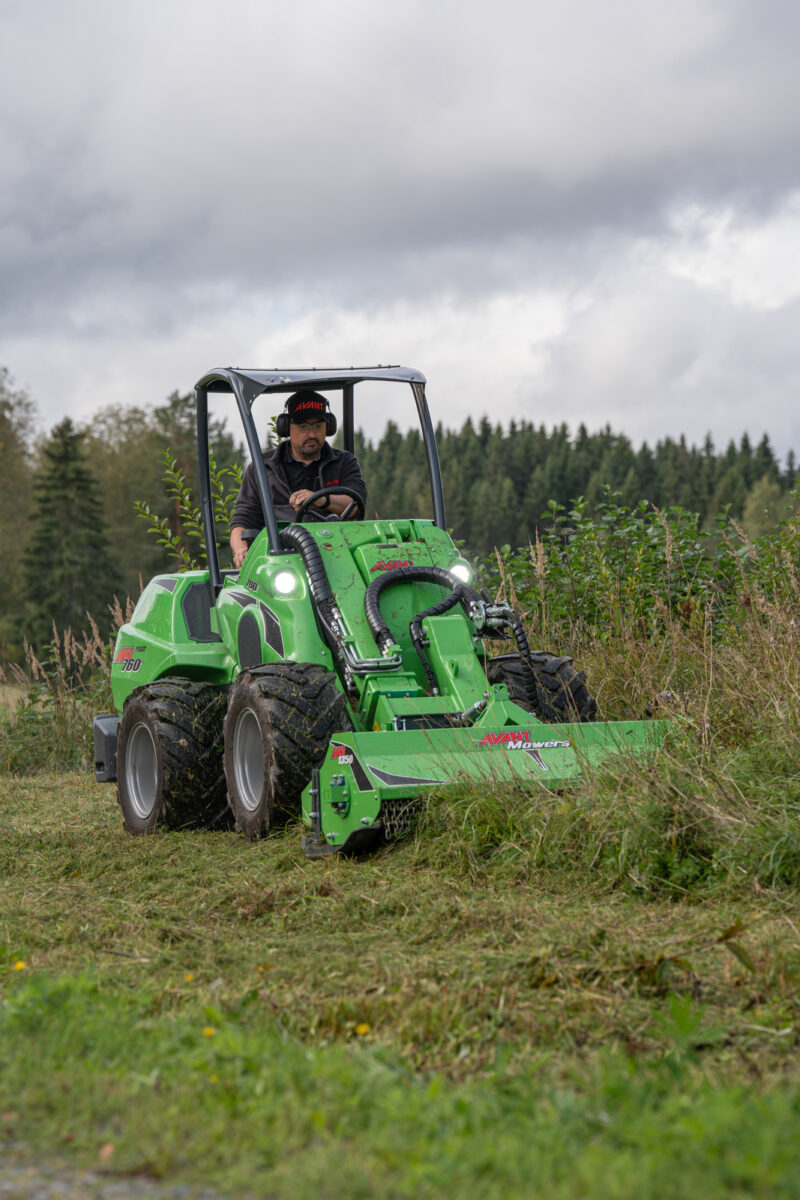

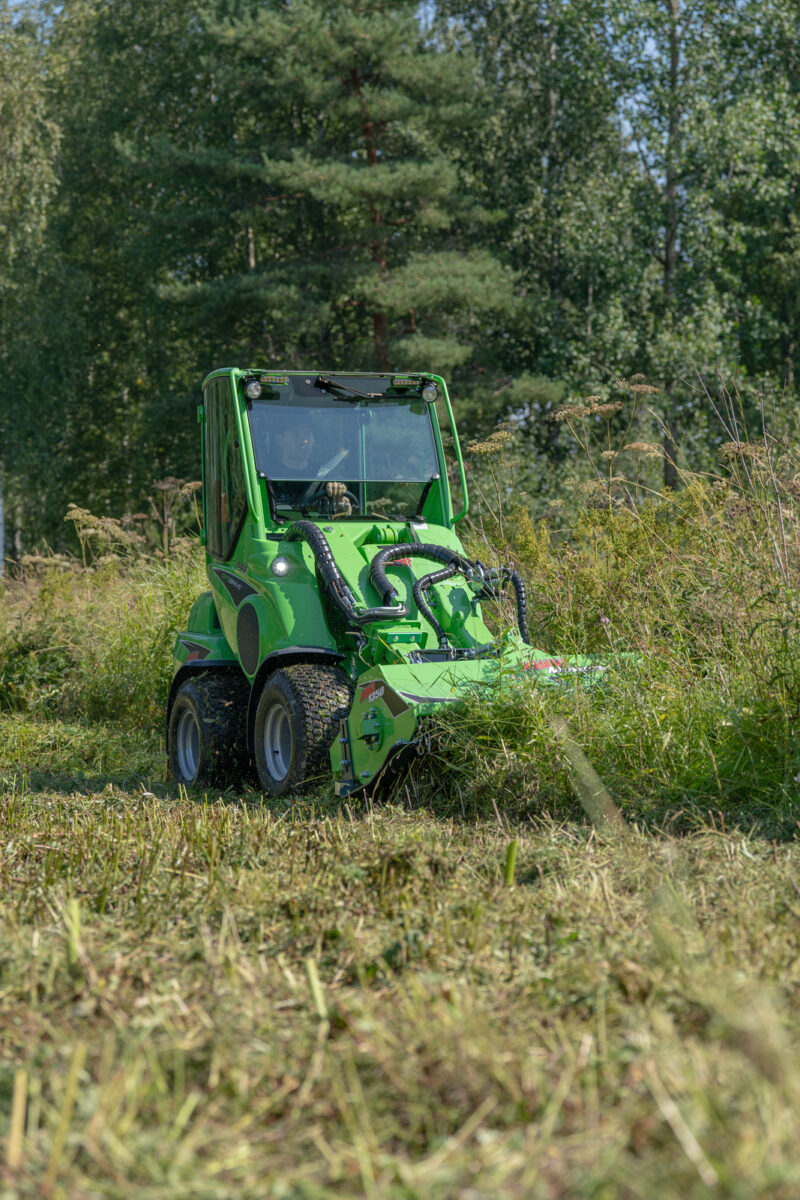

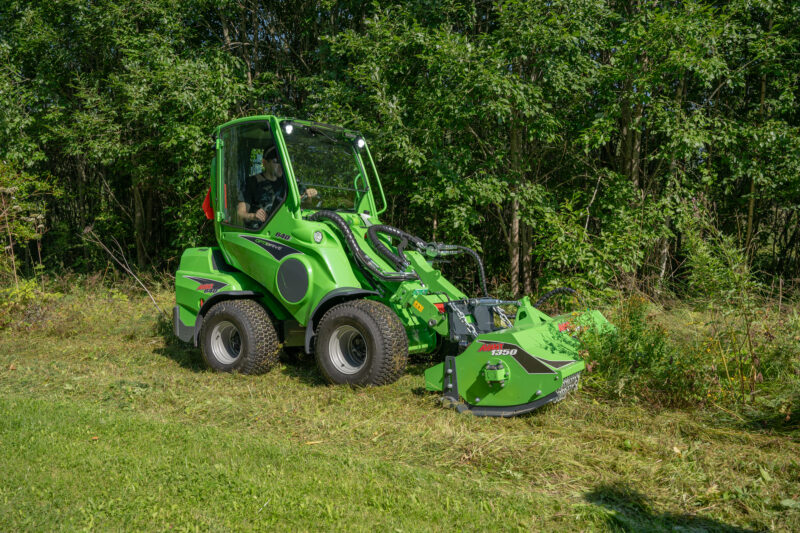

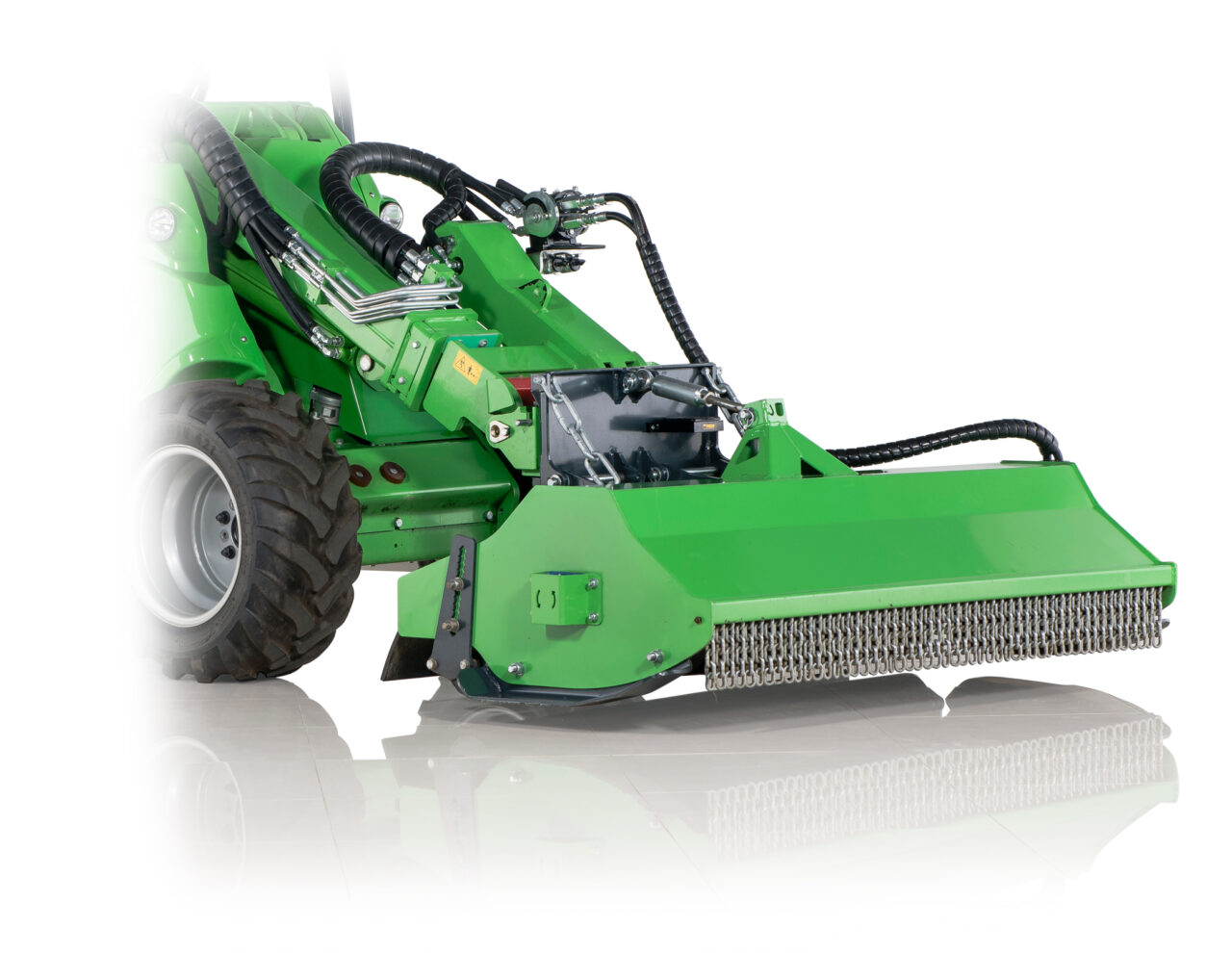

Flail mower is a drum-type cutter, intended for cutting of long grass, scrub, bush and similar vegetation. It will cut up to 0.8″ thick tree branches with ease.

Flail mower is the optimal cutting device for places where you need a lot of cutting power and a rougher cut will do. The most common applications for flail mower are places with taller vegetation like meadows, road banks, yard areas, etc.

  • Cutting deck design improves cutting result and requires less power from the engine and hydraulics
  • Flails are mounted in spiral on the shaft which makes cutting more efficient
  • Direct drive: hydraulic motor mounted directly on the shaft
  • Floating system allows free vertical movement, and the floating can be set so that the mower can tilt freely forward and backward as well
  • Big roller in the rear – better stability and less resistance when mowing

TECHNICAL INFORMATION

Model 1200 1350 1500
Cutting width 47.2 in 53.1 in 59 in
Total width 62.2 in 68.1 in 74 in
Cutting height 1 - 4 in 1 - 4 in 1 - 4 in
Standard flails type/pcs hammer 16 pcs hammer 18 pcs hammer 20 pcs
Weight 530 lb 575 lb 595 lb
Product no A36730 A441550 A36015

Optional flail types:

A419931 Y-flails, pair, 16 Pcs/47.2 in mower, 18 Pcs/53.1 in mower, 20 Pcs/59 in mower

A420305 L-flails, pair, 16 Pcs/47.2 in mower, 18 Pcs/53.1 in mower, 20 Pcs/59 in mower

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
R35 (Stage V)
630
635
635 (Stage V)
640
640 (Stage V)
735
745
750
755i
760i
850
860i
e513
e527
1200
1350
1500
