BEEHIVE MOVER

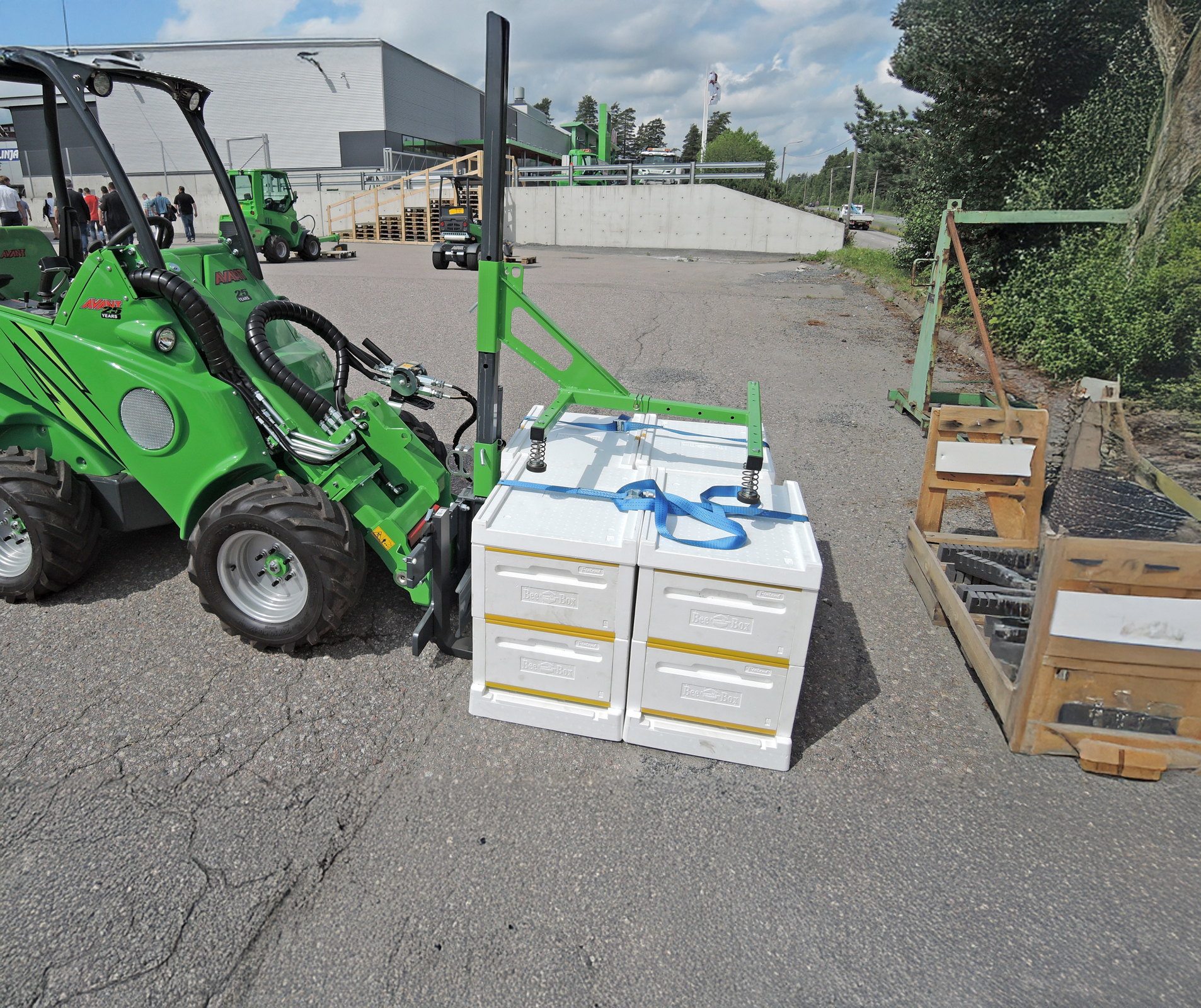

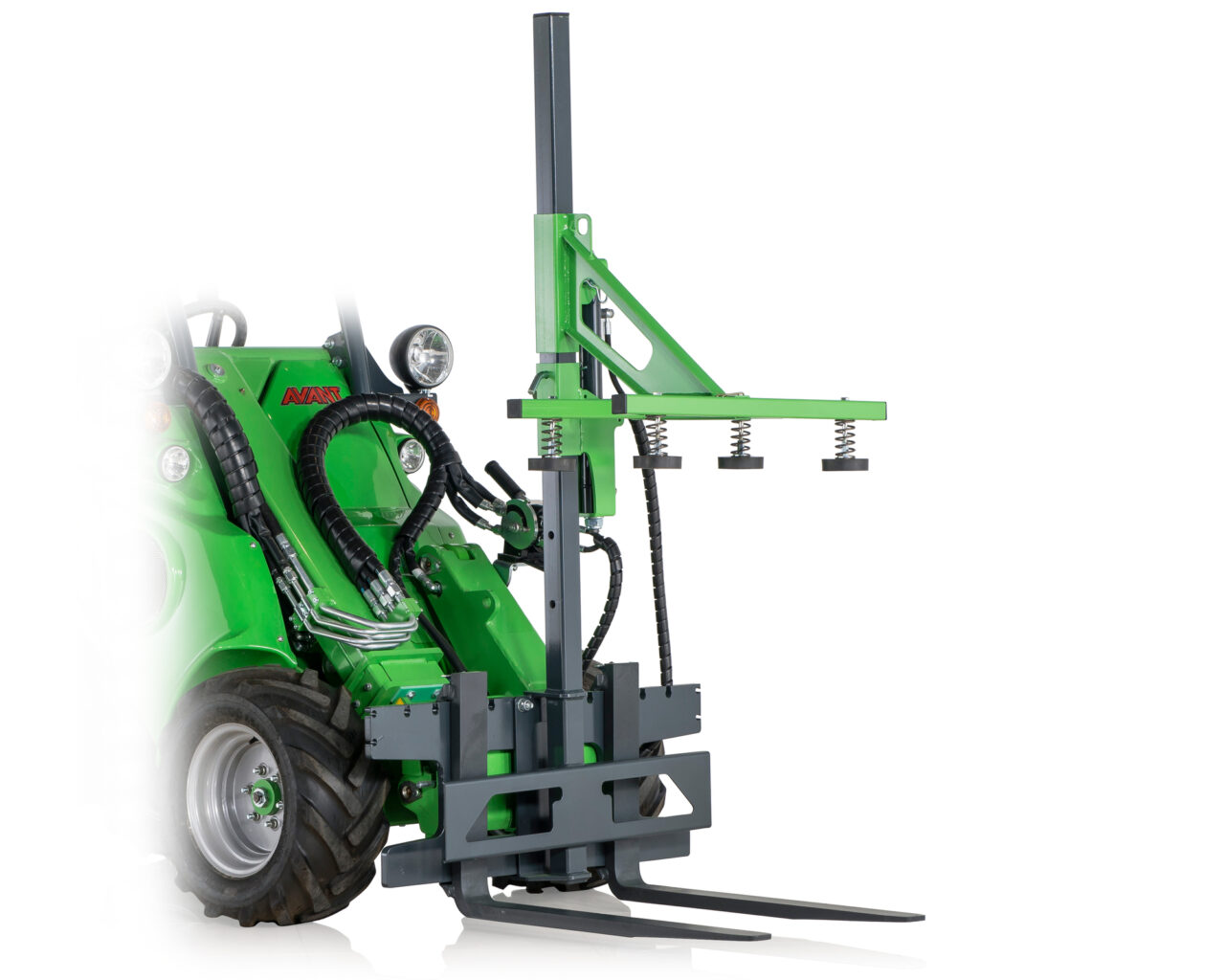

Avant beehive mover is intended basically for loading and transporting of beehive boxes, but it can handle other objects like cardboard boxes as well. The mover can carry as many as 12 beehives at a time. It consists of a mast, a pallet fork that is mounted on the lower end of the mast, and a hydraulic grapple at the upper end of the mast which presses the boxes against the pallet fork. The grapple is equipped with rubber pads which hold the beehives firmly but gently.

The beehive mover can be mounted on all Avant loaders, and if the beehives need to be transported longer distances by truck it is easy to take the Avant on the truck as well and unload and move the beehives at the destination.

The grapple can be set to five different heights between 16.7 - 53.7 in following the height of the load, and the vertical movement of the grapple is 13.4 in. Distance between the rubber pads can be set manually to four different widths between 11.0 - 28.7 in. Max. load on the beehive mover is 2200 lb and max. pressing force is 4000 lb, which means it can handle other materials that are on pallet as well. Especially lighter boxes and similar objects which don’t stay on the pallet without support are easy to hande with the beehive mover.

  • Fast and easy way to load and transport beehive boxes
  • Can handle also cardboard boxes and similar objects
  • Mounts on all Avant loaders
  • Also available with 43.3 in A21039 or 47.2 in A36589 pallet forks



TECHNICAL DATA

Max. load 2200 lb
Max. pressing force 4000 lb
Pallet fork length 33.5 inch
Grabbing width 11.0–28.7 inch (four widths can be set manually)
Grapple height 16.7–53.7 inch (five heights can be set manually)
Grapple cylinder stroke 13.4 inch
Height 76.8 inch
Width 39.4 inch
Length 37.8 inch
Weight 355 lbs
Product number A36935



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
