Asphalt grinder

Request a quote
Close

More images

plus

Buckets, material handling

GENERAL BUCKET

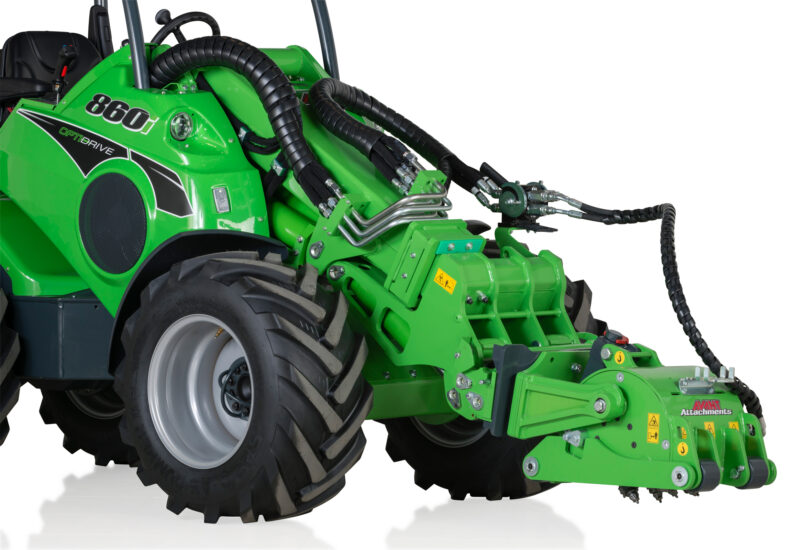

The strong and efficient asphalt grinder (also called cold planer) is an ideal attachment for asphalt road and pavement repairs and utility jobs. It grinds away the asphalt surface up to 3.1 in depth, making repair of potholes, utility cuts, small overlays and edge repairs fast and easy.

Different types of teeth are available for grinding of asphalt or concrete.

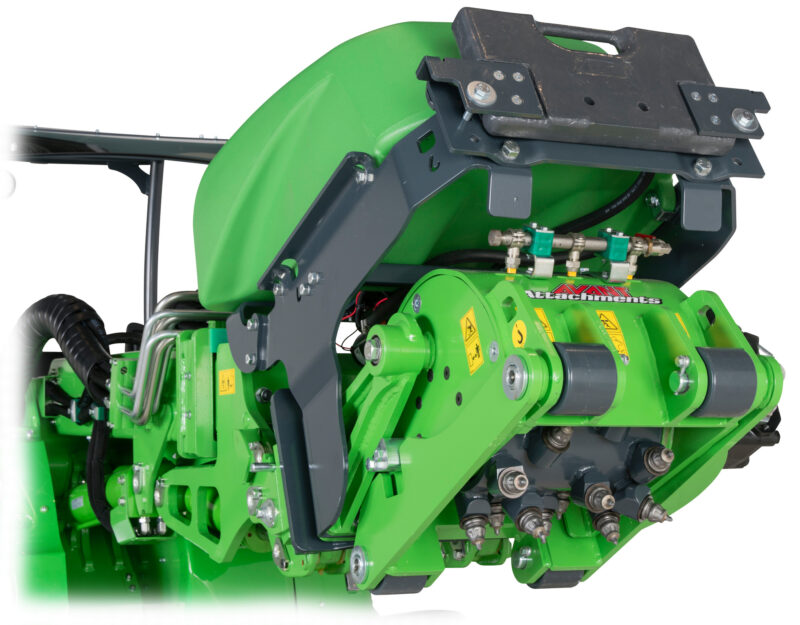

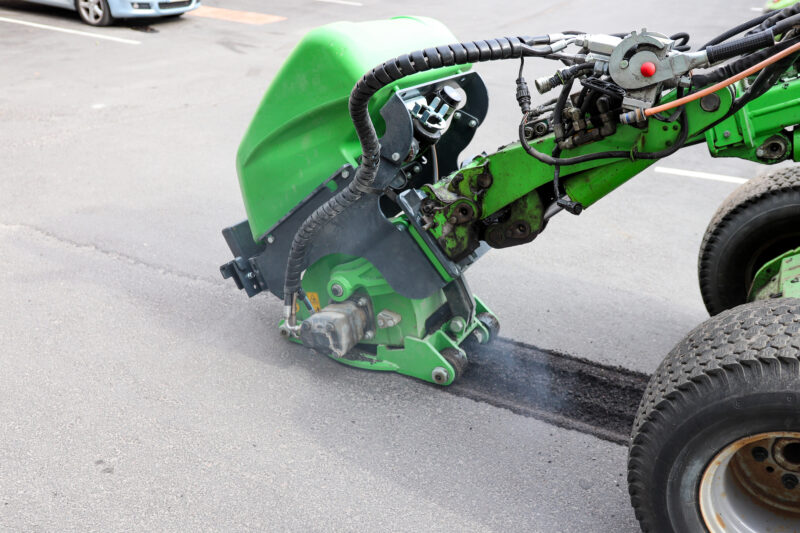

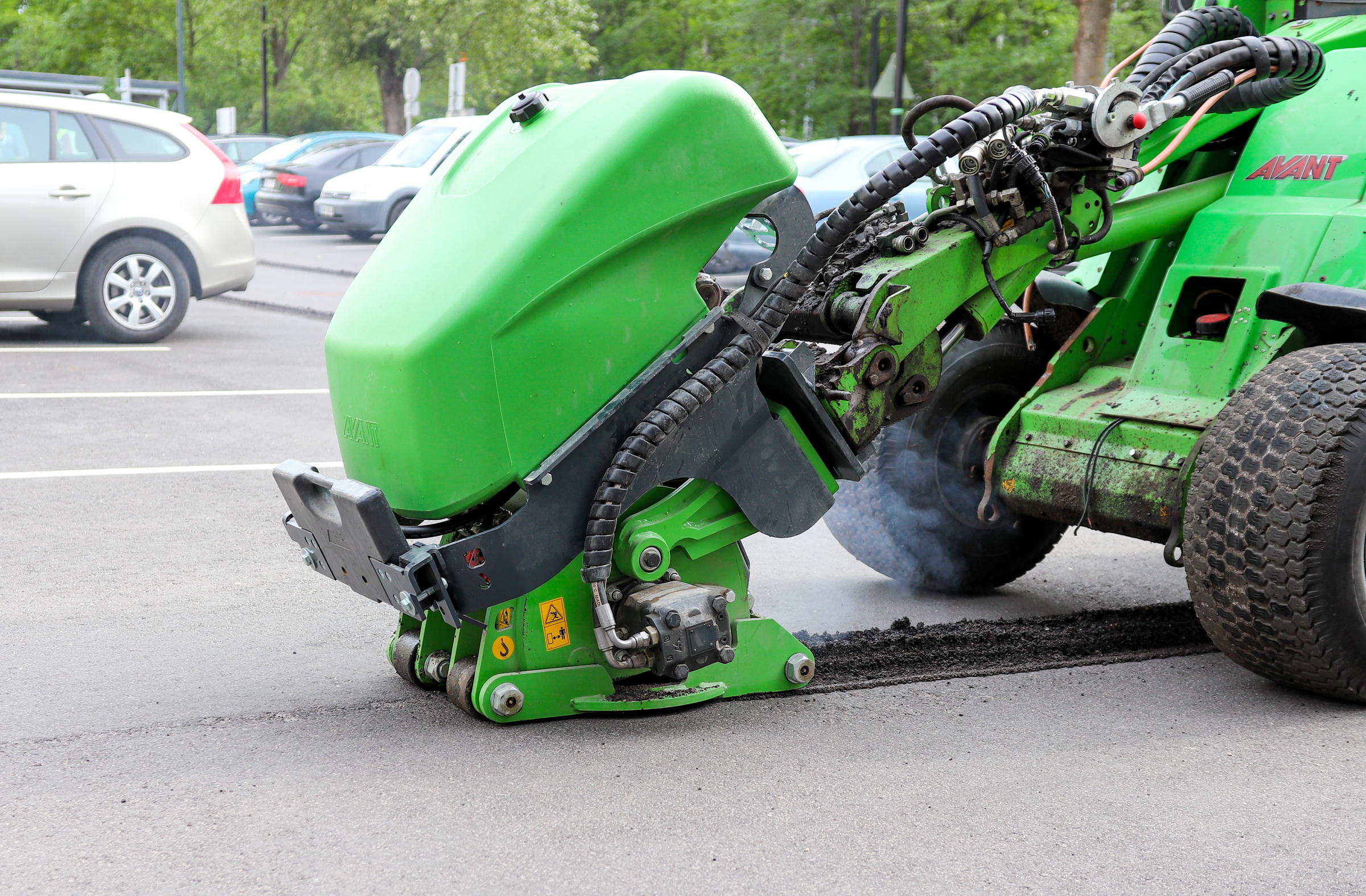

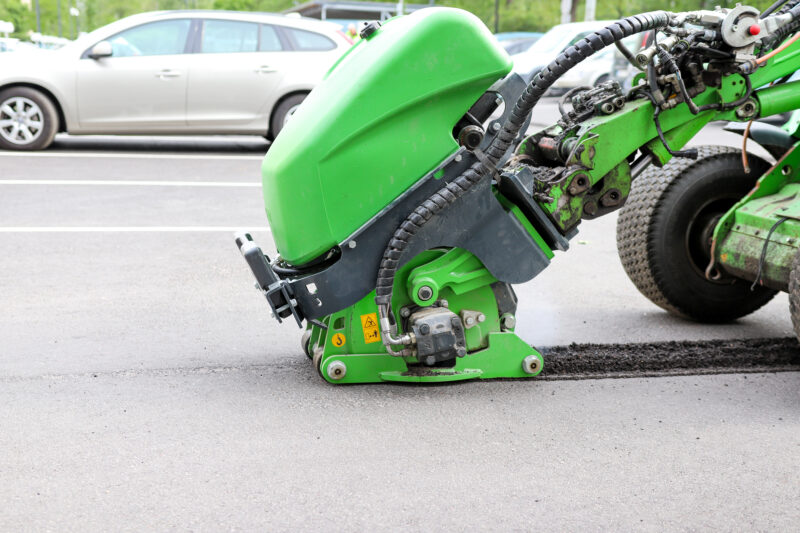

A water spraying system is available as an option. It is mounted on top of the planer and is equipped with 15.9 gal water tank and nozzle bar (same as on Avant collecting broom), membrane pump and strainer filter. Also, 3 pcs Avant 64 lb counterweights can be mounted on the water tank support frame to add weight when grinding hard asphalt, etc. material.

If a side shift is needed, the hydraulic side shift adapter A37235 is available as an option. It requires the optional second auxiliary hydraulics front outlet on the loader.

  • Efficient grinder for asphalt road and pavement repairs and utility jobs
  • Different type of teeth available
  • Hydraulic side shift adapter and water spraying system for dust binding available as an option

TECHNICAL INFORMATION

Working width 11.8 in
Total width 26.0 in
Grinding depth 0-3.1 in
No. of cutting teeth 29 pcs
Height 18.9 in
Length 31.9 in
Weight 540 lb
Product no. A432621

Option

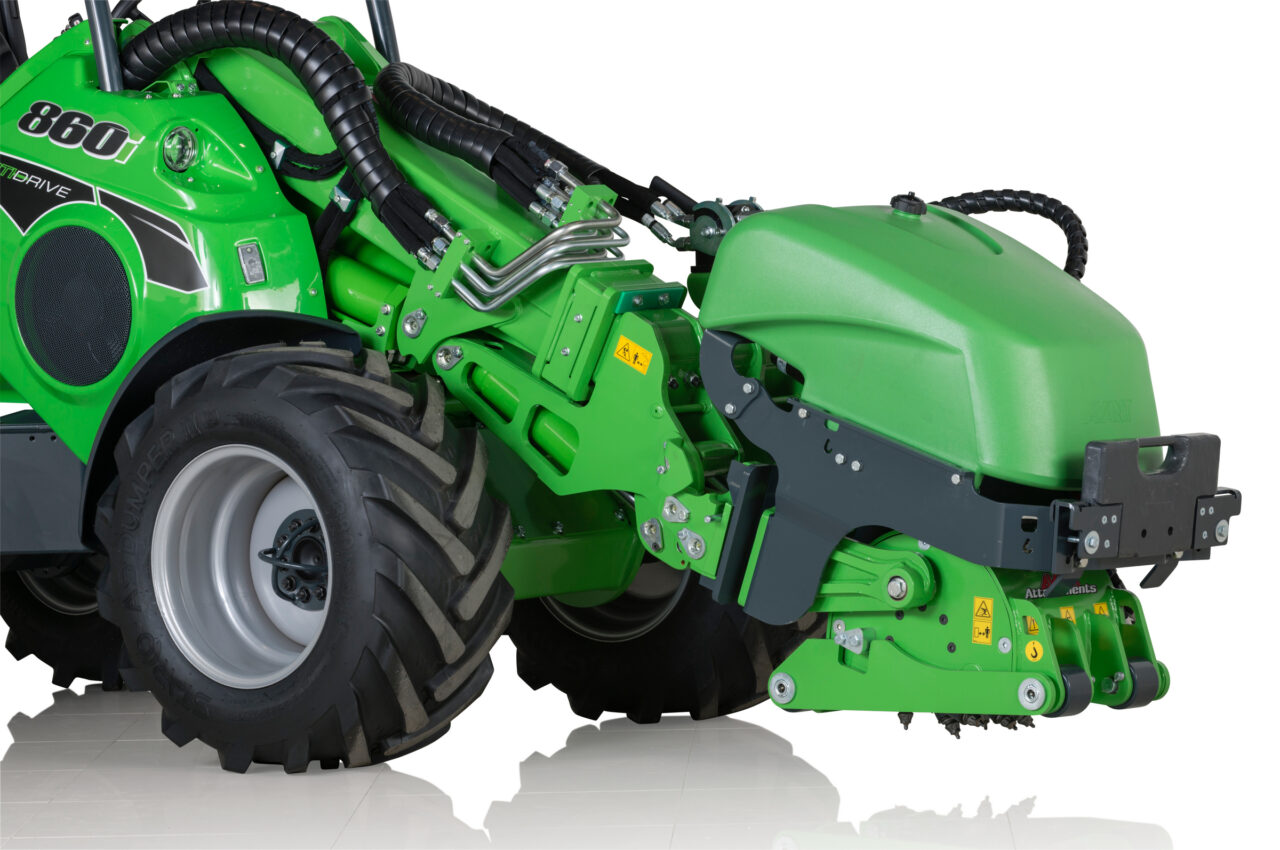

Water spraying system

  • Mounts on top of the grinder
  • Water tank 15.9 gal + nozzle bar (same as on Avant 59.1 in collecting broom & bucket broom), membrane pump & strainer filter
  • Max. 3 pcs Avant 64 lb counterweights A35957 can be mounted on the water tank support frame
  • Product no. A37386

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
