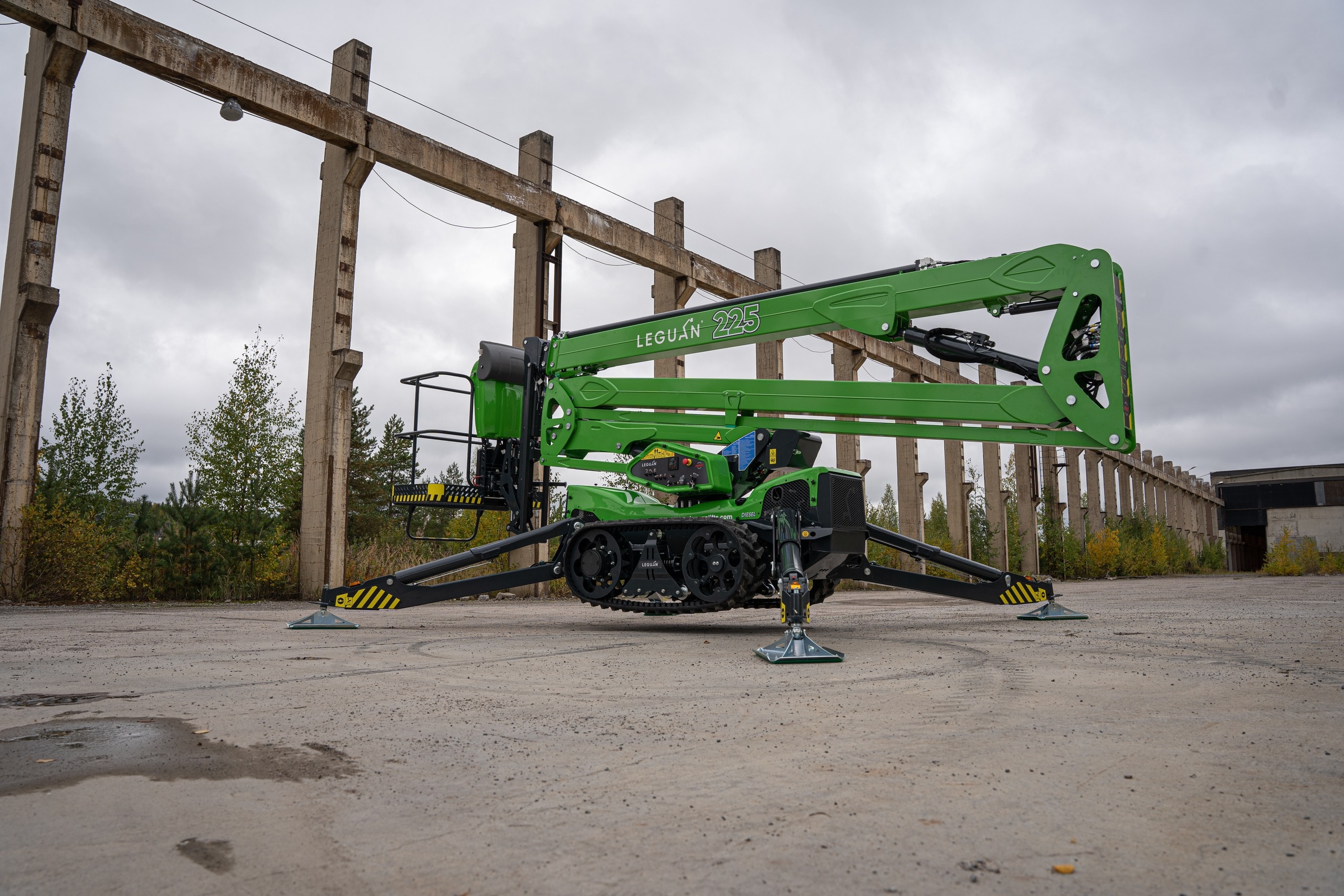

All-terrain spider lift with unrivaled performance

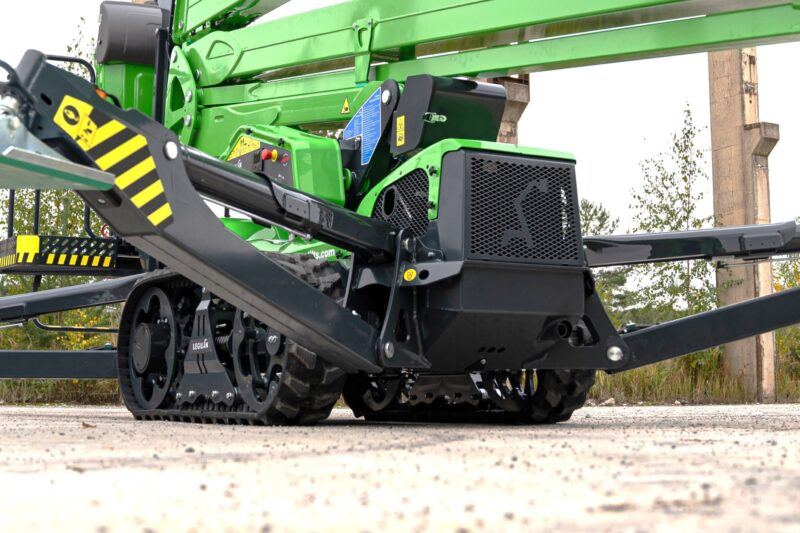

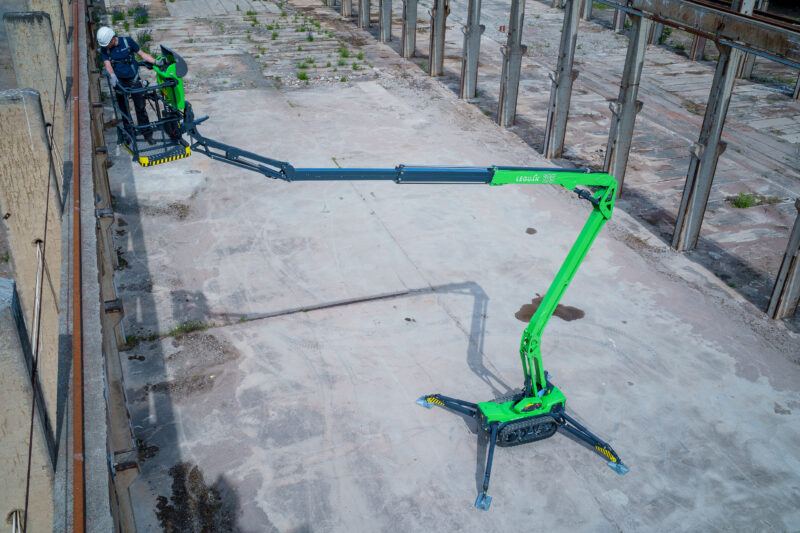

INDUSTRY-LEADING all-terrain capabilities, a high-profile track platform and fast driving speeds make the next-generation Leguan 225 a perfect choice for even the most demanding environments. The spider lift’s boom is designed to maximize side reach even at high working heights, and a smart control interface guarantees quick and smooth movements.

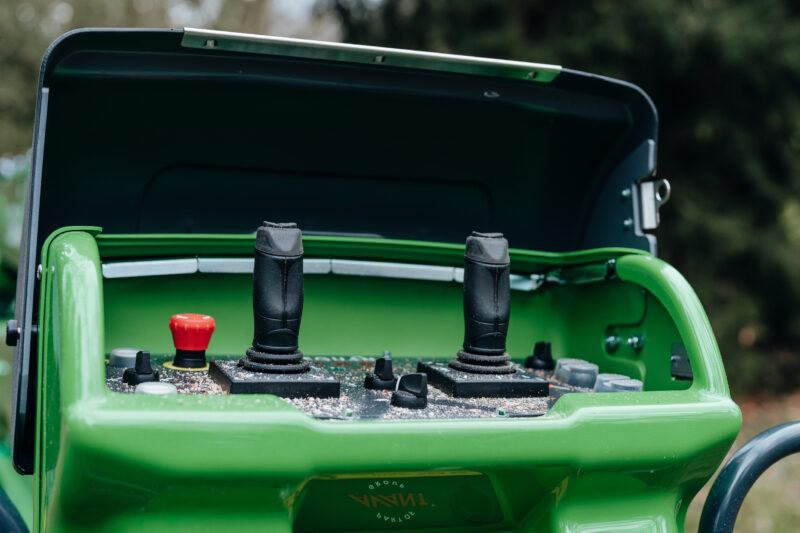

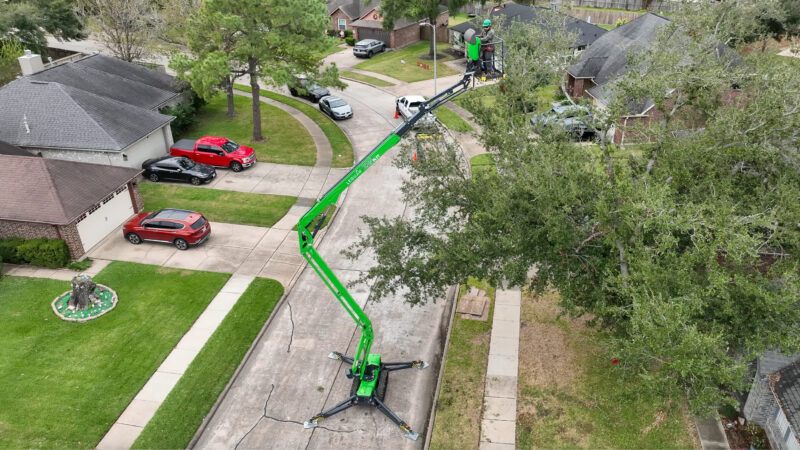

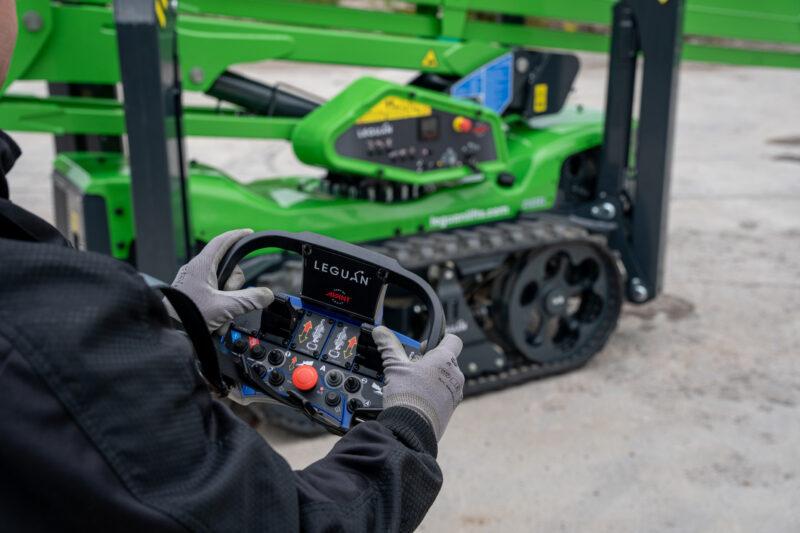

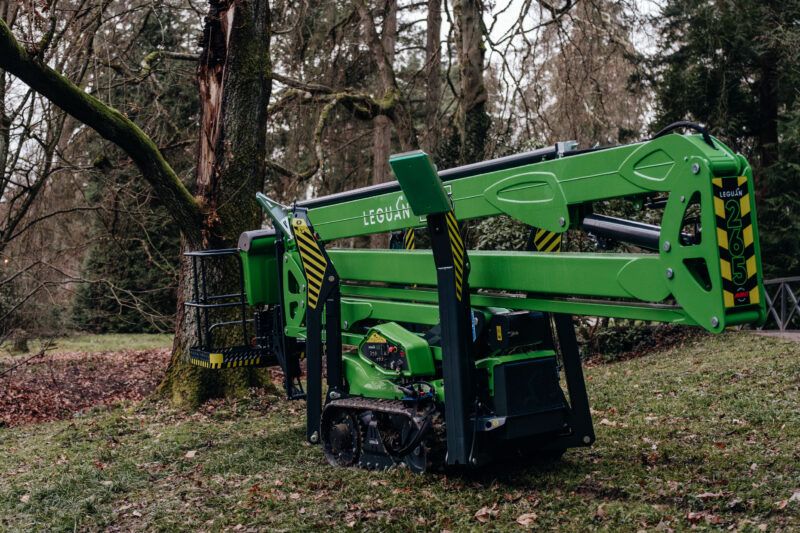

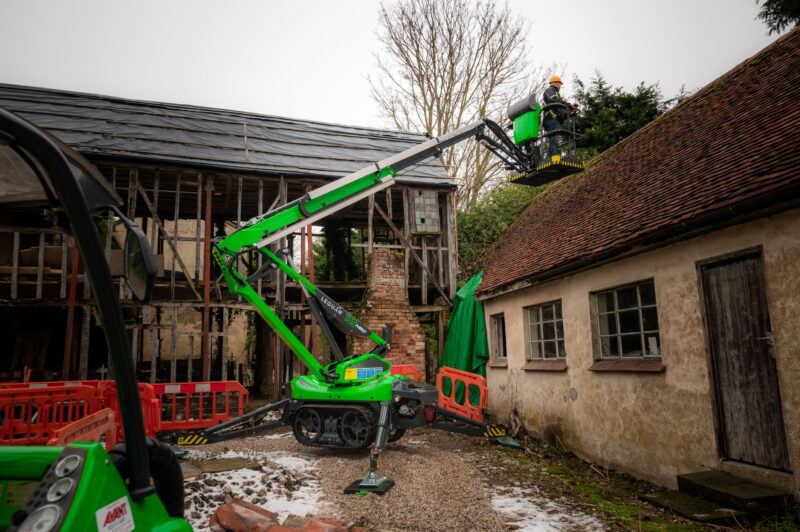

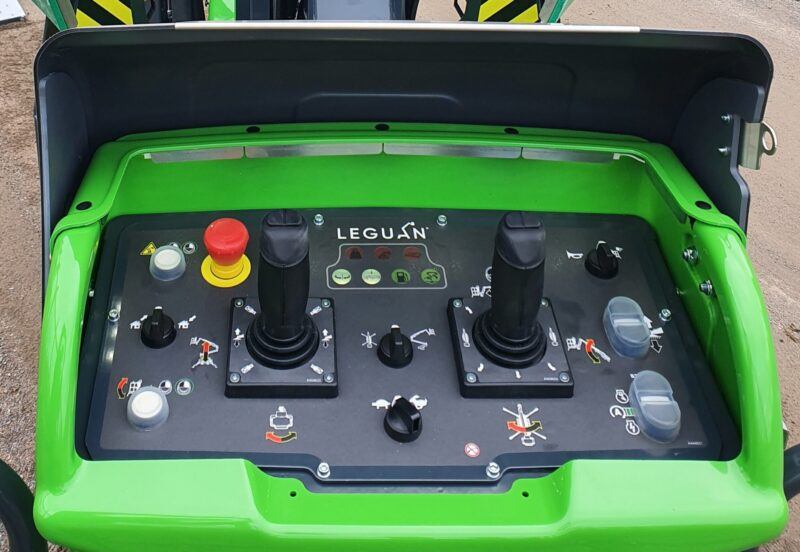

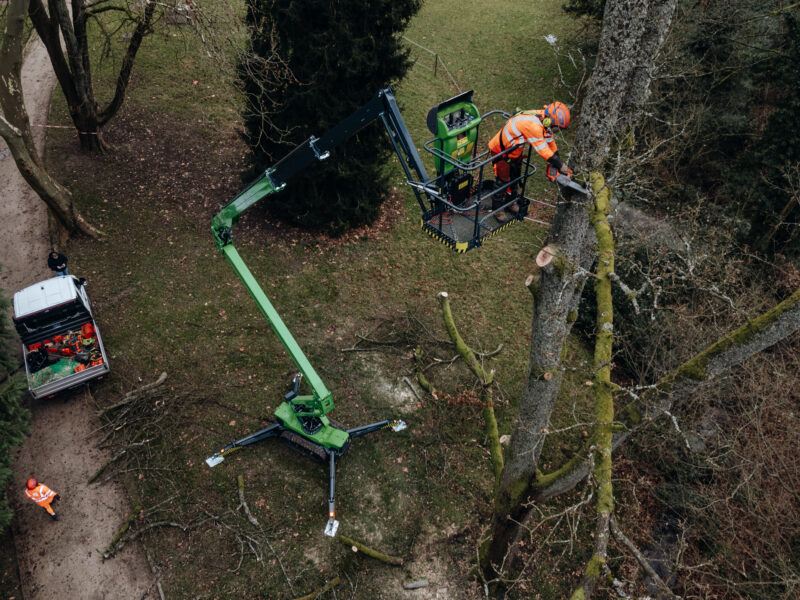

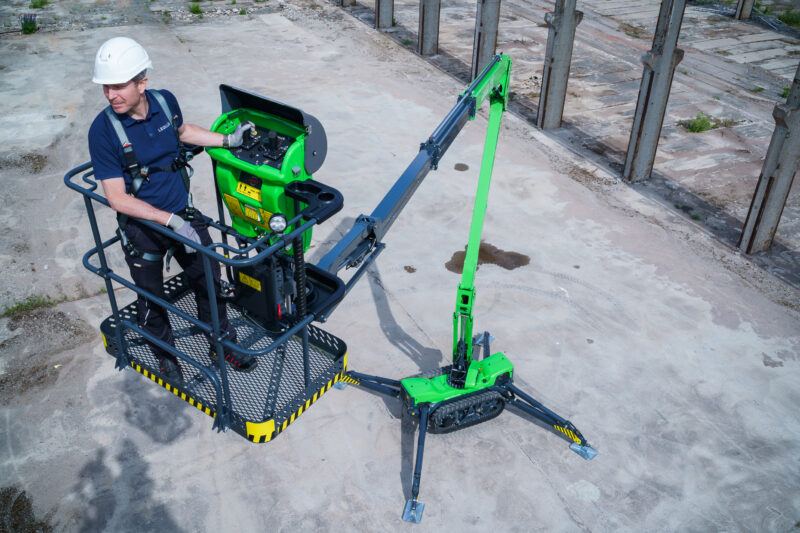

Thanks to our user-friendly joystick controls, controlling the boom structure is steady and simultaneous movements come naturally. The Leguan 225’s smart features reduce malfunctions and increase efficiency so that you can focus on the project at hand. The boom is shielded from external blows, falling branches and sawdust, making the 225 a great choice for arborists and construction workers alike.
TECHNICAL FEATURES
| Max. lift capacity |
250 kg (2 persons) |
| Max. working height |
22.50 m |
| Max. platform height |
20.50 m |
| Max. outreach |
9.1 m (250 kg) –
11.2 m (120 kg) |
| Transport dimensions, L x W x H |
6.03 x 1.33 x 2.2 m |
| Platform dimensions |
1.33 x 0.75 m |
| Rotation of THE PLATFORM |
110º (±55º) |
| Slewing |
360º |
| Gradeability |
45% (25º) |
| Dimensions w/o platform, L x W |
5,27 x 1,25 m |
| Outrigger support dimensions |
4,08 x 4,08 m |
| Max. slope for outriggers |
25% (14º) |
| weight |
2.950 kg |
| Engine |
Kubota 21 hp diesel or
230 V / 2.2 kW electric |
| Drive system: hydraulic |
tracks |
| Max. Drive speed |
3.1 km/h |
