ROTARY BROOM

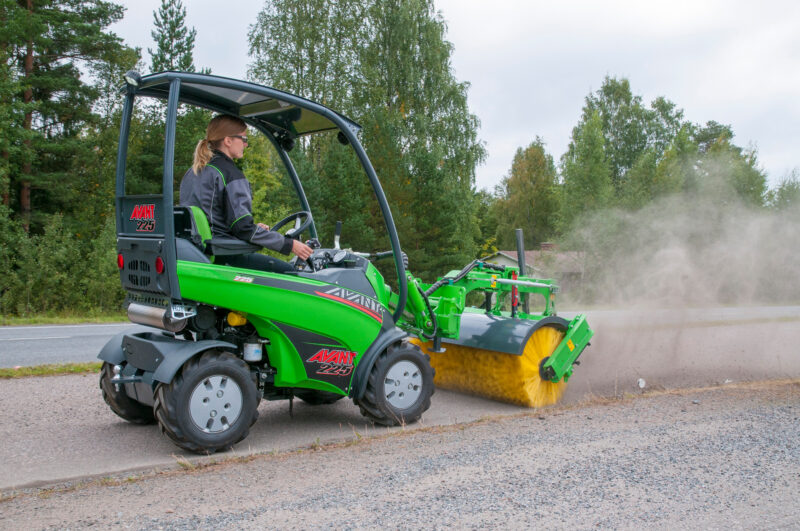

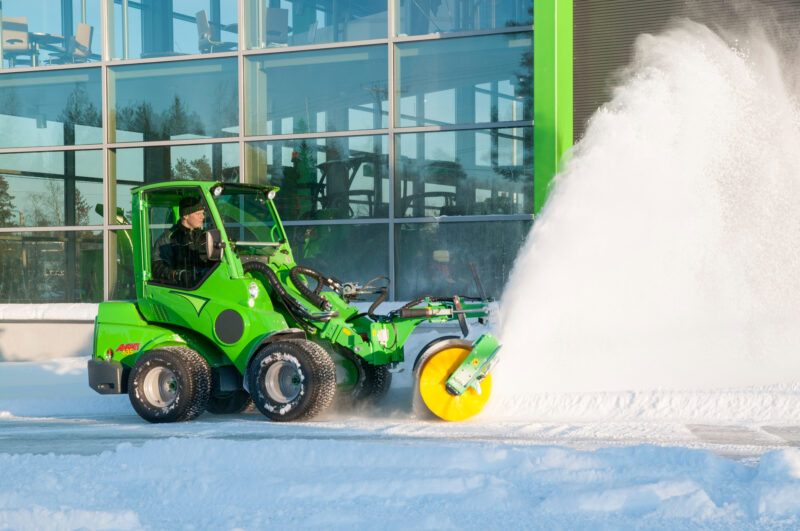

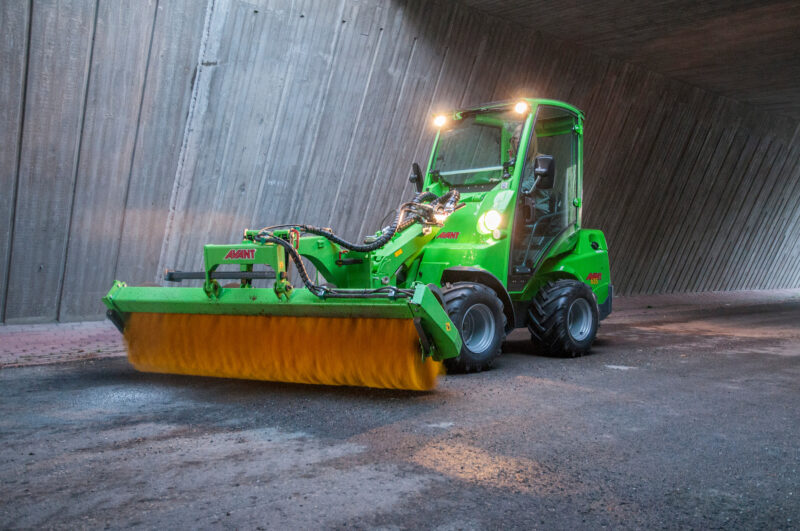

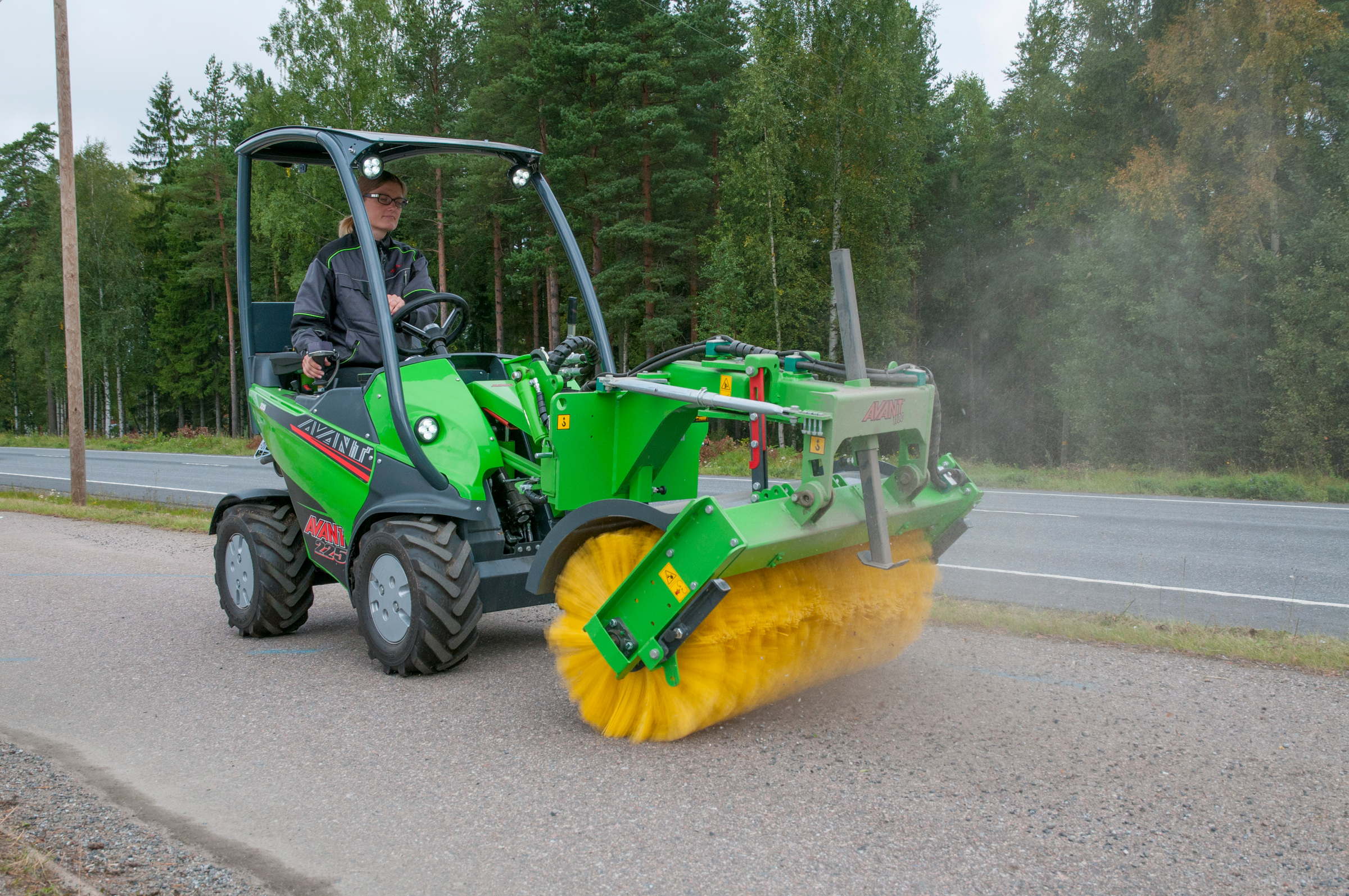

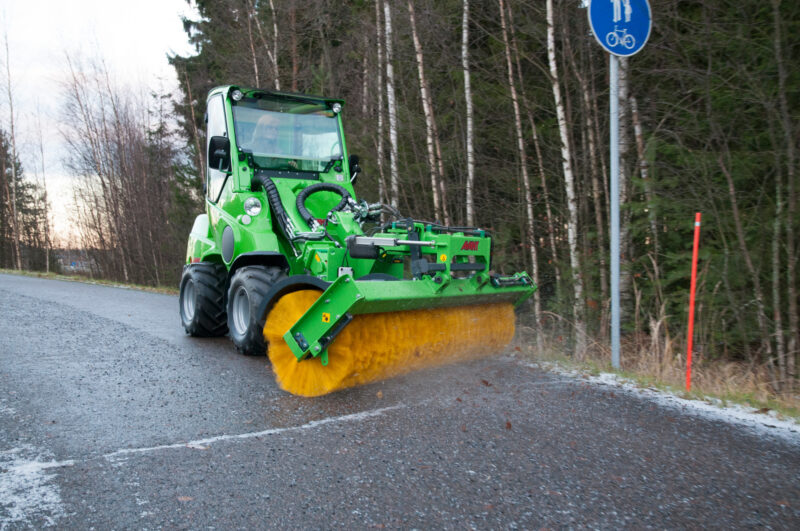

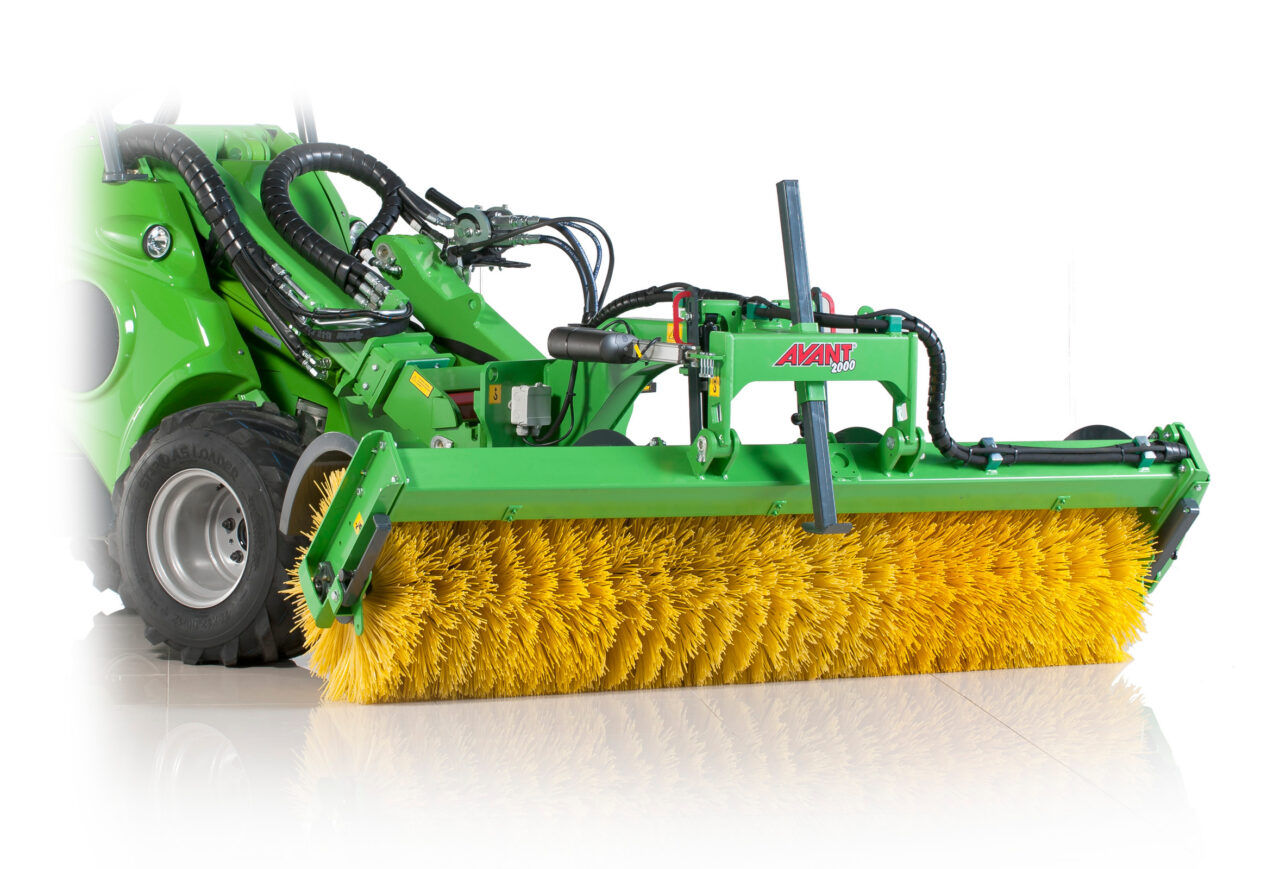

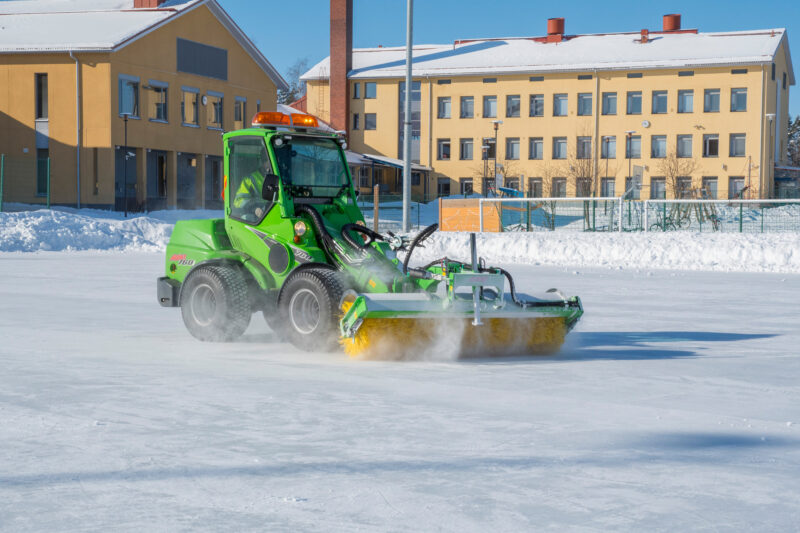

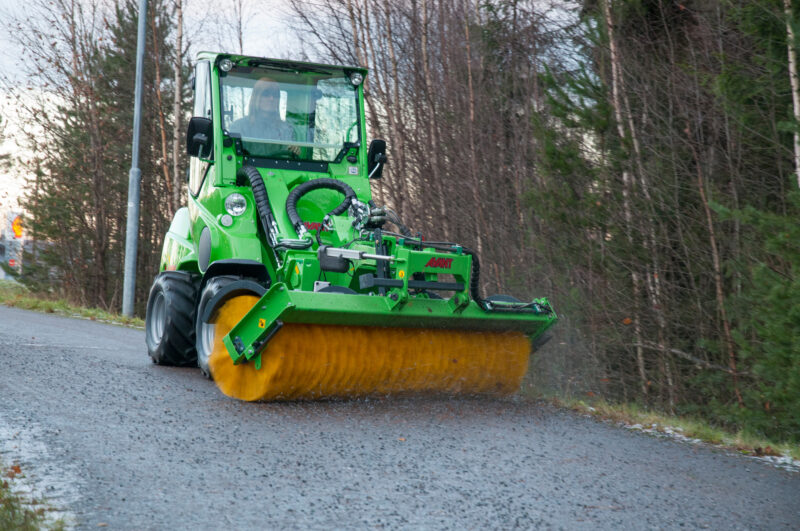

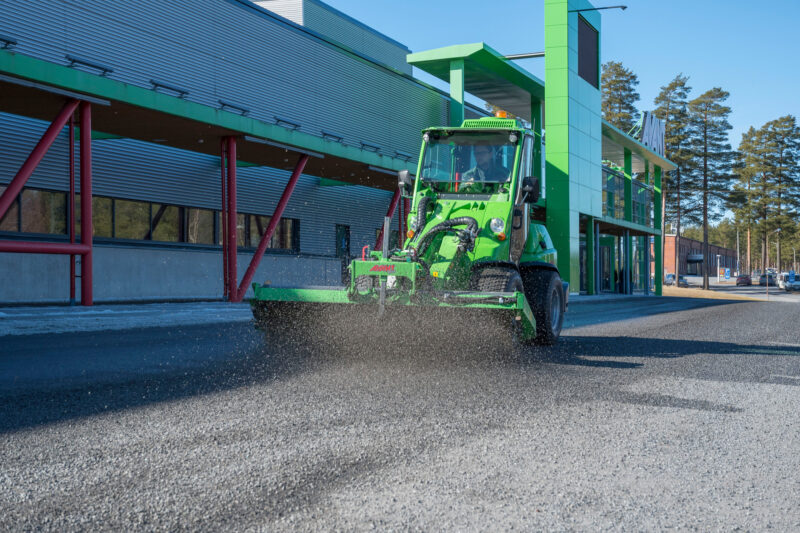

Avant rotary broom is an efficient and easy to use the attachment for various cleaning jobs. Three working widths available, 1100, 1500 and 2000 mm. The 1500 and 2000 mm brooms are equipped as standard with turning which is powered by electric actuator motor. This means turning of the broom is easily and comfortably operated with a switch from the driver’s seat.

The floating mechanism is completely new, and now instead of wheels the brush is resting on its bristles and the whole brush axle is floating freely. This guarantees a noise-free float for the brush and a lot of movement space, making sweeping easier. The broom is equipped with supports which can be extended when the broom is not in use, so that the broom rests on the supports and the nylon brush doesn’t get damaged during storage.

  • Professional sweeper with manual or electric turning
  • Free-floating broom allows big vertical movement and guarantees excellent sweeping result
  • Equipped with extendable supports for storage: nylon brush doesn’t get damaged during storing

TECHNICAL INFORMATION

Model 1100 1500 2000
Working width 1100 m 1500 mm 2000 mm
Total width 1370 mm 1770 mm 2270 mm
Broom diameter 550 mm 550 mm 550 mm
Turning manual electric electric
Turning angle +/- 25 ° +/- 25 ° +/- 25 °
Weight 170 kg 200 kg 260 kg
Product no A36067 A35284 A35583

The optional Opticontrol is recommended on the loader.

Options

Electric turning for rotary broom 1100 mm  A36112
Support wheels for rotary broom

A35760

Rubber lip, rotary broom 1100

A438900

Rubber lip, rotary broom 1500

A438874

Rubber lip, rotary broom 2000

A438914

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
1100
1500
2000
