Pallet fork

More images

plus

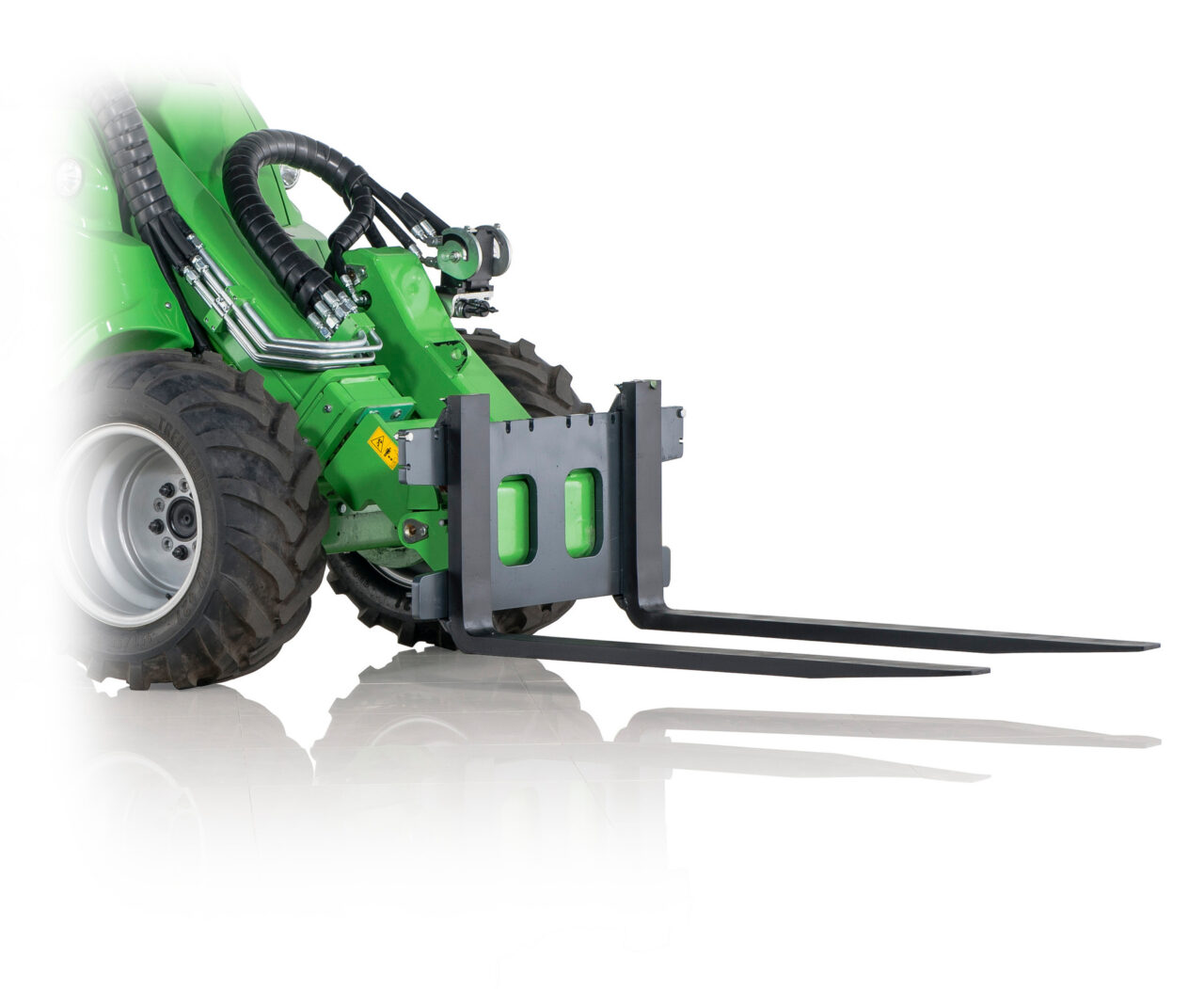

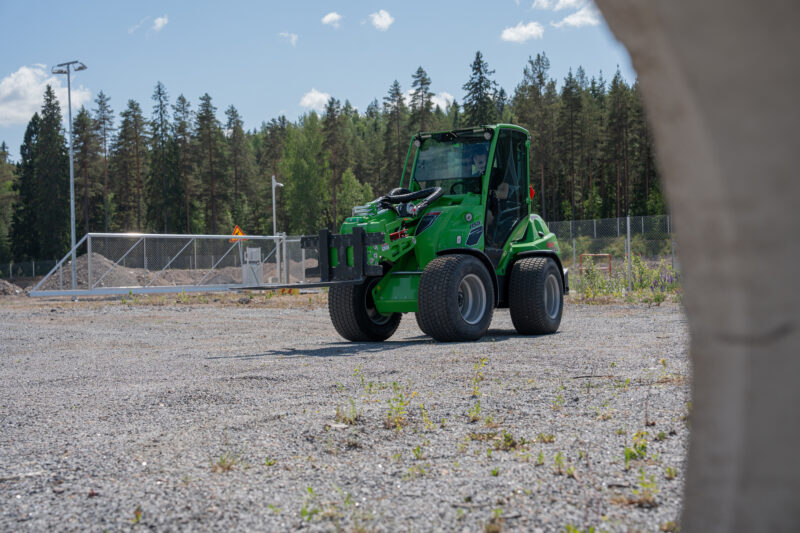

Avant pallet fork is the right attachment for lifting and handling of different types of materials on pallets. Fork width can easily be adjusted thanks to the quick-lock mechanism. The forks are made of high tensile forged steel and designed in accordance with the ISO2330 standard.

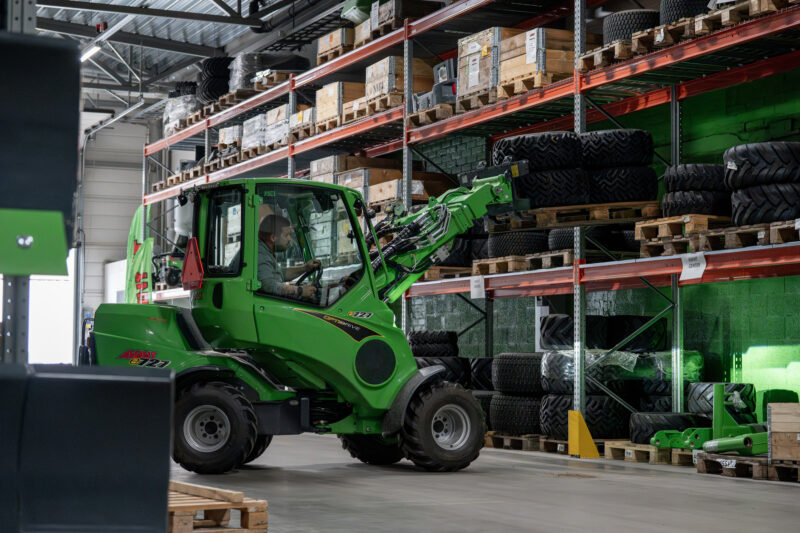

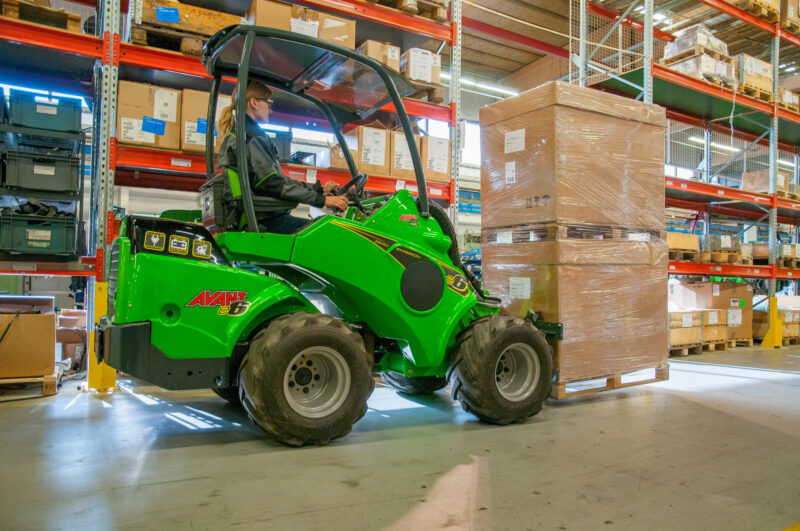

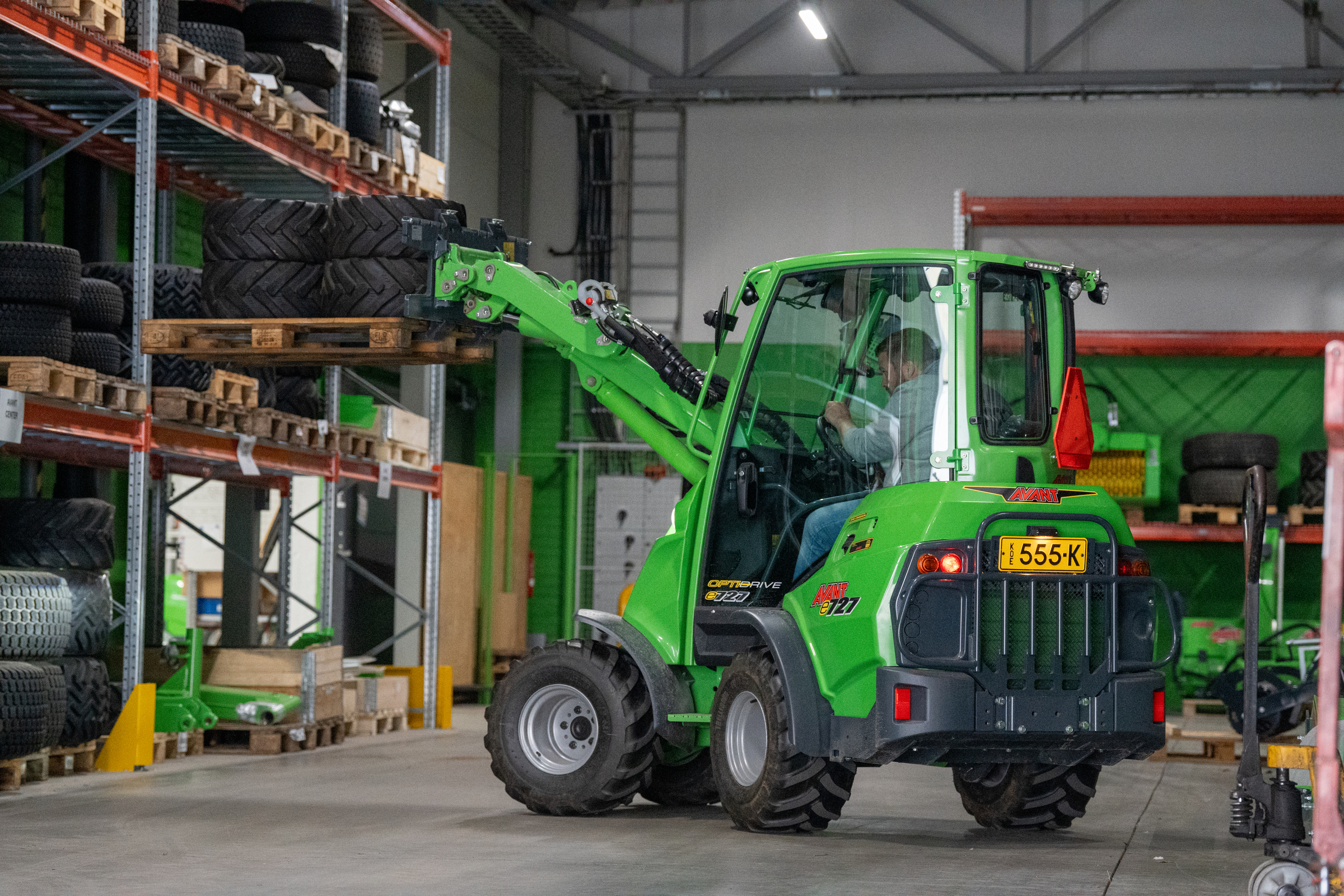

Avant is an excellent machine for load handling thanks to the precise steering and drives control. Compared with a conventional forklift truck Avant is superior when working outdoors and on terrains, be it winter or summer.

  • Excellent field of vision both to the attachment and to the environment makes working with pallet forks precise and easy

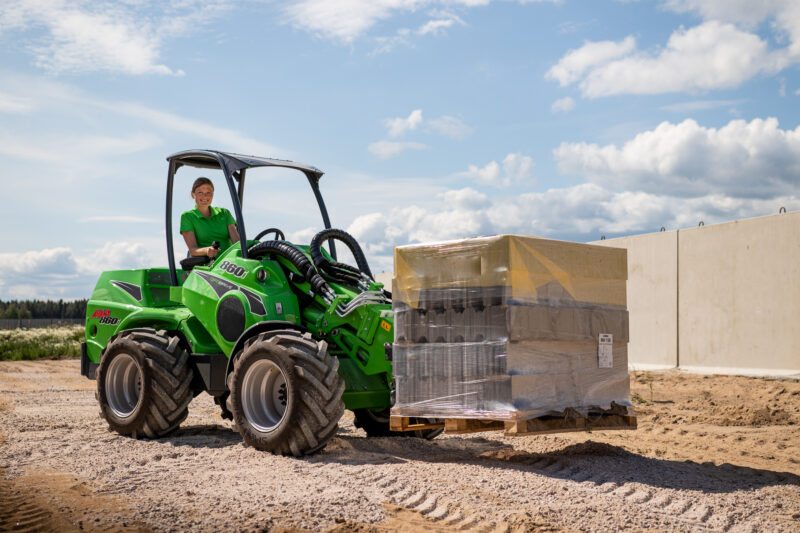

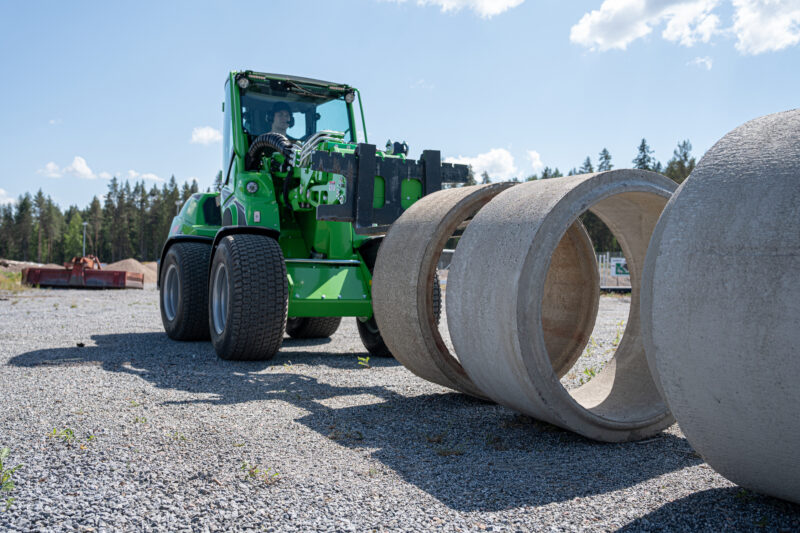

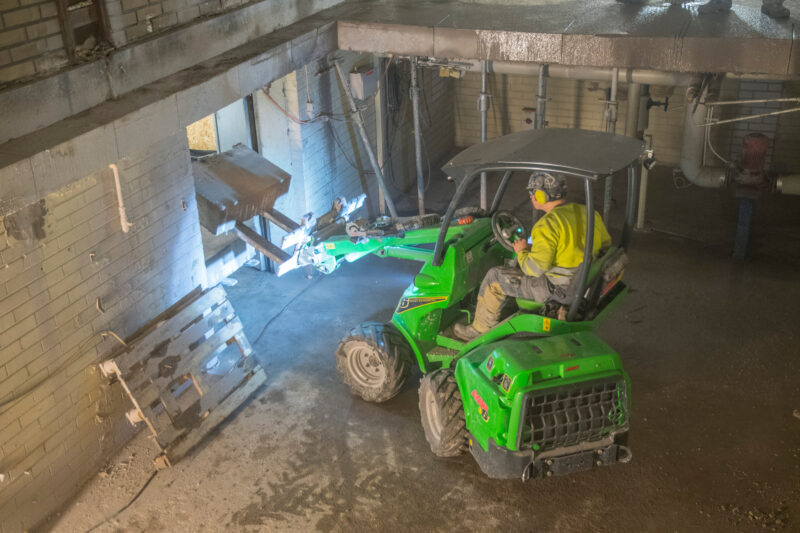

  • Pallet fork is a useful attachment on construction sites, farms, as well as on the company’s yard doing material handling jobs
  • Can be tilted sideways and rotated with the optional tilt adapters and attachment rotator

TECHNICAL INFORMATION

Model Fork length Weight Max. load Product no
Regular 850 mm 90 kg 1000 kg A21047
HD 1100 mm 115 kg 1400 kg A21039
XHD 1200 mm 140 kg 2000 kg A36589



OPTIONS

Bolt on back frame

A36346

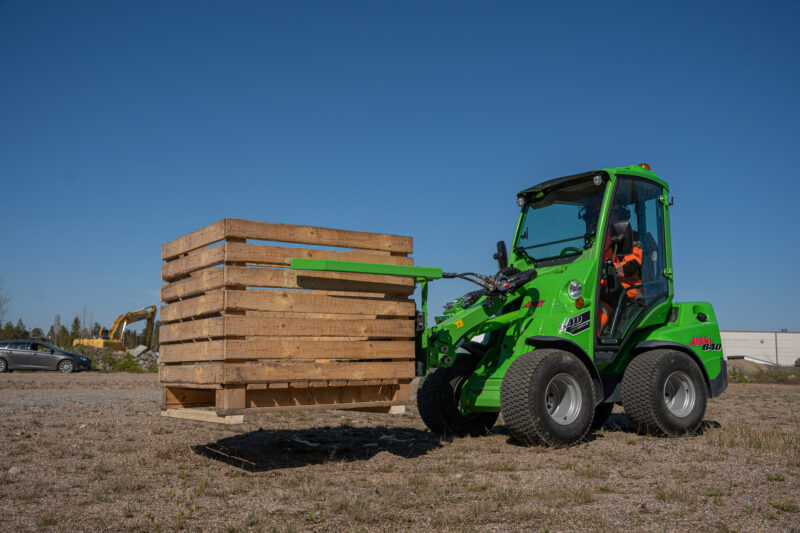

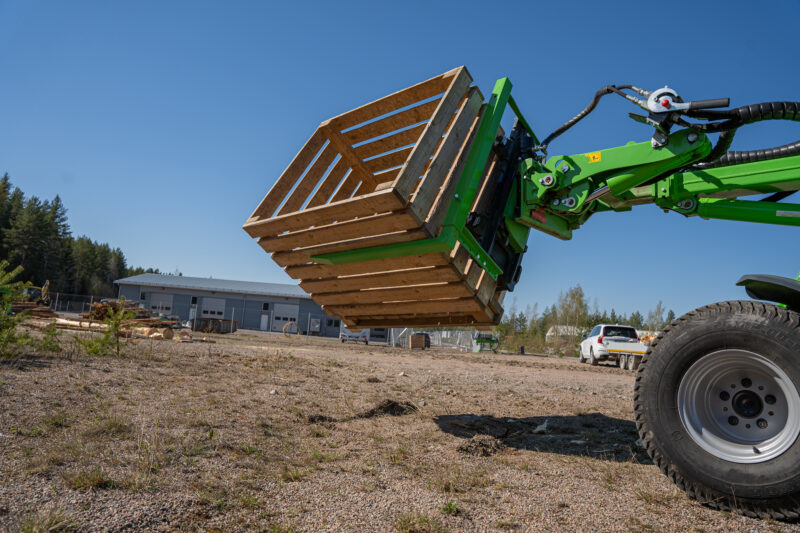

Rotation support, adjustable* A441445

*(prevents boxes from falling from the pallet fork when rotating & emptying them with the attachment rotator A424406)

COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
