Digging and construction

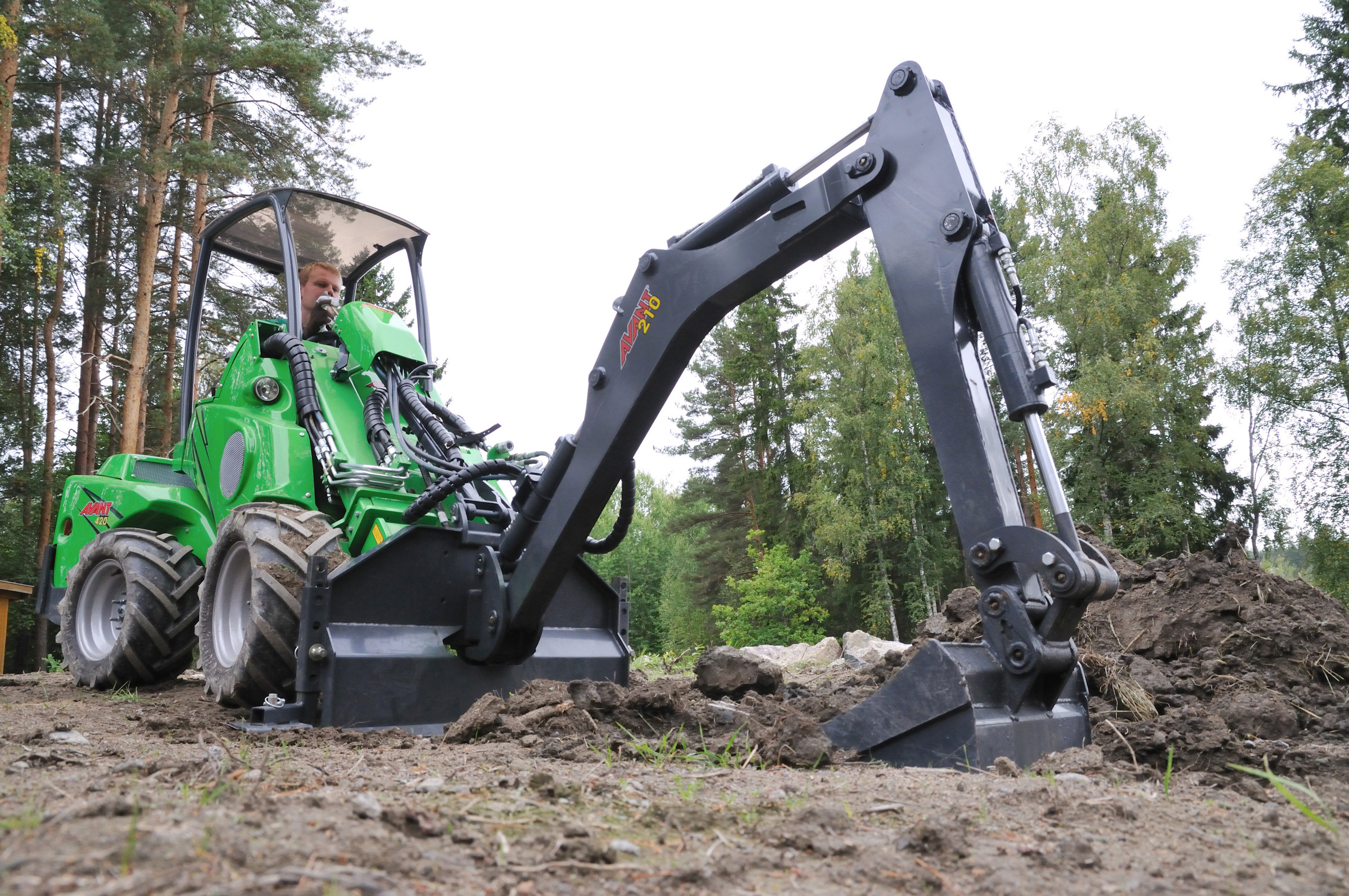

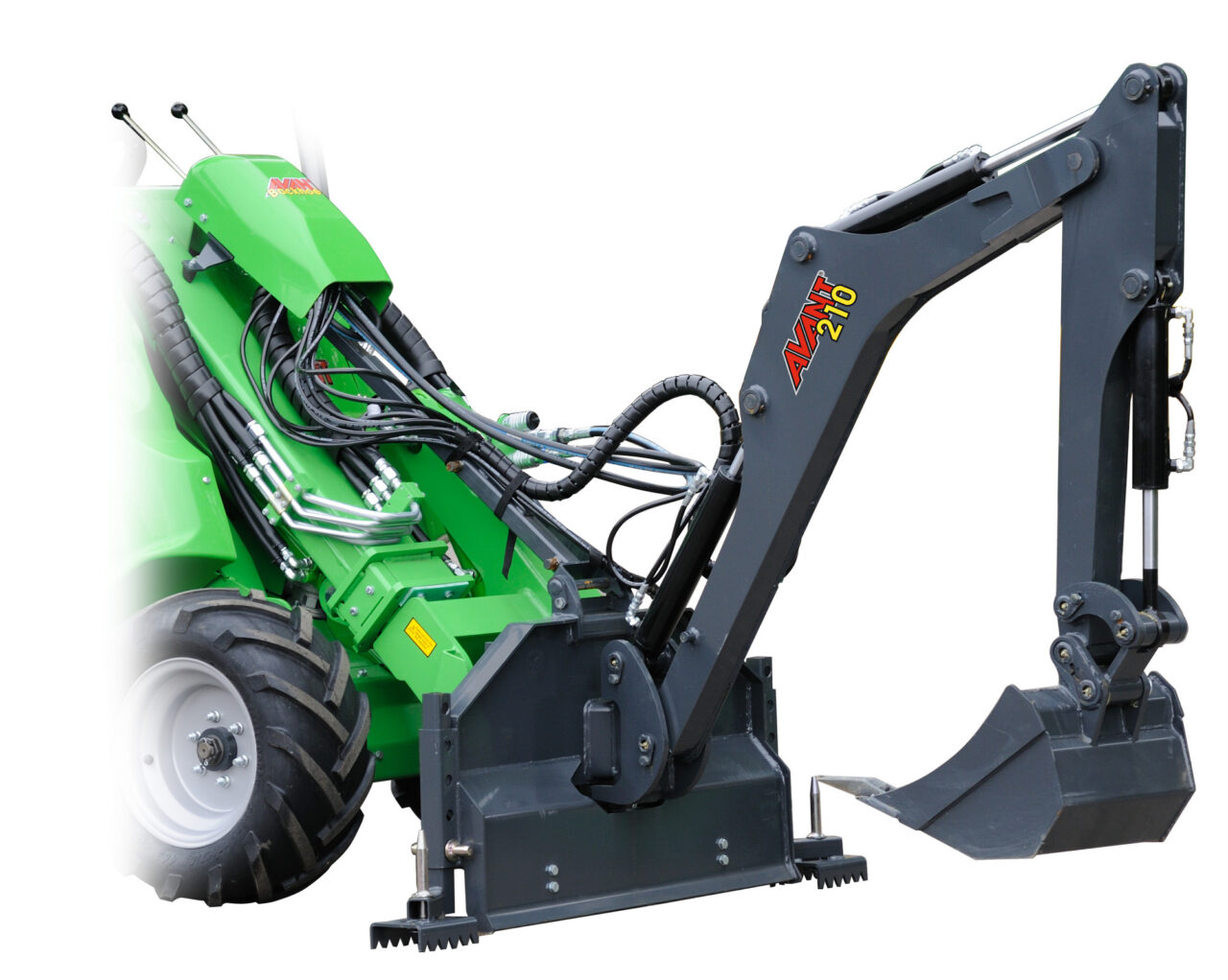

BACKHOE 210

Avant backhoe 210 designs main focus was user friendliness and straight forward construction. Backhoe 210 is slightly larger than its smaller sister backhoe 170, which makes it more versatile and gives more digging depth.

Boom movement speeds are steplessly adjustable, which makes operation easier also for inexperienced users. To facilitate the digging the frame of the backhoe is as low as possible, which gives unrestricted visibility to the work area.

  • A powerful, strong and compact backhoe

  • Easy to connect and disconnect to Avant

  • Smooth movements with precise control valve,
    easy to operate

  • Uncomplicated and economical backhoe

TECHNICAL INFORMATION

Max. digging depth

2100 mm

Standard bucket

400 mm (A415230)

Weight

230 kg

Product no

A33747

OPTIONS

Bucket 250 mm A415232
Bucket 750 mm A35564



COMPATIBLE MODELS

Very compatible
Compatible
Incompatible
Model
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
e513
e527
