S30 MECHANICAL  SIDE ARM

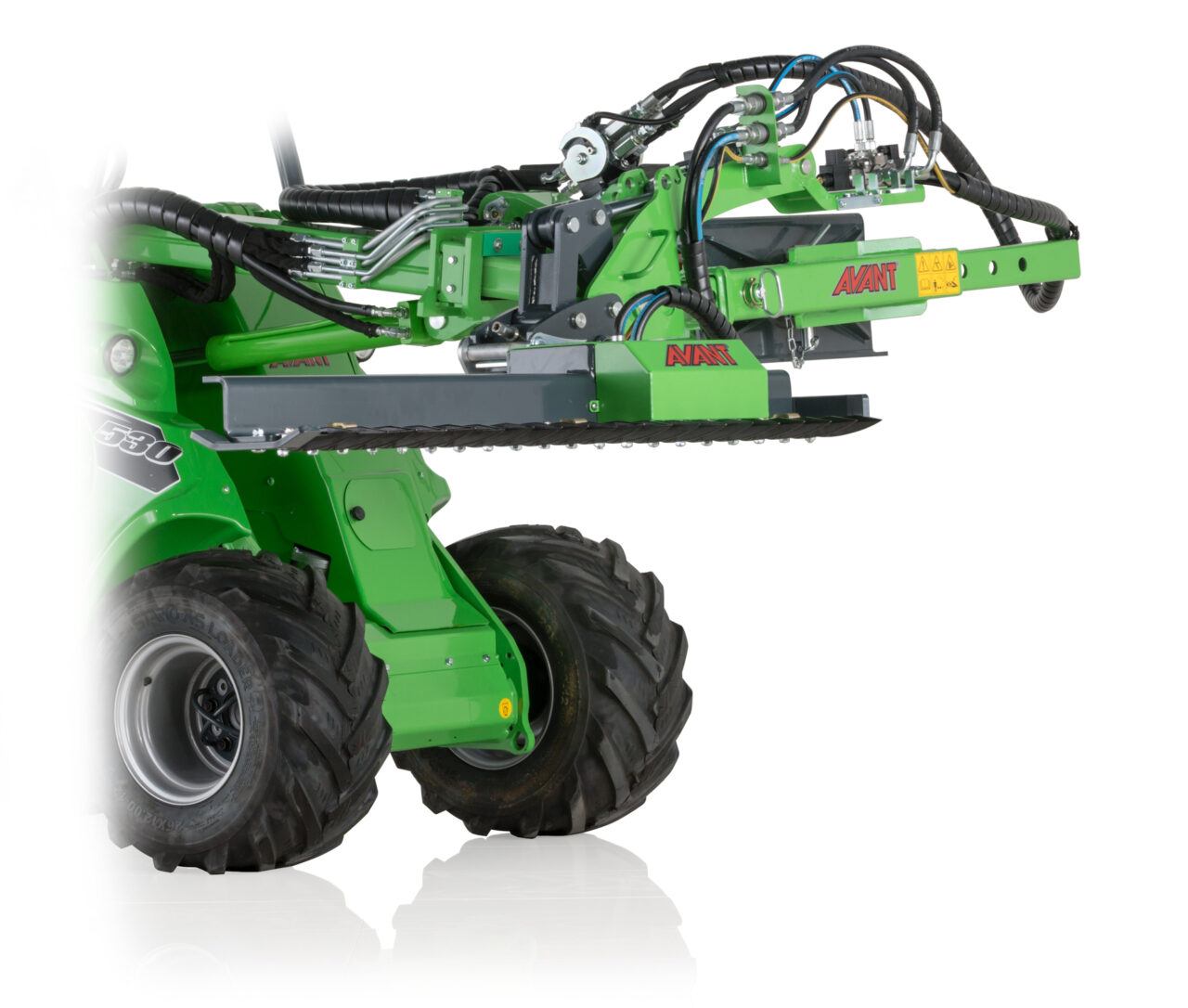

The mechanical sidearm with the S30 quick-attach system can be fitted with lighter (max. 200 kg) attachments like the A430938 S30 cutting bar and the A429926 S30 multi-function drive unit with HD brushes. It is equipped with a mechanical, manually extendable straight telescopic arm and a hydraulic jib arm which tilts the attachment up and down.

Telescoping to the side is max. 1000 mm and jib arm movement is max. 45° down and 90° up from the horizontal position.

The sidearm is pivoted in the middle, locked with a pin, and can be turned manually up and down with 45° steps – and even 180° to the other side, which makes it possible to work either on the right or on the left side of the loader. The arm is rigid to all directions, there is no release mechanism in case it hits an obstacle. An adapter which allows mounting an attachment with standard Avant quick attach on the S30 side arm is available as an option.

• Versatile sidearm can be fitted with a hedge cutter bar, weed brushes, etc.
• Equipped with a mechanical, manually extendable straight telescopic arm and a hydraulic jib arm
• Telescoping to the side max. 1000 mm, jib boom movement max 45° down and 90° up from horizontal position

• S30 attachment’s hydraulic hoses are connected to the side arm with Multi connector

TECHNICAL INFORMATION

The optional Opticontrol® is required on the loader.

OPTIONS

Standard attachment adapter for S30 side arms, A460243
Extension arm, with manual telescoping 550–950 mm, A464146
