Horizontal log splitter

More images

plus

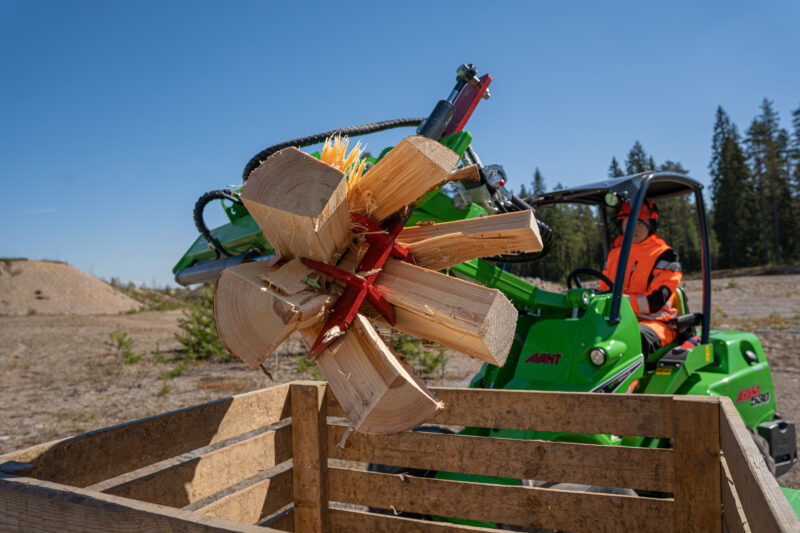

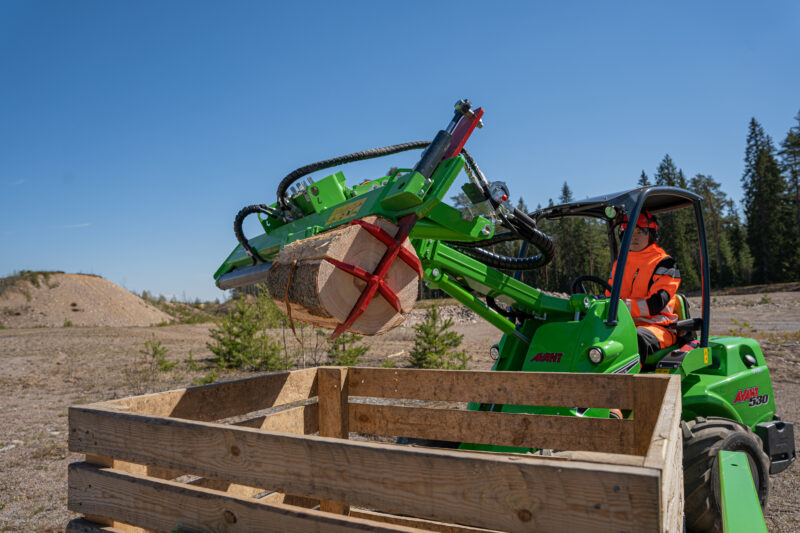

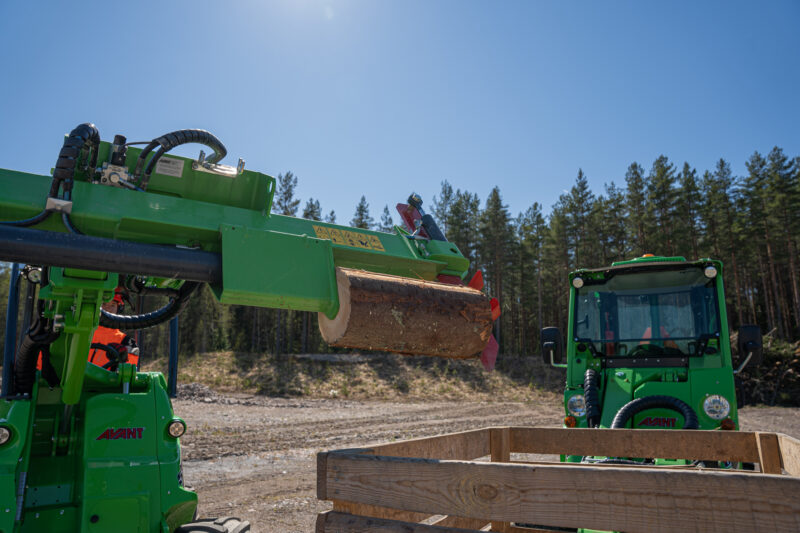

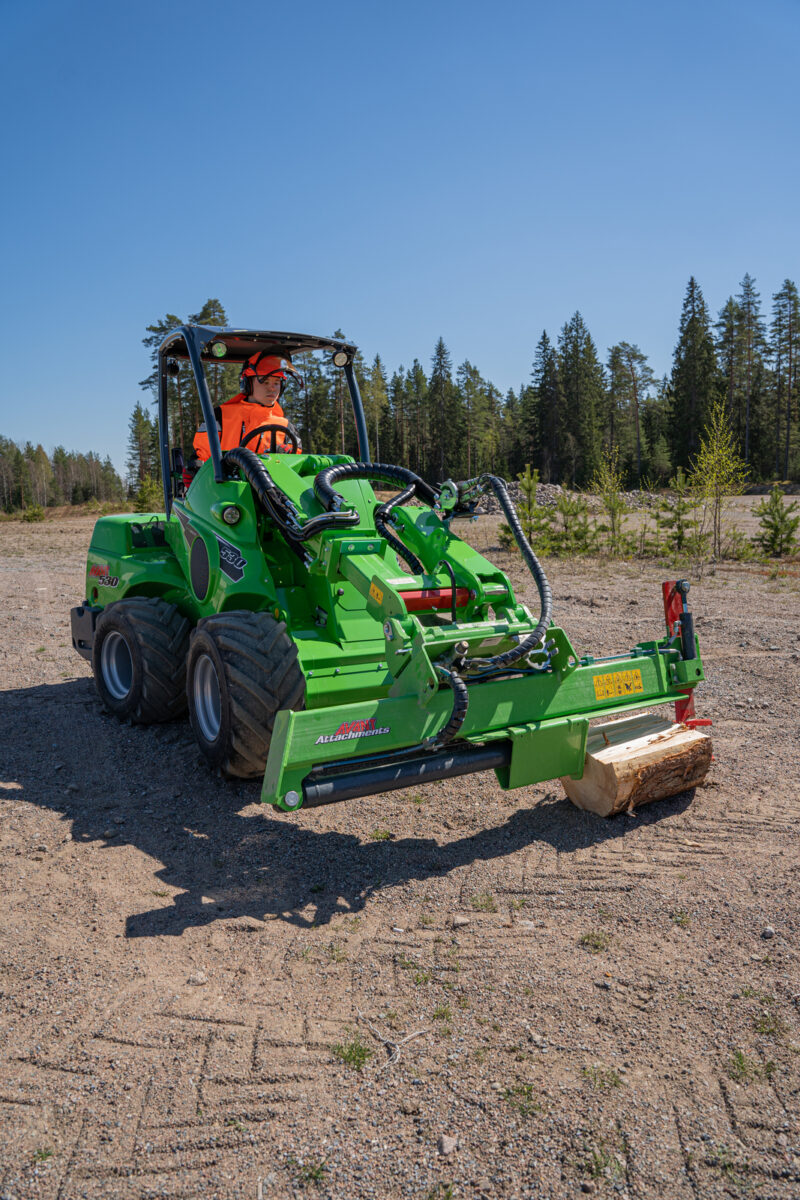

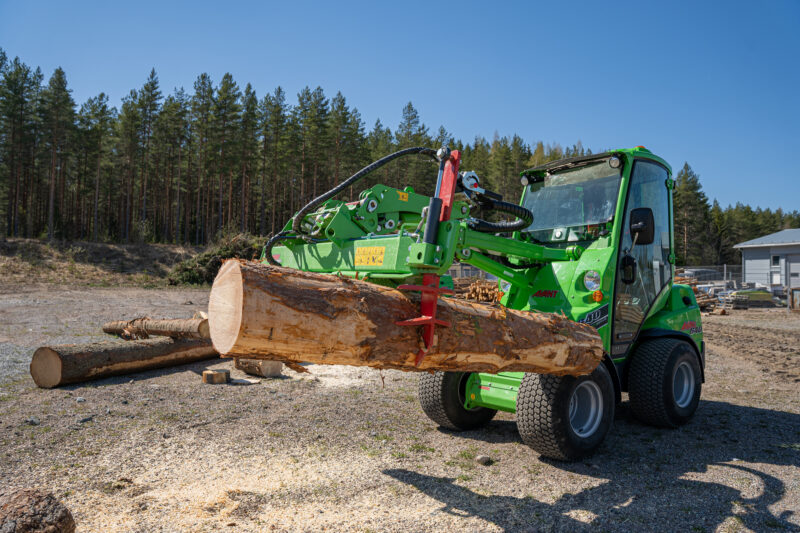

Horizontal log splitter is the most economical and simple way to make firewood with Avant. It mounts on the attachment coupling plate of the loader and is operated from the driver’s seat. Splitting happens by picking up the log with the splitter and pushing it against the splitting wedge. The log can also be held with the splitter and transported to desired place for splitting.

Splitting force is 7,6 tons. Maximum log length is 660 mm and diameter 300 mm.

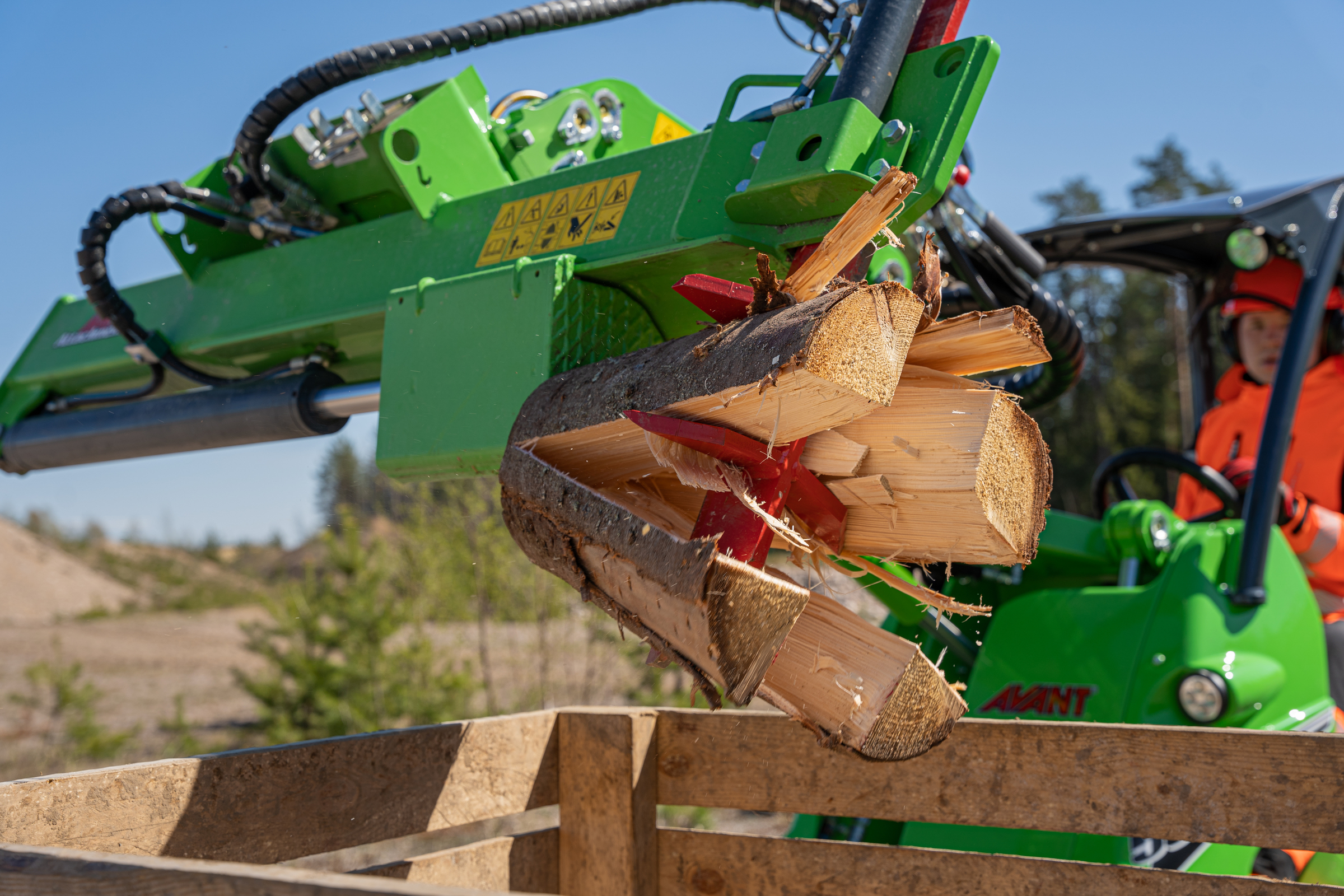

A 4 way splitting wedge is standard equipment, allowing splitting into two or four pieces; a 6 way wedge is available as an option. Wedge height adjustment is manual as standard, hydraulic height adjustment is available as an option.

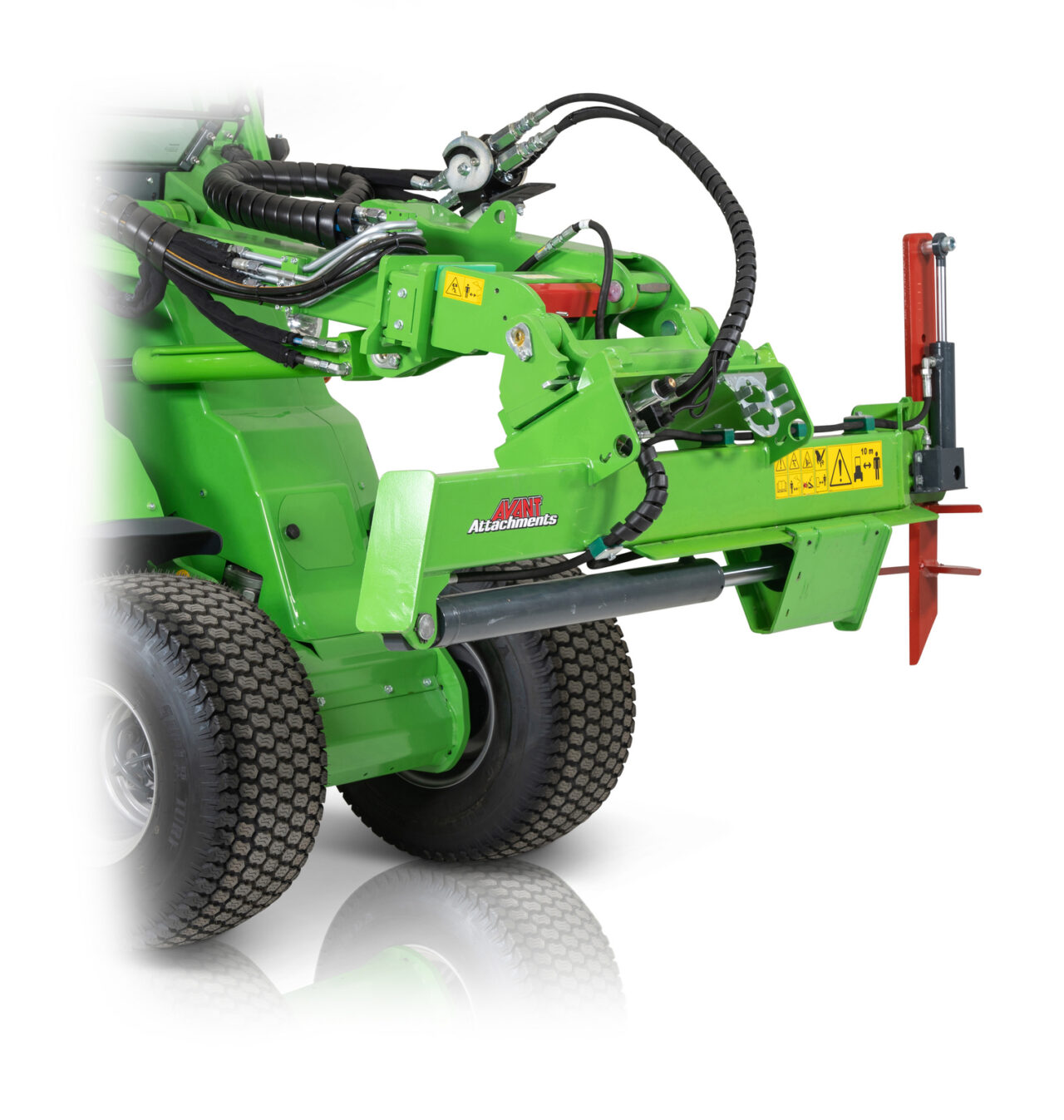

  • Horizontal log splitter, mounts on the attachment coupling plate of the loader
  • Max. log length 660 mm, diameter 300 mm
  • Splitting force 7,6 tons
  • 4 way splitting wedge as standard, 6 way wedge available as an option
  • Manual wedge height adjustment as standard, hydraulic adjustment available as an option

TECHNICAL INFORMATION

Max. log length

660 mm

Max. log diameter

300 mm

Max. splitting force

7,6 tons

Weight

118 kg
Product no A443168



OPTIONS

6 way splitting wedge A443782
Hydraulic splitting wedge adjustment A443834



MODELOS COMPATÍVEIS

Muito compatível
Compatível
Incompatível
220
225
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
630
635
640
640
640
735
745
750
755i
760i
850
860i
R20
R28
R35
e513
e527
